Silicon Laboratories Si5346-EVB User manual

Rev. 1.0 5/15 Copyright © 2015 by Silicon Laboratories Si5346-EVB
Si5346-EVB
Si5346 EVALUATION BOARD USER’SGUIDE
Description
The Si5346-EVB is used for evaluating the Si5346
Any-Frequency, Any-Output, Jitter-Attenuating Clock
Multiplier. The Si5346 contains 2 independent DSPLLs
in a single IC with programmable jitter attenuation
bandwidth on a per DSPLL basis. The Si5346-EVB
supports 4 independent input clocks and 4 independent
clock outputs via on-board SMA connectors. The
Si5346-EVB can be controlled and configured using the
ClockBuilderPro(CBPro) software tool. Test points
are provided on-board for external monitoring of supply
voltages.
EVB Features
Powered from USB port or external power supply.
Onboard 48 MHz XTAL allows standalone or
holdover mode of operation on the Si5346.
CBProGUI programmable VDD supply allows
device to operate from 3.3, 2.5, or 1.8 V.
CBProGUI programmable VDDO supplies allow
each of the 4 outputs to have its own power supply
voltage selectable from 3.3, 2.5, or 1.8 V.
CBProGUI allows control and measurement of
voltage, current, and power of VDD and all 4 VDDO
supplies.
Status LEDs for power supplies and control/status
signals of Si5346.
SMA connectors for input clocks, output clocks, and
optional external timing reference clock.
Figure 1. Si5346 Evaluation Board

Si5346-EVB
2 Rev. 1.0
1. Si5346-EVB Functional Block Diagram
Below is a functional block diagram of the Si5346-EVB. This EVB can be connected to a PC via the main USB
connector for programming, control, and monitoring. See section “3. Quick Start” or section “9. Installing
ClockBuilderPro (CBPro) Desktop Software” for more information.
Figure 2. Si5346-EVB Functional Block Diagram

Si5346-EVB
Rev. 1.0 3
2. Si5346-EVB Support Documentation and ClockBuilderPro Software
All Si5346 schematics, BOMs, User’s Guides, and software can be found online at the following link:
http://www.silabs.com/products/clocksoscillators/pages/si538x-4x-evb.aspx
3. Quick Start
1. Install ClockBuilderProdesktop software from http://www.silabs.com/CBPro.
2. Connect a USB cable from Si5346-EVB to the PC where the software was installed.
3. Leave the jumpers as installed from the factory, and launch the ClockBuilderPro software.
4. You can use ClockBuilderProto create, download, and run a frequency plan on the Si5346-EVB.
5. For the Si5346 data sheet, go to http://www.silabs.com/timing.

Si5346-EVB
4 Rev. 1.0
4. Jumper Defaults
Refer to the Si5346 EVB schematics for the functionality associated with each jumper.
Si5346EVBJumperDefaults
Location Type I=Installed
0=Open Location Type I=Installed 0=Open
JP1 2 pin I
JP2 2 pin I
JP3 2 pin O
JP4 2 pin I
JP5 3 pin 1 to 2 (USB)
J17 5x2 Hdr All 5 installed

Si5346-EVB
Rev. 1.0 5
5. Status LEDs
D5, D6, D7, and D8 are status LEDs indicating the device alarms currently asserted. D11 is illuminated when USB
+5 V supply voltage is present. D12 and D13 are status LEDs showing on-board MCU activity.
Figure 3. Status LEDs
Si5346EVBStatusLEDs
Location Silkscreen Color StatusFunctionIndication
D5 LOS_XAXBB Blue XA/XB Loss of Signal indicator
D6 INTRB Blue MCU INTR (Interrupt) active
D7 LOL_BB Blue DSPLL A Loss of Lock indicator
D8 LOL_AB Blue DSPLL B Loss of Lock indicator
D11 +5V MAIN Green Main USB +5V present
D12 READY Green MCU Ready
D13 BUSY Green MCU Busy

Si5346-EVB
6 Rev. 1.0
6. Clock Input Circuits (INx/INxB)
The Si5346-EVB has eight SMA connectors (IN0/IN0B–IN3/IN3B) for receiving external clock signals. All input
clocks are terminated as shown in Figure 4 below. Note input clocks are AC coupled and 50 ohm terminated. This
represents 4 differential input clock pairs. Single-ended clocks can be used by appropriately driving one side of the
differential pair with a single-ended clock. For details on how to configure inputs as single-ended, please refer to
the Si5346 data sheet. Typically a 0.1 F DC block is sufficient, however, 10 F may be needed for lower input
frequencies. Note that the EVB is populated with both DC block capacitor values.
Figure 4. Input Clock Termination Circuit
7. Clock Output Circuits (OUTx/OUTxB)
Each of the eight output drivers (4 differential pairs) is AC coupled to its respective SMA connector. The output
clock termination circuit is shown in Figure 5 below. The output signal will have no DC bias. If DC coupling is
required, the AC coupling capacitors can be replaced with a resistor of appropriate value. The Si5346-EVB
provides an L-network at OUT0/OUT0B output pins for optional output termination resistors. Note that components
with schematic “NI” designation are not normally populated.
Figure 5. Output Clock Termination Circuit

Si5346-EVB
Rev. 1.0 7
8. External Reference Clock Input Circuit (XA/XB)
The Si5346 EVB supports either XTAL or external reference clock on XA/XB. By default, the XTAL is populated. If
a reference clock is required for testing, remove Y1 and place C93/C94. A low-jitter reference clock can then be
applied to J25/J26. Note that XA/XB is the jitter reference for the device. Jitter performance at the output of the
Si5346 will depend on the jitter performance of the reference clock at XA/XB.
Figure 6. External Reference Clock Termination Circuit

Si5346-EVB
8 Rev. 1.0
9. Installing ClockBuilderPro (CBPro) Desktop Software
To install the CBOPro software on any Windows 7 (or above) PC:
Go to http://www.silabs.com/CBPro and download ClockBuilderPro software.
Installation instructions and User’s Guide for ClockBuilderProcan be found at the download link shown above.
Please follow the instructions as indicated.
10. Using the Si5346 EVB
10.1. Connecting the EVB to Your Host PC
Once ClockBuilderProsoftware is installed, connect to the EVB with a USB cable as shown below.

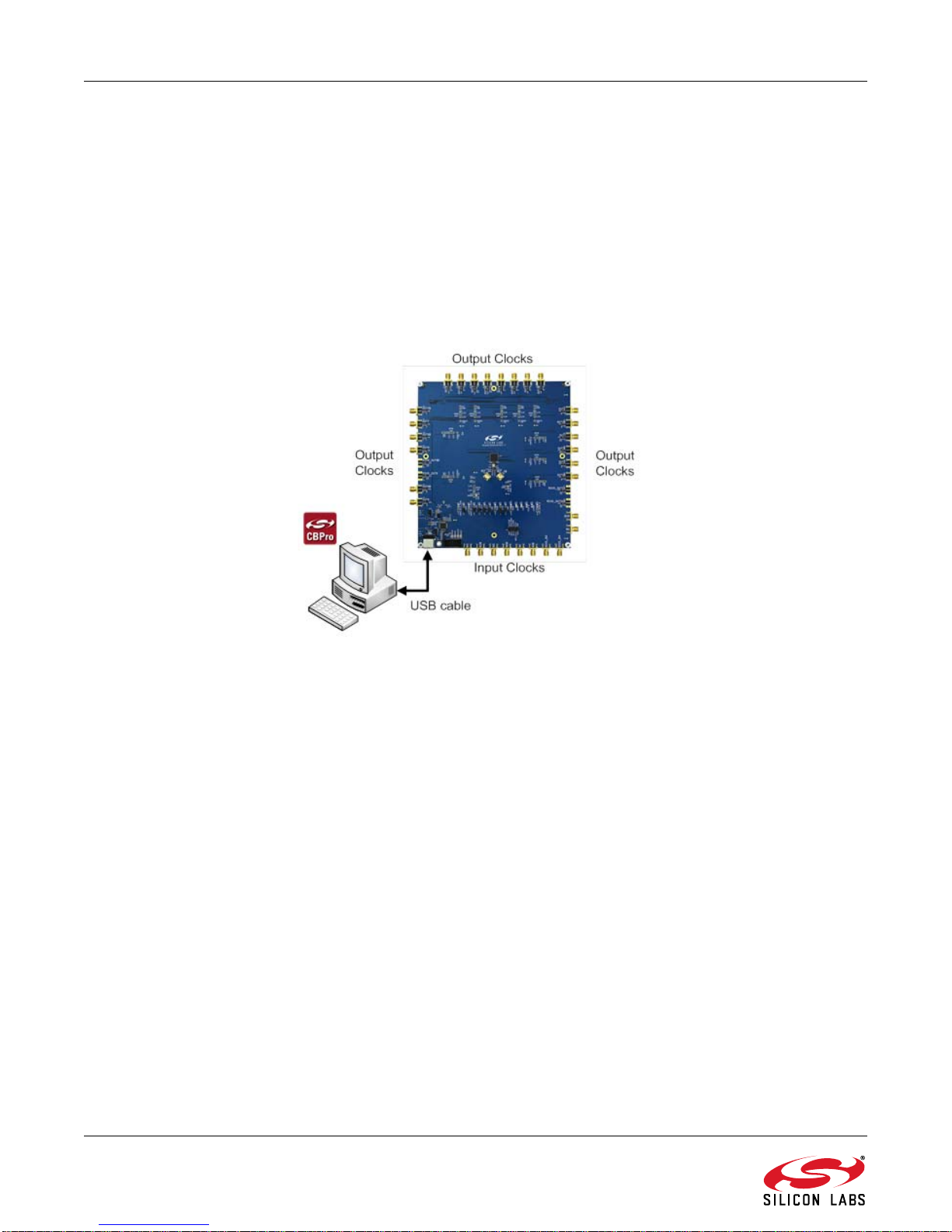

Figure 7. EVB Connection Diagram
10.2. Additional Power Supplies
Although additional power (besides the power supplied by the host PC’s USB port) is not needed for most
configurations, two additional +5 VDC power supplies (MAIN and AUX) can be connected to J33 and J34 (located
on the bottom of the board, near the USB connector). Refer to the Si5346-EVB schematic for details.

Si5346-EVB
Rev. 1.0 9
10.3. Overview of ClockBuilderProApplications
The ClockBuilderProinstaller will install two main applications:
Figure 8. Application #1: ClockbuilderPro Wizard
Use the CBPro Wizard to:
Create a new design
Review or edit an existing design
Export: create in-system programming
Figure 9. Application #2: EVB GUI
Use the EVB GUI to:
Download configuration to EVB’s DUT (Si5346)
Control the EVB’s regulators
Monitor voltage, current, power on the EVB

Si5346-EVB
10 Rev. 1.0
10.4. Common ClockBuilderProWork Flow Scenarios
There are three common workflow scenarios when using CBPro and the Si5346 EVB. These workflow scenarios
are:
Workflow Scenario #1: Testing a Silicon Labs-Created Default Configuration
Workflow Scenario #2: Modifying the Default Silicon Labs-Created Device Configuration
Workflow Scenario #3: Testing a User-Created Device Configuration
Each is described in more detail in the following sections.
10.5. Workflow Scenario #1: Testing a Silicon Labs-Created Default Configuration
The flow for using the EVB GUI to initialize and control a device on the EVB is as follows.
Once the PC and EVB are connected, launch ClockBuilder Pro by clicking on this icon on your PC’s desktop.

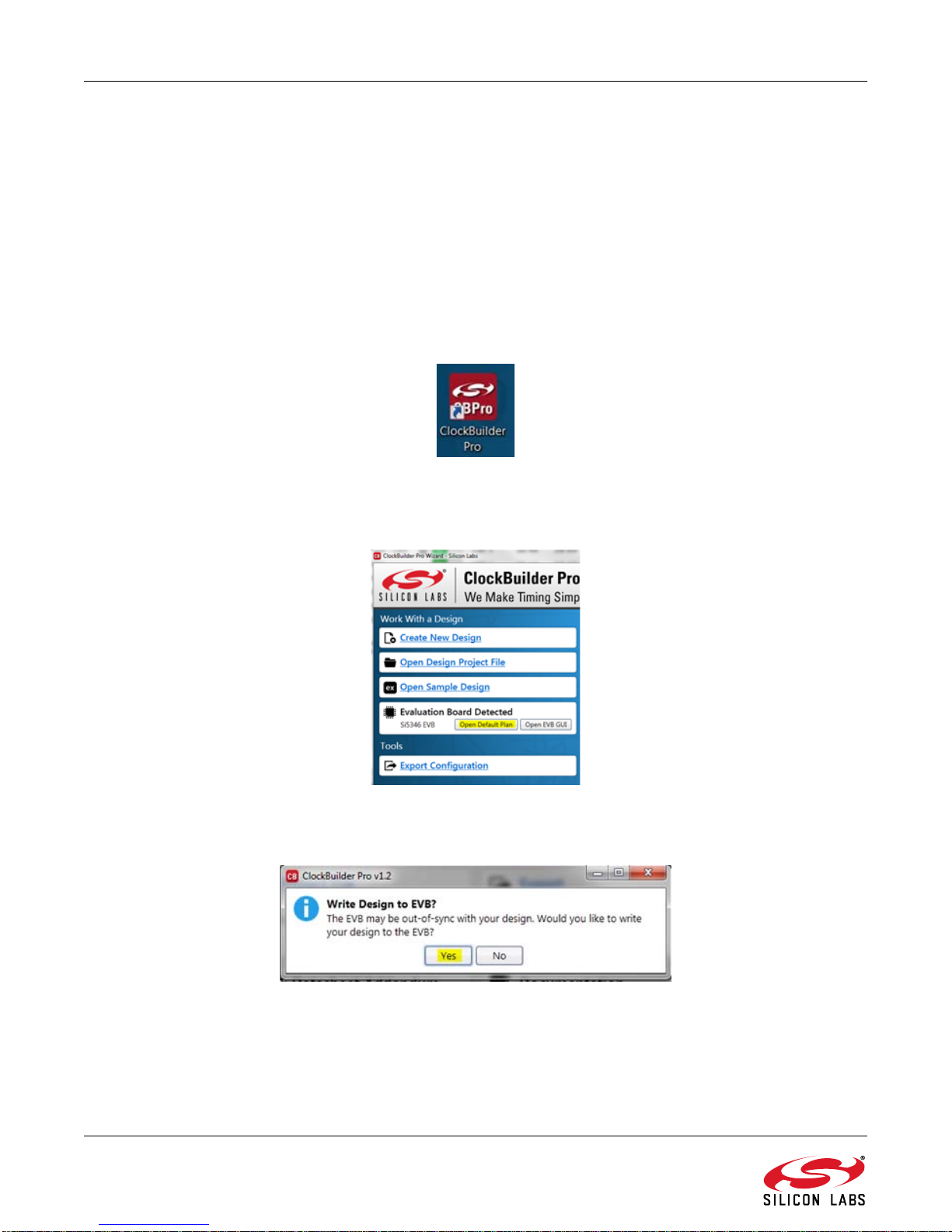

Figure 10. ClockBuilderPro Desktop Icon
If an EVB is detected, click on the “Open Default Plan” button on the Wizard’s main menu. CBPro automatically
detects the EVB and device type.
Figure 11. Open Default Plan
Once you open the default plan (based on your EVB model number), a popup will appear.
Figure 12. Write Design to EVB Dialog
Select “Yes” to write the default plan to the Si5346 device mounted on your EVB. This ensures the device is
completely reconfigured per the Silicon Labs default plan for the DUT type mounted on the EVB.

Si5346-EVB
Rev. 1.0 11
Figure 13. Writing Design Status
After CBPro writes the default plan to the EVB, click on “Open EVB GUI” as shown below.
Figure 14. Open EVB GUI
The EVB GUI will appear. Note all power supplies will be set to the values defined in the device’s default CBPro
project file created by Silicon Labs, as shown below.
Figure 15. EVB GUI Window
10.5.1. Verify Free-Run Mode Operation
Assuming no external clocks have been connected to the INPUT CLOCK differential SMA connectors (labeled
“INx/INxB”) located around the perimeter of the EVB, the DUT should now be operating in free-run mode, as the
DUT will be locked to the crystal in this case.
You can run a quick check to determine if the device is powered up and generating output clocks (and consuming
power) by clicking on the Read All button highlighted above and then reviewing the voltage, current and power
readings for each VDDx supply.
Note: Shutting “Off” then “On” of the VDD and VDDA supplies will power-down and reset the DUT. Every time you do
this, to reload the Silicon Labs-created default plan into the DUT’s register space, you must go back to the Wiz-
ard’s main menu and select “Write Design to EVB”:

Si5346-EVB
12 Rev. 1.0
Figure 16. Write Design to EVB
Failure to do the step above will cause the device to read in a pre-programmed plan from its non-volatile
memory (NVM). However, the plan loaded from the NVM may not be the latest plan recommended by
Silicon Labs for evaluation.
At this point, you should verify the presence and frequencies of the output clocks (running to free-run mode from
the crystal) using appropriate external instrumentation connected to the output clock SMA connectors. To verify the
output clocks are toggling at the correct frequency and signal format, click on View Design Report as highlighted
below.
Figure 17. View Design Report
Your configuration’s design report will appear in a new window, as shown below. Compare the observed output
clocks to the frequencies and formats noted in your default project’s Design Report.

Si5346-EVB
Rev. 1.0 13

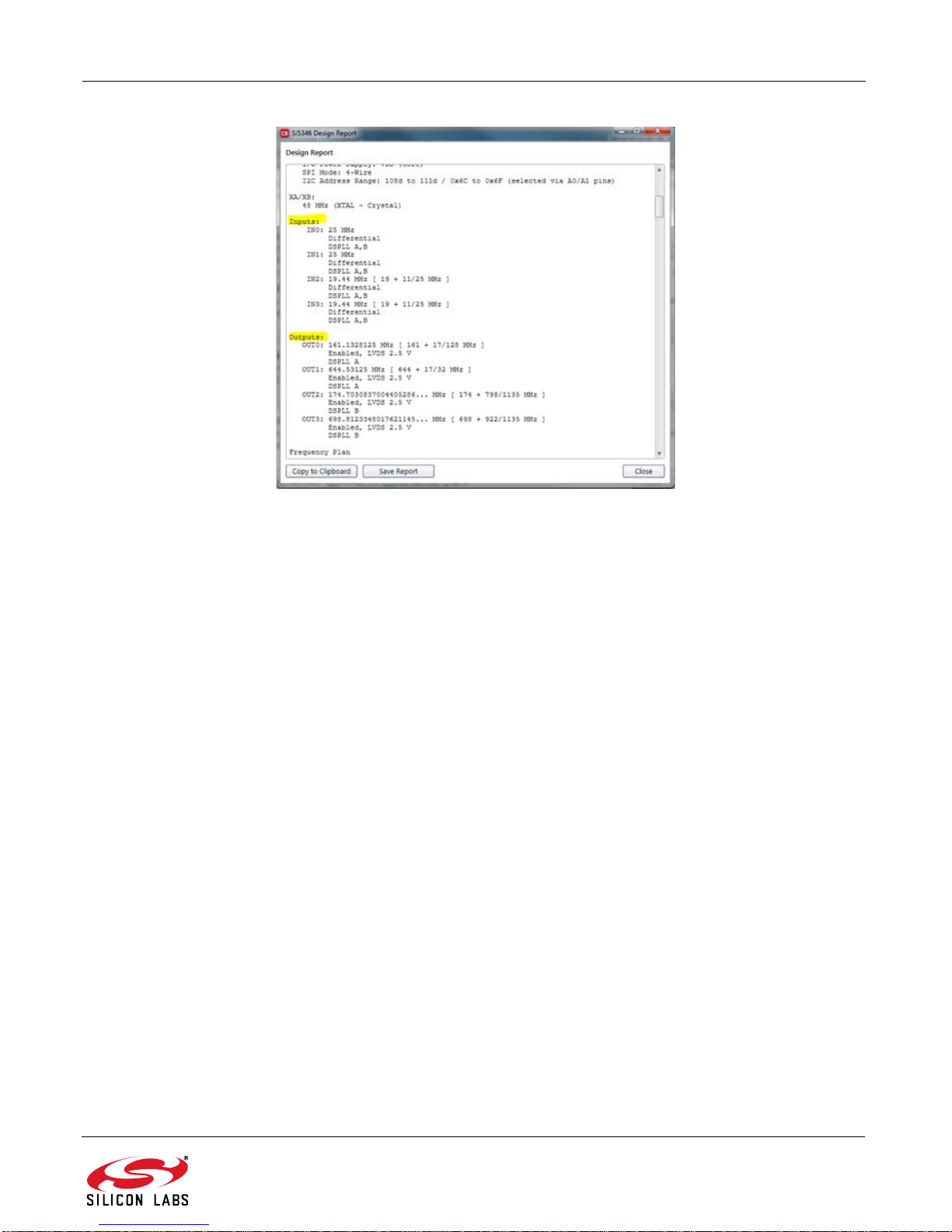

Figure 18. Design Report Window
10.5.2. Verify Locked Mode Operation
Assuming you connect the correct input clocks to the EVB (as noted in the Design Report shown above), the DUT
on your EVB will be running in “locked” mode.

Si5346-EVB
14 Rev. 1.0
10.6. Workflow Scenario #2: Modifying the Default Silicon Labs-Created Device
Configuration
To modify the “default” configuration using the CBPro Wizard, click on Edit Configuration with Wizard:

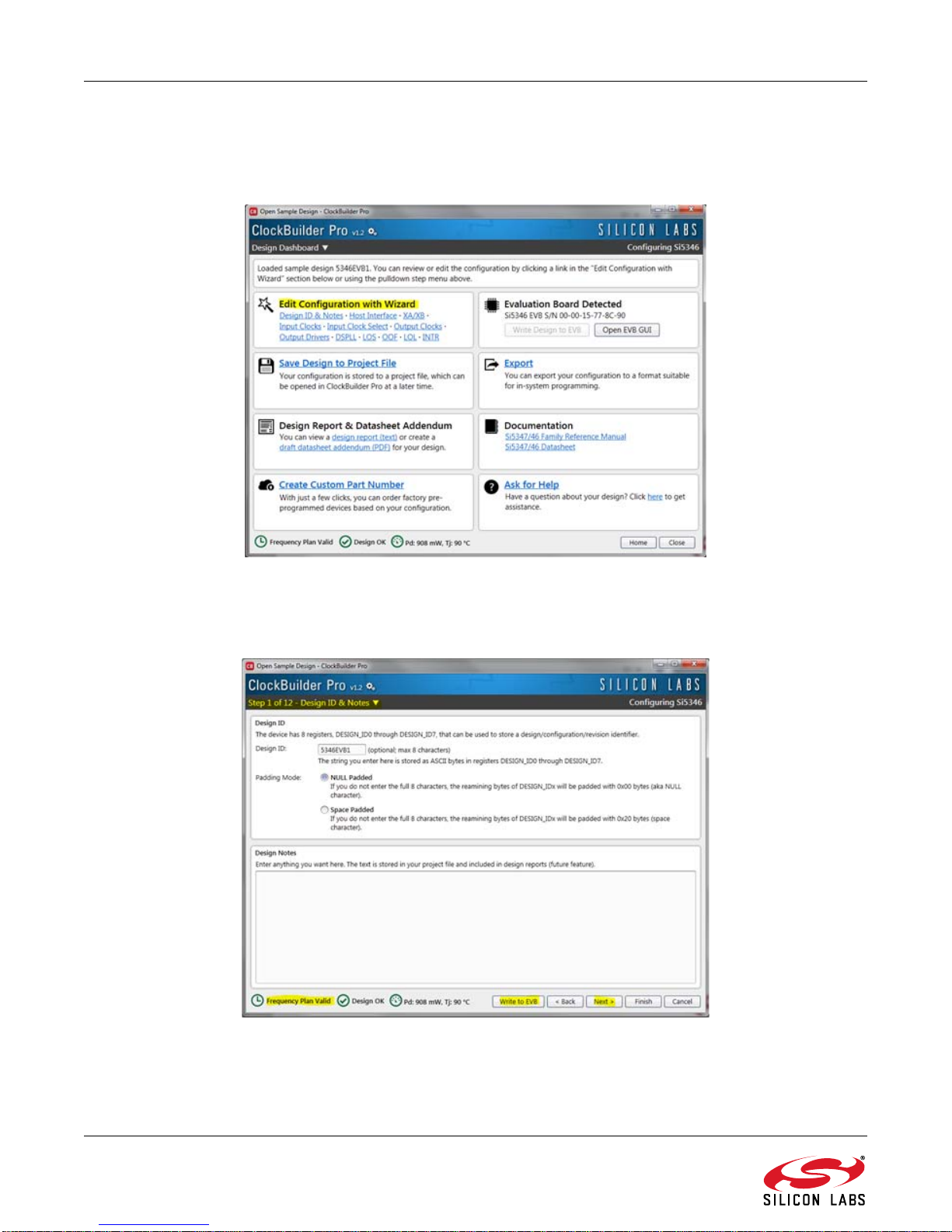

Figure 19. Edit Configuration with Wizard
You will now be taken to the Wizard’s step-by-step menus to allow you to change any of the default plan’s
operating configurations.
Figure 20. Design Wizard

Si5346-EVB
Rev. 1.0 15
Note you can click on the icon on the lower left hand corner of the menu to confirm if your frequency plan is valid.
After making your desired changes, you can click on Write to EVB to update the DUT to reconfigure your device
real-time. The Design Write status window will appear each time you make a change.

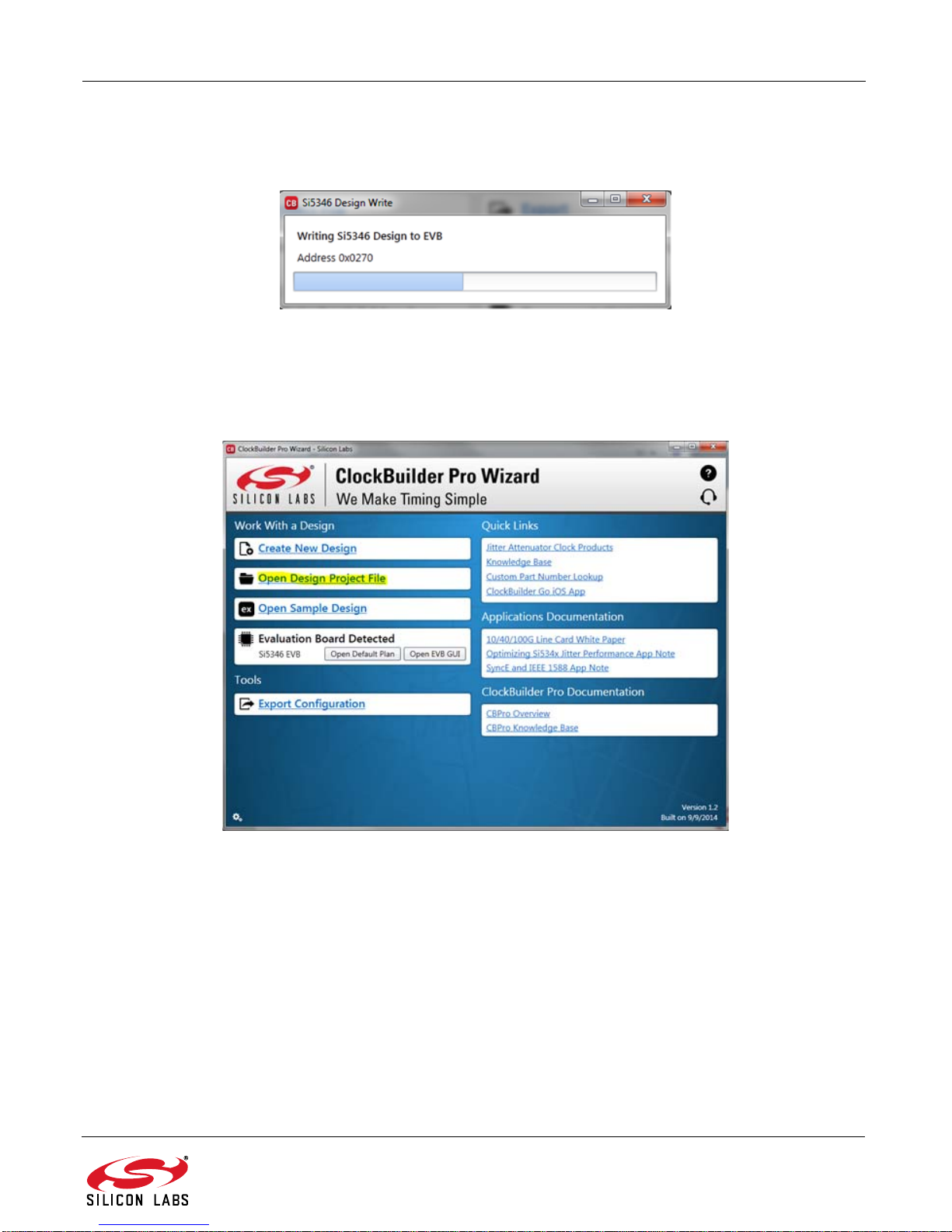

Figure 21. Writing Design Status
10.7. Workflow Scenario #3: Testing a User-Created Device Configuration
To test a previously created user configuration, open the CBPro Wizard by clicking on the icon on your desktop and
then selecting Open Design Project File.
Figure 22. Open Design Project File

Si5346-EVB
16 Rev. 1.0
Locate your CBPro design file (*.slabtimeproj or *.sitproj file).design file in the Windows file browser.
Figure 23. Browse to Project File
Select Yes when the WRITE DESIGN to EVB popup appears:
Figure 24. Write Design to EVB Dialog
The progress bar will be launched. Once the new design project file has been written to the device, verify the
presence and frequencies of your output clocks and other operating configurations using external instrumentation.

Si5346-EVB
Rev. 1.0 17
10.8. Exporting the Register Map File for Device Programming by a Host Processor
You can also export your configuration to a file format suitable for in-system programming by selecting Export as
shown below:
Figure 25. Export Register Map File
You can now write your device’s complete configuration to file formats suitable for in-system programming.

Si5346-EVB
18 Rev. 1.0
Figure 26. Export Settings

Si5346-EVB
Rev. 1.0 19
11. Writing a New Frequency Plan or Device Configuration to Non-Volatile
Memory (OTP)
Note: Writing to the device non-volatile memory (OTP) is NOT the same as writing a configuration into the Si5346 using Clock-
BuilderPro on the Si5346 EVB. Writing a configuration into the EVB from ClockBuilderPro is done using Si5346 RAM
space and can be done virtually unlimited numbers of times. Writing to OTP is limited as described below.
Refer to the Si534x/8x Family Reference Manuals and device data sheets for information on how to write a
configuration to the EVB DUT’s non-volatile memory (OTP). The OTP can be programmed a maximum of two
times only. Care must be taken to ensure the configuration desired is valid when choosing to write to OTP.
12. Si5346-EVB Schematic and Bill of Materials (BOM)
The Si5346 EVB Schematic and Bill of Materials (BOM) can be found online at
http://www.silabs.com/products/clocksoscillators/pages/si538x-4x-evb.aspx
Note: Please be aware that the Si5346-EVB schematic is in OrCad Capture hierarchical format and not in a typical “flat” sche-
matic format.

Disclaimer
Silicon Laboratories intends to provide customers with the latest, accurate, and in-depth documentation of all peripherals and modules available for system and software implementers
using or intending to use the Silicon Laboratories products. Characterization data, available modules and peripherals, memory sizes and memory addresses refer to each specific
device, and "Typical" parameters provided can and do vary in different applications. Application examples described herein are for illustrative purposes only. Silicon Laboratories
reserves the right to make changes without further notice and limitation to product information, specifications, and descriptions herein, and does not give warranties as to the accuracy
or completeness of the included information. Silicon Laboratories shall have no liability for the consequences of use of the information supplied herein. This document does not imply
or express copyright licenses granted hereunder to design or fabricate any integrated circuits. The products must not be used within any Life Support System without the specific
written consent of Silicon Laboratories.A"Life Support System" is any product or system intended to support or sustain life and/or health, which, if it fails, can be reasonably expected
to result in significant personal injury or death. Silicon Laboratories products are generally not intended for military applications. Silicon Laboratories products shall under no
circumstances be used in weapons of mass destruction including (but not limited to) nuclear, biological or chemical weapons, or missiles capable of delivering such weapons.
Trademark Information
Silicon Laboratories Inc., Silicon Laboratories, Silicon Labs, SiLabs and the Silicon Labs logo, CMEMS®, EFM, EFM32, EFR, Energy Micro, Energy Micro logo and combinations
thereof, "the world’s most energy friendly microcontrollers", Ember®, EZLink®, EZMac®, EZRadio®, EZRadioPRO®, DSPLL®, ISOmodem ®, Precision32®, ProSLIC®, SiPHY®,
USBXpress® and others are trademarks or registered trademarks of Silicon Laboratories Inc. ARM, CORTEX, Cortex-M3 and THUMB are trademarks or registered trademarks of
ARM Holdings. Keil is a registered trademark of ARM Limited. All other products or brand names mentioned herein are trademarks of their respective holders.
http://www.silabs.com
Silicon Laboratories Inc.
400 West Cesar Chavez
Austin, TX 78701
USA
ClockBuilder Pro
One-click access to Timing tools,
documentation, software, source
code libraries & more. Available for
Windows and iOS (CBGo only).
www.silabs.com/CBPro
Timing Portfolio
www.silabs.com/timing SW/HW
www.silabs.com/CBPro Quality www.silabs.com/quality Support and Community community.silabs.com
