Specifications Subject to Change Without Notice.
1600 Xenium Lane North, Minneapolis, MN 55441-3787
Phone [phone]
Technical Manual
and
Replacement Parts List

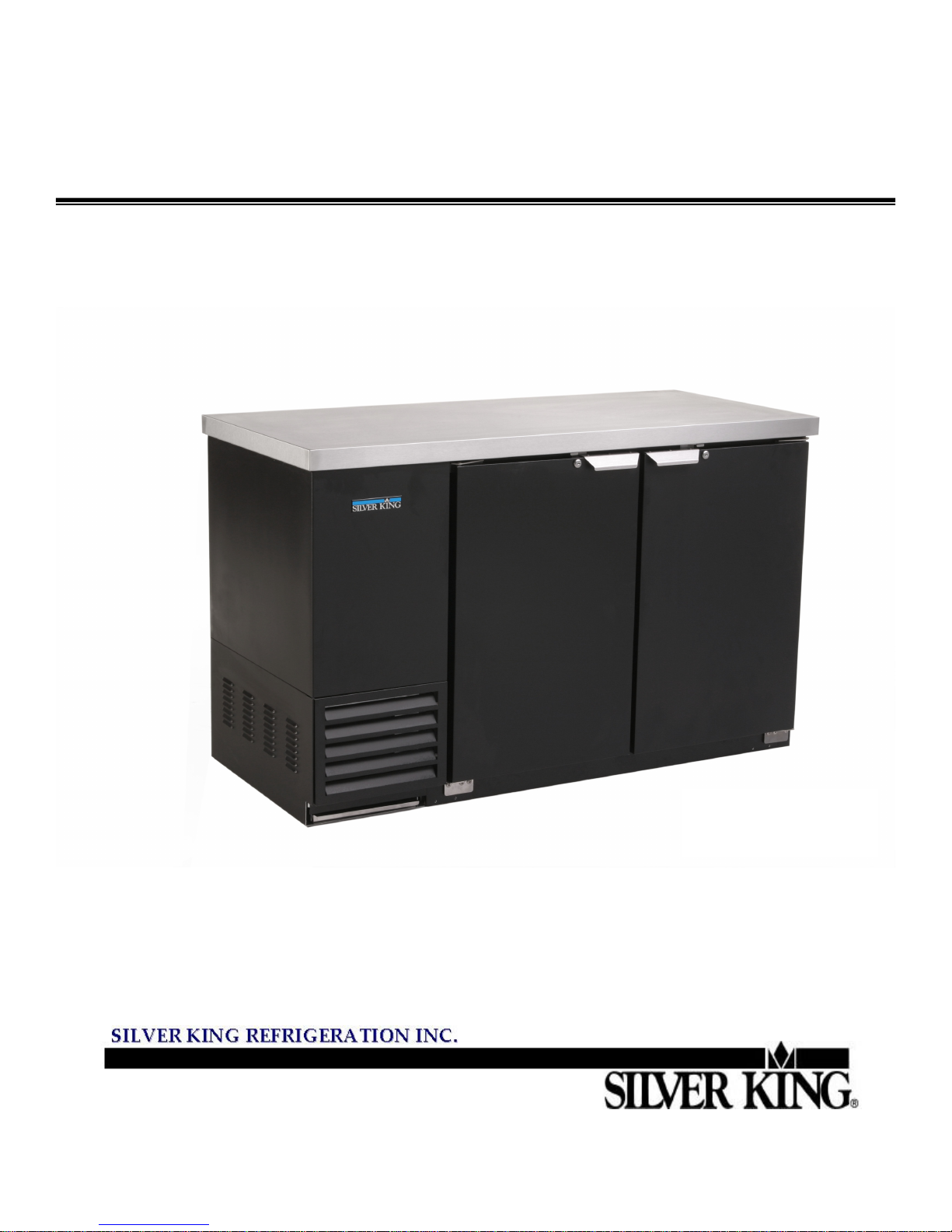

Back Bar Coolers
MODELS
SKBB59
SKBB69
SKBB90

1
TECHNICAL MANUAL
SILVER KING PREPARATION TABLES
MODELS SKBB59, SKBB69, SKBB90
Thank you for purchasing Silver King food service equipment. Our goal is to provide our customers with the most reliable
equipment in the industry today. Please read this manual and the accompanying warranty information before operating your new
Silver King unit. Be sure to complete and mail the warranty card within 10 days of purchase to validate your warranty.
INSPECT FOR DAMAGE AND UNCRATE
Upon delivery of your new Silver King unit, uncrate at once to inspect for possible freight damage following the instructions printed
on the exterior of the container. Report any damages to the carrier responsible for transportation and promptly present a claim for
any evidence of mishandling. Silver King is not responsible for any damages incurred during shipping. Save all packaging
materials if a claim is filed.
The back bar cooler was shipped on a skid. We recommend not removing the unit from the skid until it is as close as possible to the
desired end location.
INSTALLATION
The exterior surfaces of the cabinet have been protected by a plastic covering during manufacturing and shipping. This covering
can be readily stripped before installation. After removing this covering, wash the interior and exterior surfaces using a warm, mild
soapy water solution and a sponge or cloth, rinse with clean water and dry.
Location
When locating your new back bar refrigerator, convenience and accessibility are important considerations, but the following
installation guidelines must be followed;
•Always avoid placing the cooler adjacent to an oven, heating element or hot air source that would affect the operation of the
unit.
•For proper ventilation the cooler can be installed tight on the sides and back with the rear bumpers installed. The front must
be unobstructed.
•The unit must be level or tilted backwards slightly.
•If the unit is not on legs or casters it should be sealed to the floor with an NSF approved sealant to prevent water from getting
under the unit.
Shelves
Inside the cooler you will find Shelves and a bag containing Shelf Supports. The Shelf supports with the ‘tang’ install on the rear
pilasters. The shelf system allows for easy adjustment of shelf height to suit your needs.
Electrical Connections
Be sure to check the data plate, located on the liner of the cabinet, for required voltage prior to connecting the unit to power. The
specifications on the data plate supersede any future discussion.
The standard back bar cooler is equipped with an eight (8) foot power cord that requires a 115 Volt, 60 Cycle, 1 Phase properly
grounded electrical receptacle. The power cord comes with a 3 prong plug for grounding purposes. Any attempt to cut off the
grounding spike or to connect to an ungrounded adapter plug will void the warranty, terminate the manufacturers responsibility and
could result in serious injury.
The circuit must be protected with a 15 or 20 ampere fuse or breaker. The unit must be isolated on a circuit and not plugged into an
extension cord.

2
OPERATION
Initial Start-Up
After satisfying the installation requirements, the back bar cooler is ready to start. The Compressor will start when the power cord is
connected to the required power source. If the Compressor does not start when the unit is initially plugged in, check to make sure
that the Temperature Control is not in the "off" position. Allow the unit to run for two hours before loading it with product. When
loading the unit with product, take care not to block the air flow in the cabinet as this would affect the units performance.
Temperature Control
The Temperature Control is located on the left end of the back wall of the cabinet interior and is factory set to maintain an average
cabinet temperature of approximately 36 to 40 Deg F. To obtain colder temperatures turn the Temperature Control stem clockwise
and vice versa. Allow the unit a minimum of one hour to respond to a control setting adjustment.
Defrost
Your Silver King bottle cooler is an automatic defrost unit and no additional plumbing is required. Automatic defrosting is
accomplished when frost buildup on the Evaporator Coil is cleared during Compressor "off" cycles. Defrost water is collected in a
pan located in the compressor compartment where it is evaporated into the room air. It is important that the unit be installed level to
allow proper drainage of the defrost water.
Light
The on / off switch for the interior light is located in the cabinet interior under the light near the doors.
MAINTENANCE
Preventative maintenance is minimal although these few steps are very important to continued operation and maximizing the life of
the appliance.
Cabinet Surfaces
The interior and exterior surfaces should be cleaned periodically with a solution of warm water and mild soap, rinsed and wiped dry
with a soft cloth. A good stainless steel cleaner can also be used on the stainless steel surfaces. Should a surface become
stained, do not attempt to clean with an abrasive cleanser or scouring pad. Use a soft cleanser and rub with the grain of the metal
to avoid scratching the surface. Do not use chlorinated cleaners. Always rinse well and dry after cleaning. To help remove odors,
the interior surfaces of the unit should be periodically cleaned with a solution of baking soda and warm water.
Condenser
Periodically the Condenser must be cleared of dust. The Condenser is located behind the front grill on the cabinet. To clean the
Condenser simply remove the front grill and brush or vacuum the exposed condenser fins. This will need to be done regularly to
maintain proper performance and increase the life of the unit.
Drain Pan
The Drain Pan is located under the front grill and can be removed by pulling is out the front of the unit. Depending on local
conditions the Drain Pan may need to be periodically emptied and cleaned.
Door Gasket
The Door Gasket will collect dirt and should be wiped clean with a warm, mild soapy water solution to extend its life and assure
maximum cabinet performance and life.
MODEL SERIAL NO. DATE INSTALLED

3

4
ITEM
NUMBER
DESCRIPTION
PART NUMBER
SKBB59
PART NUMBER
SKBB69
PART NUMBER
SKBB90
GRILL, FRONT (BLACK) 29425 29425 29425
GRILL, FRONT (STAINLESS) 30399 30399 30399
GRILL, REAR (BLACK) 29410 29410 29410
GRILL, REAR (STAINLESS) 29731 29731 29731
3 CONDENSER COVER 29004 29004 29004
4 CONDENSER COIL 26530 26530 26531
5 CONDENSER FAN MOTOR 115V 23921 23921 23921
6 CONDENSER FAN BLADE 30613 30613 30613
7 CONDENSER FAN MOTOR BRACKET 41450 41450 41450
8 COMPRESSOR KIT (W/ ELECTRICALS & DRIER) 115V 10343-41 10343-41 10343-41
9 COMPRESSOR ELEC. KIT (RELAY/OVERLOAD/CAPACITOR) 115V 10344-41 10344-41 10344-41
10 DRIER 22677 22677 22677
11 CONDENSATE DRAIN PAN 29457 29457 29457
12 POWER CORD 115V 43263 43263 43263
13 EVAPORATOR COIL 26532 26745 26533
14 HEAT EXCHANGER (NOT SHOWN) 29799 29799 29799
15 EVAPORATOR FAN MOTOR BRACKET 24494 24494 24494
16 EVAPORATOR FAN MOTOR 115V 21251-2 21251-2 21251-2
17 EVAPORATOR FAN BLADE 22943 22943 22943
18 EVAPORATOR FAN GUARD 41473 41473 41473
19 TEMPERATURE CONTROL 24089 24089 24089
20 BUSHING HINGE 99711 99711 99711
21 DOOR GASKET (SOLID DOOR) 29263 29263 29263
HINGE, TOP LEFT (SOLID DOOR) 29280 29280 29280
HINGE, TOP LEFT (GLASS DOOR) 26708 26708 26708
HINGE, BOTTOM LEFT (SOLID DOOR) 29274 29274 29274
HINGE, BOTTOM LEFT (GLASS DOOR) 26710 26710 26710
HINGE, TOP RIGHT (SOLID DOOR) 29269 29269 29269
HINGE, TOP RIGHT (GLASS DOOR) 26714 26714 26714
HINGE, BOTTOM RIGHT(SOLID DOOR) 29283 29283 29283
HINGE, BOTTOM RIGHT (GLASS DOOR) 26712 26712 26712
DOOR, RIGHT HAND (SOLID, BLACK) 10335-22 10335-22 10335-22
DOOR, RIGHT HAND (GLASS) 26718 26718 26718
DOOR, RIGHT HAND (SOLID, STAINLESS) 10335-23 10335-23 10335-23
DOOR, LEFT HAND (SOLID, BLACK) 10335-24 10335-24 10335-24
DOOR, LEFT HAND (GLASS) 26722 26722 26722
DOOR, LEFT HAND (SOLID, STAINLESS) 10335-25 10335-25 10335-25
28 DOOR HANDLE (SOLID DOOR) 29261 29261 29261
29 DRAIN 24302 24302 24302
30 THRESHOLD GUARD 29173 29173 29173
31 SHELF 26730 26731 27626
32 PILASTER 22491 22491 22491
33 SHELF SUPPORT, WITH TANG 99531 99531 99531
34 SHELF SUPPORT 99530 99530 99530
35 LAMP SWITCH 26378 26378 26378
36 LAMP SOCKET 21121 21121 21121
37 LAMP STARTER 21124 21124 21124
38 LAMP BALLAST 21120 21120 21120
39 BUMPER 23927 23927 23927
40 LATCH/ STRIKE ASSY 30640 30640 30640
25
26
27
1
22
23
24
2

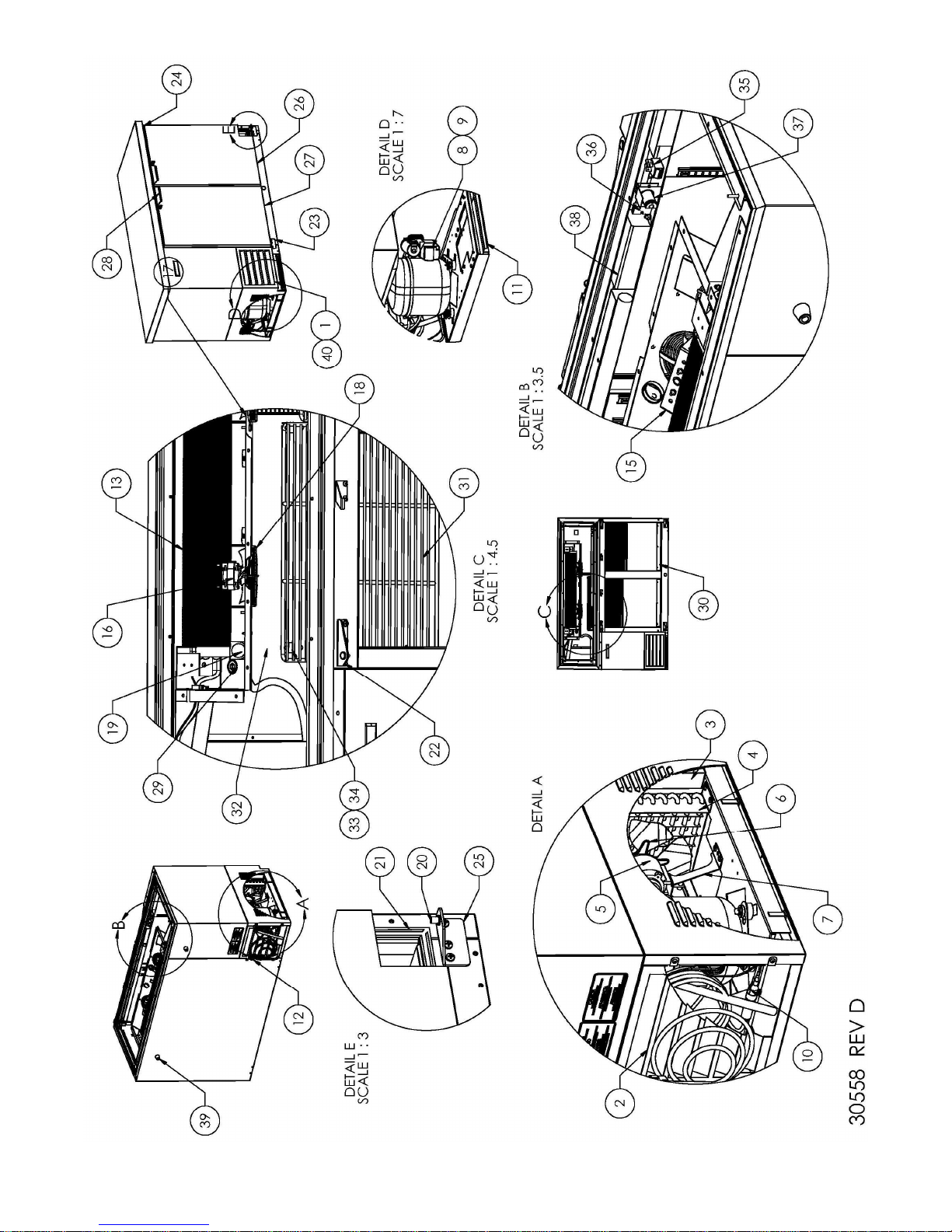

REPLACEMENT PARTS LIST – MODELS SKBB59, SKBB69, SKBB90
FOR EQUIPMENT WITH SERIAL NUMBERS STARTING WITH ‘S’ ONLY
WHEN ORDERING REPLACEMENT PARTS, PLEASE PROVIDE MODEL AND SERIAL NUMBERS

5
FORM NO. 29490 REV F
