Silvercrest SRR 3.7 C3 User manual

ROTARY SHAVER SRR 3.7 C3
ROTATIONSRASIERER
Bedienungsanleitung
ROTARY SHAVER
Operating instructions
ΞΥΡΙΣΤΙΚΉ ΜΉΧΑΝΉ
ΠΕΡΙΣΤΡΟΦΙΚΉ
Οδηүίες χρήσης
IAN 340530_1910

GB / IE / NI /CY Operating instructions Page 1
GR / CY Οδηүίες χρήσης Σελίδα 25
DE / AT / CH Bedienungsanleitung Seite 49
Before reading, unfold both pages containing illustrations and familiarise
yourself with all functions of the device.
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τις δυο σελίδες με τις εικόνες και
εξοικειωθείτε με όλες τις λειτουργίες της συσκευής.
Klappen Sie vor dem Lesen die beiden Seiten mit den Abbildungen aus und
machen Sie sich anschließend mit allen Funktionen des Gerätes vertraut.

A

B

GB│IE│NI│CY │ 1 ■
SRR 3.7 C3
Contents
Introduction .................................. 2
Intended use ................................. 2
Package contents ............................. 2
Description of the appliance..................... 3
Technical data ................................ 4
Safety guidelines ............................. 6
Charging the battery ......................... 10
Fitting/removing the protective cap ............. 11
Cordless shaving ............................. 11
Shaving with mains voltage.................... 12
Trimmer/long hair trimmer .................... 13
Cleaning and care ............................ 13
Cleaning with the brush ................................13
Cleaning under running water ...........................14
Thorough cleaning ....................................14
Travellock.................................. 17
Storage .................................... 18
Disposal .................................... 18
Kompernass Handels GmbH warranty........... 20
Service .............................................22
Importer............................................23
Ordering spare parts ......................... 24

■ 2 │ GB│IE│NI│CY SRR 3.7 C3
Introduction
Congratulations on the purchase of your new appliance.
You have selected a high-quality product. The operating instructions
are part of this product. They contain important information on safety,
usage and disposal. Before using the product, familiarise yourself
with all handling and safety guidelines. Use the product only as
described and for the range of applications specified. Please also
pass these operating instructions on to any future owner(s).
Intended use
This appliance is intended exclusively for shaving and trimming human
hair.
This appliance is intended solely for use in private households.
Do not use it for commercial applications.
All other uses are deemed to be improper and may result in property
damage or even in personal injury.
Package contents
♦ Shaver with cutting unit
♦ Mains adapter
♦ Protective cap
♦ Brush
♦ Case
♦ Operating instructions
NOTE
Check contents for completeness and damage immediately
after unpacking. Contact Customer Services if necessary.

GB│IE│NI│CY │ 3 ■
SRR 3.7 C3

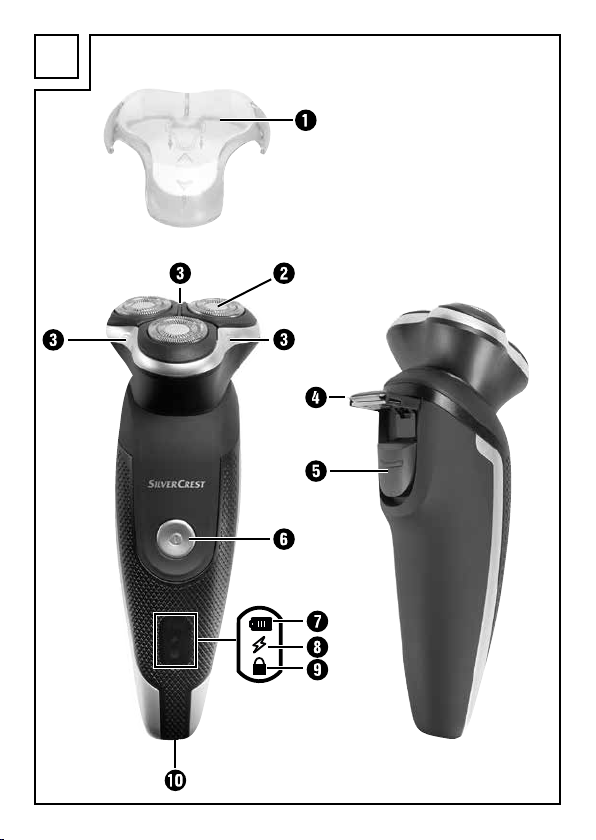

Description of the appliance
Figure A (front fold-out page):
Protective cap
Cutting unit
Grip recesses
Long hair trimmer
Catch for the long hair trimmer
On/Off switch
Blue control lamp
Red charge indicator light
 symbol (travel lock)
Mains connection

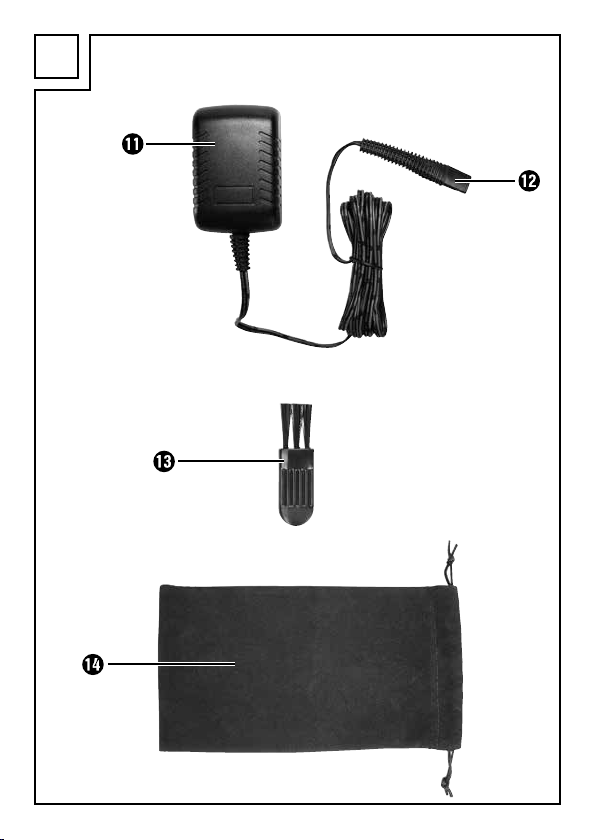

Figure B (rear fold-out page):
-Mains adapter
3Connector
!Brush
.Case

■ 4 │ GB│IE│NI│CY SRR 3.7 C3
Technical data
Mains adapter:
Manufacturer: ZHEJIANG PAITER ELECTRIC CO., LTD
Commercial register number:
91330304724535131X
Address: Hongxiang Road 33#, Hi-tech
Industrial Zone, Ouhai Area, Wenzhou,
Zhejiang, 325006 P. R. China
Type: PTB-050100BS
Input: 100– 240 V ∼ (AC), 50/60 Hz
Current consumption: 0.2 A
Output: 5.0 V
(DC)
Output current: 1.0 A
Output power: 5.0 W
Average operating
efficiency: 75.39%
Low load efficiency
(10%): 65.43%
Power consumption
at zero load: ≤ 0.1 W
Protection class: II/ (double insulation)
Protection rating: IP X4: Protection against water splashes
from any direction

GB│IE│NI│CY │ 5 ■
SRR 3.7 C3
Barrel plug polarity:
Efficiency class: 6 VI
SMPS – switched-mode
power supply:
Safety transformer,
short-circuit proof:
Appliance
Input: 5 V
(DC)
Input current: 1 A
Battery: 3.7 V/ 700 mAh Li-ion battery
Protection rating: IP X6: Protection against a strong
water jet or temporary submersion
Barrel plug polarity:
Charging time: approx. 60 minutes
Operating time with fully
charged battery: approx. 60 minutes
NOTE
UN 34811
Tel. ____________
The product is equipped with or supplied with
a lithium-ion battery.

■ 6 │ GB│IE│NI│CY SRR 3.7 C3
Safety guidelines
DANGER! RISK OF ELECTRIC SHOCK!
► Prior to use, check the appliance for visible
external damage. Never operate an
appliance that is damaged. There is a risk of
electrocution.
► Stop using the appliance if there is any
damage to the mains adapter, mains cable,
the housing or any other components.
► Pull the mains adapter from the mains
power socket
— if a defect occurs,
— before cleaning the appliance,
— after every use.
► Always pull on the mains adapter itself;
never pull on the power cable.
► Never submerge the appliance or the
mains adapter or cable in water or other
liquids.

GB│IE│NI│CY │ 7 ■
SRR 3.7 C3
DANGER! RISK OF ELECTRIC SHOCK!
► If the appliance falls into water, pull the
mains adapter out of the power socket
before you reach into the water.
► Never touch the appliance, mains adapter
or its cable with wet hands.
► Check the mains adapter, mains cable and
appliance regularly for possible mechanical
defects.
► Ensure that the power cable does not get
jammed in cupboard doors and that it is
never laid on hot surfaces. If this occurs, the
cable insulation may be damaged.
► The installation of a residual current circuit
breaker with a rated tripping current of no
more than 30mA offers further protection
from electric shocks. Have the installation
carried out only by a qualified electrician.
► CAUTION! Keep the appliance dry.

■ 8 │ GB│IE│NI│CY SRR 3.7 C3
WARNING! RISK OF INJURY!
► This appliance may be used by children
aged 8 years and above and by persons
with limited physical, sensory or mental
capabilities or lack of experience and
knowledge, provided that they are under
supervision or have been told how to use
the appliance safely and are aware of the
potential risks.
► Children must not use the appliance as a
plaything.
► Cleaning and user maintenance tasks may
not be carried out by children unless they
are supervised.
► All repairs must be carried out by
authorised specialist companies or by the
Customer Service department. Improper
repairs can pose significant risks to the user.
It will also invalidate any warranty claims.
► Do not use the appliance with a defective
cutting unit or long hair trimmer because
these may have sharp edges. There is a risk
of personal injury!

GB│IE│NI│CY │ 9 ■
SRR 3.7 C3
WARNING! RISK OF INJURY!
► Defective components must always be
replaced with original replacement parts.
Compliance with safety requirements can
only be guaranteed if original replacement
parts are used.
► Only plug the power plug into an easily
accessible power socket so that you can
pull it out of the power socket quickly in an
emergency.
CAUTION! PROPERTY DAMAGE!
► Use the appliance only indoors.
► Never operate the appliance
unsupervised, and only in accordance
with the information on the nameplate.
► Use and charge the appliance only with the
supplied mains adapter.
► Remove the cutting unit from the handset
for cleaning under running water.

■ 10 │ GB│IE│NI│CY SRR 3.7 C3
Charging the battery
The battery should be charged for at least 60 minutes before first use.
NOTE
► Ensure that the appliance is switched off before charging the
battery.
1) Plug the connector 3into the mains connection on the shaver.
2) Plug the mains adapter -into a mains socket that complies with
the appliance specifications. While the battery is charging, the
red charge indicator light flashes.
♦ When the battery is fully charged, the blue control lamp 
lights up. Disconnect the product from the mains supply.
♦ Once the battery is fully charged, you can use the appliance for
around 60 minutes without connecting it to the power supply.
♦ If the red indicator light flashes, the battery charge level is
too low. Recharge the battery in that case.

GB│IE│NI│CY │ 11 ■
SRR 3.7 C3
Fitting/removing the protective cap
♦ When you are not using the shaver, protect the shaving head by
putting on the protective cap .
♦ Remove the protective cap by pulling it downwards
off the cutting unit .
Cordless shaving
CAUTION! MATERIAL DAMAGE!
► This appliance is not suitable for wet shaving!
This shaver can be used without the power cable. In this case, you
must charge the appliance before first use (see section “Charging
the battery”).
1) Ensure the cutting unit is attached and locked in place.
2) Remove the protective cap .
3) Press the On/Off switch to switch on the appliance.
The blue control lamp lights up.

■ 12 │ GB│IE│NI│CY SRR 3.7 C3
NOTE
► The best results are achieved if used on dry skin.
► It can take 2 to 3 weeks until the skin is accustomed to the
dry shaving system.
4) Move the shaving heads with straight and circular motions over
the skin.
5) After you have covered all the areas you want to shave, use the
On/Off switch again to turn off the appliance. The blue
control lamp goes out.
6) Clean the shaver after every use with the supplied brush !. For a
more thorough cleaning, read the section “Cleaning and care”.
Shaving with mains voltage
CAUTION! MATERIAL DAMAGE!
► This appliance is not suitable for wet shaving!
If you want to use the shaver without previously charging it, you can
also use it directly with mains voltage:
1) Plug the connector 3into the mains connection on the shaver.
2) Plug the mains adapter -into a mains socket that complies with
the appliance specifications. While the battery is charging, the
red charge indicator light flashes.
You can then use the shaver as described in the section “Cordless
shaving”.

GB│IE│NI│CY │ 13 ■
SRR 3.7 C3
Trimmer/long hair trimmer
To shape your beard, form sideburns or shave eyebrows, use the
long hair trimmer .
1) To do this, push the catch towards the long hair trimmer .
The long hair trimmer flips out.
2) Press the On/Off switch . The shaver starts the cutting unit 
and the long hair trimmer , the blue control lamp lights up.
3) Once you have finished trimming, press the On/Off switch 
again to turn off the appliance. The blue control lamp 
goes out.
4) Clean the long hair trimmer with the supplied brush !. For a
more thorough cleaning, read the section “Cleaning and care”.
Cleaning and care
DANGER – ELECTRIC SHOCK!
► Before cleaning the device, disconnect the mains adapter -
from the mains power socket! There is a risk of electric shock!
CAUTION! MATERIAL DAMAGE!
► Do not use abrasive, chemical or caustic cleaning agents
to clean this appliance. This will irreparably damage the
appliance.
Cleaning with the brush
Cutting unit
Clean the 3 shaving heads of the cutting unit after every shave
using the brush !.
1) Take hold of the cutting unit with three fingers in the grip
recesses and pull it off.

■ 14 │ GB│IE│NI│CY SRR 3.7 C3
2) Tap the cutting unit on a flat surface or blow off the hair
cuttings.
3) Use the brush !to remove any remaining hair cuttings.
4) Replace the cutting unit flush on the appliance. Ensure that it
snaps into place and is seated firmly.
Long hair trimmer
■ Clean the long hair trimmer after every use with the supplied
brush !.
■ Oil the long hair trimmer around every 6 months with a drop
of sewing machine oil.
Cleaning under running water
1) Take hold of the cutting unit with three fingers in the grip
recesses and pull it off.
2) Hold the cutting unit under the running water so that the water
flows through the shaving heads from the inside to the outside.
CAUTION! MATERIAL DAMAGE!
Hold only the cutting unit under running water! The shaver
handset can be damaged irreparably if it is held under running
water.
3) Allow the cutting unit to dry.
4) Replace the cutting unit flush on the appliance. Ensure that it
snaps into place and is seated firmly.
Thorough cleaning
To clean the appliance thoroughly, disassemble the three cutting
heads:
1) Take hold of the cutting unit with three fingers in the grip
recesses and pull it off:

GB│IE│NI│CY │ 15 ■
SRR 3.7 C3
2) Press the two protruding tabs together and release the black
retainers from the catches:
You can now remove the cutting heads and the blades.

■ 16 │ GB│IE│NI│CY SRR 3.7 C3
3) Clean all parts under running water and then allow them to dry fully.

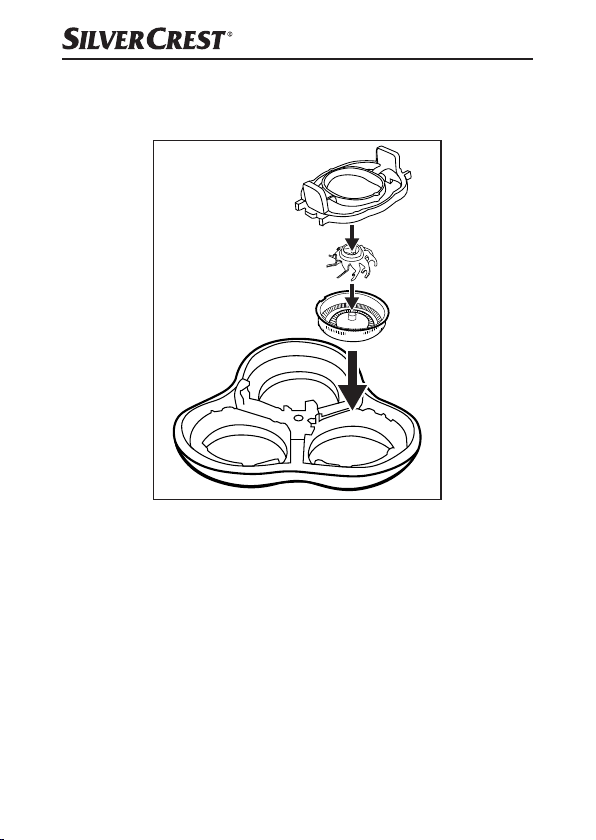

4) Reassemble the cutting unit . Use the following illustrations for
guidance:
–Place the three shaving heads in the recesses of the cutting
unit . Ensure that the notches on the edge of the shaving
heads rest on the catches in the opening.
–Place the round blades into the shaving heads with the blade
tips to the front.
–Press the two tabs of the retainers together and place them
back into the catches of the cutting unit and release the tabs.
The cutting unit is now reassembled.
5) Remove loose hairs from the shaver with the brush !.
6) Replace the cutting unit on the shaver. Ensure that it snaps
into place and is seated firmly.
■ Clean the housing with a moist cloth.
