Silvercrest SRR 3.7 C3 User manual

ROTARY SHAVER SRR 3.7 C3
IAN 300025
ROTARY SHAVER
Operating instructions
ROTATIONSRASIERER
Bedienungsanleitung

GB/IE/NI Operating instructions Page 1
DE/AT / CH Bedienungsanleitung Seite 23
Before reading, unfold the page containing the illustrations and familiarise
yourself with all functions of the device.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen
Sie sich anschließend mit allen Funktionen des Gerätes vertraut.

A

B

SRR 3.7 C3 GB│IE│NI │ 1 ■
Contents
Introduction ...................................2
Intended use ..................................2
Package contents ..............................2
Description of the appliance......................3
Technical data .................................4
Safety guidelines ..............................5
Charging the battery ...........................9
Fitting/removing the protective cap ..............10
Cordless shaving ..............................10
Shaving with mains voltage.....................11
Trimmer/long hair trimmer .....................12
Cleaning and care .............................12
Cleaning with the brush .................................12
Cleaning under running water ............................13
Thorough cleaning .....................................13
Travel lock ...................................16
Storage .....................................17
Disposal .....................................17
Kompernass Handels GmbH warranty............19
Service ..............................................21
Importer .............................................21
Ordering spare parts ..........................22

SRR 3.7 C3
■ 2 │ GB│IE│NI
Introduction
Congratulations on the purchase of your new appliance.
You have selected a high-quality product. The operating instructions
are part of this product. They contain important information on safety,
usage and disposal. Before using the product, familiarise yourself
with all handling and safety guidelines. Use the product only as
described and for the range of applications specified. Please also
pass these operating instructions on to any future owner(s).
Intended use
This appliance is intended exclusively for shaving and trimming hu-
man hair.
This appliance is intended solely for use in private households.
Do not use it for commercial applications.
All other uses are deemed to be improper and may result in property
damage or even in personal injury.
Package contents
♦ Shaver with cutting unit
♦ Mains adapter
♦ Protective cap
♦ Brush
♦ Case
♦ Operating instructions
NOTE
Check contents for completeness and damage immediately
after unpacking. Contact Customer Services if necessary.

SRR 3.7 C3 GB│IE│NI │ 3 ■
Description of the appliance

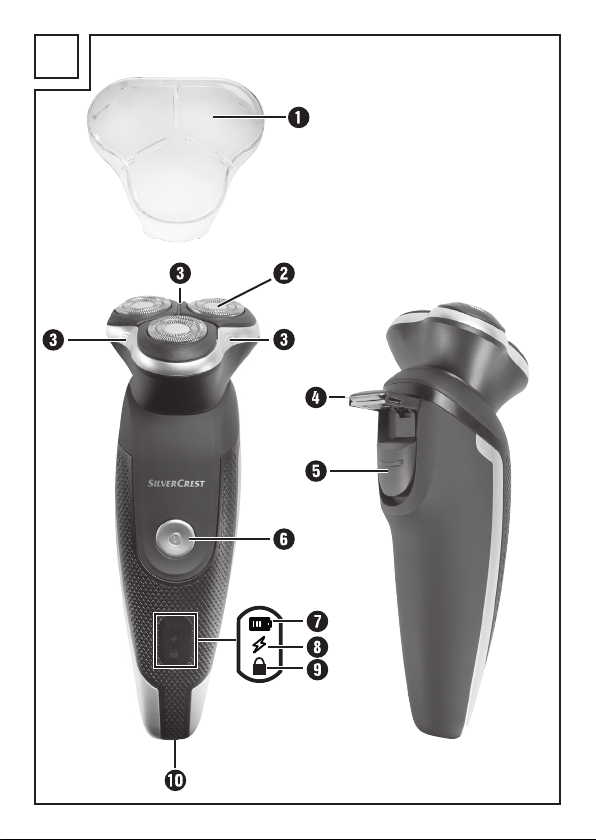

Figure A (front fold-out page):
1 Protective cap
2 Cutting unit
3 Grip recesses
4 Long hair trimmer
5 Catch for the long hair trimmer
6 On/Off switch
7 Blue control lamp
8 Red charge indicator light
9 symbol (travel lock)
0 Mains connection

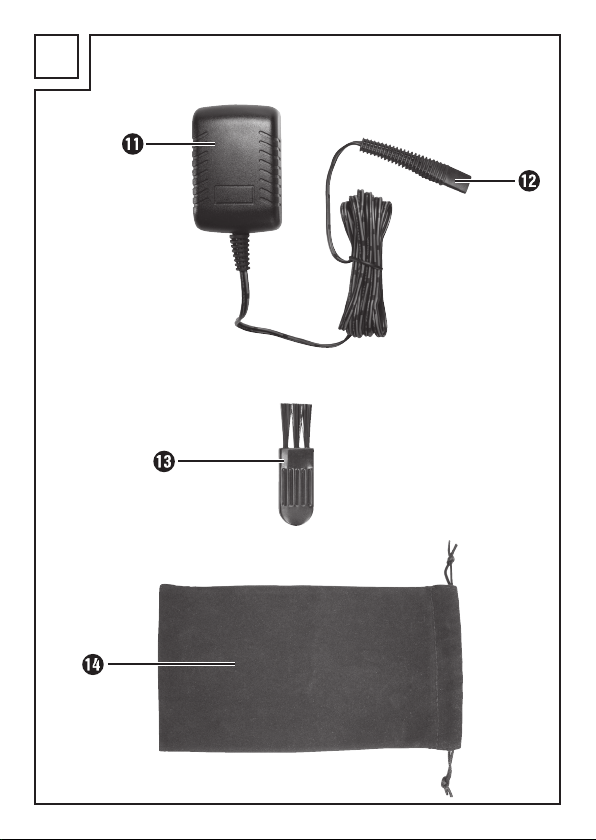

Figure B (rear fold-out page):
q Mains adapter
w Connector
e Brush
r Case

SRR 3.7 C3
■ 4 │ GB│IE│NI
Technical data
Mains adaptor:
Type: PTB-050100BS
Input: 100–240 V ~(alternating current),
50/60 Hz
Current consumption: 0.2 A
Output: 5 V (direct current)
Output current: 1000 mA
Protection class: II/ (double insulation)
Protection rating: IP X4: Protection against water splashes
from any direction
SMPS – switched-mode
power supply:
Polarity of coaxial
connector:
Safety transformer,
short-circuit proof:
Appliance
Input: 5 V (direct current)
Input current: 1000 mA
Battery: 3.7 V/700 mAh Li-ion battery
Protection rating: IP X6: Protection against a strong jet or
temporary submersion
Polarity of coaxial
connector:
Charging time: approx. 60 minutes
Operating time with
fully charged battery: approx. 60 minutes

SRR 3.7 C3 GB│IE│NI │ 5 ■
Safety guidelines
DANGER – RISK OF ELECTRIC SHOCK!
► Prior to use, check the appliance for visible
external damage. Never operate an ap-
pliance that is damaged. There is a risk of
electrocution.
► Stop using the appliance if there is any
damage to the mains adapter, mains cable,
the housing or any other components.
► Pull the mains adapter from the mains
power socket
— if a defect occurs,
— before cleaning the appliance,
— after every use.
► Always pull on the mains adapter itself;
never pull on the power cable.
► Never submerge the appliance or the
mains adapter or cable in water or other
liquids.

SRR 3.7 C3
■ 6 │ GB│IE│NI
DANGER – RISK OF ELECTRIC SHOCK!
► If the appliance falls into water, pull the
mains adapter out of the power socket
before you reach into the water.
► Never touch the appliance, mains adapter
or its cable with wet hands.
► Check the mains adapter, mains cable and
appliance regularly for possible mechanical
defects.
► Ensure that the power cable does not get
jammed in cupboard doors and that it is
never laid on hot surfaces. If this occurs, the
cable insulation may be damaged.
► The installation of a residual current circuit
breaker with a rated tripping current of no
more than 30mA offers further protection
from electric shocks. Have the installation
carried out only by a qualified electrician.
► CAUTION! Keep the appliance dry.

SRR 3.7 C3 GB│IE│NI │ 7 ■
WARNING – RISK OF INJURY!
► This appliance may be used by children
aged 8 years and above and by persons
with limited physical, sensory or mental
capabilities or lack of experience and
knowledge, provided that they are under
supervision or have been told how to use
the appliance safely and are aware of the
potential risks.
► Children must not use the appliance as a
plaything.
► Cleaning and user maintenance tasks may
not be carried out by children unless they
are supervised.
► All repairs must be carried out by author-
ised specialist companies or by the Cus-
tomer Service department. Improper repairs
can pose significant risks to the user. It will
also invalidate any warranty claims.
► Do not use the appliance with a defective
cutting unit or long hair trimmer because
these may have sharp edges. There is a risk
of personal injury!

SRR 3.7 C3
■ 8 │ GB│IE│NI
WARNING – RISK OF INJURY!
► Defective components must always be
replaced with original replacement parts.
Compliance with safety requirements can
only be guaranteed if original replacement
parts are used.
► Only plug the power plug into an easily
accessible power socket so that you can
pull it out of the power socket quickly in an
emergency.
CAUTION – PROPERTY DAMAGE!
► Use the appliance only indoors.
► Never operate the appliance unsuper-
vised, and only in accordance with the
information on the nameplate.
► Use and charge the appliance only with the
supplied mains adapter.
► Remove the cutting unit from the handset
for cleaning under running water.

SRR 3.7 C3 GB│IE│NI │ 9 ■
Charging the battery
The battery should be charged for at least 60 minutes before first use.
NOTE
► Ensure that the appliance is switched off before charging the
battery.
1) Plug the connector winto the mains connection 0on the shaver.
2) Plug the mains adapter qinto a mains socket that complies with
the appliance specifications. While the battery is charging, the red
charge indicator light 8flashes.
♦ When the battery is fully charged, the blue control lamp 7
lights up. Disconnect the product from the mains supply.
♦ Once the battery is fully charged, you can use the appliance for
around 60 minutes without connecting it to the power supply.
♦ If the red indicator light 8flashes, the battery charge level is
too low. Recharge the battery in that case.

SRR 3.7 C3
■ 10 │ GB│IE│NI
Fitting/removing the protective cap
♦ When you are not using the shaver, protect the shaving head by
putting on the protective cap 1.
♦ Remove the protective cap 1by pulling it downwards off the
cutting unit 2.
Cordless shaving
CAUTION! MATERIAL DAMAGE!
► This appliance is not suitable for wet shaving!
This shaver can be used without the power cable. In this case, you
must charge the appliance before first use (see section “Charging
the battery”).
1) Ensure the cutting unit 2is attached and locked in place.
2) Remove the protective cap 1.
3) Press the On/Off switch 6to switch on the appliance.
The blue control lamp 7lights up.

SRR 3.7 C3 GB│IE│NI │ 11 ■
NOTE
► The best results are achieved if used on dry skin.
► It can take 2 to 3 weeks until the skin is accustomed to the
dry shaving system.
4) Move the shaving heads with straight and circular motions over
the skin.
5) After you have covered all the areas you want to shave, use the
On/Off switch 6again to turn off the appliance. The blue
control lamp 7goes out.
6) Clean the shaver after every use with the supplied brush e. For a
more thorough cleaning, read the section “Cleaning and care”.
Shaving with mains voltage
CAUTION! MATERIAL DAMAGE!
► This appliance is not suitable for wet shaving!
If you want to use the shaver without previously charging it, you can
also use it directly with mains voltage:
1) Plug the connector winto the mains connection 0on the shaver.
2) Plug the mains adapter qinto a mains socket that complies with
the appliance specifications. While the battery is charging, the
red charge indicator light 8flashes.
You can then use the shaver as described in the section “Cordless
shaving”.

SRR 3.7 C3
■ 12 │ GB│IE│NI
Trimmer/long hair trimmer
To shape your beard, form sideburns or shave eyebrows, use the
long hair trimmer 4.
1) To do this, push the catch 5towards the long hair trimmer 4.
The long hair trimmer 4flips out.
2) Press the On/Off switch 6. The shaver starts the cutting unit 2
and the long hair trimmer 4, the blue control lamp 7lights up.
3) Once you have finished trimming, press the On/Off switch 6
again to turn off the appliance. The blue control lamp 7
goes out.
4) Clean the long hair trimmer 4with the supplied brush e. For a
more thorough cleaning, read the section “Cleaning and care”.
Cleaning and care
DANGER – ELECTRIC SHOCK!
► Before cleaning the device, disconnect the mains adapter q
from the mains power socket! There is a risk of electric shock!
CAUTION! MATERIAL DAMAGE!
► Do not use abrasive, chemical or caustic cleaning agents
to clean this appliance. This will irreparably damage the
appliance.
Cleaning with the brush
Cutting unit
Clean the 3 shaving heads of the cutting unit 2after every shave
using the brush e.

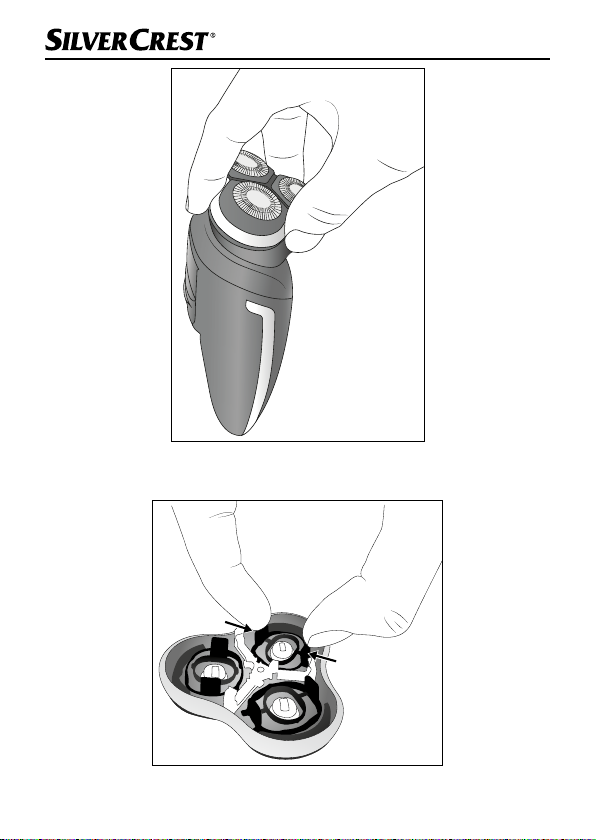

1) Take hold of the cutting unit 2 with three fingers in the grip
recesses 3 and pull it off.

SRR 3.7 C3 GB│IE│NI │ 13 ■
2) Tap the cutting unit 2on a flat surface or blow off the hair
cuttings.
3) Use the brush eto remove any remaining hair cuttings.
4) Replace the cutting unit 2flush on the appliance. Ensure that it
snaps into place and is seated firmly.
Long hair trimmer
■ Clean the long hair trimmer 4after every use with the supplied
brush e.
■ Oil the long hair trimmer 4around every 6 months with a drop
of sewing machine oil.

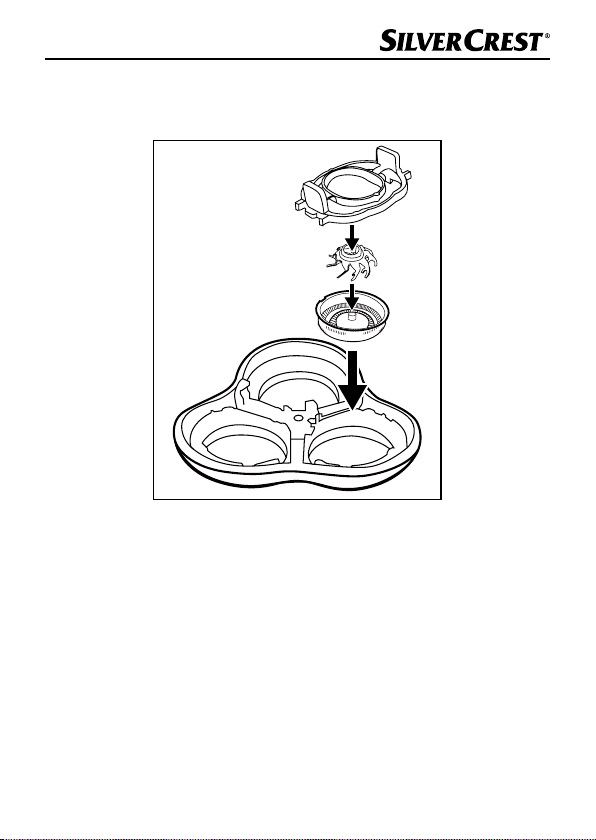

Cleaning under running water
1) Take hold of the cutting unit 2 with three fingers in the grip
recesses 3 and pull it off.
2) Hold the cutting unit 2under the running water so that the water
flows through the shaving heads from the inside to the outside.
CAUTION! MATERIAL DAMAGE!
Hold only the cutting unit 2under running water! The shaver
handset can be damaged irreparably if it is held under running
water.
3) Allow the cutting unit 2to dry.
4) Replace the cutting unit 2flush on the appliance. Ensure that it
snaps into place and is seated firmly.
Thorough cleaning
To clean the appliance thoroughly, disassemble the three cutting
heads:
1) Take hold of the cutting unit 2 with three fingers in the grip
recesses 3 and pull it off:

SRR 3.7 C3
■ 14 │ GB│IE│NI
2) Press the two protruding tabs together and release the black
retainers from the catches:
You can now remove the cutting heads and the blades.

SRR 3.7 C3 GB│IE│NI │ 15 ■
3) Clean all parts under running water and then allow them to dry fully.
4) Reassemble the cutting unit 2. Use the following illustrations for
guidance:
–Place the three shaving heads in the recesses of the cutting
unit 2. Ensure that the notches on the edge of the shaving
heads rest on the catches in the opening.
–Place the round blades into the shaving heads with the blade
tips to the front.
–Press the two tabs of the retainers together and place them
back into the catches of the cutting unit 2and release the tabs.
The cutting unit 2is now reassembled.
5) Remove loose hairs from the shaver with the brush e.
6) Replace the cutting unit 2on the shaver. Ensure that it snaps
into place and is seated firmly.
■ Clean the housing with a moist cloth.

SRR 3.7 C3
■ 16 │ GB│IE│NI
NOTE
If...
–... the shaving result is noticeably poorer, ...
–... you have to the shave the same spot repeatedly
to achieve a good result, ...
–... the shave takes much longer than usual, ...
–... there is visible damage to the shaving heads, ...
... the shaving heads/the cutting unit 2must be replaced.
You can order the cutting unit 2, incl. shaving heads from
our customer service (see section “Ordering spare parts”).
To replace the cutting unit 2proceed as follows:
1) Take hold of the cutting unit 2 with three fingers in the
grip recesses 3 and pull it off.
2) Fit the new cutting unit 2onto the shaver. Ensure that it
snaps into place and is seated firmly.
Travel lock
This appliance is fitted with a travel lock. You can lock the On/Off
switch 6to prevent accidental starting:
Press and hold the On/Off switch 6for around 3 seconds, until
the symbol 9lights up blue. The On/Off switch 6is now
locked.
To unlock the appliance, press and hold the On/Off switch 6
for around 3 seconds, until the symbol 9lights up blue five times.
NOTE
If you attempt to switch the appliance on while the travel lock
is activated, the symbol 9lights up blue once.
The appliance will not start.
