ROTARY SHAVER SRR 3.7 D5
ROTARY SHAVER
Operating instructions
IAN 277761
ROTATIONSRASIERER
Bedienungsanleitung

GB/IE/NI Operating instructions Page 1
DE/AT / CH Bedienungsanleitung Seite 25
Before reading, unfold both pages containing illustrations and familiarise
yourself with all functions of the device.
Klappen Sie vor dem Lesen die beiden Seiten mit den Abbildungen aus und
machen Sie sich anschließend mit allen Funktionen des Gerätes vertraut.

A

B

SRR 3.7 D5 GB│IE│NI │ 1 ■
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Description of the appliance. . . . . . . . . . . . . . . . . . . . . . 3
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Charging the rechargeable
battery with the charger . . . . . . . . . . . . . . . . . . . . . . . 10
Charging the rechargeable
battery without the charger. . . . . . . . . . . . . . . . . . . . . 11
Cordless shaving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Shaving using the mains adapter . . . . . . . . . . . . . . . . 13
Trimmer/long hair trimmer . . . . . . . . . . . . . . . . . . . . . 13
Travel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cleaning with the brush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Cleaning under running water . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Thorough cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Kompernass Handels GmbH warranty. . . . . . . . . . . . 20
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Importer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
IB_277761_SRR3.7D5_LB6_1.indb 1 15.06.16 11:15

SRR 3.7 D5
■ 2 │ GB│IE│NI
Introduction
Congratulations on the purchase of your new device.
You have selected a high-quality product. The operating instructions are
part of this product. They contain important information on safety,
usage and disposal. Before using the product, familiarise yourself
with all handling and safety guidelines. Use the product only as
described and for the range of applications specified. Please also
pass these operating instructions on to any future owner.
Intended use
This appliance is intended exclusively for shaving and trimming
human hair.
This appliance is intended solely for use in private households.
Do not use it for commercial applications.
All other uses are deemed to be improper and may result in property
damage or even in personal injury.
Package contents
▯ Shaver with cutting unit
▯ Mains adapter
▯ Trimmer unit
▯ Protective cap
▯ Brush
▯ Charger
▯ Order card
▯ Operating instructions
IB_277761_SRR3.7D5_LB6_1.indb 2 15.06.16 11:15

SRR 3.7 D5 GB│IE│NI │ 3 ■
NOTE
Check contents for completeness and damage immediately
after unpacking. Contact Customer Services if necessary.
Description of the appliance

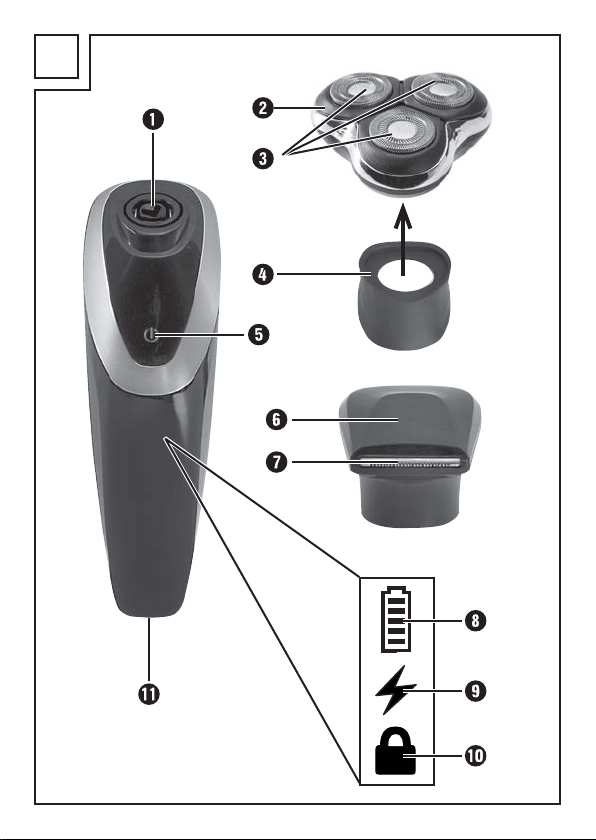

Figure A (front fold-out page):
1Drive shaft
2Cutting unit
3Shaving heads
4Protective collar
5On/Off switch
6Trimmer unit
7Long hair trimmer
8Symbol (battery charge indicator)
9Symbol (charging)
0Symbol (locked)
qCharging socket
Figure B (rear fold-out page):
wConnector
eMains adapter
rBrush
tProtective cap
zCharger
uConnector (charger)
iCharging socket (charger)
IB_277761_SRR3.7D5_LB6_1.indb 3 15.06.16 11:15

SRR 3.7 D5
■ 4 │ GB│IE│NI
Technical data
Appliance
Input voltage: 5 V
Input current: 1000 mA
Battery: 3.7 V/800 mAh Li-ion battery
Environmental temperature: 5°C up to 35°C
Charging time: approx. 60 minutes
Operating time with fully
charged battery: approx. 60 minutes
Protection rating: IPX 4
Mains adapter (type PTB-050100BS)
Input voltage: 100-240 V ∼, 50/60 Hz
Output voltage: 5 V
Input current: 0,2 A
Output current: 1000 mA
Protection rating: IP 20
Protection class: II /
IB_277761_SRR3.7D5_LB6_1.indb 4 15.06.16 11:15

SRR 3.7 D5 GB│IE│NI │ 5 ■
Safety instructions
DANGER – RISK OF ELECTRIC SHOCK!
► Prior to use, check the appliance for visible
external damage. Never operate an ap-
pliance that is damaged. There is a risk of
electrocution.
► The appliance may no longer be used if
there is any damage to the cable, to the
mains adapter, the housing or any other
components.
► Pull the mains adapter from the mains
power socket
— if a defect occurs,
— before cleaning the appliance,
— if you do not intend using the appliance
for long periods,
— after every use.a
When doing so, pull the mains adapter
itself and not the cable.
► Never submerge the appliance or the cable
with mains adapter in water or other liquids.
IB_277761_SRR3.7D5_LB6_1.indb 5 15.06.16 11:15

SRR 3.7 D5
■ 6 │ GB│IE│NI
DANGER –
RISK OF ELECTRIC SHOCK!
► If the appliance drops into water, pull the
mains adapter out of the power socket
before you reach into the water.
► Never touch the mains adapter with wet
hands, especially when plugging it in or
unplugging it. Risk of electrical shock!
► Check the mains adapter and appliance
regularly for possible mechanical defects.
► Ensure that the cable does not get jammed
in cupboard doors or pulled over hot
surfaces. If this occurs, the cable insulation
may be damaged.
► The installation of a residual current circuit
breaker with a rated tripping current of no
more than 30 mA offers further protection
from electric shocks. Have the installation
carried out only by a qualified electrician.
IB_277761_SRR3.7D5_LB6_1.indb 6 15.06.16 11:15

SRR 3.7 D5 GB│IE│NI │ 7 ■
DANGER –
RISK OF ELECTRIC SHOCK!
► WARNING! Disconnect the main adapter
from handset when you clean it with water..
WARNING – RISK OF INJURY!
► This appliance may be used by children
aged 8 years and above and by persons
with limited physical, sensory or mental
capabilities or lack of experience and
knowledge, provided that they are under
supervision or have been told how to use
the appliance safely and are aware of the
potential risks.
► Children must not play with the device.
► Cleaning and user maintenance tasks may
not be carried out by children unless they
are supervised.
IB_277761_SRR3.7D5_LB6_1.indb 7 15.06.16 11:15

SRR 3.7 D5
■ 8 │ GB│IE│NI
WARNING – RISK OF INJURY!
► All repairs must be carried out by authorised
specialist companies or by the Customer
Service department. Improper repairs can
pose significant risks to the user. It will also
invalidate any warranty claims.
► Do not use the appliance with a defective
cutter attachment or cutting length attachment,
since these may have sharp edges. There is
a risk of injury!
► Defective components must always be
replaced with original replacement parts.
Compliance with safety requirements can
only be guaranteed if original replacement
parts are used.
► Only plug the mains adapter into an easily
accessible power socket so that you can
pull it out of the power socket quickly in an
emergency.
IB_277761_SRR3.7D5_LB6_1.indb 8 15.06.16 11:15

SRR 3.7 D5 GB│IE│NI │ 9 ■
CAUTION – PROPERTY DAMAGE!
► Never operate the appliance unsupervised,
and only in accordance with the information
on the nameplate.
► For mains operation, use only the supplied
mains adapter (type PTB-050100BS).
► To avoid improper warming, do not cover
the mains adapter.
The mains adapter is for indoor use only.
IB_277761_SRR3.7D5_LB6_1.indb 9 15.06.16 11:15

SRR 3.7 D5
■ 10 │ GB│IE│NI
Charging the rechargeable
battery with the charger
The battery should be charged for at least 60 minutes before first use.
NOTE
► Ensure that the appliance is switched off before charging the
battery.
1) Plug the connector winto the charging socket iof the charger.
Pay heed to the correct polarity: The guide pillar in the charging
socket imust grip the guide rail on the connector plug w.
If it does not, the connector plug wcannot be inserted.
2) Flip open the charger zas far as it will go until the bracket is
in an upright position (see figure).
3) Plug the mains adapter einto a mains socket that complies with
the appliance specifications.
4) Place the appliance in the charger z. The bracket holds the
appliance in place in the charger z.
The charging of the battery is indicated by the red flashing
symbol 9.
IB_277761_SRR3.7D5_LB6_1.indb 10 15.06.16 11:15

SRR 3.7 D5 GB│IE│NI │ 11 ■
■ As soon as the battery is fully charged, the red flashing symbol
9 disappears and the blue symbol of the battery charge
indicator 8 appears.
■ Once the battery is fully charged, you can use the appliance for
around 60 minutes without connecting it to the power supply.
■ If the battery is nearly empty, the red symbol 9flashes.
Charging the rechargeable
battery without the charger
NOTE
► Ensure that the appliance is switched off before charging the
battery.
1) Plug the connector winto the charging socket qon the shaver.
Pay heed to the correct polarity: The guide pillar in the charging
socket qmust grip the guide rail on the connector plug w. If it
does not, the connector plug wcannot be inserted.
2) Plug the mains adapter einto a mains socket that complies with
the appliance specifications.
The charging of the battery is indicated by the red flashing
symbol 9.
■ As soon as the battery is fully charged, the red flashing symbol 9
disappears and the blue symbol of the battery charge indica-
tor 8 appears.
■ Once the battery is fully charged, you can use the appliance for
around 60 minutes without connecting it to the power supply.
■ If the battery is nearly empty, the red symbol 9flashes.
IB_277761_SRR3.7D5_LB6_1.indb 11 15.06.16 11:15

SRR 3.7 D5
■ 12 │ GB│IE│NI
Cordless shaving
CAUTION! MATERIAL DAMAGE!
► This appliance is not suitable for wet shaving!
This shaver can be used without the power cable. In this case, you
must charge the appliance before initial use (see section “Charging
the rechargeable battery with/without the charger”).
1) If not already attached, attach the protective collar 4from the
bottom onto the cutting unit 2(see fold-out page).
2) Fit the cutting unit 2with the attached protective collar 4onto
the drive shaft 1. Make sure that the protective collar 4is fitted
correctly onto the hand element.
3) Remove the protective cap t.
4) Press the ON/OFF button 5. The symbol of the battery
charge indicator 8and the logo are displayed
as soon as the shaver starts up.
NOTE
► The best results are achieved if used on dry skin.
► It can take 2 to 3 weeks until the skin is accustomed to the dry
shaving system.
5) Move the shaving heads 3 with straight and circular motions
over the skin.
6) After you have covered all the areas you want to shave, press
the ON/OFF button 5. The appliance stops.
The display disappears at once.
7) Clean the shaver after every use with the supplied brush r.
For a more thorough cleaning, read the section “Cleaning and
care”.
IB_277761_SRR3.7D5_LB6_1.indb 12 15.06.16 11:15

SRR 3.7 D5 GB│IE│NI │ 13 ■
Shaving using the mains adapter
CAUTION! MATERIAL DAMAGE!
► This appliance is not suitable for wet shaving!
Should you wish to use the shaver without first charging the battery,
you can do so by using energy directly from the mains adapter e:
1) Plug the connector winto the charging socket qon the shaver.
Pay heed to the correct polarity: The guide pillar in the charging
socket qmust grip the guide rail on the connector plug w. If it
does not, the connector plug wcannot be inserted.
2) Insert the plug into a mains power socket.
The shaver can then be used.
Trimmer/long hair trimmer
To shape your beard, form sideburns or shave eyebrows, use the
trimmer unit 6.
1) Pull the cutting unit 2, if attached, off the handset.
2) Fit the trimmer unit 6onto the drive shaft 1 (see figure).
IB_277761_SRR3.7D5_LB6_1.indb 13 15.06.16 11:15

SRR 3.7 D5
■ 14 │ GB│IE│NI
3) Attach the trimmer unit 6in such a way that both guide pillars
on the trimmer unit 6grip the guide rails on the drive shaft 1.
4) Press the ON/OFF button 5. The symbol of the battery
charge indicator 8and the logo are displayed
as soon as the shaver starts up.
5) When you are finished trimming, press the on/off switch 5
again to switch the appliance off.
6) Clean the trimmer unit 6with the supplied brush r.
For a more thorough cleaning, read the section “Cleaning and
care”.
Travel lock
To prevent the appliance from switching on unintentionally, you can
lock the ON/OFF button 5. This only works if the appliance is not
connected to the mains.
♦ Press and hold down the on/off switch 5until the symbol 0
appears on the display.
If the ON/OFF button 5is pressed now, the symbol 0
appears briefly. The appliance however does not switch on.
♦ If you want to unlock your appliance again, press and hold
down the ON/OFF button 5:
–the symbol 0appears and starts to flash for approx.
5 seconds. The display then disappears and the appliance
can now be switched on again.
IB_277761_SRR3.7D5_LB6_1.indb 14 15.06.16 11:15

SRR 3.7 D5 GB│IE│NI │ 15 ■
Cleaning and care
DANGER – ELECTRIC SHOCK!
► Before cleaning the appliance, disconnect the power plug from
the mains power socket! There is a risk of electric shock!
CAUTION! MATERIAL DAMAGE!
► Do not use abrasive, chemical or caustic cleaning agents to
clean this appliance. This will irreparably damage the appliance.
Cleaning with the brush
Cutting unit
Clean the 3 shaving heads 3 of the cutting unit 2after every
shave using the brush r.
1) Pull the cutting unit 2upwards and off the appliance. To do this,
grip the ridged areas on the side of cutting unit 2.
2) Tap the cutting unit 2on a flat surface or blow off the hair
cuttings.
3) Use the brush rto remove any remaining hair cuttings.
Trimmer unit
■ Clean the trimmer unit after every shave using the supplied brush r.
■ Oil the long hair trimmer 7around every 6 months with a drop
of sewing machine oil.
IB_277761_SRR3.7D5_LB6_1.indb 15 15.06.16 11:15

SRR 3.7 D5
■ 16 │ GB│IE│NI
Cleaning under running water
The cutting unit 2is suitable for cleaning under running
water.
1) Pull the cutting unit 2off the handset.
2) Hold the cutting unit 2under the running water so that the
water flows through the shaving heads 3 from the inside to the
outside.
CAUTION! MATERIAL DAMAGE!
► Ensure that only the shaver unit 2is under the stream of water!
The shaver handset is only protected against water splashes and
can be irreparably damaged if it is held under running water.
3) Allow the cutting unit 2to dry out completely before using the
shaver again.
IB_277761_SRR3.7D5_LB6_1.indb 16 15.06.16 11:15
