Introduction
Thank you for purchasing a SilverCrest product.

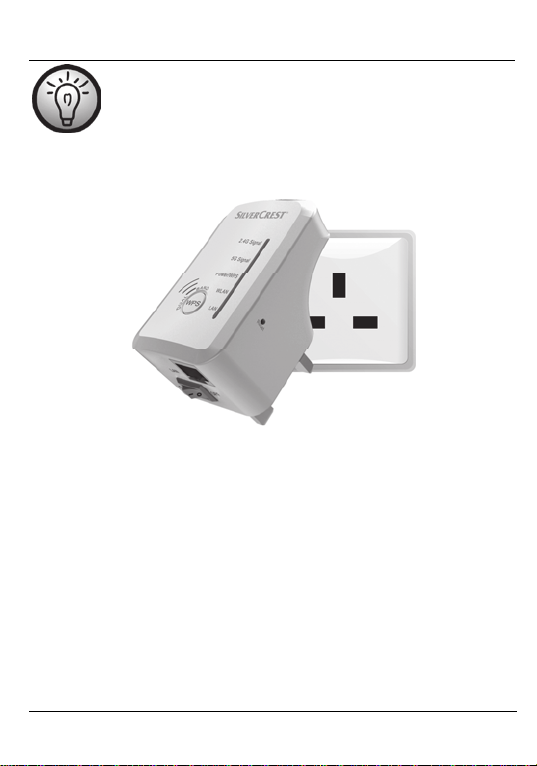

The SilverCrest Dual-Band Wifi Range Extender SWV 300 B2 increases the
range of an existing wireless network. The built-in WPS function enables it to be
easily connected to a secure wireless network.
Intended use

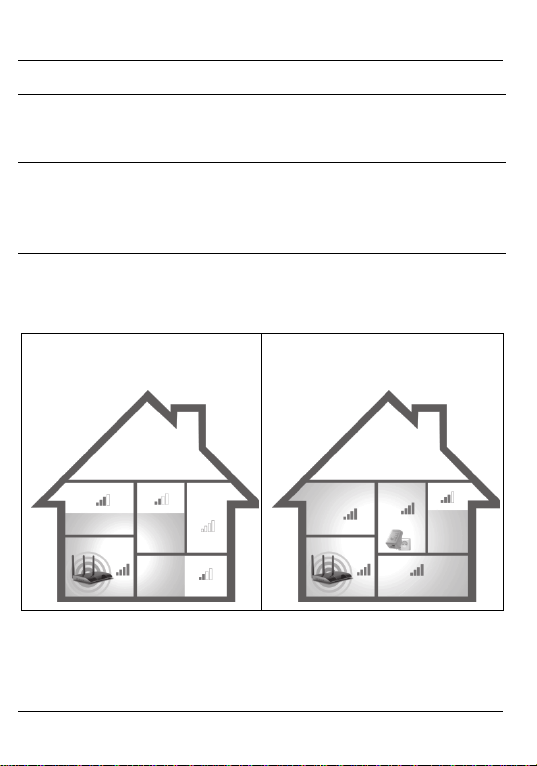

This dual-band wifi range extender is an information technology device. It
increases the range of an existing wireless network. The device can also be
used as an access point (AP), for example, to provide a router without its own
wireless network as a "wireless router". In addition, the device can be
connected as a client to end devices with a LAN interface (for example,
computer, notebook or TV set), which have no own wireless network. It is only
designed for private use and not for industrial or commercial purposes.
Furthermore, the device may not be used outdoors or in tropical climates. This
device meets all relevant norms and standards in conjunction with CE
conformity. In the event of any modification to the device that was not
approved by the manufacturer, compliance with these standards is no longer
guaranteed. The manufacturer does not accept any liability for any resulting
damage or faults in such cases. Since a standby mode would affect the
intended operation, this function was not implemented. Please observe the
regulations and laws in the country of use.

SilverCrest SWV 300 B2
English - 5
Supplied items
A Dual-band wifi range extender
B Network cable
C These operating instructions (symbolic representation)
A separate flyer relating to the "GNU General Public License" is
enclosed with this product. This flyer can also be downloaded
at www.lidl-service.com.

SilverCrest SWV 300 B2
6 - English
Overview

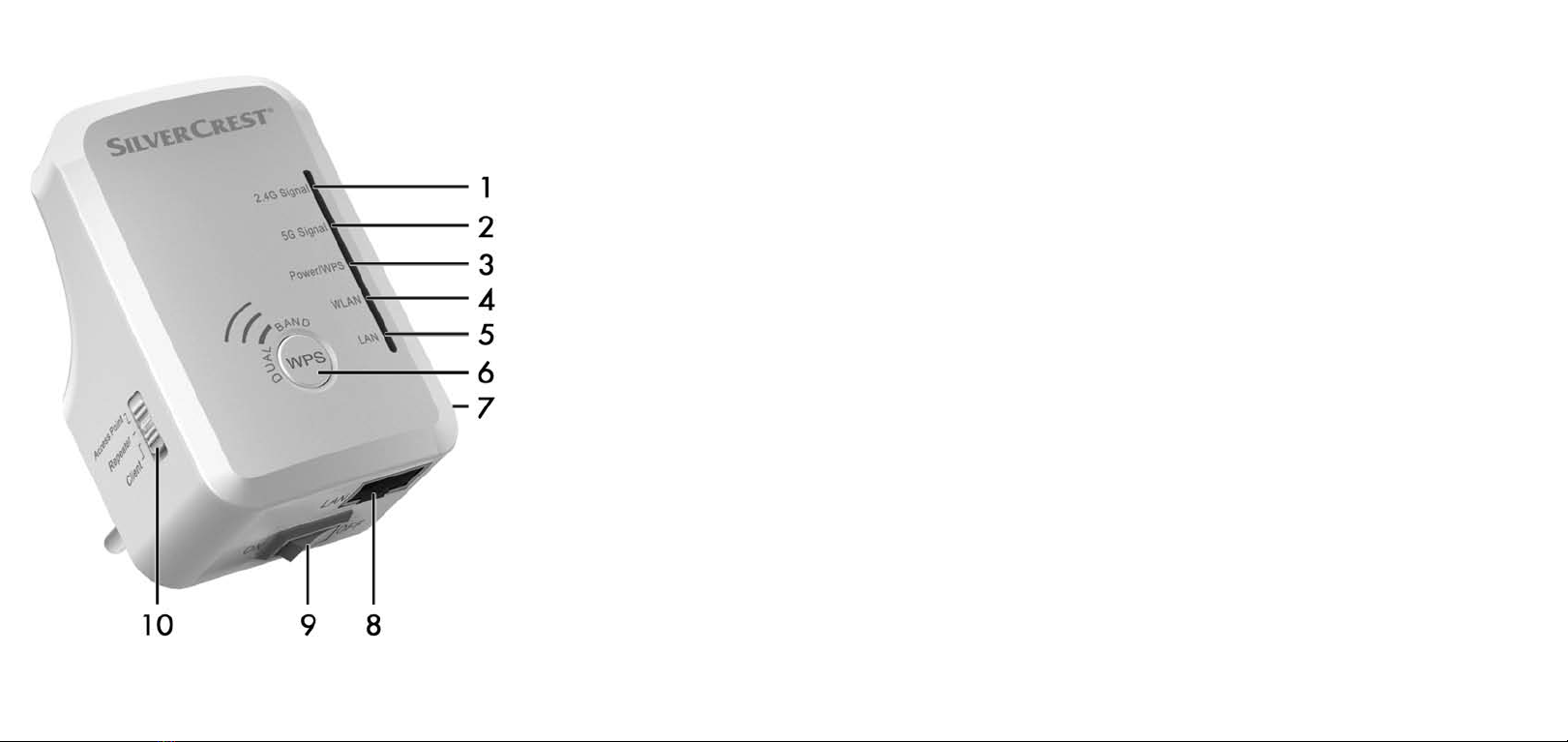

These operating instructions have a fold-out cover. The dual-band wifi range
extender is illustrated with numbers on the inside cover. The numbers indicate
the following:
1 2.4G signal LED
2 5G signal LED
3 Power/WPS LED
4 Wireless LED
5 LAN LED

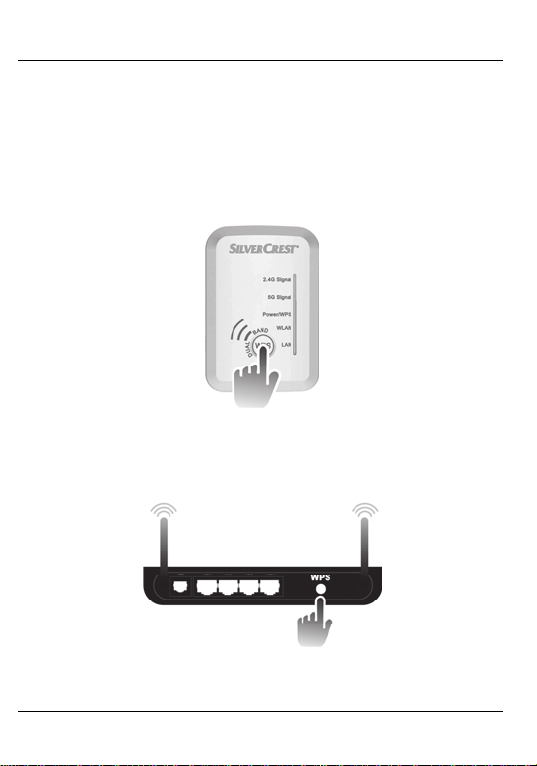

6 WPS button
7 Reset button (right side)
8 LAN socket (network socket, RJ-45)
9 Main switch
10 Mode selector

SilverCrest SWV 300 B2
English - 7
LED indicators
LED Status Meaning
2.4G signal (1)/
5G signal (2)
Lights up Excellent reception, signal strength
50% to 100%
Flashes slowly Good reception, signal strength
25% to 50%
Flashes rapidly Weak reception, signal strength
below 25%
Off No reception
Power/WPS (3) Lights up The dual-band wifi range extender
is switched on.
Flashes WPS connection is established or
WPS signal of another device is
expected
Off The dual-band wifi range extender
is switched off
Wireless (4) Flashes slowly Connection established to wireless
network
Flashes rapidly Data is being transferred
Off Connection not established to
wireless network
LAN (5) Lights up LAN connection is established
Flashes Data is being transferred
Off LAN connection is not established

SilverCrest SWV 300 B2
8 - English
Technical data
Input voltage 100-240V~, 50/60Hz
Power consumption max. 4W (Repeater Mode)
WLAN standards 802.11b, 802.11g, 802.11n
Frequency band 2.4GHz and 5GHz
Data transfer rate up to 150Mbit/s
Encryption WPA, WPA2, WEP (128/64) *
Dimensions (W x H x D) approx. 52 x 81 x 67 mm
Weight approx. 86 g
Operating temperature, air
humidity 5 to 35°C; max. 85% rel. humidity
Storage temperature, air
humidity -20 to 60°C; max. 90 % rel. humidity
* WEP (128/64) encryption only with 802.11b/g.
The technical data and design may be changed without notification.
Safety instructions
Before using the device for the first time, please read the following instructions
carefully even if you are familiar with using electronic devices. Store these
instructions in a safe place for future reference. If you pass on the device to
someone else, be sure to always include these instructions as they are an
integral part of the device.
WARNING! This symbol indicates important information for
safe operation of the device and the safety of the user.
Disregarding this information can lead to material damage
and/or health hazards and even death.
