Silvercrest SWV 733 A2 Product information sheet

V 3.9
English ................................................................................................................... 2
Deutsch................................................................................................................82

SilverCrest SWV 733 A2
2 - English
Content
Intended use............................................................................................................. 6
Supplied items.......................................................................................................... 7
Overview ................................................................................................................. 8
LED indicators ................................................................................................................................................9
Technical data......................................................................................................... 10
Safety instructions .................................................................................................. 11
Storage when not in use......................................................................................... 18
Copyright ............................................................................................................... 18
Prior to use............................................................................................................. 19
First use .................................................................................................................. 20
Setting mode............................................................................................................................................... 20

SilverCrest SWV 733 A2
English - 3
Repeater mode........................................................................................................................................... 21
WPS - The easiest type of configuration.............................................................................................. 23
Manual configuration ........................................................................................................................... 25
Client mode ................................................................................................................................................ 32
WPS - The easiest type of configuration.............................................................................................. 34
Manual configuration ........................................................................................................................... 36
Access Point (AP) mode (Router mode).................................................................................................... 42
WPS - Connect to the AP (Router mode)............................................................................................. 52
Manual connection to the AP............................................................................................................... 53
Configuration menu of the dual-band Wi-Fi range extender.................................................................. 54
Status...................................................................................................................................................... 58
Wizard................................................................................................................................................... 60
Wi-Fi ....................................................................................................................................................... 61
Setup ...................................................................................................................................................... 66

SilverCrest SWV 733 A2
4 - English
Environmental and disposal information ................................................................ 76
Information on the EU Declaration of Conformity ................................................... 77
Troubleshooting ..................................................................................................... 77
Warranty and servicing advice............................................................................... 80


SilverCrest SWV 733 A2
English - 5
Congratulations!
By purchasing the SilverCrest dual-band Wi-Fi range extender SWV 733 A2, hereinafter referred to as
dual-band Wi-Fi range extender, you have opted for a high-quality product.
Familiarise yourself with the dual-band Wi-Fi range extender before using it for the first time, and read
these operating instructions carefully. Pay particular attention to the safety instructions and use the dual-
band Wi-Fi range extender only as described in these operating instructions and for the specified range
of applications.
Keep these operating instructions in a safe place. Include all documents when passing on the dual-band
Wi-Fi range extender to someone else. The operating instructions are an integral part of the product.
If you pass on the dual-band Wi-Fi range extender, the factory defaults must be loaded, and please also
refer to the section "Backup/Restore" on page 71.

SilverCrest SWV 733 A2
6 - English
Intended use
This dual-band Wi-Fi range extender is an information technology device. It increases the range of an
existing wireless network. The dual-band Wi-Fi range extender can also be used as an access point (AP),
for example, to use a router without its own wireless network as a "wireless router". In addition, the dual-
band Wi-Fi range extender can be connected as a client to end devices with a LAN interface (for
example, computer, notebook or TV set), which do not have their own wireless network. It is only
designed for private use and not for industrial or commercial purposes. Furthermore, the dual-band Wi-Fi
range extender may not be used outdoors or in tropical climates. Any other use is not as intended. This
device complies with all standards and directives specified in the Declaration of Conformity. In the event
of any modification to the dual-band Wi-Fi range extender that was not approved by the manufacturer,
compliance with these standards is no longer guaranteed. The manufacturer does not accept any
liability for any resulting damage or faults in such cases. Please observe the regulations and laws in the
country of use.

SilverCrest SWV 733 A2
English - 7

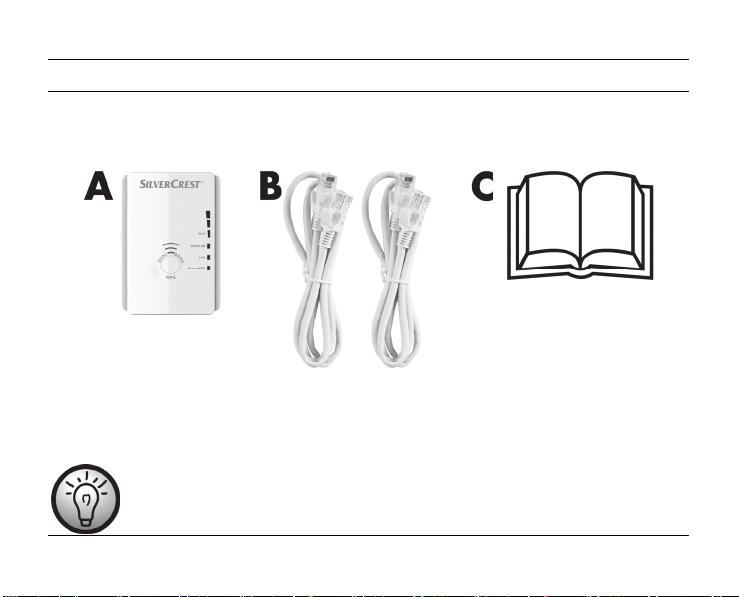

Supplied items
Take the dual-band Wi-Fi range extender and the accessories out of the packaging and remove all
packaging material completely. Check the contents to ensure they are complete. You must notify our
Customer Service immediately if parts are missing.
A SilverCrest dual-band Wi-Fi range extender SWV 733 A2
B 2 network cables
C These operating instructions (symbolic representation)
"GNU General Public License" flyer (not illustrated)
A separate flyer relating to the "GNU General Public License" is enclosed with this
dual-band Wi-Fi range extender. This flyer can also be downloaded at www.lidl-
service.com.

SilverCrest SWV 733 A2
8 - English

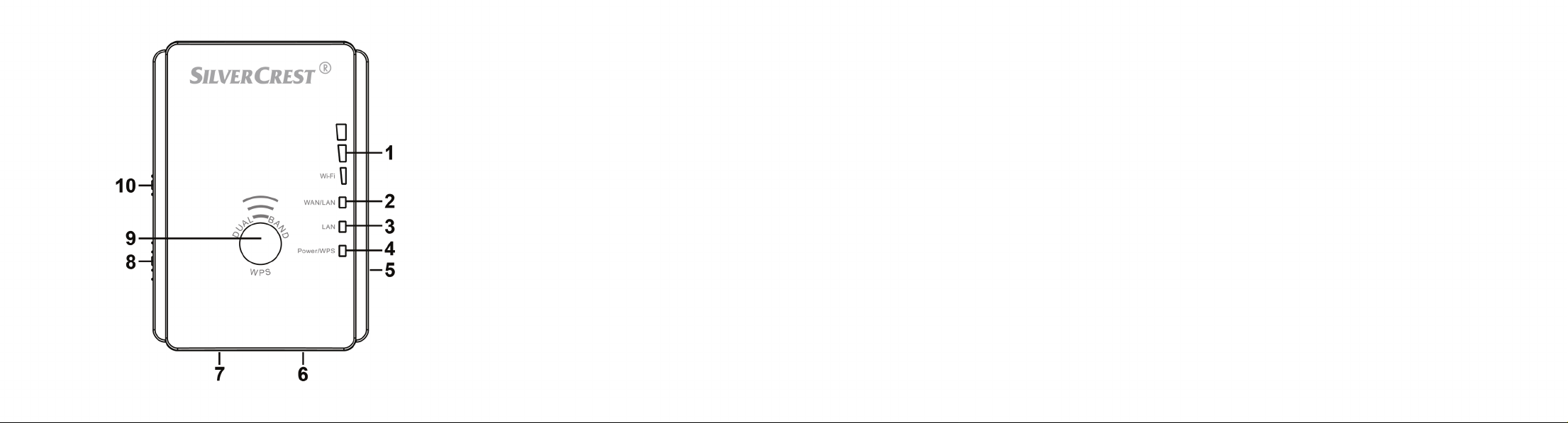

Overview
These operating instructions have a fold-out cover. The dual-band Wi-Fi range extender is illustrated with
numbers on the inside cover. The numbers indicate the following:
1 Field strength indicator
2 WAN/LAN LED
3 LAN LED
4 Power/WPS LED
5 Reset button
6 WAN/LAN socket (network socket, RJ-45)
7 LAN socket (network socket, RJ-45)
8 Mode selector
9 WPS button
10 Main switch
