Silvercrest SMFB 2.1 A1 User manual

IAN 93846
BLUETOOTH®MOTORCYCLE HANDS-FREE SET
SMFB 2.1 A1
BLUETOOTH® MOTORCYCLE HANDS-FREE SET
Operating instructions
BLUETOOTH®-MOTORRAD-FREISPRECHEINRICHTUNG
Bedienungsanleitung
6

GB / IE Operating instructions Page 1
DE / AT / CH Bedienungsanleitung Seite 19
Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of
the device.
Klappen Sie vor dem Lesen die beiden Seiten mit den Abbildungen aus und machen Sie sich anschlie-
ßend mit allen Funktionen des Gerätes vertraut.

A
APPLIANCE DESCRIPTION / PACKAGE CONTENTS
B

D
C
APPLIANCE DESCRIPTION / PACKAGE CONTENTS

1
SMFB 2.1 A1
GB
IE
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Proper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Basic safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Notice regarding the handling of batteries/rechargeable batteries . . . . . . . . . . . . . . . . . 4
Traffic safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Package contents (see fold-out page) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Technical details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Controls (see fold-out page). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Assembling the mains adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Charging the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Attaching the base unit to the helmet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Attaching the pillion unit to the helmet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Switching the device on/off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Communication between rider and pillion passenger . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Pairing/connecting/disconnecting hands-free set and mobile phone . . . . . . . . . . . . . . .12
Making calls via the hands-free set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Listening to music from the mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Making calls while listening to music. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Battery warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Reset to factory settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Control lamp colour codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Importer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
EU conformity declaration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
IB_93846_SMFB2.1A1_LB6.indb 1IB_93846_SMFB2.1A1_LB6.indb 1 02.12.13 09:1102.12.13 09:11
145 mm x 205 mm

2SMFB 2.1 A1
GB
IE
Introduction
Congratulations on the purchase of your new device.
You have selected a high-quality product. The operating instructions are part of
this product. They contain important information on safety, use and disposal.
Before using the product, familiarise yourself with all operating and safety
instructions. Use this product only as described and only for the specified areas
of application. Retain these instructions for future reference. Please also pass
these operating instructions on to any future owner(s).
Proper use
This device is intended to establish a hands-free connection to a mobile phone
via Bluetooth®as well as an intercom connection between the rider and the
pillion passenger on a motorcycle.
This device may only be used for private domestic purposes, it is NOT suitable
for industrial or commercial applications. This product is not intended for use in
activities concerned with medicinal, lifesaving or life sustaining applications.
It is not intended for any other use or for uses extending beyond those stated.
Claims of any kind for damage arising as a result of non-intended use will not
be accepted. The user is the sole bearer of the risk.
Safety instructions
Warnings
The following warnings are used in these operating instructions:
DANGER
A warning at this risk level indicates an imminently hazardous
situation.
If the hazardous situation is not avoided, it could lead to death or serious
physical injury.
► Follow the instructions in this warning to avoid a fatality or serious
personal injury.
IB_93846_SMFB2.1A1_LB6.indb 2IB_93846_SMFB2.1A1_LB6.indb 2 02.12.13 09:1102.12.13 09:11
145 mm x 205 mm

3
SMFB 2.1 A1
GB
IE
WARNING
A warning of this risk level indicates a potentially hazardous
situation.
Failure to avoid this hazardous situation could result in physical injury.
► Follow the instructions in this warning to prevent physical injury.
CAUTION
A warning of this risk level indicates potential damage to
property.
Failure to avoid this situation could result in damage to property.
► Follow the instructions in this warning to prevent damage to property.
NOTE
► A note indicates additional information that will assist you in handling the
device.
Basic safety instructions
For safe handling of the device, follow the safety information below:
■ Before use, check the device for externally visible damage. Do not use a
device that has been damaged or dropped.
■ If the cables or connections are damaged, have them replaced by an authorised
specialist or customer service.
■ Persons who are incapable of using the device safely due to their physical,
intellectual or motor abilities may only use it whilst under the supervision or
direction of a responsible person
■ Children may only be permitted to use the device under supervision.
■ All repairs must be carried out by authorised specialist companies or the
Customer Service department. Improper repairs can pose significant risks to
the user. Warranty claims also become void.
■ Repairs to the device during the warranty period may only be carried out by
a customer service department authorised by the manufacturer. Otherwise no
additional warranty claims can be considered for subsequent damage.
■ Use only the supplied mains adapter to charge the device.
IB_93846_SMFB2.1A1_LB6.indb 3IB_93846_SMFB2.1A1_LB6.indb 3 02.12.13 09:1102.12.13 09:11
145 mm x 205 mm

4SMFB 2.1 A1
GB
IE
■ With regard to technical safety, and in consideration of electro-magnetic toler-
ance and shielding efficiency, only connection cables and external devices
that are compatible with this device may be used .
■ Defective components must always be replaced with original replacement
parts. Compliance with safety requirements can only be guaranteed if original
replacement parts are used.
■ Protect the device from penetration by moisture and liquids.
■ The packaging material is not a toy. Keep plastic sheeting, bags and all other
packaging material away from children. There is a risk of suffocation.
■ If you wish to connect the device to another device, read the operating instruc-
tions to obtain detailed safety instructions. Do not connect it to products that
are not compatible.
■ Do not use the mains adapter for a different product and do not attempt to
charge this device with a different charger. Use only the charger supplied with
this device.
■ Never charge non-rechargeable batteries!
■ Do not use the mains adapter to charge the device during a thunderstorm.
■ Always pull the mains adapter from the socket after use to fully disconnect it
from the power supply.
■ Ensure that the mains power socket used is always easily accessible.
■ Make sure that the mains cable does not present a trip hazard while charging.
■ Do not use the hands-free set during a thunderstorm.
■ The supplied mains adapter may only be transported with an attached mains
plug (adapter) otherwise small parts may get into the inside of the device.
Notice regarding the handling of batteries/
rechargeable batteries
■ Do not throw batteries/rechargeable batteries into a fire. Risk of explosions and
injuries!
■ Never charge non-rechargeable batteries! Risk of explosions and injuries!
■ Never open, solder or weld batteries/rechargeable batteries. Risk of explo-
sions and injuries!
■ Keep batteries out of the reach of children. Children might put batteries into
their mouth and swallow them.
If a battery is swallowed, seek medical assistance immediately.
IB_93846_SMFB2.1A1_LB6.indb 4IB_93846_SMFB2.1A1_LB6.indb 4 02.12.13 09:1102.12.13 09:11
145 mm x 205 mm

5
SMFB 2.1 A1
GB
IE
Traffic safety
WARNING
Road traffic safety has the highest priority!
Observe the following safety instructions so as not to endanger yourself or
others:
► Before starting your journey, familiarise yourself with how to use the device.
► Only use the device when the traffic situation allows it! Stop in a suitable
location if you wish to perform complicated operations.
► Set the volume to a moderate level so that the sirens of police vehicles, fire
trucks and other emergency service vehicles can be heard in good time.
► Only operate the hands-free set on those occasions in which the traffic
situation permits it and in which you will not endanger, injure, obstruct or
cause annoyance to other road users.
NOTE
► Before using the hands-free set, please acquaint yourself with the applicable
laws and traffic regulations in the country where you will be using the
hands-free set!
The directives and laws can differ from country to country!
► The hands-free set can be used at any speed. As the background noise
increases at faster speeds, it is possible that the sound quality may be
impaired.
Introduction
Bluetooth®is a short-range wireless communication system. It enables wireless
connections between Bluetooth®devices such as mobile telephones, PDA and
PCs. Bluetooth®is a worldwide standard for operation in the internationally
recognised ISM frequency range (Industrial, Scientific and Medical). Within
the ISM frequency range (2.402–2.480 GHz), data transfer is possible at
a range of up to approx. 10 metres (Class II). The likelihood of interference
from other users of the ISM frequency range, such as microwaves, WLAN
(802.116) or garage door openers, is minimised by so-called “frequency
hopping”. Frequency hopping involves up to 1600 frequency changes per
second, thus Bluetooth®is also considered to be relatively secure against
eavesdropping.
Bluetooth®is a registered trademark of Bluetooth SIG, Inc. All other names
and trademarks are the property of their respective owners.
HSP (headset profile) allows standard functions such as voice transmission as
well as the acceptance/rejection of calls.
IB_93846_SMFB2.1A1_LB6.indb 5IB_93846_SMFB2.1A1_LB6.indb 5 02.12.13 09:1102.12.13 09:11
145 mm x 205 mm

6SMFB 2.1 A1
GB
IE
HFP (hands-free profile) allows the hands-free functions of a mobile phone,
e.g. with the assistance of voice commands.
A2DP (advanced audio distribution profile) allows the transmission of audio
data.
AVRCP (audio video remote control profile) allows the remote control of audio
or video devices.

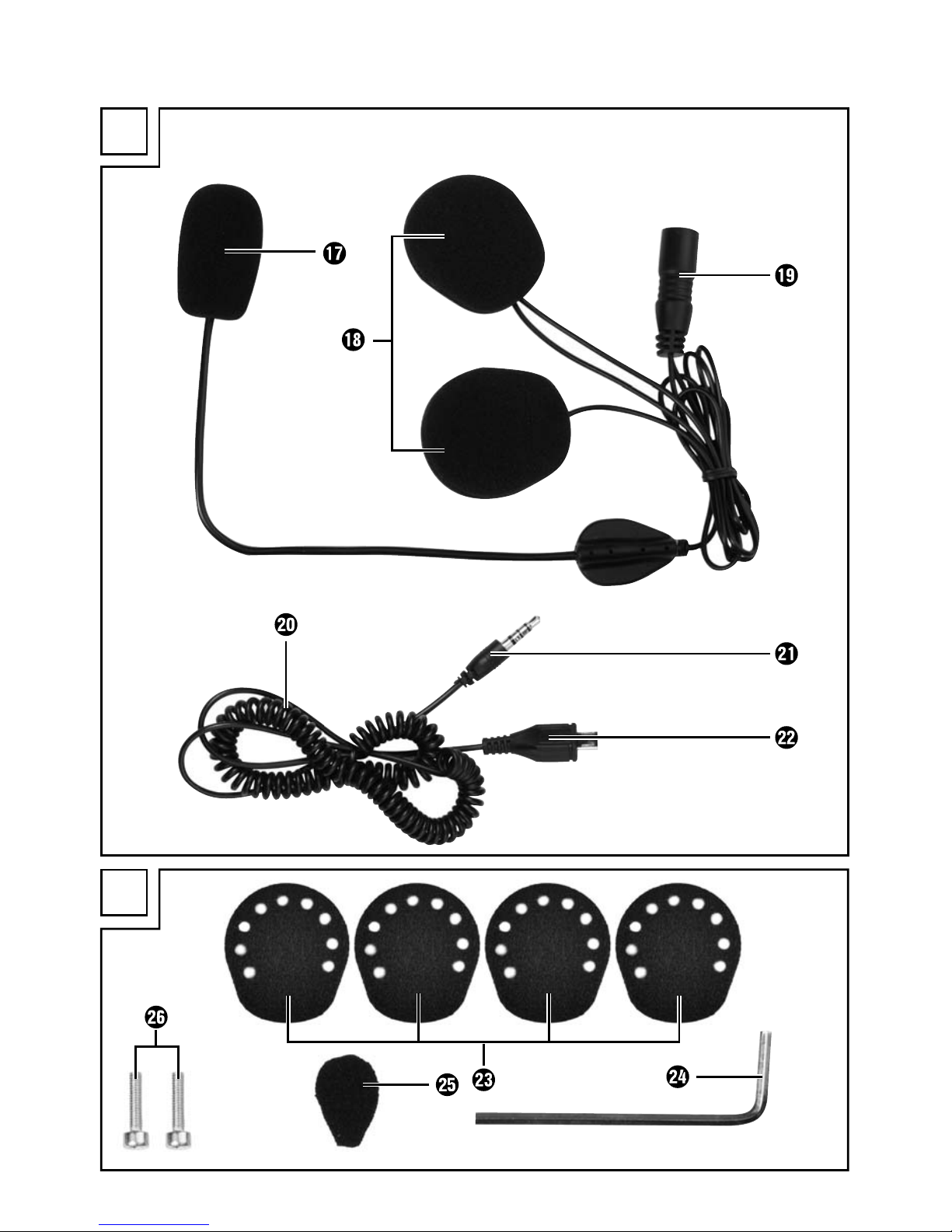

Package contents (see fold-out page)
1 x detachable main unit ( - 8)
1 x base unit (with goose-neck microphone and 2 speakers) ( 9, 11 , 12 )
1 x pillion unit (with goose-neck microphone and 2 speakers) (17 - 19 )
1 x mains adapter (13 )
1 x USB to micro USB charger cable (14 , 15 , 16 )
1 x spiral cable (micro USB to 3.5 mm jack) (20 , 21, 22 )
4 x Velcro fastening points (23 )
1 x Velcro fastening point for the pillion unit (25 )
1 x Allen key (24 )
Mounting material for helmet mounting
(2 screws 26 , 1 fastening plate 10 )
Operating instructions (not shown)
IB_93846_SMFB2.1A1_LB6.indb 6IB_93846_SMFB2.1A1_LB6.indb 6 02.12.13 09:1102.12.13 09:11
145 mm x 205 mm

7
SMFB 2.1 A1
GB
IE
Technical details
General
Operating voltage 5.2 V 1.0 A, 5,2 W max.
Bluetooth®specification Version 2.1 + EDR, range of
up to 10 metres
Frequency band 2.402 – 2.480 GHz
Supported Bluetooth®profiles HSP, HFP, A2DP, AVRCP
Operating temperature +5 to +40°C
Humidity (no condensation) 5 – 75%
Protection class main unit IP 55
Dimensions (main unit)
(L x W x H) approx. 8.5 x 3.9 x 2.3 cm
Dimensions (pillion unit)
(length of goose-neck) approx. 17 cm
Weight including accessories approx. 230 g
Talk time (with full battery charge) approx. 8 hours
Standby time
(with full battery charge) approx. 300 hours
Power adapter
Input 100 – 240 V ~, 50/60 Hz , 0.13 A
Output 5.2 V 1.0 A, 5 W max.
Operating temperature +5 to +25°C
Manufacturer Minwa China (Huizhou) Electronics Co., Ltd.
Type designation MW3NU10GT
Protection class II /
Rechargeable battery
Capacity 400 mAh
Voltage 3.7 V
IB_93846_SMFB2.1A1_LB6.indb 7IB_93846_SMFB2.1A1_LB6.indb 7 02.12.13 09:1102.12.13 09:11
145 mm x 205 mm

8SMFB 2.1 A1
GB
IE
Controls (see fold-out page)
Illustration A (base unit):
V- (reduce volume for pillion)
2V+ (increase volume for pillion)
3V+ (increase volume for rider)
4Micro USB socket (for charging and connection to pillion)
5V- (reduce volume for rider)
6Multifunction button
7Control lamp
8button
9Rider/main unit speaker
10 Fastening plate
11 Socket plate
12 Main unit microphone (with foam protector)
Illustration B (mains adapter/charger):
13 Mains adapter
14 Micro USB plug from charger cable
15 USB plug from charger cable
16 Charger cable
Illustration C (pillion unit):
17 Pillion unit microphone (with foam protector)
18 Pillion unit speaker
19 Socket (for connection to spiral cable)
20 Spiral cable (for rider-pillion connection)
21 Jack plug (from spiral cable)
22 Micro USB plug (from spiral cable)
Illustration D (accessories):
23 4 Velcro fastening points
24 Allen key
25 Velcro fastening point for pillion unit
26 Screws
IB_93846_SMFB2.1A1_LB6.indb 8IB_93846_SMFB2.1A1_LB6.indb 8 02.12.13 09:1102.12.13 09:11
145 mm x 205 mm

9
SMFB 2.1 A1
GB
IE
Preparation
Assembling the mains adapter
Assemble the mains adapter 13 , if required:
1) Push the contacts into the mains adapter 13 , as shown on the fold-out
page, until they click into place.
2) If you want to the remove the contacts from the mains adapter 13 , press
the surface labelled “PRESS” and slide the contacts upwards.
Charging the device
Before you can use the device it must be charged.
3) Connect the mains adapter 13 to the charger cable 16 .
4) Open the protective cover on the main unit and insert the micro USB plug 14
into the micro USB socket 4on the main unit.
5) Connect the mains adapter 13 to a mains power socket. As soon as the
mains adapter 13 is connected to a mains power socket, the LED on the
mains adapter 13 lights up green. The control lamp 7on the main unit
lights up red.
As soon as the device is charged, the red control lamp 7goes off (after
around 2 hours). The green LED on the mains adapter 13 stays lit until the
mains adapter 13 is disconnected from the mains.
Attaching the base unit to the helmet
Install the base unit (main unit with microphone 12 and speakers 9) in the
helmet (see Fig. 1):
1) Attach the main unit to the socket plate 11 .
2) Secure the fastening plate 10 to the rear side of the socket plate 11 with
the screws 26 (loosely to begin with).
3) The two screws 26 need to be loose enough for the base unit to be attached
to the helmet. The fastening plate 10 is on the inside and the main unit on
the outside of the helmet. The microphone 12 points forwards. Clamp the
padding and the outer shell of the helmet between the main unit and the
fastening plate 10 .
4) Then tighten the two screws 26 using the Allen key 24 . The base unit must
be attached firmly to the helmet!
IB_93846_SMFB2.1A1_LB6.indb 9IB_93846_SMFB2.1A1_LB6.indb 9 02.12.13 09:1102.12.13 09:11
145 mm x 205 mm

10 SMFB 2.1 A1
GB
IE
5) Place two of the Velcro fastening points 23 inside the helmet to attach the
speakers 9. Ensure that you attach these in a position that corresponds
to that of the ears of the person wearing the helmet. Remove the protective
film from the rear of the Velcro fastening points 23 and affix these in the
desired location.
NOTE
► If the lining of the helmet holds the speakers 9even without the Velcro
fastening points 23 , then you will not need to use the Velcro fastening
points 23 .
6) Press the speakers 9onto the Velcro fastening points 23 inside the helmet.
7) Push the cable a little way beneath the helmet padding if possible.
Fig. 1
Attaching the pillion unit to the helmet
Install the pillion unit in the helmet (see Fig. 1):
1) Place the Velco fastening point for the pillion unit 25 into the helmet so that
the microphone 17 is pointing forwards. Remove the protective film from
the rear of the Velcro fastening point 25 and affix it in the desired location.
Place two of the Velcro fastening points 23 inside the helmet to attach the
speakers 18 of the pillion unit. Ensure that these are attached in a position
that roughly corresponds to that of the ears of the person wearing the helmet.
Remove the protective film from the rear of the Velcro fastening points 23
and affix these in the desired locations.
2) Press the speakers 18 onto the Velcro fastening points 23 inside the helmet.
Press the pillion unit onto the Velcro point for the pillion unit 25 . Ensure that
the microphone 17 is pointing forwards.
3) Push the cable a little way beneath the helmet padding if possible.
IB_93846_SMFB2.1A1_LB6.indb 10IB_93846_SMFB2.1A1_LB6.indb 10 02.12.13 09:1102.12.13 09:11
145 mm x 205 mm

11
SMFB 2.1 A1
GB
IE
Operation
Switching the device on/off
■ To switch the device on, press and hold the multifunction button 6until you
hear an acoustic signal and the control lamp 7lights up in blue. The device is
now in standby mode.
■ To switch the device off, press and hold the multifunction button 6for around
4 seconds until you hear an acoustic signal and the control lamp 7lights up
in red.
Communication between rider and pillion passenger
When the main unit and pillion unit are installed in the helmets:
1) Attach the spiral cable 20 with the micro USB plug 22 to the micro USB
socket 4on the main unit.
2) Insert the jack plug 21 of the spiral cable 20 into the socket 19 on the
pillion unit.
3) Switch the appliance on.
4) Press the button 8to talk to the pillion passenger. To end the con-
versation with the pillion passenger, press the button 8again.
■ If you are already carrying on a telephone conversation via Bluetooth, press
the button 8. The telephone conversation is put on hold. When you want
to end the conversation with the pillion passenger, press the button 8
again. The device switches back to telephone mode and the telephone conver-
sation is resumed.
■ If you are listening to music via Bluetooth, press the button 8. The music
is muted but continues playing in the background. As soon as you end the
conversation with the pillion passenger by pressing the button 8, the
music can be heard again.
NOTE
► To increase the volume in the rider’s speakers 9(main unit),
press the V+ button 3.
► To decrease the volume in the rider’s speakers 9(main unit),
press the V- button 5.
► To increase the volume in the pillion passenger’s speakers 18
(pillion unit), press the V+ button 2.
► To decrease the volume in the pillion passenger’s speakers 18
(pillion unit), press the V- button .
IB_93846_SMFB2.1A1_LB6.indb 11IB_93846_SMFB2.1A1_LB6.indb 11 02.12.13 09:1102.12.13 09:11
145 mm x 205 mm

12 SMFB 2.1 A1
GB
IE
Pairing/connecting/disconnecting hands-free set
and mobile phone
Before the hands-free set can be used it must be paired with a compatible
mobile telephone.
1) Check to make sure the mobile telephone is switched on.
2) Set the mobile telephone so that it scans for Bluetooth®devices. A detailed
description of how to do this is to be found in the operating instructions for
your mobile telephone.
3) Position the hands-free set (main unit) and the mobile telephone so that
they are no more than 1 metre apart.
4) Press and hold the multifunction button 6until the control lamp 7lights
up alternately red and blue and two short beeps are heard. The hands-free
set is now in pairing mode.
5) Select the “SILVERCREST” hands-free set from the list of available devices
on the mobile telephone.
6) Enter the preset pass code “0000” and confirm to pair the devices with
each other. The control lamp 7flashes blue every 5 seconds and the
main unit switches to standby mode.
NOTE
► It may not be necessary to enter the pass code for some mobile telephones.
You can now use the hands-free set.
NOTE
► If pairing is not completed within 2 minutes, the main unit switches itself into
standby mode. You will need to repeat all of the steps.
Once the mobile phone has been paired with the hands-free set, proceed as
follows to connect the devices again.
1) Activate the Bluetooth function on your mobile phone.
2) Select “SILVERCREST” from the list of available devices.
3) Press the multifunction button 6button on the main unit.
4) Confirm the connection on your mobile phone.
IB_93846_SMFB2.1A1_LB6.indb 12IB_93846_SMFB2.1A1_LB6.indb 12 02.12.13 09:1102.12.13 09:11
145 mm x 205 mm

13
SMFB 2.1 A1
GB
IE
You can also terminate the connection to the mobile phone if you want to
pair a different mobile phone, for example.
1) Switch off the hands-free set by pressing the multifunction button 6
(4 seconds).
2) Terminate the connection on your mobile phone and delete “SILVERCREST”
from the list.
NOTE
► If the hands-free set loses the connection to the mobile phone, it will switch
itself off
automatically after 4 hours.
Making calls via the hands-free set
If the hands-free set is paired with a mobile phone...
■ To make a call, select the desired number directly on the mobile phone.
The conversation is transferred automatically to the hands-free set.
■ If you receive a call, press the multifunction button 6to accept the call.
■ If you wish to end the call, press the multifunction button 6.
■ If you want to reject a call, press and hold the multifunction button 6for
about 2 seconds.
■ To redial the last used number, press the multifunction button 6twice in quick
succession.
■ To transfer an ongoing call from the mobile phone to the hands-free set (or
vice versa), press and hold the multifunction button 6for about 2 seconds.
NOTE
► You can set the volume on the main unit or on the mobile phone.
Listening to music from the mobile phone
This function is only available for mobile phones that support A2DP and
AVRCP. Consult the operating instructions for your mobile phone for more
information.
The mobile phone and the hands-free set must be connected.
1) Start the music on the mobile phone. The music is played back via the
speaker 9.
2) To stop the music or start it again, press the multi-function button 6.
IB_93846_SMFB2.1A1_LB6.indb 13IB_93846_SMFB2.1A1_LB6.indb 13 02.12.13 09:1102.12.13 09:11
145 mm x 205 mm

14 SMFB 2.1 A1
GB
IE
NOTE
► If the pillion unit is linked to the main unit, the pillion passenger will hear
the same music as the rider.
NOTE
► You can set the volume on the main unit or on the mobile phone.
Making calls while listening to music
If a call arrives while you are listening to music, press the multifunction button 6.
The music is stopped and the call is accepted.
As soon as the call is ended the music playback will resume.
Battery warning
■ If the battery charge falls below 3.3 V, the control lamp 7will light up red
once and there will be an acoustic signal every 15 seconds to remind you to
charge the device.
■ If the battery charge falls below 3.0 V, the device switches off automatically.
You will need to recharge the device before you can use it again (see Chapter
“Charging the device”)
NOTE
► The batteries in this device cannot be exchanged. If there is any defect in
the batteries, please contact Customer Service (see Chapter "Service").
Reset to factory settings
NOTE
► If you reset the hands-free set to the factory settings, all previously paired
devices will be deleted.
The appliance is switched off.
1) Press and hold the multifunction button 6until the control lamp 7illumi-
nates alternately red and blue, and two short beeps are heard.
The hands-free set is now in pairing mode.
2) Then press the multifunction button 6twice in succession. The device will
now be reset to the factory settings.
IB_93846_SMFB2.1A1_LB6.indb 14IB_93846_SMFB2.1A1_LB6.indb 14 02.12.13 09:1102.12.13 09:11
145 mm x 205 mm

15
SMFB 2.1 A1
GB
IE
Control lamp colour codes
Control lamp 7Meaning
blue, lights up 1x for 1 second Device switched on
red, lights up 1x for 1 second Device switched off
blue-red alternating Pairing mode
blue, lights up 1x every 5 seconds Standby mode
blue, lights up 2x every 5 seconds Standby mode (no connected device)
blue, lights up 2x per second Active call
blue, lights up 1x per second Music playback
red, permanently Device is being charged
red, lights up 1x every 5 seconds Low battery alert
The control lamp 7does not light
up while the charger is connected.
Device is charged
Cleaning
DANGER
Risk of electric shock!
► Always remove the plug from the mains power socket before cleaning the
device!
CAUTION
Possible damage to the device
► To avoid irreparable damage, ensure that no moisture penetrates into the
device during cleaning.
► Do not use any chemical, abrasive or aggressive cleaning agents. These
will damage the surface of the device!
Clean the device with a damp cloth. If required, use a mild detergent on the cloth.
Remove the foam protection from both microphones 12 /17 and clean these in
clear water. Ensure that they are completely dry before reattaching the foam
protectors to the microphones 12 /17 .
IB_93846_SMFB2.1A1_LB6.indb 15IB_93846_SMFB2.1A1_LB6.indb 15 02.12.13 09:1102.12.13 09:11
145 mm x 205 mm

16 SMFB 2.1 A1
GB
IE
Storage
Store the device in a clean and dry location.
Troubleshooting
The following table will help with localising and remedying minor malfunctions:
Defect Possible cause Remedy
The device will
not switch on The battery is drained. Charge the device (see Chapter "Charging the device").
No sound The volume is set to minimum. Increase the volume.
The pillion pas-
senger cannot
hear anytthing
The spiral cable 20 is not
connected correctly.
Check the connection of the spiral
cable 20 .
Volume set to minimum on
the pillion unit. Increase the volume.
The button 8has not
been pressed. Press the button 8.
The Bluetooth
connection does
not function
The mobile phone does not
support Bluetooth transmis-
sions.
The mobile phone is not suitable for use
with this device.
The mobile phone is not
paired with the device.
Reconnect the mobile phone and the
device. Please refer to the operating
instructions of your mobile phone.
Bluetooth transmission is not
activated on your mobile
phone.
Switch on Bluetooth transmission on
your mobile phone. Please refer to the
operating instructions of your mobile
phone.
NOTE
► If you cannot solve the problem using any of the aforementioned methods,
please contact the Customer Service department.
IB_93846_SMFB2.1A1_LB6.indb 16IB_93846_SMFB2.1A1_LB6.indb 16 02.12.13 09:1102.12.13 09:11
145 mm x 205 mm
