Silvercrest SOML 807 A1 Instruction sheet

V 1.8
English ...................................................................................................................... 2
Suomi .....................................................................................................................20
Dansk .....................................................................................................................37
Deutsch...................................................................................................................54

Mouse with charging cradle SOML 807 A1
2 - English
Contents
Introduction.............................................................................................................. 3
Intended Use ........................................................................................................... 3
Package Contents ...................................................................................................4
Technical Data......................................................................................................... 4
System Requirements .......................................................................................... 5
Safety Instructions.................................................................................................... 5
Operating Environment ......................................................................................6
Children and Persons with Disabilities............................................................... 7
Rechargeable Battery......................................................................................... 7
R/F Interface ....................................................................................................... 7
Copyright............................................................................................................. 8
Storing When Not Using the Product................................................................ 8
Overview.................................................................................................................. 9
Before Getting Started..........................................................................................10
Inserting the Rechargeable Battery .................................................................10
Connecting the USB Nano Receiver...............................................................12
Software Installation .........................................................................................12
Getting Started ......................................................................................................14
Toggling between Operating Modes .............................................................14
Configuration ....................................................................................................14
Maintenance / Cleaning......................................................................................15
Environmental Considerations and Recycling.....................................................16
Conformity Notice.................................................................................................16
Troubleshooting.....................................................................................................17
Warranty Information ...........................................................................................17

Mouse with charging cradle SOML 807 A1
English - 3
Introduction
Thank you for purchasing the wireless mouse SilverCrest SOML 807 A1.
Besides the 3 standard buttons, this optical wireless mouse is equipped with
five special buttons for easier access to frequently used functions. The scrolling
wheel is a tilt wheel enabling you to scroll in horizontal as well as vertical
directions. The special
CPI button (9) puts you in a position to toggle between
the optical resolutions of 800 cpi and 1600 cpi or between standard and
media operation. The wireless mouse features an automatic standby function.
When not using the wireless mouse for a certain time, it will power off. Move
the wireless mouse or press any mouse button to power it back on (the drivers
must be installed).
Intended Use
This wireless mouse, consisting of an optical mouse charging cradle and USB
nano receiver, is an IT device. The device may not be used outdoors or in
tropical climates. This product has not been designed for corporate or
commercial (e.g. office) applications. Use the product in domestic environments
for private applications only. This device fulfils all that relates to Conformity,
relevant norms and standards. Any modifications to the equipment other than
recommended changes by the manufacturer may result in these directives no
longer being met. The manufacturer is not liable for any damage or
interference caused by unauthorized modifications. Only use the accessories
recommended by the manufacturer. Any use other than that mentioned above
does not correspond to the intended use.
If you are not using the device within the Republic of Germany, you must
observe the regulations and laws in the country of use.

Mouse with charging cradle SOML 807 A1
4 - English
Package Contents
Please check the completeness of package contents using the following list:
-Wireless mouse SOML 807 A1
-Charging cradle
-USB nano receiver SOML807A1-R
-1 rechargeable battery, type AA, 1.2V, 1300mAh
-Driver CD
-User's Manual
If you find any items missing or damaged, please phone our hotline. You will
find the corresponding phone number in the last chapter “Warranty
Information”.
Technical Data
-Wireless optical mouse with miniature USB receiver
-8 buttons, 7 of which are programmable
-Tilt wheel for vertical and horizontal scrolling
-Selectable resolution: 800 cpi or 1600 cpi
-Smart Link (no complicated connection process required for receiver and
mouse)
-Radio frequency: 2.4 GHz
-Power supply: 1 rechargeable battery, type AA, 1.2 V, NiMH, 1300mAh
-Toggling between Media Player and Office Mode (standard operation)
by simple key operation
-Range: up to 5m
-Power supply for charging cradle:
5 V via computer USB port

Mouse with charging cradle SOML 807 A1
English - 5
-Dimensions of wireless mouse:
125 mm x 74 mm x 40 mm (LxWxH)
-Dimensions of USB nano receiver:
15 mm x 7 mm x 18,5 mm (LxWxH)
-Dimensions of charging cradle:
100 mm x 80 mm x 38 mm (LxWxH)
-Weight of wireless mouse: 86 g
(without rechargeable battery, with USB nano receiver inserted)
-Weight of USB nano receiver: 2 g
-Weight of charging cradle: 83 g
System Requirements
-Intel®Pentium®III / AMD Athlon™ or higher
-1 free USB 2.0 port
-Microsoft®Windows®XP, Windows Vista®or Windows®7
-CD-ROM drive or DVD drive for installing the software
Safety Instructions
Before you use this device for the first time, please read the following notes in
this manual and heed all warnings, even if you are familiar with handling
electronic devices. Keep this manual safe for future reference. If you sell the
device or pass it on, it is essential you hand over this manual also.
This icon denotes important information for the safe operation
of the product and for the user’s safety.
This icon alerts about a strong light source.

Mouse with charging cradle SOML 807 A1
6 - English
This symbol denotes further information on the topic.
Avoid harm to the eyes! Never look into the LED beam.
Operating Environment
Position the wireless mouse on a stable, even surface and do not place any
objects on the device. The device is not for use in environments with a high
temperature or humidity (e.g. bathrooms), and must be kept free of dust.
Operating temperature and operating humidity: 5°C to 40°C, max. 90% RH.
Always make sure that:
-no direct heat sources (e.g. heating) can affect the device;
-no direct sunlight or artificial light reaches the device;
-contact with spray, dripping water and corrosive liquids must be avoided
and the device should never be operated near water, and it must
especially never be immersed (do not place any objects filled with liquids
such as vases or drinks near the device);
-the device is never placed in the immediate vicinity of magnetic fields (e.g.
loudspeakers);
-no fire sources (e.g. burning candles) are placed on or near the device;
-no foreign bodies are introduced into the device;
-the device should not be subject to any sharp temperature changes;
-the device is not subject to excessive shocks and vibrations;

Mouse with charging cradle SOML 807 A1
English - 7
-no metal or conducting objects such as paperclips, coins, keys, nails or
screws come into contact with the charging contacts of the wireless mouse
or the charging cradle. A short-circuit can seriously damage your device;
Children and Persons with Disabilities
Electrical appliances do not belong in the hands of children. Also people with
disabilities shall use electrical devices accordingly. Do not allow children or
persons with disabilities to use electrical devices when not under supervision.
These people may not comprehend the presence of potential risks. Batteries
and small parts represent potential choking hazards. Keep the batteries out of
reach. If a battery is swallowed, seek medical help immediately. Keep the
packaging away from children and persons with disabilities too. as there is
danger of suffocation.
Rechargeable Battery
Insert the rechargeable battery with the correct polarity. Never throw the
rechargeable battery into fire. Remove the rechargeable battery when the
device is not to be used for a long time. Non-intended use may cause
explosion and danger to life.
Never use a conventional (non-rechargeable) battery instead of a
rechargeable battery. Only use rechargeable batteries of the same type.
R/F Interface
Please switch off the appliance in airplanes, hospitals, operating theatres and
in the vicinity of medical electronic system. The radio waves transmitted could
impair the functionality of sensitive appliances.
Observe a minimum distance of 20 cm between the appliance and any
pacemaker as the radio waves could impair the function of the pacemaker.

Mouse with charging cradle SOML 807 A1
8 - English
The transmitted radio waves may create interference noises in hearing aids.
Do not allow the appliance to be introduced in the vicinity of inflammable
gases or in environments subject to a risk of explosion (e.g. paint shops) as
long as the radio component is switched on, because the transmitted radio
waves could trigger an explosion or fire.
The coverage/range of the radio waves varies depending on the surrounding
and environmental conditions.
In any data exchange via wireless connections, unauthorized third parties are
also able to receive the data. Targa GmbH is not liable for any radio or
television interference caused by unauthorized modifications of this appliance.
Targa furthermore accepts no liability for the replacement or exchange of
connection cables and appliances not specified by Targa GmbH. The user is
solely responsible for the elimination of interferences caused by such an
unauthorized modification, as well as for the replacement or exchange of the
appliances concerned.
Copyright
The entire content of this User’s Manual is copyrighted and is provided to the
reader for information purposes only.
Copying data and information without the prior written and explicit
authorization from the author is strictly forbidden. This also applies to any
commercial use of the contents and information.
All texts and figures are up-to-date as per the date of print release. We assume
no liability for any changes.
Storing When Not Using the Product
When left unused for a long period of time, remove the rechargeable battery
from the wireless mouse. Remove the USB nano receiver from your computer’s
USB port and insert it into the storage compartment of the mouse. Also make
sure that the storage temperature is maintained between 5 °C and 40 °C.
Humidity must not exceed 90% RH.

Mouse with charging cradle SOML 807 A1
English - 9

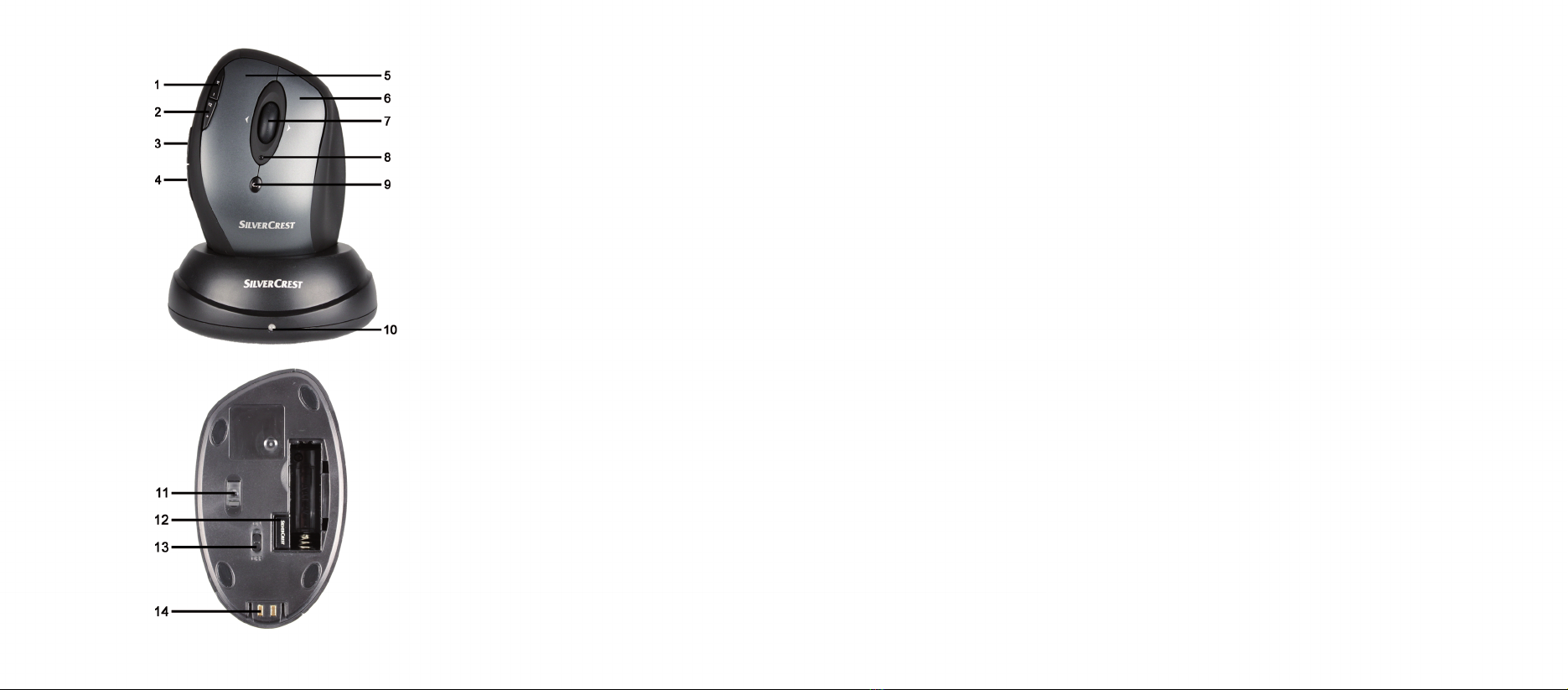

Overview
1 Zoom - (default mode)
Play / Pause (media mode)
2 Zoom + (default mode)
Launch Media Player (media mode)
3 Back (default)
Previous title (media mode)
4 Forward (default)
Next title (media mode)
5 Left mouse button
6 Right mouse button
7 Tilt wheel (4-way scroll wheel)
Volume control and mute (media mode)
8 Rechargeable battery level indicator
9 800/1600 cpi toggle switch (press briefly)
Standard / media mode toggle switch
(keep pressed for 3 seconds)
10 Charging indicator

Mouse with charging cradle SOML 807 A1
10 - English
Before Getting Started
Inserting the Rechargeable Battery
Never use a conventional (non-rechargeable) battery instead
of a rechargeable battery. You must never place the mouse
on the charging cradle with a conventional (non-
rechargeable) battery inserted into it. There is danger of
explosion and risk of leakage. Any leaking gases and liquids
are harmful.
Please charge the battery before first use of the product. To do this, insert the
battery into the wireless mouse and then place the mouse onto the connected
charging cradle.
11 Optical sensor
12 Inserted USB nano receiver
13 On/Off button
14 Charging contacts

Mouse with charging cradle SOML 807 A1
English - 11
Open the battery compartment on the bottom of the wireless mouse.
Remove the USB nano receiver (12).
Insert the supplied rechargeable battery (size AA) into the wireless mouse
and make sure that the battery is properly aligned according to the
polarity (+ and -) (see figure).
Close the battery compartment.
Press the On/Off button (13) on the bottom of the wireless mouse to
power it on.
Plug the USB cable of the charging cradle into a free USB port on your
powered-on computer. The charging indicator (10) blinks. Please wait a
moment until the charging indicator stops blinking.
Place the wireless mouse onto the charging cradle.
Next the charging indicator (10) will flash for several seconds and the
charging process will initialise. During charging the charge indicator (10)
will light orange. When the charging process is completed, the charging
indicator will light green.
If the indicator light (8) on the upper side of the wireless
mouse lights orange, the rechargeable battery is exhausted.
Then place the wireless mouse onto the charging cradle.
Should the wireless mouse fail to work, power it off and back
on. Sometimes removing and re-inserting the rechargeable
battery will also help.
After inserting a rechargeable battery into the mouse or
powering the mouse on, the indicator (8) will flash several
times during automatic synchronisation with the receiver.
When the synchronisation is completed, the status indicator
will stop lighting.

Mouse with charging cradle SOML 807 A1
12 - English
The power for charging the battery is obtained from the
computer’s USB port. Depending on your computer, the USB
power may be cut when the computer is powered off. In this
case, you may only charge the wireless mouse battery when
the computer is powered on.
Connecting the USB Nano Receiver
If you still have your old mouse connected to the computer, please shut down
your computer, disconnect the device from your PC and restart the computer.
Connect the USB Nano Receiver (12) to a free USB port of your running
computer.
The operating system will automatically recognize the new hardware and
install the required drivers. Depending on the operating system installed, the
following screen messages may appear:
Windows®XP
When the receiver is connected for the first time, the operating system
displays the message „New hardware detected“. Wait until the message
„The new hardware has been installed and is now ready for use“ is
displayed before using your mouse.
Windows Vista®, Windows®7
When the receiver is connected for the first time, the operating system
displays the message „Installation of appliance driver software“. Wait until
the message „The appliances are ready for use now“ appears. The mouse is
now operational and ready to be used.
Software Installation
If you would like to use all of the functions of your wireless mouse you need to
install the software included. Insert the included CD-ROM in the CD-ROM drive
of your computer. The installation process should start automatically, failing
that, start the CD-ROM file "Setup.exe" manually by double-clicking it.

Mouse with charging cradle SOML 807 A1
English - 13
Only with the operating system Windows®7, Windows Vista®will the
installation initially be stopped by the user account control function with the
message: „An unidentified program is attempting to access the computer”.
Click on „OK“ to continue with the installation.
The following installation illustrations correspond to the operating system
Windows®7, Windows Vista®. The windows shown in the operating system
Windows®XP are slightly different, but their content is the same.
Click on
Next to start the installation.
Here you can select the target folder
for the installation via the
Change
button or use the suggested file. Click
on
Next to proceed with the
installation.

Mouse with charging cradle SOML 807 A1
14 - English
Click
Finish to finish the setup
programme.
Getting Started
Toggling between Operating Modes
The
CPI button (9) puts you in a position to toggle between the optical scan
resolutions of 800 cpi und 1600 cpi. The scanning is more precise at 1600 cpi
and the mouse cursor will move faster given the same movements.
If you would like to toggle between standard operation and media operation,
press the
CPI button (9) and keep it pressed for a minimum of 3 seconds until
the power control lamp (8) briefly lights up. Please see the list on page 9 for
information on the functions available in the media operation mode. In media
operating mode you can press the tilt wheel (7) to the left or right to adjust the
sound volume. While in standby mode the Windows audio volume can still be
adjusted by turning the scroll wheel, as long as the volume window has been
enabled in the taskbar.
Configuration
Double-click on the icon in the task bar (lower-right corner on your screen,
near the system clock). Or right-click on the icon and select “Open” from the
context menu. The mouse configuration menu will appear.

Mouse with charging cradle SOML 807 A1
English - 15
Here you can specify functions for
selected mouse buttons. Simply click on
the selection switch next to the
corresponding mouse button and select
a function from the menu by clicking on
it with the left mouse button.
You can restore the mouse to its
original state by clicking on the
„Restore to default“ button.
All selected options apply to the default mode. The button
assignments for media mode cannot be modified.
If you would like to apply your changes, please click on the „
Apply “ button
(the window will still stay open) or the „
OK “ button (the window will close).
Tip for users of Microsoft
®
Windows
®
7, Windows Vista
®
(Windows
®
XP does
not include this function):
You can also adjust the horizontal scrolling of the tilt wheel in the system
control of the operating system in the submenu „Mouse“. The configuration
menu of the mouse driver needs to be closed in order to access the system
control menu. These settings can also be found in the software.
Maintenance / Cleaning
Repairs are required when this device has been damaged in any way, for
example, when liquid has entered the product, when the product has been
exposed to rain or moisture, when the product does not work normally or if the
product has been dropped. If smoke, unusual noises or smells are noticed,
power off the device immediately. In this case the device should not be used
further and should be inspected by authorized service personnel. Please

Mouse with charging cradle SOML 807 A1
16 - English
contact qualified personnel when repair is needed. Never open the housing of
the device, or the accessories. Only use a clean, dry cloth for cleaning. Never
use any corrosive liquids.
Environmental Considerations and Recycling
Devices marked with this symbol are subject to the European
Directive 2002/96/EC. All electric and electronic devices must
be disposed of separately from household waste at established
bodies. The USB nano receiver is also an electronics device
and must be properly disposed of.
Avoid hazards to the environment and dangers to your personal health by
disposing of the device properly. For further information about proper disposal,
contact your local government, disposal bodies or the shop where you bought
the device.
Respect the environment. Old batteries do not belong in with domestic waste.
They must be handed in to a collection point for old batteries. Please note that
batteries must be disposed of fully discharged at appropriate collection points
for old batteries. If disposing of batteries which are not fully discharged, take
precautions to prevent short circuits.
Also recycle the packaging material properly. Cardboard packaging can be
taken to paper recycling containers or public collection points for recycling.
Any films or plastic contained in the packaging should be taken to your public
collection points.
Conformity Notice
The wireless mouse has been tested and approved for
compliance with the basic and other relevant requirements of
the R&TTE Directive 1999/5/EC. The corresponding
Declaration of Conformity can be found at the end of this
User's Manual.

Mouse with charging cradle SOML 807 A1
English - 17
Troubleshooting
If the wireless mouse is not being recognized following installation or does not
respond to input, please check the following:
Please check the polarity of the rechargeable battery.
Please check if the wireless mouse is switched on.
Check whether the miniature USB receiver (12) is properly connected to
the computer; see page 12 – Connecting the USB Nano Receiver).
Try another USB port.
Please check if the battery has been charged. If the charging indicator
(10) doesn’t light during the charging process, make sure that the
mouse is properly inserted into the charging cradle.
Check the charging level of the battery and, if necessary, insert a new
rechargeable battery.
Please note that you need to use a mat (e.g. mouse pad) if you intend to
use the mouse on a glass surface or glossy surface.
Warranty Information
Warranty of Targa GmbH
Dear Customer,
This device is sold with three years warranty from the date of purchase. In the
event of product defects, you have legal rights towards the seller. These
statutory rights are not restricted by our warranty as described below.
Warranty conditions
The warranty period commences upon the date of purchase. Please keep the
original receipt in a safe place as it is required as proof of purchase. If any
material or manufacturing faults occur within three years of purchase of this

Mouse with charging cradle SOML 807 A1
18 - English
product, we will repair or replace the product free of charge as we deem
appropriate.
Warranty period and legal warranty rights
The warranty period is not extended in the event of a warranty claim. This also
applies to replaced and repaired parts. Any damage or defects discovered
upon purchase must be reported immediately when the product has been
unpacked. Any repairs required after the warranty period will be subject to
charge.
Scope of warranty
The device was carefully manufactured in compliance with stringent quality
guidelines and subjected to thorough testing before it left the works. The
warranty applies to material and manufacturing faults. This warranty does not
cover product components which are subject to normal wear and which can
therefore be regarded as wearing parts, or damage to fragile components
such as switches, rechargeable batteries or components made of glass. This
warranty is void if the product is damaged, incorrectly used or serviced. To
ensure correct use of the product, always comply fully with all instructions
contained in the user manual. The warnings and recommendations in the user
manual regarding correct and incorrect use and handling of the product must
always be observed and complied with. The product is solely designed for
private use and is not suitable for commercial applications. The warranty is
rendered void in the event of incorrect handling and misuse, if it is subjected to
force, and also if any person other than our authorised service technicians
interfere with the device. No new warranty period commences if the product is
repaired or replaced.
Submitting warranty claims
To ensure speedy handling of your complaint, please note the following:
-Before using your product for the first time, please read the
enclosed documentation or online help carefully. Should any
problems arise which cannot be solved in this way, please call our
hotline.
-Always have your receipt, the product article number as well as the
serial number (if available) to hand as proof of purchase.
