Silvercrest GML807 Instruction sheet

Gaming Mouse
with weight regulation
Gaming Mouse
with weight regulation
User manual and
service information
Pelihiiri
hiiren painoa voidaan säätää
Käyttöopas ja
huolto-ohjeet
GB
FI
IE
GML807
Spelmus
med inställbar vikt
Bruksanvisning
och serviceinformation
Gaming-mus
med vægtregulering
Brugervejledning
og serviceinformation
SE
DK
Gaming-Maus
mit Gewichtsregulierung
Bedienungsanleitung
und Serviceinformationen
CH

Gaming Laser Mouse GML807
English - 1
Overview
1 Left mouse button
2 Right mouse button
3 Continuous fire and resolution setting control light
4 Tilt wheel (4-way scroll wheel):
Scroll wheel: Vertical scrolling (default mode)
Scroll wheel: Volume adjustment and mute (media mode)
Left/right: Horizontal scrolling (default mode)
Left/right: Previous title / next title (media mode)
5 Continuous fire button
6 Zoom + (default mode)
Launch Media Player (media mode)
7 Zoom - (default mode)
Play / Pause (media mode)
8 800/1600/2000 cpi toggle switch (press briefly)
Standard / media mode toggle switch
(keep pressed for 4 seconds)

Gaming Laser Mouse GML807
2 - English
Contents
Overview .......................................................................................... 1
Important Safety Instructions ........................................................... 3
Intended Use ................................................................................3
Operating Environment................................................................. 4
Children and Persons with Disabilities .........................................5
Repair and Maintenance............................................................... 6
Copyright ......................................................................................6
Storing When Not Using the Product............................................ 6
Conformity Notice .........................................................................7
Disposal of Old Devices................................................................ 7
Package Contents............................................................................8
Introduction....................................................................................... 8
System Requirements......................................................................9
Getting Started ................................................................................. 9
Inserting the Ballast Weights ........................................................9
Connecting the Gaming Mouse .................................................. 11
Software Installation.......................................................................12
Operation........................................................................................ 14
Continuous Fire Button...............................................................14
Changing the Operating Mode.................................................... 15
Toggling the Resolution..............................................................15
Ballast Weights...........................................................................16
Configuration ..............................................................................16
Attachment .....................................................................................18
Troubleshooting..........................................................................18
Technical Data............................................................................ 19
Warranty Information...................................................................... 20

Gaming Laser Mouse GML807
English - 3
Important Safety Instructions
Before you use this device for the first time, please read the
following notes in this manual and heed all warnings, even if you
are familiar with handling electronic devices. Keep this manual safe
for future reference. If you sell the device or pass it on, it is
essential you hand over this manual also.
This icon denotes important information for the safe
operation of the product and for the user’s safety.
This icon alerts about a strong light source.
This symbol denotes further information on the topic.
Warning: Laser Radiation! Laser Class 1
Avoid damage to your eyes! Never look into the laser beam. Never
point the laser beam directly at people or animals!
Intended Use
This gaming mouse is an information technology device. The device
may not be used outdoors or in tropical climates. This product has
not been designed for corporate or commercial (e.g. office)
applications. Use the product in domestic environments for private

Gaming Laser Mouse GML807
4 - English
applications only. This device fulfils all that relates to CE
Conformity, relevant norms and standards. Any modifications to the
equipment other than recommended changes by the manufacturer
may result in these directives no longer being met. The
manufacturer is not liable for any damage or interference caused by
unauthorized modifications. Only use the accessories
recommended by the manufacturer. Any use other than that
mentioned above does not correspond to the intended use.
If you are not using the device within the Republic of Germany, you
must observe the regulations and laws in the country of use.
Operating Environment
Position the gaming mouse on a stable, flat surface and do not
place any objects on the device. The device is not for use in
environments with a high temperature or humidity (e.g. bathrooms),
and must be kept free of dust. Operating temperature and operating
humidity: 5°C to 40°C, max. 90% RH.
Always make sure that:
-no direct heat sources (e.g. heating) can affect the device;
-no direct sunlight or artificial light reaches the device;
-contact with spray, dripping water and corrosive liquids must be
avoided and the device should never be operated near water,
and it must especially never be immersed (do not place any
objects filled with liquids such as vases or drinks near the
device);
-the device is never placed in the immediate vicinity of magnetic
fields (e.g. loudspeakers);

Gaming Laser Mouse GML807
English - 5
-no fire sources (e.g. burning candles) are placed on or near the
device;
-no foreign bodies are introduced into the device;
-the device should not be subject to any sharp temperature
changes;
-the device is not subject to excessive shocks and vibrations;
Children and Persons with Disabilities
Electrical appliances do not belong in the hands of children. Also
people with disabilities shall use electrical devices accordingly. Do
not allow children or persons with disabilities to use electrical
devices when not under supervision. These people may not
comprehend the presence of potential risks. Batteries and small
parts represent potential choking hazards. Keep the batteries out of
reach. If a battery is swallowed, seek medical help immediately.
Keep the packaging away from children and persons with
disabilities too. as there is danger of suffocation.

Gaming Laser Mouse GML807
6 - English
Repair and Maintenance
Repairs are required when this device has been damaged in any
way, for example, when liquid has entered the product, when the
product has been exposed to rain or moisture, when the product
does not work normally or if the product has been dropped If you
notice any smoke, unusual noises or strange smells, immediately
unplug the USB cable from your computer’s USB port. In this case
the device should not be used further and should be inspected by
authorized service personnel. Please contact qualified personnel
when repair is needed. Never open the housing of the device, or the
accessories. Only use a clean, dry cloth for cleaning. Never use any
corrosive liquids.
Copyright
The entire content of this User’s Manual is copyrighted and is
provided to the reader for information purposes only.
Copying data and information without the prior written and explicit
authorization from the author is strictly forbidden. This also applies
to any commercial use of the contents and information.
All texts and figures are up-to-date as per the date of print release.
We assume no liability for any changes.
Storing When Not Using the Product
If the mouse is going to be left unused for a long period of time,
unplug the USB cable from the computer’s USB port. Also make
sure that the storage temperature is maintained between 5 °C and
40 °C. Humidity must not exceed 90% RH.

Gaming Laser Mouse GML807
English - 7
Conformity Notice
The gaming mouse has been tested and approved for
compliance with the basic and other relevant
requirements of the EMC Directive 2004/108/EC. The
corresponding Declaration of Conformity can be found
at the end of this User's Manual.
Disposal of Old Devices
Devices marked with this symbol are subject to the
European Directive 2002/96/EC. All electric and
electronic devices must be disposed of separately
from household waste at established bodies.
Avoid hazards to the environment and dangers to your personal
health by disposing of the device properly. For further information
about proper disposal, contact your local government, disposal
bodies or the shop where you bought the device.
Also recycle the packaging material properly. Cardboard packaging
can be taken to paper recycling containers or public collection
points for recycling. Any films or plastic contained in the packaging
should be taken to your public collection points.

Gaming Laser Mouse GML807
8 - English

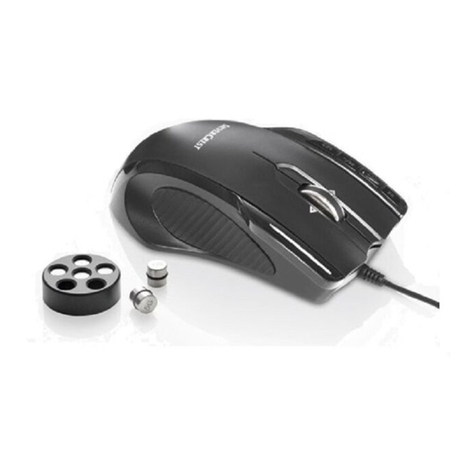

Package Contents
Please check the completeness of package contents using the
following list:
-Gaming Mouse GML807
-Weights holder with 6 ballast weights
(inserted into the mouse)
-Driver CD
-User's Manual
If you find any items missing or damaged, please phone our hotline.
You will find the corresponding phone number in the last chapter
“Warranty Information”.
Introduction
Thank you for purchasing this SilverCrest GML807 gaming mouse.
In addition to the 3 standard buttons, this gaming mouse is
equipped with four special buttons that enable access to frequently-
used functions. The scroll wheel is a 4-way scroll wheel that
enables both vertical and horizontal scrolling. The scroll wheel also
allows hyper-fast scrolling. With the special CPI button (8) you can
toggle between an optical resolution of 800 cpi, 1600 cpi and 2000
cpi or between standard and media functionality.

Gaming Laser Mouse GML807
English - 9
System Requirements
-Intel®Pentium®III / AMD Athlon™ or higher
-1 free USB 2.0 port
-Microsoft®Windows®XP, Windows Vista®or Windows®7
-CD-ROM drive or DVD drive for installing the software
Getting Started
Inserting the Ballast Weights
The supplied ballast weights allow you to customise the mouse
according to your working habits (see also page 16 – Ballast
Weights). All ballast weights have been inserted into the weights
holder in the factory. To change the moving characteristics of your
mouse, you can remove one or more ballast weights.

Gaming Laser Mouse GML807
10 - English
Proceed as follows:
Open the compartment on the underside of the mouse by
turning the cover 90 degrees anticlockwise.
Remove the weights holder.
Remove the desired number of ballast weights from the holder.
Use a pointed object (e.g. a pencil) to slide the desired weight
out of the holder.
Replace the holder into the compartment and then replace the
cover. To do this, place the cover over the compartment and
turn it clockwise while applying light pressure on it until it clicks
in place.

Gaming Laser Mouse GML807
English - 11
Each ballast weight weighs approx. 5 g.
Keep any unused ballast weights in a safe place in
case you need them again in the future.
Connecting the Gaming Mouse
Insert the USB plug of the gaming mouse into a free USB port on
your powered-on computer.
The operating system will automatically recognize the new
hardware and install the required drivers. Depending on the
operating system installed, the following screen messages may
appear:
Windows®XP
When the receiver is connected for the first time, the operating
system displays the message „New hardware detected“. Wait
until the message „The new hardware has been installed and is
now ready for use“ is displayed before using your wireless laser
mouse.
Windows Vista®, Windows®7
When the receiver is connected for the first time, the operating
system displays the message „Installation of appliance driver
software“. Wait until the message „The appliances are ready for
use now“ appears. The wireless laser mouse is now operational
and ready to be used.

Gaming Laser Mouse GML807
12 - English
Software Installation
If you would like to use all of the functions of your gaming mouse
you need to install the software included. Insert the included CD-
ROM in the CD-ROM drive of your computer. The installation
process should start automatically, failing that, start the CD-ROM
file "setup.exe" manually by double-clicking it.
Only with the operating system Windows®7, Windows Vista®will
the installation initially be stopped by the user account control
function with the message: „An unidentified program is attempting
to access the computer”. Click on „OK“ to continue with the
installation.
The following installation illustrations correspond to the operating
system Windows®7. The windows shown in the operating systems
Windows®XP/Vista are slightly different, but their content is the
same.
Click on Next to start the
installation.

Gaming Laser Mouse GML807
English - 13
Here you can select the target file
for the installation via the Change
button or use the suggested file.
Click on Next to proceed with the
installation.
Click Finish to finish the setup
programme.
If you are prompted to restart your computer, restart
it before using the software.

Gaming Laser Mouse GML807
14 - English
Operation
Continuous Fire Button
Pressing the continuous fire button (5) lets you set the repeat rate
for the left mouse button (1). This means that clicking with the left
mouse button will execute one, two or three clicks at a time. When
playing a computer game, this feature lets you shoot up to three
times with just one press of the left mouse button. This will give you
a big advantage against the other players.
Each press of the continuous fire button will change the repeat rate
from a single click to double and triple clicks. Pressing the
continuous fire button again will then switch back to a single click.
When pressing the continuous fire button, the control light (3) lights
up as follows:
Function Action Control light
Single click The left mouse
button performs a
single click
On, blue
Double click The left mouse
button performs a
double click
On, white
Triple click The left mouse
button performs a
triple click
On, yellow

Gaming Laser Mouse GML807
English - 15
Changing the Operating Mode
To toggle between the standard and media operating mode of your
mouse, press and hold the CPI button (8) for at least 4 seconds.
When changing the operating mode, the control light (3) will blink
white for a few seconds. After changing the operating mode, the
control light will light up again in the colour corresponding to the
function of the continuous fire button (5).
The available functions for the media mode can be found on page
1 – Overview.
Toggling the Resolution
Press the CPI button (8) shortly to quickly toggle between 800 cpi,
1600 cpi and 2000 cpi resolution for tracking. A higher tracking rate
will accelerate the mouse pointer on the screen. This function is
very helpful for computer games, as you can easily switch between
fast movements via a higher tracking rate and slower moving via a
lower tracking rate.
When changing the resolution, the control light (3) will blink briefly
at different frequencies to indicate the currently selected resolution.
After changing the operating mode, the control light will light up
again in the colour corresponding to the function of the continuous
fire button (5).
Function Mouse pointer speed Control light
800 cpi Normal Blinks slowly
1600 cpi Accelerated Blinks faster
2000 cpi Very fast Blinks very fast

Gaming Laser Mouse GML807
16 - English
Ballast Weights
The weights contained in the weights holder of the gaming mouse
let you individually tune the weight of the mouse.
If you frequently need to lift the mouse up quickly when using it, it
can be helpful to reduce its weight. To do this, remove weights from
the weights holder.
Some users prefer a heavier mouse that offers some resistance
due to its weight. To obtain a higher weight, insert the supplied
ballast weights into the weights holder.
Configuration
Double-click on the icon in the task bar (lower-right corner on
your screen, near the system clock). Or right-click on the icon and
select “Open” from the context menu. The mouse configuration
menu will appear.
Here you can specify functions
for selected mouse buttons.
Simply click on the selection
switch next to the corresponding
mouse button and select a
function from the menu by
clicking on it with the left mouse
button.

Gaming Laser Mouse GML807
English - 17
The tilt wheel has a triple programming functionality:
Position 2 corresponds to the centre mouse button, position 5
corresponds to pressure to the left and position 6 corresponds to
pressure to the right.
You can restore the mouse to its original state by clicking on the
„Restore to default“ button.
All selected options apply to the default mode. The
button assignments for media mode cannot be
modified.
If you would like to apply your changes, please click on the „Apply“
button (the window will still stay open) or the „OK“ button (the
window will close).
Tip for users of Microsoft®Windows®7, Windows Vista®
(Windows®XP does not include this function):
You can also adjust the horizontal scrolling of the tilt wheel in the
system control of the operating system in the submenu „Mouse“.
The configuration menu of the mouse driver needs to be closed in
order to access the system control menu.

Gaming Laser Mouse GML807
18 - English
Attachment
Troubleshooting
If the wireless gaming mouse is not being recognized following
installation or does not respond to input, please check the following:
;Try another USB port.
;Please note that you need to use a mat (e.g. mouse pad) if
you intend to use the wireless laser mouse on a glass surface
or glossy surface.

Gaming Laser Mouse GML807
English - 19
Technical Data
-Wired gaming laser mouse with weights holder for ballast
weights
-Laser Class 1
-9 buttons, 6 of which are programmable
-Tilt wheel for vertical and horizontal scrolling and hyper-fast
scrolling
-Resolution switchable: 800 cpi or 1600 cpi or 2000 cpi
-Toggling between Media Player and Office Mode (standard
operation) by simple key operation
-Gold-plated USB connector
-Cable length: approx. 200 cm
-Dimensions: 120 mm x 75 mm x 40 mm (LxWxH)
-Weight of the gaming mouse: 164g
(with ballast weights inserted)
-Weight of the weights holder: approx. 30g
(6 ballast weights, each weighing approx. 5g)
