Silverline 4110 User manual

4110
HOOD USER GUIDE
4110 60 cm
4110 90 cm Read this manual prior to performing any task!

1, en_US
MANUFACTURER
Merzifon OSB AMASYA, Silverline
IMPORTER
PUNTO INOX SRL
VIA DEL COMMERCIO 586 ISOLA RIZZA 37050 IT
21.02.20184110 HOOD USER GUIDE2

Table of contents
1 INPUT................................................................................... 4
2 Technical Drawing.............................................................. 5
3 WARNINGS AND SAFETY MEASURES............................. 6
3.1 RISK OF DEATH RISK OF POISONING...................... 8

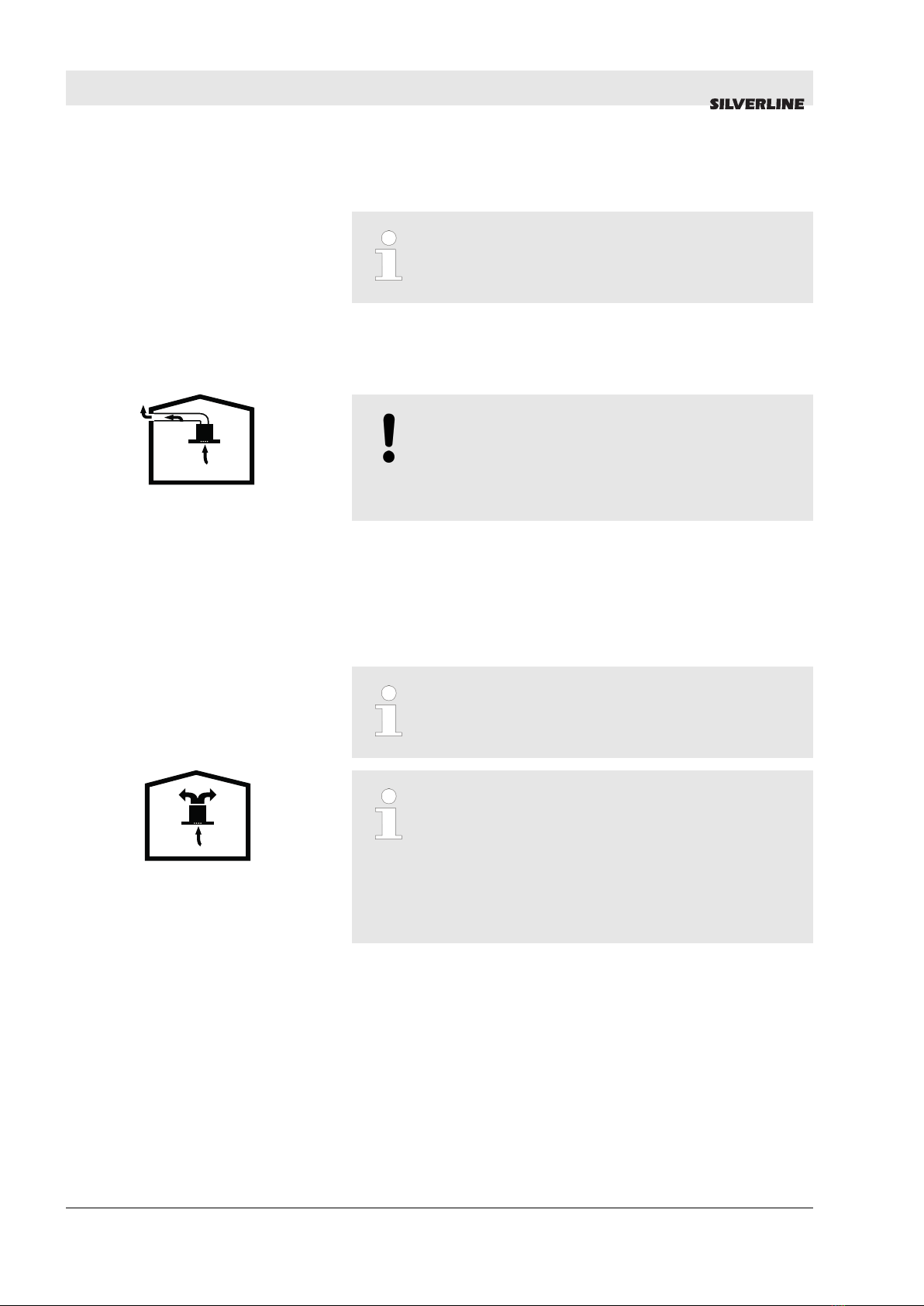

4 USAGE WITH OR WITHOUT CARBON FILTER............... 12
5 CARBON FILTER REPLACEMENT.................................. 13
5.1 AF 100 Carbon Filter Replacement............................ 13
6 CLEANING AND PREVENTIVE MAINTENANCE............. 14
6.1 CLEANING ALUMINUM FILTERS.............................. 14
6.2 Washing in the Dishwasher........................................ 15
6.3 Manual Washing......................................................... 15
7 LOCATION OF THE DEVICE............................................. 16
8 Installatıon and Unpacking.............................................. 17
9 Recommendations on Energy Savings.......................... 18
10 PACKAGE CONTENT........................................................ 19
11 OVERVIEW OF THE HOOD............................................... 20
12 INSTALLATION OF PRODUCT......................................... 21
13 HOW TO USE THE PRODUCT.......................................... 25
14 How to use 5 Spd Dig Touch Control Product............... 26
15 Use of the LCD Product.................................................... 27
16 LAMP REPLACEMENT..................................................... 30
16.1 Halogen Lamp Replacement.................................... 30
17 AUTHORIZED SERVICE.................................................... 31
18 TECHNICAL CHART.......................................................... 33
Table of contents
21.02.2018 4110 HOOD USER GUIDE 3

1 INPUT
This guideline and the safety data includes all necessary informa-
tion for a safe mounting as well as a safe use without defects.
nPlease read all of this guideline and safety data before using
the device.
nKeep the guideline in an appropriate place.
nIf you pass the device onto others, make sure you also give
this guideline and safety data.
nDisregarding this guideline may result in severe injuries and
defects in the device.
nPlease keep in mind that we won't be responsible for the
defects arising from not taking this guideline into account.
The figures in this guideline aim to visually describe the actions. In
these figures only one model of the device is illustrated. However,
all instructions or figures also represent other models.
INPUT
21.02.20184110 HOOD USER GUIDE4

2 Technical Drawing
Technical Drawing
21.02.2018 4110 HOOD USER GUIDE 5

3 WARNINGS AND SAFETY MEASURES
nThis appliance can be used by children of 8 years and older,
people with physical, sensory or mental capability deficiency or
people with lack of experience or knowledge; as long as they
are provided supervision or instructions for the safe use of the
appliance and they comprehend the dangers.
nChildren should not tamper with the appliance. Cleaning and
user maintenance operations must not be performed by chil-
dren unless supervised.
nThis product is designed for home use.
nUsage voltage of your product is 220-240 Volt~5060 Hz.
nPower cord of your product is fitted with a grounded plug. This
cord must be plugged into a grounded outlet.
nThe whole electrical wiring must be installed by a qualified
electrician.
nInstallation by unauthorized persons could lead to poor opera-
tion performance, damage to the product, and accidents.
nFeeder cable of the appliance mustn't be exposed to jamming
or crashing during assembly. Feeder cable mustn't be placed
near the cooker. In such cases, it might melt down and lead to
fire.
nDo not plug in the appliance before the installation.
nMake sure that the installation place allows the user to easily
unplug the power cable in case of any danger.
nDo not touch your product's lamps when they work for a long
time. The lamps may burn your hand as they will be hot.
nKitchen hoods are manufactured for household use in normal
home cooking. There is a risk of malfunction in other types of
use, and the product guarantee will be void.
nComply with the rules and instructions regarding discharge of
outgoing air, stipulated by the relevant authorities. (This
warning does not apply to uses without flue.)
nFlammable foods must not be cooked under the appliance.
nStart your product after you place pot, pan etc. on the stoves.
Otherwise, high temperature may cause same parts of your
products to deform.
nTurn off the cooker's burner before taking the saucepan, pan,
etc. off the cooker.
nDo not leave boiling oil on the stove. Pots that contain boiling
oil may catch fire by itself.
nSince oils could catch fire when you cook fried foods in partic-
ular, be careful about your curtains and tablecloths.
nEnsure timely replacement of the filters. Filters not replaced in
a timely manner pose risk of fire due to accumulated grease
deposits on them.
nDo not use non-fire-resistant filtering materials instead of the
filter.
nDo not operate your product without filter, and do not remove
the filters when the product is in operation.
nIn case of any fire, de-energize the hood and any other cooking
devices. (Plug off the appliance or turn off the main switch.)
WARNING AND SAFETY PRECAU-
TIONS
WARNINGS AND SAFETY MEASURES
21.02.20184110 HOOD USER GUIDE6

nIf your product's periodic cleaning is not made in a timely
manner, it could pose risk of fire.
nDe-energize the appliance before any maintenance operations.
(Plug off the appliance or turn off the main switch.)
nWhen electric cooker hood and devices fed with energies other
than electricity operate simultaneously, the negative pressure
in the room must not exceed 4 Pa ( 4 X 10 bar ).
nGas or fuel oil burning appliances, such as room heaters,
which share the same environment with your product, must be
fully insulated from the exhaust of this product or they must be
hermetical.
nWhen you make a flue connection for your product, use pipes
with a diameter of 150mm or 120 mm. The length of the duct
connection as well as the number of elbows must be as min-
imum as possible.
nChildren must not play with the appliance.
nFor your safety, use ”MAX 6 A” fuse in the hood system.
nSince the packing materials could be dangerous, keep them
away from children.
nIf the feeder cable is damaged, it must be replaced by its man-
ufacturer or its authorized technical service or any other per-
sonnel qualified at the same level, in order to avoid any dan-
gerous situation.
nIn case of any deflagration, de-energize the cooker hood and
cooking appliances, and cover the flame. Never use water to
extinguish the fire.
nWhen cooking appliances are in operation, their accessible
parts could be hot.
nThis appliance is not intended to be used by people with phys-
ical, sensory and mental disabilities (including children) or
those who have not adequate experience and knowledge
regarding its use, unless they are under the supervision of a
person responsible for the safety of the appliance.
nAfter the installation of the hood, the minimum distance must
be 65 cm between the product and any electric cooker; and 75
cm between it and any gas ranges or cookers burning other
fuels.
nOutput of the hood must not be connected to air ducts, where
there exist another smokes.
nYou must be careful when using the appliance spontaneously
with other appliances (e.g. gas, diesel fuels, coal, wood, etc.
burning heaters, shower heaters), which use the same air in
the same environment. Attention must be paid when using
them simultaneously. It is because the hood could adversely
affect the combustion, by discharging the ambient air.
nThis warning does not apply to uses without flue.
nWhen electric cooker hood is used simultaneously with devices
that use gas or other fuels, there must be sufficient ventilation
in the room (might not apply to devices that discharges the air
back into the room).
WARNINGS AND SAFETY MEASURES
21.02.2018 4110 HOOD USER GUIDE 7

3.1 RISK OF DEATH RISK OF POISONING
DANGER!
Warning - Choking Hazard
The packaging materials are dangerous for chil-
dren. Never allow children to play with packaging
materials.
DANGER!
Warning - Death Hazard
There are life-threatening danger and poisoning
danger due to reabsorbed combustion gases.
During the air discharge outlet use, unless suffi-
cient air supply is provided, do not use the appli-
ance simultaneously with devices that discharge
toxic gases through flue such as ventilated, gas,
oil, wood or coal burning heaters, shower heaters,
water heaters, etc.Fig. 1
Ventilated goods (e.g. gas, oil, wood or coal burning heaters,
shower heaters, water heaters) take combustion air from the instal-
lation location, and discharge the waste gas through a waste gas
system (e.g. flue). When the cooker hood is active, it absorbs air
from the kitchen and neighbouring rooms. If adequate air entry is
not provided, vacuum emerges. In such a case, the toxic gases are
absorbed from the flue and waste gas channel, and are taken into
to door again. Fig. 1
nTherefore, adequate fresh air ingress must always be
ensured.Fig. 2
Fig. 1: Poisoning Danger
Fig. 2
WARNINGS AND SAFETY MEASURES
RISK OF DEATH RISK OF POISONING
21.02.20184110 HOOD USER GUIDE8

DANGER!
Fire danger!
– The oil residue in the oil filter may catch
fire.Clean the oil filter at least once every 3
months.Never operate the device without the
oil filter.
– The oil residue in the oil filter may catch fire.
Never work with open flame (ex. flambe) near
the device. The apparatus is allowed to be
installed near a solid fuel (e.g. wood or coal)
heater only if it has a non-removable cover. No
sparks should be scattered.
– Hot oils and fats catch fire easily. Hot oils and
fats should never be left unattended. Never try
to put out the fire with water. Turn off the
cooker. Kill the flames carefully using a cover,
fire blanket or a similar material.
– Gas operated cookers that do not have a
cooking pot on create high heat during opera-
tion. A ventilation device placed over the
cookers can be damaged or burned for this
reason. Operate gas cookers only when there
is a cooking pot on them.
– Operating multiple gas cookers simultaneously
creates high heat. A ventilation device placed
over the cookers can be damaged or burned
for this reason. Never operate two gas cookers
longer than 15 minutes on high flame setting. A
large burner over 5kW (Wok) has the power of
two gas burners.
DANGER!
Electrocution hazard!
– A malfunctioning device may cause electric
shock. Never turn on a malfunctioning device.
Pull the power plug and switch off the circuit
breaker. Call customer service.
– Unsuitable repairs pose hazards. Repairs and
replacement of damaged power cords must be
performed only by a customer services techni-
cian trained by us. If the device is malfunc-
tioning pull the power plug and switch off the
circuit breaker. Call customer service.
– Water leaking into the device may cause elec-
tric shock. High pressure or steam cleaners
must not be used.
WARNINGS AND SAFETY MEASURES
RISK OF DEATH RISK OF POISONING
21.02.2018 4110 HOOD USER GUIDE 9

DANGER!
Danger of physical injury!
– During the installation, there is a danger of
physical injury due to the sharp edges. Use
protective gloves throughout the installation
process of the appliance.
– Due to risk of dropping the appliance,
assembly of all safety bolts and covers must be
performed as specified in the user manual.
– Objects placed on the appliance may fall over.
Do not place any objects on the device.
– LED lights are very bright and may damage
eyes (Risk group 1). You must not look directly
at running LED lights for longer than 100 sec-
onds.
DANGER!
Risk of burning, risk of electrocution!
– Wait until the device cools down prior to
cleaning or maintenance work. Disconnect the
fuse or unplug from the mains.
– There is risk of damage due to humidity
seeping into electronic parts. Never clean the
control elements with a damp cloth.
– The surface can be damaged as a result of
incorrect cleaning. Clean stainless steel sur-
faces only in the brushing direction. Do not use
stainless steel cleaners for control elements.
– The surface can be damaged due to sharp or
scrubbing cleaning agents. Never use sharp or
scrubbing cleaning agents.
DANGER!
Dangers of fire and physical injury!
In case of repairing that is not performed according
to the rules or as required, turn off the fuse or
unplug the feeder cable of your appliance.
Repairing must be performed only by the author-
ized technical service or authorized experts.
NOTICE!
If the appliance is faulty or damages, turn off the
fuse or unplug the feeder cable of your appliance
and call the authorized service.
WARNINGS AND SAFETY MEASURES
RISK OF DEATH RISK OF POISONING
21.02.20184110 HOOD USER GUIDE10

NOTICE!
If the feeder cable is damaged, it must be replaced
by its manufacturer or its authorized technical
service or any other personnel qualified at the
same level, in order to avoid any dangerous situa-
tion.
NOTICE!
When the bulbs of the device malfunction, switch
off the circuit breaker and unplug the device's
power plug from the socket. Replace the defective
bulbs immediately (leave bulbs to cool down first),
in order to protect the remaining bulbs against
overloading.
CAUTION!
Accessible components might be heated when
used with cooking devices.
DANGER!
Air outlet pipe of this appliance mustn't be con-
nected in the flue used to discharge the fume gen-
erated by devices that use gas or other fuels.
Damage reasons
CAUTION!
Damage hazard due to corrosion. Always run the
appliance to prevent condensate formation while
cooking. Condensates may cause corrosion
damage. Replace the malfunctioning lamp right
away to prevent overloading of other lamps. Mois-
ture intrusion in electronic parts poses a risk of
damage. Never clean the control elements with a
wet cloth. The surface could be damaged due to a
wrong cleaning process. Clean stainless steel sur-
faces only in their brushing direction. Do not use a
stainless steel cleaner for the control elements.
The surface could be damaged due to aggressive
and abrasive cleaning agents. Never use aggres-
sive and abrasive cleaning agents. There is a risk
of damage due to condensate liquid backflow.
Install the air exit canal with a small downward
inclination (1° inclination) from the appliance.
WARNINGS AND SAFETY MEASURES
RISK OF DEATH RISK OF POISONING
21.02.2018 4110 HOOD USER GUIDE 11

4 USAGE WITH OR WITHOUT CARBON FILTER
You may use this device in exhaust air mode or air
circulation mode.
Exhaust air mode
Absorbed air is cleaned by oil filters and expelled via a pipe
system.Fig. 3
NOTICE!
Exhaust air should never be transferred to an
active fume or exhaust gas flue nor should it be
transferred to a chimney used to ventilate the
areas where heating sources are installed.
nIf the exhaust air is required to be transferred to a deactivated
fume or exhaust gas flue, you should get permission from the
authorized master chimney cleaner.
nIf the exhaust air is sent out over the outer wall, a telescopic
wall safe should be used.
Air circulation mode
Absorbed air is cleaned by the oil filters and active
carbon filter and resent into the kitchen.Fig. 4
You need to attach an active carbon filter to con-
tain the substances that give off the smell in the air
circulation mode. Consult your authorized dealer
for the different possibilities required to operate the
device in air circulation mode. You can obtain the
accessories required for this process at related
outlets, authorized service or via an online sales
center.
Fig. 3: Air Outlet without Carbon Filter
Fig. 4: Carbon-Filter Air Circulation
USAGE WITH OR WITHOUT CARBON FILTER
21.02.20184110 HOOD USER GUIDE12

5 CARBON FILTER REPLACEMENT
Under circumstances without a flue, an active carbon filter should
be used to resend the inside air by re-filtering. An active carbon
filter should be obtained from the service or your dealer. Discon-
nect the device prior to replacing the carbon filter. Since the carbon
filter is used in kitchens without a flue outlet, it should be replaced
with a new one every 3 to 5 months subject to usage. The carbon
filter should never be washed. In any case the oil filters should be
attached to the product regardless of using a carbon filter or not.
Do not use the product without an oil filter.

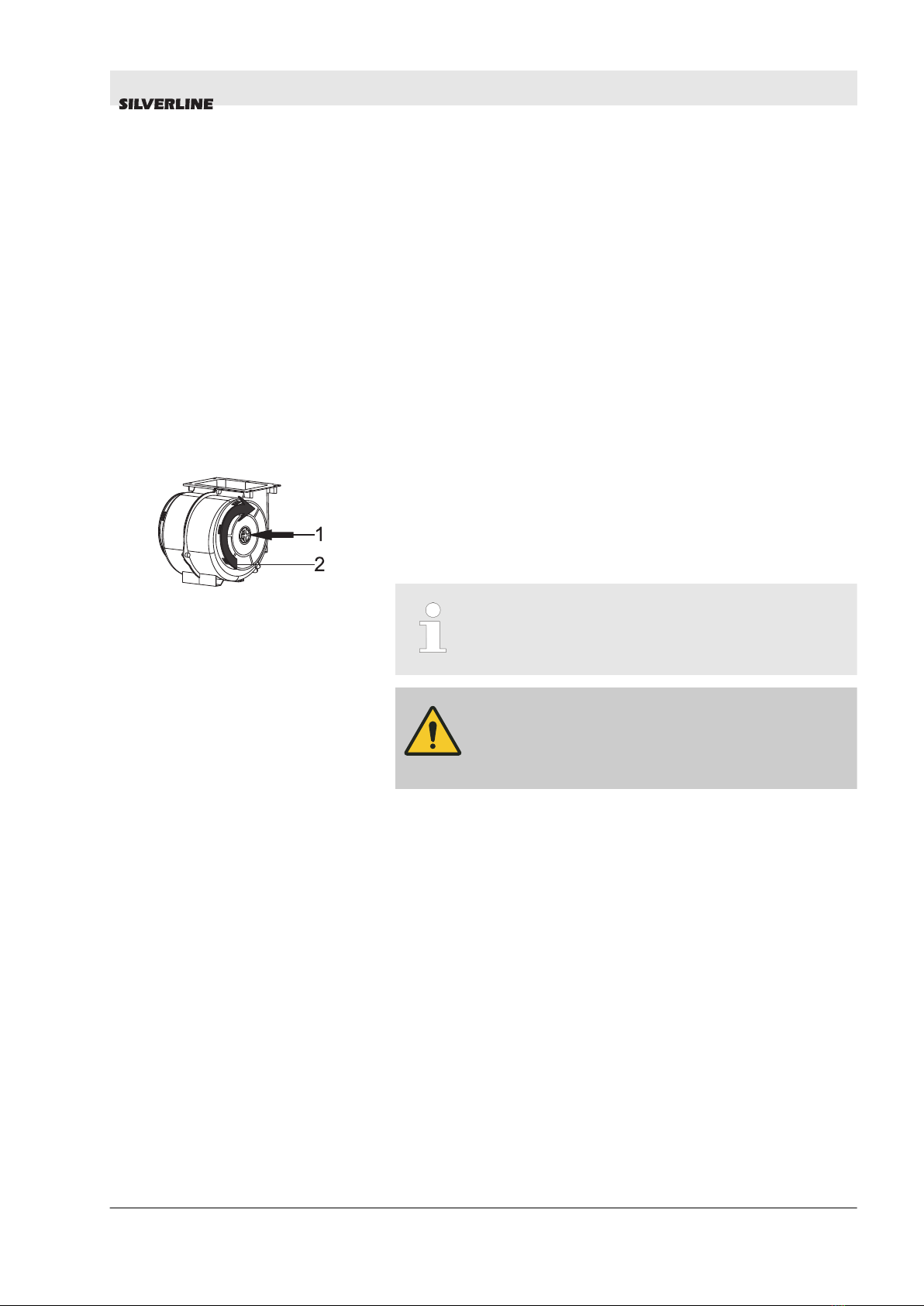

5.1 AF 100 Carbon Filter Replacement
The device you have bought is suitable for use with an AF 100
carbon-filter.
n1-Place the carbon filter in its housing.Fig. 5
n2-Rotate the carbon filter clockwise and make sure that it is
seated completely.Fig. 5
If not seated completely, the carbon filter can fall
and damage your product.
DANGER!
Never wash the carbon filters.
Keep carbon filters away from children.
AF 100 CARBON FILTER
Fig. 5: AF 100 CARBON FILTER
CARBON FILTER REPLACEMENT
AF 100 Carbon Filter Replacement
21.02.2018 4110 HOOD USER GUIDE 13

6 CLEANING AND PREVENTIVE MAINTENANCE
CAUTION!
The cleaning and user service should not be car-
ried out by children who unsupervised.
nThe surface can be damaged by sharp or scrubbing cleaning
agents. Never use sharp or scrubbing cleaning agents. Obtain
the appropriate cleaning and protection agents for your device
from the authorized service. The surface of the device and con-
trol units are sensitive to scratching.
nClean the surfaces with a soft, damp cloth, dishwashing deter-
gent or a mild glass cleaning agent. Soften dried and hardened
dirt with a damp cloth. Do not scrape!
nUsing dry cloths, sponges that may scratch, agents that require
rubbing, cleaning agents containing sand, soda, acid or
chlorine or other strong materials is not appropriate.
nClean stainless steel surfaces only in the direction of the
grinding.
nDo not use stainless steel cleaning agents and wet cloths on
the control units. Cleaning metallic oil filters: Used metallic oil
filters trap oily particles contained within the humidity and
steam in the kitchen. Under normal usage (1-2 hours daily),
clean the metallic oil filters approximately every three months.
nDo not use excessively strong, acidic or chlorine containing
cleaning agents.
nWhile cleaning the metallic oil filter, also clean the trapping
arrangements of the metallic oil filters in the device with a
damp cloth.
nYou can wash the metallic oil filters in the dishwasher or by
hand.
6.1 CLEANING ALUMINUM FILTERS
1 Aluminium Filter Tab
Clean the aluminium oil filters periodically every 3
months.
nPress the aluminium filter tab (1) and pull the aluminium filter to
the direction of the arrow (Fig. 6).
nAs you remove the aluminium filter, hold it with your other hand
to prevent it from dropping.
nAs you remove the aluminium filter, in order to prevent the
accumulated oil to drip, keep the filter surface parallel to the
floor.
1
Fig. 6
CLEANING AND PREVENTIVE MAINTENANCE
CLEANING ALUMINUM FILTERS
21.02.20184110 HOOD USER GUIDE14

6.2 Washing in the Dishwasher
In case of washing in a dishwasher, slight discoloration may occur.
This has no impact on the function of the metallic oil filter.
nDo not wash heavily soiled metallic oil filters together with the
dishes.
nPlace the metallic oil filters in the dishwasher loosely or freely
standing. The metallic oil filters should be placed in the dish-
washer without any compression on them.
6.3 Manual Washing
You may use a special oil solvent to remove per-
sistent soils. You can acquire this solvent from an
authorized sales center.
–Soften the stains of the metallic oil filters in hot
water with dishwashing detergent.
–Use a brush for cleaning and let the liquids on
the metal oil filters drain completely.
–Rinse the filters well after cleaning.
CLEANING AND PREVENTIVE MAINTENANCE
Manual Washing
21.02.2018 4110 HOOD USER GUIDE 15

7 LOCATION OF THE DEVICE
M n 65 cm
Max 70 cm
Fig. 7: Copy of 4110 min max
After completing the installation of hood, the minimum distance
must be 65 cm between the product and any electric cooker; and
75 cm between it and any gas ranges or cookers burning other
fuels (Fig. 7).
LOCATION OF THE DEVICE
21.02.20184110 HOOD USER GUIDE16

8 Installatıon and Unpacking
nCheck if there are any damages on your appliance.
nShipment damages must be reported to the shipment respon-
sible immediately.
nVisible defects must also be communicated to the seller.
nDo not let children play with packaging material.
Installatıon and Unpacking
21.02.2018 4110 HOOD USER GUIDE 17

9 Recommendations on Energy Savings
nReplace the carbon filters on a regular basis.
nRegularly clean your aluminium filters. Since dirty filters would
block the air passage, you might have to use the appliance at a
higher speed.
nUse your product according to its normal speeds.
nUse at higher speed would cause an increase in the energy
consumption.
Recommendations on Energy Savings
21.02.20184110 HOOD USER GUIDE18

10 PACKAGE CONTENT
1- Product
2- Inner Flue
3- Outer Flue
4- Hanging Bar
5- Hanging bar stabilizing plate
6- Ceiling Hanging Plate
7- User Manual
8- Plastic Flue
9- Plastic Flue Adapter (Optional)
10- Remote Control (Optional)
11- Ø10mm Plastic Dowel
12- 5.5x60 Wall Mount Screw
13- 3.5x9.5 Flue Connection Screw
Fig. 8: CONTENT OF PACKAGE
PACKAGE CONTENT
21.02.2018 4110 HOOD USER GUIDE 19

11 OVERVIEW OF THE HOOD
1- Inner Flue
2- Outer Flue
3- Front Panel
4- Aluminium Filter
5- Cooker Lighting
Fig. 9
OVERVIEW OF THE HOOD
21.02.20184110 HOOD USER GUIDE20
