Silverline ASK SL3461-60 SR User manual

HOOD USER GUIDE
ENGLISH
Assembly instructions
ASK SL3461-60 SR
ASK SL3461-90 SR Read this manual prior to performing any task!

1, en_US
© SILVERLINE
MANUFACTURER
Merzifon OSB AMASYA, Silverline
IMPORTER
Jilmas Group Nordic ApS Eli Christensens Vej 90, 7430 Ikast Denmark
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Internet: www.silverline.dk
22.02.2023
HOOD USER GUIDE ENGLISH
2

Table of contents
1 Technical Drawing...................................................................................... 4
2 WARNING AND SAFETY PRECAUTIONS................................................. 6
2.1 LETHAL RISK, DANGER OF POISONING......................................... 8
3 USAGE WITH AND WITHOUT CARBON FILTER................................... 13
3.1 CARBON FILTER REPLACEMENT.................................................. 14
4 CLEANING AND PREVENTIVE MAINTENANCE.................................... 15
4.1 ALUMINIUM FILTER CLEANING...................................................... 15
4.1.1 Washing in Dishwasher.................................................................. 16
4.1.2 Hand Wash..................................................................................... 16
5 APPLIANCE POSITION............................................................................ 17
5.1 Installation / Assembly....................................................................... 17
5.2 Recommendations for Energy Saving............................................... 17
6 CONTENT OF PACKAGE......................................................................... 19
7 OVERVIEW OF hood................................................................................ 20
8 Installation................................................................................................ 21
9 Installing Sheet Metal Flues.................................................................... 24
10 USE OF PRODUCT................................................................................... 25
10.1 3 Spd Touch Product Usage............................................................ 25
11 REPLACING THE LAMPS........................................................................ 26
12 Technical Table......................................................................................... 27
Table of contents
22.02.2023 HOOD USER GUIDE ENGLISH 3

1 Technical Drawing
596
340
300
302
318
80 25
M n:700 Max:1030
213
166.5
330
20
400
Technical Drawing
22.02.2023
HOOD USER GUIDE ENGLISH
4

896
340
300
302
318
80 25
M n:700 Max:1030
213
166.5
330
20
400
Fig. 1
Technical Drawing
22.02.2023 HOOD USER GUIDE ENGLISH 5

2 WARNING AND SAFETY PRECAU-
TIONS
WARNING AND SAFETY PRECAU-
TIONS
nThis appliance can be used by
children of 8 years and older,
people with physical, sensory or
mental capability deficiency or
people with lack of experience or
knowledge; as long as they are
provided supervision or instruc-
tions for the safe use of the appli-
ance and they comprehend the
dangers.
nChildren should not tamper with
the appliance. Cleaning and user
maintenance operations must not
be performed by children unless
supervised.
nThis product is designed for home
use.
nUsage voltage of your product is
220-240 Volt~50-60 Hz.
nPower cord of your product is
fitted with a grounded plug. This
cord must be plugged into a
grounded outlet.
nThe whole electrical wiring must
be installed by a qualified electri-
cian.
nInstallation by unauthorized per-
sons could lead to poor operation
performance, damage to the
product, and accidents.
nFeeder cable of the appliance
mustn't be exposed to jamming or
crashing during assembly. Feeder
cable mustn't be placed near the
cooker. In such cases, it might
melt down and lead to fire.
nDo not plug in the appliance
before the installation.
nMake sure that the installation
place allows the user to easily
unplug the power cable in case of
any danger.
nDo not touch your product's lamps
when they work for a long time.
The lamps may burn your hand as
they will be hot.
nKitchen hoods are manufactured
for household use in normal home
cooking. There is a risk of mal-
function in other types of use, and
the product guarantee will be void.
nComply with the rules and instruc-
tions regarding discharge of out-
going air, stipulated by the rele-
vant authorities. (This warning
does not apply to uses without
flue.)
nFlammable foods must not be
cooked under the appliance.
nStart your product after you place
pot, pan etc. on the stoves. Other-
wise, high temperature may cause
same parts of your products to
deform.
nTurn off the cooker's burner before
taking the saucepan, pan, etc. off
the cooker.
nDo not leave boiling oil on the
stove. Pots that contain boiling oil
may catch fire by itself.
nSince oils could catch fire when
you cook fried foods in particular,
be careful about your curtains and
tablecloths.
nEnsure timely replacement of the
filters. Filters not replaced in a
timely manner pose risk of fire due
to accumulated grease deposits
on them.
WARNING AND SAFETY PRECAUTIONS
22.02.2023
HOOD USER GUIDE ENGLISH
6

nDo not use non-fire-resistant fil-
tering materials instead of the
filter.
nDo not operate your product
without filter, and do not remove
the filters when the product is in
operation.
nIn case of any fire, de-energize the
hood and any other cooking
devices. (Plug off the appliance or
turn off the main switch.)
nIf your product's periodic cleaning
is not made in a timely manner, it
could pose risk of fire.
nDe-energize the appliance before
any maintenance operations.
(Plug off the appliance or turn off
the main switch.)
nWhen electric cooker hood and
devices fed with energies other
than electricity operate simultane-
ously, the negative pressure in the
room must not exceed 4 Pa ( 4 X
10 bar ).
nGas or fuel oil burning appliances,
such as room heaters, which
share the same environment with
your product, must be fully insu-
lated from the exhaust of this
product or they must be hermet-
ical.
nWhen you make a flue connection
for your product, use pipes with a
diameter of 150mm or 120 mm.
The length of the duct connection
as well as the number of elbows
must be as minimum as possible.
nChildren must not play with the
appliance.
nFor your safety, use ”MAX 6 A”
fuse in the hood system.
nSince the packing materials could
be dangerous, keep them away
from children.
nIf the feeder cable is damaged, it
must be replaced by its manufac-
turer or its authorized technical
service or any other personnel
qualified at the same level, in
order to avoid any dangerous sit-
uation.
nIn case of any deflagration, de-
energize the cooker hood and
cooking appliances, and cover the
flame. Never use water to extin-
guish the fire.
nWhen cooking appliances are in
operation, their accessible parts
could be hot.
nThis appliance is not intended to
be used by people with physical,
sensory and mental disabilities
(including children) or those who
do not have adequate experience
and knowledge regarding its use,
unless they are under the supervi-
sion of a person responsible for
the safety of the appliance.
nOutput of the hood must not be
connected to air ducts, where
smoke from other sources could
exist.
nYou must be careful when using
the appliance spontaneously with
other appliances (e.g. gas, diesel
fuels, coal, wood, etc. burning
heaters, shower heaters), which
use the same air in the same envi-
ronment. Attention must be paid
when using them simultaneously.
It is because the hood could
adversely affect the combustion,
by discharging the ambient air.
WARNING AND SAFETY PRECAUTIONS
22.02.2023 HOOD USER GUIDE ENGLISH 7

nThis warning does not apply to
uses without flue.
nWhen electric cooker hood is used
simultaneously with devices that
use gas or other fuels, there must
be sufficient ventilation in the room
(might not apply to devices that
discharges the air back into the
room).
2.1 LETHAL RISK,
DANGER OF POI-
SONING
DANGER!
Warning - Choking Hazard
The packaging materials are
dangerous for children. Never
allow children to play with pack-
aging materials.
DANGER!
Warning - Death Hazard
There are life-threatening
danger and poisoning danger
due to reabsorbed combustion
gases. During the air discharge
outlet use, unless sufficient air
supply is provided, do not use
the appliance simultaneously
with devices that discharge
toxic gases through flue such
as ventilated, gas, oil, wood or
coal burning heaters, shower
heaters, water heaters,
etc.Fig. 2
Fig. 2: Poisoning Danger
Ventilated goods (e.g. gas, oil, wood or
coal burning heaters, shower heaters,
water heaters) take combustion air
from the installation location, and dis-
charge the waste gas through a waste
gas system (e.g. flue). When the
cooker hood is active, it absorbs air
from the kitchen and neighbouring
rooms. If adequate air entry is not pro-
vided, vacuum emerges. In such a
case, the toxic gases are absorbed
from the flue and waste gas channel,
and are taken into the door again.
Fig. 2
WARNING AND SAFETY PRECAUTIONS
LETHAL RISK, DANGER OF POISONING
22.02.2023
HOOD USER GUIDE ENGLISH
8

nTherefore, adequate fresh air
ingress must always be
ensured.Fig. 3
Fig. 3
WARNING!
Fire danger!
– The oil residue in the
grease filter may catch
fire.Clean the grease filter
at least once every 3
months.Never operate the
device without the grease
filter .
– The oil residue in the
grease filter may catch fire.
Never work with open
flame (ex. flambe) near the
device. The apparatus is
allowed to be installed near
a solid fuel (e.g. wood or
coal) heater only if it has a
non-removable cover. No
sparks should be scattered.
– Hot oils and fats catch fire
easily. Hot oils and fats
should never be left unat-
tended. Never try to put out
fire with water. Turn off the
cooker. Kill the flames care-
fully using a cover, fire
blanket or a similar mate-
rial.
– Gas operated cookers that
do not have a cooking pot
on create high heat during
operation. A ventilation
device placed over the
cookers can be damaged
or burned for this reason.
Operate gas cookers only
when there is a cooking pot
on them.
– Operating multiple gas
cookers simultaneously
creates high heat. A venti-
lation device placed over
the cookers can be dam-
WARNING AND SAFETY PRECAUTIONS
LETHAL RISK, DANGER OF POISONING
22.02.2023 HOOD USER GUIDE ENGLISH 9

aged or burned for this
reason. Never operate two
gas cookers longer than 15
minutes on high flame set-
ting. A large burner over
5kW (Wok) has the power
of two gas burners.
WARNING!
Electrocution hazard!
– A malfunctioning device
may cause electric shock.
Never turn on a malfunc-
tioning device. Pull the
power plug and switch off
the circuit breaker. Call
customer service.
– Unsuitable repairs pose
hazards. Repairs and
replacement of damaged
power cords must be per-
formed only by a customer
services technician trained
by us. If the device is mal-
functioning pull the power
plug and switch off the cir-
cuit breaker. Call customer
service.
– Water leaking into the
device may cause electric
shock. High pressure or
steam cleaners must not be
used.
DANGER!
Danger of physical injury!
– During the installation,
there is a danger of phys-
ical injury due to the sharp
edges. Use protective
gloves throughout the
installation process of the
appliance.
– Due to risk of dropping the
appliance, assembly of all
safety bolts and covers
must be performed as
specified in the user
manual.
– Objects placed on the
appliance may fall over. Do
not place any objects on
the device.
– LED lights are very bright
and may damage eyes
(Risk group 1). You must
not look directly at running
LED lights for longer than
100 seconds.
WARNING AND SAFETY PRECAUTIONS
LETHAL RISK, DANGER OF POISONING
22.02.2023
HOOD USER GUIDE ENGLISH
10

WARNING!
Risk of burn, risk of electric
shock!
– Allow the appliance to cool
before cleaning or mainte-
nance process. Switch off
the fuse or pull out the
mains plug from the socket.
– There is risk of damage
due to ingress of moisture
in the electronics. Do not
clean the control compo-
nents with a wet cloth.
– The surface could be dam-
aged due to a wrong
cleaning process. Clean
stainless steel surfaces
only in their brushing direc-
tion. Do not use a stainless
steel cleaner for the control
elements.
– The surface could be dam-
aged due to aggressive
and abrasive cleaning
agents. Never use aggres-
sive and abrasive cleaning
agents.
WARNING!
Dangers of fire and physical
injury!
In case of repairing that is not
performed according to the
rules or as required, turn off the
fuse or unplug the feeder cable
of your appliance. Repairing
must be performed only by the
authorized technical service or
authorized experts.
NOTICE!
If the appliance is faulty or
damaged, turn off the fuse or
unplug the feeder cable of your
appliance and call the author-
ized service.
NOTICE!
If the feeder cable is damaged,
it must be replaced by its manu-
facturer or its authorized tech-
nical service or any other per-
sonnel qualified at the same
level, in order to avoid any dan-
gerous situation.
WARNING AND SAFETY PRECAUTIONS
LETHAL RISK, DANGER OF POISONING
22.02.2023 HOOD USER GUIDE ENGLISH 11

NOTICE!
When the bulbs of the device
malfunction, switch off the cir-
cuit breaker and unplug the
device's power plug from the
socket. Replace the defective
bulbs immediately (leave bulbs
to cool down first), in order to
protect the remaining bulbs
against overloading.
CAUTION!
Accessible components might
be heated when used with
cooking devices.
DANGER!
Air outlet pipe of this appliance
mustn't be connected in the flue
used to discharge the fume
generated by devices that use
gas or other fuels.
Damage reasons
CAUTION!
Damage hazard due to corro-
sion. Always run the appliance
to prevent condensate forma-
tion while cooking. Conden-
sates may cause corrosion
damage. Replace the malfunc-
tioning lamp right away to pre-
vent overloading of other
lamps. Moisture intrusion in
electronic parts poses a risk of
damage. Never clean the con-
trol elements with a wet cloth.
The surface could be damaged
due to a wrong cleaning
process. Clean stainless steel
surfaces only in their brushing
direction. Do not use a stain-
less steel cleaner for the control
elements. The surface could be
damaged due to aggressive
and abrasive cleaning agents.
Never use aggressive and
abrasive cleaning agents.
There is a risk of damage due
to condensate liquid backflow.
Install the air exit canal with a
small downward inclination (1°
inclination) from the appliance.
WARNING AND SAFETY PRECAUTIONS
LETHAL RISK, DANGER OF POISONING
22.02.2023
HOOD USER GUIDE ENGLISH
12

3 USAGE WITH AND WITHOUT
CARBON FILTER
You can use this appliance in
exhaust air mode and venti-
lated air mode.

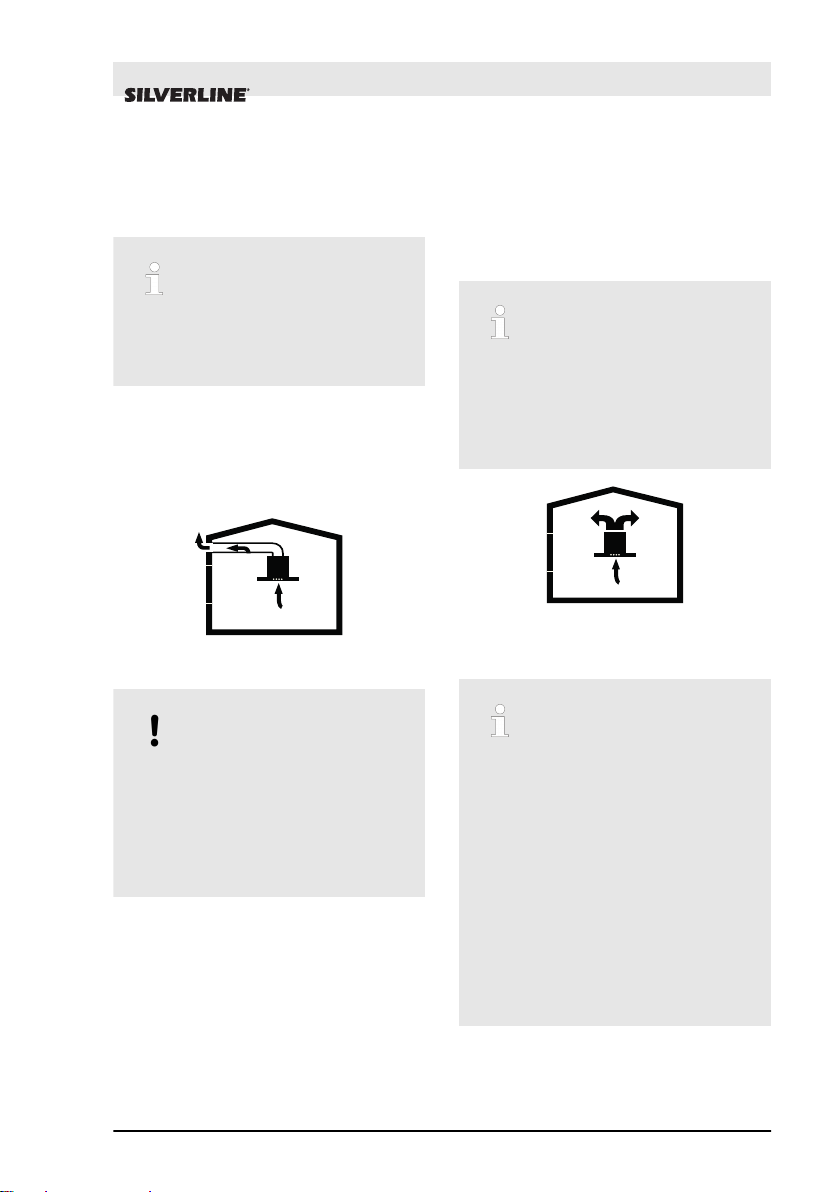

Exhaust air mode
The absorbed air is cleaned by the
grease filters, and is discharged
through a piping system.Fig. 4
Fig. 4: Air Outlet without Carbon Filter
NOTICE!
Exhaust air must not be trans-
ferred to an active smoke or
waste gas flue; or a flue used
for ventilation of the places,
where heat sources are
installed.
nIf you want to transfer exhaust air
to an inactive smoke or waste gas
flue, you need to obtain permis-
sion from an authorized chimney
sweep.
nIf exhaust air is discharged
through the external wall, a tele-
scopic wall safe must be used.
Ventilated air mode
Absorbed air is cleaned by the
grease filters and an active
carbon filter, and then it is
transferred back to the
kitchen.Fig. 5
Fig. 5: Air Circulation with Carbon
Filter
You need to install an active
carbon filter, in order to catch
the substances, which cause
stink in the circulating air. Con-
sult your authorized dealer to
know the different opportunities
available for enabling the appli-
ance to function in circulating
air mode. You can buy the
accessories required for this
process from the relevant out-
lets, authorized technical
service or online sales center.
USAGE WITH AND WITHOUT CARBON FILTER
22.02.2023 HOOD USER GUIDE ENGLISH 13

3.1 CARBON FILTER
REPLACEMENT
CARBON FILTER
1
2
Fig. 6

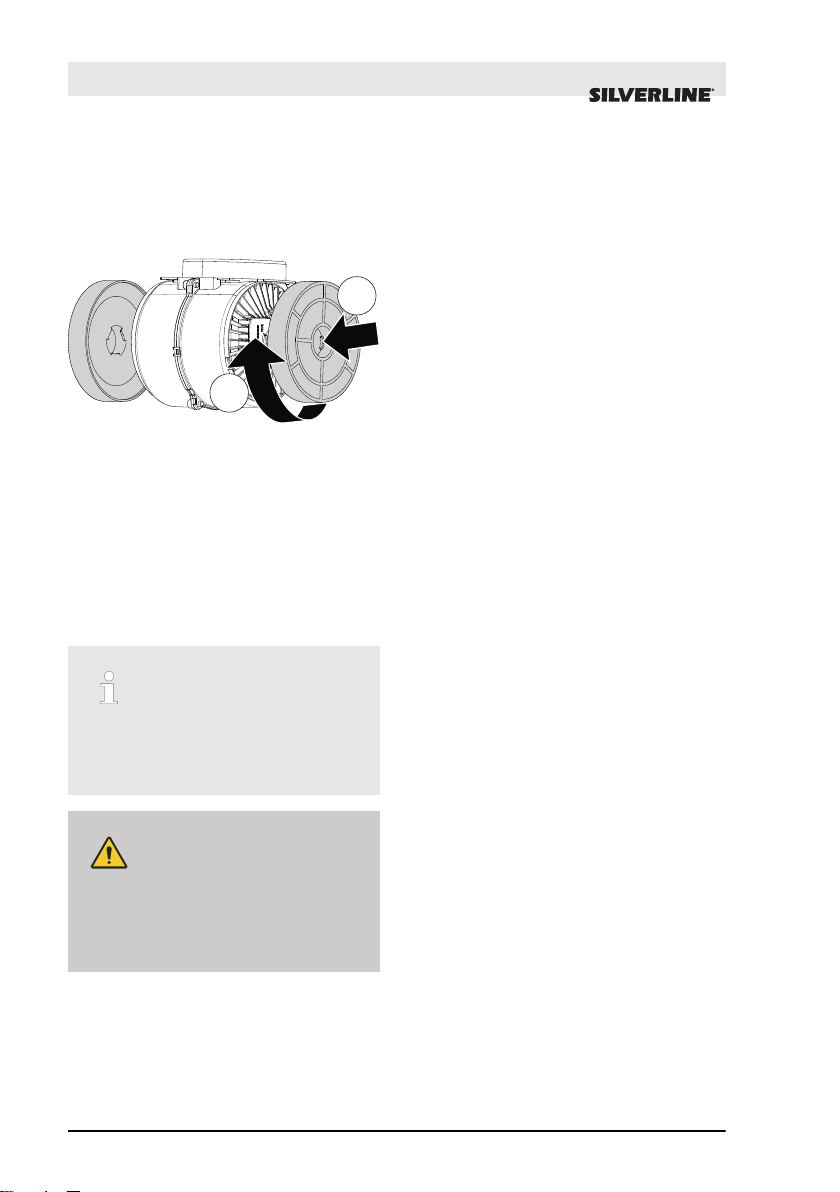

The device you have purchased is
suitable for use with carbon filter.
n1-Place the carbon filter in its
housing.Fig. 6
n2-Rotating the carbon filter clock-
wise, ensure that it is completely
fit.Fig. 6
If carbon filter does not fit in
completely, it might drop and
damage your product.
DANGER!
Never wash the carbon filters.
Keep carbon filters away from
children.
USAGE WITH AND WITHOUT CARBON FILTER
CARBON FILTER REPLACEMENT
22.02.2023
HOOD USER GUIDE ENGLISH
14

4 CLEANING AND PREVENTIVE MAIN-
TENANCE
CAUTION!
Cleaning and user maintenance
of the appliance shall not be
performed by unattended chil-
dren.
nThe surface could be damaged
due to aggressive and abrasive
cleaning agents. Never use
aggressive and abrasive cleaning
agents. Procure your cleaning and
protective substances that are
appropriate for your appliance
from the authorized technical
service. Surface of appliance and
control units are sensitive to
scratching.
nClean the surfaces with a soft and
damp cloth, dish-washing liquid or
mild glass cleaning agent. Soften
the dry, sticky dirt with a damp
cloth. Do not scrape!
nIt is not appropriate to use dry
cloths, sponges that may scratch,
materials that require rubbing, and
other aggressive cleaning agents
containing sand, soda, acid or
chlorine.
nClean the stainless steel surfaces
in their brushing direction only.
nDo not use stainless steel cleaning
agents and wet clothes for control
units. Cleaning of metal grease fil-
ters Used metal grease filters
retain the greasy particles in the
moisture and vapour generated in
the kitchen. Clean the metal
grease filters about every three
months, under normal use condi-
tions (1 to 2 hours a day).
nDo not use excessively effective,
acidic or alkaline cleaning agents.
nFor cleaning the metal grease fil-
ters, clean the holder parts of the
metal grease filters in the appli-
ance, with a damp cloth as well.
nYou can clean the metal grease fil-
ters in the dishwasher or by hand.
nDo not apply spray cleaning sup-
plies directly to the product.
nDo not keep flammable and/or
heavy decorative items on the
product.
4.1 ALUMINIUM FILTER
CLEANING
2
1
Fig. 7
CLEANING AND PREVENTIVE MAINTENANCE
ALUMINIUM FILTER CLEANING
22.02.2023 HOOD USER GUIDE ENGLISH 15

Clean the aluminum grease fil-
ters periodically every 3
months.
nPress the aluminum filter tab (1)
and pull the aluminum filter to the
direction of the arrow (Fig. 7 /1).
nAs you remove the aluminum filter,
hold it with your other hand to pre-
vent it from dropping (Fig. 7/2).
nAs you remove the aluminum filter,
in order to prevent the accumu-
lated oil to drip, keep the filter sur-
face parallel to the floor.
4.1.1 Washing in Dish-
washer
In case of washing in dishwasher, a
slight change might occur in colour.
This has no effect on the function of
the metal grease filter.
nDo not clean too dirty metal
grease filters together with utensils
in the dishwasher.
nPlace the metal grease filters
loosely and freely in the dish-
washer. Metal grease filters must
be placed in the dishwasher
without jamming.
4.1.2 Hand Wash
For stubborn dirts, you can use
a special grease solvent. You
can buy such an agent from the
authorized sales centre.
–Soften the metal grease fil-
ters in a hot water with
dish-washing liquid.
–Use a brush for cleaning
and wait for the liquid in
metal grease filters to flow
off completely.
–Rinse the filters thoroughly
after cleaning.
CLEANING AND PREVENTIVE MAINTENANCE
ALUMINIUM FILTER CLEANING > Hand Wash
22.02.2023
HOOD USER GUIDE ENGLISH
16

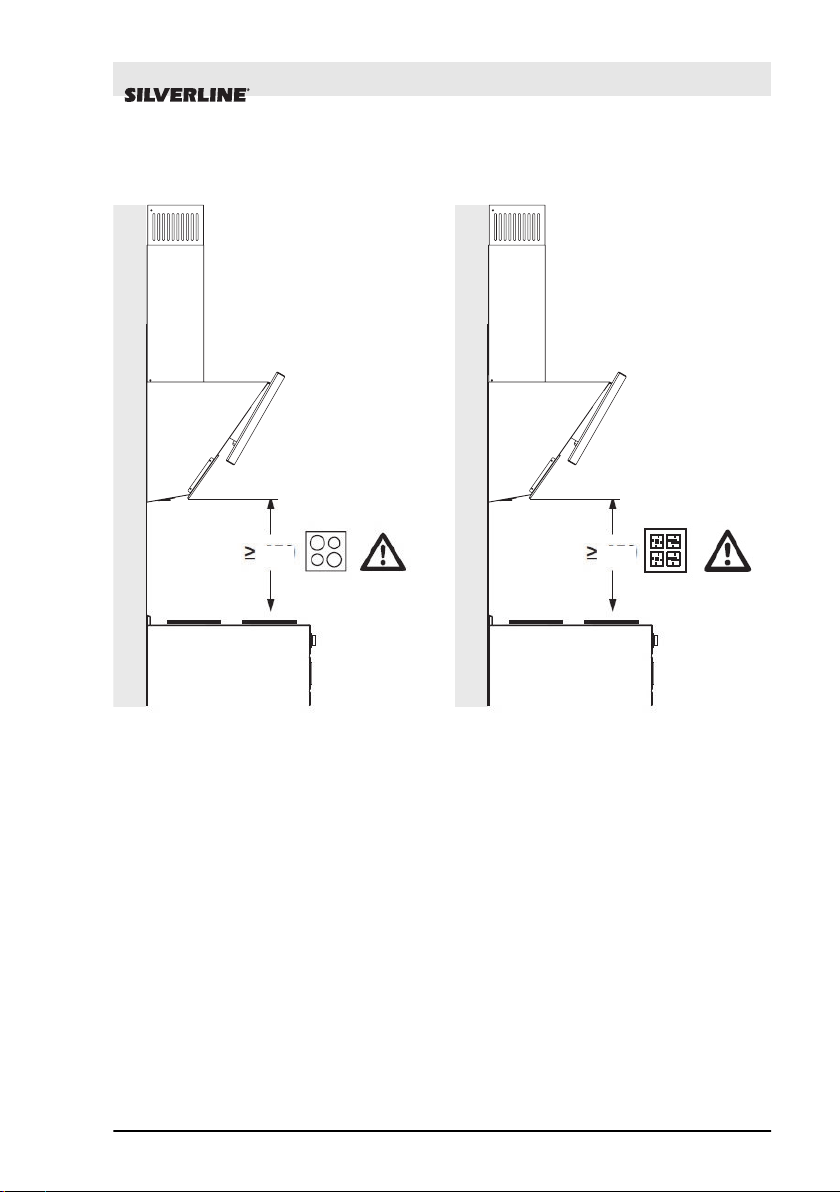

5 APPLIANCE POSITION
500 700
Fig. 8
When the installation of the hood is complete, the distance between the bottom
surface of the hood and the top surface of the hob should be at least 500 mm for
electric hobs and at least 700 mm for gas or other fuel-fired hobs (Fig. 8).
5.1 Installation /
Assembly
nCheck that your appliance is not
deformed.
nReport any transport issues imme-
diately to transport operator.
nAny faults encountered shall be
reported to the dealer, too.
nDo not allow children to play with
the packaging materials!
5.2 Recommendations
for Energy Saving
nReplace the carbon filters on a
regular basis.
nRegularly clean your aluminium fil-
ters. Since dirty filters would block
the air passage, you might have to
use the appliance at a higher
speed.
APPLIANCE POSITION
Recommendations for Energy Saving
22.02.2023 HOOD USER GUIDE ENGLISH 17

nUse your product according to its
normal speeds.
nUse at higher speed would cause
an increase in the energy con-
sumption.
APPLIANCE POSITION
Recommendations for Energy Saving
22.02.2023
HOOD USER GUIDE ENGLISH
18

6 CONTENT OF PACKAGE
13 4 6 6
11
10
789
2
Fig. 9
1- Product
2- Inner Flue
3- Outer Flue
4- 4.8x50 Wall Mount Screw
5- Ø8mm Plastic Dowel
6- 3.5x9.5 Sheet Metal Screw
7- Ø6mm Plastic Dowel
8- 3.9x22 Flue Connection Plate
Screw
9- Flue Connection Plate
10- Flue Flap
11- User Manual
CONTENT OF PACKAGE
22.02.2023 HOOD USER GUIDE ENGLISH 19

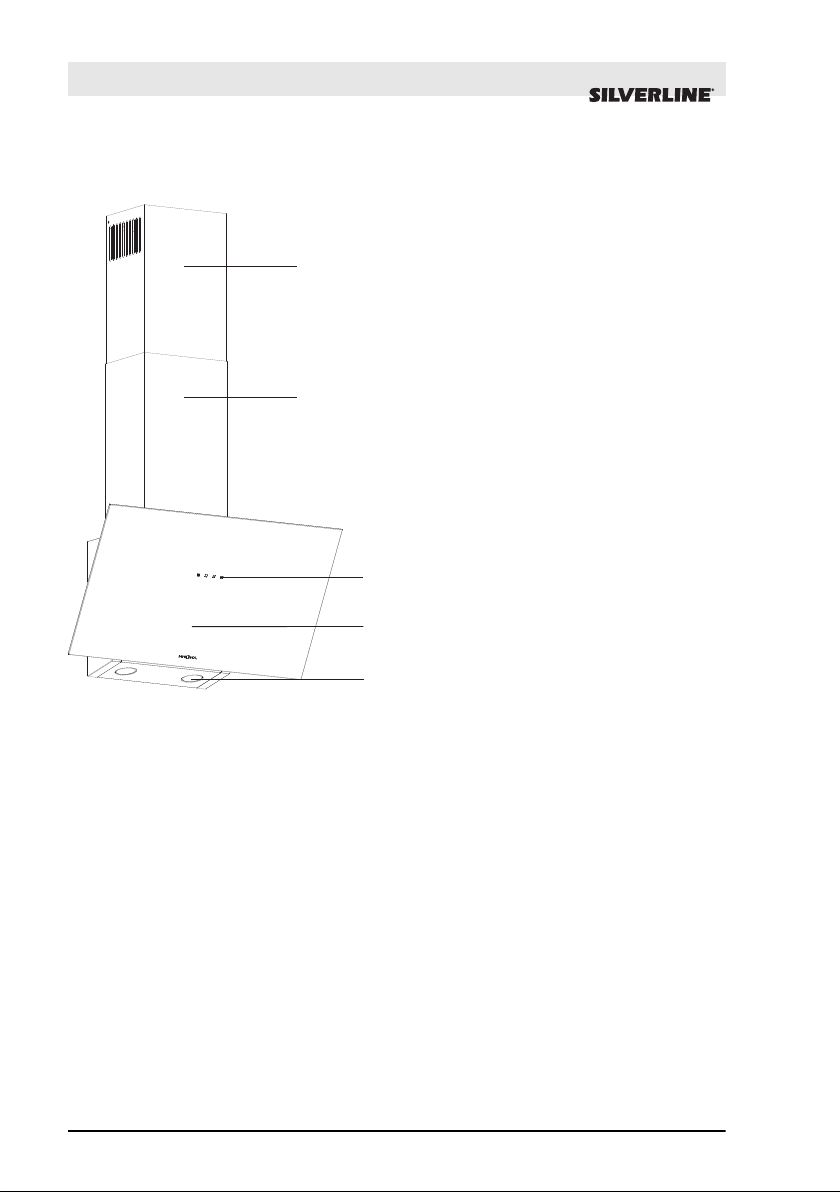

7 OVERVIEW OF hood
1
2
3
4
5
Fig. 10
1- Inner Flue
2- Outer Flue
3- Control Panel
4- Side Suction Plate/Glass
5- Cooker Lighting
OVERVIEW OF hood
22.02.2023
HOOD USER GUIDE ENGLISH
20
