Simfer B6EB56001 User manual

Gaz and electric
buit-in oven, 60 cm
Духовые шкафы
встраиваемые
газовые и комбинированные,
60 см
USER MANUAL GB
RU
РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
Модели:

2
Dear Customer,
Thank you for relying on this product. We aim to allow you to optimally and
efciently use this environment-friendly product produced in our modern
facilities under precise conditions with respect to sense of quality in total.
We advise you to read these operating manual thoroughly before using
the oven and keep it permanently so that the features of the built-in oven
you have purchased will stay the same as the rst day for a long time.
Note: This operating manual is prepared for multiple models. Your appliance
may not feature some functions specied in the manual.
The product images are schematic.
This product has been produced in modern environment-friendly
facilities without adversely affecting nature.
Products marked with (*) are optional.
“Complies with WEEE Regulation”
GB

3
Contents
Important warnings 4
Electrical connection 14
Gas connection 15
Introducing the appliance 19
Accessories 20
Technical specications 21
Installation of appliance 21
Control panel 27
Using the oven 29
Using the grill 30
Using the grill deector sheet 30
Lighting the oven manuall 31
Using the chicken roasting 31
Program types 32
Cooking recommendations 32
Cooking table 33
Maintenance and cleaning 34
Cleaning oven glass 34
Cleaning and mounting oven door 35
Catalytic panel 36
Rack positions 36
Replacing oven lamp 37
Troubleshooting 38
Handling rules 40
Recommendations for energy saving 40
Environmentally-friendly disposal 41
Package information 41

4
IMPORTANT WARNINGS
1. Installation and repair should always be performed
by “AUTHORIZED SERVICE”. Manufacturer shall not be
held responsible for operations performed by unauthorized
persons.
2. Please read this operating instructions carefully.
Only by this way you can use the appliance safely and
in a correct manner.
3. The oven should be used according to operating
instructions.
4. Keep children below the age of 8 and pets away
when operating.
5. The accessible parts may be hot during use. Young
children must be kept away.
6. WARNING: Danger of re: do not store items on the cooking
surfaces.
7. WARNING: During use the appliance becomes hot.
Care should be taken to avoid touching heating elements
inside the oven.
8. Setting conditions of this device are specied on
the label. (Or on the data plate)
9. The accessible parts may be hot when the grill is
used. Small children should be kept away.
10. WARNING: This appliance is intended for cooking. It
should not be used for other purposes like heating a room.
11. To clean the appliance, do not use steam cleaners.
GB

5
12. Ensure that the oven door is completely closed
after putting food inside the oven.
13. NEVER try to put out the re with water. Only shut
down the device circuit and then cover the ame with
a cover or a re blanket.
14. WARNING: Children less than 8 years of age shall be
kept away unless continuously supervised.
15. Touching the heating elements should be avoided.
16. CAUTION: Cooking process shall be supervised.
Cooking process shall always be supervised.
17. This appliance can be used by children aged from
8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
18. This device has been designed for household use
only.
19. Children must not play with the appliance. Cleaning
or user maintenance of the appliance shall not be performed
by children unless they are older than 8 years and
supervised by adults.
20. Keep the appliance and its power cord away from
children less than 8 years old.

6
21. Put curtains, tulles, paper or any flammable
(ignitable) material away from the appliance before
starting to use the appliance. Do not put ignitable or
ammable materials on or in the appliance.
22. Keep the ventilation channels open.
23. The appliance is not suitable for use with an external
timer or a separate remote control system.
24. Do not heat closed cans and glass jars. The pressure
may lead jars to explode.
25. Oven handle is not a towel drier. Do not hang towels,
etc. on the oven handle.
26. Do not place the oven trays, plates or aluminium
foils directly on the oven base. The accumulated heat
may damage the base of the oven.
27. While placing food to or removing food from the
oven, etc., always use heat resistant oven gloves.
28. Do not use the product in states like medicated
and/or under inuence of alcohol which may affect your
ability of judgement.
29. Be careful when using alcohol in your foods. Alcohol
will evaporate at high temperatures and may catch re
to cause a re if it comes in contact with hot surfaces.
30. After each use, check if the unit is turned off.
31. If the appliance is faulty or has a visible damage,
do not operate the appliance.
32. Do not touch the plug with wet hands. Do not pull
the cord to plug off, always hold the plug.
GB

7
33. Do not use the appliance with its front door glass
removed or broken.
34. Place the baking paper together with the food into
a pre-heated oven by putting it inside a cooker or on an
oven accessory. (tray, wire grill etc.)
35. Do not put objects that children may reach on the
appliance.
36. It is important to place the wire grill and tray properly
on the wire racks and/or correctly place the tray on the
rack. Place the grill or tray between two rails and make
sure it is balanced before putting food on it.
37. Against the risk of touching the oven heater elements,
remove excess parts of the baking paper that hang over
from the accessory or container.
38. Never use it at higher oven temperatures than the
maximum usage temperature indicated on your baking
paper. Do not place the baking paper on the base of
the oven. Against the risk of touching the oven heater
elements, remove excess parts of the baking paper that
hang over from the accessory or container.
39. When the door is open, do not place any heavy
object on the door or allow children to sit on it. You
may cause the oven to overturn or the door hinges to be
damaged.
40. The packaging materials are dangerous for children.
Keep packaging materials away from the reach of children.

8
41. Do not use abrasive cleaners or sharp metal scrapers
to clean the glass as the scratches that may occur on
the surface of the door glass may cause the glass to
break.
42. User should not handle the oven by himself.
43. During usage, the internal and external surfaces
of the oven get hot. As you open the oven door, step
back to avoid the hot vapour coming out from the interior.
There is risk of burning.
44. Do not place heavy objects when oven door is
open, risk of toppling.
45. Oven supply can be disconnected during any
construction work at home. After completing the work,
re-connecting the oven shall be done by authorized service.
46. User should not dislocate the resistance during
cleaning. It may cause an electric shock.
47. To prevent overheating, the appliance should not
be installed behind of a decorative cover.
48. Turn off the appliance before removing the
safeguards. After cleaning, install the safeguards
according to instructions.
49. Cable xing point shall be protected.
50. Please don’t cook the food directly on the tray /
grid. Please put the food into or on appropriate tools
before putting them in the oven.
GB

9
Electrical Safety
1. Plug the appliance in a grounded socket protected by
a fuse conforming to the values specied in the technical
specications chart.
2. Have an authorized electrician set grounding equipment.
Our company shall not be responsible for the damages
that shall be incurred due to using the product without
grounding according to local regulations.
3. The circuit breaker switches of the oven shall be
placed so that end user can reach them when the oven
is installed.
4. The power supply cord (the cord with plug) shall
not contact the hot parts of the appliance.
5. If the power supply cord (the cord with plug) is
damaged, this cord shall be replaced by the manufacturer
or its service agent or an equally qualied personnel to
prevent a hazardous situation.
6. Never wash the appliance by spraying or pouring
water on it. There is a risk of electrocution.
7. WARNING: To avoid electric shock, ensure that the
device circuit is open before changing the lamp.
8. WARNING: Cut off all supply circuit connections before
accessing the terminals.
9. Do not use cut or damaged cords or extension cords
other than the original cord.
10. Make sure that there is no liquid or humidity in
the outlet where the product plug is installed.

10
11. The rear surface of the oven also heats up when
the oven is operated. Electrical connections shall not
touch the rear surface, otherwise the connections may
be damaged.
12. Do not tighten the connecting cables to the oven
door and do not run them over hot surfaces. If the cord
melts, this may cause the oven to short circuit and
even a re.
13. Unplug the unit during installation, maintenance,
cleaning and repair.
14. If the power supply cable is damaged, it must be
replaced by its manufacturer or authorized technical
service or any other personnel qualied at the same
level, in order to avoid any dangerous situation.
15. Make sure the plug is inserted rmly into wall
socket to avoid sparks.
16. Do not use steam cleaners for cleaning the appliance,
otherwise electric shock may occur.
17. An omnipolar switch capable to disconnect power
supply is required for installation. Disconnection from
power supply shall be provided with a switch or an
integrated fuse installed on xed power supply according
to building code.
18. Appliance is equipped with a type ‘’Y’’ cord cable.
19. Fixed connections shall be connected to a power
supply enabling omnipolar disconnection. For appliances
with over voltage category below III, disconnection device
shall be connected to xed power supply according to
wiring code.
GB

11
Gas Safety
1. This appliance is not connected to burning
products evacuation apparatus. This appliance must
be connected and installed according to the installation
regulations in force. Conditions regarding ventilation
must be considered.
2. When a gas cooking appliance is used; humidity,
heat and burning products are generated in the room.
First of all, make sure the kitchen is well ventilated
when operating the appliance and maintain natural
ventilation openings or install a mechanical ventilation
equipment.
3. After using the appliance heavily for en extended
period of time, additional ventilation may be required.
For example open a window or adjust a higher speed for
mechanical ventilation, if any.
4. This appliance must be used only in well ventilated
locations in accordance with the regulations in force.
Please read the manual before installing or using this
product.
5. Before positioning the appliance, make sure local
network conditions (gas type and gas pressure) meets
appliance requirements.
6. All kinds of operations to be performed on gas
installation must be performed by authorized and
competent people.
7. This appliance is adjusted for natural gas (NG). If
you have to use your product with a different gas type,
you have to apply to authorized service for the conversion.

12
8. For proper operation, hood, gas pipe and clamp
should be replaced periodically accordint to manufacturer
recommendations and when required.
9. Gas should burn well in gas products. Well
burning gas can be understood from blue ame and
continuous burning. If gas does not burn sufciently,
carbon monoxide (CO) can be generated. Carbon monoxide
is a colourless, odourless and very toxic gas; even small
amounts have lethal effect.
10. Ask your local gas supplies about the phone numbers
for emergencies related to gas and the measures to be
taken upon gas odour is detected.
What To Do When Gas Odour Is Detected
1. Do not use naked ame, and do not smoke.
2. Do not operate any electrical switch.
(For example: lamp switch or doorbell)
3. Do not use telephone or mobile phone.
4. Open the doors and windows.
5. Close all valves on the appliances that utilize gas
and the gas counters.
6. Call re brigade from a telephone outside the home.
7. Check all hoses and their connections against leaks.
If you still smell gas, leave the house and warn your
neighbours.
8. Do not enter into the house until authorities clarify
it is safe.
GB

13
Intended Use
1. This product has been designed for domestic use.
Commercial use is not permitted.
2. This appliance may only be used for cooking
purposes. It shall not be used for other purposes like
heating a room.
3. This appliance shall not be used to heat plates
under the grill, drying clothes or towels by hanging
them on the handle or for heating purposes.
4. The manufacturer assumes no responsibility for any
damage due to misuse or mishandling.
5. Oven part of the unit may be used for thawing,
roasting, frying and grilling food.
6. Operational life of the product you have purchased
is 10 years. This is the period for which the spare parts
required for the operation of this product as dened is
provided by the manufacturer.

14
Electrical Connection
This oven must be installed and connected to its place correctly according
to manufacturer instructions and by an authorized service.
Appliance must be installed in an oven enclosure providing high
ventilation.
Electrical connections of the appliance must be made only via sockets
having earth system furnished in compliance with rules. Contact an
authorized electrician if there is no socket complying with the earthed
system at where appliance will be placed. Manufacturing company is by
no means responsible for damage resulting from connection of
non-earthed sockets to appliance.
Plug of your oven must be earthed; ensure that socket for the plug
is earthed. Plug must be located in a place that can be accessed after
installation.
Your oven has been manufactured as 220-240 V 50/60 Hz. AC power
supply compliant and requires a 16 Amp fuse. If your power network is
different that these indicated values, refer to an electrician or your
authorized service.
When you need to replace the electrical fuse, please ensure that electrical
connection is made as follows:
• Phase (to live terminal) brown cable
• Blue cable to neutral terminal
• Yellow-green cable to earth terminal
Oven disconnecting switches must be in an accessible place for nal
user while oven is in its place.
Power supply cable (plug in cable) mustn’t touch hot parts of the appliance.
If supply cord (plug in cable) is damaged, this cord must be replaced
by the importer or its service agent or an equally competent personnel to
prevent a hazardous situation.
GB

15
Gas Connection
WARNING: Before starting any work related with gas installation, turn off
gas supply. Risk of explosion.
WARNING: Gas hose and electric connection of the appliance should not
pass next to hot areas such as back of the appliance. Gas hose should
be connected by making wide angle turns against breaking possibility.
Movement of appliance whose gas connection is made may cause gas
leakage.
WARNING: While making gas leakage control; never use lighter, match,
glowing cigarette or similar inammable matter.
Connect your appliance to gas oven from the shortest way and in a manner
to prevent any leakage. For safety, the hose used should be maximum
125 cm and minimum 40 cm.
Apply soap bubble on connection point. If any leak/leakage exists, foaming
will occur on soaped region.
For LPG connection;
For LPG (cylinder) connection, afx metal
clamp on the hose coming from LPG cylinder.
Afx an edge of the hose on hose inlet
connector behind the appliance by pushing
to end through heating the hose in boiled
water. Afterward, bring the clamp towards
end section of the hose and tighten it with
screwdriver. The gasket and hose inlet
connector required for connection is as the
picture shown below.
WARNING: The regulator to be afxed on LPG cylinder should have 300
mmSS feature.
Main Gas Pipe
Gasket
Hose Inlet Connector
Metal Clamp
Lpg Connection Hose

16
For natural gas connection;
Ventilation Of Room
The air needed for burning is received from room air and the gases emitted
are given directly in room. For safe operation of your product, good room
ventilation is a precondition. If no window or room to be utilized for room
ventilation is available, additional ventilation should be installed. However,
room has a door opening outside, it is no needed to vent holes.
Room size Ventilating opening
Smaller than 5 m³ min. 100 cm²
Between 5 m³ - 10 m³ min. 50 cm²
Bigger than 10 m³ No need
In basement or cellar min. 65 cm²
Main Gas Pipe
Gasket
Nut
Natural Gas
Connection Hose
WARNING: Natural gas connection should
be done by authorized service.
For natural gas connection, place gasket
in the nut at the edge of natural gas connection
hose. To install the hose on main gas pipe,
turn the nut. Complete the connection by
making gas leakage control.
GB

17
Reduced gas ow rate setting for hob taps
1. Ignite the burner that is to be adjustment and turn the knob to the
reduced position.
2. Remove the knob from the gas tap.
3. Use an appropriately sized screwdriver to adjust the ow rate adjustment
screw. For LPG (butane-pro pane) turn the screw clockwise. For the
naturel gas, you should turn the screw counter- clockwise once.
“The normal length of a straight ame in the reduced position should
be 6-7 mm.“
4. If the ame is higher then the desired position, turn the screw clockwise.
If it is smaller turn anticolockwise.
5. For the last control, bring the burner both to higt-ame and reduced
positions and check whether the ame is on or off.
Depending on the type of gas tap used in your appliance the adjustment
screw position may vary.
To adjust your oven acc. to the gas type, make the adjustment for
reduced ame carefully by turning with a small screwdriver as shown
below on the screw in the middle of the gas cocks as well as nozzle
changes (gure 1 and 2)
Figure 1 Figure 2

18
Removal of the lower and upper burner and installation of the injector to the
gas oven
Removal of the upper burner:
With the help of a screw driver, remove the screw as shown in gure 3.
As shown in gure 4, remove the burner from its place by pulling it to
yourself. As shown in gure 5, remove the injector in the bearing with a
socket wrench. In order to re-place the burner, apply the removal process
reversely.
Removal of the lower burner:
The lower burner door has been xed with two screws. As shown in
gure 6, remove it with the help of a screw driver. Remove the door by
pulling upwards as shown in gure 7. Remove the burner from its place
by pulling it to yourself as shown in gure 8. As shown in gure 9, remove
the injector in the bearing with a socket wrench. In order to replace the
burner, apply the removal process reversely.
Figure 5
Figure 3 Figure 4
Figure 8 Figure 9
Figure 6 Figure 7
GB

19
INTRODUCING THE APPLIANCE
1.Control panel 4.In tray wire grid
2.Deep tray * 5.Standard tray
3.Roast chicken skewer * 6.Oven door
7. Lamp
8. In tray wire grid
9. Standard tray
1
2
3
4
5
6
7
8
9

20

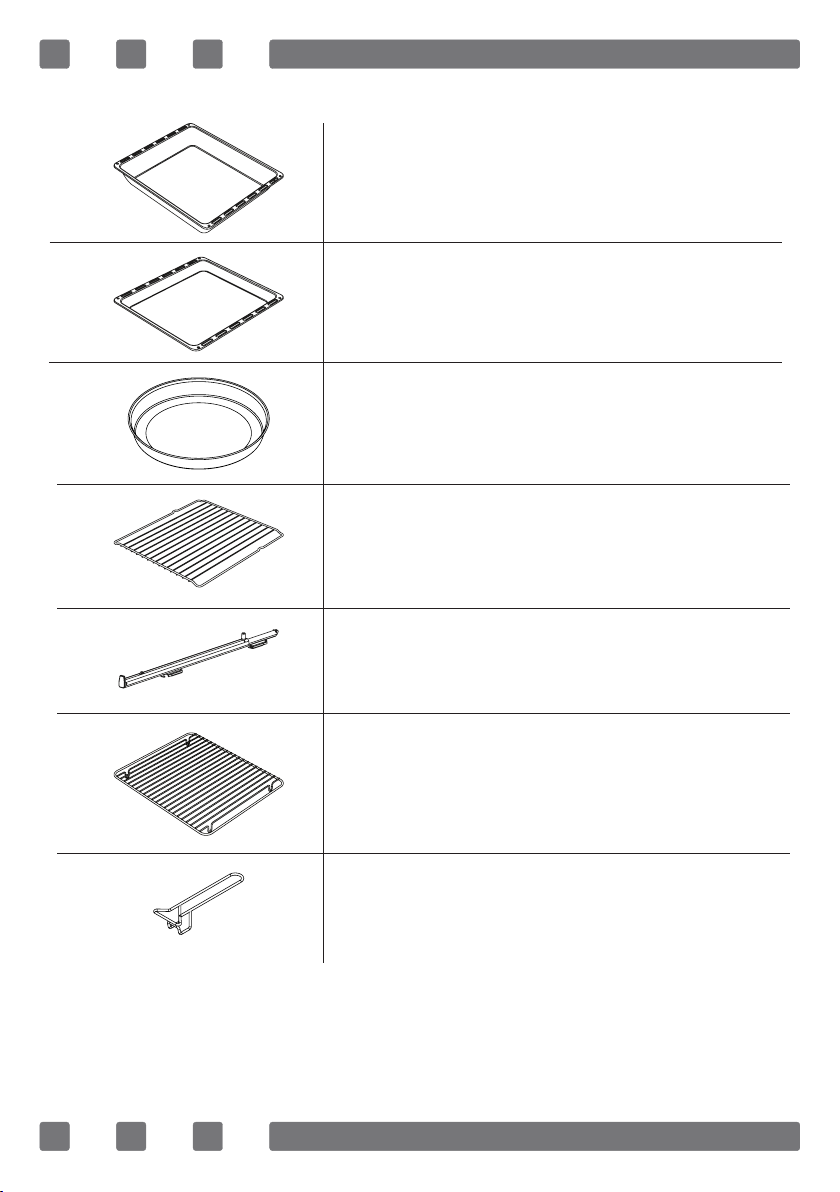

Accessories
Deep tray *
Used for pastry, big roasts, watery foods. It can also be
used as oil collecting container if you roast directly on
grill with cake, frozen foods and meat dishes.
Tray
Used for pastry (cookie, biscuit etc.), frozen foods.
Round tray *
Used for pastry frozen foods.
Wire grill
Used for roasting or placing foods to be baked, roasted
and frozen into desired rack.
Telescopic rail *
Trays and wire racks can be removed and installed easily
thanks to telescopic rails.
Tray handle *
It is used to hold hot trays.
In tray wire grill *
Foods to stick while cooking such as steak are placed on
in tray grill. Thus contact of food with tray and sticking
are prevented.
GB
