Simfer MGA1-8 Series User manual

BUILT-IN OVEN
Better Model
USER MANUAL GB
SI
HR



2
Dear Customer,
Thank you for relying on products.
We aim to allow you to optimally and efciently use this environment-friendly
product produced in our modern facilities under precise conditions with respect
to sense of quality in total.
We advise you to read these operating manual thoroughly before using your
built-in oven and keep it permanently so that the features of the oven you have
purchased shall stay the same as the rst day for a long time.
NOTE:
This Operating Manual is prepared for multiple models. Your appliance may
not feature some functions specied in the manual.
The product images are schematic.
Products marked with an * are optional.
Our appliances are intended for domestic use. It is not intended for
commercial use.
“PLEASE READ THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS APPLIANCE.”
This product has been produced in modern environment-friendly facilities
without adversely affecting nature.
“Complies with AEEE Regulation”
GB

3
CONTENTS
1. Important Warnings 4
1.1 Intended Use 9
2. Introducing the Appliance 10
3. Technical Specications 11
4. Installation of the Appliance 11
4.1 Important Warnings for Installation 12
4.2 Right Place for Installation 12
4.3 Installation and Assembly of the Oven 13
4.4 Installation Under Counter 13
4.5 Installation In a High Cabinet 13
4.6 Installation Conditions 13
4.7 Placing and Securing of the Oven 13
4.8 Electrical Connection 14
4.9 Assembly 14
5. Electrical Connection and Safety 18
6. Operation of the Oven 19
6.1 Initial Operation of the Oven 19
6.2 Normal Operation of the Oven 19
6.3 Operation of the Timer 19
6.4 Operation of the Chicken Roast 45
6.5 Operation of the Grill 46
7. Cooking Recommendations 46
7.1 Cooking Chart 47
8. Maintenance and Cleaning 49
8.1 Cleaning and Assembly of the Oven Door 50
8.2 Cleaning of the Oven Glass 51
8.3 Replacement of the Oven Lamp 51
9. Accessories 52
10. Handling Rules 53
11. Energy Saving Tips 53
12. Troubleshooting 54
12.1 If the Oven Does Not Operate 54
13. Compliance with AEEE Regulations and Waste Disposal 54
14. Packaging Information 54
GB

4
1. IMPORTANT WARNINGS
• WARNING: To avoid electric shock, ensure that the
device circuit is open before changing the lamp.
• WARNING: Cut off all supply circuit connections
before accessing the terminals.
• WARNING: The accessible parts may be hot while
using the grill. Keep away from children.
• WARNING: Fire hazard; do not store the materials on
the cooking surface.
• WARNING: If the surface is cracked, open the circuit
of the device to avoid risk of electric shock.
• WARNING: Device and its accessible parts are hot
during operation.
• Setting conditions of this device are specied on
the label. (Or on the data plate)
• The accessible parts may be hot when the grill is
used. Small children should be kept away.
• WARNING: This appliance is intended for cooking.
It should not be used for other purposes like heating
a room.
• To clean the appliance, do not use steam cleaners.
• NEVER try to put out the re with water. Only shut
down the device circuit and then cover the ame
with a cover or a re blanket.
• Ensure that the oven door is completely closed
after putting food inside the oven.
GB

5
• Children under 8 years of age should be kept
away, if they cannot be monitored continuously.
• Touching the heating elements should be avoided.
• This device can be used by children over 8 years
of age, people with physical, hearing or mental
challenges or people with lack of experience or
knowledge; as long as supervision is ensured or
information is provided regarding the safe oper-
ation of the device and understanding the risks
involved.
• The appliance is not suitable for use with an
external timer or a separate remote control system.
• This device has been designed for household use
only.
• Children must not play with the appliance. Cleaning
or user maintenance of the appliance shall not be
performed by children unless they are older than
8 years and supervised by adults.
• Keep the appliance and its power cord away from
children less than 8 years old.
• Put curtains, tulles, paper or any ammable
(ignitable) material away from the appliance before
starting to use the appliance. Do not put ignitable
or ammable materials on or in the appliance.
• CAUTION: Cooking process shall be supervised.
Cooking process shall always be supervised.
GB

6
• Keep the ventilation channels open.
• Do not heat closed cans and glass jars. The pressure
may lead jars to explode.
• Do not place the oven trays, plates or aluminium
foils directly on the oven base. The accumulated
heat may damage the base of the oven.
• Oven handle is not a towel drier. Do not hang
towels, etc. on the oven handle.
• While placing food to or removing food from the
oven, etc., always use heat resistant oven gloves.
• Do not use cut or damaged cords or extension
cords other than the original cord.
• Make sure that there is no liquid or humidity in
the outlet where the product plug is installed.
• Do not use the product in states like medicated and
/ or under inuence of alcohol which may affect
your ability of judgement.
• Be careful when using alcohol in your foods.
Alcohol will evaporate at high temperatures
and may catch re to cause a re if it comes
in contact with hot surfaces.
• The rear surface of the oven also heats up when
the oven is operated. Electrical connections shall
not touch the rear surface, otherwise the connections
may be damaged.
GB

7
• Do not tighten the connecting cables to the oven
door and do not run them over hot surfaces. If
the cord melts, this may cause the oven to short
circuit and even a re.
• After each use, check if the unit is turned off.
• If the appliance is faulty or has a visible damage,
do not operate the appliance.
• Do not touch the plug with wet hands. Do not pull
the cord to plug off, always hold the plug.
• Unplug the unit during installation, maintenance,
cleaning and repair.
• It is important to place the wire grill and tray
properly on the wire racks and/or correctly
place the tray on the rack. Place the grill or tray
between two rails and make sure it is balanced
before putting food on it.
• Do not use the appliance with its front door glass
removed or broken.
• Place the baking paper together with the food into
a pre-heated oven by putting it inside a cooker or
on an oven accessory (tray, wire grill etc.).
• Against the risk of touching the oven heater
elements, remove excess parts of the baking paper
that hang over from the accessory or container.
• Never use it at higher oven temperatures than the
maximum usage temperature indicated on your
baking paper. Do not place the baking paper on
the base of the oven.
GB

8
• When the door is open, do not place any heavy
object on the door or allow children to sit on it.
You may cause the oven to overturn or the door
hinges to be damaged.
• Do not put objects that children may reach on
the appliance.
• The packaging materials are dangerous for children.
Keep packaging materials away from the reach of
children.
• If the power supply cable is damaged, it must be
replaced by its manufacturer or authorized technical
service or any other personnel qualied at the same
level, in order to avoid any dangerous situation.
• Do not use abrasive cleaners or sharp metal
scrapers to clean the glass as the scratches that
may occur on the surface of the door glass may
cause the glass to break.
GB

9
1.1. Intended Use
• This product is designed for home use. Commercial
use of the appliance is not permitted.
• This appliance may only be used for cooking
purposes. It shall not be used for other purposes
like heating a room.
• This appliance shall not be used to heat plates
under the grill, drying clothes or towels by hanging
them on the handle or for heating purposes.
• The manufacturer assumes no responsibility for
any damage due to misuse or mishandling.
• Oven part of the unit may be used for thawing,
roasting, frying and grilling food.
Operational life of the product you have purchased
is 10 years. This is the period for which the spare
parts required for the operation of this product as
dened is provided by the manufacturer.
GB

10
2. INTRODUCING THE APPLIANCE
1. Control Panel 4. Wire Grill Inside Tray
2.Deep Tray* 5.Standard Tray
3.Chicken Roast Skewer* 6.Oven Door
7. Light
8. Wire Grill Inside Tray
9. Standard Tray
1
2
3
4
5
6
7
8
9
GB

11
3. TECHNICAL SPECIFICATIONS
MGA1-8..... :
Lamp Power 15-25W
Thermostat 40-240 / Max °C
Bottom heater 1200W
Top heater 1200W
Turbo Heater 1800W
Grill Heater Small Grill 1200W Large Grill 2400W
Supply Voltage 220V-240V 50/60 Hz
MGA1-6..... :
Lamp Power 15-25W
Thermostat 40-240 / Max °C
Bottom heater 1200W
Top heater 1000W
Turbo Heater 1800W
Grill Heater Small Grill 1000W Large Grill 2000W
Supply Voltage 220V-240V 50/60 Hz
WARNING: In order to increase the product quality, the technical
specications may be changed without prior notice.
WARNING: The values provided with the appliance or its accompanying
documents are laboratory readings in accordance with the respective
standards. These values may
differ depending on the usage of the appliance and ambient conditions.
WARNING: Figures in this manual are schematic and may not exactly
match your product.
4. INSTALLATION OF APPLIANCE
Check if the electrical installation is proper to bring the appliance in
operating condition. If not, call an electrician and plumber to arrange
the utilities as necessary. Manufacturer shall not be held responsible
for damages caused by operations performed by unauthorized persons.
WARNING: It is customer’s responsibility to prepare the location the
product shall be placed on and also to have the electrical installation
prepared.
GB

12
WARNING: The rules in local standards about electrical installations
shall be followed during product installation.
WARNING: Check for any damage on the appliance before installing it.
Do not have the appliance installed if it is damaged. Damaged products
cause a risk for your safety.
4.1. Important Warnings for Installation:

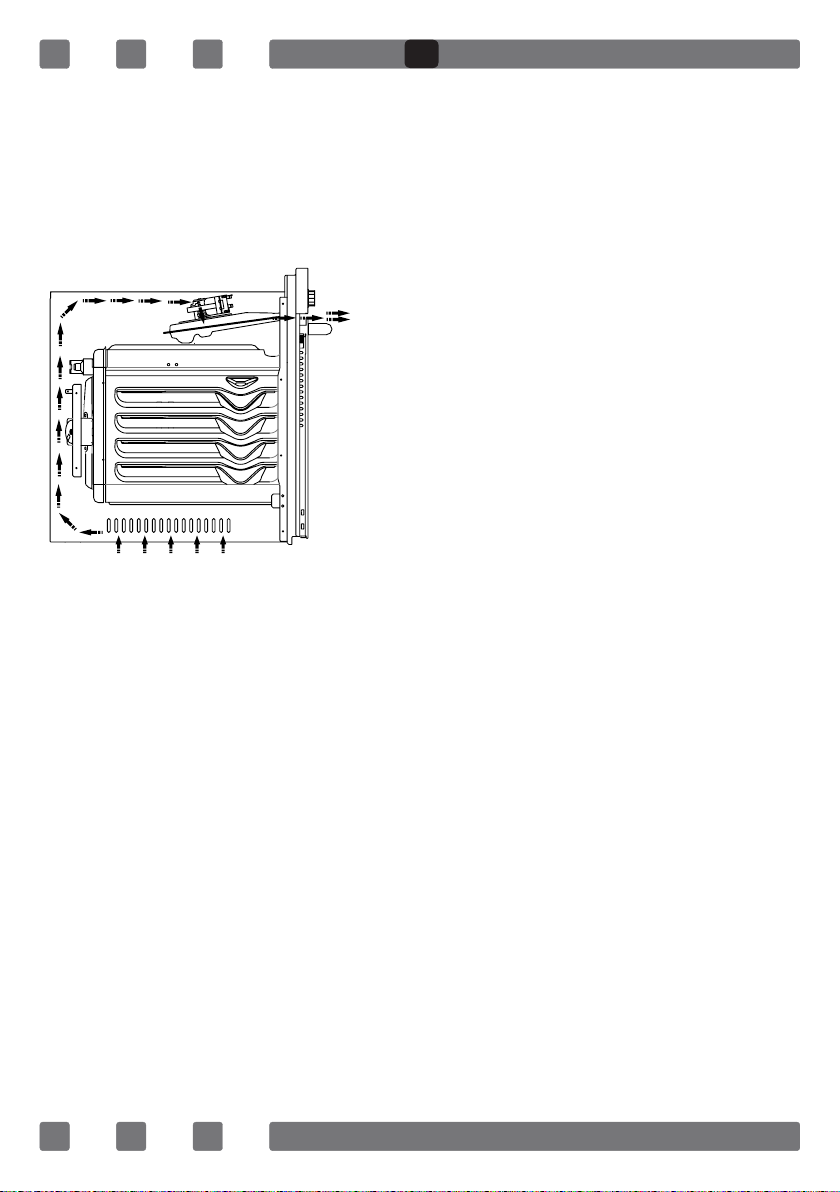

During operation of the oven, the cooling
fan shall move excess steam out and
prevent the appliance from overheating.
This is necessary for ensuring your
appliance to work well and to cook well.
The cooling fan continues to operate
after cooking is nished. After cooling
is complete, the fan shall automatically
turn off.
A clearance shall be left behind the compartment where you shall
place your appliance to ensure efcient and proper operation of your
appliance. This clearance shall not be neglected as it is necessary for
the operation of the ventilation system of the appliance.
4.2. Right Place For Installation
The appliance is designed so that it shall t commercially available
counters. A safe clearance shall be left between the product and kitchen

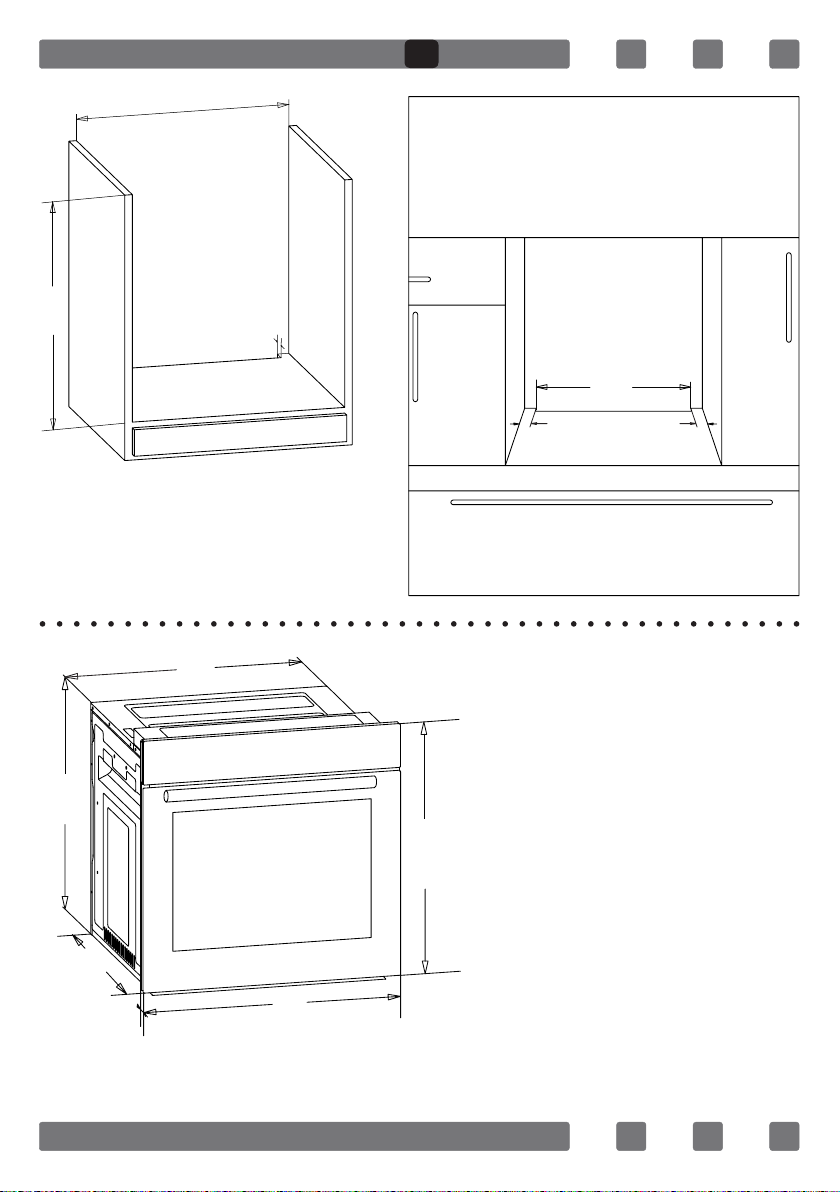

walls or furniture. Refer to the drawings on the installation section (see
pages 14-17) for suitable clearances. (dimensions are given in mm)
• Surfaces, synthetic laminates and adhesives used shall be resistant
to heat. (minimum 100°C).
• Kitchen cabinets shall be level with the appliance and xed.
• A rack shall be placed between the oven and the shelf if there is
a shelf under the oven.
WARNING: Do not install the appliance beside refrigerators or coolers.
Heat radiated by the appliance increases the energy consumption of
cooling devices.
Figure 1
GB

13
WARNING: Do not use the door and/or handle to carry or move the
appliance.
4.3. Installation and Assembly of the Oven
Operating space of the appliance shall be determined before starting
the installation.
Appliance shall not be installed on areas with high ow of air.
Handle the appliance with two persons at least. Do not drag the
appliance to prevent damage to the ground.
Remove all transportation materials inside and outside of the
packaging. Remove all materials and documents inside the product.
4.4. Installation Under Counter
Cabinet shall conform with dimensions specied in Fig. 2.
A clearance with the dimensions specied in the gure shall be
ensured at the rear compartment of the cabinet to provide the required
ventilation.
After installation, the clearance that shall be left between the bottom
of the counter and the top of the appliance is indicated by “A” in Fig.
5. This is for ventilation and
it shall not be closed.
4.5. Installation In a High Cabinet
The cabinet shall comply with the dimensions given in Fig. 4.
In the rear part of the cabin, and at the top and bottom, clearances
with the dimensions specied in the gure shall be ensured to provide
the required ventilation.
4.6. Installation Conditions
The dimensions of the appliance are given in gure 3.
The furniture surfaces to be installed and the installation materials to
be used shall resist a temperature of at least 100 °C.
To prevent the appliance from turning over, the cabinet to be installed
shall be fixed and the cabinet floor shall be level.
The floor of the cabinet shall be strong enough to withstand a load of
at least 60 kg.
GB

14
4.7. Placing and Securing of the Oven
Place the oven to the cabinet with two or more persons.
Make sure that the frame of the oven and the front of the furniture
are properly aligned.
The supply cord shall not be left under the oven or be stuck or bent
between the oven and the furniture.
Secure the oven to the furniture using the screws supplied with the
appliance. Screws shall be installed by putting them through the plastics
attached on the frame of the appliance as shown in Fig. 5. The screws
shall not be tightened too much. Otherwise, the screw holes may wear
out.
Check that the oven does not move after installation. If the oven has
not been installed in accordance with the installation instructions, there
is a risk of overturning during operation.
4.8. Electrical Connection
The place where the product shall be installed shall have proper
electrical installation.
The mains voltage shall comply with the rating given on the product
type plate.
Connection of appliance shall be made in accordance with local and
national electrical regulations.
Disconnect the mains power before starting to install the product. Do
not connect the product to the mains until the installation is nished.
4.9. Assembly
GB

15
Figure 2
560
600
35
500
30 30
555
545
595
595
565
22
Figure 3
GB

16
590
550
560
35
500
30 30
GB

17
At the front of the kitchen counter, a space at least 5 mm high from
the bottom of the counter should be left.
A
Figure 5
A
B
AMin. 80mm
B
(Air outlet) 5mm
B
GB

18
5. ELECTRICAL CONNECTION AND SAFETY
This oven shall be correctly installed and connected by the authorized
service and according to the manufacturer’s instructions.
The appliance shall be installed in an oven housing which provides
high ventilation.
The electrical connections of the appliance shall be made only by
using grounded sockets equipped with a grounding system laid in
accordance with the instructions. If the place where the appliance shall
be installed is not designed for a grounded system, immediately contact
an authorized service. The manufacturer shall never be responsible for
damages caused by non-grounded sockets, to which the appliance has
been plugged.
Your oven’s plug is grounded; make sure that the outlet you shall
connect the plug is grounded, too. The plug shall be placed so that it
can be accessed after installation.
Your oven is manufactured as compatible with the 220-240 V 50/60
Hz. AC power supply and requires a fuse of 16 Amp. If your power
network does not provide these specications, contact an electrician
or an authorized service.
When you need to replace the fuse, please make sure that the
electrical connection is as follows:
• Brown wire to the phase (live end)
• Blue wire to neutral
• Yellow-green wire to ground terminal
The circuit breaker switches of the oven shall be placed so that end
user can reach them when the oven is installed.
The power supply cord (the cord with plug) shall not contact the hot
parts of the appliance.
If the power supply cord (the cord with plug) is damaged, this cord
shall be replaced by the manufacturer or its service agent or an equally
qualied personnel to prevent a hazardous situation.
GB

19
6. OPERATION OF THE OVEN
6.1. Initial Operation of the Oven
After you have made the necessary connections of your oven according
to the instructions, you shall need to do the following in the initial
operation:
1. Take out any labels or accessories that are afxed inside the oven.
If there is a protective foil on the front of the appliance, remove it.
2. Wipe the inside of the oven with a wet cloth to remove the dust and
the remains of packaging. Inside of the oven shall be empty. Plug the
appliance.
3. Set the thermostat button to the highest temperature (Max. 240 ° C),
and operate the oven for 30 minutes with its door closed. At this time,
little amount of smoke and smell may occur; this is normal.
4. After the oven has cooled down, wipe the inside of the oven with
warm water with mild detergent and dry with a clean cloth. You can
now use your oven.
6.2. Normal Operation of the Oven
1. To start cooking; set the thermostat button, program type and
temperature level according to the meal that you want to cook.
2. When the cooking time has expired according to the entered
information; the timer turns off the heaters and gives an audible signal.
3. Once the cooking process is complete, the cooling system of the
appliance shall continue to operate. Do not cut off the power of the
appliance, which is necessary for the appliance to cool. After cooling
is complete, the system shall be automatically turned off.
6.3. Operation of the Timer
This is an electronically controlled oven that allows your food to be
ready for service at your desired cooking settings. What you need to do for
it is to program how to cook the food you want to cook, the cooking time,
the cooking temperature and the time you want it to be ready. You may
also use special functions. It can also be used as a minute programmable
alarm clock independently of the cooking functions of your oven.
GB

20
6.3.1. Key Features
• Programmable cooking functions and timer.
• Special cooking functions.
• Creating and recalling cooking favourites.
• Real-time clock unaffected by short-term energy interruptions.
• Cooking summary and monitoring screens.
• Brightness and tone settings.
• Timer for reminder.
• Easy-to-use touch keys and rotary knob that may be pressed.
6.3.2. General View
1. Special functions
2. Active setting indicator
3. Manual mode indicator
4. Temperature indicator
5. Time display
6. Cooking status indicators
7. Child lock indicator
8. Back button
9. Rotary knob that may
be pressed
10. Menu button
11. On / off button
Status Indicators User Entries
3 4 5 62
2
12 2 7 8 910 11
GB
