Simplicity 1694401 Setup guide

Attachment
Illustrated
Parts List
Rev. 01/2007
500 N. Spring Street / PO Box 997
Port Washington, WI 53074-0997 USA
www.simplicitymfg.com
MANUFACTURING, INC.
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved. Printed In USA.2007 TP 400-4281-00-AT-SMA
Mf
g
. No. Descri
p
tion
Attachment
1694401 Deluxe Hard Snow Cab
1731934
Part No.:

Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Additive Parts Group ............................................................................................................................................ 4
Electrical Controls Group ..................................................................................................................................... 6
Frame Group ........................................................................................................................................................ 8
Front Windshield Group ....................................................................................................................................... 10
Glass Door Group ................................................................................................................................................ 12
Rear Windshield Group ........................................................................................................................................ 14
Roof Group ........................................................................................................................................................... 16

Additive Parts Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1\4281apg
The above parts group applies to the following Mfg. Nos.:
4
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694401 - Deluxe Hard Snow Cab
TP 400-4281-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.
Additive Parts Group
Footnotes
Strut right1 1732678SM 1
Strut left2 1732677SM 1
Cross-stay below3 1732690SM 1
Hexagon head screw M10x304 1732639SM 8
Shim disk M105 1732657SM 16
Stop nut M106 1732649SM 8
Shim disk M87 1732656SM 8
Retainer ring M88 1732661SM 8
Hexagon head screw M8x259 1732638SM 8
Hexagon head screw M12x4510 1732631SM 6
Shim disk M1211 1732658SM 36
Stop nut M1212 1732650SM 18
Spoiler right13 1732680SM 1
Spoiler left14 1732679SM 1
Shim disk M615 1732655SM 4
Stop nut M616 1732647SM 2
Hexagon head screw M6x1617 1732635SM 2
Sticker18 1732682SM 1
Stop nut M519 1732646SM 8
Shim disk M520 1732654SM 16
Hexagon head screw M5x2021 1732634SM 8
Tube profile22 1721316SM 0.3m
Edge-protection small23 1732713SM 1m
Blind rivet 4x1224 1732663SM 4
Sheet metal screw 4.8x1625 1721415SM 2
Brake pedal cover26 1732692SM 1
Strip27 1732686SM 1
Screw-on plate28 1732685SM 1
Attachment bracket29 1732681SM 1
Spacer30 1732709SM 2
Hexagon head screw M12x4031 1732633SM 8
Hexagon head screw M12x10032 1732632SM 4
Bracket front left33 1732675SM 1
Bracket front right34 1732676SM 1
Mounting fuse box35 1732687SM 1
Fuse box36 1732707SM 1
Cable loom37 1732683SM 1
Safety belt fastening38 1732691SM 2
Mounting front-loader locking device39 1732688SM 1
The above parts group applies to the following Mfg. Nos.:
5
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694401 - Deluxe Hard Snow Cab
TP 400-4281-00-AT-SMA

Electrical Controls Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1\4281ecg
The above parts group applies to the following Mfg. Nos.:
6
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694401 - Deluxe Hard Snow Cab
TP 400-4281-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.
Electrical Controls Group
Footnotes
Frame cover panel front top1 1732684SM 1
Cable loom2 1732683SM 1
Switch wiper-washer system3 1732708SM 1
Blind cover4 1732715SM 2
Blind plug 12mm5 1721319SM 3
Sun blind6 1732599SM 1
Nipple with screw7 1721438SM 1
Cap nut M48 1721437SM 1
Oval countersunk head screw M4x159 1732641SM 2
Shim disk M410 1732653SM 2
Nut M411 1732645SM 2
Sheet metal screw 4.8x1612 1721415SM 10
Frame cover panel rear top13 1732666SM 1
Sheet metal screw 3.5x1614 1732643SM 2
Switch (13.350) 1-stage15 1732714SM 1
The above parts group applies to the following Mfg. Nos.:
7
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694401 - Deluxe Hard Snow Cab
TP 400-4281-00-AT-SMA

Frame Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1\4281fg
The above parts group applies to the following Mfg. Nos.:
8
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694401 - Deluxe Hard Snow Cab
TP 400-4281-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.
Frame Group
Footnotes
Side frame left1 1732671SM 1
Side frame right2 1722672 1
Impact nipple H1 d=6mm3 1732662SM 4
Glass SH left4 1732703SM 1
Glass SH right5 1732689SM 1
Activator 30ml6* 1
Adhesive for panel (Sikadrive)7* 1
Locking pin 13mm8 1721434SM 2
Washer9 1732597SM 2
Slide-off strap10 1732696SM 2
Threaded plate11 1732695SM 2
Door push-out12 1721391SM 2
Countersunk head screw M8x2013 1732640SM 2
Stop nut M814 1732648SM 2
Cable loom15 1732683SM 1
Stop nut M616 1732647SM 8
Blind plug 18mm17 1732664SM 4
Coat hook18 1732700SM 1
Sheet metal screw 3.9x1319 1732642SM 1
Pneumatic spring sleeve l=22mm / 2x M820 1721313SM 2
Shim disk M821 1732656SM 25
Oval head screw M6x16 cross-recessed22 1732644SM 8
Locking device23 1732710SM 4
Cross-strut front above24 1732669SM 1
Cross-strut rear above25 1732670SM 1
Front panel26 1732673SM 1
Tube profile27 1721316SM 3.9m
Rear panel28 1732674SM 1
Hexagon head screw M8x2029 1732637SM 18
Retainer ring30 1732661SM 23
Mirror left complete 602001 (Includes Ref. No. 36)31 1732699SM 1
Mirror left complete 602001 (Includes Ref. No. 36)32 1732698SM 1
Hexagon head screw M6x1633 1732635SM 6
Shim disk M634 1732655SM 10
Cover cap d=6mm35 1732717SM 4
Mirror36 ** 1
Compriband A20/1537 1721323SM 3.4m
Hexagon head screw M8x1238 1732636SM 5
Expansion rivet39 1732712SM 1
Velour band40 1732665SM 0.3m
Distance plate hinge t=8mm41 1732711SM 8
NOTE* Not a serviceable part.
NOTE* Not a serviceable part.
The above parts group applies to the following Mfg. Nos.:
9
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694401 - Deluxe Hard Snow Cab
TP 400-4281-00-AT-SMA

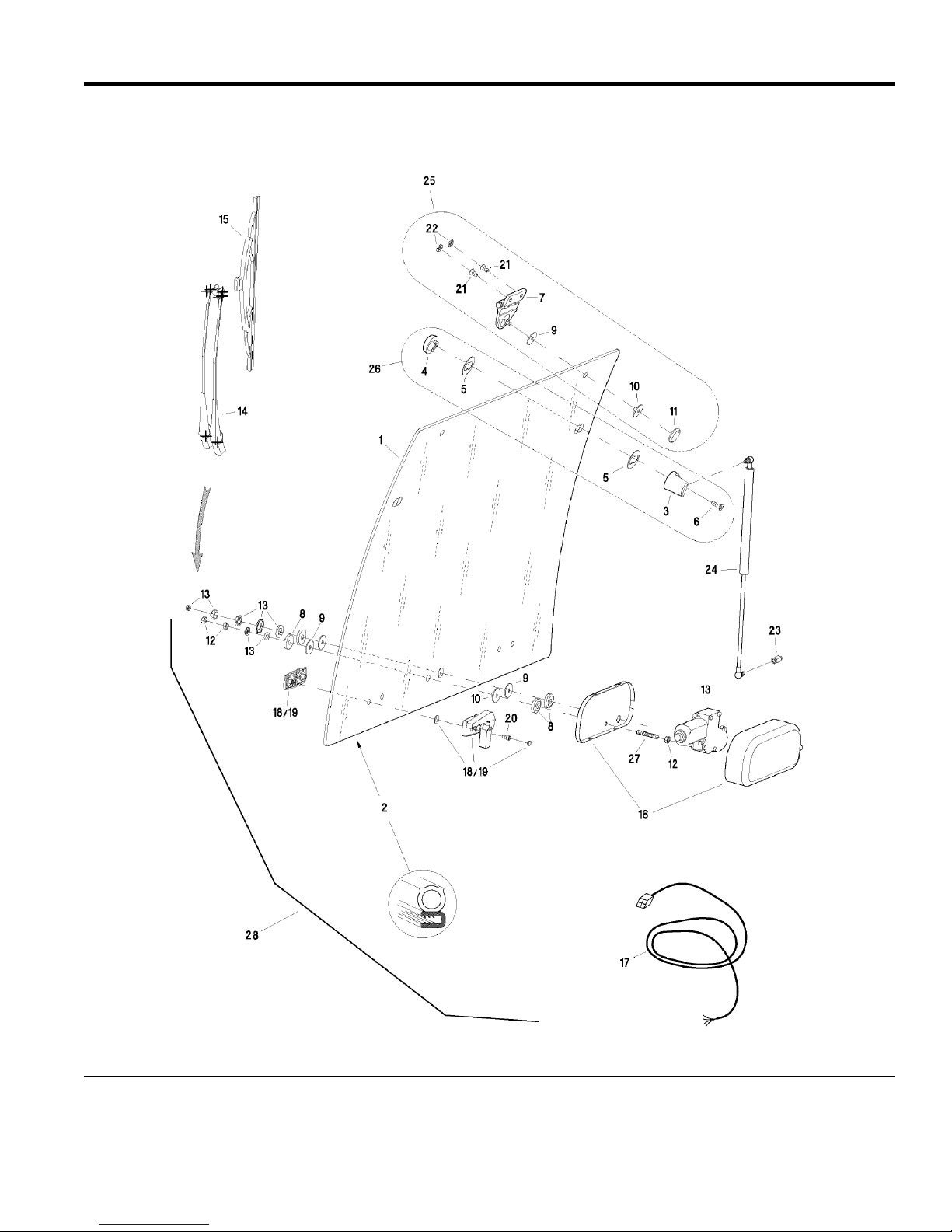

Front Windshield Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1\4281fwg
The above parts group applies to the following Mfg. Nos.:
10
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694401 - Deluxe Hard Snow Cab
TP 400-4281-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.
Front Windshield Group
Footnotes
Glass WS1* 1
Sealing tube profile2 1721325SM 4 lfm
Pneumatic spring mounting inside3* 2
Pneumatic spring mounting outside4 1721335SM 2
Rubber washer5 1721431SM 4
Countersunk head screw M8x256* 2
PVC hinge complete7 1721336SM 2
PVC-disk8 1721432SM 4
Rubber washer9 1721427SM 5
Rubber washer with neck10 1721428SM 3
PA - disk M811 1721429SM 2
Nut M812 1732648SM 3
Wiper motor 85 degrees / 12V13 1732721SM 1
Wiper arm 400-500mm lg.14 1732719SM 1
Wiper blade 450mm lg.15 1732718SM 1
Cover wiper motor16 1732720SM 1
Cable harness wiper motor17 1732702SM 1
Locking device handle left18 1732705SM 1
Locking device handle right19 1732706SM 1
Socket head screw (hexagon socket)M6x1220 * 4
Countersunk head screw M8x3521 * 4
Cover cap countersunk head screw22 1721433SM 4
Pneumatic spring sleeve l=22mm 2x M823 1721313SM 2
Pneumatic spring 320mm 150N24 1732598SM 2
Set of hinges25 1721348SM 2
Set of pneumatic spring mounting26 1721349SM 2
M8 threaded rod l=75mm27 1732701SM 1
Windshield complete (Includes all ref. nos. except ref. nos. 21 & 22)28 1732697SM 1
NOTE* Not a serviceable part, must order complete windshield.
The above parts group applies to the following Mfg. Nos.:
11
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694401 - Deluxe Hard Snow Cab
TP 400-4281-00-AT-SMA

Glass Door Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1\4281gdg
The above parts group applies to the following Mfg. Nos.:
12
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694401 - Deluxe Hard Snow Cab
TP 400-4281-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.
Glass Door Group
Footnotes
Door window glass left1* 1
Door window glass right2* 1
Sealing tube profile3 1721325SM 4.4m
Door hingle bottom left4* 1
Door hinge bottom right5* 1
Door hinge top left6* 1
Door hinge top right7* 1
Door strap left8* 1
Door strap right9* 1
PVC - disk10 1721432SM 1
PVC - disk with screw M8x3011 1721435SM 5
Rubber washer12 1721427SM 5
Rubber washer with neck13 1721428SM 5
Shim disk M814 1732656SM 5
Stop nut M815 1732648SM 6
Cover cap dm816 1721402SM 6
Pneumatic spring 320mm300N w/end-damp17 1721376SM 1
Lock plate for complete glass door left18 1721374SM 1
Lock plate for complete glass door right19 1721375SM 1
Door handle with lockable latch20 1721377SM 1
Stop nut M621 1732647SM 1
Rubber shim medium22 1721378SM 1
Rubber shim large23 1721379SM 1
Rubber washer with neck large24 1721380SM 1
Rubber washer with neck small25 1721381SM 1
Hexagon head screw M6x2026 * 1
Hinge plate screw M6x3027 * 1
Countersunk head screw M8x4028 * 1
Key29 1721387SM 1
Shim disk M630 1732655SM 2
Turn-catch lock left with cross arm31 1721382SM 1
Turn-catch lock right with cross arm32 1721384SM 1
Lock cover left33 1721383SM 1
Lock cover right34 1721385SM 1
Door left complete (Includes all ref. nos. except ref. nos. 2, 5, 7, 9, 19, 32 & 34)35 1732693SM 1
Door right complete (Includes all ref. nos. except ref. nos. 1, 4, 6, 8, 18, 31 & 33)36 1732694SM 1
NOTE* Not a serviceable part, must order complete door.
The above parts group applies to the following Mfg. Nos.:
13
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694401 - Deluxe Hard Snow Cab
TP 400-4281-00-AT-SMA

Rear Windshield Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1\4281rwg
The above parts group applies to the following Mfg. Nos.:
14
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694401 - Deluxe Hard Snow Cab
TP 400-4281-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.
Rear Windshield Group
Footnotes
Rear glass identical to glass WS1* 1
Sealing tube profile2 1721325SM 4 lfm
Pneumatic spring mounting inside3* 2
Pneumatic spring mounting outside4 1721335SM 2
Rubber washer5 1721431SM 4
Countersunk head screw M8x256* 2
PVC hinge complete7 1721336SM 2
Rubber washer8 1721427SM 5
Rubber washer with neck9 1721428SM 3
PA - disk M810 1721429SM 2
Blind plug 18mm11 1732664SM 1
Rubber stopper D=20mm12 1721373SM 1
Locking device handle left13 1732705SM 1
Locking device handle right14 1732706SM 1
Socket head screw (hexagon socket)M6x1215 * 4
Countersunk head screw M8x3516 * 4
Cover cap countersunk head screw17 1721433SM 4
Pneumatic spring sleeve l=22mm 2x M818 1721313SM 2
Pneumatic spring 320mm / 150N19 1732598SM 2
Set of hinges20 1721348SM 2
Set of pneumatic spring mounting21 1721349SM 2
Rear glass complete (Includes all ref nos. except ref. nos. 16 & 17)22 1732596SM 1
NOTE* Not a serviceable part, must order complete rear glass
The above parts group applies to the following Mfg. Nos.:
15
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694401 - Deluxe Hard Snow Cab
TP 400-4281-00-AT-SMA

Roof Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1\4281rg
The above parts group applies to the following Mfg. Nos.:
16
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694401 - Deluxe Hard Snow Cab
TP 400-4281-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.
Roof Group
Footnotes
Flat roof1 1732667SM 1
Material lining fareb 2012 1732716SM 1
Hexagon head screw M6x163 1732635SM 4
Rubber washer 5x20x24 1732660SM 4
Auto body washer 6x20x1.55 1732659SM 4
Cable loom6 1732683SM 1
Headlamp H37 1732723SM 2
Halogen lamp H38 1732704SM 2
The above parts group applies to the following Mfg. Nos.:
17
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694401 - Deluxe Hard Snow Cab
TP 400-4281-00-AT-SMA

Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware
Grade
SAE Grade 2 SAE Grade 5 SAE Grade 8
Size Of in/lbs in/lbs in/lbs
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32 19 2.1 30 3.4 41 4.6
8-36
20 2.3 31 3.5 43 4.9
10-24
27 3.1 43 4.9 60 6.8
10-32
31 3.5 49 5.5 68 7.7
1/4-20
66 7.6 810.9 12 16.3
1/4-28
76 8.6 10 13.6 14 19.0
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 27 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4 110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0 420 571.2
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0
Hex Head Capscrew
Hex Nut
Lockwasher
Washer
Carriage Bolt
NOTES
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5
torques.
b. for flange whizlock nuts and screws - use 135% of
grade 5 torques.
3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.
Hardware Identification & Torque Specifications
Common Hardware Types
Screw, 1/2 x 2
Body
Diameter
Body
Length
Inside
Diameter
Nut, 1/2”
No
Marks
3/8” Bolt or Nut
Wrench—9/16”
3/8
5/16” Bolt or Nut
Wrench—1/2”
5/16
1/4” Bolt or Nut
Wrench—7/16”
1/4
1/2” Bolt or Nut
Wrench—3/4”
1/2
DIA.
7/16
DIA.
7/16” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”
Wrench & Fastener Size Guide
Standard Hardware Sizing
When a washer or nut is identified as 1/2”, this is the
Nominal size , meaning the inside diameter is 1/2 inch; if a
second number is present it represent the
threads per inch
When bolt or capscrew is identified as 1/2 - 16 x 2”, this
means the
Nominal size , or body diameter is 1/2 inch; the
second number represents the
threads per inch (16 in this
example, and the final number is the
body length of the
bolt or screw (in this example 2 inches long).
The guides and ruler furnished below are designed to
help you select the appropriate hardware and tools.
0
1/4 3/4
1/2
1
1/4 3/4
1/2
2
1/4 3/4
1/2
3
1/4 3/4
1/2
4
