Simplicity 4560 User manual

Parts Manual
Rev. 05/2008
Baron XL
Series Lawn Tractors & Mower Decks
TP 400-4560-02-BR-SM
Mf
g
. No. Descri
p
tion
18HP Product
2690622 Baron XL, 18HP and 40" Mower Deck (CE/Export)
Mf
g
. No. Descri
p
tion
20HP Product
2690621 Baron XL, 20HP and 40" Mower Deck (CE/Export)
2690625 2420 XL, 20HP and 40" Mower Deck (CE/Export)
Mf
g
. No. Descri
p
tion
21HP Product
2690762 Baron, 21HP and 40" Mower Deck (CE/Export)
2690772 2421, 21HP and 40" Mower Deck (CE/Export)
Mf
g
. No. Descri
p
tion
Mower Decks
1695200 40" Mower Deck (CE/Export)
1695201 40" Mower Deck (CE/Export)
1734840
Part No.:

Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Frame & Front Axle Group ................................................................................................................................... 4
Steering Group ..................................................................................................................................................... 6
Engine & Electric Clutch Group - 21HP Briggs & Stratton, Vanguard ................................................................. 8
Engine Group - 18HP & 20HP Briggs & Stratton, VANGUARD Twin ................................................................. 10
Engine Group - 18HP Briggs & Stratton, INTEK Single ...................................................................................... 12
Transmission Group - Tuff Torq K-46BF ............................................................................................................. 14
Controls Group ..................................................................................................................................................... 18
Cruise Control Group ........................................................................................................................................... 22
Electrical Group .................................................................................................................................................... 24
Hood, Grille & Dash Group .................................................................................................................................. 28
Seat Deck & Fuel Tank Group ............................................................................................................................. 30
Hopper Group ...................................................................................................................................................... 32
Hopper Group ...................................................................................................................................................... 36
Wheels & Tires Group .......................................................................................................................................... 40
Decals Group - Brand & Model ............................................................................................................................ 42
Decals Group - Safety & Common ...................................................................................................................... 44
40" Mower Deck - Belt, Idle Arm & Hitch ............................................................................................................. 46
40" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 48
40" Mower Deck - Housing, Arbors & Blade ........................................................................................................ 52

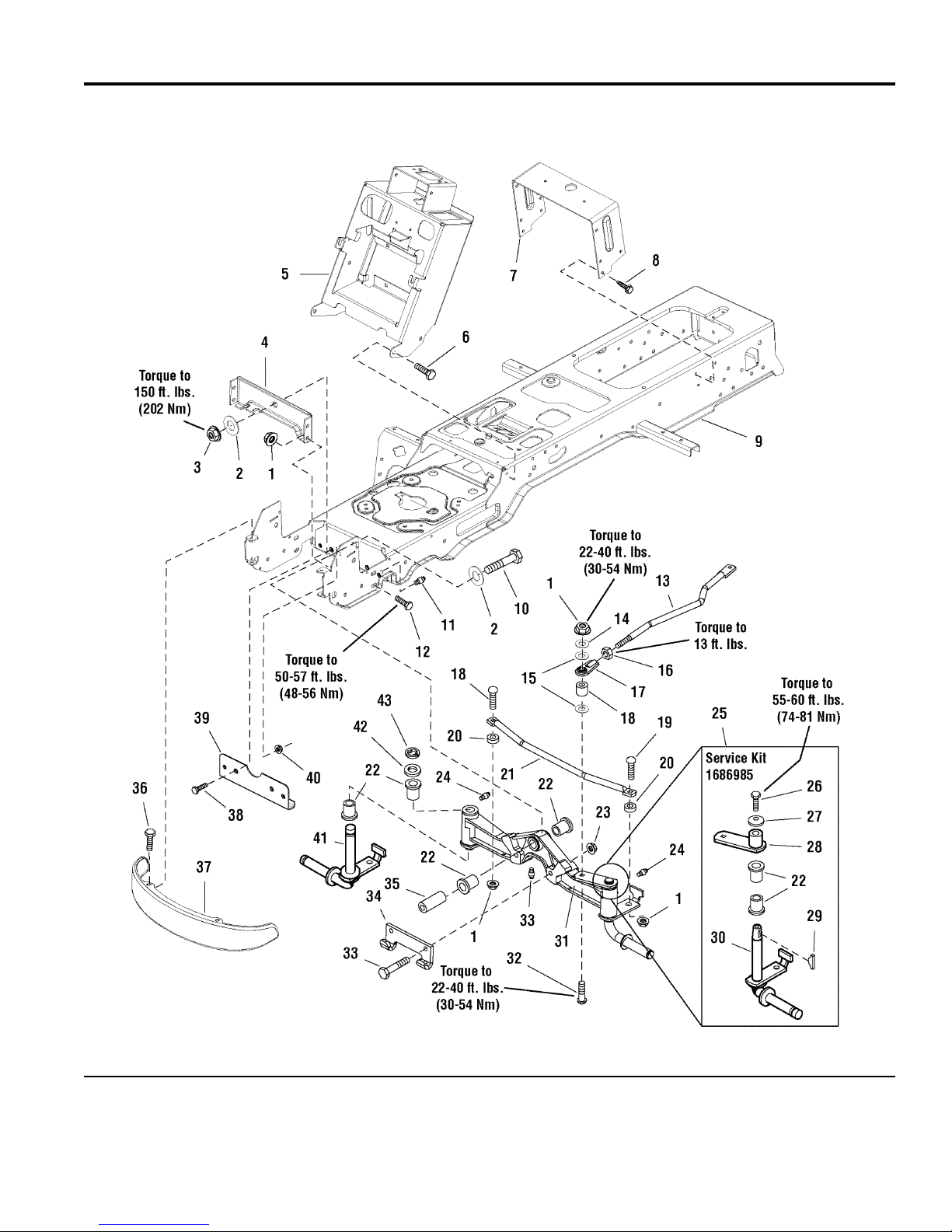

Frame & Front Axle Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986818
The above parts group applies to the following Mfg. Nos.:
4
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690621 - Baron XL
2690622 - Baron XL
2690625 - 2420 XL
2690762 - Baron
2690772 - 2421
TP 400-4560-02-BR-SM

PART NO. DESCRIPTIONREF NO QTY.
Frame & Front Axle Group
Footnotes
NUT, Hex Flange Lock, 3/8-161 1930645SM 7
WASHER2 1960035SM 2
NUT, Hex Flange, 5/8-113 2860646SM 1
PLATE, Axle4 1722212ASM 1
TOWER & SUPPORT ASSEMBLY5 1724081ASM 1
CAPSCREW, Hex Head Taptite, 3/8-16 x 3/46 1923683SM 4
SUPPORT7 1723528ASM 1
CAPSCREW, Hex Head Taptite, 5/16-18 x 3/48 1664847SM 4
FRAME ASSEMBLY9 1727396A 1
CAPSCREW, 5/8-11 x 3-1/210 2860645SM 1
FITTING, Grease for Wear Plate, 1/4-20, with Ball11 1704314SM 2
CAPSCREW, Hex Head, Flange Lock, 3/8-16 x 3/412 1933260SM 4
LINK, Drag13 1722541SM 1
WASHER14 1922755SM 1
WASHER15 1960103SM 2
NUT, Hex Jam, 1/2-2016 1919262SM 1
JOINT, Ball17 1702779SM 1
SPACER18 1708236SM 1
CARRIAGE BOLT, 3/8-16 x 119 1931350SM 2
SPACER20 1611705SM 2
ROD, Tie21 1722626ASM 1
BUSHING22 1721682SM 6
NUT, Hex Flange Lock, 7/16-1423 1930650SM 2
FITTING, Lube24 2821133SM 3
SPINDLE REPLACEMENT KIT, LH (Includes Ref. Nos. 22, 26, 27, 28, 29 & 30)25 1686985SM 1
CAPSCREW, 3/8-16 x 7/8, GR826 2823485SM 1
WASHER, Spring, 3/827 1663151SM 1
HUB & ARM ASSEMBLY28 1725112SM 1
KEY, Woodruff29 2830671SM 1
SPINDLE, LH30 1724264SM 1
AXLE ASSEMBLY, w/ LH Spindle, Complete (Includes Ref. Nos. 22, 24, 41, 42 & 43)31 1722200ASM 1
CARRIAGE BOLT, 3/8-16 x 1-1/232 1931352SM 1
CAPSCREW, Hex Head, 7/16-14 x 2, GR833 1927531SM 2
HOOK, "J"34 1721918ASM 1
SPACER35 1721752SM 1
SCREW, Torx Head, 5/16-18 x 7/836 1960086SM 4
BUMPER, Black, Steel, Standard37 1721805ASM 1
BUMPER, Chrome, Optional37 1723502SM 1
CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/438 1930591SM 2
PLATE, Axle Wear39 1724801ASM 1
NUT, Hex Falnge Whiz Lock, 5/16-1840 1931277SM 2
SPINDLE, RH41 1722199SM 1
WASHER42 1919394SM 1
RETAINING RING43 2832577SM 1
The above parts group applies to the following Mfg. Nos.:
5
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690621 - Baron XL
2690622 - Baron XL
2690625 - 2420 XL
2690762 - Baron
2690772 - 2421
TP 400-4560-02-BR-SM

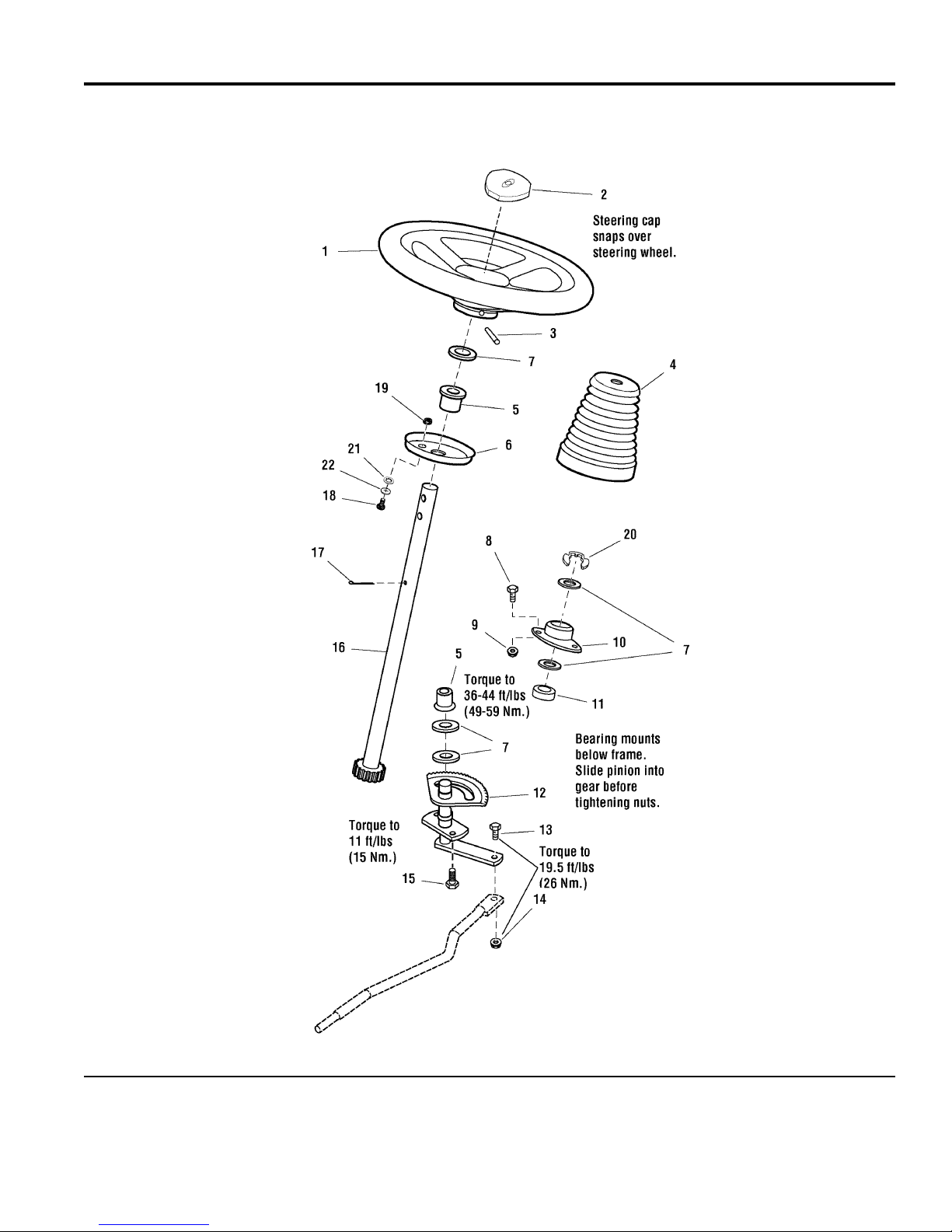

Steering Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986091
The above parts group applies to the following Mfg. Nos.:
6
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690621 - Baron XL
2690622 - Baron XL
2690625 - 2420 XL
2690762 - Baron
2690772 - 2421
TP 400-4560-02-BR-SM

PART NO. DESCRIPTIONREF NO QTY.
Steering Group
Footnotes
STEERING WHEEL, Straight Shaft1 1722318SM 1
CAP, Steering Wheel, Simplicity Logo2 1722319SM 1
CAP, Steering Wheel, Plain2 1725024SM 1
PIN, Spring3 1960540SM 1
COVER, Black Rubber4 1722749SM 1
BUSHING5 2176440SM 2
PLATE, Mounting Steering6 1721736ASM 1
WASHER7 1960114SM 5
CAPSCREW, Hex Head Flange Lock, 3/8-16 x 3/48 1933260SM 2
NUT, Hex Whiz Lock, 3/8-169 1931211SM 2
BEARING, Flange10 1722459SM 1
SPACER11 1722461SM 1
GEAR & SHAFT ASSEMBLY12 1724470ASM 1
CAPSCREW, Hex Head, 3/8-16 x 1-1/413 1960032SM 1
NUT, Hex Flange Lock, 3/8-1614 1930645SM 1
CAPSCREW, Hex Head Taptite, 5/16-18 x 3/415 1664847SM 2
SHAFT ASSEMBLY16 1723604SM 1
PIN, Cotter17 1919314SM 1
CARRIAGE BOLT, 1/4-20 x 3/418 1931317SM 2
NUT, Hex,1/4-2019 2828372SM 2
RING, Clipring Extension20 1611710SM 1
WASHER21 1960114SM 2
NUT, Push, 5/1622 1933988SM 2
The above parts group applies to the following Mfg. Nos.:
7
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690621 - Baron XL
2690622 - Baron XL
2690625 - 2420 XL
2690762 - Baron
2690772 - 2421
TP 400-4560-02-BR-SM

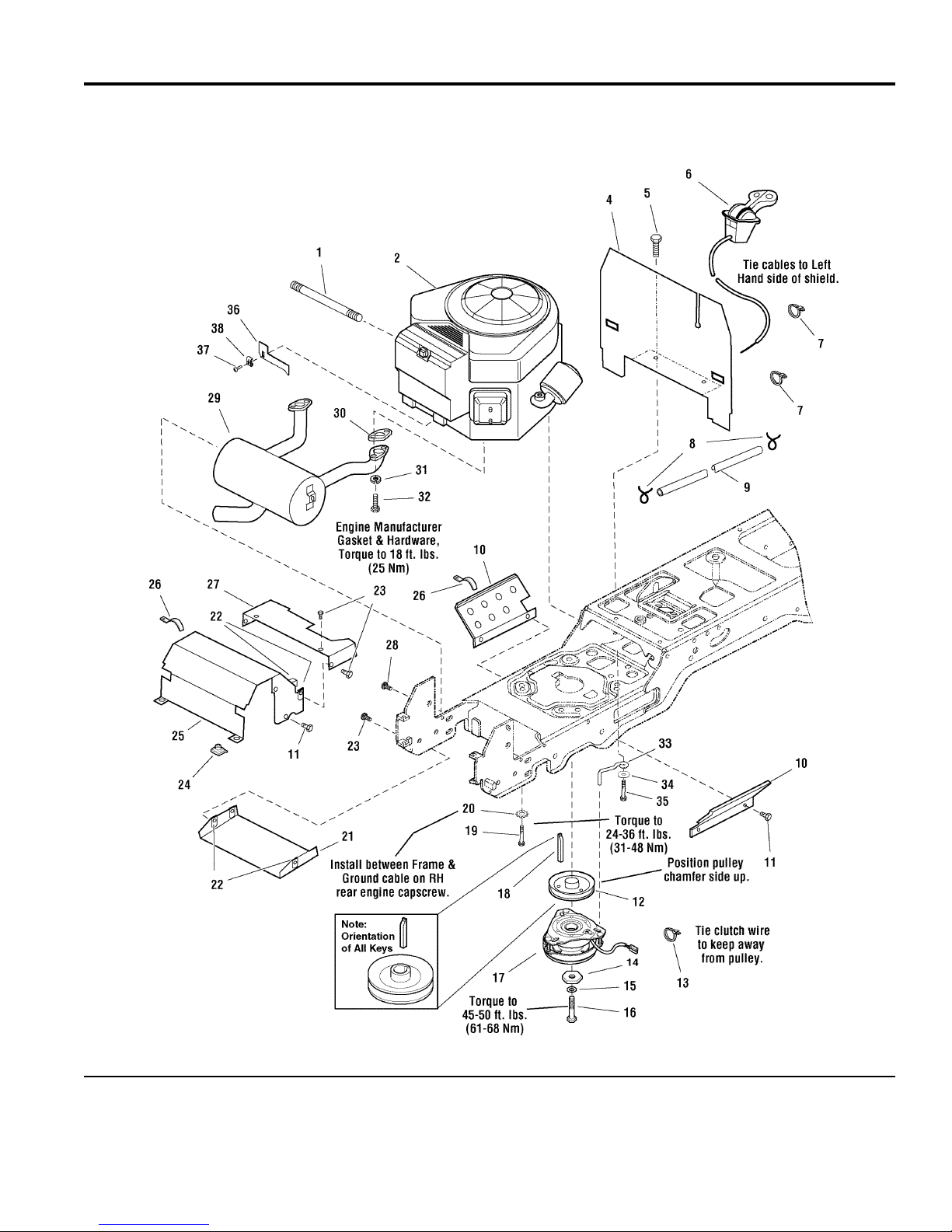

Engine & Electric Clutch Group - 21HP Briggs & Stratton, Vanguard
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
2987912
The above parts group applies to the following Mfg. Nos.:
8
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690762 - Baron
2690772 - 2421
TP 400-4560-02-BR-SM

PART NO. DESCRIPTIONREF NO QTY.
Engine & Electric Clutch Group - 21HP Briggs & Stratton, Vanguard
Footnotes
HOSE, Oil Drain, 10-1/2" Long, 3/8-18 Fittings1 1723165SM 1
ENGINE, 21HP Briggs & Stratton Vanguard Twin, Model 385777, Type 0119-G12* 1
BULKHEAD4 1722388ASM 1
CAPSCREW, Hex Washer Head Taptite, 1/2-20 x 1/2, Black5 1925003SM 2
CONTROL, Throttle Double 39" Long w/Knobs6 1734506SM 1
TIE, Wire, 7-5/16" Long7 2825094SM 2
CLAMP, Hose Type E8 *791850 2
HOSE, Fuel, 59" Long9 1734984SM 1
SHIELD, Side10 1722392ASM 2
CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/811 1927428SM 8
PULLEY & HUB ASSEMBLY12 1722288SM 1
TIE, Self Locking, 3-5/8 Long13 2832747SM 1
WASHER, Hex, 7/16, Black14 1708264SM 1
LOCKWASHER, 7/1615 1918199SM 1
CAPSCREW, Hex Head, 7/16-20 x 3-3/416 1960648SM 1
CLUTCH, Electric17 1686880SM 1
KEY, HI PRO, 1/4 x 2 1/218 1720463SM 1
CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/219 2830598SM 4
LOCKWASHER, External Tooth, 3/820 2820427SM 1
SHIELD, Muffler Bottom21 1722414ASM 1
NUT, Speed, 1/4-20, Lug22 1960368SM 8
CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/823 1960295SM 4
NUT, Speed, 5/16-18, Lug, Black24 1935255SM 2
DUCT, Muffler Top25 1722389ASM 1
CLIP, Wire 1/826 2834683SM 2
DUCT, Muffler Extension27 1722390ASM 1
CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2, Black28 1924856SM 2
MUFFLER, Briggs & Stratton, Vanguard Twin29 1726920SM 1
GASKET, Briggs & Stratton, Vanguard Twin30 * 1
LOCKWASHER, 5/1631 * 4
CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 7/832 * 4
RETAINER, Clutch33 1732026SM 1
WASHER, Flat 3/834 1924940SM 1
CAPSCREW, 3/8-16 x 135 2827187SM 1
PLATE, RMP Limiter36 1732396SM 1
SCREW, Pan Head Torx37 1728125SM 1
THROTTLE CABLE - Clamp38 1728126SM 1
Note* See your local Briggs & Stratton distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
9
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690762 - Baron
2690772 - 2421
TP 400-4560-02-BR-SM

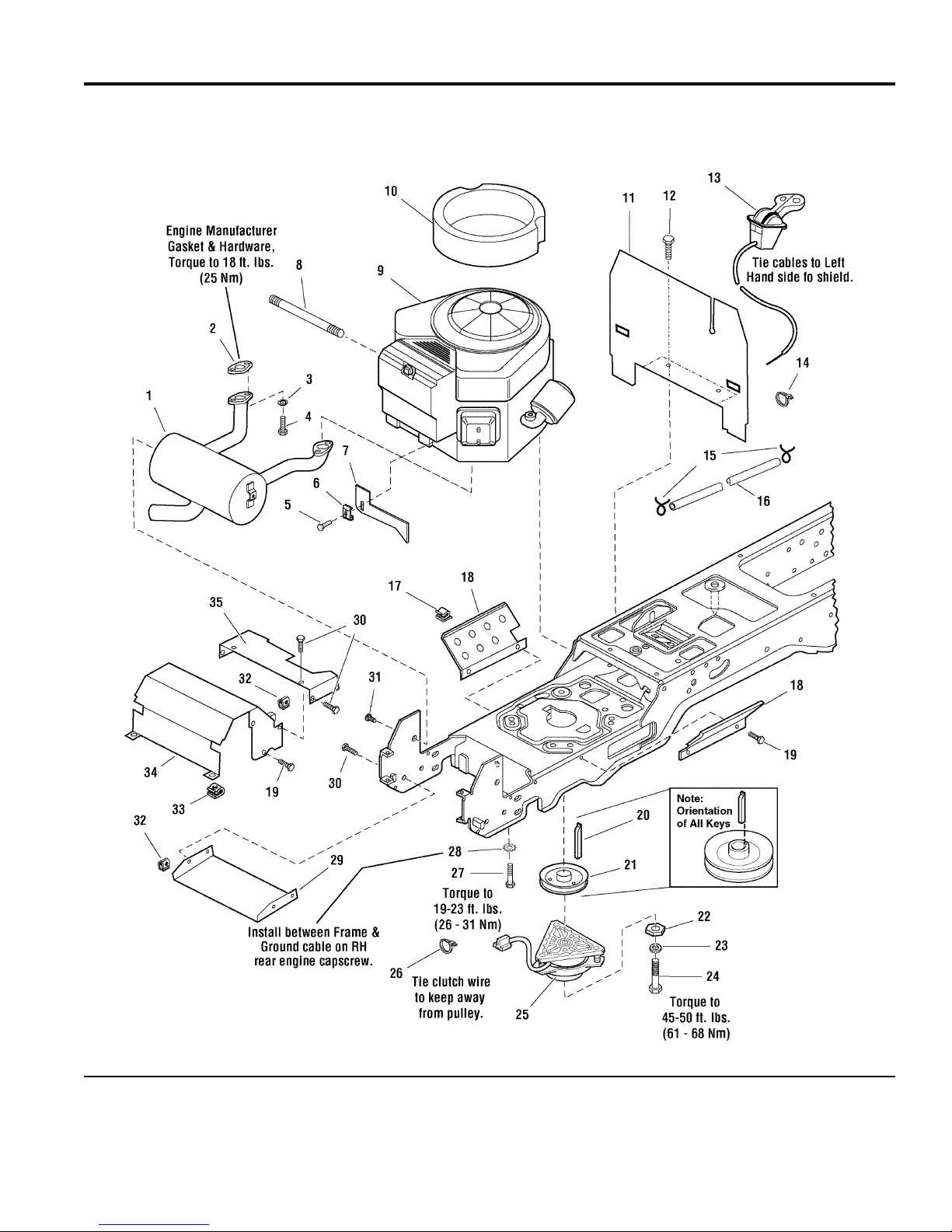

Engine Group - 18HP & 20HP Briggs & Stratton, VANGUARD Twin
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986833
The above parts group applies to the following Mfg. Nos.:
10
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690621 - Baron XL
2690625 - 2420 XL
TP 400-4560-02-BR-SM

PART NO. DESCRIPTIONREF NO QTY.
Engine Group - 18HP & 20HP Briggs & Stratton, VANGUARD Twin
Footnotes
MUFFLER1 1722625SM 1
GASKET2* 1
LOCKWASHER, 5/163 1917356SM 2
CAPSCREW, Socket Head, 5/16-18 x 7/8, G84 2860660SM 2
SCREW, Pan Head Trox, #10-32 x 5/85 1728125SM 1
CLAMP, Throttle Cable6 1728126SM 1
PLATE, Limiter RPM7 1727696SM 1
HOSE, Oil Drain8 1723165SM 1
ENGINE, 18HP Briggs & Stratton INTEK Twin, Model 356777, Type 0113E19* 1
ENGINE, 20HP Briggs & Stratton INTEK Twin, Model 358777, Type 0110E19* 1
SEAL, Circle10 1722949SM 1
BULKHEAD11 1722388ASM 1
CAPSCREW, Hex Head Taptite, 1/4-20 x 1/212 1925003SM 2
CONTROL, Throttle Double 39" Long w/Knobs13 1727223SM 1
TIE14 1701011SM 1
CLAMP, Hose Type E15 2860112SM 2
HOSE, 59" Long16 1723165SM 1
CLIP, Wire17 2834683SM 2
SHIELD18 1722392ASM 2
SCREW, Hex Head Taptite, 1/4-20 x 3/819 1929000SM 8
KEY20 1720463SM 1
PULLEY & HUB ASSEMBLY, 4-1/2 OD21 1722288SM 1
WASHER, Hex22 1708264SM 1
LOCKWASHER, 7/1623 1918199SM 1
CAPSCREW, Hex Head, 7/16-20 x 2-3/424 1960648SM 1
CLUTCH, Electric, OGURA25 1720532SM 1
TIE26 2832747SM 1
CAPSCREW, Hex Head Taptite, 3/8-16 x 1-1/227 2830598SM 4
LOCKWASHER, External Tooth, 3/828 2820427SM 1
SHIELD, Muffler Bottom29 1722414ASM 1
CAPSCREW, Hex Head Flange Lock, 1/4-20 x 5/830 1960295SM 8
CAPSCREW, Hex Head Taptite, 5/16-18 x 1/231 1924856SM 2
NUT, Speed, 1/4-2032 1960368SM 8
NUT, Speed, 5/16-1833 1935255SM 2
DUCT, Muffler Top34 1722389ASM 1
DUCT, Muffler Extension35 1722390ASM 1
Note* See your local Briggs & Stratton distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
11
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690621 - Baron XL
2690625 - 2420 XL
TP 400-4560-02-BR-SM

Engine Group - 18HP Briggs & Stratton, INTEK Single
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986722
The above parts group applies to the following Mfg. Nos.:
12
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690622 - Baron XL
TP 400-4560-02-BR-SM

PART NO. DESCRIPTIONREF NO QTY.
Engine Group - 18HP Briggs & Stratton, INTEK Single
Footnotes
MUFFLER1 1723467SM 1
GASKET2* 2
LOCKWASHER, 5/163 1917356SM 4
CAPSCREW, Socket Head, 5/16-18 x 7/8, G84 2860660SM 4
HOSE, Oil Drain5 1723165SM 1
ENGINE, 18HP Briggs & Stratton INTEK Single, Model 31H777, Type 0118E16* 1
SEAL, Circle7 1722950SM 1
BULKHEAD8 1722388ASM 1
CAPSCREW, Hex Head Taptite, 1/4-20 x 1/29 1925003SM 2
CONTROL, Throttle/Choke10 1724013SM 1
TIE11 1701011SM 1
EDGING, Rubber12 1723894SM 1
CLAMP, Hose Type E13 2860112SM 2
HOSE, 59" Long14 1718678SM 1
SCREW, Trox Head Taptite, #8-32 x 1/215 1726466SM 1
PLATE, Limiter RPM16 1726465SM 1
CLIP, Wire17 2834683SM 2
SHIELD18 1722392ASM 2
SCREW, Hex Head Taptite, 1/4-20 x 3/819 1929000SM 3
KEY20 1720463SM 1
PULLEY & HUB ASSEMBLY, 4-1/2 OD21 1722288SM 1
WASHER, Hex22 1708264SM 1
LOCKWASHER, 7/1623 1918199SM 1
CAPSCREW, Hex Head, 7/16-20 x 2-3/424 1960648SM 1
CLUTCH, Electric, OGURA25 1720532SM 1
TIE26 2832747SM 1
CAPSCREW, Hex Head Taptite, 3/8-16 x 1-1/227 2830598SM 4
LOCKWASHER, External Tooth, 3/828 2820427SM 1
SHIELD, Muffler Bottom29 1722414ASM 1
CAPSCREW, Hex Head Flange Lock1/4-20 x 5/830 1960295SM 6
CAPSCREW, Hex Head Taptite, 5/16-18 x 1/231 1924856SM 2
NUT, Speed, 1/4-2032 1960368SM 5
NUT, Speed, 5/16-1833 1935255SM 2
DUCT, Muffler Top34 1722389ASM 1
GUARD, Manifold Pipe35 1723897ASM 1
CLIP, Wire36 2172434SM 1
Note* See your local Kohler distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
13
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690622 - Baron XL
TP 400-4560-02-BR-SM

Transmission Group - Tuff Torq K-46BF
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986828
The above parts group applies to the following Mfg. Nos.:
14
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690621 - Baron XL
2690622 - Baron XL
2690625 - 2420 XL
2690762 - Baron
2690772 - 2421
TP 400-4560-02-BR-SM

PART NO. DESCRIPTIONREF NO QTY.
Transmission Group - Tuff Torq K-46BF
Footnotes
SCREW, Pan Head Torx Taptite, 1/4-20 x 1-1/41 1960676SM 2
FASTENER, Panel 3/4 Head2 1704351SM 15
PAD, Footrest, RH Black Vinyl Textured3 1722173SM 1
PAD, Footrest with Differential Lock, LH Black Vinyl Textures4 1722174SM 1
NUT, Hex KEPS, 3/8-165 1960637SM 4
NUT, Hex Flange, 3/8-16 Whiz Lock Large6 1928352SM 2
CARRIAGE BOLT, 3/8-16 x 1-3/4 G57 1931353SM 1
SUPPORT, Idler, RH8 1726052ASM 1
CARRIAGE BOLT, 5/16-18 x 3/4 G59 1931333SM 3
PULLEY, 3 in.10 2174561SM 1
NUT, Hex Flange3/8-16 ESNA11 1960687SM 3
WASHER, 3/412 1922755SM 3
CARRIAGE BOLT, 3/8-16 x 1 G513 1931350SM 4
WASHER, 5/1614 1919326SM 10
NUT, Hex KEPS, 5/16-18 Conical Washer15 1960684SM 2
BRACKET, Chute Locator16 1727431A 1
PULLEY, Idler, 4 in.17 1710545SM 1
SUPPORT, Idler, LH18 1726053A 1
CARRIAGE BOLT, 3/8-16 x 1-1/2 G519 1931352SM 1
CAPSCREW, Hex Head, 3/8-16X1.000 G5 BLK20 1921210SM 2
DRAWBAR, 1/4 in. Thick21 1727400A 1
NUT, Hex KEPS, 5/16-1822 1960636SM 1
NUT, Hex Lock ESNA Light, 5/16-18NC-3B23 1919438SM 6
ROD, Transmission Release24 1727526SM 1
CLIP, Hair Pin Spring25 1960221SM 1
CAPSCREW, Hex Head 5/16-18 x 2 G526 1921978SM 1
WASHER, 5/1627 1960141SM 2
STRAP, Torque, 1/4 Thick 4 in. Long28 1726055A 1
CAPSCREW, Hex Head, 5/16-18 x 2-3/4 G529 1923141SM 4
PIN, Quick30 1722460SM 3
ROD, Control31 1723045SM 1
PIN, Cotter32 1918447SM 2
SHAFT & ARMS ASSEMBLY, Control33 1727552SM 1
SPACER, Powered Metal34 1666697SM 1
V-BELT, Drive Belt35 1727407SM 1
CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/236 1924856SM 2
ACTUATOR, Switch37 1727215ASM 1
WASHER, 3/838 1924940SM 1
ROD, Brake39 1726057SM 1
ARM & PIN ASSEMBLY, Speed Control40 1727473SM 1
CAPSCREW, Hex Head, 5/16-18 x 1 G541 1921333SM 1
BRACKET & PIN ASSEMBLY, Brake42 1723267SM 1
SPRING, Compression43 1729277SM 1
BUSHING, Nylon44 2176440SM 2
The above parts group applies to the following Mfg. Nos.:
15
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690621 - Baron XL
2690622 - Baron XL
2690625 - 2420 XL
2690762 - Baron
2690772 - 2421
TP 400-4560-02-BR-SM

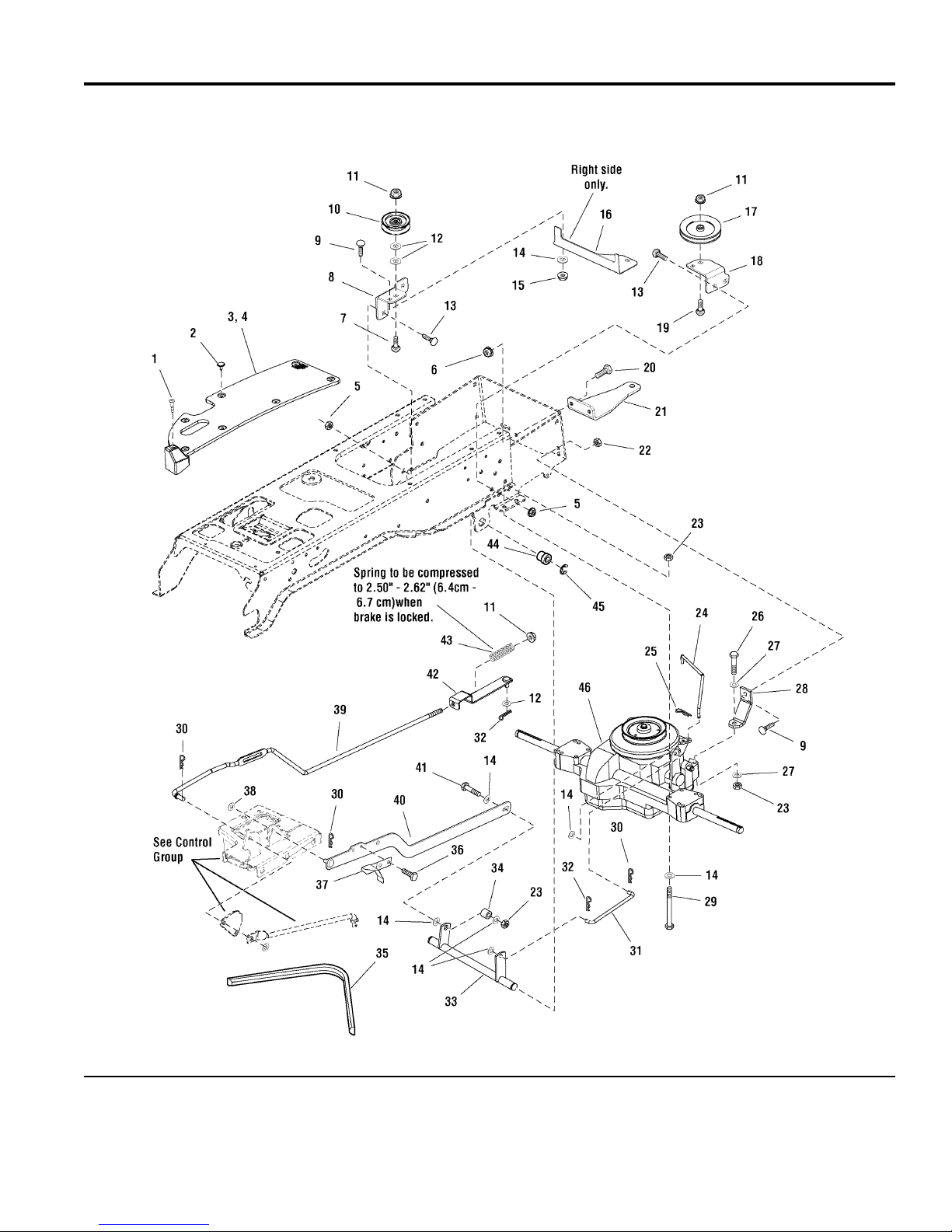

Transmission Group - Tuff Torq K-46BF
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986828
The above parts group applies to the following Mfg. Nos.:
16
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690621 - Baron XL
2690622 - Baron XL
2690625 - 2420 XL
2690762 - Baron
2690772 - 2421
TP 400-4560-02-BR-SM

PART NO. DESCRIPTIONREF NO QTY.
Transmission Group - Tuff Torq K-46BF
Footnotes
RING, E Retaining45 2827794SM 2
TRANSMISSION ASSEMBLY, Tuff Torq K46BF46 1727712SM 1
The above parts group applies to the following Mfg. Nos.:
17
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690621 - Baron XL
2690622 - Baron XL
2690625 - 2420 XL
2690762 - Baron
2690772 - 2421
TP 400-4560-02-BR-SM

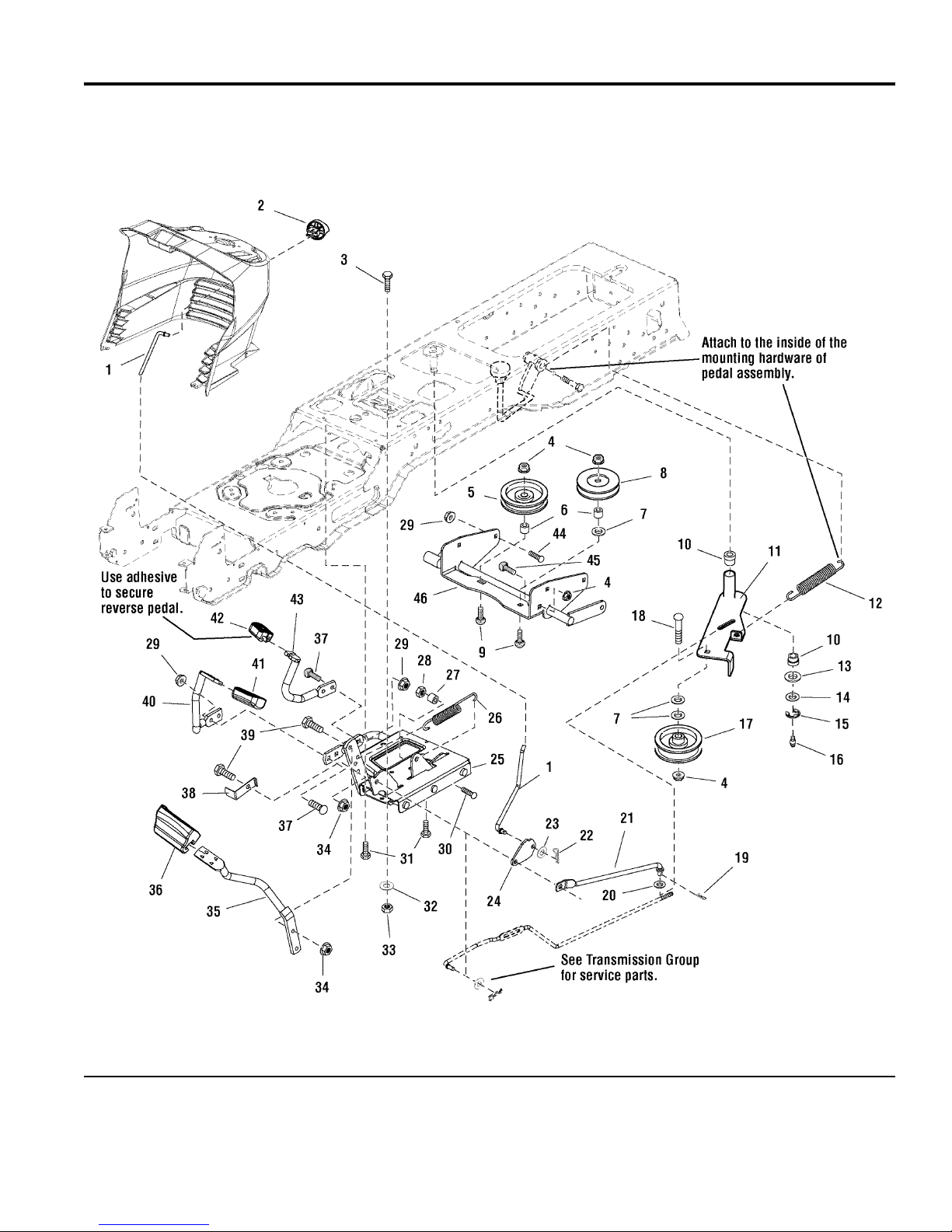

Controls Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987595
The above parts group applies to the following Mfg. Nos.:
18
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690621 - Baron XL
2690622 - Baron XL
2690625 - 2420 XL
2690762 - Baron
2690772 - 2421
TP 400-4560-02-BR-SM

PART NO. DESCRIPTIONREF NO QTY.
Controls Group
Footnotes
ROD, Brake1 1721353SM 1
KNOB, Push On, Red2 1721891SM 1
CAPSCREW, Hex Head Flange Lock, 5/16-18 x 3/43 1930591SM 1
NUT, Hex Flange, 3/8-16 ESNA4 1960687SM 3
PULLEY ASSEMBLY, 3 OD, W/Bearing5 1721134SM 1
SPACER6 1667811SM 2
WASHER, 3/87 1922755SM 3
PULLEY, Idler 4 OD8 1710545SM 1
CARRIAGE BOLT, 3/8-16 x 2 G59 1960315SM 2
BUSHING10 1663114SM 2
ARM & HUB ASSEMBLY, Idler11 1727370SM 1
SPRING, Extension12 1733844SM 1
WASHER, 5/813 1960020SM 1
WASHER, 5/814 1924366SM 1
RING, Clipring15 1704420SM 1
FITTING, Lube, 1/4 Ball Check16 1704314SM 1
PULLEY, Idler 3-1/4 OD17 1710539SM 1
CARRIAGE BOLT, 3/8-16 x 2 G518 1960315SM 1
PIN, Cotter19 1918447SM 1
WASHER20 1924940SM 1
ROD, Brake (Flat Ends)21 1727408SM 1
PIN, Quick22 1722460SM 1
WASHER23 1919326SM 1
LATCH, Brake24 1721354ASM 1
CONTROL ASSEMBLY, Foot Pedal25 1726763SM 1
SPRING, Extension26 1721995SM 1
CAM, Roller27 1686612SM 1
NUT, Hex Lock ESNA, 1/4-2028 1920397SM 1
NUT, Hex KEPS, 5/16-1829 1960636SM 8
CARRIAGE BOLT, 1/4-20 x 1-1/430 1931320SM 1
CAPSCREW, Hex head Washer Taptite, 5/16-18 x 3/431 1664847SM 3
WASHER32 1919381SM 1
NUT, Hex Lock ESNA, 5/16-1833 1919438SM 1
NUT, Hex Flange Lock, 5/16-1834 1927557SM 3
PEDAL, Brake35 1722535ASM 1
PAD, Brake Pedal36 1721577SM 1
CARRIAGE BOLT, 5/16-18 x 7/837 1931334SM 4
ACTUATOR, Switch38 1722083ASM 1
CAPSCREW, Hex Head, 5/16-18 x 139 1921333SM 3
PEDAL, Forward40 1722070ASM 1
PAD, Foot Pedal Forward41 1721675SM 1
PAD, Foot Pedal Reverse42 1721674SM 1
PEDAL, Reverse43 1722071ASM 1
CARRIAGE BOLT, 5/16-18 x 3/444 1931333SM 4
The above parts group applies to the following Mfg. Nos.:
19
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690621 - Baron XL
2690622 - Baron XL
2690625 - 2420 XL
2690762 - Baron
2690772 - 2421
TP 400-4560-02-BR-SM

Controls Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987595
The above parts group applies to the following Mfg. Nos.:
20
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
2690621 - Baron XL
2690622 - Baron XL
2690625 - 2420 XL
2690762 - Baron
2690772 - 2421
TP 400-4560-02-BR-SM
