Simpson S660 User manual

S660
Digital Preset / Totalizer Counter
Operation Manual
www. .com [e-mail]1.800.561.8187

Warranty and Returns
SIMPSON ELECTRIC COMPANY warrants each instrument and other articles manufactured
by it to be free from defects in material and workmanship under normal use and service, its
obligation under this warranty being limited to making good at its factory or other article of
equipment which shall within one (1) year after delivery of such instrument or other article of
equipment to the original purchaser be returned intact to it, or to one of its authorized service
centers, with transportation charges prepaid, and which its examination shall disclose to its
satisfaction to have been thus defective; this warranty being expressly in lieu of all other war-
ranties expressed or implied and of all other obligations or liabilities on its part, and SIMPSON
ELECTRIC COMPANY neither assumes nor authorizes any other persons to assume for it any
other liability in connection with the sales of its products.
This warranty shall not apply to any instrument or other article of equipment which shall have
been repaired or altered outside the SIMPSON ELECTRIC COMPANY factory or authorized
service centers, nor which has been subject to misuse, negligence or accident, incorrect wiring
by others, or installation or use not in accord with instructions furnished by the manufacturer.
Under the normal eld usage there is no need to remove the front bezel of this product. The
front bezel of this product should only be removed by a qualied technician.
About this Manual
To the best of our knowledge and at the time written, the information contained in this
document is technically correct and the procedures accurate and adequate to operate this
instrument in compliance with its original advertised specications.
Notes and Safety Information
This Instruction Manual contains warning headings that alert the user to check for hazardous
conditions. These appear throughout this manual where applicable, and are dened below.
To ensure the safety of operating performance of this instrument, these instructions must be
adhered to.
Warning, refer to accompanying documents.
Caution, risk of electric shock.
Attention, consulter les documents d’accompagnement.
Attention, risque de choc électrique.
1
www. .com [e-mail]1.800.561.8187

2
Contents
1 Product Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
1.1 General Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
1.2 Part Number Identification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
1.3 Option Module Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2 Hardware Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 Panel Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Removing / Installing Option Modules. . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 120/240 VAC Power Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2.4 Standard Input Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.5 Quadrature Input Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2.6 Excitation Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
2.7 Single and Dual Relay Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3 Display & Keypad Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.1 Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3.2 Display Error Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.3 What the Keys Do in Display Mode. . . . . . . . . . . . . . . . . . . . . . . . . 15
3.4 What the Keys Do in the Programming Mode. . . . . . . . . . . . . . . . . .15
3.5 Special Start-Up Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
4 Programming Operations and Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
4.1 Password and Security Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.2 A/B Channel Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.3 Scaling and Decimal Point Position. . . . . . . . . . . . . . . . . . . . . . . . . 21
4.4 Output Control Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
4.5 Set Point Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.6 Auto Reset Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.7 Miscellaneous Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Appendix A: Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
A.1 Functional Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
A.2 Electrical, Environmental and Mech. . . . . . . . . . . . . . . . . . . . . . . . .29
Appendix B: Programming Quick Reference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
www. .com [e-mail]1.800.561.8187

3
125 4
Input Excitation Power
Supply
Output
Input
Standard
Quadrature
Power Supply
Basic Unit
S660 120 VAC
240 VAC
1
2
1
2
Excitation
None
12VDC
0
1
Other
None 0
Output
None
One relay
Two Relays
0
1
2
1 Product Description
1.1 General Description
The S660 preset counter fits a 1/8 DIN standard cutout and is perfect for tight spaces, extending
only 3.24" (82mm) behind the panel. The unit is UL listed. The unit is for indoor use at altitudes
up to 2000m, temperatures between 0° and 40°C, and installation category III, pollution degree
2.
The counter is powered from 120 or 240 VAC. The nonvolatile EEPROM retains all programming
and count information when power is removed or interrupted.
Display scaling, preset values and all menu functions are easily programmed from the front
panel, following easy-to-use word prompts. Front Panel Reset Disable and Password Lockout
Protection features guard against unauthorized or accidental changes.
The counter accepts count rates up to 20 KHz and pulses from different types of sensors,
including Quadrature, CMOS or TTL circuits and PNP or NPN devices.
The optional, field-replaceable, single/dual relay module enhances the counter from a passive
display device to an integral control element for your application. Outputs may be controlled by
count values with independent reset operation. The counter has latching, boundary or timed
(0.01 to 599.99 seconds) alarm output modes. An optional 12 VDC (100mA) excitation output
module can provide power for external sensors.

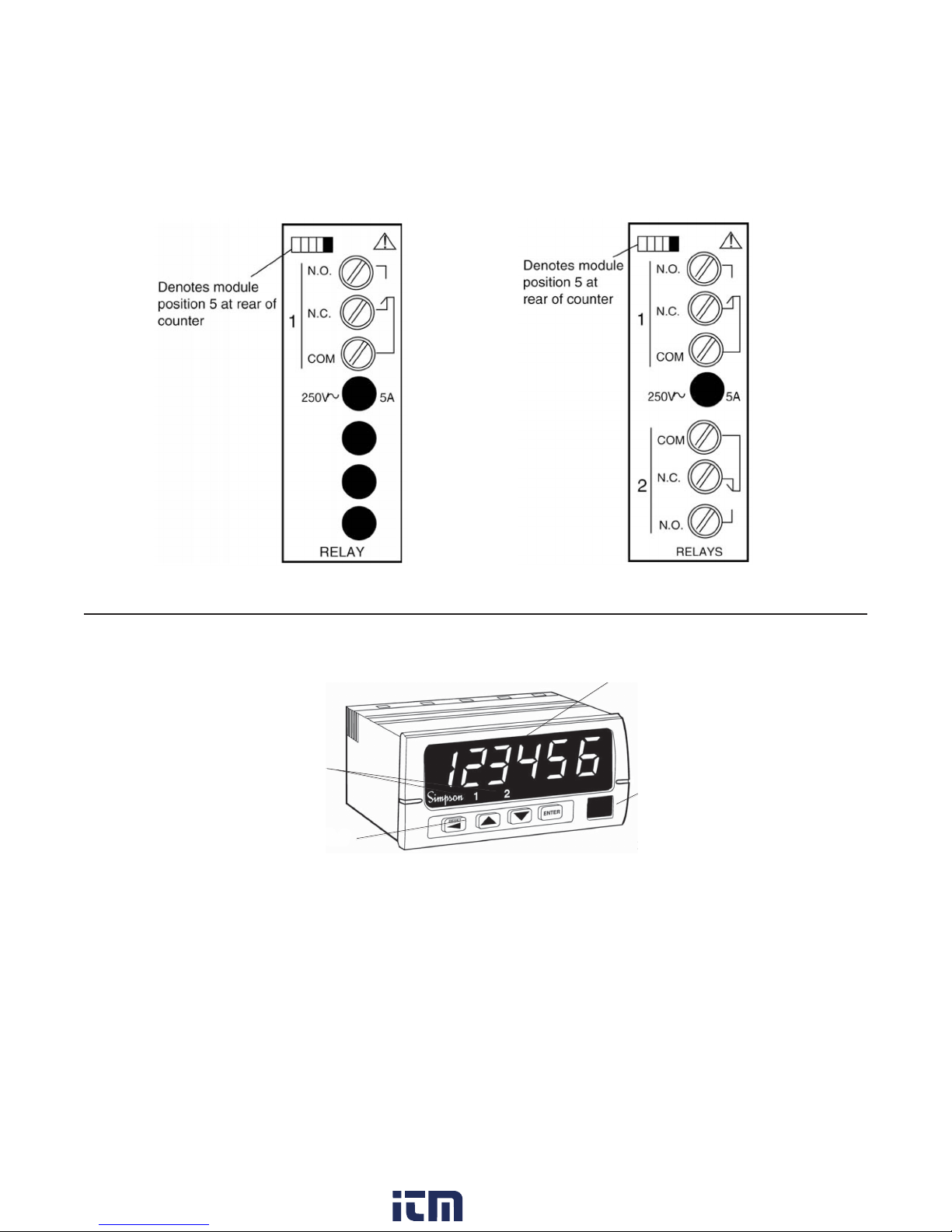

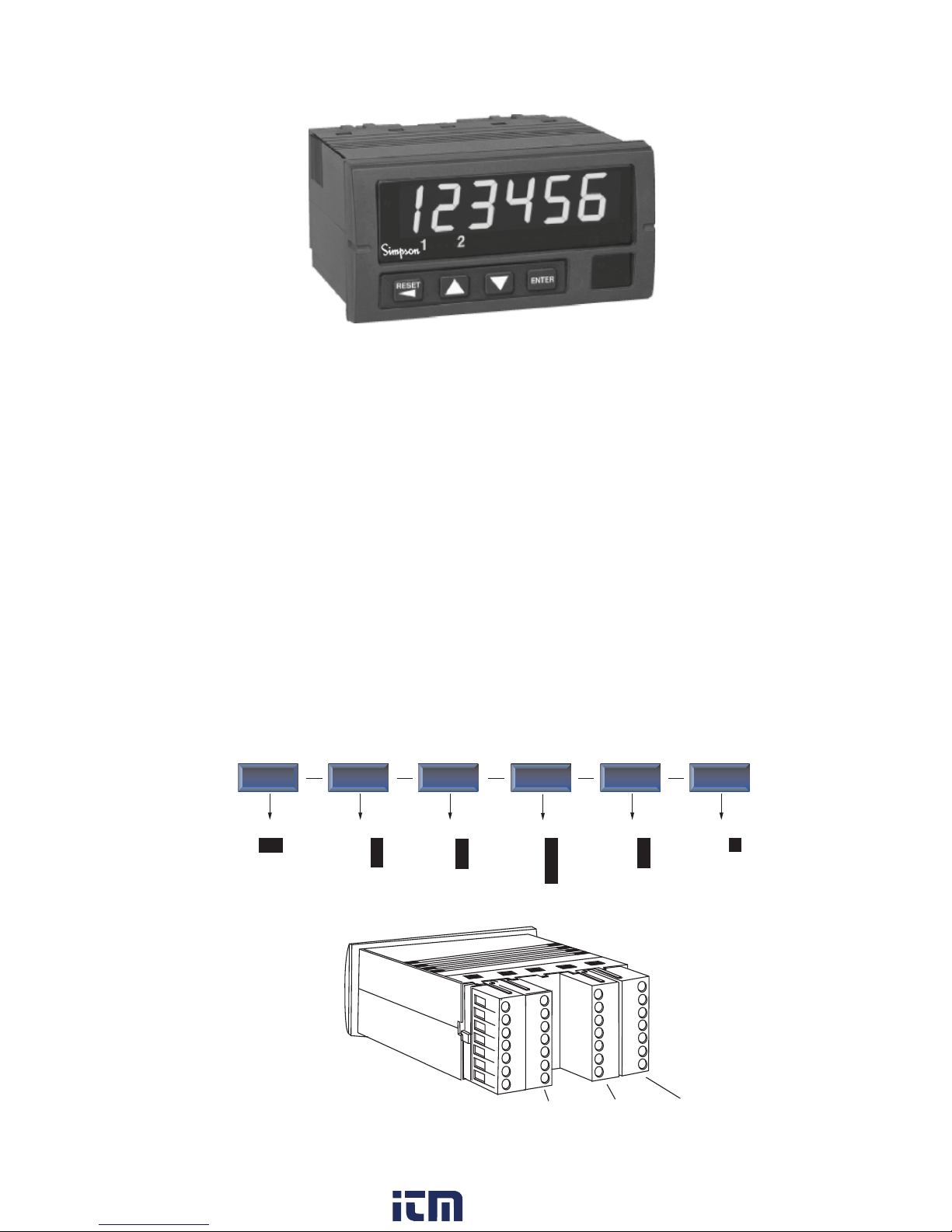

Figure 1. Option Module Slots (Rear View)
www. .com [e-mail]1.800.561.8187

4
1.2 Part Number Identification
The following matrix indicates the configuration of your S660 counter.
1.3 Option Module Summary
The S660 is a modular product that uses field configuring slide-in modules. The modules slide
easily into the rear of the counter.
Figure 1 displays the functional assignments for each module position.
Table 1 describes available option modules for the S660.
Table 1. Option Module Summary
eludoM
tols epyT N/P noitpircseD noitceSeeS
1tupnIeludoMtupnIdradnatS 4.2
1tupnIeludoMtupnIerutardauQ 5.2
2txE46054eludoMnoitaticxECDV21 6.2
4rewoPelu
doMrewoPCAV021 3.2
4rewoPeludoMrewoPCAV042 3.2
5tuptuO26054eludoMyaleRlauD 7.2
5tuptuO36054eludoMyaleRelgniS 7.2
www. .com [e-mail]1.800.561.8187

5
2 Hardware Setup
2.1 Panel Installation
The S660 1/8 DIN counter requires a standard 1/8 DIN panel cutout of 1.77" (45mm) high by
3.62" (92mm) wide. To install the counter into a panel cutout, remove the clips from the side of
the counter. Slide the counter through your panel cutout, then slide the mounting clips back on.
Press evenly to ensure a proper fit.
Figure 2. Counter and Panel Cut-Out Dimensions
Figure 3. Panel Mounting Clips
%
2.04"
51.8mm
.52"
13.2 mm
ENTER
RESET
1.77"
45mm
3.24"
82mm
3.62"
92mm
1.74"
44mm
3.93"
99.8 mm
www. .com [e-mail]1.800.561.8187

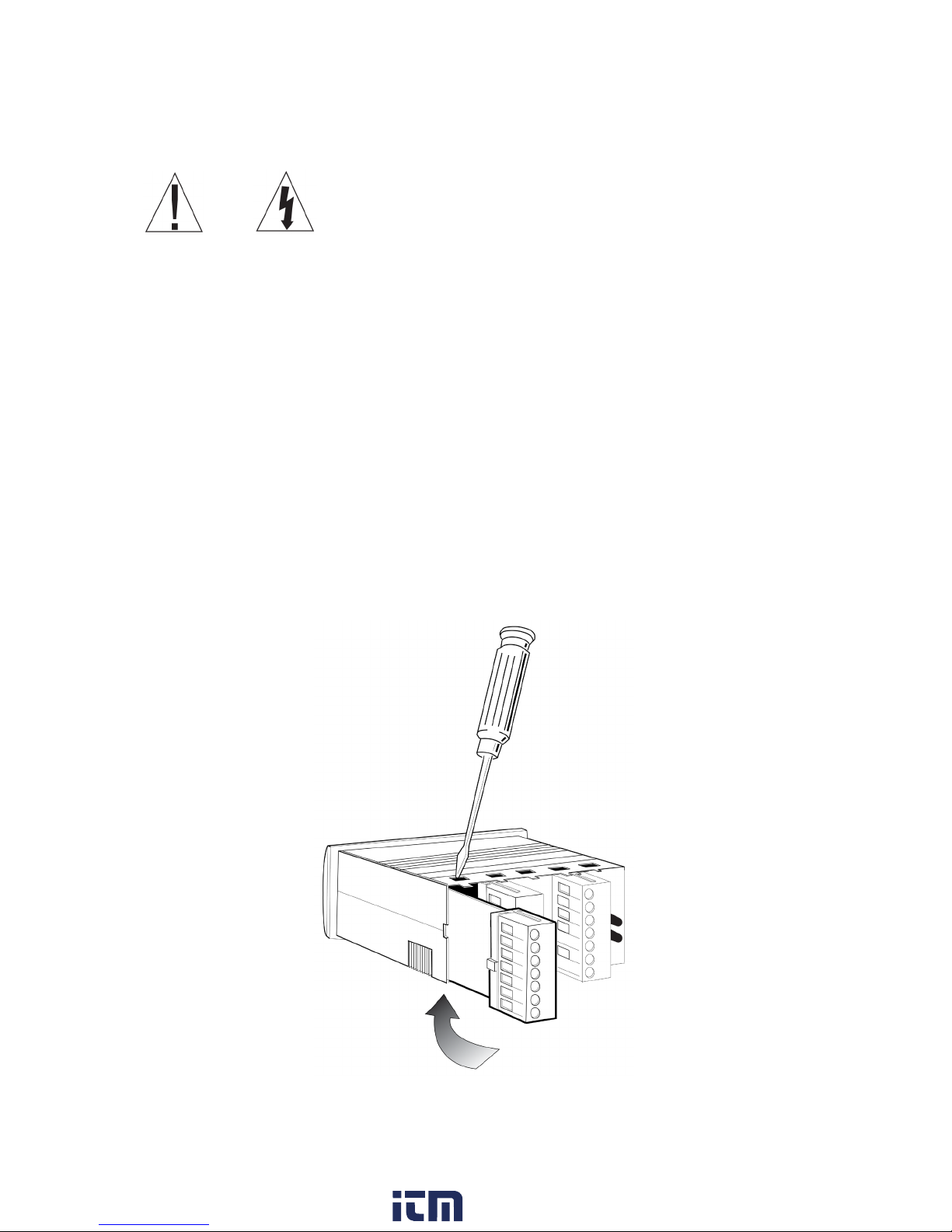

1. Remove module from case by inserting a screwdriver into tab slot opening at top of input
module. Apply pressure to release module from case. Repeat procedure for tab located on
underside of module and then slide module away from the case.
2. Refer to appropriate sections to congure switches or jumpers for proper operation.
Table 1 can be used to identify modules and their associated detail paragraph.
3. Install module by carefully aligning module edges with slots in case and pressing forward
until tabs (on top and bottom) engage.
2.2 Removing / Installing Option Modules
Shut power off before removing or installing any option modules
Couper le courant avant de retirer ou d’installer des modules optionnels
Figure 4. Removing Option Module
6
www. .com [e-mail]1.800.561.8187

2.3 120/240 VAC Power Module
Never connect AC mains (hot or neutral) to the Reset or Common terminals!
2.4 Standard Input Module
NOTE: A fusible link is not provided on this module.
A ½ Amp Time Delay fuse, Bussman MDL ½, or similar is required.
Remove power before wiring option modules.
The AC power module allows the S660 to be
operated from standard 50/60 Hz line power.
The power module will be congured as 120
VAC or 240 VAC per markings on the back
panel. Ensure the input rating of the supply
matches your line voltage. The power supply
module has provisions for a hard-wire Count
Reset. This control can be a switch, relay
contact or solid state device. Actuation is
immediate upon an active Low for at least
2.5ms to this terminal. The reset circuit is
independent of the power circuit.
Figure 6. Standard Input Module
Coupez l’alimentation avant de raccorder les modules optionnels.
Ne jamais brancher sur secteur (chaudes ou neutres) pour la réinitialisation
ou terminaux communs!
Denotes module position 1 at rear of counter
Primary Input
Connect the input signal to A INPUT and COMMON
Inhibit Active low stops counting
Secondary Input
Direction Control or count pulse input
A INPUT
COMMON
USER
INPUT
B INPUT
IINPUT
COMMON
Denotes modules position 4 at rear
of counter
Power Supply 120 VAC or 240 VAC
power connection
Remote Reset
Active low 0.2V performs primary
reset
Figure 5. AC Power Module
VAC
VAC
RESET
COMMON
POWER
7
~
~
www. .com [e-mail]1.800.561.8187

8
Figure 7. Standard Input Module Default Settings
DIP switch SW1, figure 7, is used to set up the counter to conform to the electrical characteristics
of the sensor or signal being detected. Switch positions 1-3 configure channel B, while switches
4-6 configure channel A. These switches select bias (threshold voltages), low pass filter (enable/
disable) and sensor type (Sink or Source).
Refer to the documentation that accompanied the sensor for related information. The sensor
can most likely be matched to one of the typical switch settings shown in figure 8 and figure 8a.
Note: The input boards are designed so that selecting sourcing or sinking is based on the
type of sensor that is being used. If a PNP (sinking) sensor is being used, set the input
board for sinking also (switches 3 and 6 = OFF).
If channel B is not used, default settings for switch positions 1 through 3 should be selected.
Default settings are provided in Table 2.
The Input module also provides for a user input signal. On the S660, this input serves as a count
enable/disable control. Connecting User to Common will disable counting.
Dipswitch Legend
= ON
= OFF
1 2 3 4 5 6
BBias Off=HiOn=Lo
BFreq Off=HiOn=Lo
BOff= Sink On= Source
AFreq Off=HiOn=Lo
AOff= Sink On= Source
ABias Off=HiOn=Lo
CHANNELFUNCTION
DIP Switch
(Shown for TTL Factory Settings)
Note: Refer to specifications
for DIP switch function
electrical characteristics
12345 6
The S660 can accept inputs from many different sensors. The A and B channels may be
configured independently as shown in Table 2. Figures 8 and 8a have examples of some typical
sensors and the wiring connections that would be used.
Table 2. Standard Input Module DIP Switch Settings
* = Factory Default setting
1 B Channel Bias:OFF = Hi* VLT = 5.0 V VUT = 7.0V (+/- 10%)
ON = Low VLT = 1.6 V VUT = 3.6V (+/- 10%)
2 B Channel Frequency:OFF = Hi* (low pass filter disabled)
ON = Lo (low pass filter enabled)
3 B Channel Sensor:OFF = Sinking* (internal pull-up enabled)
ON = Source (internal pull-down enabled)
4 A Channel Bias:OFF = HiV
LT = 5.0 V VUT = 7.0V (+/- 10%)
ON = Low* VLT = 1.6 V VUT = 3.6V (+/-10%)
www. .com [e-mail]1.800.561.8187

9
A INPUT
USER INPUT
B INPUT
COMMON
COMMON
INPUT
1 2 3 4 5 6
ON
DRY CONTACT
LOW BIAS
LOW FREQUENCY
SOURCING
HIGH BIAS
HIGH FREQUENCY
SINKING
A INPUT
USER
INPUT
B INPUT
COMMON
COMMON
INPUT EXCITATION
ISO+12V
ISOCOM
+
_
__
---
1 2 3 4 5 6
ON
PNP SENSOR
LOW BIAS
LOW FREQUENCY
SOURCING
HIGH BIAS
HIGH FREQUENCY
SINKING
A INPUT
USER
INPUT
B INPUT
COMMON
COMMON
INPUT EXCITATION
ISO+12V
ISOCOM
+
_
__
---
1 2 3 4 5 6
ON
NPN SENSOR
LOW BIAS
LOW FREQUENCY
SOURCING
HIGH BIAS
HIGH FREQUENCY
SINKING
OUTPUT
COMMON
+
Figure 8. Sensor Connection Examples
Figure 8a. Sensor Input example
5AChannel Frequency: OFF =Hi* (low pass filter disabled)
ON =Lo (low pass filter enabled)
6AChannel Sensor Type: OFF = Sinking* (internal pull-up enabled)
ON = Source (internal pull-down enabled)
www. .com [e-mail]1.800.561.8187

Figure 10. Quadrature Input Module Default Settings
Figure 9. Quadrature / Universal
Input Module
2.5 Quadrature Input Module
The Quadrature / Universal Input Module has two operational modes: Quadrature mode and
Standard mode. Quadrature Mode is selected by positioning JP1 and JP2 on pins 1 and 2.
Standard Mode is selected by placing JP1 and JP2 on pins 2 and 3 (see Figure 10 for details).
The Quadrature mode supports a wide range of encoders including the Simpson SE series.
While in Standard Mode, this module works similarly to the Standard Input module. In addition
to the quadrature signal, the quadrature card allows a technician to select a rising or falling
edge trigger for the count input signal. The technician is also able to determine the polarity of
the user input.
The Input module also provides for a User input signal. On the S660, this input serves as a
Count Enable/Disable.
NOTE: If B channel is not going to be used, use the default switch settings for SW1 positions 1
through 3. Default settings are provided in Table 3.
In both modes, the state of the user input signal can be selected as active high or active low.
DIP switch SW1 congures the counter to match the specications of the accompanying
sensor. When shipped from the factory, the counter is set for X1 quadrature, as shown in
Figure 10 and Table 3:
Denotes module position 1 at rear of counter
Primary Input
Or Quadrature A
Inhibit Active Low Stops Counting
Secondary Input
Or Quadrature B
A INPUT
COMMON
USER
INPUT
B INPUT
IINPUT
COMMON
Dip Switch
Legend
= ON
= OFF
B Bias Off = Hi On = Lo B Freq Off = Hi On = Lo B Off = Sink On = Source A Bias Off = Hi On = Lo A Freq Off = Hi On = Lo A Off = Sink On = Source B Edge Off = On = A Edge Off = On = User pol Off = On = Quadr Off = X4 On = X1
10
7
1234569
810
SW1
Dip Switch:
Shown in
Quadrature Mode
(Factory Default)
www. .com [e-mail]1.800.561.8187

2.6 Excitation Module
Figure 11. Wiring Encoder w/Excitation Supply 12VDC Excitation Module
Table 3. Quadrature Module DIP Switch and Jumper Settings
JP1/2: Count Mode Selector
Jumpered 1-2 = Quadrature mode
Jumpered 2-3 = Standard counter mode
SW1: 10 Position DIP Switch
* = Factory Default setting
1 B Channel Bias: OFF = Hi* VLT = 5.0V VUT = 7.0V (+/- 10%)
ON = Low VLT = 1.6V VUT = 3.6V (+/- 10%)
2 B Channel Frequency: OFF = Hi* (low pass lter disabled)
ON = Low (low pass lter enabled)
3 B Channel Sensor: OFF = Sinking*(internal pull-up enabled)
ON = Source (internal pull-down enabled)
4 A Channel Bias: OFF = Hi* VLT = 5.0 V VUT = 7.0V (+/- 10%)
ON = Low VLT = 1.6 V VUT = 3.6V (+/- 10%)
5 A Channel Frequency: OFF = Hi* (low pass lter disabled)
ON = Lo (low pass lter enabled)
6 A Channel Sensor Type: OFF = Sinking* (internal pull-up enabled)
ON = Source (internal pull-down enabled)
7 B Channel Count Edge: OFF = Rising (standard count mode only)
ON = Falling*
8 A Channel Count Edge: OFF = Rising (standard count mode only)
ON = Falling*
9 User Input Polarity: OFF = High/open circuit = Inhibit Count
ON* = Low/closed circuit = Inhibit Count
10 Quadrature Mode: OFF = X4 (quadrature mode only)
ON =X1*
11
www. .com [e-mail]1.800.561.8187

The Excitation Module can supply 12 VDC at up to 100 mA for external sensors or encoders.
This excitation is isolated from the counter internal logic supply.
When using sensors or encoders that do not have a signal return or imply a signal return that
is in common with the supply voltage, a common attachment that ties the excitation supply to
the logic input common may be required.
Examples of this appear in gures 8, 8a, 11 and 12.
Figure 13. Excitation Module
Figure 12. Wiring Encoder with External Supply
12
www. .com [e-mail]1.800.561.8187

2.7 Single and Dual Relay Modules
Figure 14. Single Relay Figure 15. Dual Relay
The Single and Dual Relay modules can activate circuit loads of up to 5 amps at 250 VAC.
A Form C conguration allows use of normally-open (NO) and normally-closed (NC) circuit
action.
Only the output 1 channel is implemented in the single relay module.
3 Display & Keypad Controls
3.1 Display
• 6-Digit 0.56” high red LED Display.
• 2 Output Status Indicators; “1” and “2.”
• Units Window for supplied label or legend.
• 4-Button Keypad with tactile response.
Figure 16. Display and Keypad Layout
Units Window
Output Status Indicators
13
4 Button Keypad
Numeric & Message Display
www. .com [e-mail]1.800.561.8187

14
yalpsiD noitpircseD deriuqeRnoitcA
rrEdAP nikcutssiyekarodelbasidsidapyeKehT
noitisopNOeht
otrewopelcyC
ehtfi,retnuoceht
,sniam
errorre
otretnuocnruter
.riaperrofyrotcaf
999999 ro
99999-
)gnihsalF(
ehtrofegralootsitnuocdeyalpsidehT
tnuoc
lanretniehtecniS.yalpsidotretnuoc
eht,yalpsidehtnahtregralhcumsireffub
dnatnuocetaruccaniatniamlliwretn
uoc
.eulavyalpsidehtdnoyebllewlortnoc
retnuoCteseR
1E
stuptuO(
,etavitcaed
)spotstnuoc
:wolfrevOtnuoCwaR fore
bmunehT
s’retnuocehtdedeecxesahsesluptnuoc
ro846,384,741,2(eulavlanretnimumixam
)846,384,741,2-
retnuoCte
seR
2E
stuptuO(
,etavitcaed
)spotstnuoc
:wolfrevOhtaM nirotcafelacsegralA
sahtnuocwaregralhtiwnoitanibmoc
lan
retnimumixams'retnuocehtdedeecxe
)846,384,741,2-ro846,384,741,2+(eulav
retnuoCteseR
3E
stuptuO(
,etavitcae
d
)spotstnuoc
:tluaFgodhctaW tondidretnuocehT
sihT.nwod-rewopylredronaecneirepxe
mumixamehtgnideecxeybnepp
ahnac
deniatsusarofdeepstnuocelbawolla
.emitfodoirep
retnuoCteseR
3.2 Display Error Messages
Table 4. Display Error Messages
www. .com [e-mail]1.800.561.8187

15
yeK roivahebdapyeK
ehttixeotsdnocesruofrofdlohdnasserP
.edomgnimmargorp
Sro T
ehthguorhtetagivansyeknwoddnapue
hT
sparw‘unemehT.snoitcnufunemelbaliava
siunemehtfopotromottobehtnehw’dnuora
.dehcaer
otretemaraprounemtn
errucehtretnE)1
.tide/weiv
dnayromemretnuocehtotegnahcehtetirW)2
.noitcnuftxenehtotevom
RESET
ENTER
3.4 What the Keys Do in the Programming Mode
3.3 What the Keys Do in Display Mode
yeK roivahebdapyeK
ottnuocsteseR SoPtSr sihT.)noitisoPteseR(
.)7.4noitcesees(delbasidebyamnoitca
Sro T
dnastnioptesehtllaotsseccakciuqswollA
SoPtSr ebnacerutaefsihT.)noitisoPteseR(
.)1.4noitcesees(drowssapagnisuybdel
basid
dnadloH
sserP S
.uneMgnimmargorPehtsseccA
RESET
ENTER
The up and down keys navigate through the available
menu functions. The menu ‘wraps around’ when the
bottom or top of the menu is reached. The up and down
key increment or decrement the flashing digit.
Select the next digit to the left of the current flashing
digit for editing.
The up and down keys navigate through the available
menu functions. The menu ‘wraps around’ when the
bottom or top of the menu is reached. The up and
down keys increment or decrement the flashing digit.
1) Enter the current menu or parameter to
view/edit.
2) Write the change to the counter memory and move
to the next fuction.
www. .com [e-mail]1.800.561.8187

16
In the Programming Mode, the S660 will return to Display Mode automatically if a key is not
pressed within 120 seconds (2 minutes). The menu is comprised of three levels: Setup Menu,
Function Menu and Option Edit Menu. Figure 17 illustrates the three levels of the menu
system.
Password Entry Entry (Pass) and changing of the password (Chpass) are similar to editing a
numerical parameter. See Numerical Value below. If the password has
been set to a value other than “000,” entry of the proper password is
required to access the remainder of the menu.
Setup Menu At the first level of the menu, the arrow keys navigate up or down through
the available Menu selections.
Function Menu The second level of the menu contains the functions or software param-
eters that need to be configured for the counter to operate properly.
Option Menu Contains either Choice Lists or Numerical Values for configuring the func-
tions of the counter.
Choice List A choice list allows selection from a fixed number of options. A Choice List
is found in the Options section of the menu. The list is made up of the
available options for the function that is being edited. Example: Menu is
Input Setup Menu, the Function is A Channel, the Choice List is up, down,
quad, and rquad. (See Table 6)
Numerical Value A numerical entry allows the changing of set point values, scale values,
Figure 17. Programming Menu Structure
Setup Menu Function Menu Option Menu
CHPASSCHPASS
CHPASSCHPASS
CHPASS
000000
000000
000
inPutinPut
inPutinPut
inPut
SEtuPSEtuP
SEtuPSEtuP
SEtuP
A CHAnA CHAn
A CHAnA CHAn
A CHAn
uPuP
uPuP
uP
b CHAnb CHAn
b CHAnb CHAn
b CHAn
dirdir
dirdir
dir
CountSEtuPCountSEtuP
CountSEtuPCountSEtuP
CountSEtuP
other setup menus
endend
endend
end Return to
Display Mode
000000
000000
000
upup
upup
up
downdown
downdown
down
quadquad
quadquad
quad
r quadr quad
r quadr quad
r quad
dirdir
dirdir
dir
upup
upup
up
downdown
downdown
down
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
www. .com [e-mail]1.800.561.8187

17
yeK roivahebdapyeK
dna
steseR.stluafedyrotcafotsretemarapsnruteR
noitarepo,gnilacsresulladna,000otdrowssap
ya
lpsiD.stluafedyrotcafotstnioptesdnasedom
wohslliw .teserf
RESET
ENTER
yeK roivahebdapyeK
tnerrucehtfotfelehtottigidtxenehtstceleS
.gnitideroftigidgnihsalf
Sro T
tnemercedrotnemercn
isyeknwoddnapuehT
troppussretemarapemoS.tigidgnihsalfeht
tsomeht,sesacesehtnI.srebmunevitagen
ybevitagen
edamebnactigidtnacifingis
".0"dna"9"neewtebtignitnemercni
ehtrofgnitteswenehtsaseulavehtsevaS
txenehtots
ecnavdadnayromemninoitcnuf
.yllacitamotuaunemehtfonoitcnuf
etc.
3.5 Special Start up Modes
There are two start-up modes for the S660 counter. The default start-up mode will be used every
time the counter is powered up by the user. There is one alternate start-up mode that will allow
the operator to return the counter software functions to factory default settings.
The alternate start-up modes can only be accessed by pressing and holding certain keys during
the power up sequence.
•Press and hold both keys on the face of the counter
RESET
ENTER
yeK roivahebdapyeK
Sro TehthguorhtllorcssyeknwoddnapuehT
.tsileciohCehtniseciohcelbaliava
retemarapwensaecioh
ctnerrucehtsevaS
.yrogetacroretemaraptxenotspetsdnagnittes
ENTER
•Apply power while holding keys
www. .com [e-mail]1.800.561.8187

18
4 Programming Operations and Parameters
This section details the initial programming options of the S660, presuming all defaults are in
place.
If you are already familiar with the S660 programming, see Appendix B for the Programming
Quick Reference Guide.
To enter the Programming Mode, hold and press S.
To return to the Display Mode, press and hold for four seconds when counter is not in
an option menu.
4.1 Password and Security Controls
The security feature helps prevent accidental changes to counter settings.
The password value determines the counter’s security level, as shown in Table 5.
If you have forgotten the password, see section 3.5; Special Start-Up Modes.
1) After entering the Programming Mode, the first field is Password.
a) If no password has been assigned, the counter will flash between chpass, for
“Change Password” and the default value, 000.
b) To change the password, press when the display shows 000. Use the ar-
row keys to change the flashing digit to the desired number.
c) Press to advance to the next digit. Press to accept the password to counter
memory and press it again to advance to the next parameter, Input Setup.
ENTER
RESET
ENTER
RESET
www. .com [e-mail]1.800.561.8187

19
2) If a password is already in the counter, the display will flash between pass, for “Enter
Password,” and the default value, 000.
a) When the display shows 000, press . Use the arrow keys to change the
flashing digit to the desired number.
Press to advance to the next digit.
b) Press to enter the password as shown. If an incorrect password is en-
tered, access denied will flash on the display. Press an arrow key to return to the
pass display.
c) After entering the correct password, the counter will return to chpass. Press Tto
change the password, or press the key to continue to the Input Setup menu
category.
Table 5. Password Values
ENTER
ENTER
ENTER
RESET
eulaVdrowssaP ytiruceSfoleveL
000
gnittestluafeD-ytiruceSoN
dnauneMgnimmargorPehtotsseccallufswollA
.delbanesistnioptes
otsseccAkciuQ
990-100
erucesylluF
drowssapybderucessiuneMgnimmargorPehT
.delbasidsistnioptesotsseccAkciuQ
dna
999-001
ylnOsseccAkciuQ
kciuQ,drowssapybderucessiuneMgnimmargorP
.delbanesyeknwoddnapuaivstnioptesots
seccA
www. .com [e-mail]1.800.561.8187
