Simrad NSO-II User manual

ENGLISH
NSO-II
Operator Manual
simrad-yachting.com

| 3
Preface | NSO-II Operator Manual
Preface
As Navico is continuously improving this product, we retain the right to make changes to
the product at any time which may not be reected in this version of the manual. Please
contact your nearest distributor if you require any further assistance.
It is the owner’s sole responsibility to install and use the instrument and transducers in a
manner that will not cause accidents, personal injury or property damage. The user of this
product is solely responsible for observing safe boating practices.
NAVICO HOLDING AS AND ITS SUBSIDIARIES, BRANCHES AND AFFILIATES DISCLAIM
ALL LIABILITY FOR ANY USE OF THIS PRODUCT IN A WAY THAT MAY CAUSE ACCIDENTS,
DAMAGE OR THAT MAY VIOLATE THE LAW.
Governing Language: This statement, any instruction manuals, user guides and other
information relating to the product (Documentation) may be translated to, or has been
translated from, another language (Translation). In the event of any conict between any
Translation of the Documentation, the English language version of the Documentation
will be the ocial version of the Documentation.
This manual represents the product as at the time of printing. Navico Holding AS and its
subsidiaries, branches and aliates reserve the right to make changes to specications
without notice.
Copyright
Copyright © 2013 Navico Holding AS.
Warranty
The warranty card is supplied as a separate document.
In case of any queries, refer to the brand website of your display or system:
www.simrad-yachting.com
Declarations and conformance
This equipment is intended for use in international waters as well as coastal sea areas
administered by countries of the E.U. and E.E.A. For more information refer to the separate
NSO-II Installation manual.
About this manual
This manual is a reference guide for operating the Simrad NSO-II systems. It assumes that
all equipment is installed and congured, and that the system is ready to use.
The manual assumes that the user has basic knowledge of navigation, nautical
terminology and practices.
The manual does not cover basic background information about how equipment such as
radars, echo sounders and AIS work. Such information is available from our website:
www.simrad-yachting.com/en/Support/Library.
Important text that requires special attention from the reader is emphasized as follows:
¼Note: Used to draw the reader’s attention to a comment or some important information.
Warning: Used when it is necessary to warn personnel that they should proceed
carefully to prevent risk of injury and/or damage to equipment/personnel.

4 | Preface | NSO-II Operator Manual
The software
This manual is written for Simrad NSO-II Release to Market 1 (RTM1). Please check website
for details on release version.
¼Note: The About dialog above is an example only and may not match the software in-
stalled on your unit!
The manual will be continuously updated to match new software releases. The latest
available manual version can be downloaded from www.simrad-yachting.com
pdf viewer
A pdf viewer provides the opportunity to read the manuals and other pdf les on the
NSO-II screen. NSO-II manuals can be downloaded from www.simrad-yachting.com to an
SD card or USB stick and then copied to the unit’s internal memory.
To maneuver in the pdf, use softkeys and multi-touch gestures as shown below:
Search, Page Up/
Down Tap the relevant softkeys
Scroll pages Touch screen and smoothly move one nger up/down
or left/right
Panning on page Touch screen and smoothly move one nger in any
direction
Zoom in Touch screen and smoothly drag two ngers away
from each other
Zoom out Touch screen and smoothly drag two ngers together
Exit the pdf viewer Tap the Xin the upper right corner

| 5
Contents | NSO-II Operator Manual
Contents
9 Introduction
9 OP40 Remote Control of NSO-II
10 Touch terminology and icons
11 NSO-II screen layout
14 Basic operation
14 Turn power on/o
14 Using the touchscreen
15 Pages and panels
15 Menus
16 Dialog boxes
16 Positioning a Man Over Board mark
17 Charts
17 Chart panel
17 Chart scale
17 Panning the chart
17 Vessel symbol
18 Using the cursor on the chart panel
19 Positioning the chart on the panel
19 Chart settings panel
20 Chart overlay
20 Selecting chart type
21 Insight and CMAP chart options
22 Navionics chart options
26 Waypoints, routes & tracks
26 Waypoints
27 Routes
27 Tracks
28 Waypoints, route and tracks panels
29 Navigating with the NSO-II
29 Goto menu
29 Navigating on the chart
30 Navigating with the autopilot
30 Navigation settings panel
31 Navigation panels
33 Autopilot
33 Safe operation with the autopilot
33 Activating the autopilot
34 Autopilot panel
34 Selecting autopilot modes
34 Autopilot mode overview
36 Controlling steering performance in automatic modes
36 Using the autopilot in standby mode
36 Power steering (NFU)
36 Follow-up steering (FU)
36 AUTO mode (auto compass)
40 NoDrift mode
40 Navigating with the NSO-II
41 Sailing with the autopilot

6 | Contents | NSO-II Operator Manual
43 Wind steering and navigation
43 Using the NSO-II in an AP24/AP28 system
43 Using the autopilot in an EVC system
44 Autopilot settings panel
47 Radar
47 Radar panel
47 Radar operational modes
47 Using the cursor on the radar panel
48 Optimizing the radar image
48 Positioning the radar center
49 Measuring range and bearing to a target
50 Setting a guard zone around your vessel
50 Radar options
52 MARPA targets
53 Radar overlay
54 Radar settings panel
55 Echosounder
55 Setting up the echosounder panel
56 Zooming
57 Adjusting color and gain settings
57 Using the cursor on the echosounder panel
58 Placing a mark on an echosounder image
58 Measuring distance
58 Pausing the echosounder
58 Recording echosounder data
59 Echo options
60 StructureScan™ overlay
60 Echosounder settings panel
62 StructureScan™
62 Setting up the StructureScan™ image
63 Zooming
64 Adjusting the color settings
64 Using the cursor on the StructureScan™ panel
64 Placing a mark on a StructureScan™ image
65 Measuring distance
65 Pausing StructureScan™
65 Recording StructureScan™ data
65 Structure options
66 StructureMap
66 Activating Structure overlay
67 StructureMap sources
67 StructureMap tips
68 Recording StructureScan data
68 Using StructureMap with mapping cards
69 Structure options
70 Instrument panels
70 Dashboards
70 Customizing the Instrument panel

| 7
Contents | NSO-II Operator Manual
71 AIS - Automatic Identication System
71 Target symbols
71 Viewing information about AIS targets
72 Vessel alarms
72 Vessel settings panel
73 AIS SART
75 Audio
75 Enabling audio
75 Audio media bar
75 Setting up the SonicHub speakers
76 Operating the audio source
77 Audio playback
77 Using the FM/AM radio
78 Using the Sirius radio
79 FUSION-Link Support
80 Weather
80 GRIB weather
82 SiriusXM™ weather (North America only)
84 Weather alarms
85 Video
85 Video panel
85 Setting up the video panel
86 FLIR camera control
88 BEP CZone
88 BEP CZone panel
88 CZone modes
89 CZone system overview options
89 CZone info panel
89 CZone AC Main Control Interface (AMCI) and AC Output Interface (ACOI) support
90 Alarm system
90 Type of messages
90 Acknowledging a message
91 Alarms dialog
92 Tools page
92 Vessels
92 Alarms
92 Satellites
93 Find
93 Waypoints/routes/tracks
93 Trip Log
93 Sun/moon
93 Tides
95 GoFreeTM wireless
98 Operating the NSO-II with a wireless device

8 | Contents | NSO-II Operator Manual
100 Customizing your system
100 Page overview
100 Create favorite pages
101 Setting the appearance of the instrument bar
101 Changing system settings
103 Simulator
103 Simulator mode
103 Demo mode
103 Selecting simulator source les
103 Advanced simulator settings
104 Maintenance
104 Preventive maintenance
104 Simple maintenance procedures
104 Software upgrades
104 Trouble shooting
105 Backing up your system data
106 Menu and dialog overview
106 Panel menus
106 Goto menu
107 Settings dialogs
109 Index

| 9
Introduction | NSO-II Operator Manual
Introduction
OP40 Remote Control of NSO-II
Connecting an OP40 Remote Controller to NSO-II will enable a combination of key
operation and multi-touch gestures to operate the functions of the NSO-II. For
details on connection and setup, refer to separate OP40 manual.
MARK VESSEL
STBY
AUTO PWR
MOB
PLOT GO TO
MENU WIN
13
6
7PQRS 8 TUV 9
WXYZ
MNO
5JKL
2ABC DEF
GHI
4
0
STBY
AUTO
OUT
IN
RADARCHART
ECHO NAV
INFO PAGES
DISPLAY
2 3 54 6 7 8
10
1112131415
16
9
1
Key Description
1MOB (Man Overboard). A long press will position a Man Over Board (MOB)
waypoint at the vessel’s current position
2 Display under command LEDs. Indicates which display the OP40 is controlling.
3
DISPLAY: A short press changes which display the OP40 is controlling. A long
press (5 sec.) turns on all NSO/NSO-II units on the network, and enters OP40
conguration and system startup
4PLOT/MARK key. A short press activates the Plot menu, a long press positions a
waypoint at the vessel position
5 Zoom IN zoom OUT buttons for radar, echosounder and chart pages
6GOTO/VESSEL key. A short press activates the Goto menu, a long press centers
the chart to vessel position
7Pkey activates/conrms current selection
8 Rotary knob. The function of the knob is depending on active context
9 X key cancels changes and returns to previous menu level
10 Cursor keypad. Used to move the cursor on the display, and to maneuver in the
menu system
11 WIN key. Used on multiple panels pages. A short press toggles between the
panels, a long press expands active panel to a full page panel and back again
12 MENU key. Used to display the context menu for the active panel/overlay, and for
selecting options in edit mode. 2 x MENU for accessing system settings menu
13 Direct Access Keys (DAK). Provide direct access to a page. Repeated presses of
each DAK cycles through several dierent pages that relate to the DAK
14 PWR key. Used to turn the NSO-II system on/o and to display dialog for light
adjustment, night mode and standby mode
15 STBY AUTO: Autopilot Auto steer/Stand-By
16 Alphanumeric keypad used for entering numbers and text in dialog boxes
1

10 | Introduction | NSO-II Operator Manual
Touch terminology and icons
Multitouch gestures are predened motions used to interact with multitouch devices. The
gesture-function-pairs which applies to the NSO-II are listed below.
Term Icon Description
Tap x1
Tap screen once e.g. on chart item to show basic
information on item or tap a checkbox to set the option
on/o.
Double tap x2
Tap screen twice e.g. double-tab the MENU panel
button to show the Settings dialog
Long press
3s
Tap and hold your nger on the screen for xx seconds
to activate the cursor assist option
Scroll
Touch screen and smoothly move one nger up/down
or left/right e.g. scroll through a list of available options
without activating any option
Flick
Same motion as Scroll, only rapidly ick/swipe one
nger on the screen to quickly scroll through e.g. the
waypoint list. Tap the screen to stop the scrolling.
the listing keeps scrolling after the nger has left the
screen
Pan Touch screen and smoothly move one nger in any
direction to pan the chart
Pinch Touch screen and smoothly drag two ngers together
to zoom out on the chart
Spread Touch screen and smoothly drag two ngers away from
each other to zoom in on the chart

| 11
Introduction | NSO-II Operator Manual
NSO-II screen layout
4 5 6
21 3
7 8
Video
1 Instrument bar
Navigation and sensor info can be viewed in a user congurable instrument bar at the
top of your screen. The button in the top left corner will call up the Pages overview panel
(Home).
2 Panel button
You can tap the text on this area to end an ongoing operation, e.g. to remove the cursor
from the screen, to end route editing and to stop measuring distance.
3 Dialogs
Dialogs are used for user input or for presenting information to the user.
A dialog may be presented in full-screen or as a popup dialog in the centre of the screen.
Depending on type of information or entry, dierent steps are applied to conrm, cancel
and close the dialog.
A dialog can always be closed by tapping the in the upper right corner.
4 Menus
Dierent menus are available to select options and to congure your system. A menu
is displayed by tapping the MENU panel button, or by tapping and holding on the
touchscreen.
5 Application panels
Each application connected to the system is presented in panels, and you can have several
panels presented on the screen at the same time, all depending of what combination is
most suitable at the moment e.g.
1-panel page 2-panels page 3-panels page 4-panels page
See“Customizing
your system”on page 100
for further information

12 | Introduction | NSO-II Operator Manual
The system includes the following page groups, which each have a pre-congured
combination of panels:
Icon Description Main page
Instruments with congurable live data
from system internal, and external sources
such as engines
Instruments
Echosounder Echosounder
Live video Video
Navigation information Steering
Insight, CMAP MAX-N or Navionics charts,
depending on region, plus supporting NV
digital charts as well
Chart
Radar Radar
The main page in each group is a full size panel. All pre-congured pages, except the main
page for the group, can be modied by the user.
In addition to these panels the following applications can be connected and displayed in
other panels:
Panel Description
AIS AIS information as overlay on chart and radar panels
Weather Sirius (North America only) weather graphics and data as overlay on chart
panel
Audio Satellite radio (North America only) and SonicHub functions as a panel
along the bottom of a page
6 MENU panel button
Tapping this panel button will display the menu for the active panel.
7 Alarm message
The system will continuously check for dangerous situations and system faults while the
system is running. When an alarm situation occurs, an Alarm dialog will pop up.
If you have enabled the siren, an audible alarm will be activated when an alarm situation
occurs.
8 Control pages
The Control pages give access to page selection, tools and settings.
The Pages overview panel (Home) is displayed by tapping the PAGES button to the left
of the instrument bar.
You can also switch between the control panels by dragging your nger horizontally on
the screen.
All control panels and sub-panels are always full screen, and they will open on top of your
previous page. When you close one of these panels the display will return to last active
page.
See“Customizing
your system”on page 100
for further information
See““Alarm system”
on page 90 for further
information

| 13
Introduction | NSO-II Operator Manual
Video

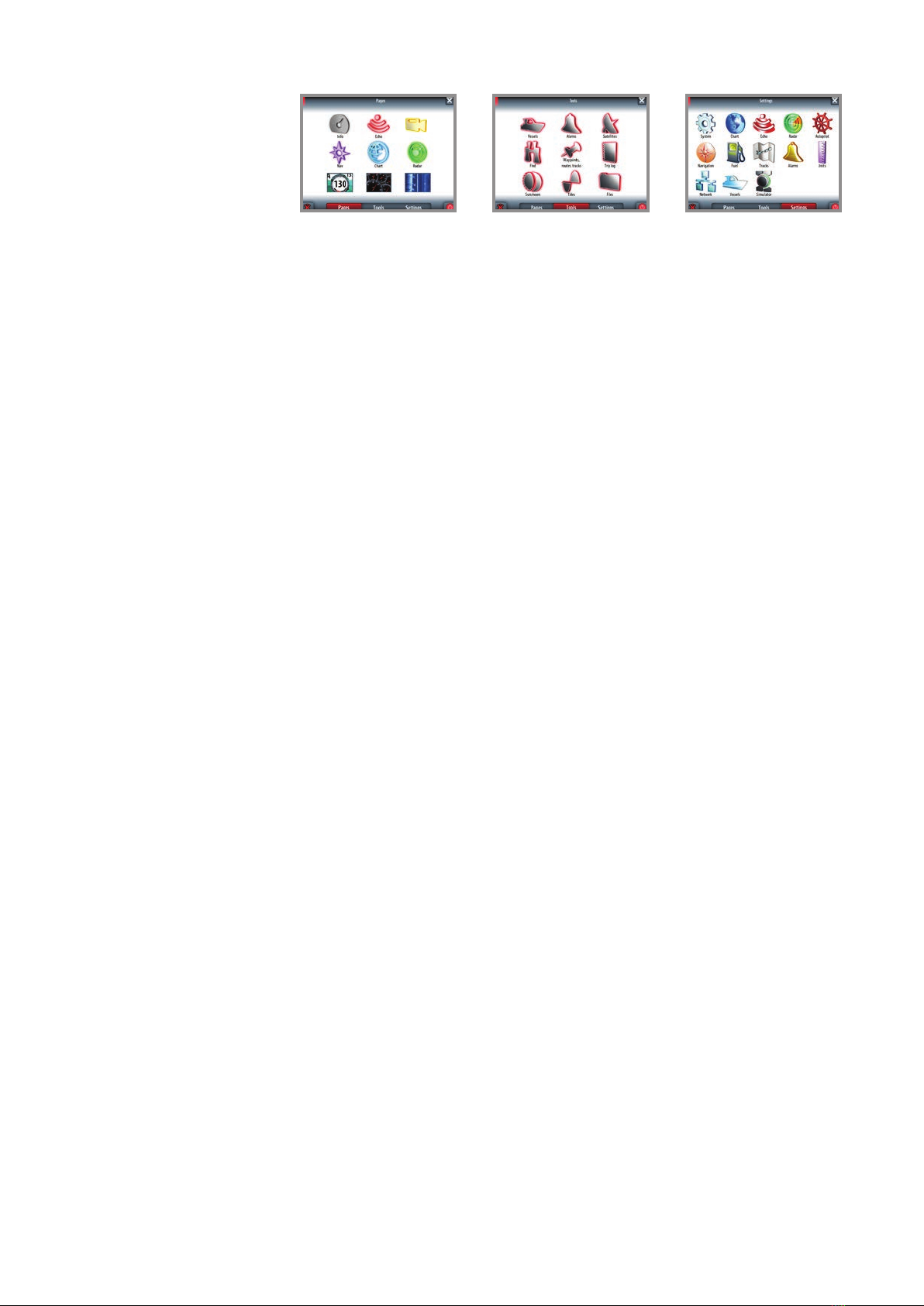

Pages overview (Home page) Tools Settings
Pages overview
The pages overview panel is accessed from any operational mode by tapping the PAGES
button.
The panel includes 6 page group icons together with shortcuts to the autopilot panel, to a
combined chart/echo panel, and to the StructureScan panel.
If a CZone system is connected, this function is accessed from the Home page.
¼Note: To see an autopilot panel an AC12/42 or SG05 autopilot computer must be con-
nected to the system.
Tools
The tools panel include options that are not specic to any panel e.g. status regarding
vessels, alarms, satellites, sun/moon and tides. Also included are waypoints, routes and
tracks library, trip log, sun/moon status, nd function and les.
Settings
The Settings panel gives access to system and vessel setup, application settings, and to
the simulator.

14 | Basic operation | NSO-II Operator Manual
Basic operation
Turn power on/o
Use the power switch on the front of the NSO Processor
or press the PWR key on the OP40 Remote Control to turn
the NSO-II system on/o.
More features via the power key
• Press the OP40 PWR
key or tap the power
button on the Pages
panel
Display dialog for
brightness, night mode,
standby mode and radar
standby/transmit
• Drag to adjust
slider value / repeat
pressing the OP40
PWR key
To change the brightness
level / toggle preset
brightness levels
¼Note: If the power key is released before shut-down is completed, the power o is can-
celled.
A night mode which optimizes the color palette for low light conditions, is included.
¼Note: Details on the chart may be less visible when the Night mode is selected!
When in Standby mode, the backlight is turned o to save power.
You return from Standby mode to normal operation by pressing the OP40 PWR key.
If the radar is transmitting you can set it to standby mode from within the Light dialog.
Using the touchscreen
Basic touchscreen operation on the dierent panels is shown in the table below.
The panel sections later in this manual have more information about panel specic
touchscreen operation.
Operation Menu/
Dialogs
Panels:
Chart Echo Radar
Tap Select/
toggle item Place cursor
Press and
hold Display menu for active panel
Drag
Adjust
slider value
Scroll dialog
Pan chart
(any direction)
Pan echo history
(horizontal
movement)
¼Note: When pressing the screen and holding your nger on the same spot, a circle will
spin around the point. Don’t let go till action circle is completed or until the action is
conrmed by a second beep.
2
Advanced power control
The NSO-II can be wired
and congured to control
the power of displays and
compatible devices. See the
NSO-II Installation manual for
more information.
Power switch

| 15
Basic operation | NSO-II Operator Manual
Pages and panels
Select pages
You access a page group and then select the page to display from the PAGES panel.
Select active panel
In a split screen you have multiple panels, but only one panel can be active at a time.
You will only be able to access the context menu of the active panel. The active panel is
outlined with a red border.
You can switch between active panels by tapping the required panel or pressing the OP40
WIN key.
Menus
Menus are used to operate the system and to adjust settings.
To call up a menu:
• Press the panel button or OP40 MENU key
• Press and hold on active panel
• You select a menu item and toggle on/o menu check boxes by tapping selected item.
• You adjust slide bar values by tapping the item and then dragging your nger on the
slide bar. The value can also be adjusted by turning the OP40 rotary knob.
• Drop-down listings are selected by tapping the item and then the selected value.
Check box Slide bar Drop-down listing
From the OP40 Remote Controller you can also operate a menu by using the rotary knob
to select menu item, and then press the knob to conrm your selection.
By pressing the Xkey the menu will return to previous menu level, and then exit. You can
also close a menu by tapping the screen outside the menu area.

16 | Basic operation | NSO-II Operator Manual
Dialog boxes
You select entry elds and keys in a dialog box by tapping the screen or by using the OP40
rotary knob. You can only enter information when a eld is selected and highlighted.
Some dialog listings might extend beyond the screen area. These dialogs will include a
scroll indicator, and you scroll by dragging the list or turning the OP40 rotary knob.
Numeric and alphanumeric keyboard will automatically
be displayed when required for entering user
information in dialogs. A virtual keyboard is operated by
tapping the virtual keys.
A dialog is closed by tapping the in the upper right
corner.
Placing the cursor
The cursor is by default not shown on any panel.
You tap the screen to place the cursor on a Chart, Radar or
Echosounder panel. The cursor information window will
show position coordinates at the cursor position, and range
and bearing to the vessel.
On an Echosounder panel, the cursor information window will include the depth at cursor
position.
Further use of the cursor is described in the Chart, Radar and Echosounder sections.
To remove the cursor and cursor window from the panel, press the Xkey or tap the Clear
cursor panel button.
Positioning a Man Over Board mark
If an emergency man over board situation should occur, you can position a MOB mark at
the vessel’s current position by pressing the OP40 MOB key for about 5 seconds.
When you activate the MOB function the following actions are automatically performed:
• a MOB mark is positioned at the vessel’s position
• the display switches to a zoomed chart panel, centered on vessel’s position
• the NSO-II creates an active route to the MOB mark
2 s
5 s
Positioning multiple Man Over Board marks
The NSO-II allows for positioning multiple Man Over Board marks.
Multiple MOB marks are positioned by repeatingly pressing the OP40 MOB key. The vessel
will continue to navigate towards the initial MOB mark until the waypoint is reached, or
until you stop the navigation. Navigation to subsequent MOB marks will need to be done
manually.
Cancel navigation
The NSO-II will continue navigating towards the MOB point until the waypoint is reached
or until navigation is cancelled.
Delete a MOB mark
A MOB mark is deleted by selecting the MOB mark and then activating the menu.
It can also be deleted as described in “Waypoints, routes & tracks”on page 26.

| 17
Charts | NSO-II Operator Manual
Charts
The chart function displays your vessel’s position relative to land and other chart objects.
On the panel you can plan and navigate routes, place waypoints, overlay a radar image or
weather information, and display AIS targets.
The NSO-II has dierent embedded cartography depending on region. Units sold in
America will include Insight cartography, while units sold in other regions will have an
embedded basemap plus a cartography SD card. Depending on region, the cartography
options available are CMAP BDS or downloadable Navionics or CMAP for Europe. All units
will support Navionics Platinum Plus and TurboView via the SD Card slot on the NSO
Processor. Charts are shared over the network, so only one chart card per boat is required.
The rst part of this section describes common usage of the charts. Chart options depend
on type of cartography. For more details, see further ahead in this section.
Chart panel
Grid lines *
Extension line *
Range rings *
Track *
Route *
Vessel
Chart range scale
Range rings
interval *
North indicator
Waypoint *
* Optional chart items
¼Note: You turn the optional images on/o individually. See “Chart settings panel” on
page 19.
Chart scale
You zoom in and out on the chart by using the IN/OUT keys or
by using the rotary knob on OP40.
Chart range scale and range rings interval (when turned on) will
be shown in the lower right corner of the chart panel.
Panning the chart
You can move the chart in any direction by tapping the screen
and smoothly move your nger in the desired direction., or
use the 4-way cursor on OP40.
Tapping the Clear cursor button will remove the cursor from
the panel, and the chart center will be positioned at the vessel.
Vessel symbol
Position and orientation
When a GPS and a suitable heading sensor are connected to the system, the vessel
symbol indicates vessel position and heading.
Without a heading sensor tted, the vessel icon will orientate itself using COG (Course
over Ground). If no GPS is available the vessel symbol will include a question mark.
3
or

18 | Charts | NSO-II Operator Manual
Using the cursor on the chart panel
The cursor is by default not shown on the chart panel.
When you tap the screen, the cursor will become visible and the cursor position window
will be activated. When the cursor is active, the chart will not pan or rotate to follow the
vessel.
To remove the cursor and cursor window from the panel, press and hold the OP40
VESSEL key or tap the Clear cursor panel button, which also will center the chart to
vessel position.
Displaying information about chart and chart objects
When you tap a chart item, a waypoint, a route or
a target, basic information for the selected item
will be displayed.
By pressing and holding your nger on a chart
item, all available information for that item will be
shown.
The information can also be displayed by using
the menu.
¼Note: Popup information has to be enabled to
see basic item information.
If the cursor is not active, available information
for objects close to the vessel can be displayed.
If no information is available, the Info menu item
will not be shown.
Placing waypoints
You place a waypoint by tapping the chart panel
on the selected position and then activating the
menu.
Creating routes
You can quickly create routes by tapping the chart panel.
1. Activate the menu
2. Tap the screen to position the rst routepoint, and then continue tapping the screen to
place the remaining routepoints
3. Save the route by tapping the Finish editing panel button or by activating the menu
Dragging waypoints
1. Tap the waypoint to make it active
2. Drag the waypoint to the new position
The waypoint position will automatically be saved.
Measuring distance
The cursor can be used to measure the distance between your vessel and a selected
position, or between 2 points on the chart panel.
1. Tap the screen on the place to where you want to measure
the distance from the vessel
2. Start the measure function from the menu
• A line will be drawn from the vessel center to the cursor
position, and the distance will be listed in the Cursor
Information window
3. Reposition the measuring points by tapping and dragging the icon at either end.
You terminate the measuring function by tapping the Finish measuring panel button.
See “Waypoints,
routes & tracks”on page 26
for more information about
waypoints and routes.

| 19
Charts | NSO-II Operator Manual
Positioning the chart on the panel
Chart orientation
Several options are available for how the chart is rotated in the panel. The chart
orientation symbol in the panel’s upper right corner indicates the north direction.
North up Heading up Course up
North up
Displays the chart with the north direction upward. Corresponds to the usual orientation
of nautical charts.
Heading up
Displays the chart with the vessel’s heading directly up on the chart image. Heading
information is received from a compass. If heading is not available, then the COG from the
GPS will be used.
Course up
Rotates the chart in the direction of the next waypoint when in navigation mode. This
option works only when there’s an active route. If no route is active the heading up
orientation will be used until a route is made active.
Look ahead
This option centres the chart slightly forward of your vessel so that you can maximize your
view ahead.
Chart settings panel
Settings and display options made in the Chart settings page are common for all chart
panels.
For optional chart panel settings, refer the illustration on page 17.
3D boat selection
Determines which icon to use on 3D charts. See “Chart panel” on page 17.
Range Rings
Turns on/o range rings on the chart.
The range rings can be used to present the distance from your vessel to other chart
objects.
The range scale is set automatically by the system to suit the chart scale.
Vessels’ extension lines
Sets the length of the extension lines for your vessel and for
other vessels shown as AIS targets.
The length of the extension lines are either set as a xed
distance, or to indicate the distance the vessel will move in
the selected time period.
Own vessel heading is based on information from the active
heading sensor and COG from active GPS sensor.
For other vessels COG data is included in the message received from the AIS system.
COG
Heading

20 | Charts | NSO-II Operator Manual
Synchronize 2D/3D chart
Links the position shown on one chart with the position shown on the other chart when a
2D and a 3D chart are shown side by side.
Pop-up information
Selects whether basic information for chart items shall be
displayed when you tap the item.
Grid lines
Turns on/o viewing of longitude and latitude grid lines on the
chart.
Waypoints, Routes, Tracks
Turns on/o displaying of these items on chart panels.
Chart overlay
Radar, Structure, AIS and weather information can be displayed as overlay on your chart
panel.
When radar or weather overlay is selected, the chart context menu will be expanded to
include basic function for the selected overlay.
Radar, weather and AIS functions are described in separate sections in this manual.
Selecting chart type
Chart type is selected from the chart options menu, and the selection is set individually
for each chart panel.
If you have Navionics charts available in the SD card slot, you can show Navionics and
Insight charts simultaneously in a split screen.
¼Note: To show C-Map charts, you need to select Insight chart type in the menu.
If Insight chart is embedded and you have a C-MAP card in the slot or on the Ethernet
network, the system will automatically select the chart with most chart details for your
displayed region.
The same applies if you have two Navionics charts available.
Chart data
The NSO-II can use Navionics Platinum Plus and TurboView via SD Card Slot accessible
from the NSO Marine Processor box.
Charts are shared over the network, so only one chart card per boat is required.
¼Note: The system will not automatically switch to embedded cartography if the SD card
is removed. A low-resolution chart will be displayed until you re-insert the SD card or
manually switch back to embedded cartography.
