TILLERPILOT
TP10, TP20 & TP30
SERVICE MANUAL

Issue 4.0 17/09/03 SIMRAD
2
Simrad Margate Ltd
Star Lane, Margate, Kent CT9 4NP,UK
Telephone [phone]
Facsimile [phone]
E-Mail : [email protected]
CONTENTS
1 INTRODUCTION
1.1 Electronic PCBs
1.2 Mechanical Components
2 OPERATION
3 ASSEMBLY INSTRUCTIONS
4 MECHANICAL ASSEMBLY DRAWINGS
5 CIRCUIT DESCRIPTIONS
6 CIRCUIT DIAGRAMS
6.1 Circuit Schematics
6.2 Component Lists and Layouts
7 PROGRAMMING AND CONFIGURATION
8 FAULT FINDING
8.1 Common User Faults
8.2 Common Technical Faults
9 SPARE PARTS DETAIL
9.1 Spares
9.2 Service Aids
9.3 Accessories
10 TECHNICAL NOTES
© 2003 Simrad Margate Ltd
The technical data, information and illustrations contained in this publication were to the best of our knowledge correct at the time of going to print. We
reserve the right to change specifications, equipment, installation and maintenance instructions without notice as part of our policy of continuous
development and improvement. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form, electronic or
otherwise without prior permission from Simrad Margate Ltd. No liability can be accepted for any inaccuracies or omissions in the publication, although
every care has been taken to make it as complete and accurate as possible.

3
Tiller Pilot TP10, TP20 & TP30
Section 1
Introduction

Issue 4.0 17/09/03 SIMRAD
4
1 INTRODUCTION TO THE TP10, TP20 AND TP30 TILLERPILOT
The TP10, TP20 and TP30 Tillerpilots combine highly sophisticated electronics with advanced
software and powerful mechanical drive to provide accurate and reliable steering performance
under a variety of different conditions with minimal current consumption.
TP10 – is suitable for tiller steered sailing yachts up to 10M (34 Ft) in length.
TP20 – offers the same facilities as the TP10 and is fully compatible with the Navico Corus
instrument system to provide a complete navigation system. Options offered include connection to
an external compass, wind sensor or navigational receiver together with additional remote control
facilities.
TP30 – offers the same facilities as the TP20 with an improved re-circulating ball screw drive and
is suitable for tiller steered sailing yachts up to 12.8M (42 Ft) in length.
The main components of the Tiller Pilot are listed below:
Electronics PCBs
Early versions
TP10 PCB (TP10 only)
TP30 PCB (TP 20 & TP30)
Current Versions. The same PCB is used for all products. The wiring
loom carrying the NMEA data is left disconnected in the TP10.
TP10 / 20 / 30 Re-engineered PCB (Common to all)
Mechanical Components
General Assy : TP10
General Assy : TP20
General Assy : TP30

5
Tiller Pilot TP10, TP20 & TP30
Section 2
Operation

Issue 4.0 17/09/03 SIMRAD
6
2 OPERATING SIMRAD
This Service Manual only contains operating instructions for those features of the Simrad Tiller
Pilot range that are not normally available to the end user. For details of normal operation please
refer to the appropriate Simrad Instruction Manual.

7
Tiller Pilot TP10, TP20 & TP30
Section 3
Assembly Instructions

Issue 4.0 24/09/03 SIMRAD
8
3 ASSEMBLY INSTRUCTIONS
General Assembly : TP10
Motor and Drive Assembly. The Bottom Case Assembly is supplied fitted with appropriate
cables. Refer to detail in Drawing Number E03504 and insert the Push Rod Seal E00747, which
has a taper inner bore, into the case with the larger bore of the seal facing outwards. Fit “O” Ring
190026, spacer E02870 and End Cap E02495 and push home. Fit Retainer E03084 and secure
with 2 screws 200002 to hold the end cap, ensuring it is pushed fully in when the two screws are
tightened. Using a small brush, grease the ‘trough’ area and the bore which houses the seal, “O”
ring and spacer. Insert the Drive Assembly E03264 ensuring that the bearing slots into the bearing
housing and the drive belt 280027 is fitted around the pulley. Insert the Motor Assembly E02788
fitted with front and rear Motor Mounts E02502 and E02503 ensuring that the blue wire is
uppermost, the motor sits snugly into the bottom of the retaining slot and the drive belt is engaged
over the motor drive pulley. Check that the motor, belt and drive screw assembly move freely. Fit
Bearing Clamp E02497 on two Nylon Spacers 200115, one on each screw 200137, into the case
bottom and secure the bearing with the two screws. Refer to the sketch below and check that the
belt tension is within +/- 3mm.
Fit the Tiller Connector E02607 into the end of the Push Rod E02522 and screw in, finger tight.
Hall Effect PCB. Fit the Hall effect PCB onto the 2 pillars using 2 nylon washers 200037 as
spacers between the pillars and the PCB, and 2 screws 200139. Ensure that the separation
distance between the Magnets (E03208), seated in the 71 Tooth Pulley (E02505), and the Hall
Effect Devices (140010) does not exceed 1mm.
Main PCB. Feed the power, motor and feedback leads through the 2 grommets 190036 and the
appropriate grommet in the PCB Assembly cover and solder the connections to the PCB. Refer to
drawing and push PCB Assembly firmly onto the four bosses in the PCB Cover E02680. Clip the
compass Assembly E02637 into the Drilled PCB Cover E02680, it can only be fitted one way
round, ensuring that the lugs on the compass assembly line up with the 2 holes in the PCB cover
and push in. Refer to drawing E03504 and ensuring that the wires from the compass to the
connector lay over the PCB, insert plug into the socket on the PCB. Ensure all wires are clear of,
and not fouling the PCB cover seal, and position the PCB Cover complete with the PCB and
compass into the Case Top Assembly E02612. Screw down the PCB cover with 6 screws 200139
and fully tighten. Position the two grommets into case top, and push home into the two slots.
Wrap the ‘Wits” fixing 200196 around the cable loom, and using a screw 200139 fix into the top
cover.

Issue 4.0 24/09/03 SIMRAD
9
Main Seal. Fit the pivot pin into the square section at the rear of the prepared bottom case
ensuring that the pin hangs out of the case with the notch on the pivot facing towards the operating
rod of the tillerpilot. Fold the metal pin into its recess in the lower case. Position the Case Seal
E02498 onto the case bottom ensuring it is pushed fully into the grooved housing. Carefully lift the
case seal from around the area of the pivot pin and using a cotton bud apply Dow Corning 1205
Primer 260029 to the case. Fill a small hypodermic syringe with Dow Corning 3140 Silicone
sealant 260001 and run a small bead of sealant completely around the case seal in the area of the
square as shown below.
Refit the seal onto the case.
Final Assembly. Carefully position the case top onto the bottom ensuring that the case seal is
correctly located all round, squeeze the top and bottom halves of the case together, and fit the 10
screws 200088. Tighten down evenly all round in the sequence shown below:
Post Assembly Test. Remove the Tiller Connector E02607 and push the Tillerpilot Test Syringe
Part No. TP-SRY over the end of the Push Rod E02522. Depress the syringe piston and release,
the piston should return to its original position indicating that the integrity of the case seal has not
been compromised during fitting. Remove the Test Syringe and refit the Tiller Connector.
General Assembly : TP20
Refer to Drawing No. E03505. Assembly is identical to the TP10 with the following exceptions:
Case Bottom. The case bottom includes a third wiring (communications) loom to carry NMEA and
CANBUS data.
PCB Cover E02681. The PCB Cover is drilled with a third access point and grommet to accept
the NMEA and CANBUS data leads.

Issue 4.0 17/09/03 SIMRAD
10
General Assembly : TP30
Refer to Drawing No. E03506. Assembly is identical to the TP20 with the following exception:
Drive Assembly E02618. The Drive Assembly employs a re-circulating ball screw. The assembly
is held in place by the metal mounting plate sitting in the mounting slots in both top and bottom
cases and drive belt tension is adjusted by the inclusion of spacing shims E02754 as required.

11
Tiller Pilot TP10, TP20 & TP30
Section 4
Mechanical Assembly Drawings

Issue 4.0 17/09/03 SIMRAD
12
4 MECHANICAL ASSEMBLY DRAWINGS

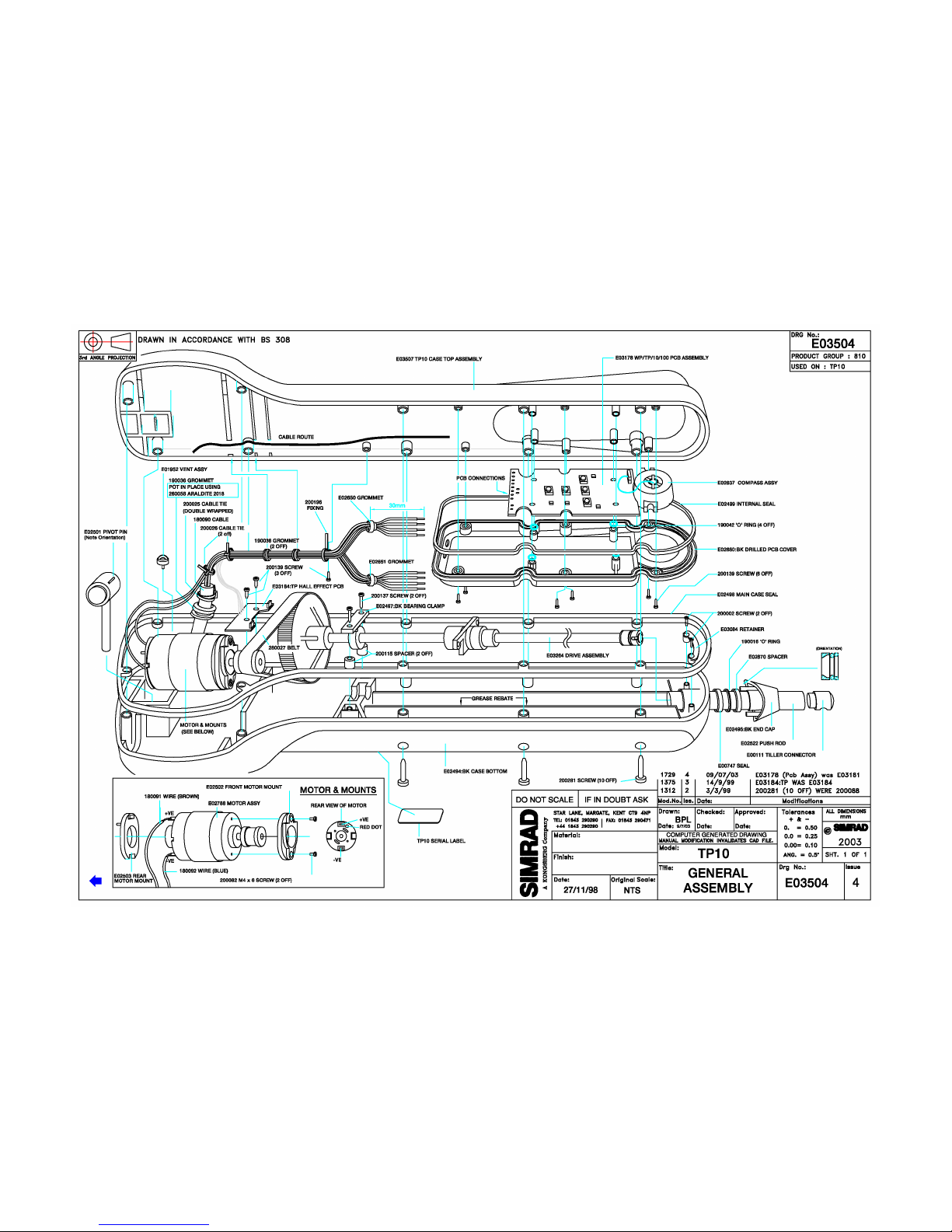

General Assembly : TP10 E03504
General Assembly : TP20 E03505
General Assembly : TP30 E03506

13

14

15

16
Tiller Pilot TP10, TP20 & TP30
Section 5
Circuit Descriptions

Issue 4.0 17/09/03 SIMRAD
17
5 CIRCUIT DESCRIPTIONS
Tillerpilot Common PCB Assembly
Introduction. The PCB Assembly is a common item to all Wheelpilots and Tillerpilots. However,
when the PCB is used in the TP10 or WP10 those components concerned with NMEA and
CANBUS data are present but not in use, these components are highlighted in Red on the Circuit
Diagram Drawing No. E03372.
Supply and Regulation. The Tiller Pilots are designed to work from a 12 V source. Protection
against incorrect polarity is provided by D1 and D4. Capacitors C1and C3 are used as reservoirs
to hold up the supply voltage and reduce any supply dips. Protection against over-voltage spikes
is provided by Resistor R2 and Zener Diode ZD1 and Regulator REG1 provides a 5V regulated
supply. Transient Voltage Suppresser TVS1 protects the MOSFET drive transistors, TR10 to
TR13, from voltage spikes greater than +16V.
Microprocessor. Light Emitting Diodes LED1 to LED4 are driven from the microprocessor IC2
Ports P0.0 and P0.2 to P0.4 and turn OFF when the line goes HIGH via the transistor switches
TR2 to TR5. When the transistors are off, resistors R32, R34, R36 and R38 provide a low current
path for the LEDs to provide low level night illumination. The Audio Resonator AR1 is self
resonating and switches ON when Port P0.5 goes HIGH via the transistor switch TR1 and resistors
R59 and R60. The control key lines on Ports P4.0 to P4.4, normally pulled to +5V via resistors R7
to R11, are “scanned” by the microprocessor to detect if any of the switches have been operated
and pulled the line LOW.
NMEA Data In. NMEA data is optically isolated by IC5 and then fed into Port P2.4 of the
microprocessor. Transistors TR6, TR7 and TR8 and components D6, D7, D8, R17, R18 and R19
form a switch, protected from high voltages, driven from Port P0.1 of the microprocessor. The
switch is used to apply the synchronisation pulse (HR200_SYNC) to the NMEA line for products
employing a Hand (Remote) Controller.
CANBUS Data. CANBUS data in and out is driven by IC3 directly to and from Ports P2.1 and P2.0
respectively.
NB. Components shown in RED on the circuit diagram, Drawing No. E03372, are not in circuit
when the PCB is used with WP10 or TP10. The cable loom to connect them is absent from these
products.
Configuration Links. The Links, L1, L2 and L3, are used to configure the Microprocessor
to either Wheelpilot or Tillerpilot operation and to model versions 10, 20 or 30 in
accordance with the table below:
1 Model Link 1 Link 2 Link 3
TP 10 N / C N / C N / C
WP 10 N / O N /C N / C
TP 20 N / C N / C N / O
TP 30 N / C N / O N / O
WP 30 N / O N / O N / O
LEGEND N / C Normally Closed (soldered)
N / O Normally Open (unsoldered)

Issue 4.0 17/09/03 SIMRAD
18
Microprocessor Reset. Integrated Circuit IC6 is an integrated reset generator for the
microprocessor which produces a reset LOW pulse of approximately 50mS duration at switch on
and whenever a 5v supply failure occurs. In addition to the reset provided by IC6, the
microprocessor has a built in watchdog timer which will create a reset if a software crash occurs for
any reason.
Non-Volatile Memory (NVM). Integrated Circuit IC3 provides 1Kbit of E2memory for the retention
of important data after power down.
Fluxgate (Compass). Two anti-phase signals are provided from microprocessor Ports P1.7 and
P1.6. These signals are buffered by TR15 and TR16 to provide a higher current drive to the
excitation coil of the fluxgate. A reference voltage level of +2 volts is provided by R46 and R53
decoupled by C53. The 2 coils, mounted at right angles, provide output signals proportional to the
sine and cosine of the Earth’s magnetic field. These signals are fed via the electronic switch IC9,
to 2 dual slope integrating analogue to digital converters IC7 and IC 8 plus associated
components. The outputs of the comparator IC7 are fed to the microprocessor Ports P1.4 and
P1.5 which provide input capture facilities. Accurate timing of the conversion is kept by the
microprocessor to provide simultaneous precision analogue to digital conversion of both sine and
cosine signals to avoid errors created by multiplexing the inputs.
Motor Drive. The motor drive signals (MDRIVE_A and MDRIVE_B) are generated from the
microprocessor at Ports P0.7 and P0.6, these lines being LOW when there is no drive and HIGH to
drive. The drive outputs control IC10 and IC11 which are comparators set at threshold levels of
+4V and +1V produced by the resistor network R71, R72 and R73. The comparators invert the
signals and provide the current to switch the MOSFETs in stages which prevents both P and N
channel MOSFETs on the same side of the “H-bridge” configuration, (i.e. TR10 and TR11 or TR12
and TR13), being partially switched on at the same time. When there is no drive, both N-channel
MOSFETs TR11 and TR13 are switched on giving a direct short across the motor to the 0V line
thus providing active braking
EMC. Capacitors with values of 100pF, 100nF and 1nF are extensively used to decouple noise
from switched data lines. Two A.C. coupled connections labelled “CHASSIS” , routed via
capacitors C63 and C64, were provided for interconnection to the internal metalwork for EMC
purposes. Tests have confirmed that connection is not required.
Hall Effect PCB.
Introduction. The Hall Effect PCB is a generic item which can be used for both Tillerpilots TP10,
TP20 and TP30 and Wheelpilots WP10 and WP30. For Tillerpilots, the Hall Effect devices are
mounted vertically into the PCB and horizontally for Wheelpilots. The circuit diagram for the Hall
Effect PCB is given in Drawing No. E03182.
Feedback.Two Hall Effect sensors HE1 and HE2 are mounted on the Hall Effect PCB and sense
the rotation of 2 small bar magnets mounted 1800apart in the pulley wheel. This produces a
quadrature feedback output, at logic levels, FB1 and FB2. The PCB is powered from the host unit
+5V regulated supply, the line being filtered by C1, and signals FB1 and FB2 are fed back to the
microprocessor via pull-up resistors on the host unit PCB.

19
Tiller Pilot TP10, TP20 & TP30
Section 6
Circuit Diagrams

Issue 4.0 17/09/03 SIMRAD
20
6 CIRCUIT DIAGRAMS
Circuit Schematics
Common PCB Circuit Diagram E03372
Hall Effect PCB Circuit Diagram E03182
Component Lists and Layouts
Common PCB Assembly Detail E03178
Hall Effect PCB Assembly Detail E03184
Early Version WP10 / TP10 Assembly Detail E03181
Early Version WP30 / TP20/30 Assembly Detail E03178 (Pre Iss. 6)
