TotalScan
Transducer
Installation manual
www.simrad-yachting.com | www.lowrance.com

Preface
Warning: It is your sole responsibility to install and
use the instrument and transducer(s) in a manner that
will not cause accidents, personal injury or property
damage. Always observe safe boating practices.
Sonar performance: The accuracy of the sonar depth display can
be affected by many factors, including the type and location of the
transducer and water conditions. Never use this instrument to
gauge depth or other conditions for swimming or diving.
The choice, location, and installation of transducers and other
components of the system are critical to the performance of the
system as intended. If in doubt, consult your Navico dealer.
To reduce the risk of misusing or misinterpreting this instrument,
you must read and understand all aspects of the Installation and
Operation manuals. We also recommend that you practice all
operations using the built-in simulator before using this instrument
on the water.
Disclaimer: Navico Holding AS and its subsidiaries, branches and
affiliates disclaim all liability for any use of this product in a way that
may cause accidents, damage or that may violate the law.
Compliance Statements: The TotalScan Transducer complies
with:
•CE under EMC directive 2014/30/EU
•The requirements of level 2 devices of the Radiocommunications
(Electromagnetic Compatibility) standard 2008
The relevant Declaration of Conformity is available at the following
websites under the TotalScan Transducer documentation section:
•http://www.lowrance.com/
•http://www.simrad-yachting.com/
Trademarks: Lowrance®and Navico®are registered trademarks of
Navico. Simrad®is used by license from Kongsberg.
This manual refers to the following Navico products: DownScan
Imaging™ (DownScan), DownScan Overlay™ (DownScan Overlay),
StructureScan®(StructureScan), and StructureScan®HD
(StructureScan HD).
1
2Preface | TotalScan Transducer User Manual

Copyright: Copyright © 2017Navico Holding AS.
Preface | TotalScan Transducer User Manual 3

Check the contents
Included with the TotalScan Transducer, is the transom mounting
bracket assembly parts, and a hardware mounting kit. The
transducer has a 7 m (24 ft) cable attached.
4
1
2
3
6
5
1Bracket
2Insert/name plate
3Transducer
4Plug
5Cable cover
6Transom mounting plate
Hardware mounting kit (included)
Transom mount screws #10x1-1/4" (3)
#10 flat washers for transom mount screws (3)
Bracket assembly bolt M6x40mm (1)
Bracket assembly washer M6 (1)
Bracket assembly rubber spring washer M6 (1)
Bracket assembly nylon lock nut M6 (1)
2
4Check the contents | TotalScan Transducer User Manual

Hardware mounting kit (included)
Transducer attachment screws M4x8mm (6)
Transducer attachment lock washers M4 (6)
Zip ties (2)
Required tools and supplies (not included)
Drill Phillips (cross-head) screwdriver
Drill bits Marine high-grade above- or below-
waterline sealant/adhesive compound
Check the contents | TotalScan Transducer User Manual 5

Installation
Mounting options
The transducer can be mounted on the transom, jackplate, or step.
Use the following table to determine which mounting option is
best suited to your boat/installation preferences.
ÚNote: Before drilling any holes, ensure that holes are drilled in a
safe position. Ensure you do not drill into tanks, reservoirs,
hoses, or cables, etc. and that the holes will not weaken the
structure in any way.
ÚNote: When mounting the transducer, make sure there is
nothing around the mounting location that could interfere with
its sonar beams.
ÚNote: If mounting where the transducer comes out of the
water, for example when the boat is on plane, the sonar will not
work while the transducer is out of the water.
1
2
3
4
1Jackplate mount (Transom bracket)
Requires separately sold Skimmer Transom
mount kit (part no. 000-12603-001)
3
6Installation | TotalScan Transducer User Manual

2Direct Step mount (Flush bracket)
Requires separately sold Skimmer Flush mount kit
(part no. 000-12602-001)
3Step mount (Transom bracket)
4Transom mount (Transom bracket)
TotalScan Transducer mounting options
Transom mount
(Transom bracket)
Refer to "Transomand
stepmount(Transom
bracket)" on page 8
•Keeps transducer in the water when the
boat is on plane, allowing you to track
bottom at high speeds
•Transducer angle can be adjusted so it is
parallel with the water
•Transducer more likely to collide with
obstructions in the water and adds drag
to the boat
Step mount
(Transom bracket)
Refer to "Transomand
stepmount(Transom
bracket)" on page 8
•Transducer is not in the water when boat
is on plane; protects transducer and
prevents drag from transducer
•Transducer angle can be adjusted so it is
parallel with the water
•Sonar does not track bottom when
transducer comes out of the water
"Jackplatemount(Transom
bracket)" on page 12
Requires separately
sold Skimmer
Transom mount kit
(part no.
000-12603-001)
•Transducer is not in the water when boat
is on plane; protects transducer and
prevents drag from transducer
•Transducer angle can be adjusted so it is
parallel with the water
•Allows you to mount transducer without
drilling holes in your boat
•Sonar does not track bottom when
transducer comes out of the water
Installation | TotalScan Transducer User Manual 7

TotalScan Transducer mounting options
"DirectStepmount(Flush
bracket)" on page 10
Requires separately
sold Skimmer Flush
mount kit (part no.
000-12602-001)
•Transducer is not in the water when boat
is on plane; protects transducer and
prevents drag from transducer
•Transducer angle cannot be adjusted so
it is parallel with the water
•Sonar does not track bottom when
transducer comes out of the water
Transducer angle
After mounting the transducer, make sure the transducer is adjusted
so it will be parallel with the waterline in both the horizontal and
vertical axis when moving at trolling speed.
ü
û
û
üûû
Transom and step mount (Transom
bracket)
The transducer can be mounted to the transom or step with the
transom bracket. With these mounting options the transducer can
8Installation | TotalScan Transducer User Manual

be in the water when you are on plane, or can be mounted so it is
only in the water when you are moving at trolling speed.
Transom and Step mount (fiberglass) supplies (not
included)
3 mm (1/8”) Drill bit (Transom
mount pilot holes)
Marine high-grade above- or
below-waterline sealant/
adhesive compound
Transom mount (aluminum hull) supplies (not included)
M4 Machine Screws Marine high-grade above- or
below-waterline sealant/
adhesive compound
Plastic isolating material such as King Starboard (prevents
corrosion between bracket and aluminum hull)

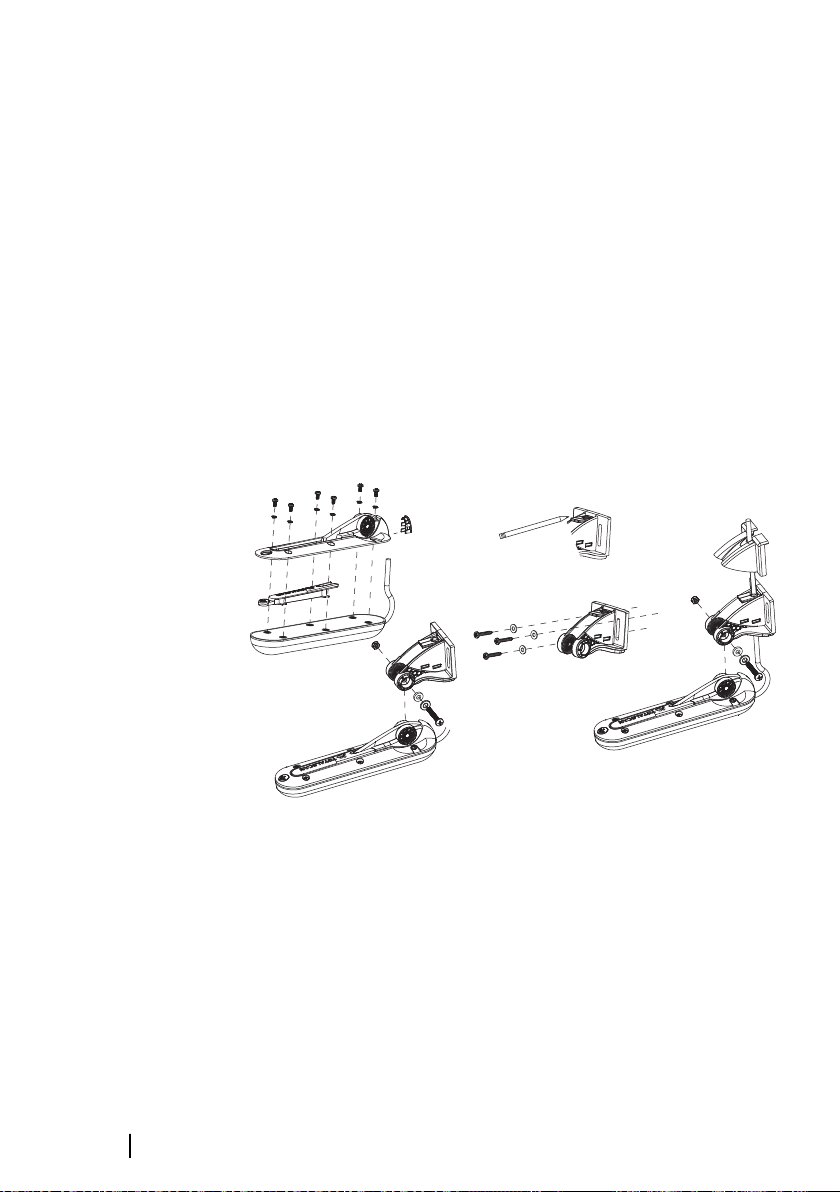

To mount on transom or step using the transom
bracket
1. Snap the plug to the bracket (A)
2. Attach the bracket and name tag insert to the transducer using
the supplied screws (B)
3. Loosely attach the bracket with the transducer to the transom
mounting plate using the supplied bracket assembly bolt,
washer (closest to the screw head), rubber spring washer and
nylon lock nut (C)
4. Hold the whole assembly up against the transom or transom
step to the desired position. If mounting on the transom, align
the bottom of the transducer with the bottom of boat. Use a
pencil to mark the pilot holes (D). The transom mounting plate
has screw slots for adjusting the transducer position height.
5. Drill the pilot holes
6. Apply a marine high-grade above- or below-waterline sealant/
adhesive compound to the pilot holes
7. Disconnect the transom mounting plate from the transducer
bracket
8. Screw the transom mounting plate to the transom using the
supplied screws and flat washers (E)
Installation | TotalScan Transducer User Manual 9

9. Run the transducer cable up through the grommet on the
mounting bracket (F)
10. Reattach the transducer bracket to the transom mounting plate
(G)
11. Set the transducer to the desired angle and tighten the bracket
assembly bolt (with washers) and nylon lock nut
12. Snap the cable cover into place (H). If needed, you can remove
the cable cover by inserting a flat head screw driver along the
curved edge and pry the clip loose on both sides, one side at a
time.
13. Route the cable to the display and connect it to the sonar port.
After the transducer is connected and your boat is in the water, turn
on the Flip Left/Right feature on your display to ensure what is
shown on the left and right side on your display corresponds with
what is on the left and right side of your boat. Refer to your display's
Operation manual for more information.
A
C
EG
F
H
D
B
Direct Step mount (Flush bracket)
Flush mount bracket assembly
To mount the transducer directly to the step (Direct Step mount),
use the flush mount bracket (sold separately, part no.
000-12602-001).
10 Installation | TotalScan Transducer User Manual

Direct Step mount (Flush bracket) installation
X
ÚNote: Do not install the transducer under the hull.
You can mount the transducer in either direction; with the cable
coming out towards or away from the transom when installing with
the direct step (Flush bracket) mount.
ÚNote: Sonar does not track bottom when the transducer is out
of the water.
Direct step mount bracket and supplies (not included)
Pilot hole drill bit (Direct Step
mount pilot holes for self-
tapping metal screws)
Marine high-grade above- or
below-waterline sealant/
adhesive compound
Installation | TotalScan Transducer User Manual 11

Direct step mount bracket and supplies (not included)
Maximum 5 mm (#10 or 3/16”)
self-tapping metal screws
To direct step mount using flush bracket
1. Make sure the boat’s step is the same length or longer than the
transducer.
2. After selecting a mounting location, route the transducer cable
to the location where the display will be installed.
3. Attach the transducer to the surface bracket and hold in the
desired position. Use a pencil to mark pilot holes through the
mounting holes on the surface bracket.
4. Drill the pilot holes.
5. Apply a marine high-grade above- or below-waterline sealant/
adhesive compound to the pilot holes.
6. Align the transducer mounting holes over the pilot holes and
mount the transducer to the step using self-tapping metal
screws (not supplied). Do NOT overtighten the screws;
otherwise you could strip out the fiberglass pilot holes or crack
the mounting holes on the transducer.
7. Connect the transducer cable to the display sonar port.
After the transducer is connected and your boat is in the water, turn
on the Flip Left/Right feature in your display unit to ensure what is
shown on the left and right side on your display corresponds with
what is on the left and right side of your boat. Refer to your display
unit's Operation manual for more information.
Jackplate mount (Transom bracket)
12 Installation | TotalScan Transducer User Manual

ÚNote: Jackplate mount requires the separately sold
'StructureScan 3D, StructureScan HD & TotalScan Skimmer
Transom mount kit' (part no. 000-12603-001).
The transducer transom bracket can be mounted inside or outside
of the jackplate by drilling through the jackplate and then running
bolts through the hinge hole in the side of the bracket into the
jackplate. The illustration above shows the transom bracket
mounted inside the jackplate.
ÚNote: Sonar does not track bottom when the transducer is out
of the water.
Jackplate mount supplies (not included)
6 mm (1/4”) Drill bit (Jackplate
Mount)
M6 (1/4”) jackplate mount bolts
Warning: Before installing the transducer on the
jackplate, lower the jackplate to its lowest setting to
make sure there is enough clearance between the
jackplate, engine, transom, and the transducer. Lack of
clearance could damage the transducer when the
engine is all the way down.
To mount transducer on jackplate using transom bracket
1. Choose a transducer location on the inside or outside of the
jackplate.
2. Adjust the jackplate up and down to make sure the transducer
will not obstruct jackplate movement.
3. Make sure nothing blocks the sonar beam on either side of the
transducer.
4. Route the transducer cable to the location where the display
will be installed.
5. Move the transducer bracket into the desired position and use a
pencil to mark the holes through the hinge hole and hole in the
side of the bracket.
6. Using a 6mm or equivalent drill bit, drill the holes into the
jackplate.
7. Slide the bracket inside the jackplate and align the bracket holes
with holes you drilled in the jackplate.
Installation | TotalScan Transducer User Manual 13

8. Slide M6 bolts with washers into each hole on the side of
jackplate.
9. Guide the bolts through the Transducer mounting bracket
holes.
10. Place a washer over the end of the bolts and tighten the nuts.
11. Connect the transducer cable to the display sonar port.
After the transducer is connected and your boat is in the water, turn
on the Flip Left/Right feature in your display unit to ensure what is
shown on the left and right side on your display corresponds with
what is on the left and right side of your boat. Refer to your display
unit's Operation manual for more information.
14 Installation | TotalScan Transducer User Manual

Dimensions
Transducer and transom mount bracket
292 mm (11.49”)
258 mm (10.15”)
74.5 mm
(2.93”)
59 mm
(2.32”)
62.5 mm
(2.46”)
107.5 mm
(4.23”)
Transducer cable
7 m (24’)
26 mm (1”)
47.9 mm (2”)
24.5 mm
(0.97”)
A 26mm (1”) diameter hole is recommended for cable clearance.
4
Dimensions | TotalScan Transducer User Manual 15

Parts and accessories
The most up-to-date parts and accessories are available at:
www.simrad-yachting.com or www.lowrance.com.
TotalScan Transducer (000-12568-001)
Includes transducer, transom mounting bracket, and assembly and
mounting screws, washers, and nuts.
TotalScan (plastic) Skimmer Transom mount kit
(000-13522-001)
Includes transom mounting bracket, and bracket assembly and
mounting screws, washers, and nuts. For mounting transducer on
transom/step.
StructureScan 3D, StructureScan HD & TotalScan Skimmer
Transom mount kit (000-12603-001)
Includes transom mounting bracket, and bracket assembly and
mounting screws, washers, and nuts. For mounting transducer on
jackplate.
StructureScan 3D & TotalScan Skimmer Flush mount kit
(000-12602-001)
Includes 2 piece Flush mount mounting bracket. Use assembly and
mounting hardware supplied with the transducer.
10-FT 9-Pin Transducer Extension cable (000-0099-006)
5
16 Parts and accessories | TotalScan Transducer User
Manual

Specifications
Sidescan specifications
Max Range 455 kHz - 182 m (600 ft) total, 92 m (300 ft)
on each side
800 kHz - 60 m (200 ft) total, 30 m (100 ft)
on each side
Max Speed 56 kph (35 mph)
Mark objects 24 kph (15 mph)
Optimum speed 16 kph (10 mph) or less
Downscan specifications
Max Depth 92 m (300 ft)
Max Speed 88 kph (55 mph)
Mark objects 56 kph (35 mph)
Optimum speed 16 kph (10 mph) or less
CHIRP sonar specifications
Max Depth High CHIRP - 200 kHz 305 m (1000 ft)
Medium CHIRP - 83 kHz 305 m (1000 ft)
Max Speed 88 kph (55 mph)
6
Specifications | TotalScan Transducer User Manual 17

Troubleshooting tips
Troubleshooting tips
Sonar data is not
displayed
•Check transducer cable is connected to
display unit
•Check sonar is enabled in display unit,
refer to display unit Operator manual
•Check transducer is submerged in the
water
No depth Check range or turn on auto range
Data washed out /
same color Turn down contrast; try different palettes
Left/right data
swapped on screen Toggle the Flip Left/Right feature
No source is
displayed
•Ensure the sonar is enabled in display
unit, refer to display unit Operator
manual
•Check transducer cable is connected to
display unit
7
18 Troubleshooting tips | TotalScan Transducer User
Manual

*988-11051-003*
www.lowrance.com
www.simrad-yachting.com
