Simx Lht0255 User manual

Thank you for purchasing this SIMX LED Button. This light is suitable for sheltered outdoor permanent

use and requires a 220/240VAC power supply. Please read this manual thoroughly before installation

and retain for future reference.

Model: LED Button

INSTALLATION INSTRUCTIONS

This product is suitable for use only with a supply voltage of 220-240V AC 50Hz.

All electrical work must be carried out in accordance with local and national electrical codes as applicable.

We strongly recommend that this light ﬁtting is installed by a registered electrician.

Always switch power off prior to installation. A means of mains power isolation must be installed on the

circuit for the purpose of safe access for any internal cleaning or maintenance.

This light ﬁtting is not intended for use by persons (including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for their safety. Young children should

be supervised to ensure that they do not play with the appliance.

Any changes or modiﬁcations made or attempted to this product, without the prior written approval of the

manufacturer, will void any and all stated warranties.

IMPORTANT

TECHNICAL SPECIFICATIONS

Power source: 230 AC 50Hz

LED Type: SMD5630 x 12

Rated load: 6W max

Luminous ﬂux: 430 lumens

CRI (Ra): >80

Ingress Protection: IP44

Construction: Alloy, Polycarbonate, Stainless Steel

Warranty: 2 Years

Distributed by: Simx Limited

Ph: +64 9 259 1660 | Technical Support Ph: +64 9 259 1662

Email: [email protected] | www.simx.co.nz

Simx reserves the right to alter technical specications without prior warning

INSTALLATION/WIRING GUIDE

This light ﬁtting is rated to IP44. This means that it is suitable for use in sheltered outdoor

locations. Please ensure the desired location does not exceed this rating. It is suitable for

ceiling or wall mounting. This light ﬁtting is Class 1 and must be earthed for electrical safety.

MANUFACTURERS EXTENDED WARRANTY

PUB1308 Iss01 01/15

Model Description

LHT0255 LED Button Round Plain Black

LHT0256 LED Button Round Plain White

LHT0257 LED Button Round Plain Silver

LHT0258 LED Button Oval Plain Black

LHT0259 LED Button Oval Plain White

LHT0260 LED Button Oval Plain Silver

Model Description

LHT0261 LED Button Round Bar Black

LHT0262 LED Button Round Bar White

LHT0263 LED Button Round Bar Silver

LHT0264 LED Button Oval Bar Black

LHT0265 LED Button Oval Bar White

LHT0266 LED Button Oval Bar Silver

This product is guaranteed by SIMX Ltd for 24 MONTHS from the date of purchase against faulty materials

or workmanship which affects its designed ability to operate. During this period if the product has a

defect of this nature it will be repaired or replaced free of charge by SIMX with the same item, or a similar one of

higher speciﬁcation. ON CONDITION THAT:

The buyer returns it to the seller from whom it was bought, freight paid.

The product has been bought by the user. i.e. a receipt/sales invoice is produced as proof of purchase.

The product has not been misused or handled carelessly, installed in anyway contrary to the installation instructions,

or installed in any unusually exposed or harsh environmental conditions.

This guarantee excludes liability for discolouration of paint or plastic, or any user replaceable parts. It does not

confer any rights other than those expressly set out above and does not cover any claims for consequential loss

or damage.

Our Goods come with guarantees that cannot be excluded under the Australian and New Zealand Consumer

Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably

foreseeable loss or damage. You are also entitled to have the Goods repaired or replaced if the Goods fail to be of

acceptable quality and the failure does not amount to a major failure.

Y / G

BLUE

BROWN

Fig A Fig B

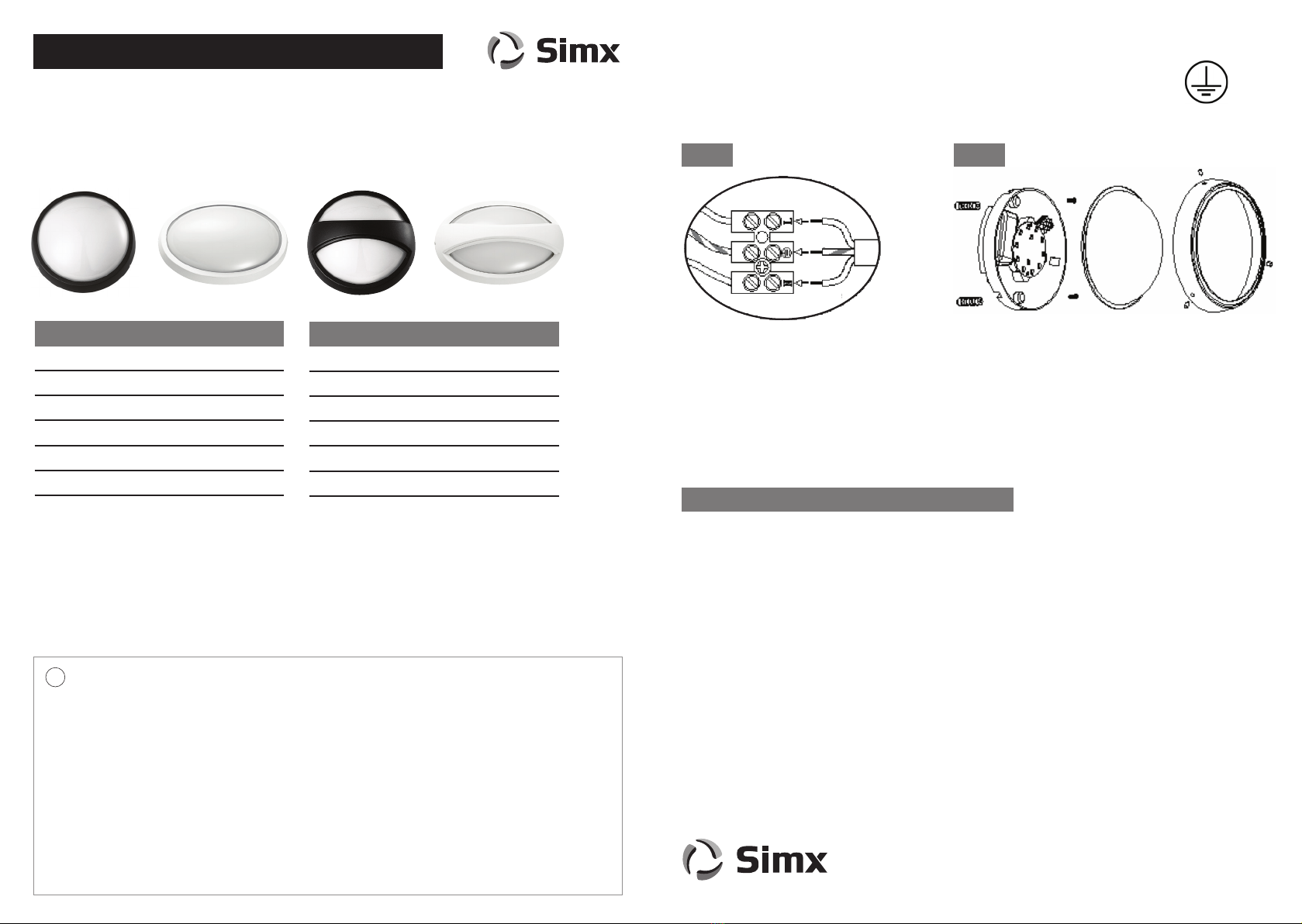

• Disconnect the power supply, and feed the power cable through the hole in rear of the housing.

• Secure light ﬁtting to the mounting surface with the supplied screws.

• Terminate the wiring (Fig A).

• Reassemble light ﬁtting carefully (Fig B). Ensure all glands are in place and the front trim is secured ﬁrmly.

• Reconnect power supply and test.
