Sinbo SVC 3495 User manual

SVC 3495, SVC 3496 VACUUM CLEANER
INSTRUCTION MANUAL
EN
RU

- 1 -
1
2
4
6
5
9
3
7
8

- 2 -
ENGLISH
SVC 3495, SVC 3496
VACUUM CLEANER
INSTRUCTION MANUAL
TECHNICAL SPECIFICATIONS
1. Dust bin full indicator
2. Power cord winding button
3. Noise: <75dB
4. Suction power: >18Kpa, 250 W
5. Dust bag Capacity: 2.5L
6. Cord Length 3.5M with VDE plug
7. Supply voltage: AC220V-240V, 50Hz,
8. Maximum power consumption: 1600W
DESCRIPTION
1. Flexible hose handle, 2. Composite extension pipe, 3. Flexible hose, 4. Floor/carpet
brush, 5. Wheel, 6. Telescopic pipe clamp, 7. Power cord winding button, 8. On/Off Button
9. Grid with inlet filter
ACCESSORIES: Flexible hose, Composite extension pipe, Floor/carpet brush, 2 Attachments
SAFETY MEASURES
Read this instruction manual carefully before using the unit and keep it for the whole
operation period.
Use the unit for its intended purpose only, as specified in this manual. Mishandling of
the unit may lead to its breakage and cause harm to the user or damage to his/her
property.
To avoid the risk of fire, electric shock and to prevent injury, observe the following safety
measures.
• Before connecting the unit to the mains, make sure that the voltage specified on the
unit corresponds to your home mains voltage.
• To avoid fire, do not use adapters for connecting the unit to the mains.
• Do not leave the plugged in vacuum cleaner unattended. Always unplug the vacuum
cleaner from the mains if it is not being used, before changing attachments or before
unit maintenance.
• To prevent the risk of electric shock, do not use the vacuum cleaner outdoors, do not
use it for collecting water or any other liquids (do not use the vacuum cleaner on wet
surfaces).
• Carry the vacuum cleaner holding it by the carrying handle only.
• Do not use the power cord for carrying the vacuum cleaner, do not close the door if the
power cord runs through the doorway, do not let the power cord come in contact with

- 3 -
sharp corners or edges of furniture, and with hot surfaces.
Do not run over the power cord with the vacuum cleaner while room cleaning as this can
damage it. Always first switch the vacuum cleaner off with the ON/OFF button and only
after that take the power plug out of the mains socket.
• When unplugging the unit, pull the plug but not cord.
• Do not touch the plug or the body of the vacuum cleaner with wet hands.
• Hold the winding cord with hand to avoid the plug hitting against the floor.
• Do not cover the unit outlet with any objects.
• Do not switch the unit on if any of its openings are blocked.
• Keep hair, free hanging clothes, fingers and other parts of your body away from the
vacuum cleaner air inlets.
• Be especially cautious while cleaning the stair landings.
• Do not use the vacuum cleaner for collecting such highly inflammable liquids as gasoline
and solvents, do not use the vacuum cleaner in places where such liquids are stored.
• Do not use the vacuum cleaner for collecting water and other liquids, burning or
smoking cigarettes, matches, cinders as well as fine dust, for example, of plaster,
concrete, flour or ashes.
• Do not use the vacuum cleaner if:
– the dust bag is not installed or installed improperly;
– the inlet and outlet filters are not installed.
• Do not immerse the unit body into water or other liquids.
• Use only the accessories and attachments supplied.
• Clean the vacuum cleaner regularly.
• Keep the vacuum cleaner in a dry cool place.
• Do not use the vacuum cleaner to clean pets.
• Close supervision is necessary when children or disabled persons are near the operating
unit.
• This unit is not intended for usage by children. During the unit operation and breaks
between operations cycles, place the unit out of reach of children.
• The unit is not intended for usage by physically or mentally disabled persons (including
children) or by persons lacking experience or knowledge if they are not under supervision
of a person who is responsible for their safety or if they are not instructed by this person
on the usage of the unit.
• Do not leave children unattended to prevent using the unit as a toy.
• For children safety reasons do not leave polyethylene bags, used as packaging,
unattended.
Attention! Do not allow children to play with polyethylene bags or packaging film.
Danger of suffocation!
• Regularly check the power plug and power cord integrity for damages.
• Never use the unit if the power cord or the power plug is damaged, if the unit works
improperly or after it was dropped.

- 4 -
• Do not attempt to repair the unit. Do not disassemble the unit by yourself, if any
malfunction is detected or after it was dropped, unplug the unit and apply to any service
center.
• Transport the unit in the original package only.
• Keep the unit out of reach of children and disabled persons.
THE UNIT IS INTENDED FOR HOUSEHOLD USE ONLY, ITS COMMERCIAL USAGE AND
USAGE IN PRODUCTION AREAS AND WORK SPACES IS PROHIBITED.
BEFORE THE FIRST USE
After unit transportation or storage at low temperature keep it for at least three hours
at room temperature before switching on.
– Unpack the unit, remove any stickers and package materials that can prevent the
vacuum cleaner operation.
– Check the unit for damages; do not use it in case of damages.
– Before switching the unit on, make sure that your home mains voltage corresponds
to the unit operating voltage.
ASSEMBLING THE VACUUM CLEANER
After unit transportation or storage at low temperature keep it for at least three hours
at room temperature before switching on.
– Unpack the unit completely and remove any stickers that can prevent unit operation.
– Check the unit for damages; do not use it in case of damages.
– Before switching the unit on, make sure that your home mains voltage corresponds
to the unit operating voltage.
Note: Before changing the attachment or replacing the dust bag switch the vacuum
cleaner off and unplug it.
Attaching and removing the flexible hose
• Insert the flexible hose ending into the air inlet.
• Insert the hose with a slight effort until the clamps locking.
• If you need to remove the flexible hose, press the clamps and detach the hose.
Attaching the pipe and the attachments
• Attach the extension pipe to the flexible hose handle.
• Extend the lower part of the extension pipe to the required length, having preliminary
pressed the clamp.
• Choose the necessary attachment – floor/ carpet brush, furniture brush or combined
crevice nozzle brush – and attach it to the extension pipe.

- 5 -
USING OF THE BRUSH ATTACHMENTS
Floor/carpet brush
Set the switch on the brush to the required position (depending on the type of the surface
being cleaned).
Furniture brush
Use the attachment to clean the furniture upholstery.
DUSTBAGS
The delivery set includes a reusable cloth dust bag
USING THE VACUUM CLEANER
Safety measures
• Do not use the vacuum cleaner near hot surfaces, such as ashtrays and in places where
inflammable liquids are stored.
• Take sharp objects away from the floor before cleaning to prevent unit damage.
• If the suction power of the vacuum cleaner decreases rapidly while cleaning, switch
off immediately and check the pipe or the flexible hose for obstruction. Switch the vacuum
cleaner off, unplug it, remove the obstruction and only after that you can continue cleaning.
OPERATION
Attention! Switch the vacuum cleaner on only with the dust bag and inlet and outlet
filters installed. Always make sure that the filters are installed properly.
• Before using the unit, unwind the power cord to the required length and insert the
power plug into the mains socket.
• The yellow mark on the power cord indicates the maximum cord length. Do not unwind
the power cord further than the red mark.
• Press the ON/OFF button to switch the vacuum cleaner on.
• During the operation you can control the suction power using the electronic suction
power control and the manual suction power control on the flexible hose handle.
• After room cleaning switch the vacuum cleaner off by pressing the ON/OFF button and
unplug the unit.
• To wind the power cord, press the power cord winding button, hold the winding cord
with your hand to avoid its whipping and damage.
CLEANING AND CARE
• If the full dust bag indicator turns «red» during the vacuum cleaner operation, replace
the paper dust bag or clean up the cloth dust bag.
Note: The paper dust bag is disposable, dispose of the dust bag when it is filled up.
• Before cleaning the cloth dust bag switch the vacuum cleaner off and unplug it.

- 6 -
• Open the dust bag compartment lid by pressing the clamp.
• Take the dust bag out from the holder.
• To clean the cloth dust bag place it above the trash bin and remove the plastic clamp.
If necessary, wash the cloth dust bag with warm water and neutral detergent and dry
thoroughly, after that install the plastic clamp back to its place.
• Install the dust bag into the holder.
• Close the dust bag compartment lid, slightly press on the lid until locking.
Note:
– do not try to close the lid without the dust bag installed, otherwise you can damage the
locking system;
– always make sure that the dust bag is installed properly before closing the dust bag
compartment lid.
CLEANING THE FILTERS
Provide that the inlet filter and the outlet HEPA filter are always clean, because the
overall performance of the vacuum cleaner depends on it; clean the filters no less than
3-4 times a year, and more often at severe obstruction.
Cleaning the inlet filter
• Switch the vacuum cleaner off and unplug it.
• Open the dust bag compartment lid pressing on the lid lock
• Remove the dust bag
• Take the inlet filter grid and remove it pulling upwards.
• Remove the inlet filter from the grid and wash it with warm water, dry carefully and
install back to its place.
Notes: Before installing the inlet filter make sure that it is clean and dry.
• Install the dust bag back to its place.
• Close the dust bag compartment lid.
Cleaning the outlet HEPA filter
• Switch the vacuum cleaner off and unplug it.
• Remove the outlet filter grid by pressing the lock and remove the HEPA filter.
• Wash the HEPA filter under slightly warm water jet. Do not wash filters in a dishwashing
machine.
• Dry the HEPA filter. Do not dry the HEPA filter with a hairdryer.
• Install the HEPA filter back to its place.
• Install the outlet filter grid back to its place.
Notes:
– Before installing the HEPA filter make sure that it is clean and dry.
– Do not dry the HEPA filter with a hairdryer.

Vacuum cleaner body
– Wipe the vacuum cleaner body with a soft, slightly damp cloth and then wipe it dry.
– Do not immerse the body of the vacuum cleaner, the power cord and the power plug
of the unit into water or other liquids. Provide that no liquid gets inside the vacuum
cleaner body.
– Do not use any solvents or abrasives for cleaning the vacuum cleaner body and the
accessories.
STORAGE
• Before taking the vacuum cleaner away for long term storage, clean its body, the dust
bag and the filters.
• For easy storing use the brush storage place and the bottom part of the vacuum cleaner
body.
• Keep the unit out of reach of children and disabled persons.
DELIVERY SET
1. Vacuum cleaner with the filters and the cloth dust bag installed – 1 pc.
2. Flexible hose – 1 pc.
3. Composite extension pipe – 1 pc.
4. Floor/carpet brush – 1 pc.
5. Attachments – 2 pcs.
6. Instruction manual – 1 pc.
RECYCLING
For environment protection do not throw out the unit and the batteries with usual
household waste after its service life expiration; apply to the specialized center for further
recycling. The waste generated during the disposal of the unit is subject to mandatory
collection and consequent disposal in the prescribed manner.
For further information about recycling of this product apply to a local municipal
administration, a disposal service or to the shop where you purchased this product.

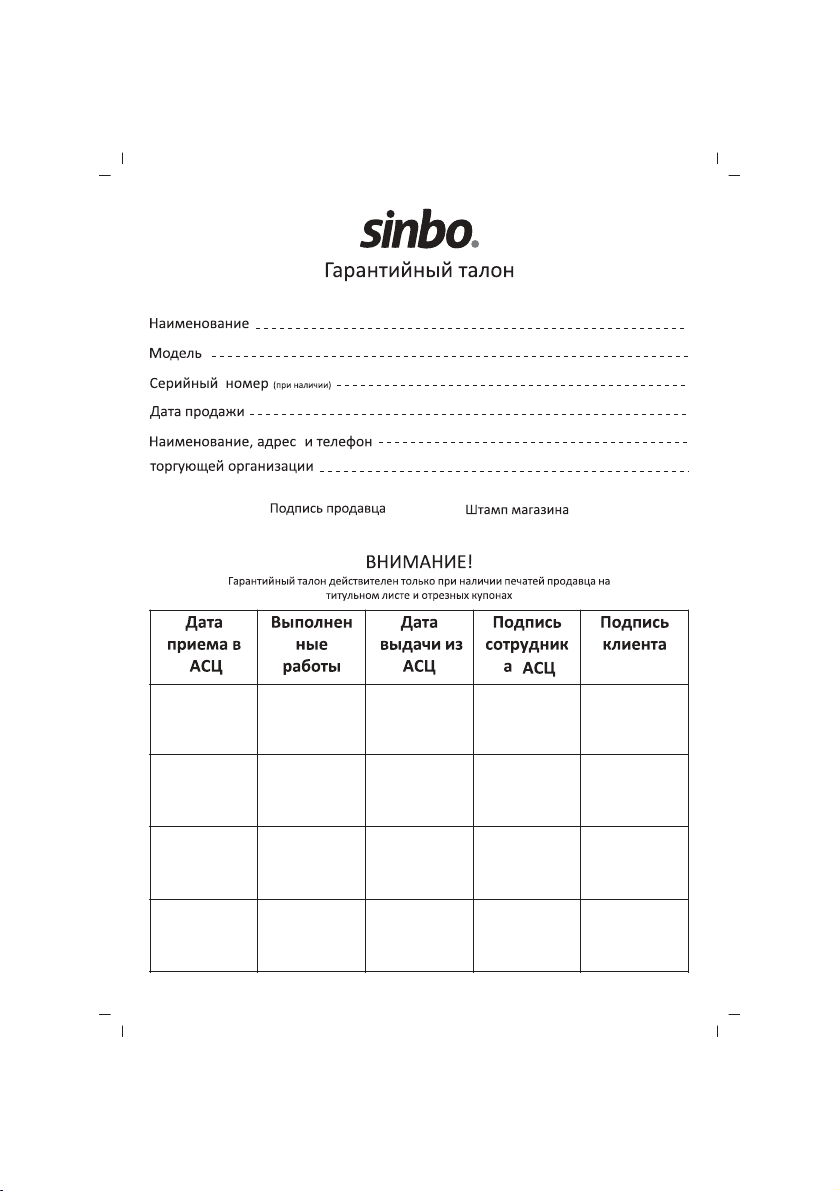

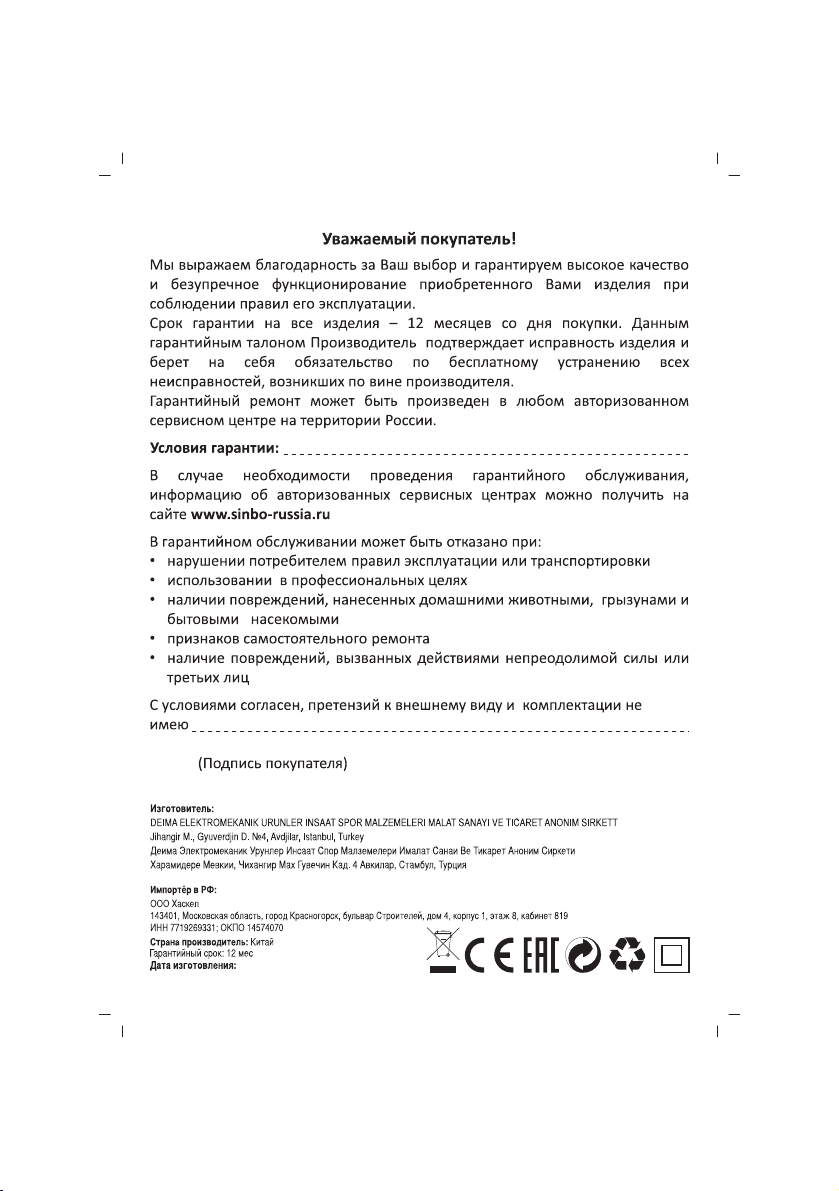

Guarantee
Details regarding guarantee conditions can be obtained from the dealer from whom the
appliance was purchased. The bill of sale or receipt must be produced when making any
claim under the terms of this guarantee.
