Sinexcel SEC 240kW Series User manual

SEC 240kW Series DC Fast Charger
User Manual
Issue
Date
01
2023-07-03
©Copyright 2023 Sinexcel. All rights reserved

SEC 240kW Series DC Fast Charger--- User Manual
Disclaimer
Sinexcel shall not be liable for any consequence caused by any of the following
events:
Warranty expiration of the warranty service.
Failure to follow the operation instructions and safety precautions in this
document,and the resulting equipment malfunction, component damage,
personal injuries, or property damage are beyond the warranty scope.
Installation or use in environments which are not specified in related
international standards.
Incorrect transportation, removal, storage, installation, or use.
Unauthorized modifications to the product or software code or removal of
the product.
Device damage due to force majeure (such as lightning, earthquakes, fire,
and storms)
Unauthorized modifications to the product nameplate or serial number or
product appearance.
Storage conditions that do not meet the requirements specified in this
document, unused products should be stored in packing cases and placed in
a dry,( After delivery shall be started and test equipment operation status
within 6 months, otherwise it shall be return to Sinexcel for aging test and
payable the shipping cost.)
Ensure that the area required for heat dissipation, Otherwise, the equipment
may become faulty, and the resulting equipment malfunction, component
damage, personal injuries, or property damage are beyond the warranty
scope.
Installation or use by unqualified personnel.
This document content here is indicative only. If there is inconsistency
between the content and the actual product, the actual product shall govern.
Notice
Before connecting the power supply, ensure that electrical connections are correct. Do not
connect or disconnect power cables with power on.
Personnel who will operate the equipment, including operators, trained personnel, and
professionals, should possess the local national required qualifications in special operations such
as high-voltage operations, working at heights, and operations of special equipment.
Copyright © Shenzhen Sinexcel Electric Co.Ltd.2023. All rights reserved.

SEC 240kW Series DC Fast Charger--- User Manual
Foreword
Reader Object
This document (this guide) is primarily intended for the following engineers：
Technical Support Engineer
Maintenance Engineer
Engineering installation team
Symbol Conventions
The following symbols may appear in this document and their description are as follows.
Symbol
Description
DANGER
Dangerous Voltage
Dangerous voltages can cause death or injury.
WARNING
Hazard Warning
May cause equipment damage and personal injury.
ATTENTION
Cause of Hazard
Failure to comply may result in equipment damage or functional
failure.

SEC 240kW Series DC Fast Charger--- User Manual
Table of Contents
1 Safety Precautions .................................................................................................................................. 1
1.1 Special symbols for warnings and dangers ................................................................................. 1
1.2 Safety instructions for use ...............................................................................................................2
1.3 Safety instructions for operation .................................................................................................... 2
2 Product Overview .................................................................................................................................... 4
2.2 SEC series products model .................................................................................................................. 4
2.3 Product types description ................................................................................................................... 4

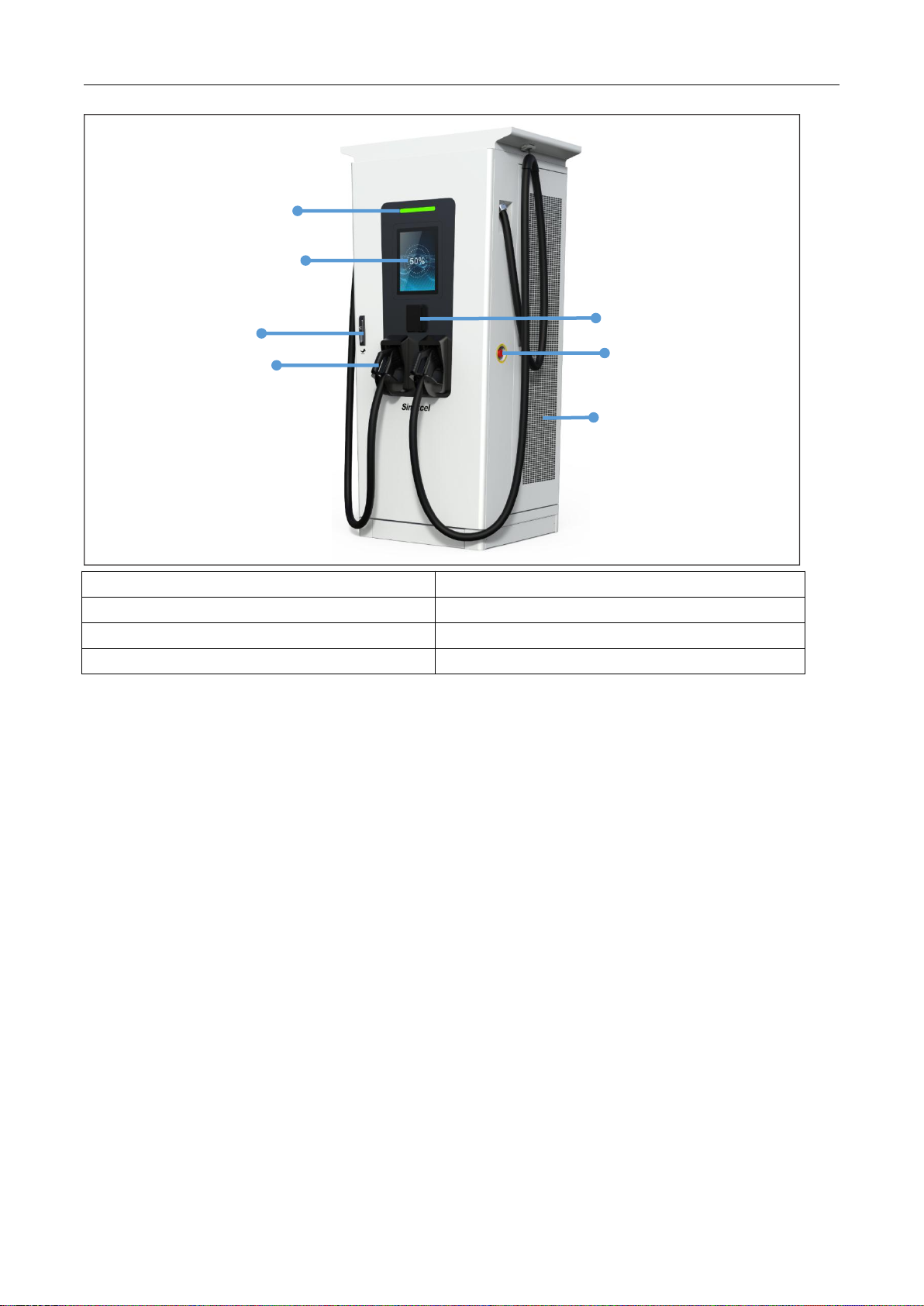

2.4 Product views ...................................................................................................................................... 5
2.5 Product characteristics ........................................................................................................................ 6
2.6 Parameter table of product specifications ..........................................................................................7
3 Installation instructions............................................................................................................................9
3.1 Equipment dimensions ........................................................................................................................9

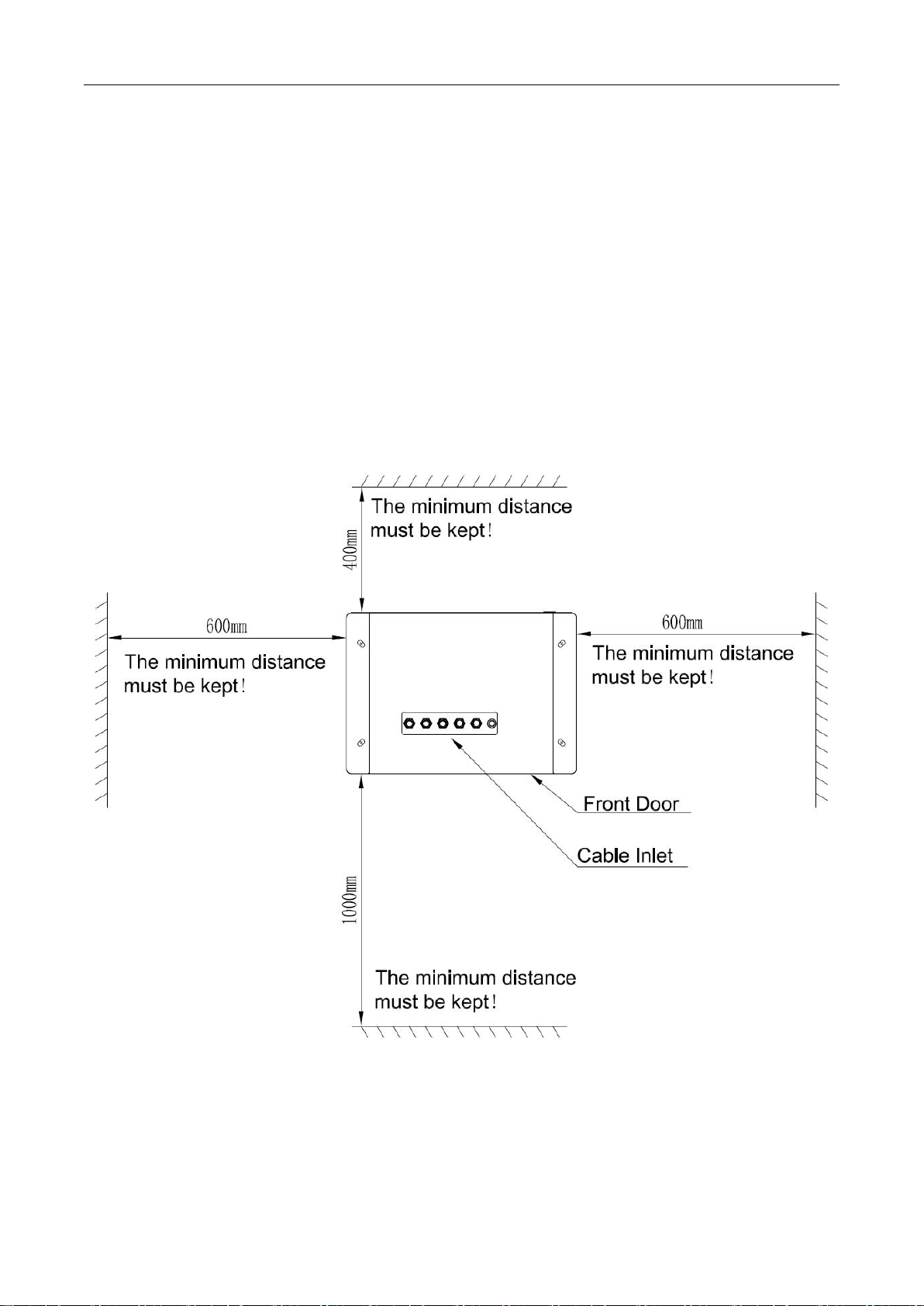

3.2 Equipment installation requirements ................................................................................................. 9
3.3 Construction of distribution cables ................................................................................................... 11
3.3.1 Layout requirements of distribution cables ................................................................................11

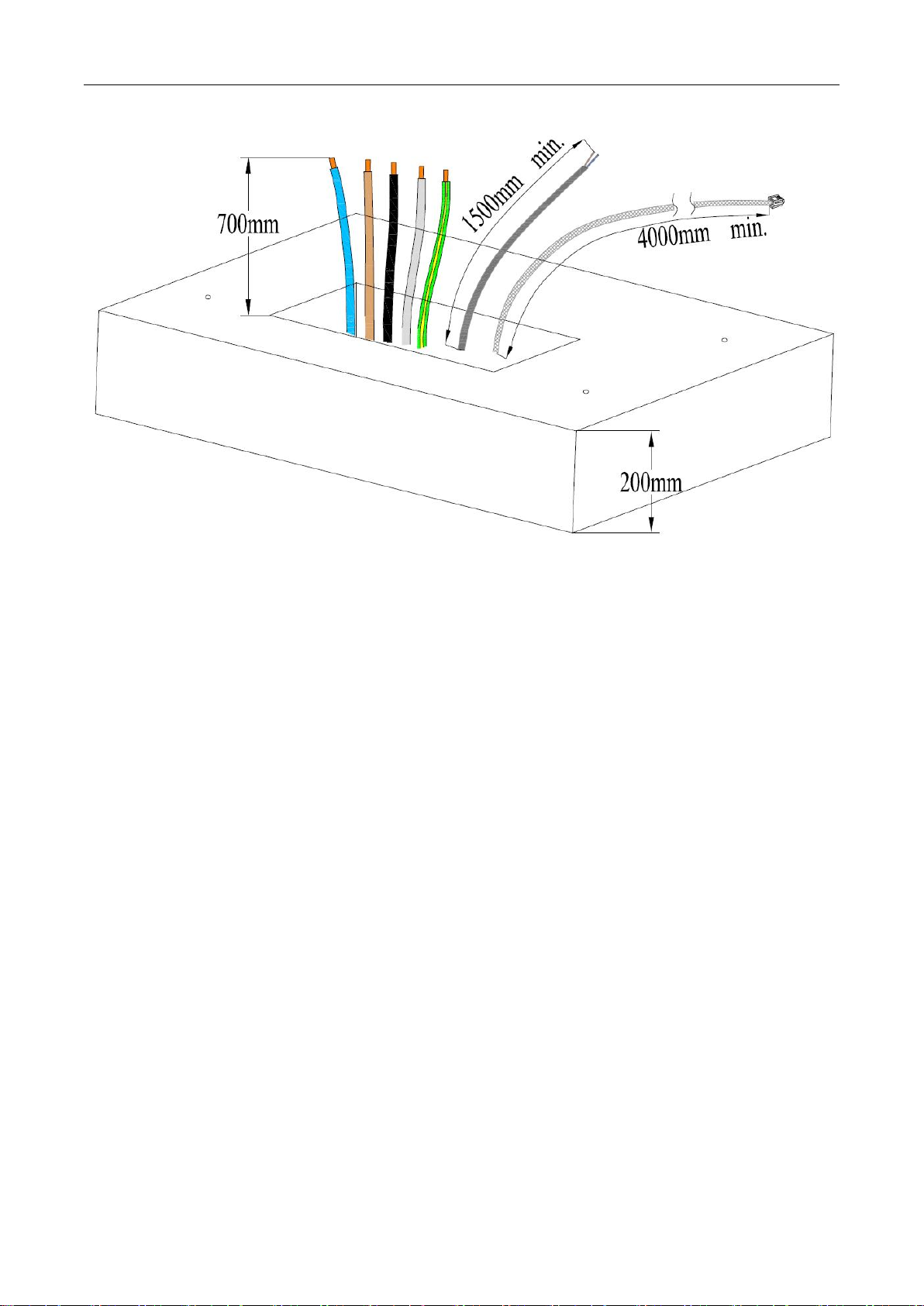

3.3.2 Process requirements of distribution cables .............................................................................. 12
3.3.3 Cable specifications for AC input (Recommended) .....................................................................13

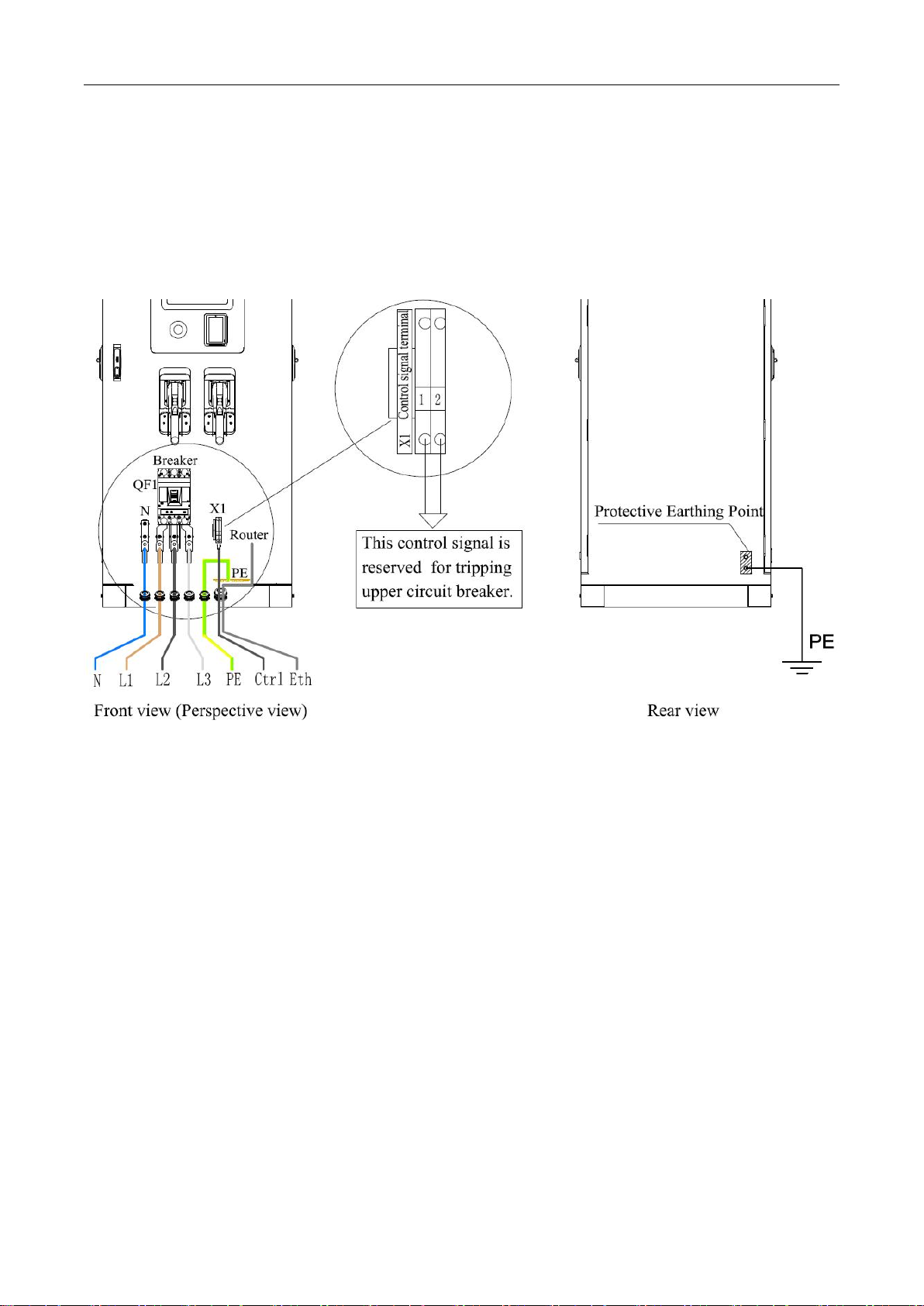

3.3.4 Internal wiring diagram of equipment ........................................................................................ 14
3.4 Inspection after installation........................................................................................................... 15
3.5 Special version ............................................................................................................................... 15
4 Operation interface................................................................................................................................17
4.1 Charging process ........................................................................................................................... 17
4.1.1 Standby interface...................................................................................................................... 17
4.1.2 Waiting for connector insertion interface.............................................................................18
4.1.3 Connecting interface...............................................................................................................19
4.1.4 Select charging mode interface............................................................................................ 20
5 Simple troubleshooting......................................................................................................................... 25
6 After-sales service ................................................................................................................................. 26

SEC 240kW Series DC Fast Charger--- User Manual
1
1 Safety Precautions
1.1 Special symbols for warnings and dangers
Symbol
Symbol word
Description
Danger
Since some parts of this power system are under
high voltage during operation, it is fatal for direct
contact or indirect contact with these parts.
Danger
Construction operation of high voltage lines may
cause fire or electric shock. The wiring area and the
area where the line passes through for AC cables
must comply with National regulations and norms.
Only personnel who are qualified to work with high
DC and AC voltage are allowed to install and
maintain the DC Charger.
Danger
It is strictly forbidden to carry out live installation and
maintenance work during thunderstorms.
Danger
During operation, it is strictly forbidden to
short-circuit the positive and negative of the DC
Charger DC distribution or short-circuit any DC
distribution polarity to Ground. The DC Charger is a
high voltage DC power supply, and short circuits may
cause damage to the DC Charger and personal safety
hazards.
Warning
Special tools must be used during various operations
of high DC and AC voltages.
Warning
During the handling of equipment by hand, it is
necessary to wear protective gloves to prevent
injuries caused by sharp objects.
Attention
Make sure that the cable label is correct before the
connection of cables.
Attention
Signal cables should be kept away from power
cables, protection from interference.
Attention
Unable to relate to household’s environment.

SEC 240kW Series DC Fast Charger--- User Manual
2
1.2 Safety instructions for use
The SEC (SEC Series DC fast charger) is an integrated charger that you can
use to supply electricity to an EV either outdoor or indoor.
The SEC is a high-power and high voltage electric power equipment, only
qualified professionals are allowed to construction and maintenance.
Follow local laws and regulations when installing, operating, or maintaining
the equipment.
Follow the procedures of installation, operation, and maintenance. And
make sure this document and accessories provided by Sinexcel.
Follow related safety standards on R&D, production, inspection, certification
and filed at local.
To ensure safety of humans and the equipment, pay attention to the safety
symbols on the equipment and all the safety instructions in this document.
Otherwise, the equipment may become hidden danger or faulty.
When operating Sinexcel equipment has encountered any problems or faults,
please consulting Sinexcel after-service center directly. If unauthorized
found third party to maintenance under warranty, Sinexcel will not be liable.
Installation conditions faraway from fire hazards or other dangerous
environment.
Make sure that the space around the equipment cannot get blocked.
1.3 Safety instructions for operation
Before using for the first time you must read this document carefully, make
sure that the equipment is installed and commissioned according to the
instructions in the installation manual.
Without Sinexcel permission, do not unauthorized modifications to the
product or removal of the product. Sinexcel will not be liable for any
consequence caused by the violation of the safety operation regulations and
design, production, and usage standards.
Do not touch the EV charging connector or vehicle inlet, keep it dry and
clean.
Do not use this product if the power cord or connector is frayed, has broken
insulation, or shows any other signs of damage.
In case of any abnormal condition, press the emergency button immediately,
which will turn off all input and output to ensure safety.
If the emergency button is pressed, the system operator should be informed.
The charging station shall not be restarted until the system operation
technician reset the operation system.
To make sure that no foreign bodies residues in EV charging connector or
vehicle inlet.

SEC 240kW Series DC Fast Charger--- User Manual
3
Do not connect or disconnect power cables with power on. When
maintenance, turn off the power switch, ensure that electrical connections
are correct, and putting warning board.
Pay attention to the copper wire carries dangerous voltage of equipment,
even all circuit breakers of the charger are disconnected.
When maintenance, prepare the lighting. The interior of equipment no
lighting.
Connect protective earth wire (PE) before connecting neutral line and phase
line.
After installation or maintenance, ensure that door are lock correct.
The adaptors or conversion adapters are not allowed be used.
The extension cords are not allowed be used.

SEC 240kW Series DC Fast Charger--- User Manual
4
2 Product Overview
2.1 Short description
Function：
The SEC is an integrated DC fast charger that features high efficiency and flexible
configured. It supports the CCS2 & JPN double connector charging at same time,
The Charger used in centralized fast charging station, it adopts 20kW charging
power module of Sinexcel, and meet the charging demand of larger capacity and
high endurance electric on the market.

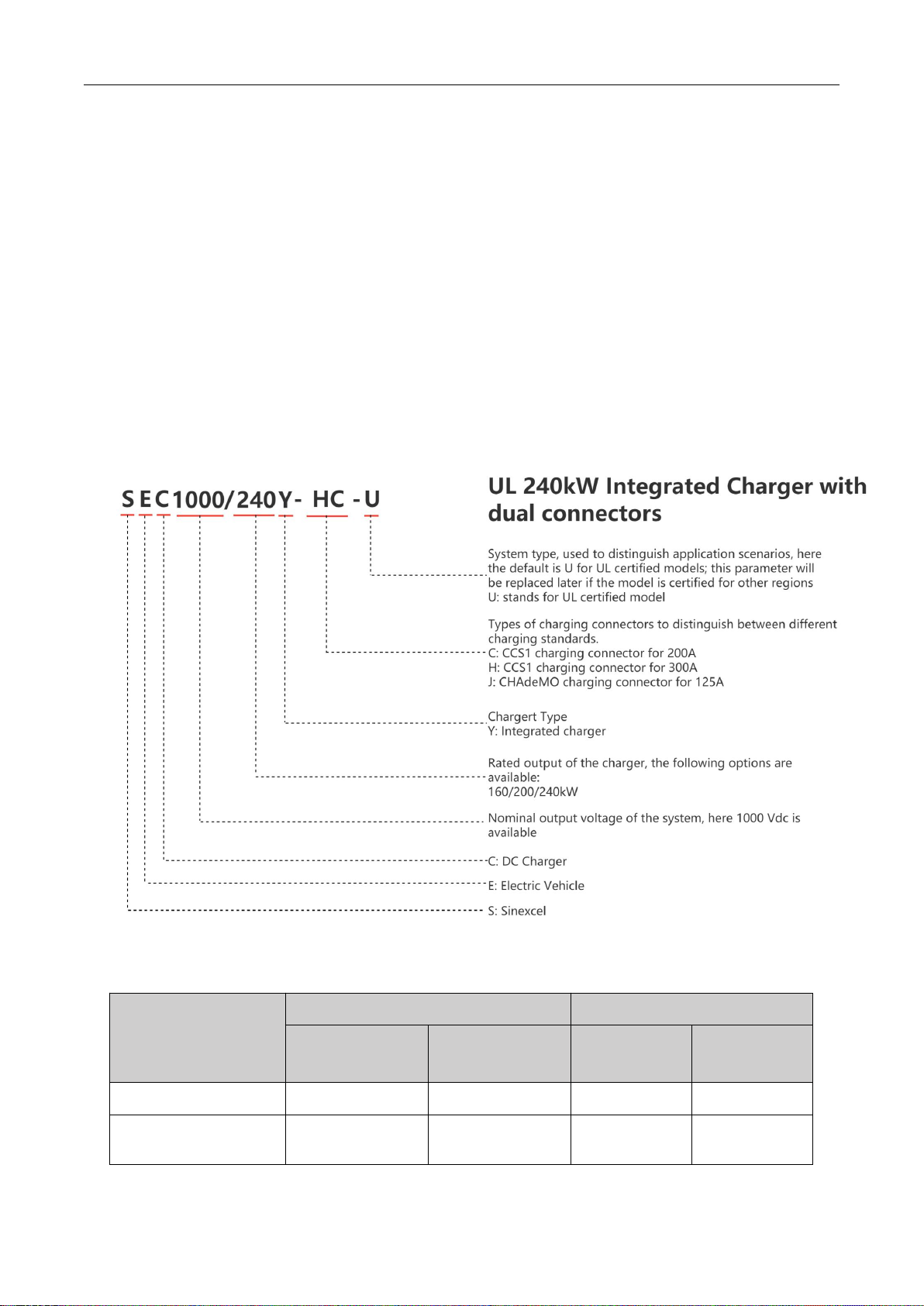

2.2 SEC series products model
2.3 Product types description
Specification
Power distribution
Maximum current
Connector A
Connector B
Connector A
Connector B
SEC1000/160Y-C-U
CCS1:160kW
/
200A
/
SEC1000/160Y-CJ-U
CCS1:80kW or
160kW
JPN:62.5kW
200A
125A

SEC 240kW Series DC Fast Charger--- User Manual
5
Specification
Power distribution
Maximum current
Connector A
Connector B
Connector A
Connector B
SEC1000/160Y-CC-U
CCS1:80kW or
160kW
CCS1:80kW or
160kW
200A
200A
SEC1000/160Y-H-U
HCCS1:160kW
/
300A
/
SEC1000/160Y-HJ-U
HCCS1:80kW or
160kW
JPN:62.5kW
300A
125A
SEC1000/160Y-HH-U
HCCS1:80kW or
160kW
HCCS1:80kW or
160kW
300A
300A
SEC1000/200Y-C-U
CCS1:200kW
/
200A
/
SEC1000/200Y-CJ-U
CCS1:100kW or
200kW
JPN:62.5kW
200A
125A
SEC1000/200Y-CC-U
CCS1:100kW or
200kW
CCS1:100kW or
200kW
200A
200A
SEC1000/200Y-H-U
HCCS1:200kW
/
300A
/
SEC1000/200Y-HJ-U
HCCS1:100kW or
200kW
JPN:62.5kW
300A
125A
SEC1000/200Y-HH-U
HCCS1:100kW or
200kW
HCCS1:100kW or
200kW
300A
300A
SEC1000/240Y-C-U
CCS1:200kW
/
200A
/
SEC1000/240Y-CJ-U
CCS1:120kW or
200kW
JPN:62.5kW
200A
125A
SEC1000/240Y-CC-U
CCS1:120kW or
200kW
CCS1:120kW or
200kW
200A
200A
SEC1000/240Y-H-U
HCCS1:240kW
/
300A
/
SEC1000/240Y-HJ-U
HCCS1:120kW or
240kW
JPN:62.5kW
300A
125A
SEC1000/240Y-HH-U
HCCS1:120kW or
240kW
HCCS1:120kW or
240kW
300A
300A
2.4 Product views
Outside view of the SEC series DC fast charger

SEC 240kW Series DC Fast Charger--- User Manual
6
A Status LED
E Charging connector
B Human machine interface
F Pay card reader
C Emergency button
G Air outlet
D Door handle/ lock
2.5 Product characteristics
A variety of power configurations from 160kW to 240kW can meet the
customized requirements of customers. And more flexible power
distribution, the dual connector model can automatically switch the power
according to the vehicle demand, which can meet the rapid charging of two
vehicles at the same time.
The constant current and constant power charging methods have the
advantages of high charging efficiency, simple operation and reliable
performance.
Ultra wide output voltage range, the highest output voltage can reach
DC1000V. It can not only meet the low-voltage charging of small cars, but
also meet the charging requirements of buses and high-voltage vehicles.
User experience is highly considered by Sinexcel. Cable management system
is optional in this charging system, which make it easier for the customer to
charge and protect the cable. And the new 15 inches touchable screen can
show more information about charging and show the advertisement.
A
B
C
D
E
F
G

SEC 240kW Series DC Fast Charger--- User Manual
7
With overload, short circuit, leakage, lightning protection, overcharge, over
voltage, under voltage, reverse connection, over temperature and other
multiple protection functions.
The intelligent standby mode can effectively reduce the operation cost of
customers in the whole project life cycle, and improve the return rate of
station charging.
The cabinet shell is made of stainless steel with protection grade of NEMA3,
which can be applied to various outdoor environments.
2.6 Parameter table of product specifications
Specification
Category
Item
Parameter
Input
Characteristic
Input
3P+N+PE
Input Voltage
AC 480V±10%
Frequency
50/60Hz
Power Factor
0.99
THDi
<5%
Output
Characteristic
Output Voltage
CCS1 : 200-1000 Vdc
HCCS1：200-1000Vdc
JPN : 200-500Vdc
Rated power
160-240kW
Max Current
CCS1 : 200A
HCCS1：300A
JPN : 125A
Peak Efficiency
95% @half load
Standards
System Standards
UL2231, UL2202
Others
Energy meter
High precision meter
Number of
connectors
1 connector: CCS combo 1 or HCCS combo 1；
2 connectors: CCS combo 1+JPN or CCS combo
1+ CCS combo 1 or HCCS combo 1+ HCCS
combo 1 or HCCS combo 1+JPN
Network Interface
4G/Wifi/LAN
Size
W850*D750*H2000 mm
Protection level
NEMA 3
Gross Weight
≤600kg
Net Weight
≤550kg
Cable length
5m (Exposed cable length is 4.5m)
Communication
protocol
OCPP1.6J

SEC 240kW Series DC Fast Charger--- User Manual
8
Specification
Category
Item
Parameter
Display Screen
15 inches
Method of
payment
QR Code/RFID/NFC/Bank card (Optional)
Language
English
Environmental
conditions
Cooling method
Forced air cooling
Full power
operating
temperature
-25 ~ 50 ℃
Humidity
5%~95%
Altitude
≤2000m
Protection
DC Over current protection
Surge Protection Device
Emergency Stop Protection
Overload protection
Short circuit protection
Electric leakage protection
Overcharge protection
Over voltage protection
Under voltage protection
Reverse connect protection
Over temperature protection

SEC 240kW Series DC Fast Charger--- User Manual
9
3 Installation instructions
3.1 Equipment dimensions
1. The shape and dimension of the charger are shown in Figure 3.1-A.
Figure 3.1-A Outline and dimension of charger
2. The hole size of charger base is shown in Figure 3.1-B.
Figure 3.1-B Hole size of charger base
3.2 Equipment installation requirements

SEC 240kW Series DC Fast Charger--- User Manual
10
1. The charger is opened in front, left and right, and the connectors are used from both
sides. Space should be reserved around. See Figure 3.2-A for the reserved size;
2. Installation on the foundation of channel steel or concrete; The cable shall be
embedded in advance, the reserved length of Ethernet cable should not be less than 4000mm;
the reserved length of control signal cable should not be less than 1500mm; the reserved
length of power cable reserved shall be 700 mm ± 20 mm, and the protruding of the base
through which 5 wires pass shall be less than 30 mm, as shown in Figure 3.2- B ;
3. The height of the installation foundation is recommended to be 200 mm ± 20 mm,
and the vertical inclination of the installation shall not exceed 5 °. See Figure 3.2-B for details;
4. Install 4 stainless steel M12 * 80mm expansion bolts between the base and the
cabinet. Note that the bolts need to be equipped with M12 stainless steel flat gasket.
Figure 3.2-A Requirements for charger placement

SEC 240kW Series DC Fast Charger--- User Manual
11
Figure 3.2-B Base and cable reservation requirements
3.3 Construction of distribution cables
3.3.1 Layout requirements of distribution cables
1. The input cable of the system is introduced from the inlet hole at the bottom of the
charger, and the cable shall be laid through the cable trench.
2. The AC cable adopts copper core wire, and the cross-sectional area of the cable shall
adapt to the load.
3. The outdoor power cable shall be laid according to the power specification. The
power cable and the signal cable must be separated, and the signal cable should be put
through the tube separately to avoid the pressure loss and interference of the
communication signal.
4. The cable shall not be laid in the area easily damaged by mechanical damage,
corrosive medium emission, humidity, strong magnetic field and strong electrostatic field
interference. If necessary, please take corresponding protection or shielding measures.
5. The AC input cable starts from the user's distribution switch and connects to the
copper bar of the charger's inlet cable switch. Protection devices shall be provided at the
user's power distribution.
6. The color of AC input cable is brown (L1), black (L2), gray (L3), blue (N), yellow green
(PE). If the input cable has only one color, it is necessary to paste cable number identification
(or tube with mark).

SEC 240kW Series DC Fast Charger--- User Manual
12
3.3.2 Process requirements of distribution cables
1. Cable laying shall be free from external force, distortion and damage of insulation
layer.
2. It is strictly forbidden to twist, flatten, break the protective layer and wear the
protective layer seriously.
3. The protective pipe shall be cleaned before the cable passes through the pipe, and
the wire shall not be damaged.
4. The cable arrangement shall be tidy. The binding should be neat and should not be
crossed.
5. Sufficient allowance shall be reserved for each wire of the cable, and the bending
degree shall be consistent.
6. Crimp the terminal of the cable head, and there should be no gap on the penetration
surface of the terminal after crimping.
7. When pressing the lug of inlet cable, the heat shrinkable tube should be set between
the cable and the lug, and the inside and outside of the tube should be smooth without
damage and crack. Before setting the heat shrinkable tube, the sundries on the cable shall be
removed, and there shall be no burr and iron filings on the surface to prevent damage to the
tube. The color of the tube shall be in accordance with the phase sequence. When the tube is
heat shrinkable, the flame should be avoided to spray on the inside of the cabinet to prevent
burning the internal components and cables of the cabinet. The appearance of heat
shrinkable casing should be flat, smooth, uniform shrinkage, no dust and crack.
8. Attention should be paid to the wiring sequence when pressing RJ45 connector for
Ethernet cable. Check whether the pressing is qualified after pressing.

SEC 240kW Series DC Fast Charger--- User Manual
13
3.3.3 Cable specifications for AC input (Recommended)
Capacity
(kW)
Cable specification
(Copper cable)
Capacity of
superior
distribution
switch
Screw specification
(diameter: mm)
Cable terminal
160kW
4*185mm²+1*95mm²
400A
L1/L2/L3/ N：M16
PE：M12
L1/L2/L3/ N:
DT185-16
PE:DT95-12
180 kW
&200 kW
4*240mm²+1*95mm²
500A
L1/L2/L3/ N：M16
PE：M12
L1/L2/L3/N:
DT185-16
PE:DT95-12
240kW
4*300mm²+1*120mm²
630A
L1/L2/L3/ N：M16
PE：M12
L1/L2/L3/N:
DT240-16
PE:DT120-12

SEC 240kW Series DC Fast Charger--- User Manual
14
3.3.4 Internal wiring diagram of equipment
The internal input cables are N, L1, L2, L3, PE, Ctrl and Eth from left to right. The ‘Ctrl’indicates a
control signal cable and the ‘Eth’indicates a Ethernet cable .The cabinet grounding is divided
into two parts, one is the grounding bar inside the cabinet, and the other is the grounding of
cabinet shell, as shown in Figure 3.4-A .
Figure 3.4-A Internal wiring diagram of charger

SEC 240kW Series DC Fast Charger--- User Manual
15
3.4 Inspection after installation
Stability
After the pile is installed, shake the cabinet from different directions, and there
should be no obvious loosening and shaking.
Clean up
Dispose of all transportation and packaging materials in accordance with
local regulations.
Clean up the sundries inside and around the cabinet, such as small section of
cable, binding tape, screw / nut, desiccant, etc. Do not leave installation tools
on site or in the cabinet (record the type and quantity of tools to prevent
omission).
Wipe the insulation with anti-static cloth. Do not use any corrosive solvent.
4. Inspection
Check whether the base is fixed and sealed.
Check whether the internal components of the equipment are tight and
reliable.
Check whether the electrical connection and wiring are correct and complete,
whether the connection is reliable, and whether the grounding is reliable.
Check whether the cable terminal is loose, and calibrate the screw fixing the
terminal.
Check whether the cable is broken, damaged and scratched.
Check whether the protection level of the equipment meets the
requirements, especially the cable entrance at the bottom of the pile.
Check appearance, marking, integrity, cleanliness.
Check the installation of the equipment according to the foundation
installation drawing.
3.5 Special version
After charging, the charging connectors need to be placed on the retracting device，as
shown in Figure 3.5
