1. Hardware Description
1.1. Specifications
Classification Parameter Specification
Digital Input DI Channels 4
DI Connector Terminal block
Input Type Dry contact
DI Mode Logic level
Digital Filtering Time Interval 6 sample periods
Counter Frequency 1kHz
Digital Output DO Channels 4
DO Connector Terminal block
DO Type Form C
DO Mode Logic Level
Contact Capacity 30V/3A
Ethernet No. of Ports 1
Bandwidth 10/100M
Communication Distance 100m
Industrial Protocols Standard Modbus TCP Protocol
Protocol Mode Support TCP Server/Client Mode
Downstream Serial
Port
Serial Standard RS485
No. of Ports 1
Connector Terminal block
Cascade Connection/Transparent
Transmission
RS485 cascade connection
C2000-A2-SDD4040-BB3 User Manual
5 / 12
SinoCon Co., Ltd. www.sinoconsys.com
All manuals and user guides at all-guides.com

Power Power Connector Terminal block
Input Voltage 9~27VDC
Current 280mA @ 12VDC
Physical Characteristics Dimensions 75*105*30mm
Installation Din-rail or wall
Environmental Limits Operating Temperature -40℃ ~ 85℃
Storage Temperature -60℃ ~ 125℃
Ambient Relative Humidity 5% ~ 95% RH, non-condensing
Classification Parameter Specification
C2000-A2-SDD4040-BB3 User Manual
6 / 12
SinoCon Co., Ltd. www.sinoconsys.com
All manuals and user guides at all-guides.com

1.2. Apprearance
C2000-A2-SDD4040-BB3 User Manual
7 / 12
SinoCon Co., Ltd. www.sinoconsys.com
All manuals and user guides at all-guides.com

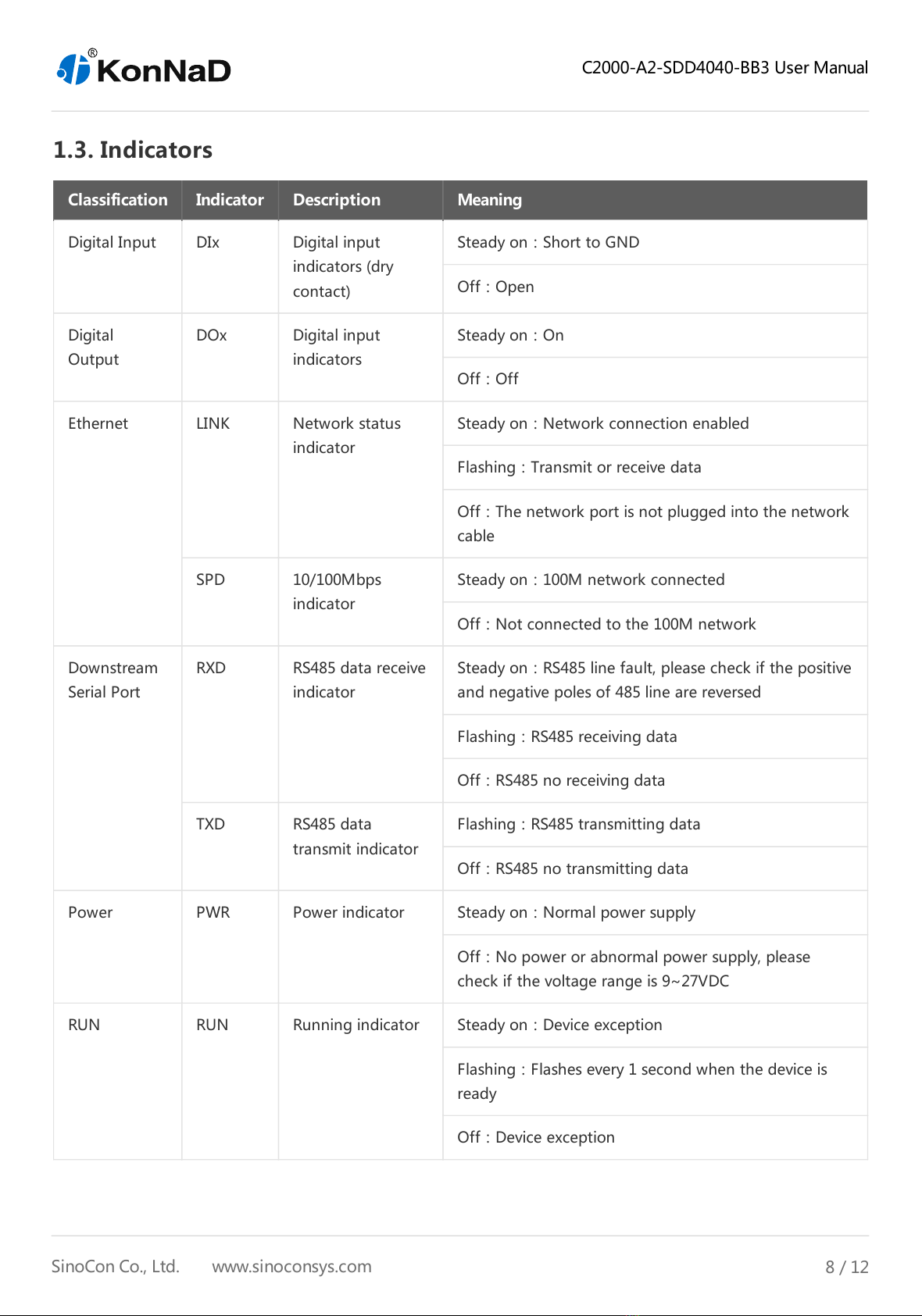

1.3. Indicators
Classification Indicator Description Meaning
Digital Input DIx Digital input
indicators (dry
contact)
Steady on：Short to GND
Off：Open
Digital
Output
DOx Digital input
indicators
Steady on：On
Off：Off
Ethernet LINK Network status
indicator
Steady on：Network connection enabled
Flashing：Transmit or receive data
Off：The network port is not plugged into the network
cable
SPD 10/100Mbps
indicator
Steady on：100M network connected
Off：Not connected to the 100M network
Downstream
Serial Port
RXD RS485 data receive
indicator
Steady on：RS485 line fault, please check if the positive
and negative poles of 485 line are reversed
Flashing：RS485 receiving data
Off：RS485 no receiving data
TXD RS485 data
transmit indicator
Flashing：RS485 transmitting data
Off：RS485 no transmitting data
Power PWR Power indicator Steady on：Normal power supply
Off：No power or abnormal power supply, please
check if the voltage range is 9~27VDC
RUN RUN Running indicator Steady on：Device exception
Flashing：Flashes every 1 second when the device is
ready
Off：Device exception
C2000-A2-SDD4040-BB3 User Manual
8 / 12
SinoCon Co., Ltd. www.sinoconsys.com
All manuals and user guides at all-guides.com

1.4. Port Description
Classification Port Description Recommended
wiring
Digital Input DIx Digital input RVV 2*0.5
GND Dry contact input common RVV 2*0.5
Digital Output NO Digital output normally open RVV 2*1.0
COM Digital output common RVV 2*1.0
NC Digital output normally close RVV 2*1.0
Ethernet Ethernet RJ45 Ethernet port CAT-5e
Downstream Serial
Port
485+ 、
485-
RS485+, RS485- (downward) RVSP 2*1.0
Power Input V+、V- Power supply input positive, power supply input
negative
RVV 2*1.0
C2000-A2-SDD4040-BB3 User Manual
9 / 12
SinoCon Co., Ltd. www.sinoconsys.com
All manuals and user guides at all-guides.com

1.5. Product Dimensions
unit: mm（inch）
1.6. Installation Method
C2000-A2-SDD4040-BB3 User Manual
10 / 12
SinoCon Co., Ltd. www.sinoconsys.com
All manuals and user guides at all-guides.com

2. Package Contents
No. Contents
1 Device (contain mounting kit) * 1
2 Terminal block * 1 set
3 Installation guide card * 1
C2000-A2-SDD4040-BB3 User Manual
11 / 12
SinoCon Co., Ltd. www.sinoconsys.com
All manuals and user guides at all-guides.com

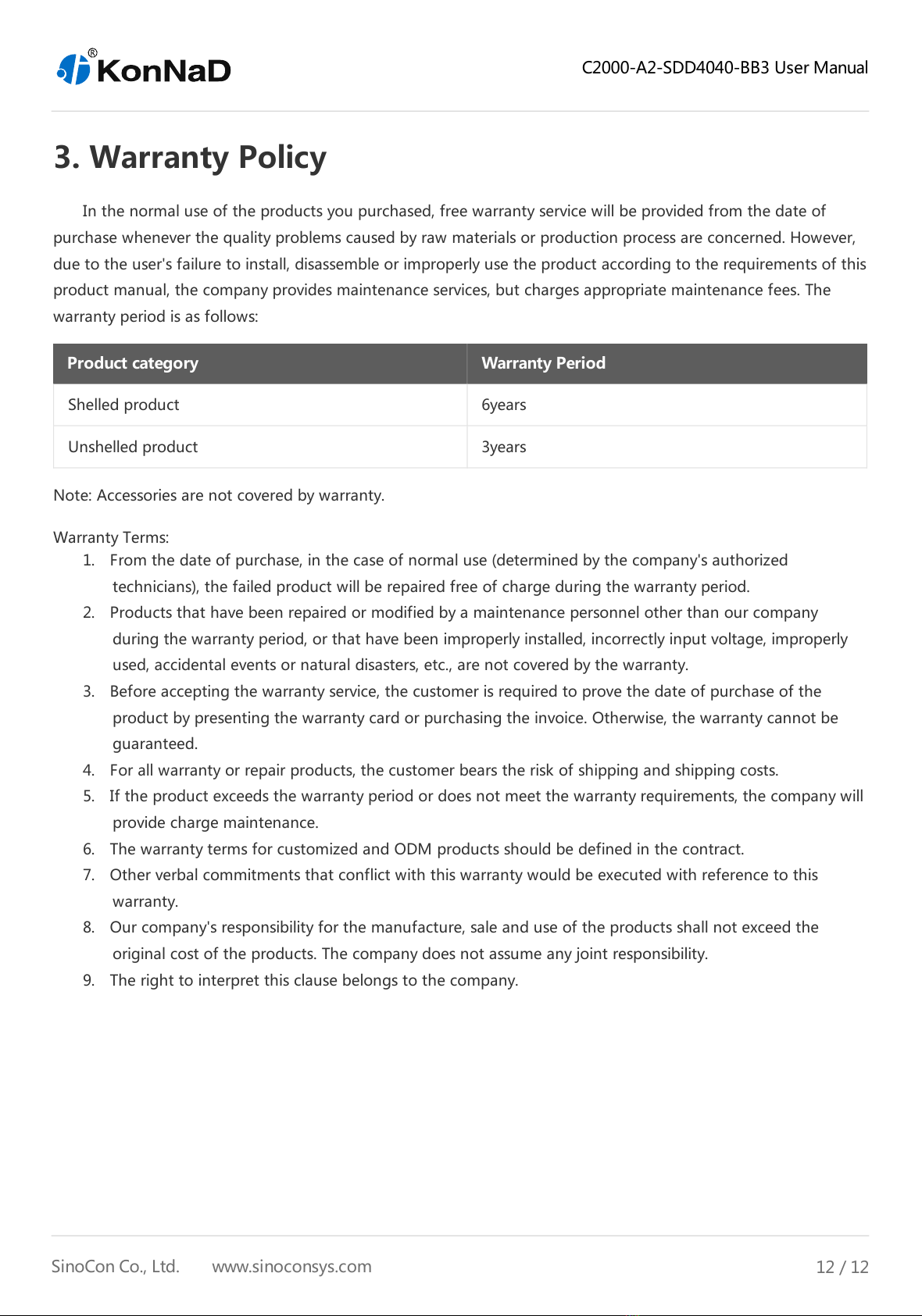

3. Warranty Policy
In the normal use of the products you purchased, free warranty service will be provided from the date of
purchase whenever the quality problems caused by raw materials or production process are concerned. However,
due to the user's failure to install, disassemble or improperly use the product according to the requirements of this
product manual, the company provides maintenance services, but charges appropriate maintenance fees. The
warranty period is as follows:
Product category Warranty Period
Shelled product 6years
Unshelled product 3years
Note: Accessories are not covered by warranty.
