Sirius Satellite Radio SiriusConnect SCC1C User manual

SCC1C
SiriusConnectTM Vehicle Tuner
Installation Guide

Congratulations on the Purchase of your new SIRIUS SCC1C
SiriusConnect Vehicle Tuner.
The SCC1C SiriusConnect Vehicle Tuner is designed to work with any Sirius-Ready or SAT
Radio Ready headunit. Some headunits will require the use of a SiriusConnect Interface
Translator. Please consult your headunit manufacturer for more details concerning compat-
ibility and interface availability. The SCC1C can also be integrated in select factory audio sys-
tems. Please consult your retailer for interface compatibility options. For the latest information
about this and other SIRIUS products and accessories, visit http://www.siriuscanada.ca.
Compatible with Sirius-Ready or
SAT-Radio Ready Headunits
May require a SiriusConnect Inter-
face cable or translator

[Table of Contents ] 3
Table of Contents
TABLE OF CONTENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
WARNING AND SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . 4
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
FCC Warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
FCC Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Canadian Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
COPYRIGHTS & TRADEMARKS . . . . . . . . . . . . . . . . . . . . . . . . . 6
PACKAGE CONTENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
CONNECTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connector Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Basic system wiring options . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing the SCC1C Vehicle Tuner . . . . . . . . . . . . . . . . . . . . . . . . 10
Alternate Mounting Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Optimum Antenna Mounting Locations . . . . . . . . . . . . . . . . . . . . . . 13
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Activating Your SCC1C Tuner . . . . . . . . . . . . . . . . . . . . . . . . . . 14
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
SIRIUS ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

[Warning and Safety Information ]
4
Warning and Safety Information
Safety Precautions
Be sure to observe the following warnings. Failure to follow these safety instructions and
warnings may result in a serious accident and/or personal injury..
Install the cables and wiring so that it is not crimped or pinched by screws or sharp metal
edges. Route the cables away from moving parts or sharp pointed edges. This will prevent
crimping and damage to the wiring. If the wiring must pass through a metal hole, be sure
to use a rubber grommet to prevent the wire’s insulation from being cut by the metal edge
of the hole.
Use caution if you need to disconnect the battery terminal. Please consult the vehicle’s
owner’s manual or a service technician prior to removing the battery positive or ground
connection, as it may cause damage to the vehicle’s electrical system or require repro-
gramming of the vehicle’s computer-controlled devices.
Do not operate any function that takes your attention away from safely driving your vehicle.
Any function that requires your prolonged attention should only be performed after coming
to a complete stop. Always stop the vehicle in a safe location before performing these
functions. Failure to do so may result in an accident.
Do not open, disassemble or alter the unit in any way. Doing so may result in fire, electric
shock or product damage.
Do not insert any objects into the unit. Doing so may result in fire, electric shock or prod-
uct damage.
Do not install in locations that might hinder vehicle operation. Doing so may obstruct vision
or hamper movement which can result in a serious accident.
Do not install the unit to high levels of humidity, moisture or dust. Doing so can result in
electric shock or product failure.
•
•
•
•
•
•
•

[Warning and Safety Information ] 5
FCC Warning
This equipment may generate or use radio frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the modifications are expressly approved in
this User Guide. The user could lose the authority to operate this equipment if an unauthor-
ized change or modification is made.
FCC Compliance
Note: This equipment has been tested and found to comply with Part 15 of the FCC Rules.
These rules are designed to provide reasonable protection against harmful interference. This
equipment may cause harmful interference to radio communications if it is not installed and
used in accordance with these instructions. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of more of the following
measures:
Relocate the receiving antenna.
Increase the separation between the other equipment and the receiver.
Consult the dealer or an experienced radio technician for help.
Canadian Compliance
This Class B digital apparatus complies with Canadian ICES-003
Cet appareil numérique de la classe B est conforme à la nome NMB-003 du Canada.
•
•
•

[Copyrights & Trademarks ]
6
Copyrights & Trademarks
© 2007 Sirius Satellite Radio Inc. All Rights Reserved.
® “SIRIUS”, the SIRIUS dog logo, “SiriusConnect”, channel names and logos are trademarks
of Sirius Satellite Radio Inc. All Rights Reserved.
Hardware, subscription, and activation fee required. For full Terms & Conditions, visit
http://sirius.com. Prices and programming are subject to change. Not available in HI and AK.
Equipment and subscription sold separately. Installation required with some equipment.

[Package Contents ] 7
Package Contents
The following items are included with your purchase of the SIRIUS SCC1C SiriusConnect
Vehicle Tuner. Unpack the kit carefully and make sure that everything shown is present. If
anything is missing or damaged, or if the unit fails to operate properly, notify your dealer im-
mediately. It is recommended that you retain the original carton and packing materials in case
you need to ship your kit in the future.
Mini-magnetic antenna with 21’ cable,
tail cover and alcohol pad

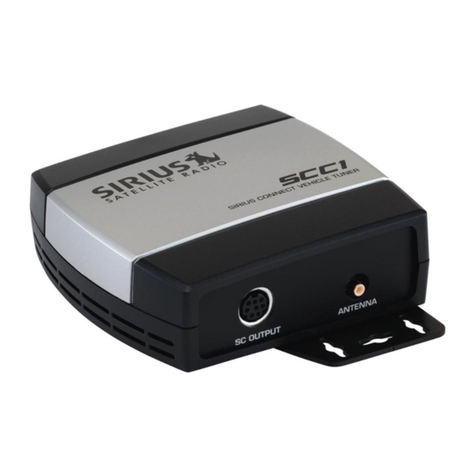

SCC1C Vehicle Tuner
(with mounting plate attached)
Mounting screws
(x4)
SiriusConnect Interface Cable
(Male/Male)
ANTENNA
SC OUTPUT

[Connections ]
8
Connections
Connector Information
Figure 1 identifies and describes the connectors on the SCC1C Vehicle Tuner. Figure 2
identifies the 8-pin pin-out configuration.
SC OUTPUT: Connection for the SC Interface Cable.
ANTENNA: Connection for the satellite antenna.
•
•
6
7
3
1
4
8
1 Battery
2 Power Enable
3 Serial Data (RX)
4 Ground
5 Audio Right
6 Serial Data (TX)
7 Audio Ground
1 Audio Left
5
2
Note 1: The Serial Data TX and RX lines in the SiriusConnect Interface cable are crossed
Note 2: The Audio output is 1volt RMS.
Figure 1
Figure 2
Connect to Sirius-Ready
Headunit or SiriusConnect
Interface Translator

[Connections ] 9
Basic system wiring options
The SCC1C SiriusConnect Vehicle Tuner is designed to work with any Sirius-Ready or SAT
Radio Ready headunit. Some headunits will require the use of a SiriusConnect Interface
Translator. Please consult your headunit manufacturer for more details concerning compat-
ibility and interface availability. The SCC1C can also be integrated in select factory audio
systems. Please consult your retailer for interface compatibility options.
System 1
Sirius-Ready or SAT Radio Ready headunit with a SiriusConnect 8-pin DIN connector. Note that the headunit must be
capable of directly communicating to the SCC1C tuner protocol
System 2
Sirius-Ready or SAT Radio Ready headunit with an optional headunit specific connector/adapter. Note that the headunit
must be capable of directly communicating to the SCC1C tuner protocol
System 3
Sirius-Ready, SAT Radio Ready or select OEM headunits with optional SiriusConnect Interface translator
SiriusConnect 8-pin DIN Cable
Headunit cable to SiriusConnect Interface Cable
Headunit bus cable SiriusConnect Cable
Optional
SiriusConnect
Interface

[Installation ]
10
Installation
Installing the SCC1C Vehicle Tuner
It is recommended that prior to starting the installation, you thoroughly read this manual and
follow the guidelines listed below:
Consider the mounting location carefully. You should make sure that you avoid the following:
Any location where the tuner is exposed to moisture.
Any location where the unit is exposed to extreme heat.
Any location where the tuner can not get adequate ventilation.
Any location that would interfere with moving parts on the vehicle or hamper driving.
Mounting the SCC1C Tuner
Be sure that you find a location that is flat and has clear-
ance above the unit to prevent any damage as well as
allow for ventilation.
Caution: If you are attaching the unit directly to the
vehicle’s chassis, be sure that you check to make sure
the area behind the unit is free from moving parts, fuel
or break lines, wire harnesses or any other items which
may get damaged by drilling a mounting hole or using the
supplied screws.
•
•
•
•
ANTENNA
SCOUTPUT

[Installation ] 11
Alternate Mounting Methods
The mounting plate can be removed allowing the SCC1C
to be mounted directly to a surface using either double
stick tape, Velcro or other adhesive material. Simply remove
the 2 screws on the bottom of the SCC1C tuner to remove
the bracket as in Figure 3 below. If using adhesive material,
avoid covering the SID label.
Combining with a SiriusConnect Interface device
Some third-party interfaces are designed with the same asymmetrical chassis as the SCC1C.
To connect the units together, simply remove the mounting brackets from each unit, rotate
them 90° and connect as show in Figures 4 and 5 below
Figure 3
Figure 4
Figure 5
SiriusConnect
Interface
SCC1C Tuner

[Installation ]
12
Installing the Antenna
The antenna includes a 2-3/4” cable cover/tail which covers the exposed antenna cable and
keeps it attached securely to vehicle roof. The tail also helps position the antenna the proper
distance from the window, sunroof or rear hatch.
To attach the cover/tail:
Turn the antenna upside-down and extend the cable.
Connect the cover/tail to the antenna cable, making sure that the strain-relief on the
antenna seats into the cover/tail groove.
Route the cable through the wire channel in the cover/tail. (Figure 6)
Once you have determined the proper mounting location (see next section), clean the
area with the supplied alcohol pad.
Remove the remaining protective tape from the adhesive, carefully position the antenna
and apply pressure to secure to the vehicle. (Figure 7)
1.
2.
3.
4.
5.
Figure 6
Figure 7
Adhesive
Strips
Antenna
Cover/Tail

[Installation ] 13
Optimum Antenna Mounting Locations
The optimum location to mount the included antenna is on the roof of the vehicle. It is impor-
tant to avoid any obstruction that will block satellite signal – like a roof rack. For convertible
vehicles, install the antenna on the trunk lid.
Place the antenna on a metal surface of your vehicle at least 2-
3/4” from a window or another edge. (Use the antenna cover/tail
as a guide for the proper distance).
The antenna’s magnet will secure it to the metal surface. The
adhesive that is attached to the antenna cover/tail will secure the
cable to the vehicle. Before routing the antenna cable, confirm
that the antenna is mounted in a good location.
Route the cable from the antenna to the vehicle’s interior by
tucking it underneath the rubber molding around the rear window
(if possible). Avoid sharp edges or tight areas that may pinch the
cable.
For SUVs, minivans and five-door vehicles, bring the cable into
the vehicle under the rubber molding for the tailgate, and con-
tinue under the interior trim.
For convertibles mount the antenna to the rear deck
and route the cable into the interior from within the
trunk.
Caution:
Avoid sharp edges, moving parts and areas of
extreme heat.
•
•
•
•
•
•

[Operation ]
14
Operation
Activating Your SCC1C Tuner
You must activate the SCC1C tuner before you can begin to receive the SIRIUS Satellite
Radio Service.
In order to activate your radio subscription, you will need the SIRIUS ID (SID) which uniquely
identifies your tuner. The SID can be found on a sticker located on the SCC1C packaging,
or on the bottom of the SCC1C itself. When you have located the SID, write it down in the
space provided near the end of this manual and store it for future reference.
The SID can also be recalled from your Sirius-Ready headunit. Most units will display the SID
on either Channel 0 or on Channel 255. Please consult your headunit owners manual or user
guide for specific details.
Power on your system and make sure that you are receiving good signal you are able to hear
audio on the SIRIUS Preview channel (Ch-184)
Have your credit card handy and contact SIRIUS on the internet at
https://www.siriuscanada.ca/activate and follow the prompts to activate your subscrip-
tion. You can also call SIRIUS toll-free at 1-888-539-SIRIUS (1-888-539-7474)
Once activated, you will be able to begin enjoying SIRIUS Satellite Radio’s digital entertain-
ment and can tune to other channels.
Operation Information
Consult the owners manual for your Sirius-Ready headunit or SiriusConnect Interface for
operating instructions.

[Specifications ] 15
Specifications
OperationFrequencies .........................................................
Satellite ................................................2322.293/2330.207MHz
Terrestrial........................................................2326.250MHz
PowerRequirements..................................... 12VoltsDC(1AmpMAX),
Operation Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -20° to +85° C (-4° to 185° F)
AudioOutput.........................................................1V(RMS)
Signal-to-noise(S/N)........................................... Greaterthan75dB
Receiver Dimensions (SCC1C only) . . . . . . . . . . . . . . . 86.7mm x 88.7mm x 33.2mm (WxHxD)
ReceiverWeight(withpackaging)............................................ 520g
ReceiverWeight(SCC1Conly) .............................................120g)
Receiver Weight (SCC1C with Mounting Bracket). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180g)
AntennaType........................................................Automotive
Antenna Cable Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21’ (single micro-cable)
AntennaConnectorType....................................................SMB

[Warranty ]
16
Warranty
12 Month Warranty
SIRIUS Canada Inc. (the “Company”) warrants to the original retail purchaser of this product that
should this product or any part thereof, under normal use and conditions, be proven defective in
material or workmanship within 12 months from the date of original purchase, such defect(s) will be
replaced with new or reconditioned product (at the Company’s option) without charge for parts and
labor. To obtain replacement within the terms of this Warranty, the product is to be delivered with proof
of warranty coverage (e.g. dated bill of sale), specification of defect(s), transportation prepaid, to the
location shown below under WARRANTY RETURN.
This Warranty does not extend to the elimination of externally generated static or noise, to correction
of antenna problems, to costs incurred for installation, removal or reinstallation of the product, or to
damage to tapes, compact discs, speakers, accessories, or vehicle electrical systems.
This Warranty does not apply to any product or part thereof which, in the opinion of the Company,
has suffered or been damaged through alteration, improper installation, mishandling, misuse, neglect,
accident, or by removal or defacement of the factory serial number/bar code label(s). THE EXTENT
OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR
REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY
EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES,
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE
DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY
HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT
WITHIN A PERIOD OF 48 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL
THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR
BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No
person or representative is authorized to assume for the Company any liability other than expressed
herein in connection with the sale of this product. Some states do not allow limitations on how long an
implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above
limitations or exclusions may not apply to you. This Warranty gives you specific legal rights and you may
also have other rights which vary from state to state.
WARRANTY RETURN: To obtain a replacement within the terms of this Warranty, please return product
to an authorized Sirius Canada retailer or call Erikson Consumer Customer Service at [phone]
for an authorized Sirius retailer near you; proof of purchase and description of defect are required.
Products to be returned to an approved warranty station must be shipped freight prepaid.

[SIRIUS ID ] 17
SIRIUS ID
Write down the SIRIUS ID (SID) of your SCC1C Tuner in the space provided below.
SID:

SIRIUS Customer Service: 1-888-539-7474
[email protected]
SIRIUS Canada Inc.
135 Liberty Street, 4th Floor
Toronto, Ontario M6K 1A7
1-888-539-7474
www.siriuscanada.ca

SIRIUS SCC1C Canadian English (121406a)
SIRIUS Satellite Radio Inc.
135 Liberty Street, 4th Floor
Toronto, Ontario M6K 1A7
1-888-539-7474
www.siriuscanada.ca
