Sirius Satellite Radio SIR-ECL1 User manual

Installation Guide

2SIR-ECL1 Installation Guide
Congratulations on your purchase of the SIR-ECL1– the
ECLIPSE Compatible SIRIUS Satellite Radio Tuner!
Your new SIRIUS Tuner is designed to work with 2005 and up ECLIPSE E-LAN
headunits that are designated “SIRIUS READY.” Contact ECLIPSE or SIRIUS
for model compatibility.
With SIRIUS, the emphasis is on the
music and entertainment you want.
The music is hosted by SIRIUS
Jockeys, who are true experts. They
back-up the music with compelling
information about the song being
played, and they understand that
sometimes it’s best to just let the
music speak for itself.
Rely on SIRIUS rocket science for
superior coverage.
Only SIRIUS has three powerful
satellites that fly directly over the U.S.
ensuring coast-to-coast coverage with
high elevation angles. This gives the
satellites a “clear line of sight” to your
car or home, with much less concern
for buildings, trees or other objects
that might block conventional satellite
signals.
Once you experience more than 120
channels of digital entertainment,
you’ll never want to leave your car.
For more information, visit
www.sirius.com.
What is SIRIUS Satellite Radio?
Over 120 channels of the best
entertainment and completely
commercial-free music for your car,
home or office.
Only SIRIUS has more than 65
original music channels, from today’s
hits to R&B oldies to classical
masterpieces. From authentic country
and real bluegrass to cool jazz, hot
latin, reggae, rock and many more.
Best of all, it’s all completely
commercial-free.
SIRIUS also has more than 55
channels of world-class sports, news
and entertainment. Included as part of
your subscription, you get up to 16
NFL games a week, up to 40 NBA
games a week and up to 40 NHL
games a week. (Games are
broadcasted during their respective
seasons.) Coupled with great sports
news from ESPN, the SIRIUS sports
offering is unrivaled. And don’t forget
a host of other great news and
entertainment, like NPR, CNBC, Fox
News, Radio Disney and
E! Entertainment Radio.

3
SIR-ECL1 Operation and Installation Guide 3 SIR-ECL1 Installation Guide
Table of Contents
Package Contents .............................................................................................. 3
Warnings and Cautions ..................................................................................... 4
Installation .......................................................................................................... 6
Mounting the Tuner ............................................................................................ 6
Installing the Antenna ........................................................................................ 6
Optimum Antenna Mounting Locations ........................................................... 7
Wiring and Cable Connections ......................................................................... 8

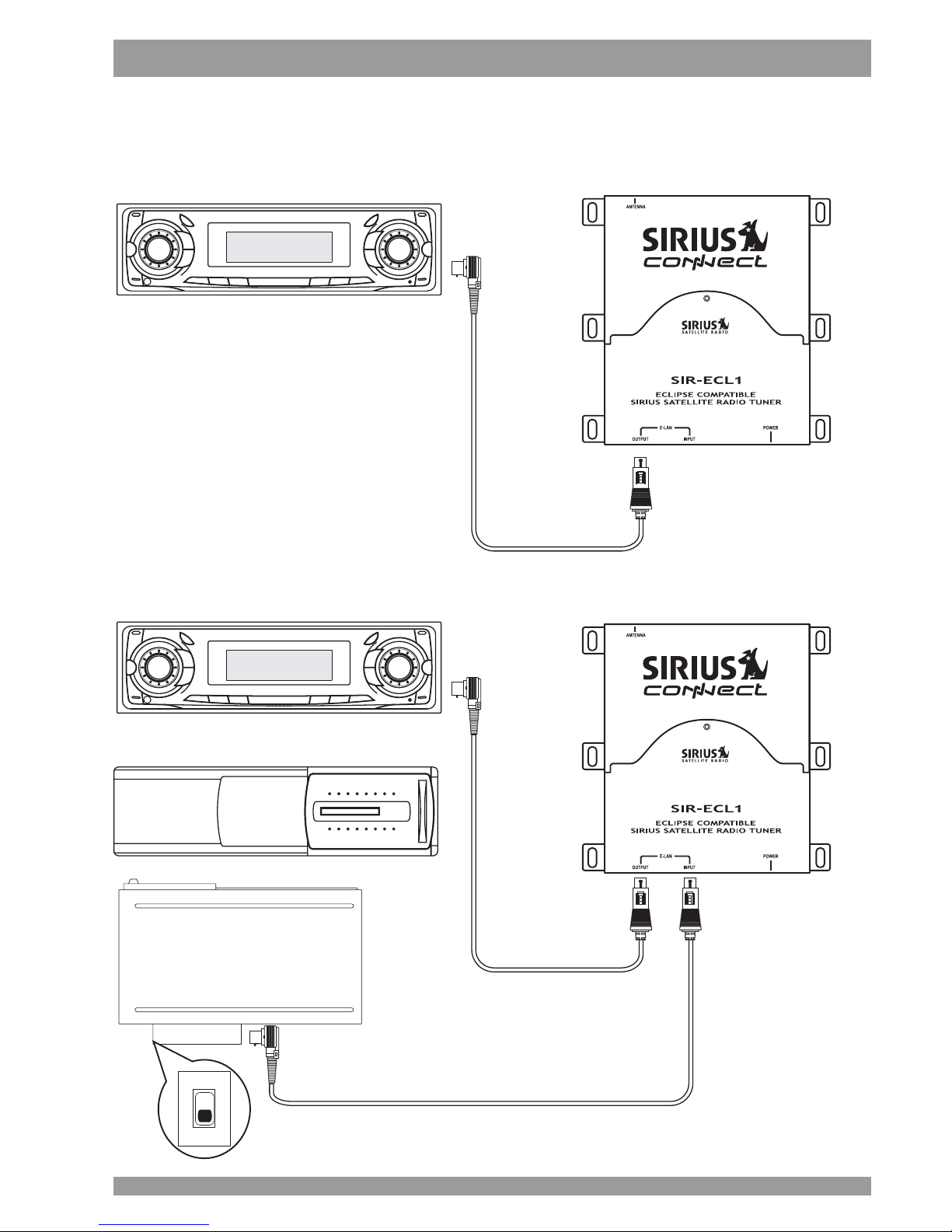

System Connection Examples ........................................................................ 10
Activating Your SIRIUS Subscription ............................................................. 12
Basic Opperation ............................................................................................. 13
SIRIUS Compatibity Features .......................................................................... 13
Headunit Messages ......................................................................................... 13
Specifications ................................................................................................... 14
Warranty ............................................................................................................ 15
Package Contents
A
B
C
F
G
SIR-ECL1 Tuner
Magnetic Micro Antenna
Antenna Cable Cover/Tail
Alcohol Swab
Power Harness With In-Line Filter/Fuse
3.5-Meter E-LAN Cable
6 Mounting Screws
D
E
A
B
C
D
E
F
G

4SIR-ECL1 Installation Guide
WARNING
This symbol means important
instructions. Failure to heed them
can result in serious injury or death.
DO NOT OPERATE ANY FUNCTION
THAT TAKES YOUR ATTENTION
AWAY FROM SAFELY DRIVING YOUR
VEHICLE.
Any function that requires your
prolonged attention should only be
performed after coming to a complete
stop. Always stop the vehicle in a safe
location before performing these
functions.
Failure to do so may result in an
accident.
DO NOT OPEN, DISASSEMBLE OR
ALTER THE UNIT IN ANY WAY. Doing
so may result in fire, electric shock or
product damage.
DO NOT INSERT ANY OBJECTS INTO
THE UNIT. Doing so may result in fire,
electric shock or product damage.
USE THE CORRECT AMPERE
RATING WHEN REPLACING FUSE.
Failure to do so may result in fire,
electric shock or product damage.
MAKE THE CORRECT CONNECTIONS.
Failure to make proper connections may
result in fire or product damage.
DO NOT SPLICE INTO A ELECTRICAL
CABLES. Never cut away cable
insulation to supply power to other
equipment. Doing so will exceed the
current carrying capacity of the wire and
result in fire or electric shock.
DO NOT INSTALL IN LOCATIONS
THAT MIGHT HINDER VEHICLE
OPERATION. Doing so may obstruct
vision or hamper movement which can
result in a serious accident.
DO NOT INSTALL THE UNIT WHERE
IT WILL BE EXPOSED TO HIGH
LEVELS OF HUMIDITY, MOISTURE
OR DUST. Doing so can result in electric
shock or product failure.
FCC Warning: This equipment may
generate or use radio frequency energy.
Changes or modifications to this
equipment may cause harmful
interference unless the modifications
are expressly approved in this User
Guide. The user could lose the authority
to operate this equipment if an
unauthorized change or modification is
made.
Note: This equipment has been tested
and found to comply with Part 15 of the
FCC Rules. These rules are designed to
provide reasonable protection against
harmful interference. This equipment may
cause harmful interference to radio
communications if it is not installed and
used in accordance with these
instructions. However, there is no
guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio
or television reception, which can be
determined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one of more
of the following measures:
• Relocate the receiving antenna.
• Consult the dealer or an
experienced technician for help.

5
SIR-ECL1 Operation and Installation Guide 5 SIR-ECL1 Installation Guide
CAUTION
This symbol means important
instructions. Failure to heed them
can result in injury or material
property damage.
HALT USE IMMEDIATELY IF A
PROBLEM APPEARS. Failure to do so
may cause personal injury or damage
to the product. Return the unit to your
authorized retailer or nearest service
center for repairing.
INSTALL THE WIRING SO THAT IT IS
NOT CRIMPED OR PINCHED BY
SCREWS OR SHARP METAL EDGES.
Route the cables away from moving parts
or sharp pointed edges. This will prevent
crimping and damage to the wiring. If the
wiring must pass through a metal hole,
be sure to use a rubber grommet to
prevent the wire’s insulation from being
cut by the metal edge of the hole.
USE THE SPECIFIED ACCESSORY
PARTS AND INSTALL THE PRODUCT
SECURELY. Be sure to use only the
specified accessory parts. Use of non-
specified parts may damage this unit
internally or may not securely install the
unit in place. This may cause parts to
become loose, resulting in hazards or
product failure.
USE CAUTION IF YOU NEED TO
DISCONNECT THE BATTERY
TERMINAL. Please consult the
vehicle’s owner’s manual or a service
technician prior to removing the battery
positive or ground connection, as it may
cause damage to the vehicle’s electrical
system or require reprogramming of the
vehicle’s computer-controlled devices.

6SIR-ECL1 Installation Guide
Installing the Antenna
The antenna includes a 6-1/2” cable
cover/tail which covers the exposed
antenna cable and keeps it attached
securely to vehicle roof. The tail also
helps position the antenna the proper
distance from the window, sunroof or
rear hatch.
To attach the cover/tail:
1) Once you have determined the
proper mounting location (see next
section), clean the area with the
supplied alcohol swab
3) Connect the cover/tail to the antenna
cable, making sure that the strain-
relief on the antenna seats into the
cover/tail groove. Route the cable
through the wire channel in the
cover/tail.
Installation
It is recommended that prior to
starting the installation, you
thoroughly read this manual and
follow the guidelines listed below:
Consider the mounting location
carefully. You should make sure that
you avoid the following:
• Any location where the tuner is
exposed to moisture.
• Any location where the unit is
exposed to extreme heat.
• Any location that would interfere
with moving parts on the vehicle or
hamper driving.
Mounting the SIR-ECL1 Tuner
Be sure that you find a location that is
flat and has clearance above the unit
to prevent any damage as well as
allow for ventilation.
Do not install the tuner under the
carpet or in a small enclosed area
without proper ventilation. Doing so
can result in damage to the tuner or
the vehicle.
Use the supplied screws to securely
fasten the unit.
Caution:
If you are attaching the unit directly to
the vehicle’s chassis, be sure that you
check to make sure the area behind
the unit is free from moving parts, fuel
or break lines, wire harnesses or any
other items which may get damaged
by drilling a mounting hole or using
the supplied screws.
Cable Cover/Tail
Antenna
(Bottom)
Adhesive Strips

7
SIR-ECL1 Operation and Installation Guide 7 SIR-ECL1 Installation Guide
Cable Cover/Tail
Antenna
Optimum Antenna Mounting
Locations
The optimum location to mount the
included antenna is on the roof of the
vehicle. It is important to avoid any
obstruction that will block satellite
signal – like a roof rack. For convertible
vehicles, install the antenna on the
trunk lid.
• Place the antenna on a metal
surface of your vehicle at least 12"
x 12", and at least 6" from a
window. (Use the antenna cover/tail
as a guide for the proper distance).
• The antenna’s powerful magnet will
secure it to the metal surface. The
adhesive that is attached to the
antenna cover/tail will secure the
cable to the vehicle. Before routing
the antenna cable, confirm that the
antenna is mounted in a good
location.
• Route the cable from the antenna to
the vehicle’s interior by tucking it
underneath the rubber molding
around the rear window (if possible).
• Route the cable from the lowest point
of the rear window into the trunk.
Take advantage of any existing cable
channels or wiring conduits.
• For SUVs, minivans and five-door
vehicles, bring the cable into the
vehicle under the rubber molding
for the tailgate, and continue under
the interior trim.
• From the trunk, carefully route the
cable to the location of the
SIR-ECL1 and plug the SMB
connector onto the unit.
4) Remove the protective tape from the
adhesive, carefully position the
antenna with cover/tail and apply
pressure to secure to the vehicle.
Vehicle
Caution:
• Do not pull the wire across sharp
edges that could damage it.
• Keep the wire away from areas
where it could become tangled in
the driver’s and passenger’s feet.
• Keep the antenna wire away from
extreme heat – like exhaust systems.
• Avoid placing the cable near any
moving parts.
Sedan/Coupe
SUV/Mini-Van
Truck
Convertible (only)

8SIR-ECL1 Installation Guide
Antenna Input
Connect the right-angle SMB
connector from the antenna. Push
firmly to attach.
E-LAN Output Connector
Use the supplied E-LAN cable to
connect to the ECLIPSE Headunit –
See “System Connection Examples”
for more specific details.
E-LAN Input Connector
Connect to optional ECLIPSE audio
equipment like CD Changers - See
“System Connection Examples” for
more specific details.
Power Harness Connector
After the wiring connections are
complete, plug the wiring harness into
the connector. Make sure to insert
firmly to lock the connector in place.
Antenna Input (SMB)
E-LAN Output Connector
E-LAN Input Connector
Power Connector
B
C
D
A
Open
Battery (+)
Chassis Ground (–)
Open
2
3
4
1
B C D
A
Wiring and Cable Connections
1
3
2
4

9
SIR-ECL1 Operation and Installation Guide 9 SIR-ECL1 Installation Guide
Antenna (21’ cable) - Mount on
Roof of Vehicle
Power
Harness
Black
Connect to Chassis Ground
3.5-meter E-LAN Cable
(Connect to ECLIPSE
Sirius-Ready Headunit)
Yellow – Connect to Battery Positive
Right-angle SMB
Connector
Power Harness Connector
After the wiring connections are complete, plug
the wiring harness into the connector. Make
sure to insert firmly to lock the connector in
place.
*NOTE* BE SURE TO CONNECT THE BATTERY (Yellow)
AND GROUND (Black) WIRES CORRECTLY. IF THEY ARE
CROSSED, THE FUSE INSTALLED IN THE POWER
HARNESS FUSE BOX WILL BLOW.
1AMP Fuse
To access the fuse, remove the top
cover of the in-line filter/fuse box

10 SIR-ECL1 Installation Guide
Eclipse Sirius-Ready Headunit (E-LAN CD Player or AVN system)
Eclipse Sirius-Ready Headunit (E-LAN CD Player or AVN system)
Optional Eclipse CD Changer (CH3083)
Note: Set to “L” for Primary CD Changer
CD Changer
(TOP)
H
L
System Connection Examples
System 1: ECLIPSE Headunit and SIR-ECL1
System 2: ECLIPSE Headunit, CD Changer and SIR-ECL1

11
SIR-ECL1 Operation and Installation Guide 11 SIR-ECL1 Installation Guide
System Connection Examples
System 3: ECLIPSE Headunit, 2 CD Changers and SIR-ECL1
Eclipse Sirius-Ready Headunit (E-LAN CD Player or AVN system)
Optional Eclipse CD Changers (CH3083) x 2
Note: Set to “L” for Primary CD Changer
Note: Set to “H” for Secondary CD Changer
CD Changer 1
(TOP)
H
L
CD Changer 2
(TOP)
H
L

12 SIR-ECL1 Installation Guide
You must activate SIR-ECL1 before
you can start to receive the SIRIUS
Satellite Radio broadcast.
1. Make sure that the SIR-ECL1 is
properly connected and that its
antenna is oriented to receive the
SIRIUS satellite signal.
2. Turn on the ECLIPSE headunit.
3. Select SIRIUS as the source:
CD Headunits: Press and Hold the
“FM/AM” button to select SIRIUS as
the source.
AVN Headunits: Press the “SIRIUS”
button (located on the touch screen)
to select SIRIUS as the source.
NOTE: If this is the first time
selecting SIRIUS as a source, the
display may show the text
“UPDATING” - which means the
SIR-ECL1 is receiving important
channel or category updates. NOTE:
Don’t push any buttons or
perform any operations until
updating has been completed.
Once updated and the SIRIUS
channels are received, the display
will change to Channel 184 the
SIRIUS Satellite Radio’s Preview
Channel (the display will show
“CH184” and “CALL 888-539-
SIRIUS”). At this time you should
also be able to hear the audio from
the Preview Channel.
4. To display the SIRIUS ID:
For CD Headunits: Each time you
Press and hold (some units Press
and Release) the “DISP” button the
display content will change- repeat
until the SIRIUS ID appears on the
display.
For AV Headunits: Some AVN units
will display the SID on the top of the
display at all times when in the
SIRIUS source mode. All others you
must Press “INFO” button on the
face of the unit, then press the
“SIRIUS” button (located on the
touch screen). The SIRIUS ID will
display on the screen.
5. The SIRIUS ID is a 12-digit number.
Write down the SIRIUS ID (SID) in
the location provided on the next
page for future reference.
Note: If the SIRIUS-ID does not
show up on the text display of the
headunit, the SIR-ECL1 has been
deactivated. To obtain the SIRIUS-
ID, you must get it from the unit itself.
The SIRIUS-ID can also be found on
the sticker that is on the bottom of the
SIR-ECL1 as well as on the original
packaging.
6. Contact SIRIUS on the Internet:
https://activate.siriusradio.com
Follow the instructions to activate
your subscription. You can also call
SIRIUS toll-free at 1-888-539-SIRIUS
(1-888-539-7474) to activate your
service.
Note: You will not be able to tune to
any other channels until you activate
your SIRIUS subscription.
7. When the subscription is activated or
updated, the word “SUB UPDATED”
will appear on the display. Note
some ECLIPSE headunits will have
different messages- please consult
your headunit owners manual for
more information.
8. Once the “SUB UPDATED” text
message disappears, you may now
tune to any actively subscribed
channel.
Activating Your SIRIUS Subscription

13
SIR-ECL1 Operation and Installation Guide 13 SIR-ECL1 Installation Guide
Headunit Messages
These messages vary by headunit
model- consult your ECLIPSE owners
manual for more information.
UPDATING - Indicates that the SIR-
ECL1 is receiveing a channel or
category update.
SUB UPDATED - This message
appears when the SIR-ECL1 is
receiving a subscription update.
ACQUIRING - Will display when there
is weak or no antenna signal present.
INVALID - Will display when tuned to
an invalid channel.
ANTENNA - Will display if the antenna
is damaged or disconnected.
CALL 888-539-SIRIUS - Will display
on an unsubscribed channel.
Basic Operation
The SIR-ECL1 SIRIUS Satellite Radio
Tuner is compatible with any
ECLIPSE headunit that is “Sirius-
Ready” – which includes most 2005
models. Consult ECLIPSE or Sirius
Customer Support Departments for
more information about compatibility.
Please consult your ECLIPSE owner’s
manual for proper operation
instructions for using satellite radio
products.
SIRIUS Compatible
Features
The following features are compatible
with 2005 Eclipse Headunits:
•Channel Tune UP/DN
•Category Tune - UP/DN
•Channel tune within a Category -
UP/DN
•Diriect Channel Selection
•Preset Memory - 6 Presets per
Band, 4 Bands (24 total)
•Preset Channel Scan
•Text Display Information*:
•Channel Number
• Channel Name
• Category
• Song Title
• Artist
• SIRIUS-ID**
* Note that any Special Characters (&,@, %,
etc.) that are sent to the system may show
up as blank spaces or as asterisk symbols-
this is a limitation of the headunit. Also
note that Eclipse headunits do not support
the Composer information field
** Note that the SIRIUS ID (SID) can only be
viewed while tuned to any valid
subscribed channel. If the unit has been
deactivated, ALL CHANNELS become
unsubscribed. Obtain the SID from the
bottom of the SIR-ECL1

14 SIR-ECL1 Installation Guide
SIRIUS ID: ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___
SIRIUS Customer Service: 1-888-539-7474
Please write down your SIRIUS-ID in the space provided below:
Specifications
Operational Frequencies
Satellite ......................................................................... 2322.293/2330.207 MHz
Terrestrial ....................................................................................... 2326.250MHz
Power Requirements .................................................................. 11-16 Volts DC
Fuse Type ..................................................................................... 1-AMP (Glass)
Chassis Size (without Mounting Tabs) ............... 4-1/8” x 5” x 1-3/8 (W XHXD)
.................................................................. 105mm x 126mm x 35mm (WxHxD)
Chassis Size (with Mounting Tabs) .................... 4-7/8” x 5” x 1-3/8 (W XHXD)
.................................................................. 127mm x 126mm x 35mm (WxHxD)
Antenna Type ................................................................................ Mini-Magnetic
Antenna Cable Length ................................................. 21’ (single micro-cable)
Connector Type ..................................................................... SMB (Right-angle)
Audio Interface ......................................... 2 E-LAN Connectors (Input/Output)
Audio Output ............................................................................... 850mV (Fixed)
Included Cable ...................................................... 3.5 Meter E-LAN (Male/Male)
Note: Design and specifications are subject to change without notice.

15
SIR-ECL1 Operation and Installation Guide 15 SIR-ECL1 Installation Guide
12 MONTH LIMITED WARRANTY
Sirius Satellite Radio warrants to the original retail purchaser of this product that
should this product or any part thereof, under normal use and conditions, be proven
defective in material or workmanship within 12 months from the date of original
purchase, such defect(s) will be repaired or replaced with new or reconditioned product
(at the Company’s option) without charge for parts and repair labor. To obtain repair
or replacement within the terms of this Warranty, the product is to be delivered with
proof of warranty coverage (e.g. dated bill of sale), specification of defect(s),
transportation prepaid, to the location shown below under WARRANTY RETURN.
This Warranty does not extend to the elimination of externally generated static or
noise, to correction of antenna problems, to costs incurred for installation, removal or
reinstallation of the product, or to damage to tapes, compact discs, speakers,
accessories, or vehicle electrical systems.
This Warranty does not apply to any product or part thereof which, in the opinion of
the Company, has suffered or been damaged through alteration, improper installation,
mishandling, misuse, neglect, accident, or by removal or defacement of the factory
serial number/bar code label(s). THE EXTENT OF THE COMPANY’S LIABILITY
UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT
PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY
EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY,
SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY
ACTION FOR BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT WITHIN A
PERIOD OF 48 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE
SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL
DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR
IMPLIED, WHATSOEVER. No person or representative is authorized to assume for
the Company any liability other than expressed herein in connection with the sale of
this product. Some states do not allow limitations on how long an implied warranty
lasts or the exclusion or limitation of incidental or consequential damage so the above
limitations or exclusions may not apply to you. This Warranty gives you specific legal
rights and you may also have other rights which vary from state to state.
WARRANTY RETURN: To obtain repair or replacement within the terms of this
Warranty, please return product to an authorized ECLIPSE Dealer or call
[phone]. Proof of purchase and description of defect are required. Products to
be returned to an approved warranty station must be shipped freight prepaid.

© 2005 SIRIUS Satellite Radio Inc.
SIRIUS Satellite Radio
1221 Avenue of the Americas
New York, NY 10020
[phone]
www.sirius.com
SIR-ECL1 Manual (Feb 2005- Rev. A)
Distributed by ECLIPSE
Contact: Fujitsu Ten Corp. of America
19600 South Vermont Ave.
Torrance, CA 90502
[phone]
www.eclipse-web.com
