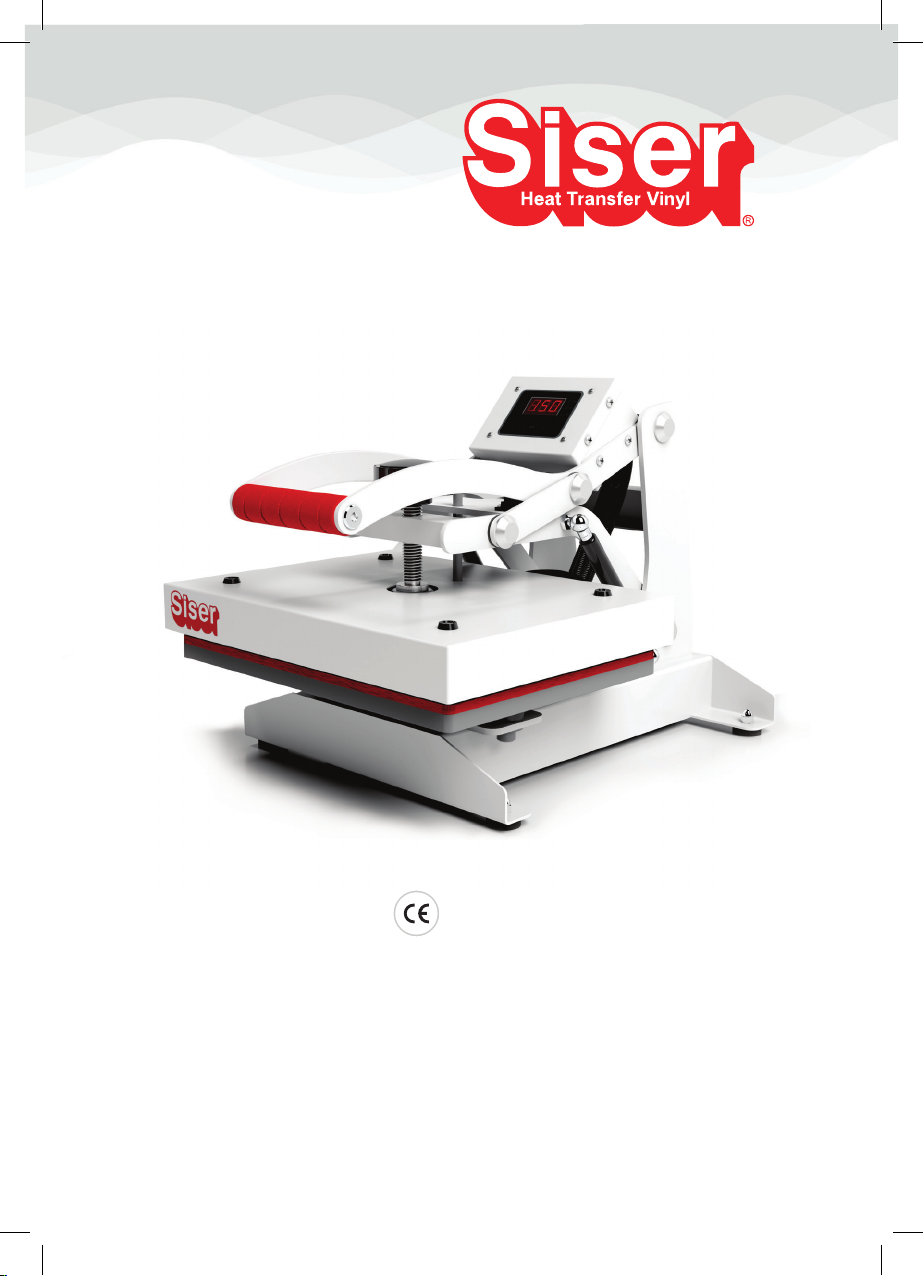

Siser Craft Heat Press User manual

Siser®Craft Heat Press
SISER S.r.l.
Viale della Tecnica, 18
36100 VICENZA, ITALY
tel. [phone]
fax [phone]
[email protected] - www.siser.com
HEAT-PRESS
MODEL CP912-240
OPERATOR’S MANUAL
This manual is the property of SISER S.r.l., any even partial reproduction is forbidden
CRAFT HEAT PRESS Manual for use and maintenance

This manual is the property of SISER S.r.l., any even partial reproduction is forbidden
CRAFT HEAT PRESS Manual for use and maintenance
2
Reproduction, memorization and
transmission of all and parts of this
publication are prohibited in any form
without the prior written authorization and
consent of SISER S.r.l..
SISER S.r.l.,with its policy of constant
improvement and development of its
products, reserves the right to alter the
specications, equipment and instructions
for use and maintenance at any time and
without notice.

This manual is the property of SISER S.r.l., any even partial reproduction is forbidden
CRAFT HEAT PRESS Manual for use and maintenance
3
INDEX
Safety precautions
1. Part identication
2. Initial setup
3. Adjusting temperature, time and pressure
4. Applying with your craft press
5. Terms of guarantee
5.1 Warranty policy
5.2 Liability
5.3 Ce - certication - reference standards
6. Retiring the machine, demolition and disposal
4
5
6
7
9
10
11

This manual is the property of SISER S.r.l., any even partial reproduction is forbidden
CRAFT HEAT PRESS Manual for use and maintenance
4
Safety Precautions
When using your heat press, basic precautions should always be followed,
including the following:
1. Read all instructions.
2. Use heat press only for its intended use.
3. To reduce the risk of electric shock, do not immerse the heat press in water
or other liquids.
4. Never pull cord to disconnect from outlet, instead, grasp plug and pull to
disconnect.
5. Do not allow cord to touch hot surfaces, allow heat press to cool completely
before storing.
6. Do not operate heat press with a damaged cord or if the equipment has
been dropped or damaged. To reduce the risk of electric shock, do not
disassemble or attempt to repair the heat press. Take it to a qualied service
person for examination and repair. Incorrect assembly or repair could
increase the risk of re, electric shock, or injury to persons when equipment
is used.
7. This appliance is not intended for use by persons (including children) with
reduced physical, sensory, or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
8. Close supervision is necessary for any heat press being used by or near
children. Do not leave equipment unattended while connected.
9. Burns can occur when touching hot metal parts.
10. To reduce the likelihood of circuit overload, do not operate other high
voltage equipment on the same circuit.
11. If an extension cord is necessary, then a 10 amperage rated cord should be
used. Cords rated for less amperage may overheat. Care should be taken to
arrange the cord so that it cannot be pulled or tripped over.
12. Never take it upon yourself to remove the press instrument box: if problems
arise, contact our specialist person directly during normal working hours on
[phone]. Opening the instrument box of your own accord causes
all rights to warranty to become void.

This manual is the property of SISER S.r.l., any even partial reproduction is forbidden
CRAFT HEAT PRESS Manual for use and maintenance
5
1. Part Identification
Control Panel
Pressure Knob
Lift Handle (Down)
Power Switch
Power Cord
Circuit Breaker
Lift Handle (Up)
Upper Platen (Heater)
Lower Platen

This manual is the property of SISER S.r.l., any even partial reproduction is forbidden
CRAFT HEAT PRESS Manual for use and maintenance
6
2. Initial Setup
General Guidelines:
• To avoid burns, do not touch the heated platen during use.
• Keep hands clear of the upper platen of the press during lock down as the
pressure may cause injury.
• Press should be placed on a sturdy, suitable stand at least 92 cm L x 61 cm W x
74 cm H.
• Work area must be kept clean, tidy and free of obstructions.
Carefully follow the step-by-step instructions for best results.
1. Failure to comply with the instructions relative to installation, use and
maintenance as described in this manual.
2. System and environmental conditions that are not conducive for the
machine to perform.
3. Unauthorized alterations to the machine.
4. Operation by unqualied and untrained personnel.
CAUTION! Failure to follow these instructions will cause:
1. Erratic controller functions.
2. Inaccurate displays and slow heat-up.
3. The circuit breaker to disengage.

This manual is the property of SISER S.r.l., any even partial reproduction is forbidden
CRAFT HEAT PRESS Manual for use and maintenance
7
3. Adjusting Temperature, Time and Pressure
Recommended settings vary based on the garment material and type of
transfer product used.
Please consult the instructions or specications that came with your transfer
product for appropriate temperature and time settings

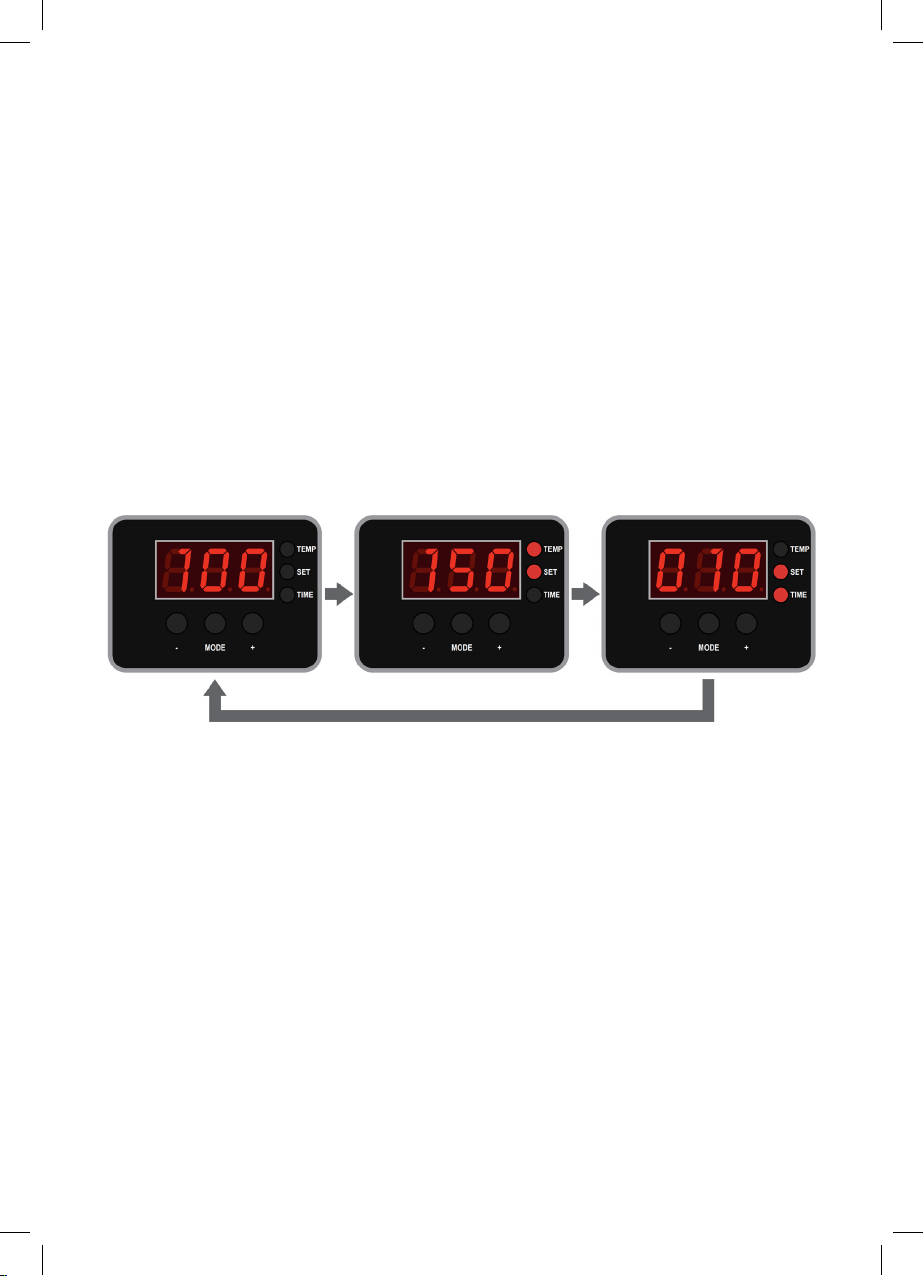

With the press ON and the Lift Handle in the UP position, press the MODE
button to cycle through setup modes:
Various transfer products will recommend using either “light”, “medium” or
“heavy” pressure. Some trial and error may be required to determine the best
pressure setting, but once selected, your craft press will reliably reproduce the
same pressure, print after print.
• Displays current
temperature (C°)
• Ready to Print
• Displays print temperature
• Increase using (+) button
• Decrease using (-) button
• Displays print time (sec)
• Increase using (+) button
• Decrease using (-) button

This manual is the property of SISER S.r.l., any even partial reproduction is forbidden
CRAFT HEAT PRESS Manual for use and maintenance
8

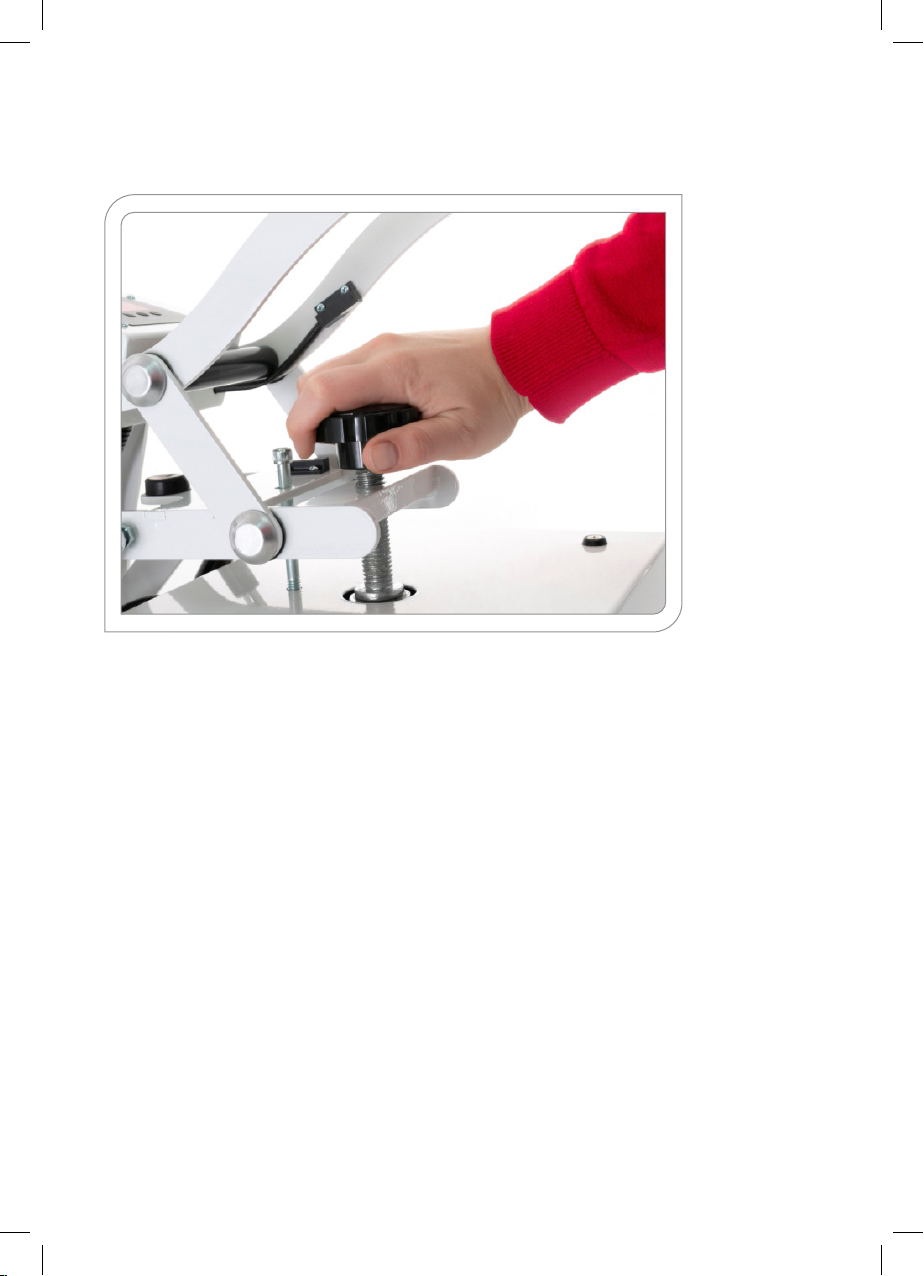

With the Lift Handle in the DOWN position, rotate the patented Over-the-Center
Pressure Adjustment Knob.
• Rotate clockwise to increase pressure
• Rotate counter-clockwise to decrease pressure
• Remember to allow for the thickness of your garment when adjusting
pressure.
• WARNING: Structural damage caused by excessive pressure is NOT covered
under the limited warranty.

This manual is the property of SISER S.r.l., any even partial reproduction is forbidden
CRAFT HEAT PRESS Manual for use and maintenance
9
4. Applying with your Craft Press
Once the Craft Press has reached the
designated temperature, position the
garment.
Align the transfer material on the
garment to be printed and cover with a
cover sheet.
Lower and lock the heat platen into the
press position. The automatic timing
process will start.
The timer will count down and audibly
signal you to lift the heat platen into
the UP position when the press cycle is
complete. The time will automatically
reset and you are ready to continue with
the next application.

This manual is the property of SISER S.r.l., any even partial reproduction is forbidden
CRAFT HEAT PRESS Manual for use and maintenance
10
5. TERMS OF GUARANTEE
5.1 Warranty policy
SISER S.r.l. guarantees its SISER CRAFT HEAT PRESS
machine for a period of 24 months from the date of
shipment.
The warranty will only be recognised if the machine was used correctly
following the instructions given in this manual.
During the warranty period, any defective or broken parts will be repaired or
replaced free of charge by SISER S.r.l. on its premises in Vicenza.
Any defective parts replaced must be returned to Siser S.r.l. after replacement.
The purchaser assumes all transport or delivery charges of the spare parts
All consumables and materials used for routine maintenance are excluded
from the warranty, as well as any parts damaged due to improper use of the
machine.
Repairs and/or replacements made during the warranty period do not
extend the warranty.
5.2 Liability
The only congurations and uses allowed by the
manufacturer are those expressly described in the manual.
SISER S.r.l. assumes no liability for:
• failure to comply with the instructions relative to installation, use and
maintenance as described in this manual;
• system and environmental conditions that are not conducive for the machine
to perform;
• unauthorized alterations to the machine;
• operation by unqualied and untrained personnel.
5.3 CE - CERTIFICATION - Reference standards
The SISER CRAFT HEAT PRESS machine is equipped with electrical parts operating at
a voltage ranging between 50 V and 1000 V alternating current, and is subject to the
Low Voltage Directive 2014/35/EU and the Electromagnetic Compatibility Directive
2014/30/EU.
Users must remember that in addition to following the instructions in this manual,
the legislation on the subject of safety within your country must also be adhered to.

This manual is the property of SISER S.r.l., any even partial reproduction is forbidden
CRAFT HEAT PRESS Manual for use and maintenance
11
6. RETIRING THE MACHINE, DEMOLITION AND DISPOSAL
If the machine has to be demolished, it must be separated into similar parts,
which must be separately disposed of in accordance with legislation in force.
The replaced parts must not be disposed of in the environment, but disposed of
according to legislation in force in the location of machine use.
The basic components of the machine parts are steel, stone wool, aluminium
and plastic.
The symbol
depicted on the machine means the waste is subject to “separate collection”.
Therefore, the user must take (or have taken) the waste material to a waste
sorting facility run by local municipalities, or return it to the retailer on purchase
of a new, equivalent machine.
In Italy, illegal disposal of the product by the user is subject to a ne pursuant to
Art. 255 and thereafter of Legislative Decree no. 152/06.
Information for the users
Separate collection of this machine at the end of its life is organized and
managed by the manufacturer. The user who wishes to dispose of this
equipment should therefore contact the manufacturer and follow the
instructions adopted by the latter to ensure separate collection of the machine
at the end of its life.
Correct separate collection for recycling, treatment and environmentally
compatible disposal of waste material contributes to the prevention of possible
negative effects on health and the environment, and facilitates the reuse and/or
recycling of the materials of which it is composed.
Improper disposal of the product by the owner is a punishable violation of the
regulations in force.

© SISER S.r.l. 2020
Notes
Siser®Craft Heat Press

T-Shirt Onesies Tote Bags Coasters Kitchen aprons Mouse PadsKoozies
Siser®Craft Heat Press
SISER S.r.l.
Viale della Tecnica, 18
36100 VICENZA, ITALY
tel. [phone]
fax [phone]
[email protected] - www.siser.com
HEAT-PRESS
MODEL CP912-240
OPERATOR’S MANUAL
Perfect For Applying HTV Designs to:
This manual is the property of SISER S.r.l., any even partial reproduction is forbidden
CRAFT HEAT PRESS Manual for use and maintenance

12”
22.8 cm
9”
30.4 cm
Siser®Craft Heat Press
SISER S.r.l.
Viale della Tecnica, 18
36100 VICENZA, ITALY
tel. [phone]
fax [phone]
[email protected] - www.siser.com
HEAT-PRESS
MODEL CP912-240
OPERATOR’S MANUAL
