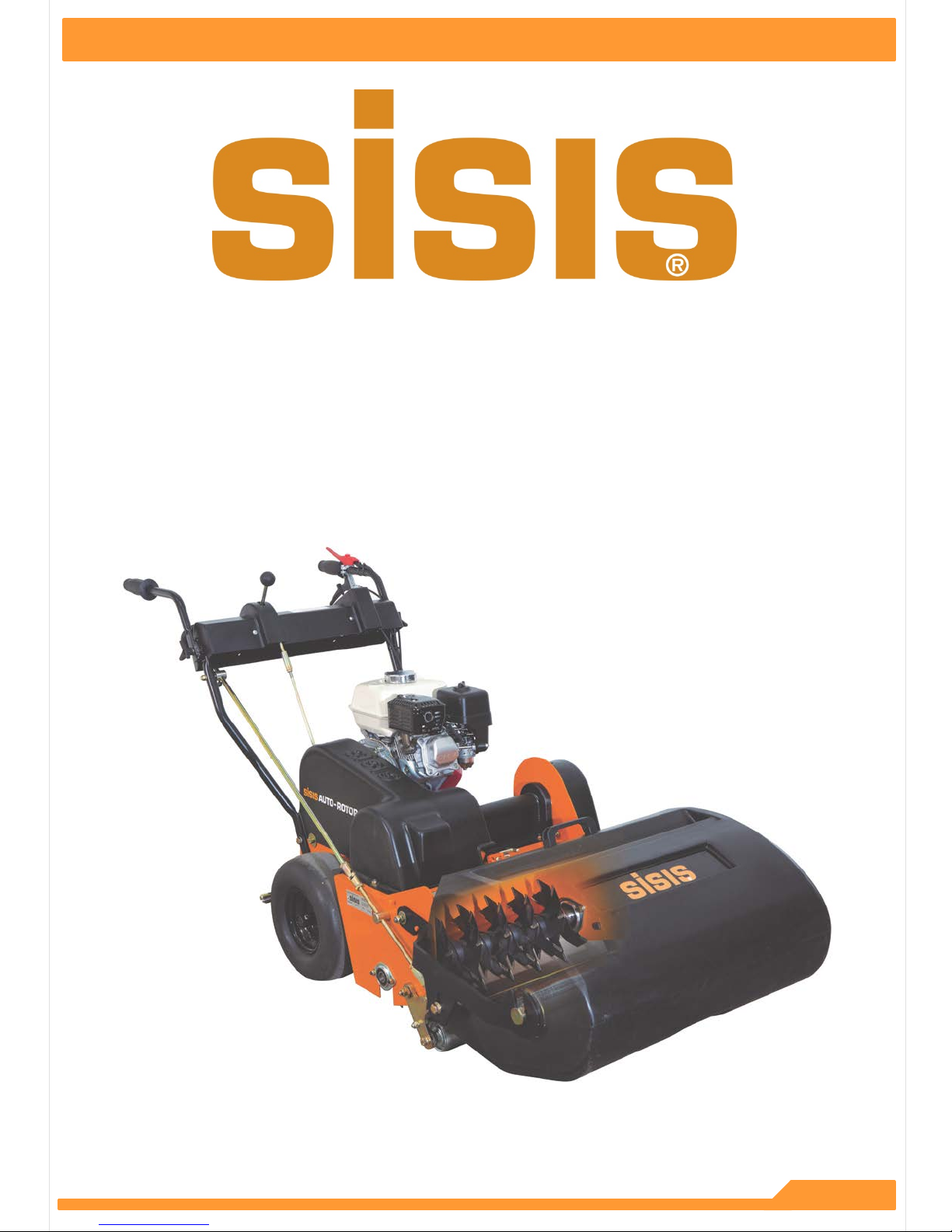

Sisis AUTO-ROTORAKE Mk.5 User manual

AUTO-ROTORAKE Mk.5
INSTRUCTION MANUAL
SP20008_REV3
MAY 2018

2
CERTIFICATE OF CONFORMITY
Auto-Rotorake CN Code: 8432 29 10
Manufacturer:- Howardson Ltd, Howardson Works, Kirk Langley, Derby, DE6 4NJ. UK
Owner of Technical Document:- Mr I.D. Howard, Howardson Ltd, Howardson Works Kirk Langley, Derby, DE6 4NJ, UK
I the under signed Declare that these machines:-
The reliability and quality of performance of the SISIS Auto-rotorake depends upon some simple care maintenance
carried out regularly. This manual has been prepared to allow the user to carry out all such work.
It is advisable to read the instructions carefully. Proper care and attention will enable the machine to give a continuous,
satisfactory, and reliable service. Failure to carry out regular lubrication and maintenance as outlined in this manual may
render any guarantee or warranty invalid.
In the case of any difficulty, or if further information or advice is required, our Service Department is always at your call. In
the interests of speed and accuracy of informationplease quote the serial numbers of the machine and engine when
making enquiries.
For the machine, this is to be found on a plate attached to the side frame. The engine number is stamped
on either the crank case or the gear casing facing towards the front of the machine. We suggest you write
the numbers on the front page of this book.
INTRODUCTION
SERIAL NUMBERS
Ian Howard
Tested at:- Howardson Works test site September 2011
Complies with the applicable requirements of:-
- Machine Directive 2006/42/EC
- Noise Directive 2000/14/EC (Annex VI Procedure 1)
Managing Director
MODEL OPERATING
WIDTH POWER (HONDA) MEASURED SOUND POWER LEVEL GUARANTEED SOUND POWER LEVEL SERIAL NUMBER
ARR/5 20” (510MM) GX160 79dB Lwa 98dB Lwa See Product ID
range
ENGINE SERIAL NUMBER
MACHINE SERIAL NUMBER
NOTE:- MAKE A NOTE OF THE SERIAL NUMBERS OF YOUR MACHINE & ENGINE AND ALWAYS
QUOTE THEM IN ANY COMMUNICATION WITH PERSONNEL AT DENNIS.
SP20008_REV3
MAY 2018

3
CONTENTS
IMPORTANT SAFETY INTRODUCTIONS
TECHNICAL DATA
WARNING:- WHEN WORKING WITHOUT THE GRASS BOX, LOWER THE DEFLECTOR TO PROTECT
THE OPERATOR AND ENGINE AIR INTAKE FROM FLYING DEBRIS.
CAUTION:- READ THE INSTRUCTIONS CAREFULLY AND ALSO THE SEPARATE INSTRUCTION
DETAILS ON THE ENGINE..
NEVER
• carry out adjustments with the engine running.
ALWAYS
• read the operating instructions carefully and understand the controls before commencing work.
• be extra careful to avoid spillage, when using petrol or diesel fuel. DANGER no smoking or naked lights
• use safety guards and make sure they are correctly in position. they are supplied for your protection
• visually check machines before starting work for damage or wear to working parts such as blades,tines or loose fasteners
• respect powered machines. always keep hands and feet clear of moving parts and remember that tine cylinders or
drums can continue to rotate even after the power unit is switched off
• switch off the power before making adjustments or repairs and never lift or carry a machine whilst any parts are
Moving
EYE PROTECTION
In dry, dusty or windy conditions it may be necessary to wear eye protection to protect your eyes from flying debris.
FIRE HAZARD
ALWAYS CLEAN THE MACHINE. REMOVE ALL DEBRIS FROM AROUND THE ENGINE. BLOCKED
ENGINE COOLING FINS CAN CAUSE THE ENGINE TO OVERHEAT
Page
Declaration of Conformity...................................................................................................................................................... 2
Serial Numbers...................................................................................................................................................................... 2
Introduction............................................................................................................................................................................ 2
Technical Data....................................................................................................................................................................... 3
Important Safety Instructions............................................................................................................................................ 3 - 4
Operating Instructions....................................................................................................................................................... 5 - 6

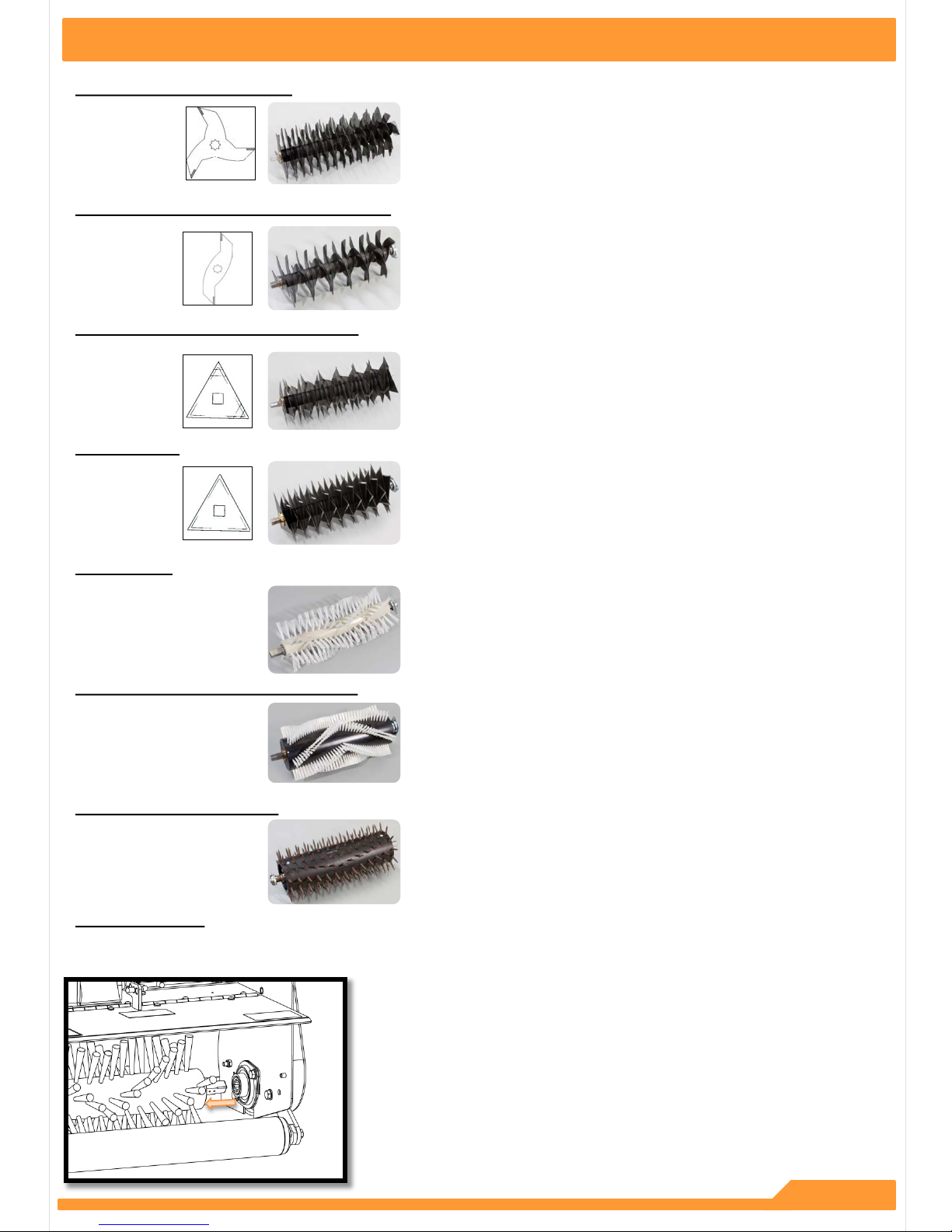

Reels...................................................................................................................................................................................... 7
Maintenance and Lubrication............................................................................................................................................ 8 - 9
Oiling Points......................................................................................................................................................................... 10

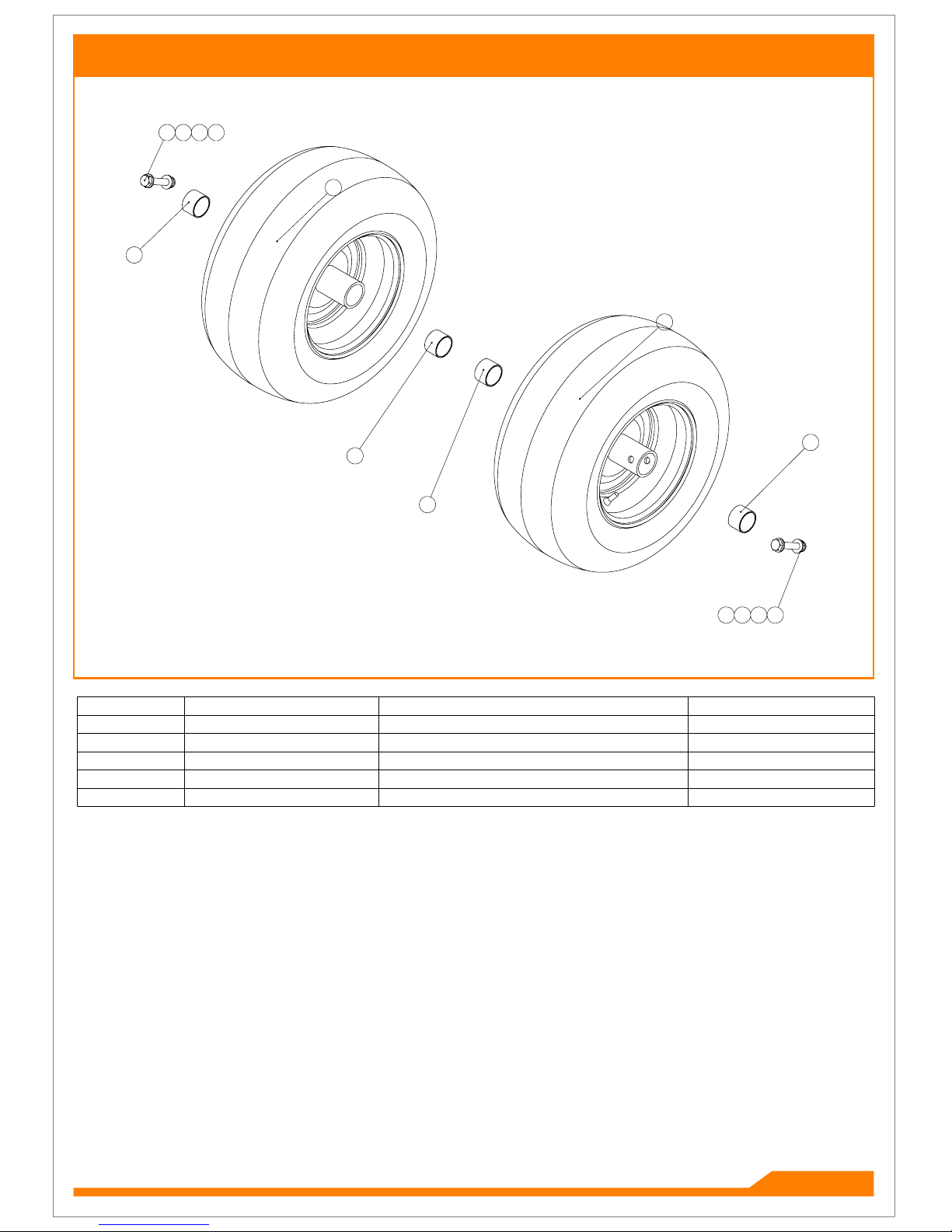

Parts Listings.............................................................................................................................................................. P0 - P12
MODEL AUTO-ROTORAKE MK.5
WIDTH (mm) 780
LENGTH WITH GRASS BOX (mm) 1850
LENGTH WITHOUT GRASS BOX (mm) 1450
HEIGHT (mm) 950
WEIGHT (Kg) 102
CUTTING WIDTH (mm) 20” (510mm)
ENGINE GX160
HAND ARM VIBRATION (m/sec) 4.85
MEASURED SOUND POWER LEVEL (dB(A)) 79
GUARANTEED SOUND POWER LEVEL (dB(A)) 98
SP20008_REV3
MAY 2018

4
IMPORTANT SAFETY INSTRUCTIONS
In order to operate the machine safely please follow these Health and Safety guidelines.
TRAINING
CAUTION
READ THE INSTRUCTIONS CONTAINED IN THIS MANUAL WITH CARE. IF YOU ARE IN
ANY DOUBT PLEASE ASK YOUR EMPLOYER OR CONTACT US DIRECT AT SISIS. CAUTION
• Be familiar with the controls and the proper use of the equipment.
• Never allow children or people unfamiliar with these instructions to use the machine. Local regulations or insurance
may restrict the age of the operator.
• Never operate while people, especially children, or pets are nearby.
• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their
property.
PREPARATION
• While operating always wear substantial footwear and long trousers. Do not operate the machine barefoot or in open
sandals.
• Thoroughly inspect where the equipment is to be used and remove all stones, sticks, wire, bones and other foreign
objects.
WARNING
PETROL IS HIGHLY FLAMMABLE AND WILL DAMAGE GRASS IF SPILT.
A) Store fuel in containers specifically designed for this purpose.
B) Refuel out doors and do not refuel whilst smoking.
C) Add fuel before starting the engine. Never remove the cap of the fuel tank or add petrol while the engine is running or
when the engine is hot.
D) If petrol is spilled do not attempt to start the engine but move the machine away from the area of spill and avoid
creating any sources of ignition until the vapours have dissipated.
• Replace damaged or faulty silencers.
• Before using the machine always inspect the safety devices including the cut off switch and the blades for excessive
wear or damage. Replace if necessary.
OPERATION
• Do not operate the engine in a confined space where dangerous CARBON MONOXIDE fumes can collect.
• Operate only in daylight or good artificial light.
• Always be sure of your footing on slopes.
• Walk. Never run.
• Exercise extreme care on slopes when changing direction.
• Do not operate excessively steep slopes.
• Use extreme caution when reversing or pulling the machine towards you.
• Stop the blades if the machine has to be tilted for transportation when crossing surfaces other than grass and when
transporting the machine to and from the area to be mown.
• Never operate the machine with defective guards or shields or without the safety devices, for example without the
deflector plate or grassbox in place.
• Do not change the engine governor settings or overspeed the engine.
• Disengage all blades and drive clutches before starting.
• Start the engine carefully following the instructions with feet well away from the blades.
• Do not tilt the machine when starting the engine.
• Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.
• Never pick up or carry the machine while the engine is running.
SP20008_REV3
MAY 2018

CAUTION
PLEASE READ THESE OPERATING INSTRUCTIONS CAREFULLY BEFORE
COMMENCING WORK.
We want you to obtain the best performance from this machine. If you have any difficulty in carrying out the following
instructions please contact SISIS direct or your local SISIS Territory Manager or SISIS Dealer.

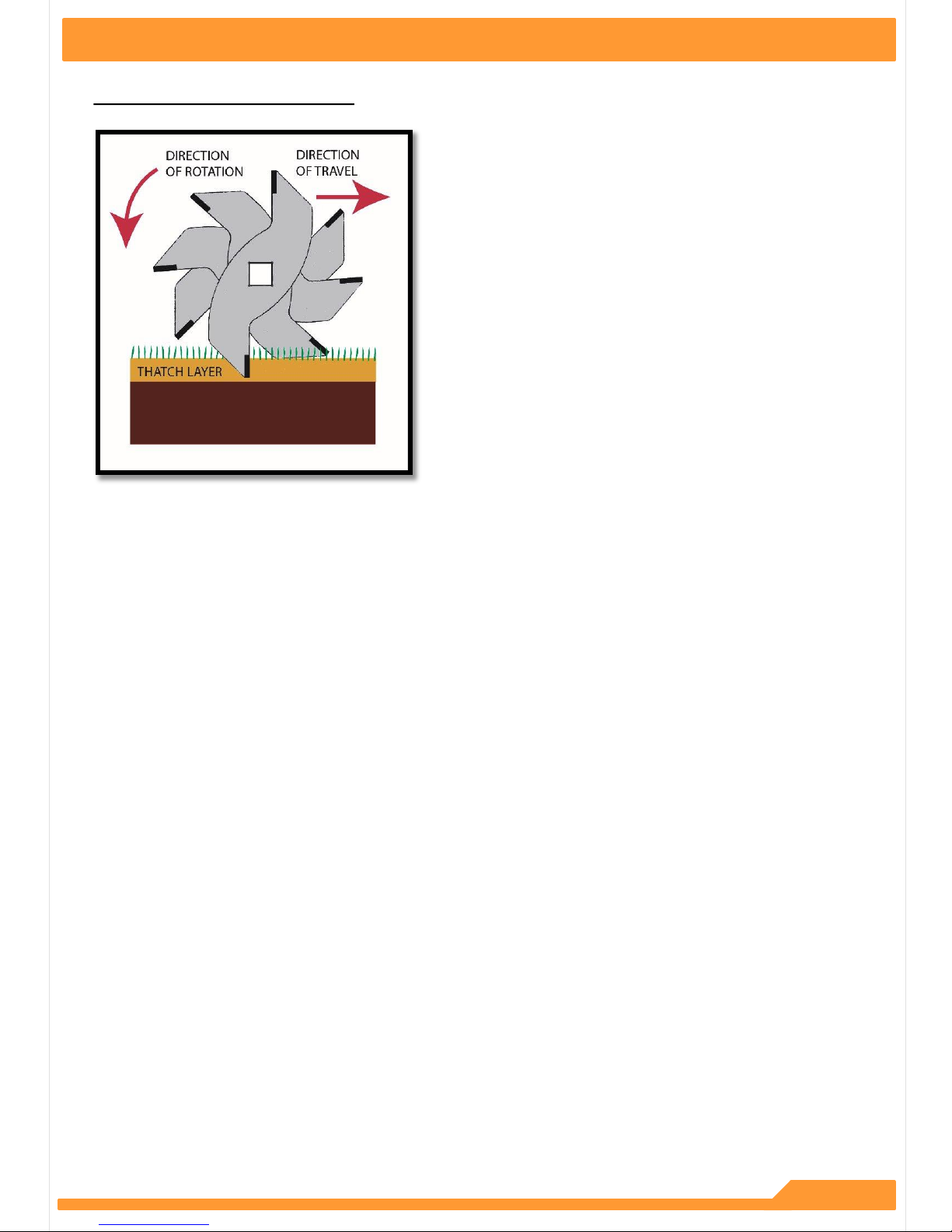

OPERATING PRINCIPAL
Power from the engine is transmitted through a vee belt clutch mechanism. One belt powers the tine reel through a
cross shaft with a final chain drive. Forward travel power is supplied through a cross shaft, spur gearing and a
differential gearbox, to the ground wheels. The depth of cut is simple to alter with the micro-adjuster on the handle
connecting through to the front roller frame.
CONTROLS
CAUTION
DISENGAGE THE REEL CLUTCH BEFORE STARTING THE ENGINE. RAISE THE TINE
REEL CLEAR OF THE GROUND TO PREVENT CONTACT.
5
IMPORTANT SAFETY INSTRUCTIONS
A = Engine Cut-out Lever
B = Engine Run / Stop Key
C = Drive Lever
D = Throttle
E = Cut Depth Micro Adjuster
F = Tine Drive Lever
The blades must be CLEAR of the ground before adjustment
commences. The depth of cut is adjusted by varying the height
of the front rollers, using the micro adjuster. Start the engine
and allow to warm up. Engage the ground wheel and reel drives
and lower the reel using the micro adjuster until the required
amount of thatch is being removed. Always disengage the reel
drive when the machine is stationary on the green.
A
C
D
B
F E
