Sisis ROTORAKE 602 User manual

SISIS EQUIPMENT (Macclesfield) LIMITED, Hurdsfield, Macclesfield, Cheshire SK10 2LZ, England
Tel [phone] Fax [phone] E mail [email protected] Website www.sisis.com
ROTORAKE 602
SPARES HOTLINE [phone]
Website www.sisis.com
MACHINE REFERENCE RR/602
SERIAL NUMBER ...........................
CN CODE 8432 2910
OPERATING INSTRUCTIONS

EC DECLARATION
OF CONFORMITY
We the undersigned
 SISISEquipment(Maccleseld)Limited
 Hurdseld,Maccleseld,CheshireSk102LZ,England
Certifythatthe  Rotorake
Make  SISIS
Type RR602
Series 1
Conforms to EC Directives
and amendments 2006/42/EC
Standard BS7370
CerticateNumber FS1154
J.W. Hargreaves
Director
This certicate applies only to NEW equipment supplied by SISIS or
our authorised dealer.

OPERATING INSTRUCTIONS : SISIS ROTORAKE 602 model RR/602 WI/RR602/10/09
page 1
We want you to obtain the best performance
from this machine. If, after reading the following
instructions,youhaveanyproblemspleasecontact
SISISatMaccleseldoryourlocalTerritoryManager
or SISIS Dealer.
DESCRIPTION
The name Rotorake has become synonymous with
effectivethatchremovalandcontrol,butthenew
SISISROTORAKE602ismorethanascarier.
A superb thatch remover for regular routine use when
usedatashallowsetting,thispowerful,heavy-duty
machine also has the capability to work deeper
when required. With a maximum working depth of
50mm(2ins),severe thatchproblems,increasingly
common with climatic changes and some of the newer
speciesofgrasses,cannowbecontrolled.Arangeof
interchangeable blades is available for year-round
use.
Even when used at maximum depth the ROTORAKE
602retainsthenesseoftheSISISAuto-Rotorakeand
leaves a clean cut groove.
The ROTORAKE 602 incorporates the well proven SISIS
rotorakecontra-rotationprinciple,wherebythereel
rotates at high speed against the direction of travel.
The blades therefore cut upwards continuously
throwing the thatch forwards rather than pushing
it into the surface. The machine is also held to
the ground to maintain a regular working depth.
TheRotorake602alsocontributestoaeration.The
clean,continuousslitsassistwaterandairabsorption
through a heavy thatch layer and integration of top
dressing is also improved.
UsetheSISIS602toimproveallneturfareassuch
asgolfgreens,bowlinggreens,cricketsquares,lawn
tennis courts etc.
The Rotorake 602 can be set up with an integral
contra rotation principle
seederattachment,sothatitcanbeusedforover
seeding worn areas of turf. The RR602S it can perform
an overseeding operation using either blades or
Rolaspikereeltocreateaseedbed,andapplyingseed
atinnitelyvariableseedratesviatheZ-maxbox.
FEATURES
Low noise and vibration twin cylinder engine
Scariesandaeratesinoneoperation
Abilitytoworkat50mm(2ins)whenrequired
Range of quick interchangeable reels for year round
use
Extra durable tungsten carbide tipped blades
600mm(24ins)workingwidth
Quickactionleverforheightadjustmentfromworking
mode to transport
6 speed gearbox to control forward speed. Over centre
lever to reel drive with operator presence safety
switch
Microdepthadjuster
Front or rear discharge
Easytandremovegrasscollector
Ability to over seed with lateral tine grooves or
Rolaspikereel.
USING THE ROTORAKE 602
Before starting
the engine the
operator should
be familiar with
thevariouscontrol
functions.
Before starting
the engine en-
sure that the tines
are clear of the
ground Photo 1
If fitted with
seeder ensure
s e e d e r d r i v e
mechanism is
OFF . Photo 2
Move the engine
photo 1
photo 2

page 2
isolator switch to
the ON position.
Photo 3.
Ensure that the
tine drive over
entre lever is in
the OFF position.
Putthechoke
(situated at the
sideoftheengine)
in the ON position.
Photo 4
Move the throttle
lever (located on
left hand side of
thehandles)tothe
half way position.
Photo 5
Pull the engine
r e c o i l s t a r t e r
gently until resis-
tance is felt. Then
pull sharply when
the engine is
running smoothly.
Photo 6 Select
the required gear
on the gear change lever.
The gears are
markedR-reverse,
N- neutral,  1-2-
3-4-5-6, gear 1
being the slowest
for-wardandgear
6 the fastest.
Pull the lever on
the left hand side
of the handles
upwards to start moving forwards, whilst holding
down the red operator safety control lever, if the
operator control lever is released the engine will
stop.
Always put the
gear lever into the
neutral position
before releasing
the handles.
TosettheRotorake
602 to scarify, set
thequicksetlever
to its lowest position, (photo 7) and adjust the micro
adjuster lever
until the required
depthisach-ieved.
Photo 8
The quick set
lever can be
used to lift the
tinesoutofcon-
tact with the turf
and return the
ti ne s to y ou r
preset depth.
The front dee-
ctor may be set
in several posi-
tionstosuitcon-
ditions and to
angle the throw
of material in to
the grass box. Photo 9
Whennotusingthegrassbox,thefrontdeectormay
be closed and the rear shroud opened to allow the
materialtoberearejectedforcollection.
For light
scarifying gears
3 / 4 / 5 m a y
be  u s e d ,  b u t
depending on
conditions, the
deeper you go
the lower the
forward speed.
Again this will
depend on ground
conditions
and operator
comfort.
The grass box
frame may be
removed when it
is not required
Remove the pins
on either side of
the frame and
withdraw the
frame from its
sockets.
Photos10,11,12
OPERATING INSTRUCTIONS : SISIS ROTORAKE 602 model RR/602 WI/RR602/10/09
photo 5
photo 3
photo 6
photo 4
photo 7
photo 9
photo 8
photo 12
photo 11
photo 10

page 3
OPERATING INSTRUCTIONS : SISIS ROTORAKE 602 model RR/602 WI/RR602/10/09
ROTORAKE 602 SEEDER
If your Rotorake 602 is tted with the seeder set
thetinestotherequireddepth(amaximumof20m)
an d s e t t h e
lever box to
the required
a m o u n t o f
seed (photo
13)outputand
lock the lever
by turning the
redknob(photo
14)tothelock
position. The
seed is only distributed
when the tines
are powered
so that at the
end of a run
the tine drive
is turned off
so that seed
is not distri-
buted whilst
t u r n i n g o r
transporting.
YoumayalsottheRolaspikeifyourequireseedinto
holes rather than linear slits.
CHANGING REELS
TheRotorake602hasaquickchangereelsystem.
Undothe3nuts(13mmspanner)onthebearingatthe
end of the reel shaft and slide the reels across so that
itdropsoutofitssquaredrivesocket.Thisisalways
done with the reel shaft clear of the ground.
Cautionshouldbetakenwhenhandlingreel shafts
and Rolaspike reel as the tines will be sharp. It is
advisable to wear protective gloves.
Replace the reel in the same way ensuring that the
squareendissecurelylocatedinthesocketdriveand
thebearingboltsaresecurelyre-tightened.
Whenttingnewbladesontoashaftalwaysensure
that the blades are tted in the correct rotation
(take note how blades are tted before removing
fromshaft).
OPTIONAL INTERCHANGEABLE REELS
THATCH REMOVAL REEL FS1155
Fitted as standard. Reel of 23 x 2mm heavy-duty
thatch removal blades
(ref F36560) with
25mm long tungsten
ti p s. Th e s pa c in g
between the blades is
24mm,butvariablein
increments of 6mm by varying the number of rubber
spacers.
ROLASPIKE REEL FS1158
Lightsurface spiker
penetrating to a
depth of 10mm-
25mm. Used to assist
in the absorption
of water, air and
nutrients and ideal prior to fertilising and seeding
BRUSH REEL FS1157
Spiral brush for grooming
and collecting debris
from the surface. Can
also be used to raise
the grass blades prior to
mowing,orforremoving
sa n d sp l a s h a r o un d
bunkers.
SYNTHETIC BRUSH REEL FS 1175
Stiff bristled brush for
grooming synthetic
surfaces.
FAZE-MO REEL
FS37536
Set of 11 blades. Use
to control grasses and
weeds without the need
of pesticides.
photo 14
photo 13

IfyouwouldliketechnicaladviceyourSISISTer-
ritory Manager
willbepleasedtohelp,pleasecontactSISISon
Tel [phone] Fax [phone] Email
[email protected]
Web www.sisis.com
Hirepurchase,leasingandrentalpackagesare
available.
National and international spares and service
network.
page 4
OPERATING INSTRUCTIONS : SISIS ROTORAKE 602 model RR/602 WI/RR602/10/09
SPECIFICATION
Model reference RR/602 FS1154
Fitted with Seeder RR/602S FS1125
Overall width 87cmn 34ins
Workingwidth 60cm 24ins
Length(exc.collectorbox) 170cm 66ins
Height 102cm 40ins
Weight(excl.seeder) 190kg 418lbs
Weight(inc.seeder) 195kg 430lbs
Engine(B&S)twinpetrol 9.6kw 14hp
Wheel/tyre 16 x 6.8
Approx ground coverage
 (light/mediumscarication) 1250m2/hr 1500yds2/hr
 (deepscarication) 750m2/hr 900yds2/hr
SAFETY NOTES
CAUTION
This machine is designed to be used ONLY for the
scaricationoraerationofturf
NEVER
Allow any untrained or unauthorised person to use
this equipment
ALWAYS
use manufacturers genuine guaranteed spare parts and
tines. The manufacturer cannot be held responsible
forinjuryordamagecausedbynongenuineparts.
EYE PROTECTION
Industy,dryorwindyconditionsitmaybenecessary
to wear eye protection to protect your eyes from
yingdebris.
The C.E. certificate, working instructions and
Warranty ONLY apply to parts supplied by SISIS
EQUIPMENT(Maccleseld)LIMITED

page 5
TINE REEL COMPRESSION TOOL
TheTineReelCompressionToolhasbeendesignedtomakechangingthebladeson
SISISscarierseasier.ItcanbeusedonallSISISscariers
SISIS ROTORAKE 602
1 Remove the worn reel from the
machine
2 Remove split pin from square
end of shaft and save
3 Remove square bore washer
and save
4 Remove old blades and rubber
spacers,notingdirectionofrotation
of blades on the shaft (refer to
WorkingInstructionManual)
5 Rebuild reel using new SISIS
blades ensuring you have used
the correct number of blades
and spacers. (Refer to Working
InstructionManual)
6 Replace square bore washer.
Place the Tine Reel Compression
Tool over the end of the tine shaft
ensuring split pin holes are clear.
7 With theAllen key provided
tighten the 2 short screws on to
To order a SISIS Tine Reel Compression Tool,
please call the SISIS Sales Dept on 01625 503030,
quoting Model Ref: TRCT (FS966)
OPERATING INSTRUCTIONS : SISIS ROTORAKE 602 model RR/602 WI/RR602/10/09
the shaft
8 UsetheAllenkeytowinddown
the 2 long screws until they are in
contact with square bore washer.
9 Wind each long screw two or
threeturns,untilthesplitpinhole
appears.
10 Refit split pin and remove
compression tool

SISIS EQUIPMENT (Maccleseld) LIMITED,Hurdseld,Maccleseld,CheshireSK102LZ,England
Tel(01625)503030Fax(01625)427426Email[email protected]Websitewww.sisis.com
ROTORAKE 602
SPARES HOTLINE [phone]
Website www.sisis.com
MACHINE REFERENCE RR/602
SERIAL NUMBER ...........................
CN CODE 8432 2910
PARTS LIST & DRAWINGS

page 1 - parts
OPERATING INSTRUCTIONS : SISIS ROTORAKE 602 model RR/602 WI/RR602/09/10
item part description qty
1 1/1039 setscrew 17
2 1/1060 spring washer 15
3 1/1061 spring washer 8
4 1/1062 spring washer 5
5 1/1063 spring washer 3
6 1/1065 spring washer 10
7 1/1070 washer 13
8 1/1071 washer 4
9 1/1072 washer 14
10 1/1073 washer 6
11 1/1076 washer 7
12 1/1082 heavy washer 2
13 1/1094 setscrew 3
14 1/1096 setscrew 4
15 1/1105 setscrew 7
16 1/1154 setscrew 9
17 1/1217 nyloc nut 37
18 1/1218 nyloc nut 13
19 1/1220 nyloc nut 39
20 1/1221 locknut 12
21 1/1223 nyloc nut 12
22 1/1227 locknut 1
23 1/1228 nyloc nut 9
24 1/1422 setscrew 1
25 1/1669 cap head screw 4
26 1/1671 setscrew 1
27 1002 woodruffkey 1
28 1013 key 2
29 1/1230 locknut 1
30 1239 setscrew 1
31 1249 setscrew 1
32 1250 setscrew 1
33 1/11667 bolt 1
34 1257 bolt 1
35 1290 nyloc nut 3
36 1356 cable tie 10
37 22238 keyswitch 1
38 1423 mud washer 4
39 1493 inspectionticket 1
40 1601 woodruffkey 1
41 1792 spring 2
42 22001 cap head setscrew 1
43 1871 pop rivet 2
44 22391 handknob 1
45 1879 handknob 1
46 1933 key 1
47 1947 grease nipple 5
48 1949 setscrew 8
49 1951 setscrew 4
50 1952 setscrew 1
51 20049 knob 2
52 1989 grub screw 9
53 20016 cable splice 1
54 20431 nyloc 2
55 20171 wheel 2
56 20189 bearing 2
item part description qty
57 20491 handle 2
58 20527 angle gearbox 1
59 20558 woodruffkey 1
60 20802 spring washer 4
61 21739 rubber bobbin 1
62 21440 A section belt 1
63 21063 knob 2
64 21064 rod end 1
65 21150 bearing 3
66 21232 oilite bush 1
67 21279 cap head screw 2
68 1938 grub screw 4
69 21552 mud washer 1
70 21607 indexing pin 2
71 21629 transaxle 1
72 21717 plug 2
73 21722 E clip 2
74 22412 engine 1
75 21772 knob 1
76 21779 timing belt 1
77 21780 pulley 1
78 21781 pulley 1
79 21782 nylon washer 2
80 21784 key 2
81 22418 bearing 2
82 21872 bearing 1
83 21463 clevis 4
84 21464 clevis pin 4
85 8484 oilite bush 1
86 21905 deadmans lever 1
87 21922 rubber mount 4
88 21970 spit pin 4
89 21974 dome head screw 4
90 21986 sel loc pin 2
91 22016 zeromax gearbox 1
92 22026 but head screw 17
93 22062 grub screw 7
94 22096 button head screw 4
95 22103 button head screw 10
96 22281 drive lever 1
97 22336 indexing plunger 1
98 22421 woodruffkey 1
99 1040 split pin 2
100 36506 tension roller 1
101 22341 switch grey button 1
102 22343 wheel drive belt 1
103 22344 A section belt 2
104 22345 chainandsplitlink 1
105 22346 chainandsplitlink 1
106 3051 square washer 2
107 30716 seeder gear 23
108 30718 seeder spacer 22
109 3171 rubber section 4 mtr
110 34003 warning label 2
111 35773 hub 2
112 37704 scraper 2

page 2 - parts
OPERATING INSTRUCTIONS : SISIS ROTORAKE 602 model RR/602 WI/RR602/09/10
item part description qty
113 37705 bafe 1
114 37708 box support 1
115 35993 SISIS decal 1
116 36000 name plate 1
117 36029 pulley 1
118 36030 pulley 1
119 36032 pulley 2
120 36106 tine 23
121 36143 spacer 2
122 36147 offset ferrule 1
123 36169 spacer 2
124 36235 rubber spacer 44
125 37724 anglebracket 1
126 36639 LH upper handle 1
127 36640 RH upper handle 1
128 37718 handle shroud 1
129 37376 chokelabel 1
130 37400 chassis 1
131 37401 sprocket 1
132 37402 sprocket 1
133 37403 sprocket 1
134 37404 sprocket 1
135 37405 brakepad 1
136 37406 engine base plate 1
137 37407 end spacer 1
138 37408 threaded spacer 1
139 37409 seeder shaft 1
140 37410 tine shaft 1
141 37411 pulley 1
142 37412 pulley 1
143 37413 drive shaft extension 1
144 37414 layshaft 1
145 37415 tensioner 1
146 37416 tensionerblock 1
147 37417 belt guide 2
148 37418 curveddeector 1
149 37419 apmount 2
150 37725 push rod 1
151 37421 frontap 1
152 37422 hinge drilling 2
153 37423 indexing bar 1
154 37424 swivelbracket 1
155 37425 seal plate 2
156 37426 side seal 2
157 37427 hopper brush 2
158 37684 bearing housing 1
159 37685 stud shaft 1
160 37430 roller 1
161 37431 RH roller arm 1
162 37432 LH roller arm 1
163 37433 scraper rod 1
164 37434 adjustingrod 1
165 37435 swivel 1
166 37436 indexing arm 1
167 37437 seeder drive guard 1
168 37438 RH drive guard 1
item part description qty
169 37439 inside guard 1
170 37715 lever 1
171 37441 layshaft guard 1
172 37442 hopper cover 1
173 37726 pull rod 1
174 37444 guard support long 5
175 37445 guard support seeder 3
176 37446 lower handle 1
177 37449 brakelever 1
178 1/1796 bolt 4
179 37451 gear lever 1
180 37714 pivot arm 1
181 37453 engine drive arm 1
182 37454 gear shift lever 1
183 37455 tie rod 1
184 37728 over centre lever 1
185 37457 drive cable 1
186 37729 clutch lever 1
187 1/1078 HP washer 1
188 37460 throttle cable 1
189 37461 dead mans stop 1
190 37808 lever 1
191 37463 earth wire 1
192 37464 chassis earth wire 1
193 37465 machine decal 2
194 37466 seed decal 1
195 5622 split pin 2
196 8030 key 1
197 8067 grub screw 4
198 8068 grub screw 4
199 8123 washer 1
200 8164 setscrew 1
201 8168 key 2
202 8189 circlip 1
203 8256 hand grip 2
204 8295 idler pulley 2
205 8303 washer 12
206 8360 wheel nut 8
207 8485 balljoint 2
208 8493 key 1
209 8638 dome nut 8
210 8736 full nut 4
211 8803 angedbush 6
212 HUEO-004-82 cableclip 3
213 1/1222 half nut 1
214 22104 button head screw 16
215 HUFSE860 shoulder bolt 1
216 37806 switch mount 1
217 21748 micro switch 1
218 1/1092 setscrew 2
219 21803 setscrew 2
220 8173 bearing 2
221 37861 cover 1
222 38015 bearing spacer 1
223 20452 washer 1

page 3 - parts
OPERATING INSTRUCTIONS : SISIS ROTORAKE 602 model RR/602 WI/RR602/09/10

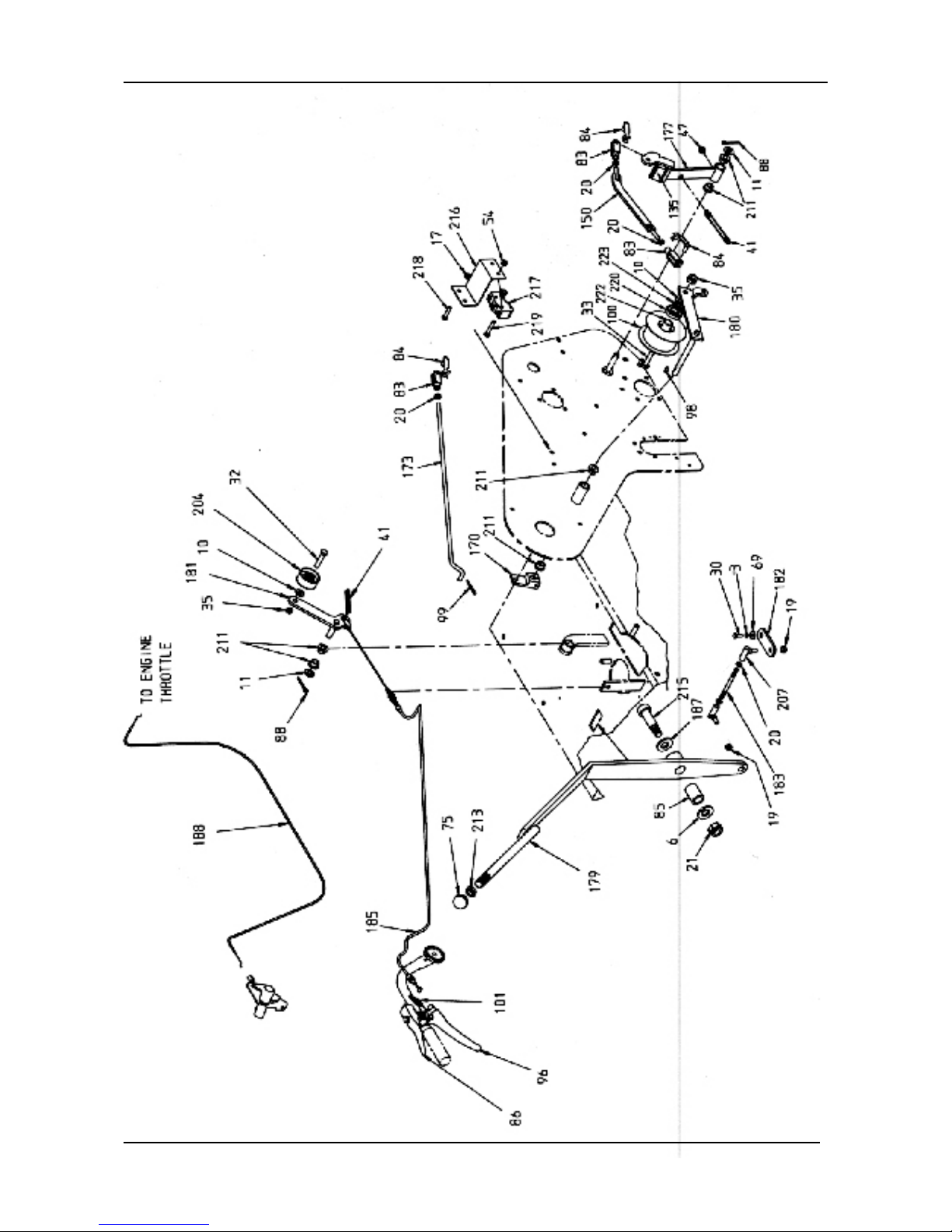

CONTROLS

page 4 - parts
OPERATING INSTRUCTIONS : SISIS ROTORAKE 602 model RR/602 WI/RR602/09/10
DEFLECTORS

page 5 - parts
OPERATING INSTRUCTIONS : SISIS ROTORAKE 602 model RR/602 WI/RR602/09/10

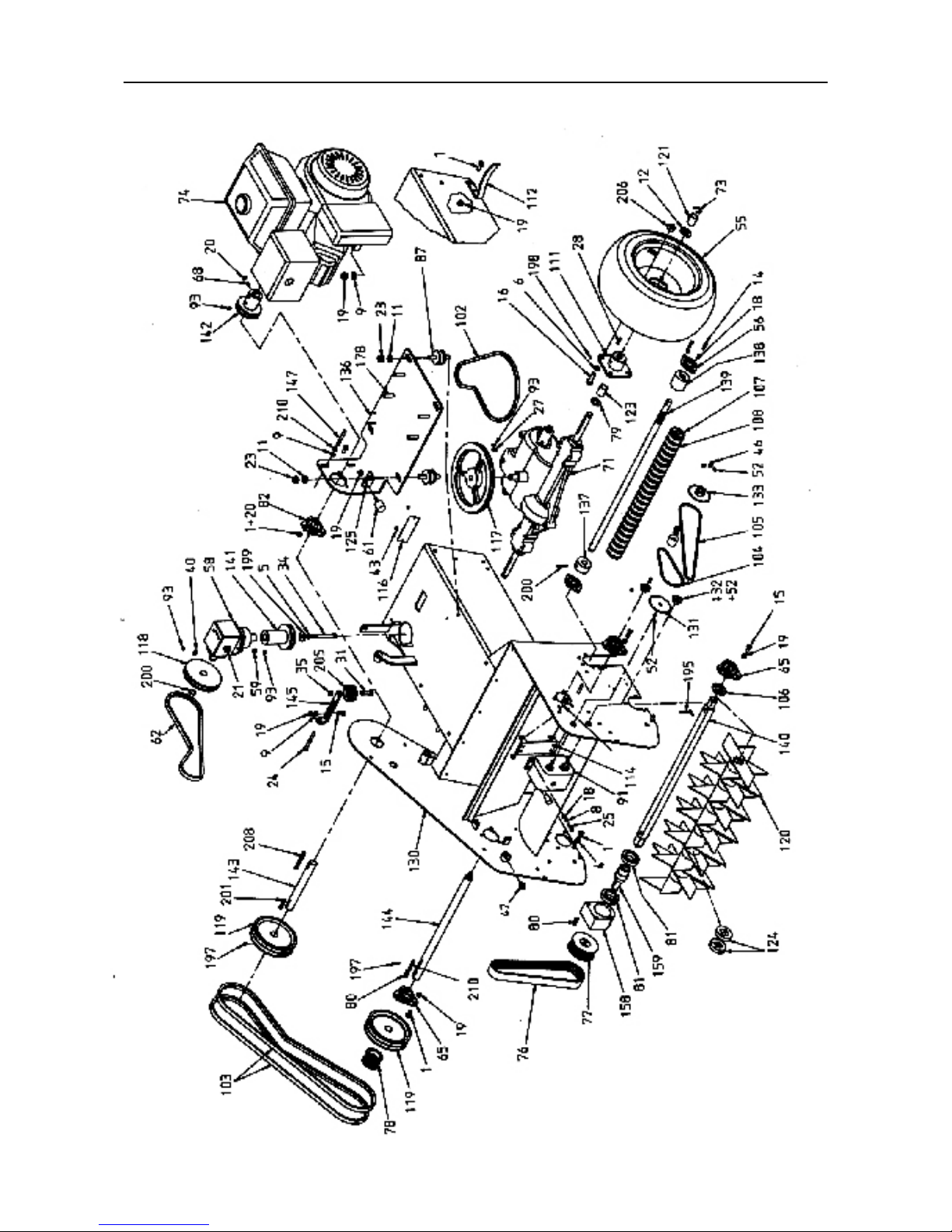

DRIVE
04.05.10

page 6 - parts
OPERATING INSTRUCTIONS : SISIS ROTORAKE 602 model RR/602 WI/RR602/09/10
GUARDS

page 7 - parts
OPERATING INSTRUCTIONS : SISIS ROTORAKE 602 model RR/602 WI/RR602/09/10
HANDLES

page 8 - parts
OPERATING INSTRUCTIONS : SISIS ROTORAKE 602 model RR/602 WI/RR602/09/10
ROLLER

page 9 - parts
OPERATING INSTRUCTIONS : SISIS ROTORAKE 602 model RR/602 WI/RR602/09/10
GRASSBOX
item part description qty
1 37833 frame mount LH 1
2 37832 frame mount RH 1
3 1/1223 nut 4
4 37795 grassbox frame 1
5 22465 R clip 2
6 37713 grassbox 1
item part description qty
7 37790 edging strip 2
8 20997 pop rivet 8
9 20491 handle 2
10 21149 setscrew 4
11 1/1217 nut 4
2
8
7
11
10
9
3
1
5
4
9
6

page 10 - parts
OPERATING INSTRUCTIONS : SISIS ROTORAKE 602 model RR/602 WI/RR602/09/10
23.04.10
microheightadjuster
grease
quickheightadjuster
forengineseeenginebook
seedoutputset/lock
roller levelling cam
ifttedwith
seeder remove
guard and oil
chains every 50
hours
oil
checktinesfor
wear/damage
engine isolator
25psi
handleheightadjuster
forward/reverse lever
oil both sides
operator presence
lever
tine drive
gear lever

96
101
13/3
191
86
37
189
37463
212
2
192
13/3
53
SPLICE
engine wire
ORANGE
37464
page 11 - parts
OPERATING INSTRUCTIONS : SISIS ROTORAKE 602 model RR/602 WI/RR602/09/10
ELECTRICS

OPERATING INSTRUCTIONS : SISIS ROTORAKE 602 model RR/602 WI/RR602/09/10
NOISE MEASUREMENT REPORT
Sound Power Level Measured 103
Sound Pressure at Operator’s ear 89
VIBRATION LEVELS
Right Hand 2.8 ms2
Left Hand 2.0 ms2
page 12 - parts
