On behalf of the entire Skateflash team we want to thank you for
the purchase of your new E-bike TREKKING and we hope you
enjoy it.
Skateflash is a leading company in personal mobility and leisure.
We are a concerned entity, respectful with the environment and
all our vehicles are emission free.
The latest technology E-bikes make the Skateflash displacement
an authentic experience.
We welcome you to the new freedom to move!
Before starting
· To ensure the correct use of the product, please read this user
manual carefully before you start using it.
· Skateflash is not responsible for the performance problems or
incompatibilities caused by the modification of registry parame-
ters or mechanisms made by the user. It is important to contact
technical service and keep the warranty card. Modifying the
E-bike would cancel the manufacturer’s warranty.
· The E-bike needs a short period of time for all moving parts, such
as hinges and brakes, fit their correct position naturally.
· Important: This product is not a toy. It must be used with protec-
tions (helmet, knee pads, etc.) and always under the supervision
of an adult. This vehicle is subject to regulations and ordinance of
each municipality, where the use and circulation of personal
mobility vehicles (PMV) is controlled.
· This user manual was updated at the time of its printing.
Skateflash reserves the right to possible updates/modifications of
the user manual due to improvements in the design and/or
functions of the product itself.

3EN
2.- Contents of the purchased product
· Before using your E-bike for the first time, check the content of
the package.
If any of the items is not included, contact your purchasing dealer.
1x E-bike SK TREKKING
1x User Manual
1x Power supply
1x Toolkit
1x Backpack
3.- Safety Notice
10.- This product is restricted to one person. It’s prohibited to drive
it with two or more people.
11.- Pregnant women should not ride the E-bike.
12.- Check the E-bike before each use. In case of finding anoma-
lies, contact technical service.
13.- Before driving the E-bike, you must know its operation very
well and then use it in complete safety.
14.- Not recommended for use below 0ºC or at high temperatures.
15.- Slow down when going on uneven surfaces.
16.- Do not drive on surfaces with oil or ice. Avoid slippery
surfaces, steep slopes or obstacles.
17.- Do not use the E-bike if you do not meet the minimum age
required by current circulation regulations.
18.- Do not ride continuously over water more than 2cm deep or
when the E-bike receives water directly. That may cause short
circuits or motor failures.
19.- Do not allow new riders to drive the E-bike out of your direct
supervision.
20.- Always turn slowly and with caution. Quick and rough turns
can cause loss of control and falls.
21.- Do not exceed the maximum weight limit specified in the
product characteristics.
22.- Do not get off the E-bike when it is in motion. Always stop the
E-bike before getting off.
23.- Be careful when riding the E-Bike in areas with low visibility
conditions. Check the condition of the lights.
24.- Avoid distractions. It is prohibited to ride the E-bike using a
mobile phone, headphones or other items that may distract the
user’s attention.
25.- Pay special attention/Take special care when approaching or
crossing intersections, driveways and other areas where motor
vehicles, cyclists or pedestrians may be present.
26.- It is forbidden to transport and place cargo on the E-bike
itself. Use recommended accessories.
27.- Use comfortable clothes and shoes.
28.- Do not use the E-bike in places with crowded people.
29.- Charge the E-bike at least once every 30 days if you do not
use it for a long time.
30.- The E-bike with electric assistance is an E-bike for adults
(over 14 years old).
31.- The E-bike with electric assistance is not a moped. The
assistance is intended to act as a complement to pedaling.
32.- The assistance is deactivated when one of the two brake
levers is applied or when the speed exceeds 25 km / h.
In order to reduce risks of misuse or accident, please follow the
safety instructions before using the E-bike:
1.- Be sure to comply with local laws and regulations.
2.- Always in case of a fall, do a complete revision of the E-bike. If
you detect a problem, do not use the E-bike before it is repaired.
3.- To charge the E-bike, use the power source provided. Do not
charge the battery with chargers that are not approved by the
manufacturer.
4.- This E-Bike is not waterproof and has IPX4 splash protection.
Do not continuously ride the E-Bike under the rain. Water can
damage electrical components, battery and structure of the
E-Bike. When riding in rainy environments, the wheels lose
adherence to the road, the brakes are not as effective, visibility is
reduced and the rider's integrity is endangered as he or she may
lose control.
5.- Do not use the E-bike in bad weather, snow, rain, hail,
slippery/icy streets or in extreme heat.
6.- The E-bike is equipped with 1 charging port.
7.- Maintain a speed of 5 to 10 km/h when going through
obstacles or uneven surfaces.
8.- The E-bike is configured with the optimal parameters. Do not
try to modify them. Any manipulation of the parameters or of the
scooter will void the warranty.
9.- Ride the E-bike wearing a helmet

4
EN
10.- This product is restricted to one person. It’s prohibited to drive
it with two or more people.
11.- Pregnant women should not ride the E-bike.
12.- Check the E-bike before each use. In case of finding anoma-
lies, contact technical service.
13.- Before driving the E-bike, you must know its operation very
well and then use it in complete safety.
14.- Not recommended for use below 0ºC or at high temperatures.
15.- Slow down when going on uneven surfaces.
16.- Do not drive on surfaces with oil or ice. Avoid slippery
surfaces, steep slopes or obstacles.
17.- Do not use the E-bike if you do not meet the minimum age
required by current circulation regulations.
18.- Do not ride continuously over water more than 2cm deep or
when the E-bike receives water directly. That may cause short
circuits or motor failures.
19.- Do not allow new riders to drive the E-bike out of your direct
supervision.
20.- Always turn slowly and with caution. Quick and rough turns
can cause loss of control and falls.
21.- Do not exceed the maximum weight limit specified in the
product characteristics.
22.- Do not get off the E-bike when it is in motion. Always stop the
E-bike before getting off.
23.- Be careful when riding the E-Bike in areas with low visibility
conditions. Check the condition of the lights.
24.- Avoid distractions. It is prohibited to ride the E-bike using a
mobile phone, headphones or other items that may distract the
user’s attention.
25.- Pay special attention/Take special care when approaching or
crossing intersections, driveways and other areas where motor
vehicles, cyclists or pedestrians may be present.
26.- It is forbidden to transport and place cargo on the E-bike
itself. Use recommended accessories.
27.- Use comfortable clothes and shoes.
28.- Do not use the E-bike in places with crowded people.
29.- Charge the E-bike at least once every 30 days if you do not
use it for a long time.
30.- The E-bike with electric assistance is an E-bike for adults
(over 14 years old).
31.- The E-bike with electric assistance is not a moped. The
assistance is intended to act as a complement to pedaling.
32.- The assistance is deactivated when one of the two brake
levers is applied or when the speed exceeds 25 km / h.
In order to reduce risks of misuse or accident, please follow the
safety instructions before using the E-bike:
1.- Be sure to comply with local laws and regulations.
2.- Always in case of a fall, do a complete revision of the E-bike. If
you detect a problem, do not use the E-bike before it is repaired.
3.- To charge the E-bike, use the power source provided. Do not
charge the battery with chargers that are not approved by the
manufacturer.
4.- This E-Bike is not waterproof and has IPX4 splash protection.
Do not continuously ride the E-Bike under the rain. Water can
damage electrical components, battery and structure of the
E-Bike. When riding in rainy environments, the wheels lose
adherence to the road, the brakes are not as effective, visibility is
reduced and the rider's integrity is endangered as he or she may
lose control.
5.- Do not use the E-bike in bad weather, snow, rain, hail,
slippery/icy streets or in extreme heat.
6.- The E-bike is equipped with 1 charging port.
7.- Maintain a speed of 5 to 10 km/h when going through
obstacles or uneven surfaces.
8.- The E-bike is configured with the optimal parameters. Do not
try to modify them. Any manipulation of the parameters or of the
scooter will void the warranty.
9.- Ride the E-bike wearing a helmet

8 Speeds
Brake
ON/OFF
Brake
Tire
Saddle
Rear
luggage
Mudguards
Pedal
Battery
Tire
Display
5EN
4.- Product overview

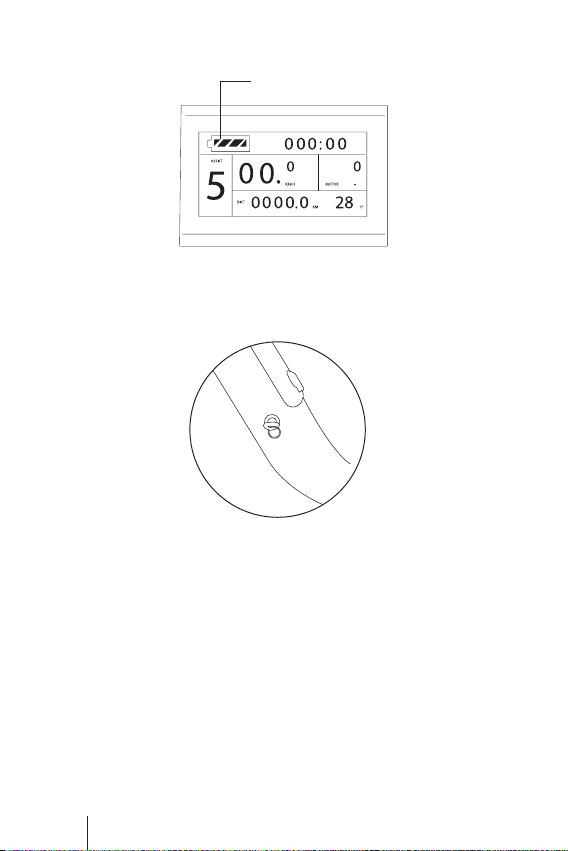

Battery indicator
DISPLAY
1.- Keys and operating instructions.
a) Insert the key into the battery and turn it to the ON position to
turn on the E-bike.
b) Press the ON / OFF button on the display to turn on the E-bike.
c) Pedal to start driving or press the help button on the display
(6km).
d) Press the MODE button to choose the desired assist power.
e) To turn off the E-bike, turn the key to the OFF position.
**The assistance is deactivated when one of the two brake levers is
activated, pedaling is stopped or when the speed exceeds 25 km /
h (speed regulated by current regulations).
6
EN

7EN
5.- Startup
Before using the E-bike for the first time it is necessary to:
- Check tire pressure
- Adjust the height of the handlebar
- Saddle tightening and adjustment
- Check the folding system
- Check looseness and loose screws
- Check braking system
- Make a full charge of the battery
* REMEMBER:
Once the E-bike has been put into operation for the first time, it is
necessary to carry out the correct periodic maintenance (see use
and maintenance section).
The omission of maintenance can cause a breakdown and the
E-bike will be exempt from warranty.

1Install the front wheel on the
fork and lock it with closing.
Attention! Make sure that
the closure is secure.
2Install the light and the front
fender on the fork crown.
Attention! Make sure the screws
are secure.
3Tighten the fender bracket
onto the fork.
Attention! Make sure the screws
are secure.
8
EN
6.- Product assembly
At Skateflash we make it easy for you. With just a few assembly
steps you can drive your E-bike.

Place the handlebar on the stem
and tighten the bolts.
Adjust the angle of the stem
and tighten it.
Attention! Make sure the screws
are secure.
4
1 2
*REMEMBER:
Install the pedals.
Attention! Make sure that
fasteners are secure.
6
Right pedal:
Rotate the shaft in direction clockwise.
Left pedal:
Rotate the shaft in direction counterclockwise.
50 - 85 PSI
3.4 - 5.9 BAR
9EN
5Insert the seat post, adjust height
and tighten the clamp.
Attention! Make sure the
clasp is secure.

4. Turn the key to the ON
position to connect the Ebike.
2. See the "Startup" section of
the product.
3. Make sure that each security
lock is on its place.
10
EN
7.- Safe driving
Driving notes
1. Always use suitable protective
equipment (helmet, gloves,
elbow pads, etc ...).
Daily maintenance
Before using the E-bike, it is necessary to check the tire pressure
as well as the braking system, in order to avoid possible accidents
while driving.
8.- Use and maintenance

1)Charger
To charge the E-bike, use the power supply provided by the
manufacturer. Do not charge the battery with chargers that are
nor approved by the manufacturer.
A dedicated smart charger is provided which has a charging
protection function. When the battery is 100% charged the
charger will stop automatically.
Characteristics:
Model: BC266420200
INPUT: AC100-240V/50~60HZ, Max. 1.8A
OUTPUT: DC42V 2.0A
2)Battery
Follow helpful tips to increase battery life.
This E-bike comes equipped with a 36V 10Ah Li-Ion battery.
When the display indicates 4 battery fractions (complete) the
E-bike has a range of 30-35km*.
*The battery fractions indicated on the display, when the E-bike is
in the stop mode (without consumption), show the actual
remaining autonomy of the E-bike.
11 EN
Periodic maintenance
It can be done by the user himself. It consists of reviewing the
“daily maintenance” section and also paying attention to the
tension of all the visible screws on the equipment, pieces and
folding system. It will be done depending on its use. In case of daily
use, it is recommended to carry out periodic maintenance every 15
days (in case of moderate use, apply maintenance once a month).
Exhaustive maintenance
Maintenance performed by a specialist. In no case can it be done
by the user. Components to be verified: the electrical compo-
nents (communication signals between display, controller, and
engine, condition of the cables, possible friction, bare cables and
motor impedance), mechanical (checks of the steering system,
folding system, and motor mooring), battery (check capacity of
storage, current intensity and condition of discharge cables) and
tire wear. Maintenance must be carried out every 1000km or 6
months (considering average use of 5km daily).

3)Charge the battery
Remove the battery and connect the charger plug in the slot as
shown in the image.
Battery power
The number of fractions shows
the amount of battery power
remaining. Don't expect it to
completely sell out. It is recom-
mended to charge the battery
when 2 fractions remain.
In no case may the battery be manipulated by an unauthorized
person as there is a risk of explosion.
1.- Do not ride the scooter over water more than 2cm deep or
under a storm.
2.- Do not immerse the product in water or expose it to high temperatures.
3.- Before the first use, you must fully charge the battery.
4.- Fully charge the battery every time you use the scooter.
5.- Periodically check the condition of the battery.
6.- The useful life of the battery can be affected by high tempera-
tures. Store the scooter at a temperature of 25°C.
7.- For better maintenance, and when the battery is exhausting, it
is important to consult the Technical Assistance Service (TAS).
8.- If you notice liquid leaks in the battery, it is totally prohibited to
touch the liquid. If you accidentally touch it, wipe immediately
with water and consult a doctor.
12
EN

1.- Features and benefits of the Sk TREKKING.
Tire size: 700C x 45C, alloy wheels, double wall.
Speed: 25 km/h **
Charging time: 5 - 6 h
Power: Rear motor 250 W
Charger: Smart with UL certification.
Battery: 36V 10 Ah lithium
Range: 30 - 35 Km *
Maximum slope: 15°
Minimum cargo weight: 30 KG
Maximum cargo weight: 120 KG
Net weight: 27 Kg
Gross weight: 32 Kg
Minimum user height: >1.4 m
Product size: 148x25x88 cm
Box size:145x25x81,5 cm
Use temperature: -10-40 ºC (too low or too high will affect the
efficiency of the battery)
Charging temperature: 0-40 ºC
Lights: Front/Rear Spanninga
Brake: Front/Rear hydraulic
Suspension: Fork 700C
Frame: Aluminio 700 C (Integrated battery)
Observations: Alloy folding stem (Promax). Alloy seat post. Alloy
crank. Steel plate (Prowheel). Alloy pedals (Wellgo). Stainless steel
pinion. Alloy rear luggage. LCD Display.
*The range can vary according to the user’s weight and inclination
of the area. Calculations made under optimal conditions of average
weight of an adult and maximum range.
**The assistance is deactivated when one of the two brake levers is
applied or when the speed exceeds 25 km / h.
250 W 30-35 km*
25 km/h**
13 EN
9.- Features

Skateflash offers answers to a selection of the most frequent
questions asked by the users:
1.- The E-bike does not start
a) Confirm that the battery is charged
b) Verify that the display connectors have not come loose
2.- The E-bike has no power
a) Check the speed number (1-2-3)
b) Check the battery charge level
c) Check that the tires are not braked
3.- The E-bike makes noise when braking
a) Check the brakes
4.- The E-bike does not brake
a) Check the condition of the pads
b) Adjust the brake line
c) Make sure the disc contains no oil
5.- The E-bike skids easily
a) Check the tire treads
b) Check tire pressure
6.- The battery does not charge fully
a) Verify that charger works correctly
7.- Fault indicator on the display
It will show the following error:
a) E1 (Motor error)
b) E2 (Turn signal error)
c) E3 (Controller error)
d) E4 (Engine brake error)
e) E5 (Battery under voltage error)
f) E6 (Communication error, display does not receive controller output)
g) E7 (Communication error, controller does not receive display output)
In this case, you should consult the Technical Assistance Service.
14
EN
10.- Frequent questions

15 EN
Can’t find the solution?
Scan the QR code and contact:
- TECHNICAL SERVICE
- CUSTOMER SUPPORT
Skateflash complies with the European Union Declaration of
Compliance.
To avoid possible harm to the environment or health from uncon-
trolled dumping of waste, recycle the product responsibly to
promote the sustainable reuse of material resources.
RoHS
11.- Trademark statement
Skateflash is a registered trademark and marketed by QD Global
International.
No part of this manual may be duplicated, modified, copied, sold or
distributed without the written consent of QD Global International.
QD GLOBAL INTERNATIONAL, S.L.
CIF: B98841117
Designed in Spain, assembled in PRC.
12.- Certifications

16
EN
Skateflash offers a complete range of services and official technical
assistance (TAS) to keep your scooter in perfect working order.
Enjoy your scooter every day and without setbacks.
With the purchase of your scooter, check all the startup and
installation points (recommended to be carried out by a specia-
list). The omission of one of them may be grounds for exclusion of
warranty for misuse.
In case of return of the product, it may not have been used before
or bear marks of use or friction. It must be returned with its
original packaging and accessories. In no case will returns of the
product be accepted if it has previously been used. In case of
failure, the specialized technician, and authorized by the
trademark, will be in charge of the object of the warranty decision
at his discretion.
The product warranty covers manufacturing defects and conse-
quences that these may have caused in the rest of the
equipment.
In no case will failures due to use, premature wear of the product,
poor operation (see section 7), batteries or protective coatings
designed for wear over time and/or cosmetic surface damage
caused by misuse be covered.
The product always has to be presented along with its original
purchase receipt.
Skateflash guarantees from the date the product was
purchased:
- 6 month warranty on batteries
- 1 year warranty on electrical components
- 2 year warranty on mechanical components
13.- Customer Service and warranty

17 EN
Skateflash offers a warranty that must be activated at the time of
purchase of the product, following the steps:
1.- Scan the QR visible on the product.
2.- Fill in the required data.
Warranty Activated!
#AdventureStartsNow
*This user manual was updated at the time of printing (except for typographical errors). Skateflash reserves the
right to possible updates/modifications of the user manual due to improvements in the design and/or functions of
the product itself.
Skateflash has the necessary spare parts for the entire
range of products. You can buy them through the web
www.skateflash.se or by checking availability by writing
directly to the mail [email protected]
14.- Skateflash spare parts
15.- Purchase and warranty activation
