SKF LINCOLN 84827 Series Instruction Manual

User and maintenance instructions
Model 84827*, 400 lb. drum sized, air operated, manually controlled
Pump hoist
Date of issue July 2022
Form number 403849
Version 3* Indicates change.

Contents
Declaration of Incorporation* . . . . . . . 3
U.K. Declaration of Incorporation* . . . 4
Signal words for safety. . . . . . . . . . . . . 5
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Specifications . . . . . . . . . . . . . . . . . . . . . 6
Kits 1716 and 2716* . . . . . . . . . . . . . . . . 6
Kit 2719* . . . . . . . . . . . . . . . . . . . . . . . . . 7
Mounting template . . . . . . . . . . . . . . . . . 7
Install follower to pump tube . . . . . . . 8
Kit 1716 (for series II PowerMaster pumps)
and kit 2716
(for series III PowerMaster pump)* . . . . 8
Kit 2719
(for series III PileDriver pumps)* . . . . . . 8
Operation of hoist . . . . . . . . . . . . . . . . . 8
Raise hoist. . . . . . . . . . . . . . . . . . . . . . . . 8
To lower pump and follower into drum
(air supply line must be disconnected) . . 8
Prime pump . . . . . . . . . . . . . . . . . . . . . . 8
Material agitation . . . . . . . . . . . . . . . . . 8
Service parts. . . . . . . . . . . . . . . . . . . . . . 9
Application chart. . . . . . . . . . . . . . . . . . . 9
Kits 1716 and 2716* . . . . . . . . . . . . . . . . 10
Kit 2719* . . . . . . . . . . . . . . . . . . . . . . . . . 11
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 12
* Indicates change.
2

84827
Pump hoist assemby
RA403849
Declaration of Incorporation* DOCUMENT NUMBER
403849.DoI
Manufacturer name/address:
Lincoln Industrial Corporation
5148 N. Hanley Road
St. Louis, MO 63134 U.S.A.
TEL: [phone] FAX: [phone]
Authorized to compile the technical file:
SKF Lubrication Systems Germany GmbH
Heinrich-Hertz-Straße 2-8
69190 Walldorf, Germany
TEL: [phone]
EMAIL: [e-mail] WEBSITE: www.skf.com
This Declaration of Incorporation is issued
under sole responsibility of the
manufacturer. Lincoln Industrial Corporation
hereby declares that the partly completed
machinery stated below:
Name: Pump hoist
Model number(s):
Description:
I, the undersigned of Lincoln Industrial Corporation, do hereby declare that the equipment specified above, in its intended use, conforms to
the requirements of the above EC Directive(s).
___________________________________
Robert Collins
Technical Compliance Manager
St. Louis, MO, U.S.A.
The manufacturer maintains a technical
construction file containing test reports and
product documentation:
Technical file summary sheet number:
The partly completed machinery shown
above should not be put into service until the
final machinery into which it is to be
incorporated has been declared in conformity
with the provisions of the directive, where
appropriate.
Year of CE: 2022
in its intended use, is in conformity with the
relevant union harmonization legislation:
Machinery directive 2006/42/EC
and conforms to the following harmonized
standards:
EN ISO 4413:2010
Hydraulic fluid power - General rules and
safety requirements for systems and their
components.
EN ISO 12100: 2010
Safety of machinery. General principles for
design. Risk assessment and risk
reduction.
EN ISO 4414:2010
Pneumatic fluid power - General rules and
safety requirements for systems and their
components.
EN ISO 809:1998+A1:2009
Pumps and pump units for liquids -
Common safety requirements.
EN 12162:2001+A1:2009
Liquid pump - Safety requirements.
Procedures for hydrostatic testing.
The following EHSR (Essential Health and
Safety Requirements) have been applied:
1.1.2a – 1.1.2b – 1.1.2c – 1.1.3 – 1.1.5 –
1.2.5 – 1.3.2 – 1.3.3 – 1.3.5 – 1.3.7 – 1.38
– 1.5.3 – 1.7 – 1.7.1 – 1.7.1.1 – 1.7.3 –
1.7.4 – 4.1.2.3 – 4.1.2.6 – 4.3.2
2022/04/05 * Indicates change.
3

84827
Pump hoist assembly
RA403849
2022/04/05 * Indicates change.
U.K. Declaration of Incorporation* DOCUMENT NUMBER
UK403849CA
Manufacturer name/address:
Lincoln Industrial Corporation
5148 N. Hanley Road
St. Louis, MO 63134 U.S.A.
TEL: [phone] FAX: [phone]
Authorized to compile the technical file:
SKF (U.K.) Limited
2 Canada Close
Banbury, Oxfordshire, OX16 2RT, GBR
EMAIL: [e-mail] WEBSITE: www.skf.com
This U.K. Declaration of Incorporation is
issued under sole responsibility of the
manufacturer. Lincoln Industrial Corporation
hereby declares that the partly completed
machinery stated below:
Name: Pump hoist
Model number(s):
Description:
EN ISO 4414:2010
Pneumatic fluid power - General rules
and safety requirements for systems and
their components.
EN ISO 809:1998+A1:2009
Pumps and pump units for liquids -
Common safety requirements.
EN 12162:2001+A1:2009
Liquid pump - Safety requirements.
Procedures for hydrostatic testing.
along with the following Directive(s) that
were also applied with the above legislation:
Supply of Machinery (Safety) Regulations
2008 (S.I. 2008:1597)
The following EHSR (Essential Health and
Safety Requirements) have been applied:
1.1.2a – 1.1.2b – 1.1.2c – 1.1.3 – 1.1.5 –
1.2.5 – 1.3.2 – 1.3.3 – 1.3.5 – 1.3.7 – 1.38
– 1.5.3 – 1.7 – 1.7.1 – 1.7.1.1 – 1.7.3 –
1.7.4 – 4.1.2.3 – 4.1.2.6 – 4.3.2
I, the undersigned of Lincoln Industrial Corporation, hereby declare that the equipment specified above, in its intended use, conforms with the
Essential Health and Safety Requirements of U.K. legislation Supply of Machinery (Safety) Regulations 2008 No. 1597 Annex I, Declaration of
Incorporation by the time of placing it on the market.
___________________________________
Robert Collins
Technical Compliance Manager
St. Louis, MO, U.S.A.
The manufacturer maintains a technical
construction file containing test reports and
product documentation:
Technical file summary sheet number:
Year of CE: 2022
in its intended use, is in conformity with the
relevant union harmonization legislation:
EN ISO 4413:2010
Hydraulic fluid power - General rules and
safety requirements for systems and their
components.
EN ISO 12100: 2010
Safety of machinery. General principles
for design. Risk assessment and risk
reduction.
The partly completed machinery shown
above should not be put into service until the
final machinery into which it is to be
incorporated has been declared in conformity
with the provisions of the directive, where
appropriate.
4

* Indicates change.
Safety
Read and carefully observe these installation
instructions before installing/operating/
troubleshooting the assembly. The assembly
must be installed, maintained and repaired
exclusively by persons familiar with the
instructions.
Always disconnect power source
(electricity, air or hydraulic) from the pump
when it is not being used.
This equipment generates high pressure.
Extreme caution should be used when
operating this equipment as material leaks
from loose or ruptured components can
inject fluid through the skin and into the
body. If any fluid appears to penetrate the
skin, seek attention from a doctor
immediately. Do not treat injury as a simple
cut. Tell attending doctor exactly what type of
fluid was injected.
Any other use not in accordance with
instructions will result in loss of claim for
warranty or liability.
• Do not misuse, over-pressurize, modify
parts, use incompatible chemicals, fluids,
or use worn and/or damaged parts.
• Do not exceed the stated maximum
working pressure of the equipment or of
the lowest rated component in your
system.
• Always read and follow the manufacturer’s
recommendations regarding fluid
compatibility, and the use of protective
clothing and equipment.
• Failure to comply may result in personal
injury and/or damage to equipment.
Explanation of signal
words for safety
NOTE
Emphasizes useful hints and
recommendations as well as
information to prevent property
damage and ensure efficient trouble-
free operation.
CAUTION
Indicates a dangerous situation that can
lead to light personal injury if
precautionary measures are ignored.
WARNING
Indicates a dangerous situation that
could lead to death or serious injury if
precautionary measures are ignored.
DANGER
Indicates a dangerous situation that will
lead to death or serious injury if
precautionary measures are ignored.
WARNING*
Do not operate equipment
without reading and fully
understanding safety
warnings and instructions.
Failure to follow warnings and
instructions may result in serious injury.
NOTE*
Do not operate equipment without
wearing personal protective gear.
Wear eye protection. Protective
equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing
protection used for appropriate
conditions will reduce personal injuries.
WARNING*
Do not allow any body part to
be trapped by equipment.
Body parts can be crushed by
subassemblies during operation.
Failure to comply may result in death
or serious physical injury.
WARNING*
Do not allow fluid to leak onto
floor when operating
equipment. If spill occurs,
clean any fluid on floor before continuing
operation.
Failure to comply may result in death
or serious personal injury.
5

2
3
4
5
6
7
8
1
Installation
Base casting can be used as a template to
mark location of anchor bolts.
Two or three drums can be positioned
around the hoist for rapid changing of
pump from one drum to another. Hoist
rotates 360°.
Specifications
Height of unit in lowered position 73 in (1 854 mm)
Height of unit in raised position 110 1/2in (2 807 mm)
Hoist capacity 400 lbs. (181 kg)
Operating air pressure 40 psi (2,8 bar) minimum, 200 psi (13,7 bar) maximum.
NOTE*
Do not operate equipment without
wearing personal protective gear.
Wear proper clothing to protect from
any substance that may drip or splash.
Wear proper non-slip gloves when
operating or servicing system.
Wear proper non-slip safety footwear
to avoid slipping on substance that may
be present on floor.
Use proper eyewear when close to
pump and/or hoist to avoid substance
splashing in eyes.
* Indicates change.

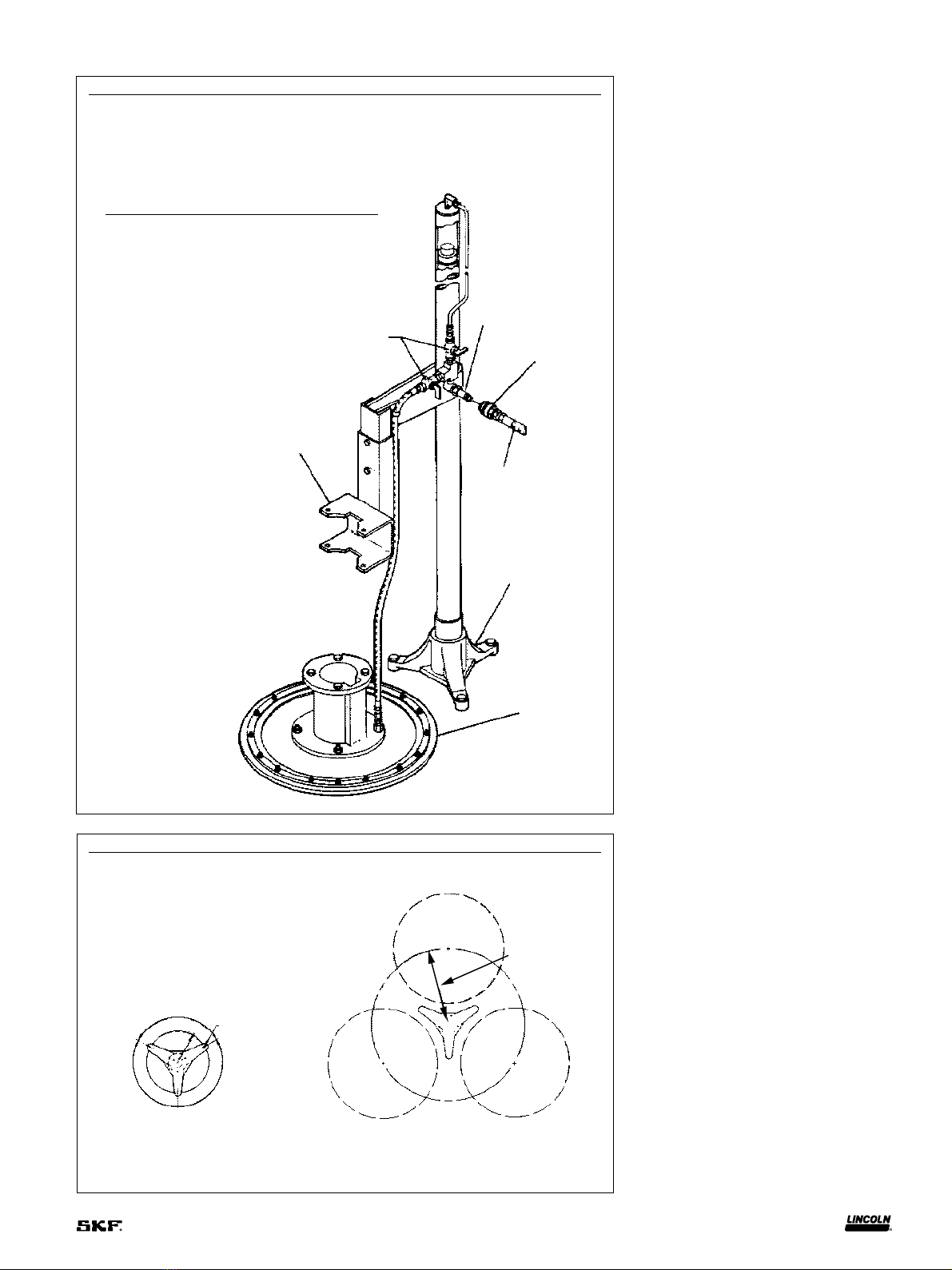

Fig. 1
Kits 1716 and 2716*
For use with PowerMaster pumps (refer to Application chart, page 9). Kit 1716 shown.
Item Description
1Pump mounting bracket (refer to chart)
2 Quarter turn valves
3 Air inlet plug
4 Coupling socket
5 Air supply line
6 Base casting
7 Follower
8 Tee handles vent plug
6

120°
120°
120°
6 / in
(171 mm) radius
/ in (14 mm)
dia. holes
34
34
16 / in
(425 mm)
Radius
916
2
3
4
5
6
7
1
Fig. 2
Kit 2719*
For use with PileDriver pumps (refer to application chart)
Fig. 3
Mounting template
Item Description
1Pump mounting bracket (refer to chart)
2 Quarter turn valves
3 Air inlet plug
4 Coupling socket
5 Air supply line
6 Base casting
7 Follower
* Indicates change.
7

34
5
6
2
1
Install follower to
pump tube
4 Shut off valve to lop hoist.
5 Disconnect air coupler to hold hoist in
raised position.
To lower pump and follower
into drum (air supply line
must be disconnected)
1 Open air valve to top of hoist. Valve con-
trols speed of descent of hoist.
2 Close valve before follower contacts top of
drum.
3 Position drum to allow follower entry.
4 Lower pump and follower slowly into
drum.
5 Open valve fully to permit weight of pump
and follower to seat follower onto material
in drum.
Prime pump
1 Open bleeder plug in pump outlet.
2 Operate pump until material flows from
plug opening.
3 Shut off pump.
4 Tighten bleeder plug.
5 Operate pump and open control valve at
end of delivery hose until material flows
freely from control valve. Pump is then
fully primed.
Material agitation
Some materials pumped with PileDriver
pump may require agitation. To agitate
material:
1 Remove bleeder valve from pump outlet
body.
2 Remove plug from adapter plate casting.
3 Install shut-off valve in pump outlet body
4 Connect hose from valve to adapter plate
casting as illustrated.
5 Open valve and operate pump with control
valve closed.
WARNING*
Do not allow fluid to leak onto
floor when removing
follower (41) from barrel. If
spill occurs, clean any fluid on floor
before installing a new barrel.
Failure to comply may result in per-
sonal injury.
WARNING*
Do not allow any body part to
be trapped between
follower (41)and barrel.
Body parts can be crushed by follower
as follower lowers into barrel.
Failure to comply may result in death
or serious physical injury.
* Indicates change.
Kit 1716 (for series II
PowerMaster pumps) and kit
2716 (for series III
PowerMaster pump)*
1 Loosen three set screws (39) sufficiently to
allow follower (41) to be slipped onto
pump tube.
2 Tighten set screws (39) to hold
follower (41) in place.
Kit 2719 (for series III
PileDriver pumps)*
1 Bolt follower (41) to flange of pump tube
with the four screws (49) and nuts (42).
2 Tighten securely.
Operation of hoist
Raise hoist
1 Remove air coupler from pump.
2 Connect air coupler to air inlet plug of
hoist.
3 Open quarter-turn valves on hoist. Air flow
directed to top of hoist raises hoist, pump
and follower as a unit. Air directed to fol-
lower assists by breaking seal between
follower and drum, exerting pressure up
on follower and down on drum.
NOTE
Remove tee handle plug from kits 1716
and 2716*, or probe assembly on Pile-
Driver pumps, to expel trapped air
beneath follower when seating.
Replace before operating pump.
NOTE
Shut-off valve must be closed when
dispensing material.
Fig. 4
Item Description
1Install hose into adapter plate
2 Connecting hose
3 Shut-off valve
4 PileDriver pump
5 Adapter plate casting
6 Follower
8

Service parts
Item Description Part no. Qty. Item Description Part no. Qty.
1 Screw 50038 2 25 Set screw 50524 1
2 Air hose 237172 1 26 Nipple 10130 1
3 Restrictor 13345 1 27 Line check 83995 1
4 Tube 271467 1 28 Adapter 16362 1
5 Packing 34327 1 29 Washer, packing 48039 2
6 Tube cap 40446 1 30 Nut 51014 6
7 Tube connector 243699 1 31 Wiper ring 48429 1
8 Pump hoist 84827 1 32 Wiper (Buna-N) 34371 1
9 Viton packing 236535 1 33 Screw 50002 2
10 Tube cap 40447 1 34 Nut 51010 18
11 Base casting 40494 1 35 Gasket 31029 2
12 Set screw 50505 1 36 Tee handle plug 91796 1
13 Screw 50625 1 37 O-ring (Buna-N) 34337 2
14 Nut 51300 1 38 Gasket 33088 1
15 Tube connector 244047 1 39 Screw 50016 3
16 Adapter union 249251 1 40 Follower casting 40492 1
17 Pipe tee 67011 1 41 Follower assembly 83286 1
18 Pipe coupling 67063 1 42 Nut 51039 4
19 Nipple 67321 143 Follower casting 40607 1
20 Air cock 68740 2 44 Gasket 33072 1
21 Support tube 91632 1 45 Screw 50122 3
22 Support tube 92284 1 46 Gasket 33100 1
23 Tube clip 360108 1 47 Wiper ring 48514 1
24 Plug 653106 1 48 Screw 50018 18
49 Screw 50180 4
50 Follower assembly 83793 1
51 Adapter 16487* 1
Application chart
Kits* Pump tube application Pressure primer Follower Mounting bracket
1716 Powermaster 84827 83286 84391
2716 PowerMaster III 84827 83286 84785
2719 PileDriver III 84827 83793 84785
* Indicates change.
* Indicates change.
9

1
3)
2
3
4
6
2)
5
71)
8
1
2
3
4
5
6
7
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
11
10
21
22
16
18
26
27
51
29 31
41
32
34
31
29
36
51
3727
38
39
40
26
30
34 36
37
39
40
1) Before operation, install 243599 fitting into top of pump hoist. Insert 271467 tubing into fitting.
2) Air motor
3) Mounting bracket
Note: Kit 1716 consists of 49, 8and mounting bracket 84391. Kit 2716 consists of 49, 8and support bracket 84785. Kit 2719 consists of 50, 8and support bracket 84785.*
*Indicates change.

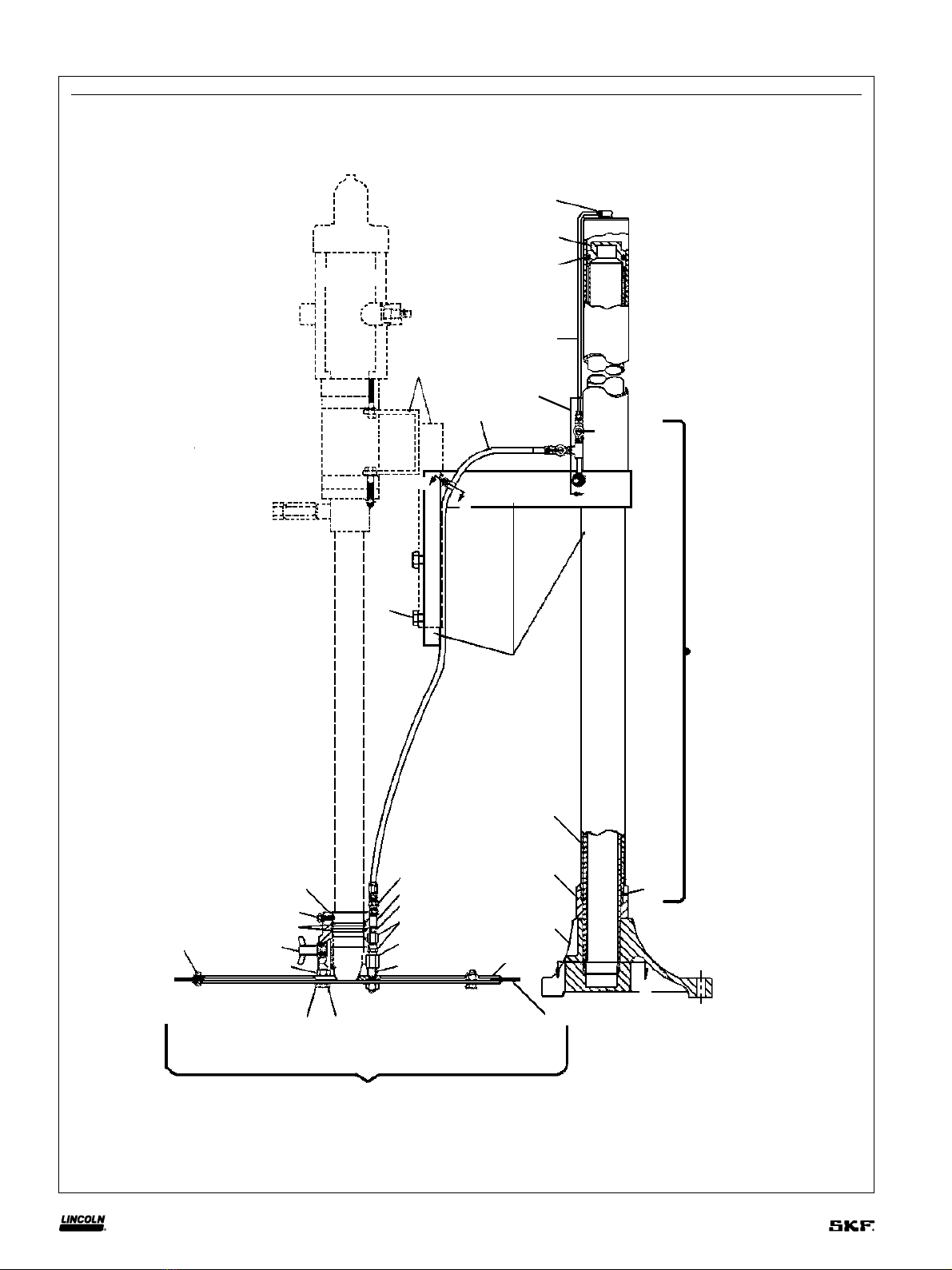

Fig. IPB 1
Kits 1716 and 2716*
10

13 14
23
20
19
15
17
24
12
9
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
9
10
11
12
13
14
15
17
18
19
20
21
22
23
24
25
11
10
21
22
3)
31
32
31
33
28
30
28
27
26
18
16
49
42
35
27
30
26
44
43
42
50
45
34
47
46
48
30
34 46
30
43
44
2)
A
A
B
B
C C
1)
1)
A−A
B−B
C−C
49
1) Before operation, install 243599 fitting into top of pump hoist. Insert 271467 tubing into fitting.
2) Air motor
3) Mounting bracket
Note: Refer to service manual - 412843 for low level air cutoff kits.
*Indicates change.
Fig. IPB 2
Kit 2719*
11

skf.com | lincolnindustrial.com
® SKF and Lincoln are registered trademarks of the SKF Group.
© SKF Group 2022
The contents of this publication are the copyright of the publisher and may not be reproduced (even
extracts) unless prior written permission is granted. Every care has been taken to ensure the accuracy
of the information contained in this publication but no liability can be accepted for any loss or damage
whether direct, indirect or consequential arising out of the use of the information contained herein.
July 2022 · Form 403849Version 3
Warranty
The instructions do not contain any information on the warranty.
This can be found in the General Conditions of Sales, available at:
www.lincolnindustrial.com/technicalservice or www.skf.com/lubrication.
