Radio2
Radio

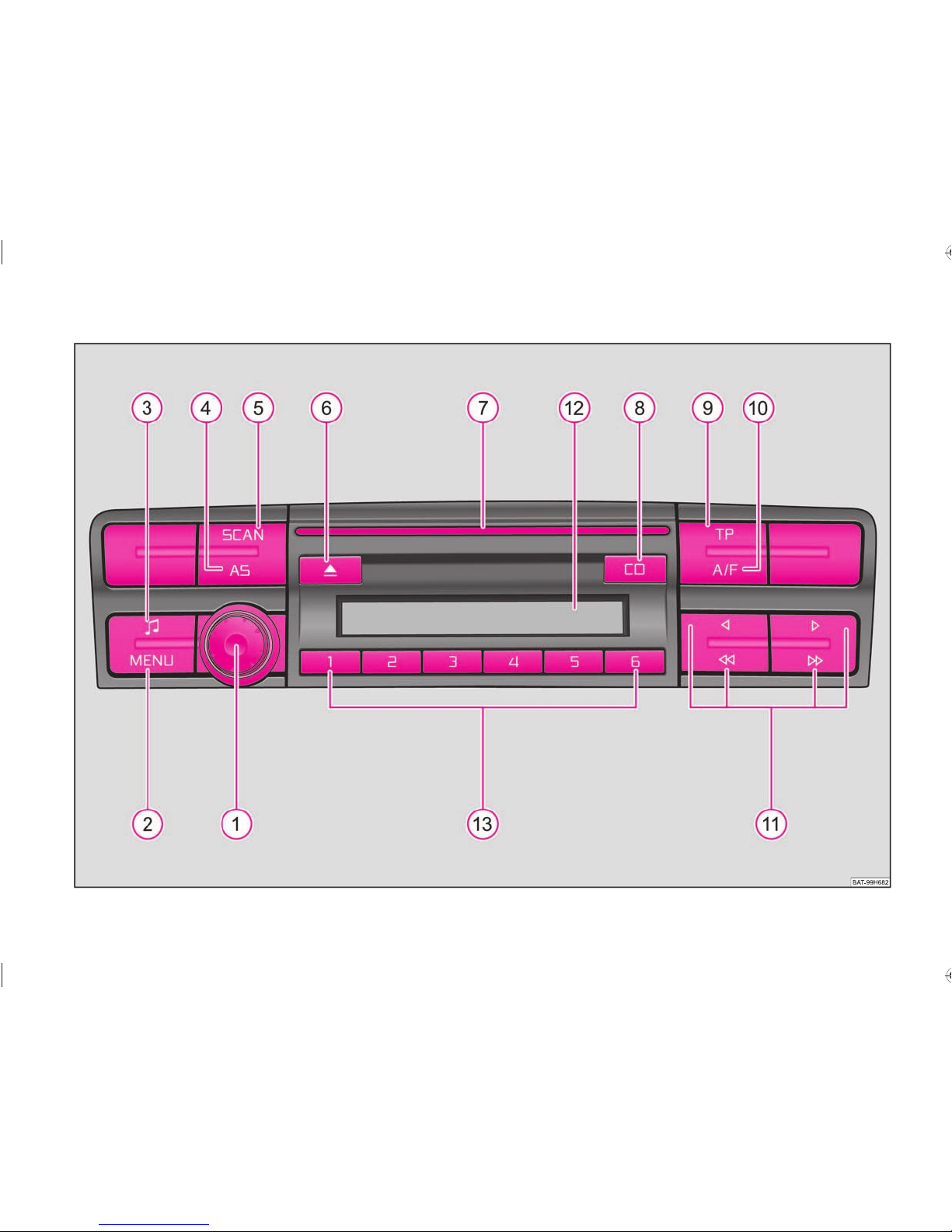

Radio - Overview
Rotary/push knob
−switching on and off (pressing)
−Volume control (rotate)
−other function settings in various menus
Rocker switch to call up the menu settings of the parameter for radio or
CD player
Rocker switch for adjusting the sound
Rocker switch to automatically store the station
Rocker switch to activate the AM radio mode
−fast search in the respective waveband
−Scroll through the contents of the CD
CD - eject button
CD-case
Button to activate the CD mode
Rocker switch to activate the reception of traffic reports
Rocker switch to switch over between the wavebands AM/FM
Rocker switches ,
−manual station finding, fast station finding
−Select the track in the CD mode, fast forward/backward search in the CD
mode
−Selecting the menu points
Display
Station keys -
−store and select the RDS station
−CD selection
−Enter code
Characters in the text
*Parts of the equipment which are marked in such a way are only installed as
standard on certain models or are available as special equipment.
End of the paragraph.
The paragraph continues on the following page.
Important information
Warranty
The equipment warranty terms and conditions also apply for new vehicles.
After the expiration of the warranty, a piece of equipment in need of repair will be
replaced with a reconditioned, original item with spare part warranty. It is, however,
a precondition that the housing has not been damaged and no unauthorised
attempts have been made to carry out repairs.
Note
Damage within the meaning of the warranty must not be the result of improper
handling of the system or from unprofessional repair attempts. It is also essential
that there is no external damage.
Operation of radio
The radio should only be used, if the traffic situation permits it.
The volume settings must be selected in such a way that audible signals from the
outside, e.g. a Martins horn from utility vehicles (police cars, ambulances and fire
brigade), can be heard at all times.
Power output
4x20 W
WARNING
Please concentrate fully at all times on your driving! As the driver you are fully
responsible for road safety. Only use the functions of the radio in such a way
that you are always in full control of your vehicle in all traffic situations!
Using the display
Carefully handle the display because dents and scratches can occur through pres-
sure of the finger or contact with sharp objects.
A
1
A
2
MENU
A
3

A
4
AS
A
5
SCAN
A
6
A
7
A
8
CD
A
9
TP
A
10
A/F
A
11




A
12
A
13
1
6
s5is.16.book Page 2 Monday, April 18, 2011 1:16 PM

Radio 3
The display can be cleaned with a soft cloth and finger marks can be wiped away
with pure alcohol.
Note
Do not use solvent such as turpentine or petrol as they will corrode the display
surface.
Anti-theft protection
Anti-theft coding
Your radio is equipped with a convenience coding. If the radio is being operated for
the first time, the safety code is not only stored in the radio but also in the vehicle.
After disconnecting and reconnecting the battery, first of all switch on the ignition
and then the radio.
If you wish to install the radio in another vehicle, the safety code must be entered.
In this case, please do not hesitate to contact a Škoda Service Partner or a Škoda
importer.
As the unit only functions after entering the safety code, this practically excludes its
use after a theft - a contribution to increased anti-theft safety.
Note
The code is stored in the instrument cluster. This ensures that it is automatically
decoded (convenience coding). Manual input of the code is normally not
necessary.
Enter code
– Switch on the radio if the ignition is on. SAFE is displayed and then 1000.
– Enter the safety code using the station keys - .
– Confirm the safety code by pressing the station key .
If you have confirmed a wrongly entered code, you can repeat once again the entire
process.
If the code number is entered incorrectly for the second time, the unit will be
blocked for approx. one hour. It is possible to enter again the safety code after one
hour has expired, when the unit and the ignition have been switched on.
The cycle - two attempts, blocked for an hour - will continue to apply.
Basic setting
Switching the unit on and off
– The system is switched on or off by turning / pressing the rotary / push knob .
If the key is pulled out of the ignition lock with the unit switched on, the unit wil
switch off automatically. You can switch on again the unit by pressing the
rotary/push knob . When the ignition is switched off, the unit switches off auto-
matically after approx. one hour (discharge protection of the vehicle battery).
If you have switched off the radio by withdrawing the ignition key, the radio
switches on again once the ignition is on.
Audio settings
– Press the rocker switch repeatedly to select the desired parameter.
– Set the desired value by turning the rotary/push knob .
You can select between the following parameters:
•TRE - Treble setting;
•BASS - bass setting;
•BAL - setting of the volume ratio between the left and the right side;
•FAD - setting of the volume ratio between the front and the rear;
Setting the special functions
– Press the rocker switch , in order to activate the menu Set-up.
– Individual functions of the menu are selected by pressing the rocker switch
or by pressing the rocker switches , .
– Set the desired value by turning the button .
1
4
6
A
1
A
1

A
1
MENU
MENU




A
1
s5is.16.book Page 3 Monday, April 18, 2011 1:16 PM

Radio4
REG AUTO / REG OFF
Certain programs of the broadcasting companies are divided into regional programs
at specific times. That is why in individual regions the regional programs of a station
can broadcast different contents.
First of all the unit attempts to set only alternative frequencies of the selected
station.
If the quality is however so low, that there is a risk of a “program loss”, the unit also
accepts “related” frequencies.
When opting for REG AUTO the change to a regional “related” station can only be
performed if there is a risk of losing the station. When selecting REG OFF, the
receiver can access the regional “related” stations unlimited.
GALA
Your radio increases automatically its volume with the increasing vehicle speed. A
higher setting value results in a stronger volume increase.
LOUD
In case of low volume level, the function reinforces the range of bass and treble
frequencies.
BEEP
Switching on or off the tone signal when storing the radio stations.
ON VOL
Your radio stores the last volume set before switching off. If the value is higher, the
volume is reduced to the value of the parameter ON VOL after switching on the
radio again.
PHONE*
If your vehicle is equipped with a handsfree system, the monophone play function
of the mobile phone calls is carried out via the loudspeakers of the vehicle.
PDC AT*
If your vehicle is equipped with “parking aid”, the volume is automatically decreased
to a pre-defined value, when the “parking aid” is active.
•PDC AT0 - does not restrict the volume;
•PDC AT1 - restricts the current volume to a middle level;
•PDC AT2 - restricts the current volume to a low level;
•PDC AT3 - switches off the tone completely (Mute).
AUX*
Setting of the input sensitivity AUX LEV:
•AUX LEV 1 - high level, used in particular for notebooks;
•AUX LEV 2 - middle level, used for cassettes or CD player;
•AUX LEV 3 - low level, used for MP3 player;
Note
Each setting change is stored by changing to another menu point.
Radio mode
Waveband switch-over
Your radio is fitted with the wavebands FM and AM, in order to change, press the
rocker switch for some considerable time.
In the ranges FM1/AM1 and FM2/AM2 there are each 6 memory spaces available, in
order to change, press the rocker switch briefly.
The process of searching for and storing the radio stations
Manual search
– Set the frequency of the desired radio station by pressing the rocker switch
or .
Automatic station finding SEEK
– The radio searches for the next radio station in the selected waveband by
pressing the rocker switch or .
Function SCAN
– The radio station of the current waveband is briefly played (10 seconds) by
pressing the rocker switch .
– This function is ended by pressing the rocker switch once again and the
current station is replayed.
A/F
A/F




SCAN
SCAN
s5is.16.book Page 4 Monday, April 18, 2011 1:16 PM

Radio 5
Store station
– After selecting the radio station, hold the station key , on which it should be
stored until it briefly switches to mute and a brief signal sounds.
Automatic station finding with storing the radio stations
– Press the rockerswitch . An automatic station finding is started during which
the 6 stations with the strongest signal in the memory level FM2 and/or AM2 are
stored. STORE is displayed on the display. This applies only to the wavebands
FM2 and AM2.
When storing the radio stations on the station keys is finished, you can call up
the desired radio station by pressing a station key .
Note
The stored radio stations of the current waveband are updated and stored once
again by repetitively pressing the rocker switch .
Radio text
Certain radio stations transmit additional text information - designated as radio
text.
Note
•The text information must not be available to all radio stations.
•Depending upon the quality of the received signal, the radio needs a specific
time, in order to correctly read all the illustrated characters.
Traffic reports
Activating and deactivating the traffic reports
Press the rocker switch , TP appears in the display. If a set radio station does not
transmit a traffic report, the radio searches for a station which transmits the traffic
report. TP SEEK is displayed on the display.
If no radio station which transmits the traffic reports is found, NO TP is shown on
the display.
An incoming traffic report automatically interrupts the CD play function or listening
to a radio station, which at that moment is not transmitting a traffic report. INFO
and Station name is shown on the display. At the end of the traffic report, the radio
automatically returns to the original play function.
If you wish to deactivate the traffic information, press once again the rocker switch
, TP goes out on the display.
A
13
AS
A
13
A
13
AS
TP
TP
s5is.16.book Page 5 Monday, April 18, 2011 1:16 PM

CD player6
CD player
Using the system
Inserting the CD
– Press the button , in order to select the source for the play function: CD
(internal CD drive), EXT (CD changer, if it is connected to the radio) or AUX.
– Carefully insert a CD into the CD case until it is automatically drawn in. The
play function begins automatically.
Operating the CD player
Audio CD: Select track
– Press the rocker switch or during the play function of the CD, in order to
select the previous and/or the next title.
– Press the rocker switch or for a longer period of time for fast reverse or
forward replay of the track. The play function is continued after releasing the
button.
MP3 Data: Select track
– Press the rocker switch or during the play function of the CD, in order to
select the previous and/or the next title.
– Press the rocker switch or for a longer period of time for fast reverse or
forward replay of the track. The play function is continued after releasing the
button.
– Briefly press the rocker switch or for scrolling in the folders or in the play
lists (if they are present on the CD).
Function SCAN
– Press the rocker switch , in order to scroll through the CD. The first 10
seconds of each title are played.
– In order to return to the normal mode, press once again the rocker switch .
– Press the rocker switch or if you wish to select the previous or the
following track.
End the play function of the CD
– In order to end the play function of the CD and to activate the radio, press the
rocker switch . The CD remains in the unit.
Ejecting CD
– Press the button , the Cd is ejected.
Display of additional information (MP3 data)
In the display, you can select the display of additional information via the MP3 data
using the station keys - :
•- Number of the folder and number of the track;
•- Name of the track;
•- Name of the performer;
•- Name of the album;
•- Name of the data;
•- Name of the folder.
Note
•If the ejected CD is not removed, it is drawn in again for safety reasons.
•If the radio is functioning in the TP mode before changing to the CD mode, the
play function of the CD is interrupted during the traffic reports and the unit switches
over to the radio mode. After the traffic reports have ended, the unit switches back
once again to the CD mode.
Replay the tracks in random order
– Press the rocker switch , in order to activate the menu Set-up.
– Select a function of the MIX menu with the help of the station keys.
– Set the desired value by turning the button .
MIX
Play function of titles in random order.
•MIX OFF - the function of the menu is switched off;
•MIX CD - Plays the tracks on a CD in random order;
CD
A
7










SCAN
SCAN


A/F
A
6
1
6
1
2
3
4
5
6
MENU
A
1
s5is.16.book Page 6 Monday, April 18, 2011 1:16 PM

CD player 7
•MIX FLD - Play function of titles in random order in a certain (folder);
•MIX PLS - Play function of the playlist (folder of selected tracks from individual
folders, which is stored on the CD). Is only displayed when a playlist is created for
the replayed CD.
General information for MP3 operation
Requirements for the MP3 data and data carrier
•650 MB and 700 MB CD-ROM, CD-R, CD-RW.
•The CDs must correspond to the ISO 9660 Level 2 standard as well as the Joliet
data system (single and multi-session).
•Data names must be no longer than 64 characters.
•The list structure is restricted to a depth of 8 list levels.
•The name of the artist, the album and the title of the reproduced MP3 data can
be shown as ID3 tag, providing this information is available. The list and data name
will be displayed if there is no ID3 tag.
•Play lists are not supported.
Bit rate (data flow per time unit)
•The system supports MP3 data with bit rates of 32 to 320 KB/s as well as MP3
data with variable bit rates.
•The indicated playing time data with variable bit rates is not reliable.
Playing sequence of MP3 data and folders
The unit plays the MP3 data stored on a data carrier in a certain sequence fig. 1.
The illustration shows an example of a typical MP3 CD containing the titles
(Tracks ), folder (Folder ) and sub-folder.
Information on how to use a CD
CD to jump
Uneven road surfaces and strong vibrations may cause the CD to jump.
Fig. 1 Playing sequence of MP3
data and folders
s5is.16.book Page 7 Monday, April 18, 2011 1:16 PM

CD player8
Formation of condensation
When it is cold and after rain showers, moisture can deposit in the CD drive (conden-
sation). This can effect the CD jump or impair the play function. In such cases wait
until the moisture has dissipated.
Notes for the care of the CDs
If a CD is soiled, please never clean the CD in the direction of a circle but rather from
inside to outside with a soft lint-free cloth. In case of severe layers of dirt we recom-
mend to clean the CD with a commercially available CD cleaner. Also in this case do
not clean the CD in the direction of a circle but rather from inside to outside and
then let it dry off.
Overheating protection
If the temperature in the unit exceeds 85°C, the play function of the CD is ended for
safety reasons.
Caution
•Never use liquids such as gasoline, paint thinner or disk cleaner, otherwise the
surface of the CD could get damaged!
•Never expose the CD to direct sun rays!
•Please never write or affix the CD!
Note
Dirt or damage of a CD can lead to difficulties when “reading” the information. The
difficulty in reading the error depends on the dirt or on the severity of the mechan-
ical damage. Severe scratches cause reading errors which can make the CD jump or
“get stuck”. All CDs must be treated carefully and always be stored in a protective
case.
Input AUX-IN*
The input for external audio sources AUX-IN is located below the armrest of the
front seats and is marked with the logo .
Activating an external audio source
– Press the button and once again the button in order to select the
external input. The play function starts automatically after connecting the
external source.
End play function of the external source
– Press the rocker switch . It starts the play function of the last selected radio
station.
– Press the button and select the CD source for the play function.
An external audio source connected to the AUX-IN socket is merely replayed via the
radio and the loudspeakers. The external audio sourcescannot be controlled via the
radio.
You can select another audio source on the radio at any time. As long as the external
audio source is not switched off, it remains always active in the background.
Please refer to the Owner's manual of the respective manufacturer for the opera-
tion of the external audio source.
Use the standard jack plug 3.5 mm for the AUX-IN socket. If the external audio
source does not have this jack plug, you must use an adapter.
Adjust the play function volume of the external audio source
The play function volume of the external audio source can be changed via the
volume control on the radio.
Depending on the connected audio source the output volume on the external audio
source can be changed.
You can also change the input sensitivity of the AUX-IN socket page 3 in order for
the play function volume of the external audio source to adapt to other audio
sources or to avoid distortions of the play function volume.
WARNING
•On no account place an external audio source on the dash panel. You could
make sudden manoeuvres in the passenger compartment and injure the occu-
pants.
•On no account place an external audio source close to the airbags. You could
be thrown back in the passenger compartment by the airbags being deployed
and injure the occupants.
•You must not hold the external audio source in the hand or on the knees
while driving. You could make sudden manoeuvres in the passenger compart-
ment and injure the occupants.
•Always guide the connection cable of the external audio source in such a way
that is does not restrict you when driving.
CD
CD
A/F
CD
s5is.16.book Page 8 Monday, April 18, 2011 1:16 PM

CD player 9
Caution
The AUX-IN socket must only be used for audio sources!
Note
•Your radio has no control over the level setting of the external source. Make sure
that the highest quality is achieved by a suitable combination of input sensitivity
and output sensitivity of the external source (volume control). You will find detailed
information for this setting in the operating instructions of the units.
•If an external audio source is connected via AUX-IN, which is equipped with an
adapter for external power supply, it can occur that the audio signal is interrupted.
This depends on the quality of the adapter which is used.
•The loudspeakers in the vehicle are matched to a power output of the radio of
30°W.
s5is.16.book Page 9 Monday, April 18, 2011 1:16 PM

Notes10
s5is.16.book Page 10 Monday, April 18, 2011 1:16 PM

Notes 11
s5is.16.book Page 11 Monday, April 18, 2011 1:16 PM

s5is.16.book Page 12 Monday, April 18, 2011 1:16 PM

Škoda Auto pursues a policy of constant product and model development.
We trust that you will understand that changes to models in terms of shape,
equipment and engineering, may be introduced at any time. It is therefore
not possible for legal claims to be made based on the data, illustrations and
descriptions contained in this Owner‘s Manual.
Reprinting, reproduction or translation, either in whole or in part, is not
permitted without the written consent of Škoda Auto.
Škoda Auto expressly reserves all rights relating to copyright laws.
We reserve the right to make changes to this document.
Issued by: ŠKODA AUTO a.s.
© ŠKODA AUTO a.s. 2009

www.skoda-auto.com
CAR RADIO BLUES
OWNER'S MANUAL
Autorádio Blues
Octavia, Yeti anglicky 05.09
S00.5610.63.20
1Z0 012 149 CD
