Skov DOL 192 12 Manual

DOL 192 12-20 Egg Counter
Technical User Guide
604314 • 2018-06-19
English For other language variants of this document we refer to:
Español Para otras variantes del idioma de este documento, visite:
Français Pour les versions dans d'autres langues de ce document veuillez consulter:
http://docs.skov.com/1091

DOL 192 12-20 Egg Counter
2 Technical User Guide
Product and Documentation Changes
We reserve the right to change this manual and the product described herein without further notice. In case of
doubt, please contact us.
The date this manual was changed appears on the front and back pages.
Note
• All rights belong SKOV A/S. No part of this manual may be reproduced in any manner whatsoever without
the expressed written permission of SKOV A/S in each case.
• SKOV A/S has made all reasonable efforts to ensure the accuracy of the information contained in this
manual. Should any mistakes or imprecise information occur in spite of this, SKOV A/S would appreciate
being notified thereof.
• Irrespective of the above, SKOV A/S shall not accept any liability with regard to loss or damage caused or
alleged to be caused by reliance on any information contained herein.
• Copyright by SKOV A/S.

DOL 192 12-20 Egg Counter
1 Product description........................................................................................................................................4
2 Product survey ...............................................................................................................................................5
2.1 Accessories.................................................................................................................................. 5
3 Mounting guide...............................................................................................................................................7
3.1 Recommended Tools................................................................................................................... 7
3.2 Mounting of brackets.................................................................................................................... 8
3.2.1 DOL 192 12.................................................................................................................................. 8
3.2.2 DOL 192 20.................................................................................................................................. 9
3.3 Mounting on conveyor belt......................................................................................................... 10
3.3.1 DOL 192 12................................................................................................................................ 10
3.3.2 DOL 192 20................................................................................................................................ 11
3.3.2.1 Adjusting the scan width ............................................................................................................ 12
4 Installation Guide .........................................................................................................................................13
4.1 Electrical connection .................................................................................................................. 13
4.2 Choice of egg counter in house controller ................................................................................. 13
4.3 Cable Plan ................................................................................................................................. 14
4.4 Connection in the egg counter ................................................................................................... 15
4.4.1 DOL 192 12................................................................................................................................ 15
4.4.2 DOL 192 20................................................................................................................................ 15
4.5 Circuit Diagram .......................................................................................................................... 16
4.5.1 DOL 192 12................................................................................................................................ 16
4.5.2 DOL 192 20................................................................................................................................ 16
5 Maintenance Instructions ............................................................................................................................17
5.1 Cleaning..................................................................................................................................... 17
5.2 Recycling/Disposal..................................................................................................................... 17
6 Technical data...............................................................................................................................................18
6.1 DOL 192 12 - 20 cm................................................................................................................... 18
Technical User Guide

DOL 192 12-20 Egg Counter
4 Technical User Guide
1 Product description
The DOL 192 Egg Counter is intended for automatic counting of eggs on a conveyor belt. It is touch-free and
functions with the aid of an infra-red light. This reduces the risk of injuries, contamination and ensures an unres-
tricted flow of eggs on the conveyor belt.
The DOL 192 Egg Counter is available in 7 different variants (2 small 24 V DC egg counters and 5 large 230 V
AC egg counters), so that it fits the conveyor belt.
• DOL 192 12 cm scan width 120 mm, 24 V DC is suitable for counting eggs on longitudinal conveyor belts.
• DOL 192 20 cm scan width 120 – 200 mm, 24 V DC is suitable for counting eggs on longitudinal conveyor
belts.
• DOL 192 30/40/50/60/75 cm scan width 223 – 760 mm, 230 V DC are suitable for counting eggs on con-
veyor belts that collect eggs from more than one longitudinal conveyor belt.
The DOL 192 egg counter provides 1 pulse per egg to a DOL 53X house controller (version 2.2 or newer).
The DOL 192 Egg Counter is accurate to at least 99.5% when installed correctly.
DOL 192 30-75
DOL 192 20
DOL 192 12

DOL 192 12-20 Egg Counter
Technical User Guide 5
2 Product survey
130306 DOL 192 12 cm wo/display w/fitting
Scan width 120 mm
Includes rail
The DOL 192 12 cm Egg Counter is suitable for counting eggs on longitud-
inal conveyor belts.
The DOL 192 12 cm Egg Counter must be powered using a 24 V DC ex-
ternal power supply (135752).
130331 DOL 192 20 cm wo/display w/fitting
Scan width 120 – 200 mm
Includes rail
The DOL 192 20 cm Egg Counter is suitable for counting eggs on longitud-
inal conveyor belts.
The DOL 192 20 cm Egg Counter must be powered using a 24 V DC ex-
ternal power supply (135752).
2.1 Accessories
135752 Power supply 24V, 2.1A in box
Extra power supply.
Voltage 90 – 264 V
Frequency 47-63 Hz
Power 160 VA
Current 0.7 A
Output
Voltage 24 V +/- 10 %
Current 2.1 A
136470 DOL Ext. box Small 10RL
Extension box with one I/O module, 10RL 8AI 8AO, type 15
Includes rubber sleeves and ribbon cable
10 x relays
8 x 0-10V inputs
8 x 0-10V outputs

DOL 192 12-20 Egg Counter
6 Technical User Guide
136471 DOL Ext. box Small 20RL
Extension box with two I/O module, 10RL 8AI 8AO, type 15
Includes rubber sleeves and ribbon cable
20 x relays
16 x 0-10V inputs
16 x 0-10V outputs

DOL 192 12-20 Egg Counter
Technical User Guide 7
3 Mounting guide
3.1 Recommended Tools
A list of tools recommended for the installation of your egg counter can be seen below.
Topic Description
Cordless drill
Screwdriver bits
Drill kit
Utility knife
Multimeter
Tape measure
Side cutter
Needle nose pliers
Screwdriver
Adjustable spanner
Spirit level

DOL 192 12-20 Egg Counter
8 Technical User Guide
3.2 Mounting of brackets
3.2.1 DOL 192 12
Mount the egg counter legs on the bracket using 4 screws,
4 washers and 4 nuts, as shown in the illustration.
Remember angle of the egg control bracket; see illustration
below.
Mount the screw and wing nut on the middle of the bracket.
Angle of egg control bracket
Mount the DOL 192 12 on the bracket and tighten the wing
nut.

DOL 192 12-20 Egg Counter
Technical User Guide 9
3.2.2 DOL 192 20
Mount the egg counter legs using 4 screws, 4 washers and
4 nuts, as shown in the illustration.
Mount the screw and wing nut on the middle of the bracket.
Mounting angle of egg control bracket
Mount the DOL 192 20 on the bracket and tighten the wing
nut.

DOL 192 12-20 Egg Counter
10 Technical User Guide
3.3 Mounting on conveyor belt
The egg counter is mounted on the supplied bracket directly over the conveyor belt.
Ensure that the bracket does not cover the sensor.
In order for the egg counter to be able to count optimally, it must be placed so that the eggs are unable to roll or
move sideways. Eggs that move around may be counted more than once.
The eggs must not be able to move backwards when the conveyor belt stops.
Sharp light, especially sunlight and fluorescent light, may affect the accuracy of the egg counter. Place the egg
counter so that it is not exposed to direct (sun) light, or ensure that it is protected from sources of light.
In the event of too much light, the red LED will turn on. (DOL 192 12-20)
In the event of too much light, warning # 4 (DOL 192 30-75) will appear on the display.
3.3.1 DOL 192 12
Flat conveyor belt
Mount the bracket so that there is approx. 62 mm between
the upper side of the conveyor belt and the bottom of DOL
192 12.
The distance between the top of the egg and the egg
counter must be approx. 18 mm.
Bar conveyor belt
Mount the bracket so that there is approx. 62 mm between
the lowest conveyor bar and the bottom of DOL 192 12.
The distance between the top of the egg and the egg
counter should be approx. 18 mm.
The eggs should not be moving here
Transverse conveyor belt
Egg control baffle
The distance between DOL 192 12 to longitudinal conveyor
belts should be approx. 400 - 500 mm.
Mount the egg control baffle on the DOL 192 12 bracket.

DOL 192 12-20 Egg Counter
Technical User Guide 11
3.3.2 DOL 192 20
Flat conveyor belt
Mount the bracket so that there is approx. 62 mm between
the upper side of the conveyor belt and the bottom of DOL
192 20.
The distance between the top of the egg and the egg
counter should be approx. 18 mm.
Bar conveyor belt
Mount the bracket so that there is approx. 62 mm between
the lowest conveyor bar and the bottom of DOL 192 20.
The distance between the top of the egg and the egg
counter should be approx. 18 mm.
The eggs should not be moving here
Transverse conveyor belt
Egg control baffle
Scan width
The distance between DOL 192 20 to longitudinal conveyor
belts should be approx. 400 - 500 mm.
Mount the egg control baffle on the DOL 192 20 bracket.
The distance between the side of the conveyor belt and the
last infra-red sensor should be a maximum of 20 mm.

DOL 192 12-20 Egg Counter
12 Technical User Guide
3.3.2.1 Adjusting the scan width
Conveyor belt
Scan width
If the scan width of DOL 192 20 cm is wider than the width
of the conveyor belt, some of the infra-red sensors should
be turned off.
Set the dipswitch on scan module 2 (slave), see table be-
low.
The scan width can be adjusted in steps of ≈11 mm.
The distance between the last (used) infra-red sensor and
the edge of the conveyor belt should be approx. 14-20 mm.
Number of infra-red sensors (LED) OFF
Scan module 2
(slave)
1 LED OFF 2 LED OFF 3 LED OFF 4 LED OFF 5 LED OFF 6 LED OFF 7 LED OFF
Dipswitch
SW1
Scan width
[mm]
189 177 166 154 143 131 120
Dipswitches 4, 5 and 6 are used to adjust the scan width.

DOL 192 12-20 Egg Counter
Technical User Guide 13
4 Installation Guide
When the power supply to the egg counter is turned on, the egg counter runs a self-test for 2 seconds. It is sub-
sequently ready to count eggs. The green and red LED’s on the front will light up (= orange) during the self-test.
The red LED subsequently turns off (the green LED remains on).
The egg counter is connected as an electrical pulse generator to a production controller. An electrical pulse is
generated to the output of the egg counter when an egg is detected.
The egg counter has been fitted with a standby input. The standby input must be activated when the conveyor
belt under the egg counter is stopped. When the standby input is active, the orange LED turns on and the egg
counter ceases to count eggs.
The egg counter is always ready to count eggs if the standby input is not connected. This may have a negative
effect on the accuracy of the egg counter however.
We recommend using the standby input at all times in order to ensure maximum accuracy.
4.1 Electrical connection
Qualified personnel in accordance with the applicable national and international standard EN
60204-1 and any other EU standards that are applicable in Europe must perform installation, ser-
vicing and troubleshooting of all electrical equipment.
The installation of a power supply isolator is required for each motor and power supply to facilitate
voltage-free work on the electrical equipment. The power supply isolator is not provided.
4.2 Choice of egg counter in house controller
See menu
Technical | Setup | Installation | Production | Egg Counter | Egg
counting and select Automatic
Select number of egg counters Egg counters installed
Select egg counter to register 1 egg per pulse in the menu Technical |
Setup | Adjustment | Production | Eggs | Set up egg per pulse

DOL 192 12-20 Egg Counter
14 Technical User Guide
Or select 1 egg per pulse for all egg counters in the menu Technical |
Setup | Adjustment | Production | Eggs | One input for egg per
pulse all egg counters
The DOL 539/535’s installation menu shows precisely which terminals
the egg counter should be connected to. The ground terminal is not
displayed. If Pull up is displayed, a 10 KΩ resistor must be installed.
For correct connection of the egg counter, see menu Technical |
Setup | Show connections
4.3 Cable Plan
Use low voltage cables for electrical connection of egg counters (max. length of 100 m from controller to egg
counter).
The length of the signal cables should be limited as much as possible.

DOL 192 12-20 Egg Counter
Technical User Guide 15

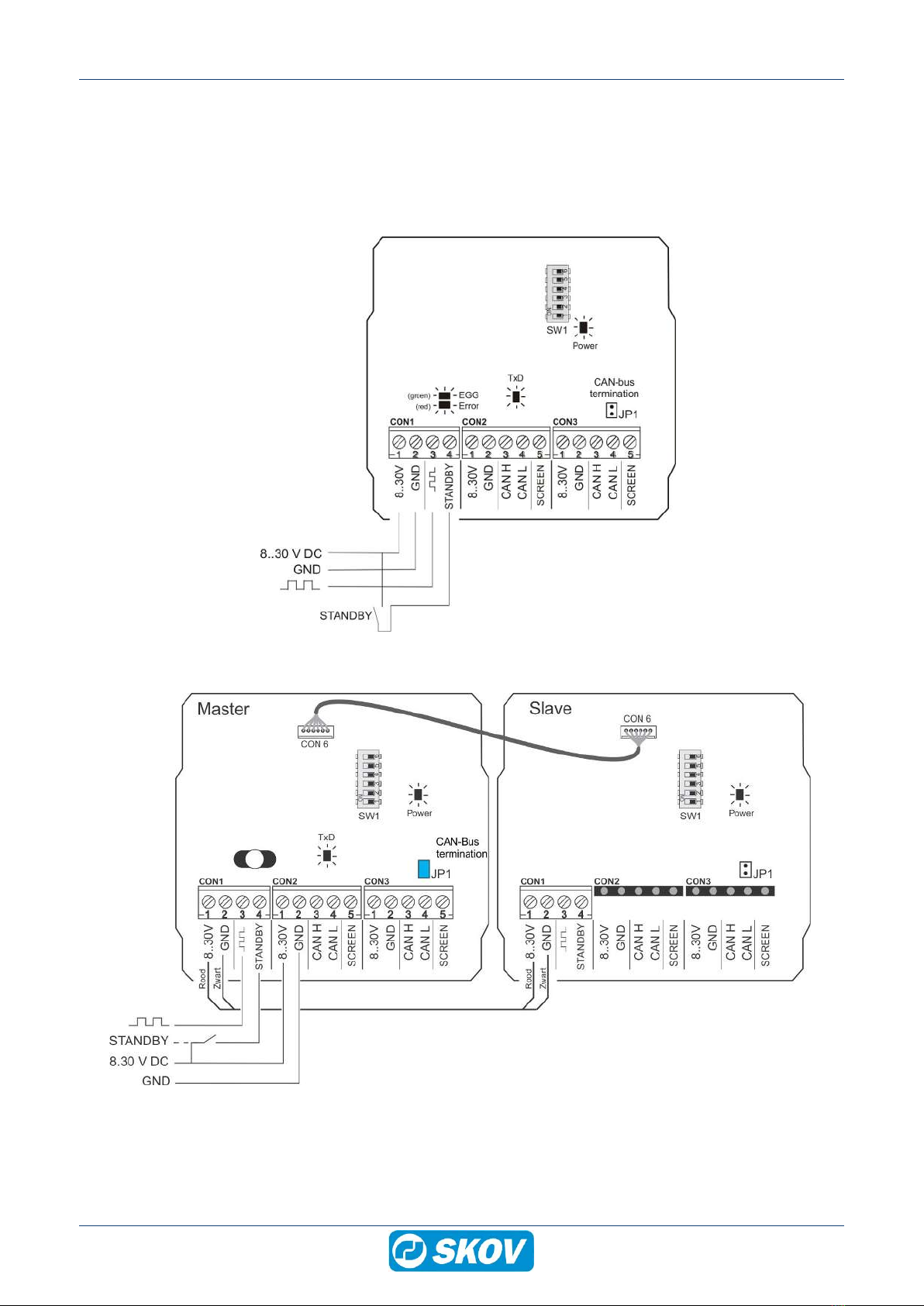

4.4 Connection in the egg counter
The switch is closed in standby mode = conveyor belt OFF
4.4.1 DOL 192 12
4.4.2 DOL 192 20

DOL 192 12-20 Egg Counter
16 Technical User Guide

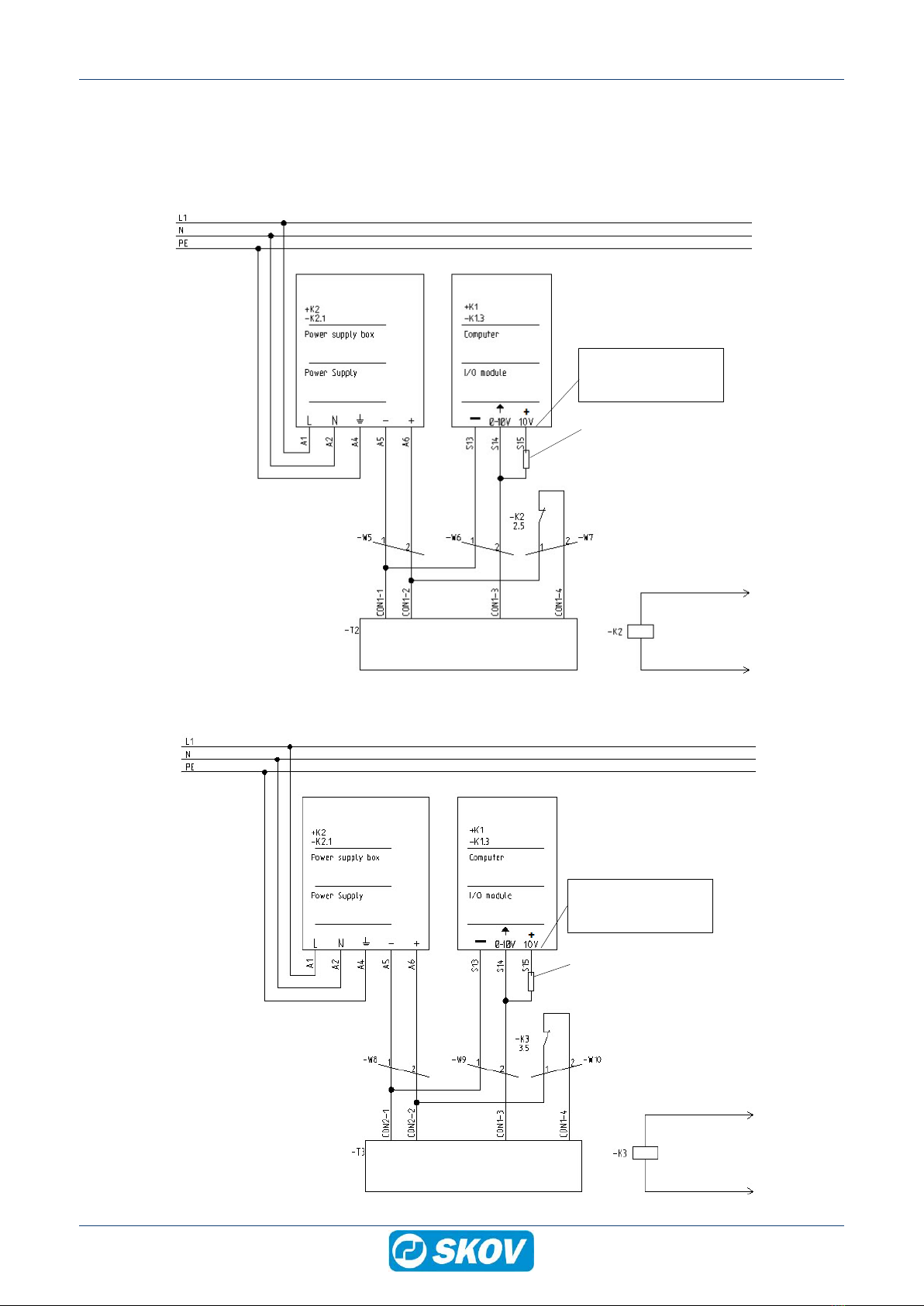

4.5 Circuit Diagram
The egg counter is powered by an external 24 VDC power supply.
4.5.1 DOL 192 12
Example of terminal number
For correct connection
see the setup menu
Show Installation on controller
NOTE! Only if Pull up
is displayed in
‘Show connections’
10 KΩ
Standby switch
ON when conveyor belt is running
Egg counter
DOL 192 12
4.5.2 DOL 192 20
Example of terminal number
For correct connection
see the setup menu
Show Installation on controller
NOTE! Only if Pull up
is displayed in
‘Show connections’
10 KΩ
Egg counter
DOL 192 20
Standby switch
ON when conveyor belt is running

DOL 192 12-20 Egg Counter
Technical User Guide 17
5 Maintenance Instructions
5.1 Cleaning
The egg counter is maintenance-free but should be kept free of litter and dirt.
Clean the product with a cloth that has been wrung out almost dry in water and avoid using:
• high-pressure cleaning
• solvents
• corrosive/caustic agents
The egg counter should preferably be cleaned in standby mode in order to prevent counting errors.
Ensure that the egg counter is not damaged by high-pressure or steam cleaning. The egg counter should be
turned on (standby mode) during cleaning in order to heat the cabinet from the inside and avoid drawing humid-
ity.
5.2 Recycling/Disposal
Products, which are suited for recycling, are marked with a pictogram showing a refuse bin that is
crossed out. See illustration.
It must be possible for customers to deliver the products to local collection sites/recycling stations in accordance
with local instructions. The recycling station will then arrange for further transport to a certified plant for reuse,
recovery and recycling.

DOL 192 12-20 Egg Counter
18 Technical User Guide
6 Technical data
6.1 DOL 192 12 - 20 cm
DOL 192 12 DOL 192 20
Electrical
Operating voltage V DC 8 - 30
Max. power W 1 2
Standby input
Input impedance
Standby level
kΩ
V
15
8
Pulse output 1 egg per
pulse
Open collector transistor NPN
Supply current mA 25
Resistance Ω 100
Pulse time LOW/HIGH ms 150/150 100/100
Measuring range
Scan width mm 120 120 - 200
Scan width (installed at a
height of 62 mm)
mm 25 - 50
Appropriate speed on
conveyor belt
m/min 2.5 – 8 2.5 – 8
Environment
Temperature, operation °C 0 - 40
Protection class IP 53
Shipping
Dimensions (H x W x D) mm 55x120x122 55x120x200
Dimensions crated
H x W x D
100x230x310 100x230x310
Weight g 700 1000
Shipping weight 1550 1960

604314 • 2018-06-19 • en • Made in Denmark
SKOV A/S • Hedelund 4 • Glyngøre • DK-7870 Roslev
Tel. [phone] • www.skov.com • E-mail: [email protected]
