Skulpt AIM User manual

Personalized Smart Fitness Trainer
PRODUCT MANUAL

Table of Contents
Getting Started 1
What’s included 1
Meet your Aim 2
Power Up 3
Setting up your Skulpt Aim on a Mobile Device 4
Mobile Device Requirements 4
Installing and Using the Skulpt app 4
iOS/Android Sync 4
Using your Aim 5
Taking Measurements 5
What Aim Measures 5
Understanding your Measurements 6
Syncing Results with iPhone/Android 6
Care and Use Tips 7
When Not to Use Aim 7
Battery, Light Ring, and Profiles 8
Battery and Power 8
Users and Guests 8
Light Ring 8
Updating your Aim 9
Bluetooth/Firmware Update 9
Updating Aim on iPhone/Android 9
Skulpt Aim General Info & Specifications 10
Sensors 10
Size and Weight 10
Environmental Conditions 10
Help 10
Return Policy and Warranty 10
Definition of Symbols 11
Regulatory and Safety Notices 12
Model Name: Skulpt Aim 12
USA: Federal Communications Commission (FCC) Statement 12
FCC Warning 12
Canada: Industry Canada (IC) Statement 13
EU (European Union) 13

1
Getting Started

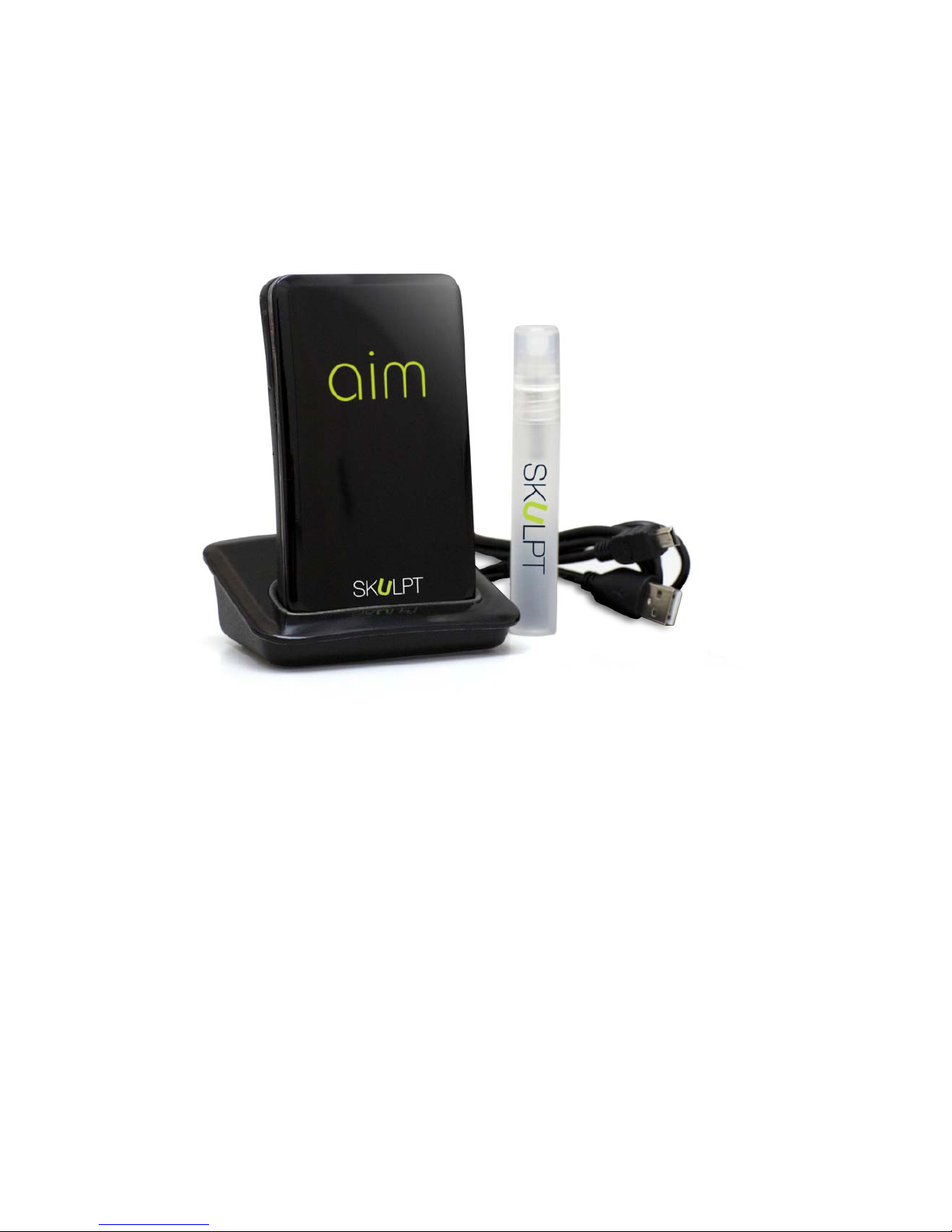

What’s included
Your Skulpt Aim® package:
1. Skulpt Aim
2. Charging Cradle & Cable
3. Spray Water Bottle

2
Meet your Aim

3
Power Up
A full charge takes 10 hours.
To charge it, place your Aim inside the cradle, to ensure the four pins
on the back of Aim are making contact with those in the cradle. Plug in
the Mini USB cable into the Mini USB connector on the charging cradle.
Plug in the other end of the cable (USB) into the USB port on your
computer (or similar device). The USB must be powered from a UL
60950-1 listed device.

4
Setting up your Skulpt Aim®on
a Mobile Device
Mobile Device Requirements
The Skulpt Aim is compatible with select mobile devices that support
Bluetooth 4.1 technology. This includes iPhone 5 or newer models (OS
version 8.3 or newer), as well as Android phones, with OS 4.3 or newer.
Installing and Using the Skulpt app
You can find the Skulpt app on the iOS App store or Google Play store by
searching for “Skulpt” or clicking on the links below. If you already have
the Skulpt app installed, check for available updates to make sure you
have the latest version.
1. Download the Skulpt app:
iPhone:
https://itunes.apple.com/us/app/skulpt/id934977538?ls=1&mt=8
Android:
https://play.google.com/store/apps/details?id=com.skulpt.aim&hl=e
n
2. Open the app on your mobile phone.
3. Select “Sign Up” to create an account.
NOTE: If you have an existing account, select “Log In” and enter
your existing credentials.
4. On the next few screens, enter some basic personal information as
required.
iOS/Android Sync
Once you’ve entered your basic profile information, follow the
instructions on your app to pair your Aim with your app:
1. Make sure that your Bluetooth is turned on.
2. Turn on your Aim.
3. Select “Add New User” from the menu on the Aim.
4. You will see a PIN appear on your Aim. Enter this PIN into your
Skulpt app.
5. Wait until the sync is complete, and tap “Continue”.

5
Your app will then prompt you to measure your total body fat percentage
and Muscle Quality, by taking three measurements. Follow the
instructions on the app to continue.
Using your Aim
Taking Measurements
During setup, your app will tell you which muscle to measure.
Otherwise, you’ll need to select the specific muscle you wish to
measure from your Aim or the remote control feature on your app.
1. Select the muscle you want to measure using the menu on your
Aim device.
2. Use the spray bottle provided to spray the sensors with water. This
will help the sensors make better contact with your skin.
3. Place the device against the appropriate muscle as directed on the
app, and make sure all of the sensors are making contact with your
skin. The app will show you where to place the device.
4. When the measurement is being taken, your Aim’s light ring will turn
from red to green, and when the measurement is ready, you will see
the results on your Aim’s screen.
5. When the Aim and app are within range and Bluetooth is turned on,
your Aim will automatically sync the results with your app.
What Aim Measures
Aim measures your fat percentage and muscle quality (MQ) of up to 12
individual muscle groups, on each side of your body (left/right). The 12
muscles are: biceps, triceps, shoulders, forearms, chest, abs, upper
back, lower back, quads, hamstrings, calves, and glutes.
For a total body fat percentage, or total body MQ reading, you’ll need to
measure three muscles: triceps, abs, and quads.
Only use the Skulpt Aim as intended. This is not a medical device. It is
intended for fitness use only.

6
Understanding your Measurements
Muscle Quality is a measure of the strength of your muscle, relative to its
size. It is based on a scale from 0 to 100, where a score of 50 is
considered average. A higher Muscle Quality relates to stronger, leaner,
and more fit muscles.
After taking a measurement, your score is categorized into one of five
fitness categories:
0-20 MQ: Needs Work
20-40 MQ: Fair
40-60 MQ: Good
60-80 MQ: Fit
80-100 MQ: Athletic
The fat percentage measurement for an individual muscle is a measure of
the subcutaneous fat over the specific region you’re measuring.
Using the App
The app is used to track your progress over time, see an overview of your
scores by muscle, and get tailored fitness and nutrition guidance based
on your unique physiology.

7
Care and Use Tips
Keep the following tips in mind when caring for your Aim:
•Clean and dry the Aim regularly using a damp cloth. Do not use
any chemical-based cleaners to clean your Aim.
•If you notice any signs of skin irritation or experience any
discomfort, please discontinue use.
•Measure yourself first thing in the morning, specifically before any
workouts.
When Not to Use Aim®
We do not recommend using the Aim in the following scenarios:
•If you have an electrical implant such as a heart pacemaker.
•If you are pregnant.
•In the shower. The Chisel is water-resistant, but it is not waterproof.

8
Battery, Light Ring, and Profiles
Battery and Power
Your Aim comes equipped with a rechargeable NiMH battery. With normal
use, your Aim should last about 1-2 weeks on a single 10 hour charge. Do
not attempt to change the batteries. Opening the device to tamper with
the batteries may cause harm and will void the warranty. In the event you
need to dispose the device, please follow the laws applicable to your
location.
Light Ring
Your Aim has a light ring around its edge with LED lights.
When taking a measurement, the light ring will turn from red to green to
show when the measurement is ready.
Users and Guests
Each Aim supports up to 6 different users. Each user can sync to their
own app, and track results on their own app.
Aim also has a “Guest” profile. This profile enables users to take
measurements without tracking their results. Measurements taken on the
guest profile will not be synced to the app.

9
Updating your Aim
Bluetooth/Firmware Update
Skulpt may release free updates for your Aim. It is recommended that you
keep your Aim updated. The latest feature enhancements and product
improvements are made through updates.
Updating your Aim will take just a few minutes, and requires your battery
to be at least 50% full. We recommend that you charge your Aim prior to
updating.
Updating Aim on iPhone/Android
You can update your Aim through the Skulpt app on your iPhone or
Android phone.
1. Open your Skulpt app.
2. Turn on your Aim. Make sure that it is within Bluetooth range of your
iPhone/Android.
3. Tap the menu button on your Skulpt app.
4. Tap ‘Update’ to update the firmware.
5. If there is an update available, your Aim will begin to update. If
there is no update available, your app will read “No update
needed.”
NOTE: Make sure that your Aim remains near your iPhone or Android
phone while finding and updating it.
When your update is finished, your app will say, “Update Complete!”

10
Skulpt Aim General Info
& Specifications
Sensors
Your Aim uses sensors to take your fitness measurements. The
sensors are: ZAMAK 3 (Zinc Alloy) with Rhodium or Gold top plating.
Size and Weight
Length Width Depth Weight
Skulpt Aim 4.3"/109.9mm 2.6"/66.1mm 0.79"/20mm 5.3oz/150.3g
Charging Cradle 2.7"/68.2mm 3.4"/86.9mm 1.2"/29.7mm (max) 2.6oz/73.7g
Environmental Conditions
Operating Temperature 32° to 104° F (0° to 40° C)
Non-operating Temperature -22° to 140° F (-30° to 60° C)
Water Resistant Device is water-resistant.
Maximum Operating Altitude 30,000 feet (9,144 m)
Help
Troubleshooting and assistance for your Skulpt Aim tracker can be found
at WWW.SKULPT.ME/HELP or contact us
Return Policy and Warranty
Warranty information and the Skulpt.me Store Return Policy can be found
online at WWW.SKULPT.ME/RETURNS.

11
Definition of Symbols
Symbol 14 -
Caution - Please refer to the product manual prior
to using this device.
CE Mark -
Skulpt Inc and/or Skulpt Europe Ltd declares that the Skulpt Aim
is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
FCC -
US Federal Communications Commission
See FCC statement(s)
Waste Electrical and Electronic Equipment Directive –
This symbol indicates that when the end-user wishes to discard
this product, it must be sent to separate collection facilities for
recovery and recycling per end-user local laws (See battery life).

12
Regulatory and Safety Notices
Model Name: Skulpt Aim
Contains FCC ID: PI4BL600 IC: 1931B-BL600
USA: Federal Communications Commission (FCC)
Statement
This device complies with FCC part 15 FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference, including interference that may cause undesired
operation of the device.
FCC Warning
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
This device meets the FCC and IC requirements for RF exposure in public or uncontrolled
environments.

13
Canada: Industry Canada (IC) Statement
IC Notice to Users English/French in accordance with RSS GEN Issue 3:
This device complies with Industry Canada license exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause
undesired operation of the device.
which the receiver is connected.
Cet appareil est conforme avec Industrie Canada RSS standard exempts de licence
(s). Son utilisation est soumise à Les deux conditions suivantes:
1. cet appareil ne peut pas provoquer d’interférences et
2. cet appareil doit accepter Toute interférence, y compris les interférences qui
peuvent causer un mauvais fonctionnement du dispositive
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
EU (European Union)
Declaration of Conformity with Regard to the EU Directive 1999/5/EC
Skulpt Inc. or Skulpt Europe Ltd is authorized to apply the CE Mark on the Skulpt Aim,
thereby declaring conformity to the essential requirements and other relevant provisions of
Directive 1999/5/EC.
Compliant with the standard R&TTE 99/CE/05
Conforme à la norme R&TTE 99/CE/05

14
Skulpt, Inc.
333 Bryant St.
Ste 220
San Francisco, CA. 94107
WWW.SKULPT.ME
