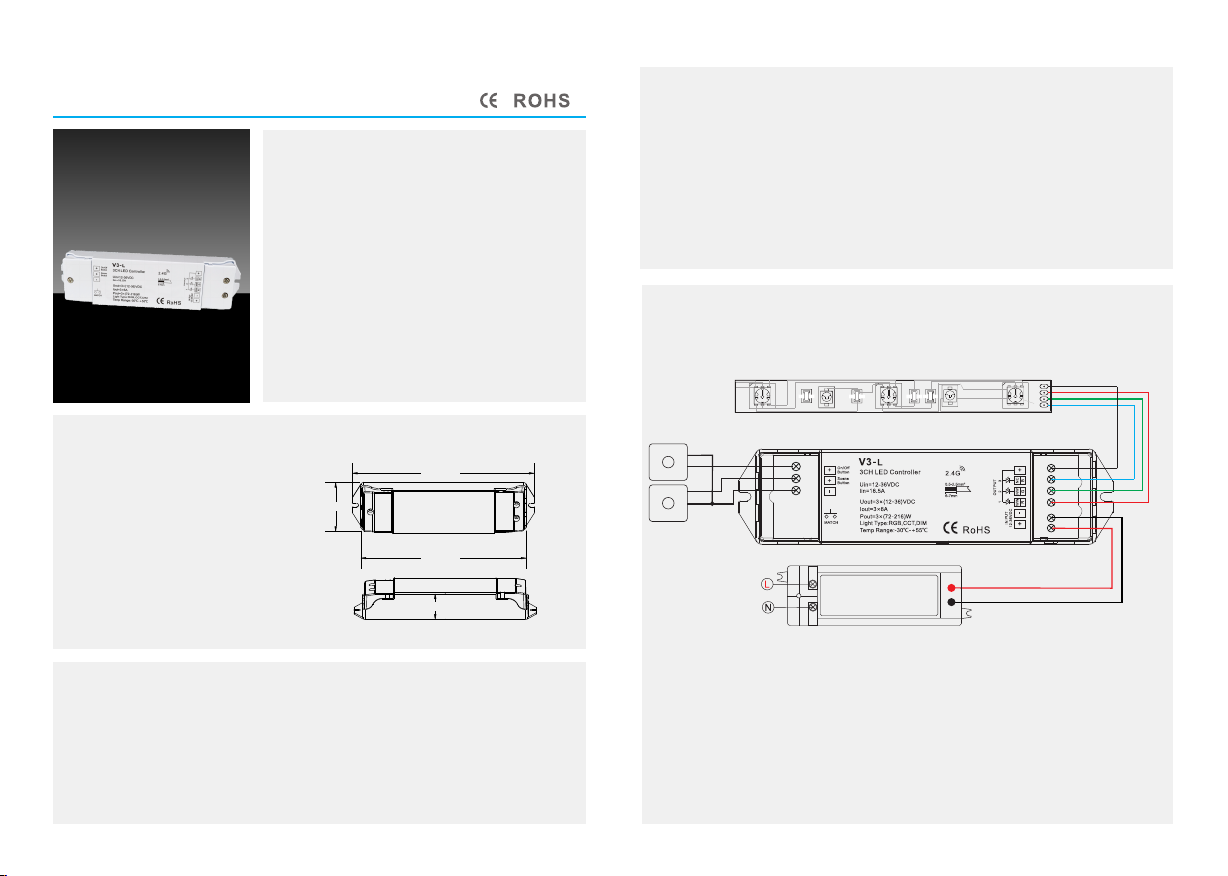

SKYDANCE V3-L User manual

+
R
G
B
175mm
160mm
45mm
Dimension
3CH 12-36V 6A Constant Voltage
RF 2.4G Receiver
27mm
Wiring diagram
1. On/off key
● Short press: Turn on/off light.
● Long press(1-5s): When light is on, adjust brightness.
● Long press(10s): When multiple controllers share a on/off key,
achieve simultaneous adjustment.
External keys function
2. Scene key
● Short press: Select 8 scenes.
● Long press(10s): When multiple controllers share a scene key,
achieve simultaneous select.
LED power supply voltage and power select :
12V lamp, Input 12V power supply, can load 0~216W,
24V lamp, Input 24V power supply, can load 0~432W,
36V lamp, Input 36V power supply, can load 0~648W,
The power supply power must larger than load power 20%.
● : -Input voltage 12 36VDC
● : PWM constant voltageOutput type
● : 3CH, 6A/CHOutput current
● : 3 x (72-216)WOutput power
● Grey levels: 4096/CH
● Dimming range: 0-100%
● Remote distance: 30m
● Working temperature: -30℃~55℃
● : L175×W45×H27mmProduct size
● Net weight: 110g
Technical Parameters
Match key function
● Short press: Within 5s, press any key of the remoter for match, multi-zone
remoter press zone key.
● Long press(5s): Delete all matched remoter, lights remain in the current state.
● Long press(10s): Restore factory default parameters.
External key
(optional)
Power Supply
12-36VDC
Constant Voltage
AC110-230V
RGB LED strip
V3-L for RGB
Summary
● 6A 3CH PWM constant voltage controller.
● Default as RGB controller, need match RGB remoter,
create colorful static or dynamic effect.
● Can also be used as color temperature or dimming
controller, good compatibility.
● Full compatibility with a variety of single color, dual color
and RGB remoters.
● PWM achieve 4096 levels flicker-less dimming.
● When control RGB lamp, built in 30 change mode optional.
● Adopt 2.4GHz wireless technology, can accept up to 10
remoters control.
● Can be WiFi controlled by APP installed on IOS or Android
mobile devices while working with WiFi-Relay controller.
● Can connect with external switches to achieve on/off and
scene change function.
● Work with power repeater to expand output unlimitedly.
V3-L

Malfunctions analysis & troubleshooting
1. The product shall be installed and serviced by a qualified person.
2. This product is non-waterproof. Please avoid the sun and rain.
3. Good heat dissipation will prolong the working life of the controller.
Please ensure good ventilation.
4. Please check if the output voltage of any power supplies used comply
with the working voltage of the product.
5. Ensure all wire connections and polarities are correct and secure before
applying power to avoid any damages to the LED lights.
6. If a fault occurs please return the product to your supplier. Do not attempt to
fix this product by yourself.
Safety & Warnings
Wrong color 1. Wrong connection of RGB wires. 1. Reconnect RGB wires.
Malfunctions
Causes Troubleshooting
Uneven intensity
between front and
rear,with voltage
drop
1. Output cable is too long.
2. Wire diameter is too small.
3. Overload beyond power supply
capability.
4. Overload beyond controller
capability.
1. Reduce cable or loop supply.
2. Change wider wire.
3. Replace higher power supply.
4. Add power repeater.
No response
from the remoter
1. The battery has no power.
2. Beyond controllable distance.
3. The controller did not match the
remoter.
1. Replace battery.
2. Reduce remote distance.
3. Re-match the remoter.
1. No power.
2. Wrong connection or insecure.
1. Check the power.
2. Check the connection.
No light
RGB change mode list
No. Name
1
2
3
4
5
6
7
8
9
10
Static red
Static green
Static blue
Static yellow
Static cyan
Static purple
Static white
RGB jump
7 color jump
Red strobe
No. Name No. Name
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Green strobe
Blue strobe
White strobe
RGB strobe
7 color strobe
Red fade in and out
Green fade in and out
Blue fade in and out
White fade in and out
RGBW fade in and out
Red yellow smooth
Green cyan smooth
Blue purple smooth
Blue white smooth
RGB+W smooth
RGBW smooth
RGBY smooth
Yellow cyan purple smooth
RGB smooth
6 color smooth
Warranty Agreement
1. 5-year warranty:
● The warranty is for free repair or replacement and covers manufacturing faults only.
● Do not include fees of on site maintenance and consumable parts.
2. Limited Warranty
● Artificial damage caused by improper use, such as use inappropriate power supply,
improper accessories, improper installation, did not follow the instructions, error using
or negligence.
● Any damages caused by force majeure, such as natural disaster, abnormal voltage.
● The normal use of products caused by aging, wear and tear, but it does not affect the
normal use.
External key
(optional)
Power Supply
12-36VDC
Constant Voltage
AC110-230V
V3-L for Dual Color
V+
WW
NW
Dual color WW/NW LED strip
V3-L
V3-L for single color
+
+
+
Single color LED strip x 3
External key
(optional)
AC110-230V
V3-L
Power Supply
12-36VDC
Constant Voltage
