SKYDANCE S1-DR User manual

● AC phase-cut mosfet dimmer with DMX512 function, two channel output.
● Comply with the DMX512 standard protocols.
● Digital numeric display, set DMX decode start address by bottons.
● RDM function can realize intercommunication between DMX master
and decoder.
● 1/2 DMX channel output selectable.
● Reverse-phase dimming or forward-phase dimming selectable.
● Minimum brightness set from 1% to 40%.
● Stand-alone dynamic mode and 2 channel dimmer mode selectable,
which be controlled by buttons with built-in programs, instead of DMX signal.
● To dim and switch single color dimmable LED lamps,
traditional incandescent and halogen lights.
● Over-heat protection, recover automatically.
User Manual Ver 1.0.5
Technical Parameters
Model No.: S1-DR
Features
Page 1
2 Channel/RDM/Stand-alone function/Leading edge or trailing edge/Numeric display/Din rail
AC Triac DMX Dimmer
AC L input
CH1 AC L output
CH2 AC L output
AC N input
CH1 AC N output
CH2 AC N output
LVDWiring Diagram
Output current 2CH, 1.5A/CH
Input voltage 100-240VAC
Output voltage 2 x (100-240)VAC
Operation temperature
Case temperature (Max.)
Environment
IP20
IP rating
Dimming data
Dimming range
DMX512
256 levels
0 -100%
Input and Output
Warranty
5 years
Warranty
Input signal
Dimming level
Ta: -30
O
C ~ +55
O
C
T c: +85
O
C
Output power 2 x (150-360)W
DM X IN DM X OUT
D+ D- GN D D+ D- GN D
L2N2L1N1
LN
AC 100- 240V
OU TPU T2
AC 100- 240V
OU TPU T1
IN PUT
AC 100- 240V
DM X+
GN D
DMX Master
DM X-
DM X IN DM X OUT
D+ D- GN D D+ D- GN D
L2N2L1N1
LN
AC 100- 240V
OU TPU T2
AC 100- 240V
OU TPU T1
IN P U T
AC 100- 240V
AC100-240V Input
Dimmable
LED light LED light
Dimmable
LED Driver
Dimmable
LED Driver
AC100-240V Input
DMX signal
DMX input +
DMX input - DMX output -
DMX output +
Mechanical Structures and Installations
Installation rack
37 mm
48m m
45mm
35.5mm
67mm
DIN Rail Mounting Size:
TS-35/7.5 or TS-35/15
MSetting key
Digital display
GND
GND
DM X IN DMX O UT
D+ D- GN D D+ D- GND
L2N2L1N 1
LN
AC 100- 240V
OU TPU T2
AC 100- 240V
OU TPU T1
IN PUT
AC 100- 240V
Weight
0.131kg
Gross weight
Net weight
0.161kg
Compatible Load Types
Load Type Maximum Load Remarks
Due to variety of LED lamp designs, maximum number of LED lamps
is further dependent on power factor result when connected to dimmer.
Maximum permitted number of drivers is 200W divided by driver nameplate
power rating, and make sure the surge current is no more than 2 times 65A.
Dimmable LED lamps
Triac Dimmable
LED drivers
Incandescent lighting,
HV Halogen lamps
200W @ 220V
100W @ 110V
400W @ 220V
200W @ 110V
200W @ 220V
100W @ 110V
Safety and EMC
EMC standard (EMC) ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
Certification CE,EMC,LVD
EN 62368-1:2020+A11:2020
Safety standard(LVD)
www.iskydance.pl
User Manual Ver 1.0.5 Page 2

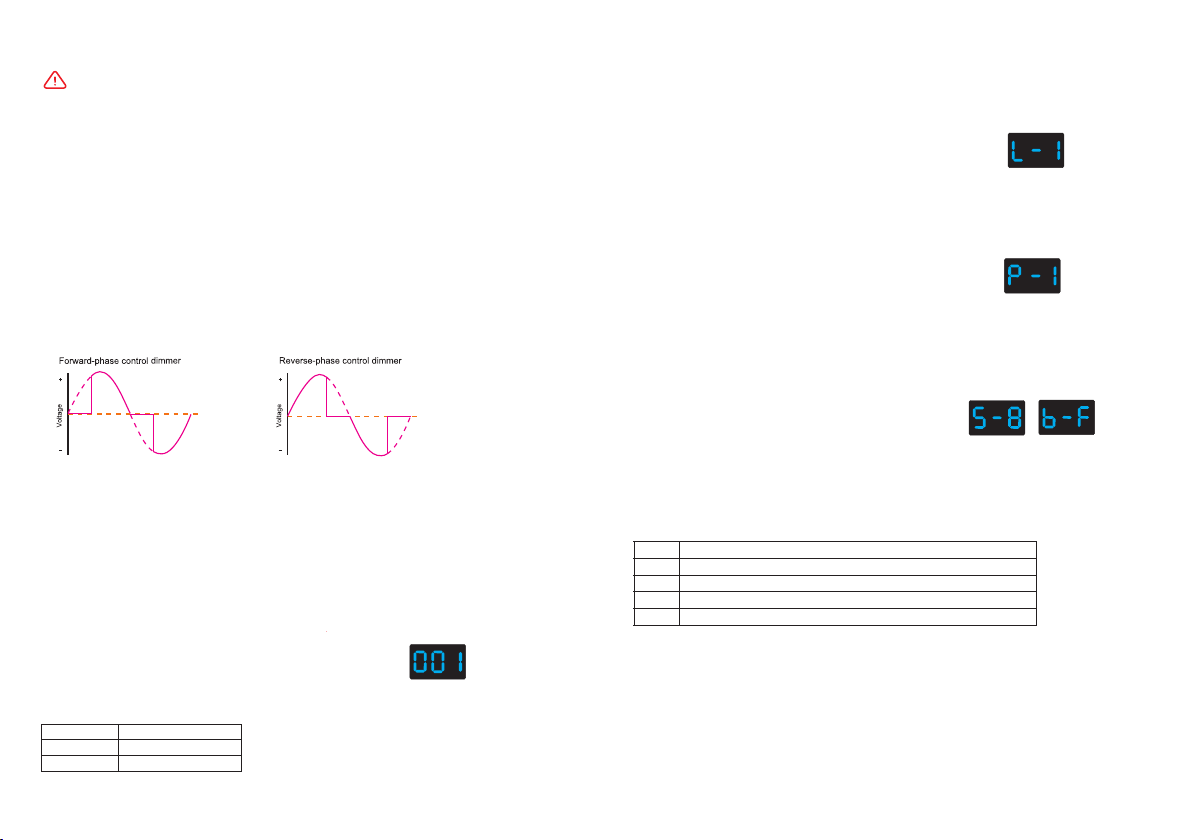

● Long press ◀ and ▶ key for 2s, restore factory default parameter, display"RES".
● Factory default parameter: DMX decode mode, DMX decode start address is 1, two channel decode,
rerverse-phase control, 10% minimum brightness, dimmer mode number is 1,
dynamic mode number is 1, output 100% level when no DMX input, disable automatic blank screen.
Dynamic mode list
Name
P-4
P-1
P-2
P-3
No.
2ch light on/off synchronously
2ch single light on/off in sequence
2ch light fadein and fadeout synchronously
2ch light fadein and fadeout in sequence
● Short press M key, when display P-1~P-4,
enter stand-alone dynamic mode.
● Press ◀ or ▶ key to change dynamic mode
number(P-1~P-4).
Stand-alone dynamic mode
● Each mode can adjust speed and brightness.
Long press M key for 2s, prepare for setup mode speed, brightness.
Short press M key to switch two item.
Press ◀ or ▶ key to setup value of each item.
Mode speed: 1-10 level speed(S-1, S-9, S-F).
Mode brightness: 1-10 level brightness(b-1, b-9, b-F).
Long press M key for 2s, or timeout 10s, quit setting.
● Enter stand-alone dynamic mode only when DMX signal is disconnected or lost.
Speed
(8 level)
Brightness
(10 level,100%)
(P-1~P-4)
Stand-alone dynamic mode
Restore factory default parameter
● Long press M and ◀ key for 2s, prepare for setup system parameter: decode mode, control method,
default output level, minimum brightness curve, automatic blank screen. short press M key to switch five item.
● Decode mode: short press ◀ or ▶ key to switch one-channel decode("d-1") or two-channel decode("d-2").
When set as 1 channel decode, the decoder occupy only 1 DMX address, and two channel output the same
brightness of this DMX address.
● Control method: short press ◀ or ▶ key to switch forward-phase("C-F") or reverse-phase("C-R").
Operation
System parameter setting
● Minimum brightness: short press ◀ or ▶ key to set minimum brightness,
from 1% to 40%("b01" to"b40"). You need set suitable minimum brightness to avoid flick.
● Default output level: press ◀ or ▶ key to change default 0-100% level ("d00" to "dFF" ) when no DMX input signal.
● Automatic blank screen: short press ◀ or ▶ key to switch enable("bon") or disable("boF") automatic blank screen.
● Long press M key for 2s or timeout 10s, quit system parameter setting.
● Short press M key, when display 001~512, enter DMX mode.
● Press ◀ or ▶ key to change DMX decode start address(001~512), long press for fast adjustment.
● If there is a DMX signal input, will enter DMX mode automatically.
● DMX Dimming: Each S1-DR DMX decoder occupy 2 DMX address
when connecting the DMX console.
For example, the defaulted start address is 1,
their corresponding relationship in the form:
DMX mode
● Short press M key, when display L-1~L-8, enter stand-alone dimmer mode.
● Press ◀ or ▶ key to change dimmer mode number(L-1~L-8).
● Each dimmer mode can adjust each channel brightness independently.
Long press M key for 2s, prepare for setup two channel brightness.
Short press M key to switch two channel(100-1FF, 200-2FF).
Press ◀ or ▶ key to setup brightness value of each channel.
Long press M key for 2s, or timeout 10s, quit setting.
● Enter stand-alone dimmer mode only when DMX signal is disconnected or lost.
DMX mode
(001~512)
Stand-alone dimmer mode
(L-1~L-8)
Stand-alone dimmer mode
CH1 0-255
CH2 0-255
CH1 0-100%
DMX Console DMX Decoder Output
CH2 0-100%
Note: When calculating the maximum number of load lamps or drivers, the input power or input current
parameters of a single lamp or driver must be used, the output power parameters can not be used.
In addition, the maximum surge current of the dimmer is 65A, the sum of surge current of multiple dimmable
LED drivers should not exceed 2 times. otherwise, the product will be overloaded and damaged.
Please carefully ensure all wire connections and polarities are correct and secure before applying power,
otherwise this controller will be damaged.
Caution:
www.iskydance.pl
