SKYLUX iDome User manual

01-10-2021
iDome & iWindow Flex 2.0
Mounting instructions
EN
Art.N° 82671

2/24 Mounting_instructions_Flex_2.0 01/10/2021
Safety
Take the necessary and required safety precautions, such as safety nets and lifelines when installing from the
outside, safety goggles, gloves, hard hat, etc.
Do not step on the glass.
Falling from height
• When using ladders to go on the roof:
- Ladder in good condition?
- Set up correctly at an angle of 75°?
- Secured below and on top against moving?
- Don’t take heavy material with you on the ladder (3-point contact rule)! If possible,
use a crane to lift the material.
• Do not lift material over the roof edge; use a crane to put the material on the roof.
• Roof zone: make sure the part of the roof where the skylight/barrel vault will be installed is
safe enough, e.g. secure the edge (support system in the roof gutter that supports against the
outer wall of the building, with suitable A B C categorie depending on the roof pitch) or use a
scaffold so no one can fall off the roof. If the roof is not safe enough, always use a harness with
lifeline (adapted to the fall height), attached to a suitable attachment point.
•Make sure the roof is stable and does not have dangerous openings or insufficient secure parts
(e.g. corrugated sheets, …). Take the necessary measures if this is not the case: strengthen,
use suitable safety nets below the danger zones, …
• Before making the roof opening for the skylight/barrel vault: make sure there are safety nets
conform to the current legislation. The nets must be attached firmly and sufficiently to the
building.
•When using an aerial work platform: always wear and secure your harness (mandatory)! Leaving
the cage is forbidden.
• Never walk backwards on a roof, always walk forwards.
• Make sure there’s enough light in the working zone.
Low-hanging obstacles and falling loads
• Forbidden to walk under or within a radius of 1 m of a hanging or lifted load.
• Demarcate the danger zone below the skylight/barrel vault, in the building as well as on the
outside near the outer walls (in case material slides off the roof). If the zone is demarcated,
people cannot be hit by any falling loads. It’s prohibited to enter these danger zones during
construction.
Crushing hazard
• All working tools are in good condition, provided with a valid CE label and all necessary safety
regulations. These cannot be removed.
• People who use these working tools are educated for this purpose. Protections are always
present on all working tools. They are in good condition and need to be set correctly.
Tripping/falling
•Safety is key and it begins with order and tidiness. Clean everything immediately, leave nothing
lying around.
• Trash needs to be sorted.
• Be cautious with electric cables (danger of tripping/falling). Never walk backwards!
• Make sure there’s enough light in the working zone.

Mounting_instructions_Flex_2.0 3/24
01/10/2021
Sharp objects
• Make sure your fingers/hands are not pinched and watch out for cuts while handling skylights
or barrel vaults.
• Be careful where you put your hands during the installation.
• Wearing cut-resistant gloves is mandatory.
Ergonomics
• Always lift loads correctly: bend your knees, move your feet instead of forcing your spine, lift
as close to your body as possible.
• Parts of more than 25 kg must be lifted with at least 2 persons.
Personal protective equipment
• Work clothes, safety shoes and helmet are mandatory for everyone.
• Lifeline and harness are mandatory if the edge is not secured enough or if there are no safety nets below the
roof opening. They are also necessary when using an aerial working platform.
• Use gloves when handling skylight or barrel vault parts.
• Safety glasses and hearing protection are mandatory when using saws / grinders.
Always perform a Last Minute Risc Analysis!
If in doubt: STOP! Do not take unnecessary risks. Ask your supervisor if needed.

4/24 Mounting_instructions_Flex_2.0 01/10/2021
2 Table of contents
1 SAFETY p. 3
2 TABLE OF CONTENTS p. 4
3 GENERAL p. 5
4 IMPORTANT INFORMATION p. 5
5 BEFORE STARTING THE INSTALLATION OF YOUR FLEX 2.0 PRODUCT p. 5
6 CONTENTS OF DELIVERY p. 6
7 REQUIRED TOOLS p. 7
8 REQUIREMENTS BASE CURB NOT INCLUDED IN THE FLEX PRODUCT p. 7
8.1 CURB CONSTRUCTION p. 7
9 PITCHED ROOF & LOCATION OF THE HINGES p. 8
9.1 PITCHED ROOF: LOCATION OF THE HINGES p. 8
9.2 MINIMUM ROOF INCLINATION: IDOME p. 8
9.3 MINIMUM ROOF INCLINATION: IWINDOW2 & IWINDOW3 p. 8
10 MOUNTING THE HINGES ON THE CURB p. 9
10.1 LOCATION OF THE HINGES p. 9
10.2 MOUNTING HARDWARE FOR THE HINGES p. 9
10.2.1 POLYESTER CURB p. 10
10.2.2 METAL CURB p. 10
10.2.3 PVC CURB p. 11
11 MOUNTING THE CHAIN BRACKET ON THE CURB p. 11
11.1 LOCATION OF THE BRACKET p. 11
11.1.1 SINGLE ACTUATOR: THE CHAIN BRACKET IS POSITIONED IN THE MIDDLE OF THE CURB p. 12
11.1.2 DOUBLE ACTUATOR: THE MIDDLE OF THE CHAIN BRACKET IS POSITIONED 322 MM
FROM THE MIDDLE OF THE CURB p. 12
11.2 MOUNTING THE CHAIN BRACKET ON THE CURB p. 13
11.2.1 POLYESTER & METAL CURBS p. 13
11.2.2 PVC CURB p. 14
12 PREPARATION OF THE CURB FOR CABLE p. 14
13 PREINSTALLING THE RAIN SENSOR ON SKYLIGHT p. 15
13.1 MOUNTING RAIN SENSOR ON BRACKET p. 15
14 ASSEMBLY WINDOW WITH CURB p. 16
15 ELECTRICAL CABLE THROUGH THE CURB p. 17
16 ACTUATOR CONNECTION TO CHAIN BRACKET p. 19
16.1 ELECTRICAL CONNECTION WITH RAIN SENSOR p. 20
16.2 ELECTRICAL CONNECTION WITHOUT RAIN SENSOR p. 21
17 DISSASEMBLY p. 22
18 TECHNICAL INFORMATION p. 23

Mounting_instructions_Flex_2.0 5/24
01/10/2021
3 General
The iDome Flex 2.0 or iWindow2-3 Flex 2.0 is the openable hybrid/flat glass skylight for applications in flat roofs
with integrated 230 V chain actuator in the frame.
Rain detection is included as standard, which closes the skylight automatically in case of precipitation.
This openable skylight is suited for fresh air ventilation.
Motor stroke length 25 cm.
4 Important information
- Read instructions carefully before installation. Keep these instructions for future reference.
- The operating voltage is 230 V AC.
- Routing or installing of electrical cables and connections may only be performed by specialised companies.
- Your Flex 2.0 product is designed to be used with a switch which automatically returns (spring loaded) to the
OFF-position when not pressed! Using a non-momentary switch which stays in either up or down position
WILL cause damage to the chain actuator.
- To avoid crushing of body parts, the zone of the openable section must always be avoided during installation.
- Do not paint or lacquer the rain sensor.
- Dirt on the rain sensor may cause operating problems. Therefore, it is recommended to clean the rain sensor
with a soft wet cloth once or twice a year or when required.
Before starting the installation or maintenance of the iWindow or iDome Flex 2.0, all necessary safety measures
must be fulfilled. The iWindow2/3 Flex 2.0 or iDome Flex 2.0 needs to be installed by a professional.
Ask for the Declaration of performance (DoP).
5 Before starting the installation of your Flex 2.0 product
- Check your roof inclination:
iDome Flex 2.0 : MIN. 0° - MAX. 25°
iWindow2/3 Flex 2.0: MIN. 5° - MAX. 25°
- A base curb is not included in your Flex 2.0 product. The base curb must comply to the requirements stated
in point 8 of this manual: “Requirements base curb (not included in the Flex product)”.
- An operating voltage of 230 V AC is necessary during installation.
- Provide suitable lifting gear or sucient manpower (at least 2 persons) to install the heavy glass product.
OPEN
CLOSE
COM
Spring automatically
returns switch to OFF-
position when not pressed

6/24 Mounting_instructions_Flex_2.0 01/10/2021
6 Contents of delivery
PVC iOra frame with glass
cover (iDome / iWindow)
and rain sensor
Bottom hinge stainless
steel
Threaded rod
Hexagon socket
mushroom head cap nut
Hilo screw mushroom
head / PH
Blind rivet
Self-drilling hexagon
washer head screw
Cap nut M5 stainless steel
Chain bracket
Chain bracket screw
M6x30
Cross recessed screw
with raised countersunk
head Phillips DIN966 A-H
Stainless steel A2
M5x20
Prevailing hexagon nut
M5
Closing washer M5
Button head screw / hexa-
gon socket M4x25
Hexagon lock nut M4
Hilo screw countersunk
head PH
4.8x25
Rubber for cable
Chain bracket positioning
tool

Mounting_instructions_Flex_2.0 7/24
01/10/2021
7 Required tools
Utility knife Drill bit diameter 12mm
Tape measure Wrench SW 7
Square Wrench SW 8
Marker Allen wrench SW 5
for chain bracket SW 5
screw M6x30
Electric drill Allen wrench SW 3
for button head SW 3
screw M4
Drill bit diameter 4.5 mm Phillips screwdriver PH2
Drill bit diameter 5.5 mm
8 Requirements base curb (not included in the Flex product)
Your Flex 2.0 product does NOT come with a base curb.
The Flex 2.0 skylight is optimized to use with a GRP curb.
The Flex 2.0 skylight can also be used with a PVC curb.
For a curb construction other than GRP or PVC: other mounting hardware may be necessary.
8.1 Curb construction
The curb (not included) must comply with the following conditions:
- Upper surface of curb: min. 15 cm above the roof insulation/roofing material
- The curb has a flange at the top of which the inside is equal to the daylight opening. The width of the top flange
is at least 55 mm and max. 60 mm
- The thickness of the top flange is at least 2 mm and strong enough over the entire width of 55 mm
- The roofing material is pulled up to the top flange of the upper curb
Min. 55(*)
Min. 2
Min. 150 Daylight size flange of the basic curb =
daylight size Flex
Curb of choice
(not included)
Roof construction
Roofing material
Insulation
8
7

8/24 Mounting_instructions_Flex_2.0 01/10/2021

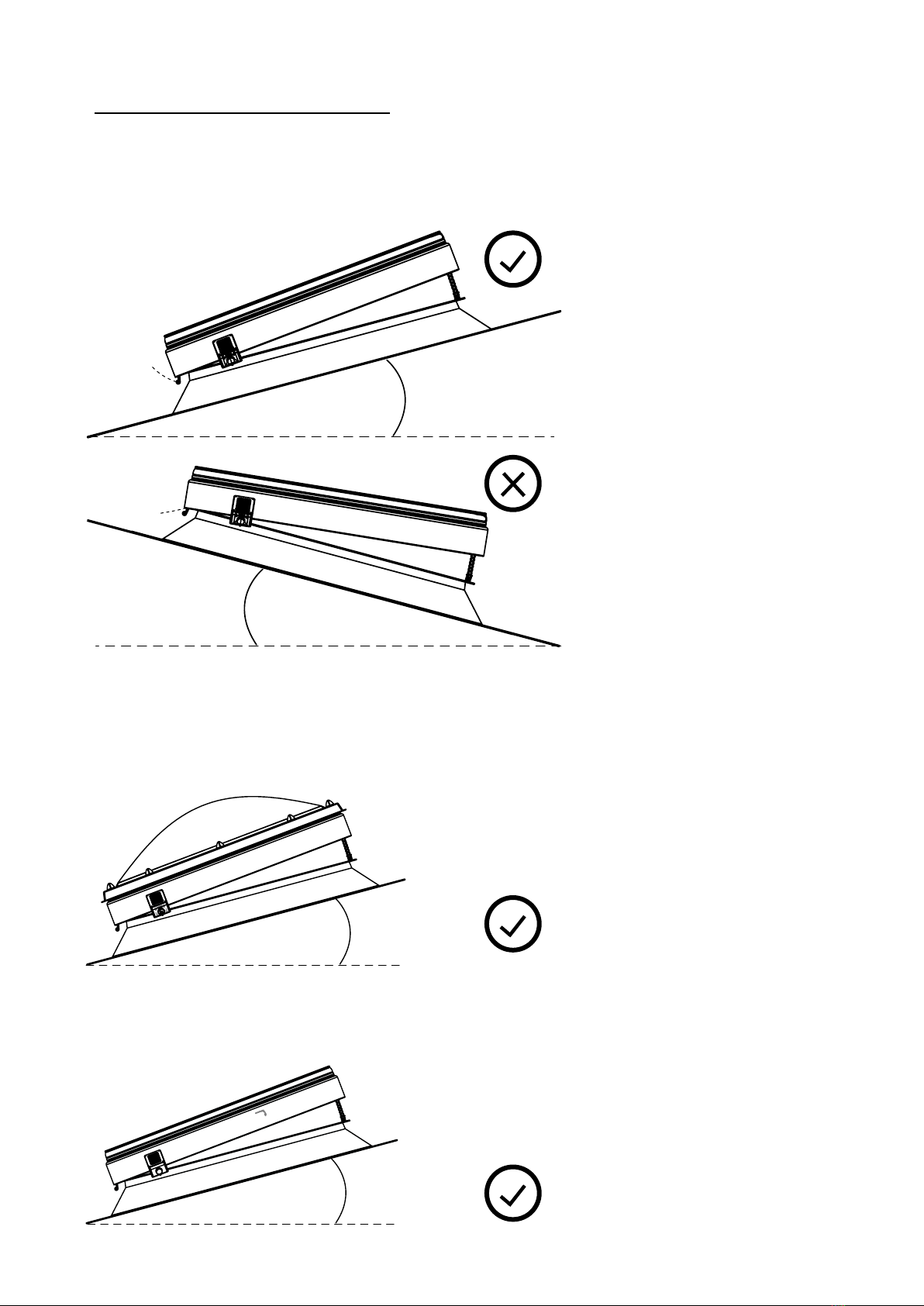

9 Pitched roof & location of the hinges
9.1 Pitched roof: location of the hinges
The hinges should always be located on the lowest side of the roof!
9.2 Minimum roof inclination: iDome
Pitched roof: iDome: roof inclination between 0° & max. 25°
Hinges always on low side.
9.3 Minimum roof inclination: iWindow2 & iWindow3
Pitched roof: iWindow: roof inclination between min. 5° & max. 25°
Hinges always on low side.
Location
hinges
Pitched roof > 0°
High side
Low side
min. 0° - max. 25°
min. 5° - max. 25°
Location
hinges
Pitched roof > 0°
High side
Low side

Mounting_instructions_Flex_2.0 9/24
01/10/2021
10 Mounting the hinges on the curb

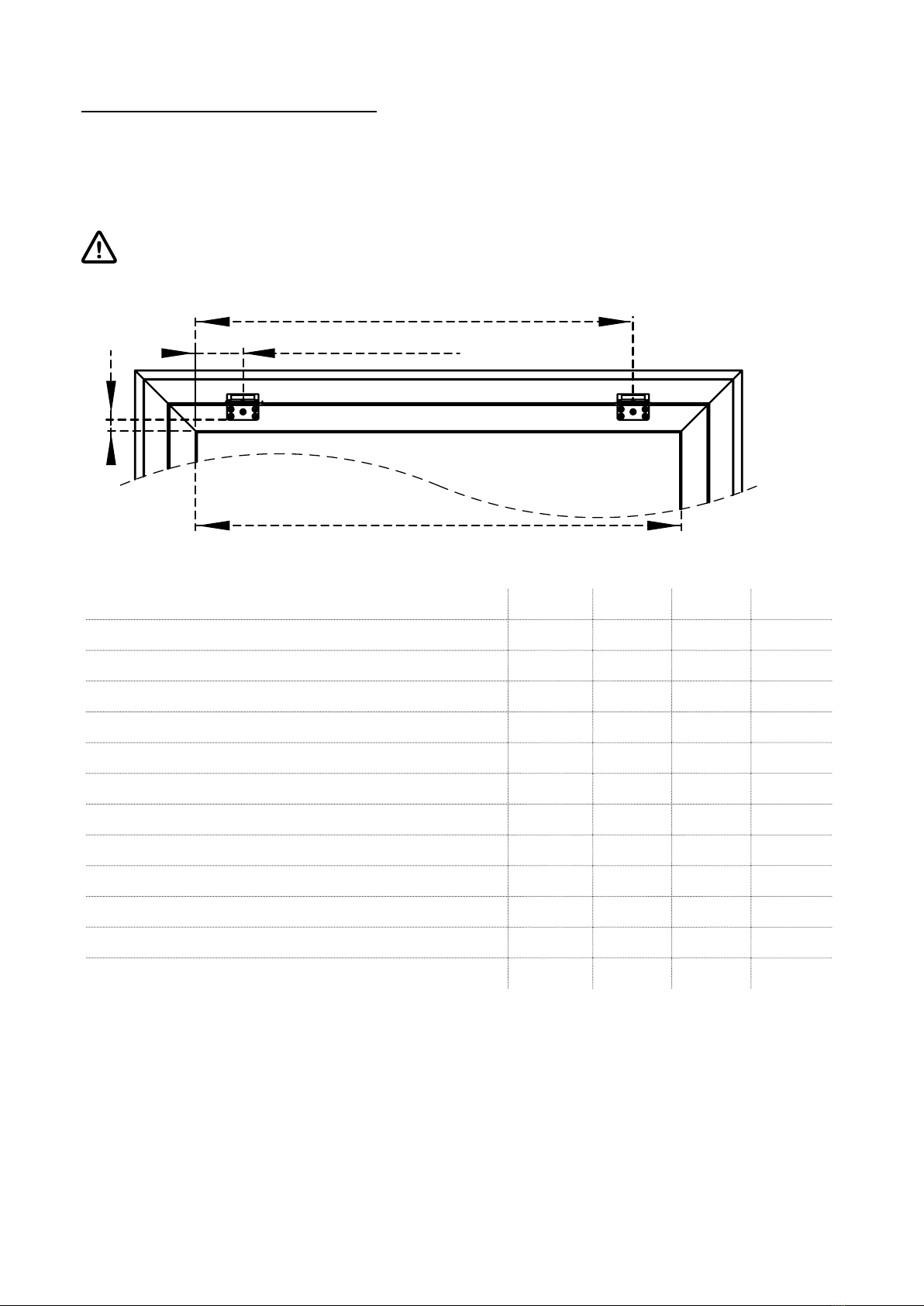

10.1 Location of the hinges
Install the bottom hinges on the curb. Measure the distance from the daylight size to the middle of the hinges.
It’s important the hinges are positioned correctly!
10.2 Mounting hardware for the hinges
Use the appropiate hardware to mount the hinges on the curb!
Your Flex 2.0-product includes mounting hardware for polyester, metal or PVC curbs.
For other types of curbs or curbs with dierent flange dimensions: Use suitable mounting hardware to attach the
hinges.
25
distance daylight size to hinge
distance daylight size to hinge
daylight size (longest side)
Daylight size of the longest side (centre of the hinges) (mm) Hinge 1 Hinge 2 Hinge 3 Hinge 4
700 50 650
800 75 725
900 100 800
1000 100 900
1050 100 950
1100 125 550 975
1200 150 600 1050
1300 150 650 1150
1400 150 700 1250
1500 100 750 1400
1800 100 633 1167 1700
2000 100 700 1300 1900

10/24 Mounting_instructions_Flex_2.0 01/10/2021

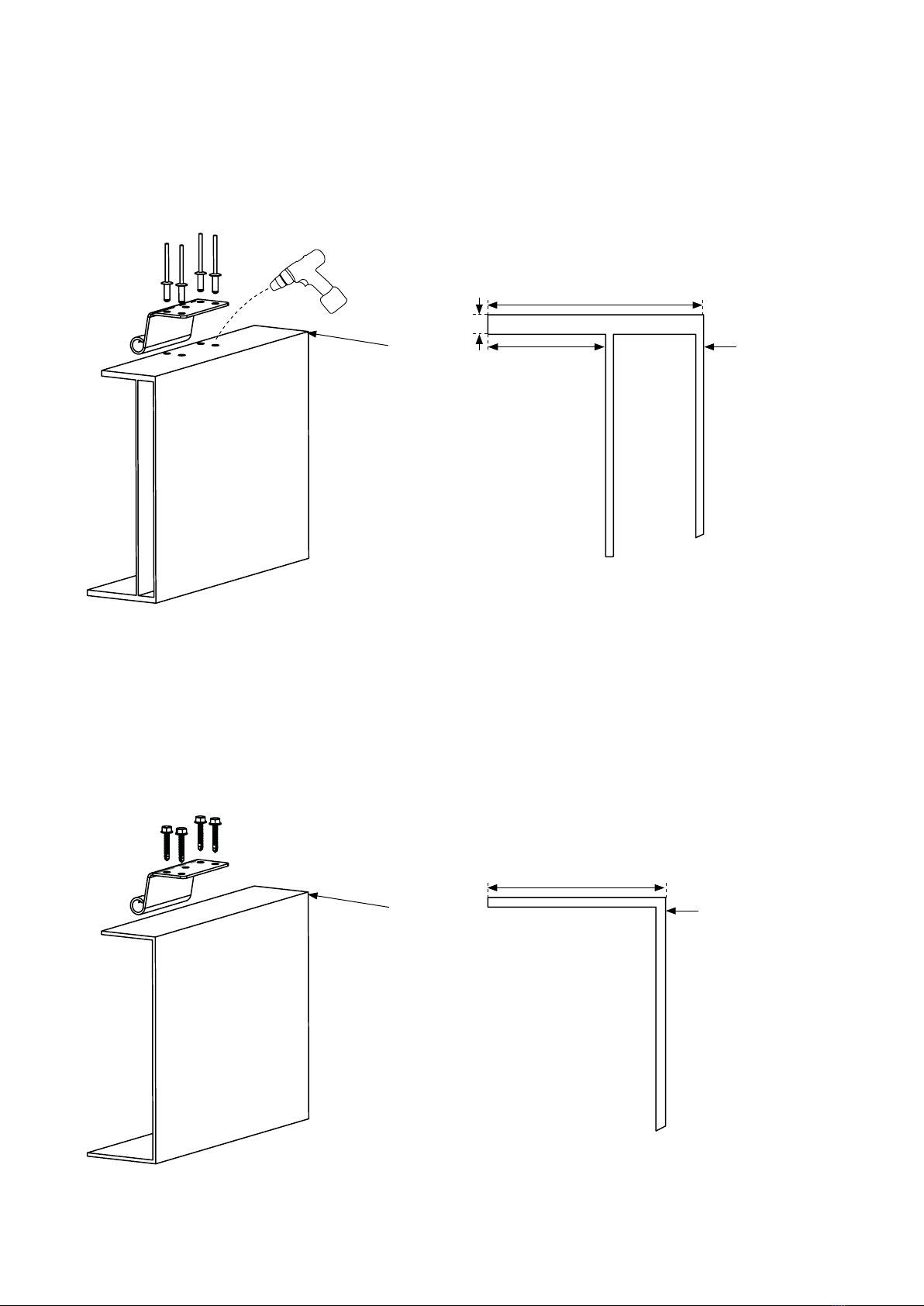

10.2.1 Polyester curb
Use the supplied rivets.
Pre-drill the holes with a 5.5 mm drill bit.
Curb flange dimensions:
10.2.2 Metal curb
Use the supplied self-drilling hexagon washer head screws 4.8 x 25.
Curb flange dimensions:
4 x Ø 5.5 mm
Daylight size
polyester
max.: 60 mm
min.: 55 mm
max.: 6 mm
min.: 2 mm
min.: 30 mm Daylight size
Daylight size
metal
max.: 60 mm
min.: 55 mm
Daylight size

Mounting_instructions_Flex_2.0 11/24
01/10/2021
10.2.3 PVC curb
Use the included HILO screws mushroom head/PH.
Curb dimensions:
11 Mounting the chain bracket on the curb

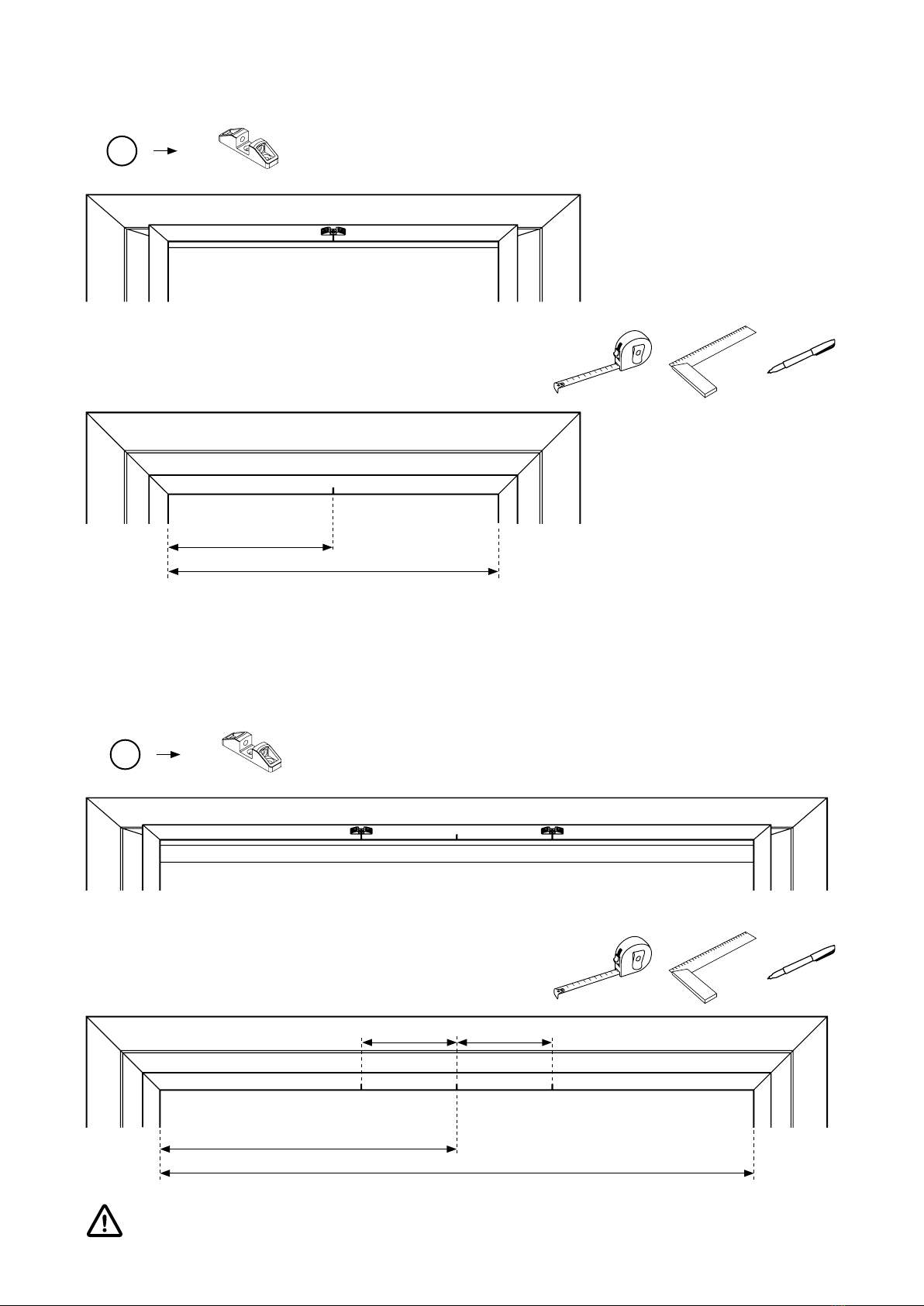

11.1 Location of the bracket
Important notice:
The middle of the chain bracket must be placed 32 mm from the daylight size (longest side).

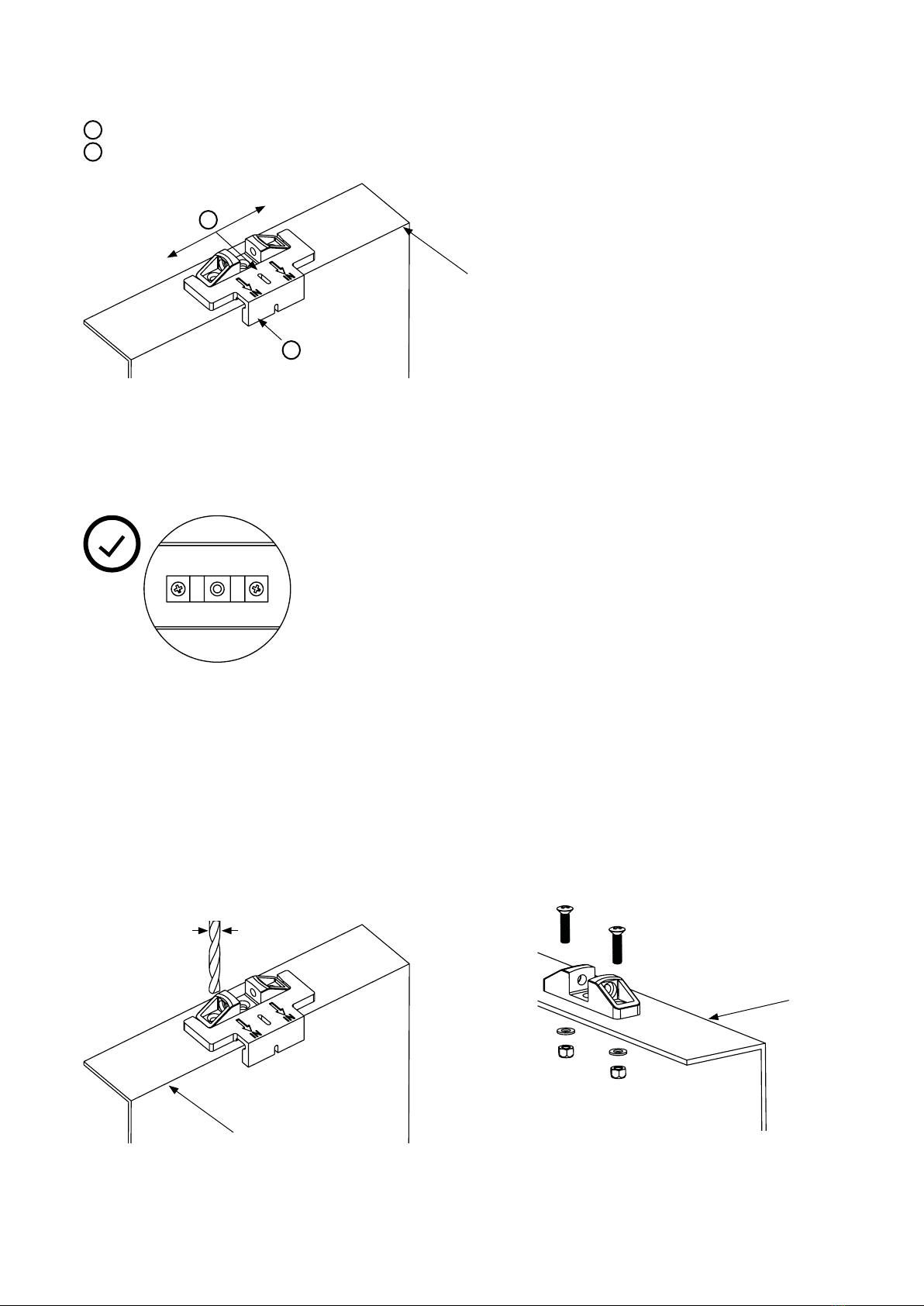

Your Flex 2.0 product includes a “chain bracket positioning tool” which can be used to obtain the correct position
for the chain bracket:
Daylight size
PVC
max.: 60 mm
min.: 55 mm
Daylight size
32 mm
Daylight size
Inside curb
Inside curb
Daylight size

12/24 Mounting_instructions_Flex_2.0 01/10/2021
11.1.1 Single actuator: the chain bracket is positioned in the middle of the curb
1 x 1 x
Accurately mark the position with a marker:
11.1.2 Double actuator: the middle of the chain bracket is positioned 322 mm
from the middle of the curb
2 x 2 x
Accurately mark the 2 positions with a marker:
It is important the chain bracket is positioned correctly!
M
Daylight size / 2
Daylight size
M
Daylight size / 2
Daylight size
322 mm 322 mm

Mounting_instructions_Flex_2.0 13/24
01/10/2021
11.2 Mounting the chain bracket to the curb
Press the positioning tool against the inside of the curb.
Align the slot in the positioning tool with the marking on the curb.
Use the appropriate hardware to mount the hinges on the curb!
Your Flex 2.0-product includes mounting hardware for polyester, metal or PVC curbs.
For dierent types of curbs or curbs with dierent flange dimensions: Use suitable mounting hardware to attach
the hinges.
Only use the two outer holes!
11.2.1 Polyester & metal curbs
Position the bracket correctly Fix the bracket with the included bolts,
Pre-drill with a Ø 5.5 mm drill bit washers and nuts M5
1
2
Inside curb
Daylight size
1
2
Daylight size
Ø 5.5 mm
Daylight size

14/24 Mounting_instructions_Flex_2.0 01/10/2021
11.2.2 PVC curb
Position the bracket correctly using the positioning tool.
Use the included hilo screws to fix the bracket.
12 Preparation of the curb for cable
Your Flex 2.0 product is equipped with 1 electrical cable containing 6 cores.
This cable serves 2 purposes:
- Providing 230 V AC power
- Connection to a switch to operate your Flex 2.0 product
The cable comes out of the frame on the hinge side of the setup.
Drill a hole Ø 12mm in the upper flange of the curb for the electrical cable.
Top view
Daylight size
Daylight size
Distance daylight size to hinge
Distance daylight size to hinge
335
43.5
Ø12

Mounting_instructions_Flex_2.0 15/24
01/10/2021
13 Pre-installing the rain sensor on skylight
For transport, the rain sensor is stowed inside the skylight.
13.1 Mounting rain sensor on bracket
Before removing the skylight from the packaging:
Open up the side where the rain sensor is located in order to have easy access to the rain sensor bracket.
Use the 4 included hexagon domed cap nuts. Tighten with a wrench 8 mm. 8

16/24 Mounting_instructions_Flex_2.0 01/10/2021
Slide excess cable into sensor.
Do not place the skylight with mounted rain sensor on the ground! This can cause damage to the bracket and or
rain sensor! Keep the skylight with mounted rain sensor in the box until mounting on curb.
14 Assembly window with curb
max. 90°

Mounting_instructions_Flex_2.0 17/24
01/10/2021
Lift and open the frame with glass cover at max. Turning over without support
90° and hold the frame in this position. can cause damage!
The hinge brackets are then permanently secured with the supplied threaded rod and two cap nuts. These can be
made burglar-proof by adding a drop of Loctite to the cap nuts. This glue application may also help to prevent
incorrect opening of the skylight after installation.
15 Electrical cable through the curb
Take the outcoming electrical cable and put it through the drilled hole in the curb.
Fix the cable routing with the appropriate hardware.
max. 90°
> 90°

18/24 Mounting_instructions_Flex_2.0 01/10/2021
Polyester or metal curb?
Use the cable routing as a guide Use the included M4 bolts and nuts
to drill 2 holes in the curb. to fix the cable routing.
PVC curb?
No pre-drilling needed. Use the included screws to fix the cable routing.
polyester or metal
Ø 4.5 mm
polyester or metal
PVC

Mounting_instructions_Flex_2.0 19/24
01/10/2021

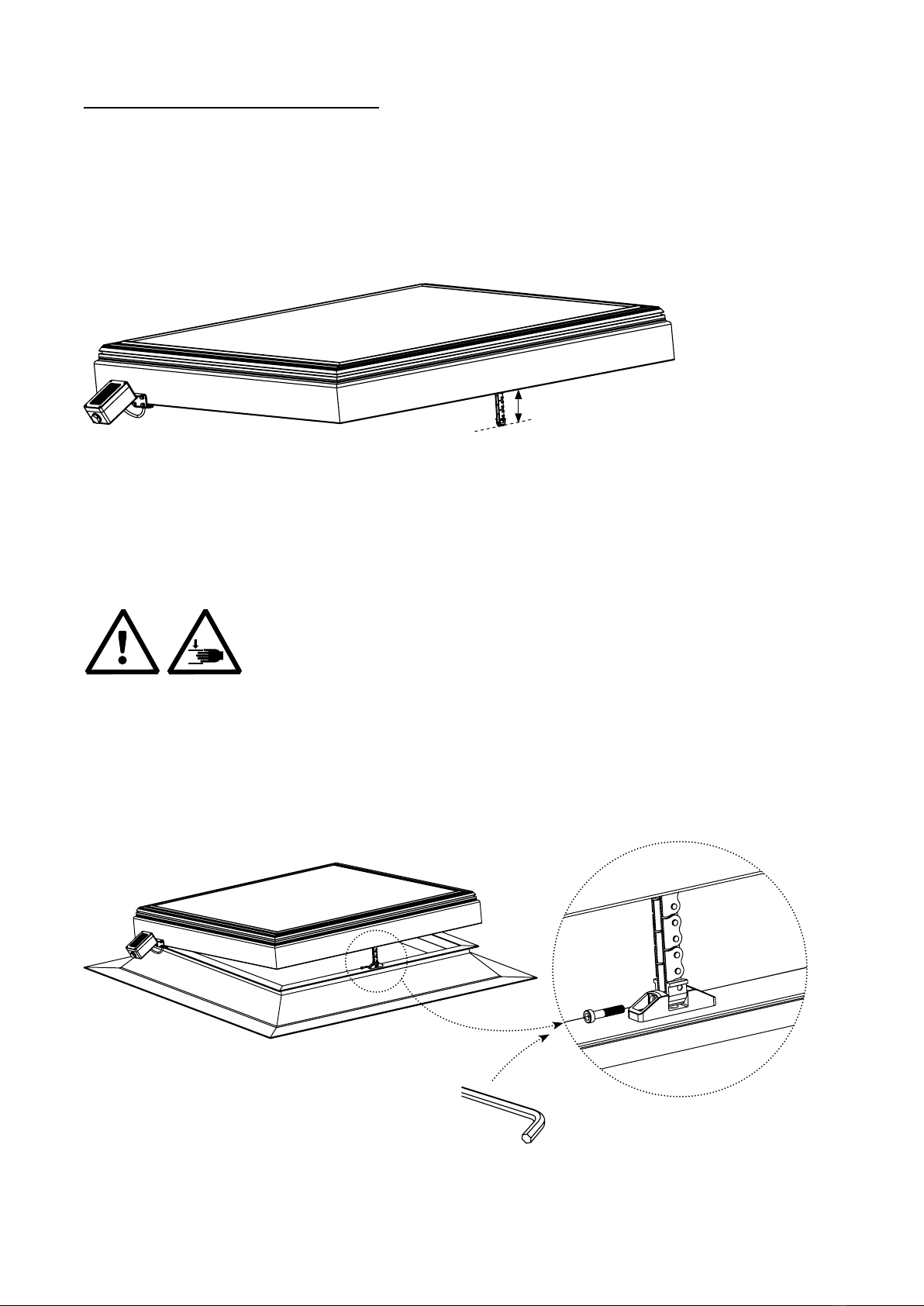

16 Actuator connection to chain bracket
Right out of the box, the chain length of your Flex 2.0 product sticks out approximately 10 cm.
This is done so you do not need to have mains power to mount the chain to the bracket.
Remove any protection foam from the chain.
CAUTION: crushing hazard!
Safely place temporary spacer elements (e.g. wooden blocks) between the frame and the curb as assistance during
the installation.
+/- 10 cm
Allen wrench SW 5
for chain bracket
screw M6 x 30

20/24 Mounting_instructions_Flex_2.0 01/10/2021
16.1 Electrical connection WITH rain sensor
Wiring diagram for connection of single or double actuator. Both versions have the same cable output.
Use this diagram if your Flex 2.0 product is equipped with a rain sensor:
(*) WARNING
Only use a switch which automatically returns (spring loaded)
to the OFF position when not pressed!
Connect the grey (GY) wire to the live wire of your 230 V mains power.
Connect the blue (BU) wire to the neutral wire of your 230 V mains power.
Connect the green/yellow (GN/YE) wire to the ground of your mains power.
Connect the white wire to the common contact of your switch.
Connect the brown wire to the “open” contact of your switch.
Connect the black wire to the “close” contact of your switch.
COM
CLOSE
OPEN
FLEX 2.0
RAIN SENSOR
GY (grey)
BU (blue)
GN/YE (green/yellow)
BN (brown)
BK (black)
WH (white)
230V AC
L
PE
N
OPEN
COM
CLOSE
SWITCH (*)
