Congratulations on your choice of SKYRC D200 AC/DC Dual Balance
Charger/Discharger. This unit is simple to use, but the operation of a
sophisticated automatic charger such as SKYRC D200 does require some
knowledge on the part of the user. These operating instructions are designed to
ensure that you quickly become familiar with its functions. It is therefore
important that you read right through the Operating Instructions, Warning and
Safety Notes before you attempt to use your new charger for the first time. We
hope you have many years of pleasure and success with your new battery
charger.
SKYRC D200 is a twin-channel charger with two independent circuits which
can charge two different kinds of batteries simultaneously. It also supports
power distribution in AC mode to make full use of the power when charging a
small battery in one channel and allocate all remaining power to charge another
big battery pack. What’s more, users could set the terminal voltage by
themselves and connect it to PC for PC control and firmware upgrade. Besides
that, users could also use it as Lithium Battery Meter and Battery Internal
Resistance Meter. There are Automatic Charging Current Limit, Capacity Limit,
Temperature Threshold and Processing Time Limit which makes the charger
safe to use.
SKYRC D200 is a high-performance, micro processor control charge/discharge
station with battery management suitable for use with all current battery types,
with integral equalizer for six-cell Lithium-Polymer (LiPo), Lithium iron
phosphate(LiFe) and Lithium-Ion (LiIon) batteries; maximum 20A charge
current and maximum 200W charge power. The additional LiHV mode is able to
charge the new generation of LiPo batteries with an end of charge voltage
4.35V.
Additionally, it has a built in soldering iron that can heat up to 450℃. With heavy
duty 60W, the temperature is adjustable from 200-450℃.
Please BE SURE to read these INSTRUCTIONS, WARNING and SAFETY
NOTES before you use the charger for the first time.
It can be dangerous to mis-handle batteries and battery chargers, as there is
always a risk of batteries catching fire and exploding.
INTRODUCTION
01 ·
D200
INTRODUCTION
· 02 D200
Please read this entire operating manual completely and attentively
before using this product, as it covers a wide range of information on
operating and safety. Or please do use this product in company with a
specialist!
LCD Display
Output Socket
4mm Banana Plug
Balance Lead Socket
Cooling Fan
Balance Lead Socket USB Port
Micro USB Port for
PC Link / WiFi Module
Connection
Temperature Sensor Port
Soldering Iron
Cord Receptacle
AC Input
100-240V
Cooling Fan
DC Input
11-20V
Resume or Start Charge
Processes
Alter Values
See the Status of Individual
Cells in Balance Charge Mode
Scroll Through the Main Menu
Stop Any Charge Processes
Switch from
Channel A to B or
Channel B to A
Temperature Sensor Port
03 ·
D200
Twin-channel Charger
SKYRC D200 allows you to plug 2 batteries into one charger simultaneously, and it will
intelligently and automatically charge 2 battries at once to their maximum capacity. To top
of it, the batteries being charged do not even need to have the same configuration. You
can connect different chemistry(NiMH/NiCd/LiPo/LiFe/Lilon/LiHV/Pb)batteries into any of
the charging channels.
Dual Input and Power Distribution
The input of SKYRC D200 is AC 100-240V and DC 11-20V. In DC mode, the power of
channel A is 200W and channel B is 100W. Total power is 300W.
In AC mode, it supports power distribution, for example, Channel A is 150W, then
Channel B is 50W, the total power is 200W.
Optimized Operating Software
SKYRC D200 features the so-called AUTO function that set the feeding current during the
process of charging or discharging. Especially for lithium batteries, it can prevent the
overcharging which may lead to an explosion due to the user's fault. It can disconnect the
circuit automatically and alarm once detecting any malfunction. All the programs of this
product were controlled through two way linkage and communication, to achieve the
maximum safety and minimize the trouble. All the settings can be configured by users!
SPECIAL FEATURES
SPECIAL FEATURES
· 04 D200
Internal Independent Lithium Battery Balancer
SKYRC D200 employs an individual-cell-voltage balancer. It isn't necessary to connect an
external balancer for balance charging.
Balancing Individual Cells Battery Discharging
During the process of discharging, SKYRC D200 can monitor and balance each cell of
the battery individually. Error message will be indicated and the process will be ended
automatically if the voltage of any single one cell is abnormal.
Adaptable to Various Type of Lithium Battery
SKYRC D200 is adaptable to various types of lithium batteries, such as LiPo, LiIon and
the new LiFe series of batteries.
LiHV Mode Available
The additional LiHV mode is able to charge the new generation of LiPo batteries with an
end of charge voltage 4.35 V.
Smart Phone Control via Wi-Fi Module (both iOS and Android)
Finally, your charger gets its own apps. This charger can be controlled and operated by
smart phones via Wi-Fi module(option part SK-600075).
Battery Memory (Data Store/Load)
The charger can store up to 20 different charge/discharge profiles for each channel. You
can keep the data pertaining to program setting of the battery of continuous charging or
discharging. Users can call out these data at any time without any special program
setting.
Terminal Voltage Control(TVC)
The charger allows user to change the end voltage. (for expert user only)
PC Control Software “Charge Master”
The free “Charge Master” software gives you unparalleled ability to operate the charger
through the computer. You can monitor pack voltage, cell voltage and other data during
the charging, view charge date in real-time graphs. And you can initiate, control charging
and update firmware from “Charge Master”.
With “Charger Master” and one computer, you could operate and update two channels
simultaneously.
Soldering Iron
Digital display shows temperature range from 200°C-450°C(392°F-842°F). Two soldering
tips, pencil tip and chisel tip are included. Power rate up to 60 watts.
Automatic Charging Current Limit
You can set up the upper limit of the charging current when charging your NiMH or NiCd
battery, it is useful for the NiMH battery of low impedance and capacity in the 'AUTO'
charging mode.
Capacity Limit
The charging capacity is always calculated as the charging current multiplied by time. If
the charging capacity exceeds the limit, the process will be terminated automatically
when you set the maximum value.
Temperature Threshold*
The battery's internal chemical reaction will cause the temperature of the battery to rise.
If the temperature limit is reached, the process will be terminated.
This function is available by connecting optional temperature probe, which is not included in the package.
*
Processing Time Limit:
You can also limit the maximum process time to avoid any possible defect.
Battery Internal Resistance Meter
The user can check battery's total internal resistance and each cell's internal resistance.
LiPo Battery Meter
The user can check battery's total voltage, the highest voltage, the lowest voltage and
each cell's voltage.
SPECIAL FEATURES
05 ·
D200
Re-Peak Mode of NiMH/NiCd Battery
In re-peak charge mode, the charger can peak charge the battery once, twice or three
times in a row automatically. This is good for making certain the battery is fully charged.
Delta-peak Sensitivity for NiMH/NiCd
Delta-peak sensitivity for NiMH/NiCd battery: The automatic charge termination program
based on the principle of the Delta-peak voltage detection. When the battery's voltage
exceeds the threshold, the process will be terminated automatically.
Cyclic Charging/Discharging
1 to 5 cyclic and continuous process of charge > discharge or discharge > charge is
operable for battery refreshing and balancing to stimulate the battery's activity.
Fast and Storage Mode of Lithium Battery
Purposes to charge lithium battery varies, 'fast' charge reduce the duration of charging,
whereas 'store' state can control the final voltage of your battery, so as to store for a long
time and protect useful time of the battery.
These warnings and safety notes are particularly important. Please follow the
instructions for maximum safety; otherwise the charger and the battery can be
damaged or at worst it can cause a fire.
Never leave the charger unattended when it is connected to its power supply. If any
malfunction is found, TERMINATE THE PROCESS AT ONCE and refer to the
operation manual.
Keep the charger well away from dust, damp, rain, heat, direct sunshine and vibration.
Never drop it.
The allowable DC input voltage is 11~20V DC, and charge power 200W for Channel A
and 100W for Channel B.
This charger and the battery should be put on a heat-resistant, noninflammable and
nonconductive surface. Never place them on a car seat, carpet or similar. Keep all
the inflammable volatile materials away from operating area.
Make sure you know the specifications of the battery to be charged or discharged to
ensure it meets the requirements of this charger. If the program is set up incorrectly,
the battery and charger may be damaged .It can cause fire or explosion due to
overcharging.
Be very careful to choose the correct voltage for different types of battery otherwise you
may cause damage to the batteries. Incorrect settings could cause the cells to fire or
explode.
WARNING AND SAFETY NOTES
The allowable AC input voltage is 100~240V AC, and charge power 200W for 2 channels.
· 06 D200
Standard Battery Parameters
3.7V/cell
Nominal
Voltage
Min. Discharge
Voltage
Max Charge
Voltage
Storage
Voltage
Allowable
Fast Charge
3.7V/cell
4.2V/cell
3.8V/cell
≦1C
LiPo LiIon
3.6V/cell
4.1V/cell
≦1C
3.3V/cell
3.6V/cell
3.3V/cell
≦4C
LiFe
3.0-3.3V/cell 2.9-3.2V/cell 2.6-2.9V/cell
1.2V/cell
1.5V/cell
n/a
1C-2C
NiCd
1.2V/cell
1.5V/cell
n/a
1C-2C
MiMH
2.0V/cell
2.46V/cell
n/a
≦0.4C
Pb
0.1-1.1V/cell 0.1-1.1V/cell
1.8V/cell
LiHV
3.7V/cell
4.35V/cell
3.85V/cell
≦1C
3.1-3.4V/cell
A battery pack which consists of different types of cells (including different
manufacturers)
A battery that is already fully charged or just slightly discharged.
Non-rechargeable batteries (Explosion hazard).
Batteries that require a different charge technique from NiCd, NiMh, LiPo or Gel cell
(Pb, Lead acid).
A faulty or damaged battery.
A battery fitted with an integral charge circuit or a protection circuit.
Batteries installed in a device or which are electrically linked to other components.
Batteries that are not expressly stated by the manufacturer to be suitable for the
currents the charger delivers during the charge process.
Please bear in mind the following points before commencing charging:
Did you select the appropriate program suitable for the type of battery you are
charging?
Did you set up adequate current for charging or discharging?
Have you checked the battery voltage? Lithium battery packs can be wired in parallel
and in series, i.e. a 2 cell pack can be 3.7V (in parallel) or 7.4V (in series).
Have you checked that all connections are firm and secure?
Make sure there are no intermittent contacts at any point in the circuit.
Charging
During charge process, a specific quantity of electrical energy is fed into the battery.
The charge quantity is calculated by multiplying charge current by charge time. The
maximum permissible charge current varies depending on the battery type or its
performance, and can be found in the information by the battery manufacturer. Only
batteries that are expressly stated to be capable of quick-charge are allowed to be
charged at rates higher than the standard charge current.
Connect the battery to the terminal of the charger: red is positive and black is
negative. Due to the difference between resistance of cable and connector, the
charger can not detect resistance of the battery pack, the essential requirement
for the charger to work properly is that the charge lead should be of adequate
conductor cross-section, and high quality connectors which are normally gold-
plated should be fitted to both ends.
Always refer to the manual by battery manufacturer about charging methods,
recommended charging current and charging time. Especially, the lithium battery
should be charged according the charging instruction provided by the manufacturer
strictly.
Never attempt to charge or discharge the following types of batteries.
WARNING AND SAFETY NOTES
07 ·
D200
Discharging
The main purpose of discharging is to clean residual capacity of the battery, or to
reduce the battery voltage to a defined level. The same attention should be paid to
the discharging process as charging. The final discharge voltage should be set up
correctly to avoid deep-discharging. Lithium battery can not be discharged to lower
than the minimum voltage, or it will cause a rapid loss of capacity or a total failure.
Generally, lithium battery doesn't need to be discharged. Please pay attention to the
minimum voltage of lithium battery to protect the battery.
Some rechargeable batteries have a memory effect. If they are partly used and
recharged before the whole charge is accomplished, they remember this and will only
use that part of their capacity next time. This is a memory effect. It is said that NiCd
and NiMH batteries are suffering from memory effect. NiCd has more memory effect
than NiMH.
Attention should be paid to the connection of lithium battery especially.
Do not attempt to disassemble the battery pack arbitrarily.
Please get highlighted that lithium battery packs can be wired in parallel and in series.
In the parallel connection, the battery s capacity is calculated by multiplying single
battery capacity by the number of cells with total voltage stay the same. The voltages
imbalance may cause fire or explosion .Lithium battery is recommended to charge in
series.
WARNING AND SAFETY NOTES
· 08 D200

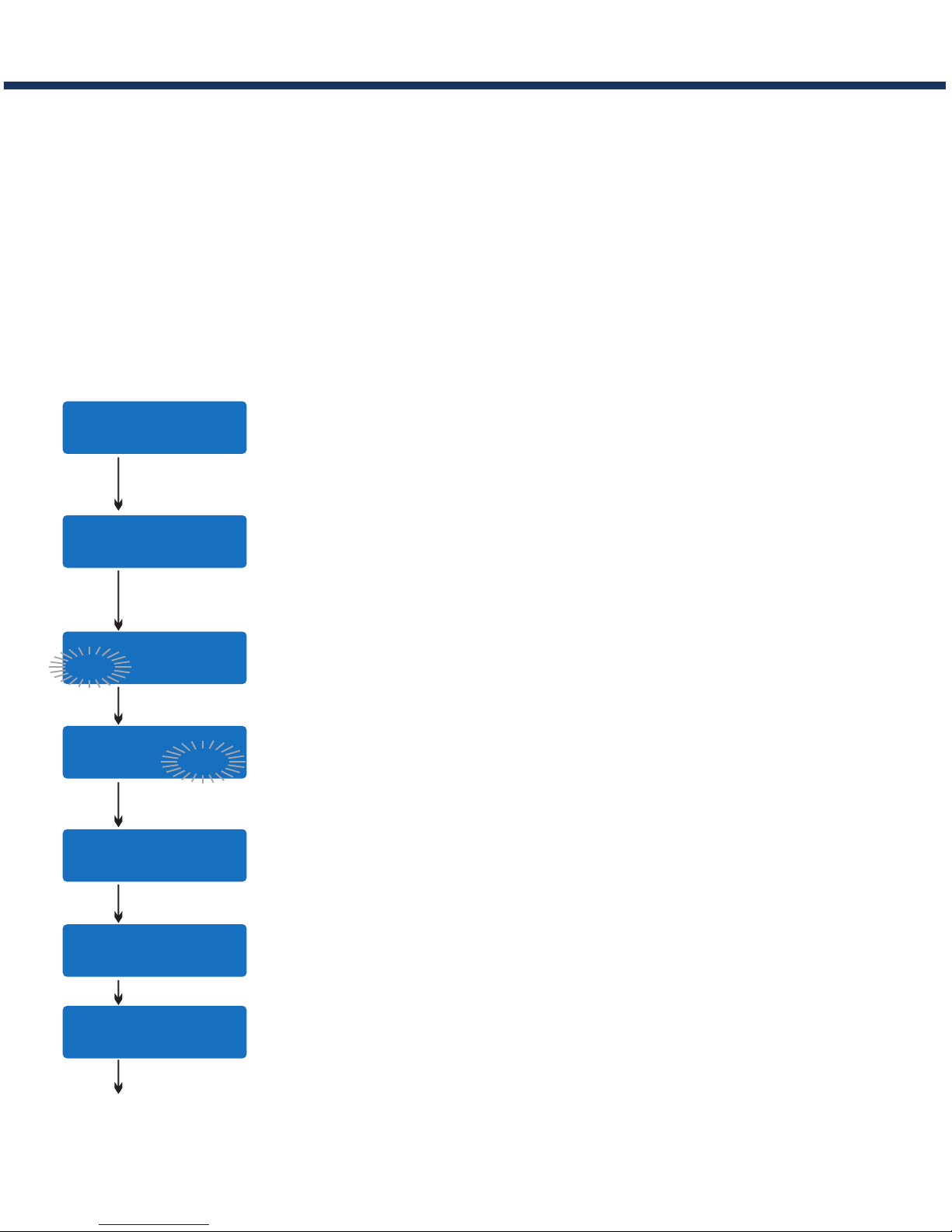

PROGRAM FLOW CHART
BATT/PROGRAM
Pb BATT
ENTER
START
Pb CHARGE
2.0A 2.0V (1P) DEC
INC Pb DISCHARGE
0.1A 2.0V (1P)
BATT/PROGRAM
NiCd BATT
NiCd CHARGE
CURRENT 2.0A
ENTER
START
DEC
INC NiCd DISCHARGE
0.1A CUT: 1.0V DEC
INC NiCd CYCLE
CHG>DCHG 1
BATT/PROGRAM
NiMH BATT
ENTER
START
NiMH CHARGE
CURRENT 2.0A DEC
INC NiMH DISCHARGE
0.1A CUT: 1.0V
NiMH CYCLE
CHG>DCHG 1
DEC
INC
BATT/PROGRAM
LiPo BATT
LiPo BALANCE CHG
2.0A 7.4V (2S)
LiPo CHARGE
2.0A 7.4V (2S)
LiPo FAST CHARGE
2.0A 7.4V (2S)
LiPo STORAGE
2.0A 7.4V (2S)
LiPo DISCHARGE
2.0A 7.4V (2S)
ENTER
START
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DECINC
DECINC
BATT/PROGRAM
LiFe BATT
Lilo BALANCE CHG
2.0A 7.2V (2S)
Lilo CHARGE
2.0A 7.2V (2S)
Lilo FAST CHARGE
2.0A 7.2V (2S)
Lilo STORAGE
2.0A 7.2V (2S)
Lilo DISCHARGE
2.0A 7.2V (2S)
ENTER
START
DEC
INC
DEC
INC
DEC
INC
DEC
INC
BATT/PROGRAM
LiIo BATT
LiFe BALANCE CHG
2.0A 6.6V (2S)
LiFe CHARGE
2.0A 6.6V (2S)
LiFe FAST CHARGE
2.0A 6.6V (2S)
LiFe STORAGE
2.0A 6.6V (2S)
LiFe DISCHARGE
2.0A 6.6V (2S)
ENTER
START
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DECINC
BATT/PROGRAM
BATT METER
4.20 4.19 4.19 V
0.00 0.00 0.00 V
MAIN 0.00V
H0.000V L0.000V
DEC
INC
DECINC
DECINC
DEC
INC
NiCd RE-PEAK
1
DEC
INC
NiMH RE-PEAK
1
DEC
INC
NiMH Auto CHARGE
CURRENT 2.0A
DEC
INC
NiCd Auto CHARGE
CURRENT 2.0A
DECINC
DECINC
DECINC
LiHV BALANCE CHG
2.0A 7.6V (2S)
LiHV CHARGE
2.0A 7.6V (2S)
LiHV FAST CHARGE
2.0A 7.6V (2S)
LiHV STORAGE
2.0A 7.6V (2S)
LiHV DISCHARGE
2.0A 7.6V (2S)
BATT/PROGRAM
LiHV BATT
ENTER
START
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DECINC
Note: The flow chart is taking one channel for example as the flow chart for the two channels (Channel A and
Channel B) are identical.
BATT/PROGRAM
BATT MEMORY
ENTER
START
[ BATT MEMORY 1 ]
ENTER SET->
ENTER
START
BATT TYPE
LiPo DEC
INC BATT VOLTS
7.4V ( 2S ) DEC
INC CHARGE CURRENT
4.9A DEC
INC DSCH CURRENT
2.2A
DSCH VOLTAGE
3.0V/CELL
TVC=YOUR RISK
4.20V
DEC
INC
ENTER
START
ENTER
START
BATT/PROGRAM
SYSTEM SETTING->
ENTER
START
Stop
Batt Type
DECINC
SAVE PROGRAM
ENTER
SAVE PROGRAM
SAVE….
[ BATT MEMORY 1 ]
LiPo 7.4V (2S )
[ BATT MEMORY 1 ]
C:4.9A D:2.2A
ENTER CHARGER
LOAD……
LiPo BALANCE CHG
4.9A 7.4V(2S)
LiPo CHARGE
4.9A 7.4V(2S)
DEC
INC LiPo FAST CHARGE
4.9A 7.4V(2S)
DEC
INC LiPo STORAGE
4.9A 7.4V(2S)
LiPo DISCHARGE
2.2A 7.4V(2S)
DEC
INC
DEC
INC
BATT TYPE
MiMH DEC
INC BATT VOLTS
2.4V (2S)
ENTER
START
CHARGE CURRENT
3.3A
DEC
INC
DEC
INC TRICKLE
100mA DEC
INC PEAK DELAY
1Min
DECINC
DSCH CURRENT
2.2A
DEC
INC DSCH VOLTAGE
1.1V/CELL
SAVE PROGRAM
ENTER
ENTER
START
BATT TYPE
Pb
BATT VOLTS
4.0V (2P)
DEC
INC CHARGE CURRENT
3.3A
DEC
INC DSCH CURRENT
1.5A
DEC
INC DSCH VOLTAGE
1.7V/CELL
DEC
INC
SAVE PROGRAM
ENTER
DECINC
DEC
INC
DEC
INC
DECINC
BATT/PROGRAM
BATT RESISTANCE
DECINC
ENTER
START
005 003 003 mΩ
005 mΩDEC
INC TATAL: 16mΩ
H: 5mΩ L: 3mΩ
ENTER
START
STARG/ENTER>3Seconds
SAVE PROGRAM
SAVE….
ENTER
START
[ BATT MEMORY 2 ]
NiMH 2.4V (2S )
[ BATT MEMORY 2 ]
C:1.0A D:1.0A
STARG/ENTER>3s
ENTER CHARGER
LOAD……
NiMH CHARGE
CURRENT 1.0A
NiMH Auto CHARGE
CURRENT 1.2A
DEC
INC
DEC
INC
DEC
INC
DEC
INC
NiMH DISCHARGE
1.0A CUT: 2.0V
NiMH RE-PEAK
2
NiMH CYCLE
DCHG>CHG 1
[ BATT MEMORY 2 ]
ENTER SET->
[ BATT MEMORY 3 ]
ENTER SET->
SAVE PROGRAM
SAVE….
ENTER
START
[ BATT MEMORY 3 ]
Pb 4.0V (2S )
[ BATT MEMORY 3 ]
C:3.3A D:1.5A
ENTER CHARGER
LOAD……
Pb CHARGE
3.3A 4.0V(2P)
Pb DISCHARGE
1.5A 4.0V(2P)
Rest Time
CHG>DCHG 10Min
DEC
INC
Safety Timer
ON 120Min DEC
INC
Capacity Cut-Off
ON 5000mAH DEC
INC
DECINC
DEC
INC
Temp Cut-Off
ON 50°C 122°F
NiMH Sensitivity
D.Peak Default
DEC
INC
NiCd Sensitivity
D.Peak Default
Key Beep ON
Buzzer ON
DEC
INC
DEC
INC
Version
HW:1.00 FW: 1.10
Load Factory Set
Enter DEC
INC DC Input Low
CUT-OFF 11.0V
ACMax Power Set
50W
DEC
INC
Temperature Unit
Celsius
DEC
INC
ENTER
START
09 ·
D200
START ENTER > 3s
BATT/PROGRAM
ELECTRIC IRON
DECINC
ENTER
START
Soldering Iron
450℃450℃
SET REAL
OPERATION
When you are willing to alter the parameter value in the program, press the
START/ENTER button to make it blink then change the value by pressing DEC and INC
button. The value will be stored by re-pressing the START/ENTER button. If there is
another parameter can be altered in the same screen, when you confirm the first
parameter value, the next parameter value will start to blink which means it is ready to
alert.
When you are willing to start the process, press and hold the START/ENTER button for 3
seconds. When you are willing to stop the progress or go back to previous step/screen,
press the BATT PROG/STOP button once.
When you power on the charger, it will enter LiPo Battery balance program directly. You
could change the mode (balance mode, normal charge mode, fast charge mode, store
mode or discharge mode), enter the desired charging/discharging mode, set the referred
parameter and start the progress.
If you have no request for LiPo Battery program, please press the BATT PROG/STOP
button to enter BATT PROGRAM screen.
CH A/CH B
It is used to switch from Channel A to B or Channel B to A.
BATT PROG / STOP Button:
It is used to stop the progress or go back to previous step/screen
DEC Button:
It is used to go through the menus and decrease the parameter value
INC Button:
It is used to go through the menus and increase the parameter value
ENTER / START Button:
It is used to enter parameter or store parameter on screen.
· 10 D200
OPERATING PROGRAM
Here is the detailed procedure to make the charger work. All the screens and operations
will take Li-Po BALANCE CHARGE program for example,
Note: We will explain one channel as the operating procedure
of Channel A and Channel B is identical.
1. Connection
Connecting to power source
There are two kinds of inputs for SKYRC D200, DC 11-20V and AC 100-240V.
A. Operating in AC mode
SKYRC D200 comes with built in switching power supply. You can connect the AC
power cord directly to the main AC socket. (100-240V AC).
Note: The charging power in AC mode is 200W totally for Channel A and Channel B.
In AC mode, it supports Power Distribution. The total power for Channel A and
Channel B is 200W. You could set the AC Max Power for one channel (Take
Channel A for example)as following,
And the other channel (Channel B) will take the rest power automatically (For example, if
you set channel A as AC 150W, the channel B will be AC 50W).
If Channel A and Channel B are both charging, you can’t change the AC power.
If Channel A is charging, you can change AC power of Channel B and Channel
A will take the rest power automatically.
B. Operating in DC mode
Please connect SKYRC D200 with AC/DC power supply by supplied DC input cable. Also
you could use terminal clips with DC connectors, for attaching directly to 12V car
batteries. It is critically important that you use either a fully charged 13.8V car battery or a
high quality AC/DC power supply in the range of 11-20V DC output with minimum power
360W or higher to insure reliable performance.
Note: The charging power in DC mode is 200W for Channel A and 100W for Channel B.
Total power of D200 is 300W.
1).
BATT/PROGRAM
SYSTEM SETTING->
LIPO BALANCE
5.1A 22.2V(6S)
A
B
AC Max Power Set
150W
LIPO BALANCE
5.1A 22.2V(6S)
A
B
AC Max Power Set
150W
A
BAC Max Power Set
50W
Safety Timer
ON 120Min
LIPO BALANCE
5.1A 22.2V(6S)
A
B
11 ·
D200
NOTE1:
NOTE2:
Failure to connect as shown in this diagram will damage this charger.
To avoid short circuit between the charge lead always connect the charge cable to the
charger first, then connect the battery. Reverse the sequence when disconnecting.
WARNING:
Connecting the battery
Important!!! Before connecting a battery it is absolutely essential to check one last
time that you have set the parameters correctly. If the settings are incorrect, the
battery may be damaged, and could even burst into flames or explode. To avoid
short circuits between the banana plugs, always connect the charge leads to the
charger first, and only then to the battery. Reverse the sequence when
disconnecting the pack.
Balance Socket
The balance wire attached to the battery must be connected to the charger with the
black wire aligned with the negative marking. Take care to maintain correct polarity!
(See the wiring diagram below.)
This diagram shows the correct way to connect your battery to the SKYRC D200
while charging.
2).
3).
OPERATING PROGRAM
· 12 D200
For safety issue, the default setting for charging Lithium(LiPo, Lilo, LiFe and LiHV)
battery is using balance adaptor to connect battery and charger in Charge, Fast
Charge, Balance Charge and Storage modes. But if the battery comes no balance
wire, you could disable this function in system settingasfollowing,
BATT/PROGRAM
S Y S T E M SE T T I N G
B A L . C o n n e c t i o n
N O
OPERATING PROGRAM
Locate the flowcharts show the entire programming menu. It is highly recommended to
have these flowcharts handy while learning to operate this charger.
There are two main ways in which to set the charger.
A memory profile is available for setting and storing pertinent information for up to
20 different batteries, each channel can store 10 sets. Once a battery's information
is stored into a memory it will be retained until changed again manually. Recalling a
battery's memory number makes the charger instantly ready to go!
If you do not wish to use the battery memories, this charger can be manually set
before each use.
2. Getting started
(1)
(2)
For following step, all are basing on manually set
3. BATT/PROGRAM Select
BATT/PROGRAM
L i P o B A T T
4. Mode Select
6. Program Start
L i P o B A LA N C E C H G
2 . 0 A 1 1 . 1 V ( 3 S )
Press INC and DEC to go through all the programs and press
START/ENTER to enter LiPo BATT Program.
5. Battery Setting
L i P o B A LA N C E C H G
2 . 0 A 1 1 . 1 V ( 3 S ) Press INC and DEC to go through all the modes and press
START/ENTER to enter LiPo Balance Charge Mode.
Press START/ENTER, the current value will start to blink, press
INC and DEC to change the value and press START/ENTER to
confirm your setting.
At the same time, the battery cells number will start to blink,
press INC and DEC to change the value and press
START/ENTER to confirm your setting.
L i P o B A LA N C E C H G
2 . 0 A 1 1 . 1 V ( 3 S )
B A T T E RY C H E C K
WAIT...
L i P o B A LA N C E C H G
2 . 0 A 1 1 . 1 V ( 3 S ) Press and hold START/ENTER for 3 seconds to start the
program.
The charger is detecting the battery cell.
R shows the number of cells detected by the charger and S is
the number of cells set by you at the previous screen. If both
numbers are not identical, press STOP to go back to previous
screen to recheck the number of cells of the battery pack before
going ahead.
R : 3 S E R S: 3 S E R
CANCEL(STOP)
START/ENTER
START/ENTER
START/ENTER
START/ENTER
START/ENTER
> 3 Seconds
13 ·
D200
OPERATING PROGRAM
R : 3 S E R S: 3 S E R
CONFIRM(ENTER)
L P 4 s 1 . 5A 1 2 . 1 4 V
B A L 0 0 0 :5 0 0 0 0 2 2
7. Charging Status Monitor
R shows the number of cells detected by the charger and S is the
number of cells set by you at the previous screen. If both numbers
are identical, press START/ENTER to start charging process.
During charge process, real-time status will be showed as left screen.
VARIOUS INFORMATION DURING THE PROCESS
Press INC or DEC during charging or discharging process, you can inquire various
information on LCD screen .
L P 4 s 1 . 5A 1 2 . 1 4 V
B A L 0 0 0 :5 0 0 0 0 2 2
4 . 0 7 4 . 06 4 . 1 1 V
0 . 0 0 0 . 00 0 . 0 0 V
F u e l = 9 0%
C e l l = 4 .1 0 V
INC
INC
L P 4 s 1 . 5A 1 2 . 1 4 V
B A L 0 0 0 :5 0 0 0 0 2 2
Ext. Temp ----
Int. Temp 37 C
DEC
Temp Cut-Off
50 C
DEC
Final voltage when the program ends.
Input voltage.
Safety timer ON and duration of time in minutes.
Capacity cut-off ON and the setting value of capacity.
Voltage of each cell in the battery pack when the battery is
connected with balance lead.
Internal temperature.
Temperature probe is needed to show external temperature.
Charged capacity percentage and average cell voltage of the
battery pack.
Real-time status: battery type, battery cell, charge current, battery
voltage, elapsed time and charged capacity
Cut off temperature
START/ENTER
DEC
DEC
DEC
DEC
· 14 D200
OPERATING PROGRAM
8. Program Stop
9. Program Complete
During the charging process, press STOP to stop the charging process.
When the charging process finishes, an audible sound will be heard.
NiMH
NiCd RE-PEAK
CYCLE
Pb
Batt
Type
Operation
Program Description
This charging mode is for charging LiPo/LiFe/LiIon/LiHV battery in normal mode.
This program is for charging or discharging LiPo/LiFe/LiIon/LiHV
battery which will not be used for long time.
The charging capacity may be less than normal charging but the
process time will be reduced.
This mode is for balancing the voltage of LiPo/LiFe/LiIon/LiHV battery
cells while charging.
The charger will charge NiMH and NiCd batteries using the
charge current set by the user.
In this program the charger detects the condition of the battery
which is connected to the output and automatically charges the
battery.
Note: you should set up the upper limit of the charge
current to avoid damage by excessive feeding current.
Some batteries of low resistance and capacity can lead to
higher current.
In re-peak charge mode, the charger can peak charge the
battery once, twice or three times in a row automatically. This is
good for confirming the battery is fully charged, and for checking
how well the battery receives fast charges.
1 to 5 cyclic and continuous process of charge>discharge or
discharge>charge is operable for battery refreshing and
balancing to stimulate the battery's activity.
LiPo
Lilon
LiFe
LiHV
CHARGE
DISCHARGE
STORAGE
FAST CHG
BAL CHARGE
CHARGE
AUTO CHG
DISCHARGE
CHARGE
DISCHARGE
Charging Program
Depends on different battery types, the operation programs are different.
This mode is for discharging LiPo/LiFe/LiIon/LiHV battery.
This mode is for discharging NiMH/NiCd battery.
This mode is for charging Pb battery.
This mode is for discharging Pb battery.
15 ·
D200
BATTERY MEMORY SET AND CALL OUT
[ B A T T M E M O R Y 1 ]
E N T E R S E T - >
B A T T T Y P E
L i P o
B A T T V O L T S
7 . 4 V ( 2 S )
C H A R G E C U R R E NT
4 . 9 A
D S C H C U R R E N T
2 . 0 A
D S C H V O L T A G E
3 . 0 V / C E L L
T V C = Y O U R R I S K
4 . 2 0 V
S A V E P R O G R A M
E N T E R
The charger can store up to 20 different charge/discharge profiles(each channel 10 sets)
for your convenience, and the stored profiles can be recalled quickly without having to go
through the setup process.
When you are willing to alter the parameter value in the program, press START/ENTER to
make it blink then change the value with INC or DEC. The value will be stored by
pressing START/ENTER once.
Note: All following screen are taking 2S(7.4V) LiPo battery for example.
Enter the battery memory program.
(10 different charge/discharge profiles can be stored in each channel).
Set the battery type(LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb).
Set the voltage and number of cells(1S-6S).
Set the charge current(CH A 0.1-20.0A / CH B 0.1-10.0A).
Set the discharge current (0.1A-5.0A).
Set the discharge voltage(3.0-3.3V/Cell).
Set the terminal voltage(4.18-4.25V).
Press ENTER to save program.
1. Battery Memory Set
· 16 D200
START/ENTER
DEC INC
DEC INC
DEC INC
DEC INC
DEC INC
DEC INC
START/ENTER
BATTERY MEMORY SET AND CALL OUT
E N T E R C HA R G E R
L O A D
L i P o B A LA N C E C H G
4 . 9 A 7 . 4 V ( 2 S )
S A V E P R OG R A M
S A V E .
[ B A T T M E M O R Y 1 ]
L i P o 7 . 4V ( 2 S )
[ B A T T M E M O R Y 1 ]
C : 4 . 9 A D: 2 . 2 A
Indicate the battery type and battery cell of the saved profile.
Indicate the charge and discharge current of the saved profile.
Press the START/ENTER for 3 seconds to call out the memory.
2. Battery Memory Call Out
Load the memory set
Press START/ENTER for 3 seconds to start the process.
17 ·
D200
START/ENTER
>3 Seconds
SYSTEM SETTING
S a f e t y Ti m e r
O N 1 2 0 M i n
R e s t T i me
C H G > D CH G 1 0 M i n
C a p a c it y C u t - O f f
O N 5 0 0 0 m A H
T e m p e ra t u r e U n i t
C e l s i u s
T e m p C u t- O f f
O N 5 0 C 1 2 2 F
This program sets the maximum charge
capacity that will be supplied to the battery
during charge. If the delta peak voltage is
not detected nor the safety timer expired by
any reason, this feature will automatically
stop the process at the selected capacity
value.
When you start a charge process, the
integral safety timer automatically starts
running at the same time. This is
programmed to prevent overcharge the
battery if it proves to be faulty, or if the
termination circuit cannot detect the battery
full. The value for the safety timer should be
generous enough to allow a full charge of
the battery.
The battery's internal chemical reaction will
cause the temperature of the battery to
rise. If the temperature limit is reached, the
process will be terminated.
OFF/
ON
(100-50000 mAh)
It will be operated with the default value of the essential user settings when it is powered
on for the first time.The screen displays the following information in sequence and the
user can change the value of parameter on each screen.
When you are willing to alter the parameter value in the program, press START/ENTER to
make it blink then change the value with INC or DEC. The value will be stored by
pressing START/ENTER once.
ITEM SELECTION DESCRIPTION
OFF/
ON
(1-720 Min)
OFF/
ON
(20 C/68 F -
80 C/176 F)
Celsius
Fahrenheit
1-60Min A rest time allowing the battery to cool
down between charging/discharging cycle.
You can choose the temperature displayed
by Celsius or Fahrenheit as you like.
· 18 D200
Table of contents
