INSTRUCTIONMANUAL
SK-500037
·01·
FEATURES
Infrared Thermometer
Unit Button
Temperature
Infrared Sensor
Battery Compartment
2 X AAA Battery
(Battery excluded)
INTRODUCTION
Aluminum Cup
On / Measure Button
Battery Indicator
Unit of Measurement
Mode Button
Emissivity Coefficient
The SkyRC 380P Infrared Thermometer is a must-have for RC hobbyists to track the temperatures of the RC
vehicle's motor, engines, motors, ESC, battery packs, battery chargers, etc.
The ultra-compact design lets you slip it in your pocket and have it handy for quick, precise temperature
readings at any time.
As an added value upgrade to its predecessor, the VA invert display uses an advanced multi-domain vertical
alignment technology that gives you super-high static contrast ratios for impressive stunning visioning.
Wherever you are indoor or outdoor, you will get clear data reading from any angle.
This thermometer is intended for RC hobbyists only with its customized structure and sensitivity.
It is not recommended to be used as a medical thermometer (also called clinical thermometer) to measure
human or animal body.
High accuracy and high-speed infrared sensor
D:S ratio: 6:1
Wide range of temperature from -40°C(-40°F) to 380°C(716°F)
NIST traceable calibration
Easily selectable between °F and °C
Low-battery indication
Auto-power off after inactivity of one minute
Compact design
Four modes for temperature records: Quick Mode / Scan Mode / Max. Value / Min. Value
Adjustable emissivity coefficient
Low power consumption and powered by 2 x AAA batteries (Battery Excluded).
Data at a glimpse
VA display with backlight: impressive contrast and wider vision from every angle
Beep signals for every operation and can be silenced
There are four methods to measure temperatures. Point the aluminum cup located on the top end of the gauge
directly at the object to measure, and do one of the following:
Press the MEASURE button once for an instantaneous temperature reading to show on-screen.
Move the aluminum cup as close as possible to the target.
Press and hold the MEASURE button to read temperatures continually. The temperature on-screen will
be updated continuously. Releasing the MEASURE button will cause the last reading to display on-
screen.
This thermometer can temporarily store maximum or minimum temperatures. Turn the unit on by pressing
the MEASURE button. Then, press the MODE button once for the maximum or twice for the minimum.
The respective MAX or MIN icon will display on on-screen.
3. Maximum/Minimum Temperature Modes
To check the MAX or MIN temperature, click the MODE button to choose the right mode, point the cup to
the object, press and hold the MEASURE button to observe the respective value.
MEASURING TEMPERATURES
1. Quick Mode
2. Scan Mode
C
MIN
C
MAX
MEASUREMENT TIPS
Distance-to-spot ratio: 6:1
Every infrared thermometer has a "distance-to-spot" (D:S)
ratio that tells you the diameter of the area being
measured compared to the distance from the target.
The 380P thermometer has a distance-to-spot ratio of 6:1.
That means it measures an approximately one-inch-
diameter spot when it's 6 inches from the target (about 2.5
cm at 30 cm). If you try to use that thermometer to
measure a two-inch (5-cm) area from even just a few feet
(1 m) away, you will not get an accurate result because
the meter will also measure the temperature outside the
area you are targeting.
Distance-to-spot ratio is crucial to measuring! So be sure
to measure at this D:S ratio.
Measuring Metallic Target
In general, infrared thermometers can easily measure non-metallic surfaces because they emit most of the
potential heat. On the other hand, metallic surfaces are poor emitters requiring special treatment before
measuring.
Fortunately, that special treatment is simple and can be easily accomplished by marking the metallic surface
you wish to measure with a non-metallic substance such as a solid paint marker.
When operating in MAX or SCAN modes, mark the appropriate target area and measure at the D:S ratio of
6:1.
Measuring Transparent Materials
Although transparent materials pass visible light, many visibly transparent materials are opaque in the infrared
and can be directly measured by the 380P thermometer.
To test infrared transparency, touch the 380P to the target's surface and pass a heat source such as your
hand or a penlight through the sensor's field of view on the other side of the material.
If the 380P responds to the heat source, the material is transparent in the infrared, and requires marking the
surface for proper measurement.
Mark the surface with an opaque non-metallic coating, such as paint or grease.
Alternatively, put a shiny metallic object, such as aluminum foil, behind the transparent material.
Measuring Wet or Icy Surfaces
Wet or icy surfaces may interfere with the 380P's readings. Water and other liquids are good targets, but
evaporation lowers their surface temperatures.
Frost forms on a surface at the freezing point of water. Frozen foods or similar targets will form frost in some
circumstances.
In the frost forms, the thermometer will measure the frost instead of the object.
Melting ice will read slightly higher than 32 °F (0°C) because the meter measures the air condensing on the
ice, a reaction that generates a small amount of heat. As long as the ice is not melting, the 380P will
accurately read its temperature.
To get an accurate measurement, remove any ice or moisture before aiming.
1"@ 3"@ 10"@
6" 18" 60"
D:S=6:1
at focal point
·02· ·03·
7504-1441-02
Manufacturedby
SKYRCTECHNOLOGYCO.,LTD.
www.skyrc.com
RoHS

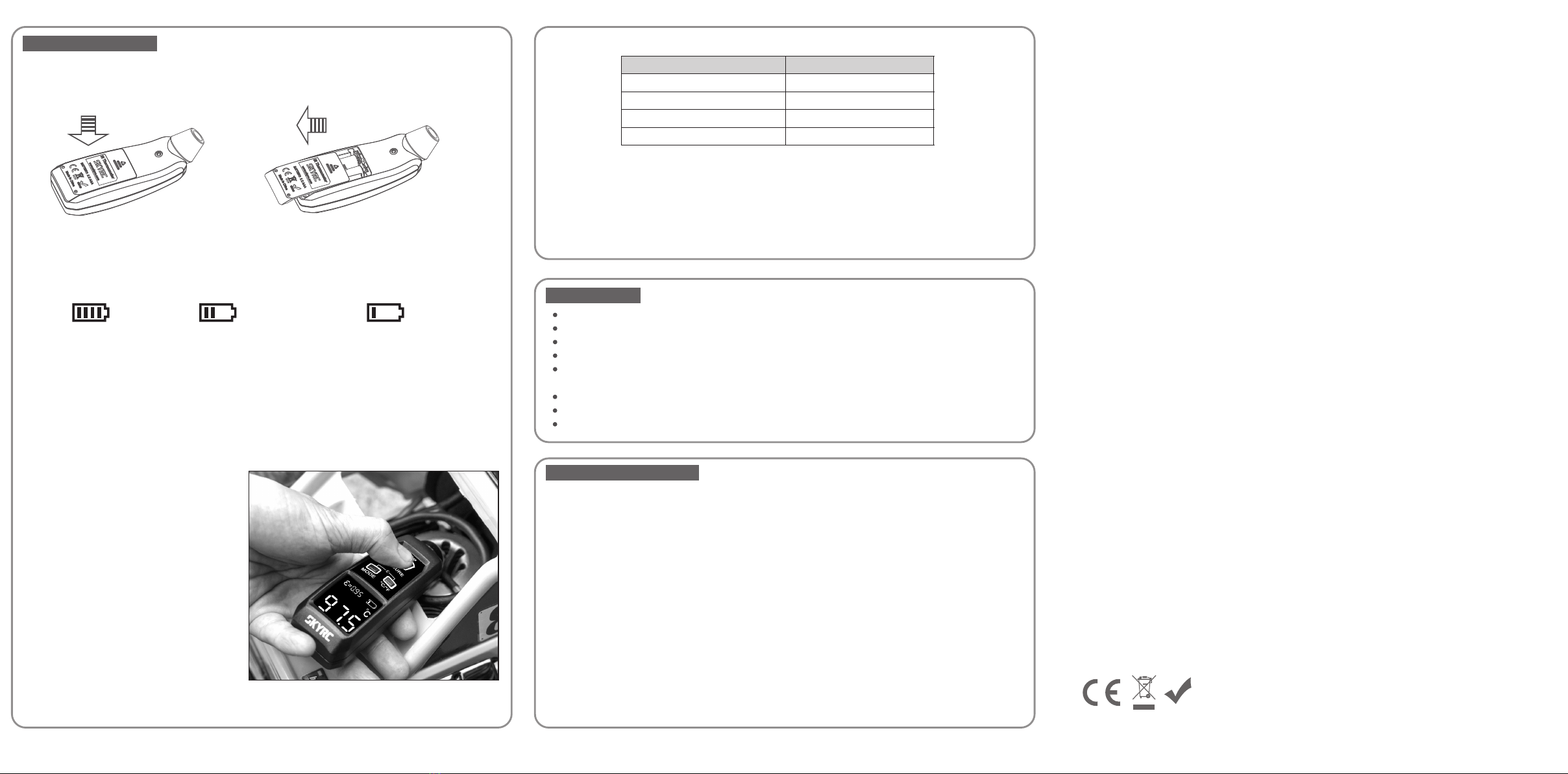

GENERAL OPERATION
Push
Slide
1. Battery Installation
This thermometer is powered by 2 AAA batteries. With thumbs on the battery compartment cover,
push down and slide.
2. Battery Replacement
It is necessary to replace the battery when it indicates low. Low power affects the accuracy of the
measurement.
Open the battery compartment and replace them with two new AAA batteries.
3. Measure at this D:S ratio of 6:1
4. Beep Sound On or Off
There is a beep signaling each operation.
Press and hold the MODE button for 5 seconds to turn on or off as expected.
5. Switch Measurement Unit
Turn on the device by pressing the MEASURE button. Pressing the UNIT button to switch the unit
between Celsius and Fahrenheit.
6. Change the Emissivity Coefficient Value
The emissivity of a material (usually written ε)
is the relative ability of its surface to emit
energy by radiation.
The ratio of energy radiated by a particular
material differs from the energy released by a
black body at the same temperature.
Different types of materials have different
emissivity values.
Aluminum Anodized
Plastics
Rubber, hard glossy plate
Carbon pressed filled surface
0.77
0.91
0.94
0.98
SURFACE MATERIAL EMISSIVITY COEFFICIENT
SPECIFICATION
Operation Voltage: AAA battery X 2
Operation Current: ≤[email protected]
Operation Temperature: 0-40°C
Current Drain: ≤25ua@3V
Precision: -40°C-0°C ±1°C 0°C-60°C ±0.5°C 60°C-120°C ±1°C
120°C-180°C ±2°C 180°C-240°C ±3°C 240°C-360°C ±4°C
Adjustable Range for Infrared Emission Frequency: 0.01-1
Dimension: 121x40x39.6mm
Weight: 75g
Emissivity Coefficients of some common Materials for RC products
In general, if you are not comfortable changing emissivity value, it is best NOT to change it. The factory
default emissivity value is 0.95, which provides accurate temperature measurements for most materials.
To change the emissivity setting, hold the MODE and UNIT buttons simultaneously.
The emissivity value on the screen will be blinking:
To increase the value, press the MODE button;
To decrease the value, press the UNIT button.
·04·
WARRANTY AND SERVICE
We guarantee this product to be free of manufacturing and assembly defects for a period of one year from
the time of purchase. The warranty only applies to material or operational defects, which are present at
the time of purchase. During that period, we will repair or replace free of service charge for products
deemed defective due to those causes.
This warranty is not valid for any damage or subsequent damage arising as a result of misuse, modification
or as a result of failure to observe the procedures outlined in this manual.
The warranty service is valid in China only.
If you need warranty service overseas, please contact your dealer in the first instance, who is
responsible for processing guarantee claims overseas. Due to high shipping cost, complicated
custom clearance procedures to send back to China. Please understand SkyRC can't provide
warranty service to overseas end user directly.
If you have any questions which are not mentioned in the manual, please feel free to send email to
Note:
1.
2.
3.
Measure the engine temperature
·05· ·06·
Full Moderate Low
