Skyworth V901 User manual

SKYWORTH VR
Virtual Reality All-In-One Headset
使用指南
User Guide
取扱説明書
제품 안내
FOR V901/S801/S1

包装内容
请检查产品包装盒中是否有以下物品：
头戴式设备 *1
3DoF操控手柄 *1
（S801 选配）
使用指南 *1
充电器 *1
擦净布 *1
AAA电池 *2
（S801 选配）
使用指南
Micro USB数据线 *1
1

设备部件说明
1. 头戴式设备
返回键
电源键
TF 卡槽 音量 +/- 键
麦克风
距离感应器 确定键
Home 键
3.5mm 耳机孔
LED 指示灯
魔术贴条
Micro USB 接口
2

2. 3Dof操控手柄
扳机键 / 触发键
电池盖
触控板 / 确认键
LED 指示灯
App 键
Home 键
3

注：长按电源键 6 秒，可快速关机；如遇到宕机
情况，长按 10 秒强制关机。
VR一体机操作说明
1.头戴式设备按键/接口/状态指示灯说明
头戴设备按键 操作描述
电源键 长按2s
长按3s
开机
唤出重启、关机界面
确定键 短按
长按拖拽
确定
滑动翻页等（部分支持）
返回键 短按 返回
HOME键 短按
长按
回到主页
回正场景
音量+/- 调节音量大小
头戴设备接口 操作描述
音频接口 插入耳机（不支持耳机调节音量、
播放状态）
Micro USB接口 充电/数据传输
TF卡槽 插拔TF卡
4

2.手柄状态指示灯说明
头盔指示灯状态 状态描述
蓝灯常亮
充电中，且当前电量>90%
未充电且开机亮屏时，且当前电
量>90%
粉灯常亮
充电中，且20%<当前电量<90%
未充电且开机亮屏时，20%<当前
电量<90%
红灯常亮 充电中，且当前电量<20%
红灯闪烁 未充电且开机亮屏时，且当前电
量<20%
开/关机 红灯快速闪烁1秒
手柄指示灯状态 操作描述
每秒闪烁1次 未连接头戴式设备
闪烁1次 每次按键
持续快速闪烁 手柄电量低
熄灭 手柄关机
快速闪烁1秒 开机/关机瞬间
5

重要提示
为保护您和他人免受伤害或保护您的设备
免于损坏，请阅读以下安全信息后再使用。
1. 只能将设备用于其预期的用途。
2. 建议在温度介于 -10℃-45℃、湿度≤80% 的环境
中使用，避免将本设备暴露在强烈日光下或温度较高
的环境中。
3. 电池（电池包或组合电池）不得暴露在诸如日照、
火烤或类似过热环境中。
4. 避免在任何有化学或可燃气体、长时间高温湿度
环境、介质中含有足以腐蚀金属和破坏绝缘的气体和
尘埃、存在爆炸危险或其他异常环境下使用。
5. 建议使用 30 分钟后进行适当休息。如果您的身体
感到任何不适，请立即停止使用。
6. 建议身体状态异常者（包括但不限于孕妇、老人、
双目视觉异常者、心脏病患者、精神病患者），咨询
医生后再决定是否使用本设备。
7. 本设备并非为儿童专门设计，14 周以下儿童需在
成年人监督下使用，若发现负面影响，应立刻停止使
用。成年人也应当确保 14 周岁以下儿童避免长时间
使用本设备。
8. 使用本设备时，请确保您周围区域安全，请确保
使用区域无其他人、家居、家具及其他障碍物。请
6

勿靠近楼梯、窗户、阳台、热源或可能造成危险的其
他物体使用本设备。
9. 请勿在佩戴本设备的同时连接 USB 数据线。
10. 本设备可以发射可能会干扰附近电子设备工作的
无线电波。若使用者佩戴心脏起搏器或其他植入型医
疗设备，请先咨询医生或医疗设备制造商，再决定是
否使用本设备。
11. 请勿长时间高音量使用本设备，以免造成听力损
伤。
12. 使用时避免镜片接触硬物及尖锐物体，使用配套
软布清水擦拭，不可使用有机溶剂擦拭。
13. 请注意正确的放置方式，错误的放置方式容易导
致强光损坏屏幕。
14. 长时间使用导致主机过热时，有可能导致界面漂
移，请长按确认键回正即可。
7

产品保修条例
在三包有效期内，因产品本身质量问题引
起的且非人为损坏的故障，凭发票或有效
购机凭证可享受下列三包服务：
自购买日起 7 日内，本头戴式设备出现质量问题，经由
售后服务中心鉴定，消费者可以选择退货、换货、和修
理。
自购买日起 15 日内，本头戴式设备出现质量问题，经
由售后服务中心鉴定，消费者可以选择换货和修理。
自购买日起 12 个月内，本头戴式设备出现质量问题，
经由售后服务中心鉴定，消费者可以享受免费修理服
务。
主机之外的附属类配件质保期 3 个月。
超过三包有效期；
未按本产品说明书的要求使用、维护、保管而造成损坏；
未经授权服务者的拆机、改动、维修造成损坏；
因不可抗力造成损坏；
由于使用者使用不当（如坠落、挤压、进液等）而造成损
坏；
错误的放置方式导致强光损坏屏幕；
使用非原厂配件，而导致本头戴式设备发生故障；
用户自行安装创维虚拟现实操作系统以外的软件系统
造成损坏；
除本产品以外的赠品和包装盒；
以下情况不属于三包范围：
8

有害物质声明
有毒有害物质或元素
头戴式
设备
结构件
电路
模块
光学
镜片
电池
铅
（Pb）
汞
（Hg）
镉
（Cd）
六价铬
（Cr6+）
多溴
联苯
(PBB)
多溴
二苯醚
(Pbde)
表示该有害物质在该部件所有均质材料中的含
量在 SJ/T 11363-2006《电子信息产品有毒
有害物质的限量要求》规定的限量要求一下。
表示该有毒有害物质至少在该部件的某一均质
材料中的含量超出 SJ/T 11363-2006 规定的
限量要求。

×
    
    
     
     
更多创维 VR 产品信息、用户
意见反馈或商务合作
请登陆：www.skyworth.com
售后服务邮箱：
[email protected]
客服热线：0755-26010716
制造商：
深圳创维新世界科技有限公司
出版日期：
2019年7月1日
产品合格证
Certificate
×
×
执行标准：GB/T13837-2012；GB17625.1-2012；GB8898-2011 9

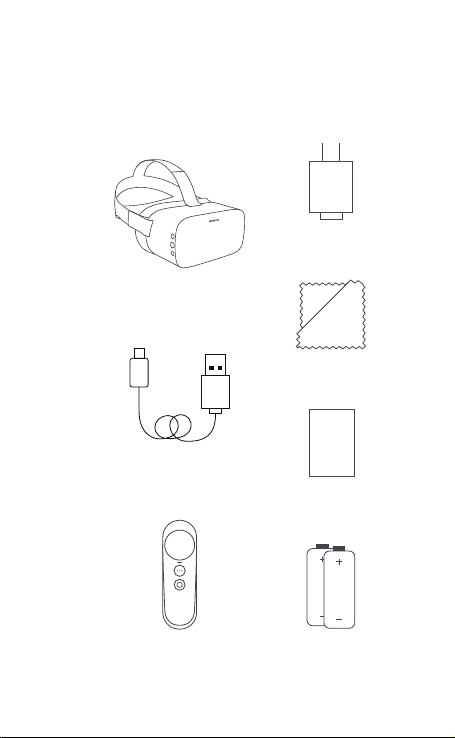

What's in the box
Please check whether there are the
following items in the box:
Skyworth Standalone
VR Headset*1
3DOF remote controller*1
(S801 Optional)
User Guide*1
Charger*1
Lens cloth*1
AAA battery*2
(S801 Optional)
使用指南
Micro USB cable*1
10

Components Overview
1. Standalone VR headset
Back key
Power key
TF card slot Volume key
Microphone
Proximity sensor Confirm key
Home key
Audio jack
LED indicator
Velcro
Micro USB port
11

2. 3-DOF Controller
Trigger key
Battery cover
Touchpad
LED indicator
App key
Home key
12

Note: Long press for 6 seconds to fast power off; In case
of downtime, long press for 10 seconds to forcibly reboot.
Basic operation
1.Instructions for key/interface/status
indicator of head-mounted equipment
Headset key Operation decription
Power key Long press 2s
Long press 3s
Power on
Calling up reboot UI
Confirm key Short press
Press and hold still to drag
Enter/Confirm
Back key Short press Back
Home key Short press
Long press
Back to home page
Recenter the scene
Volume key Adjusting volume
Headset key Operation decription
Audio jack Plug in headphone
Micro USB port Charging/Data transmission
Micro TF card slot Plug/unplug Micro SD card
13

Headset indicator status Status description
Blue light keeps on
In charging, and the current power
is >90%.
When is not in charging and the
screen is on, and the current power
is >90%
Pink light keeps on
In charging, and the current power is
between 20% and 90%.
When it is not in charging and the screen
is on, and the current power is between
20% and 90%
Red light keeps on In charging, and the current power is <20%
Red light flashes
When it is not in charging and the
screen is on, and the current power
is <20%
Power on/off Red light flashes fast for 1 second
Controller indicator status Operation description
Flash once per second Disconnect to the headset
Flash once Each keystroke
Continuous rapid flash Low power of controller
Indicator goes out Controller power off
Rapid flash for 1 second Power on/off instant
2.Instructions for controller indicator
14

Important Notice
In order to protect you and others from injury or protect
your equipment from damage, please read the following
safety information before using the device.
1. Only use the equipment for its intended purpose.
2. It is recommended to be used in enviroments with
temperatures ranging from -10ºC~45ºC and humidity <80%
3.Battery (battery packs or combination batteries) should not be
exposed to such conditions as sunshine, fire or similar
overheating.
4. Do not use it in any environments with chemical or flammable
gases, long-time high temperature and humidty, containing
gases and dust that is sufficient to corrode metals and destroy
insulation, containing explosive hazards or other abnormal
conditions.
5. It is recommended to take a proper rest after 30 minutes of
use. Please stop using it immediately, if you feel any discomfort
in physical.
6. It's recommended that those with abnormal physical condition
(including but not limited to pregnant women, the elderly,
binocular vision abnormalities, heart disease patients,
psychiatric patients) consult a doctor before deciding whether
to use it.
7.This device is not specially designed for child. Children under
14 years old should use it under the supervision of adults. If
negative effects are found, stop using it immediately. Adults
should also ensure that children under 14 years old do not use
this device in a long time.
15

8.When using this device, please make sure that the area
around is safe. Make sure that there are no other people,
furniture, fixtures and other obstacles in the using area. Do not
use this device near stairs, windows, balconies, heat sources or
other objects that may cause danger.
9. Do not connect USB data cable while wearing this device.
10. The device can transmit radio waves that may interface with
the operation of nearby electronic devices. If the user wears a
heart pacemaker or other implantable medical device, please
consult a doctor or a medical device manufacturer before
deciding whether to use it.
11. Do not use this device with high volume for long time to
avoid hearig damage.
12. Avoid lens contact with hard and sharp objects when using,
use matching soft cloth and water to wipe, do not use organic
solvent to wipe.
13. Please pay attention to the correct placement method, the
wrong placement method can easily lead to strong light damage
to the screen.
14.If the device is overheated due to prolonged use, it may
cause interface drift. Please long press the enter key for
correction.
16

Product warranty regulations
During the validity period of three guarantees, you
can enjoy the following three guarantee services
with the invoice or valid purchase certificate due to
the quality problems of the products and
non-human damage:
Within 7 days from the date of purchase, the quality problems
of the device occur, which can be identified by the after-sales
service center. Consumers can choose to exchange or repair
the device.
Within 15 days from the date of purchase, the quality problems
of the device occour, which can be identified by the after-sales
service center. Consumers can choose to exchange or repair
the device.
Within 12 months from the date of purchase, the quality
problems of the device occour, which can be identified by the
after-sales service center. Consumers can get the device repair
for free.
Notification: The warranty policy for accessories is 3 months
The product has exceeded the validity period of the warranty;
Defects or damage resulting from improper usage, maintenance
or storage not included in the manual;
Defects or damage resulting from unauthorized dismantling,
alteration and maintenance;
Damage caused by force majeure such as fire, flood and
lighting,etc;
Damage resulting from improper use (such as falling, extrusion,
liquid intake,etc.);
Damage to the product caused by any unauthorized
modifications;
Damage caused by install unauthorized operating system;
Packing box or gifts other than the main device;
The limited warranty does not cover:
17

Statement of hazardous substances
Toxic or harmful substances or elements
Head-
set
Structure
Parts
Circuit
Module
Optical
Lenses
Battery
（Pb）（Hg）（Cd）（Cr6+） (PBB) (Pbde)
It indicates that the contents of the harmful substance in all
homogeneous materials of the component should be limited
according to SJ/T 11363-2006 《Limited Requirements for Toxic
and Hazardous Substances in Electronic information products》.
It indicates that the toxic or hazardous substance contained in
at least one of the homogeneous materials of the part exceeds
the limit requirement specified in SJ/T 11363-2006.

×
    
    
     
     
If you want to know more about
Skyworth VR or give us your
feedback, please view our website:
www.skyworth.com
After-sales service:
[email protected]
Manufacturer:
SHENZHEN SKYWORTH NEWWORLD
TECHNOLOGY CO., LTD
Date:
07/01/2019
Product Certificate
Certificate
×
×
18

梱包内容
パッケージの中に以下の同梱物がある
こと を 確 認 し てくだ さ い：
ヘッドセット* 1
3DoFコントローラ*1
(別売の場合あり)
取扱説明書*1
充電器*1
レンズ クロス * 1
AAAバッテリ*2
(別売の場合あり)
使用指南
MicroUSBケーブル*1
19
