Dear Users:
For your safety, please read this user’s manual thoroughly before riding it.
Never drive the ebike before reading thismanual.
Obey the local traffic regulation and law .
Never drive too fast to exceed the limited speed(32km/h). Make sure all the nuts,
screws or quick release should be properly fastened before riding the ebike,or it may
lead to accident .
Avoid frequently braking and starting and please check tire pressure before riding.
please charge the battery after riding. If you do not ride for a long time, please charge fully
and take away the key. Please charge the battery not longer than every 60 days.
Never keep it directly under the sun or in the rain, high humidity or erosive environment,
and it will probably destroy the painting and leads to malfunction.
Regularly check the brakes and never put oil on the brake cover which may cause
malfunction while braking. Properly use the brakes in snowy and rainy weather.
Modification is not suggested (you may loose your warranty).
Users under sixteen years of age are not allowed to ride.
Matters needing attention to users
Please check all parts before driving in order to ensure your safe driving. Driving at rainy or
snowy weather is at your own risk.
Overloading is prohibited strictly. (not more than 250lb, fat tire model not more than 280lb)
It is recommended to charge the battery after each riding, to completely run out the battery is
strongly not recommended.
Battery
case
Motor
Front Quick
release
Light
Shift gear
第3 页共13 页
Please don’t charge the ebike when unattended and disconnect the battery from the power
source after it is fully charged. The charging must always take place in a dry and clean
area .Do not charge it on a carpet .
Always wear an approved helmet when riding your bike,
Night Riding
Ensure that the front lights are on.
Wear reflective and light colored clothing.
Check before driving
Please do a check before driving in order to ensure your safety of driving.
Open power lock, check whether all indication of the monitor are normal,?
Whether tire pressure is normal or not?(Tire pressure data is on the tyre.)
Whether nut and quick release of front and rear wheel is locked and tightened ?
Whether electric energy is enough?
Whether braking system is adjusted suitably and reliably?
Whether handgrip and saddle is adjusted well and tightened?
Technical spec of the ebikes:
There can be differences between the illustrated vehicles and the vehicles in real.
SANTIAGO REGULAR TIRE
SANTIAGO FAT TIRE
Motor rated power (W)
500
500
Motor rated voltage (V)
48
48V
Speed (Km/h)
32
32
Range (Km)
35 - 45
30-40
Load capacity (LB)
250
280
Front brake
DISC
DISC
Rear brake
DISC
DISC
Battery type
Lithium-ion battery
Lithium-ion battery
Battery capacity (Ah)
12
12
Battery charging time (H)
4 –6
4-6
Net weight (LB)
58
62
Pedal assist
Yes
YES
Throttle
YES
YES
Tire size ( in)
27.5*2.1
26*4.0 (or 3.0)
Notice : The ID no. of the ebike is on the front tube . Please keep the no for any possible
use in the future .
第4 页共13 页
The ebikes are shipped with the handlebar and stem disconnected. In this case
make sure to attach the handlebar to the stem as per described below before
proceeding to next steps
Assembly
Unpack from box
Open the box from the top, take out the bike parts and accessories .
Carefully remove all protective carton pieces, foam pads, tie wraps, plastic fittings, recycle all
material that can be recycles, dispose of the rest.
Attach the stem and handlebars
第5 页共13 页
Remove bolts and front cap of stem
Slide handlebar into place
Replace bolts, front cap of stem
and tighten
Carefully orient the pre-assembled
handlebar and stem over the bicycle
making sure that all cable housings smoothly go to each side of the bike without being kinked,
twisted or bent.
A lign handlebar , and tighten the head set bolt .
Please be notice : The stem should be make a direction change before attaching the
handlebar .
Install the front wheel
Insert the front wheel into the fork
Make sure that the wheel is seated and centered
in the fork, and the brake disc should be fitted in
between the brake linings .
Tighten the wheel into the fork as per provided
retention device specific requirements (refer to
the following figures).
Test wheel attachment by lifting the front end of
the bike and firmly hit downward on the front wheel with your palm. There should be on
play in the connection.
Quick release binder
This type of binder is most commonly used to attach wheels to the frame and fork as well as to
tighten the seat post into the frame. They allow for a tool-free, quicker use than nuts and bolts but
require knowledge on how to properly use them.
Put the lever in an opened position (A)
Tighten the adjustment nut (1) by small increments until you need considerable force to
push (2) the lever to its closed position (B) with your fingers or palm
Adjustment of steering wheel
Stand in the front of wheel, clamp the front wheel by both legs and hold the handgrip with both
“Closed”
position
第6 页共13 页
hands to adjust the angle degree at between cross tube of handgrip and vehicle body. (See fig. 1)
Screw down the fastening screw of wheel core, the torque recommended should be not less
than 18N.m.
Adjustment of saddle
Inserted depth of saddle tube should be more than minimum depth of insert (safety mark is for
reference of minimum depth) to ensure the safety. ( Fig 2 & 3 )
fig 1 fig 2 fig 3
Adjustment of brakes
Keep the brake in the middle, and make sure the two brake pads work properly.
Level up the brakes (in its normal condition)
Adjust the brake pads, to keep it in linings with the curve of the wheel.
At the end, Make sure the brake pads can have fully touch with the surface of the steel wheel.
If only one side of the brakes works, adjust the nut.
Pedals

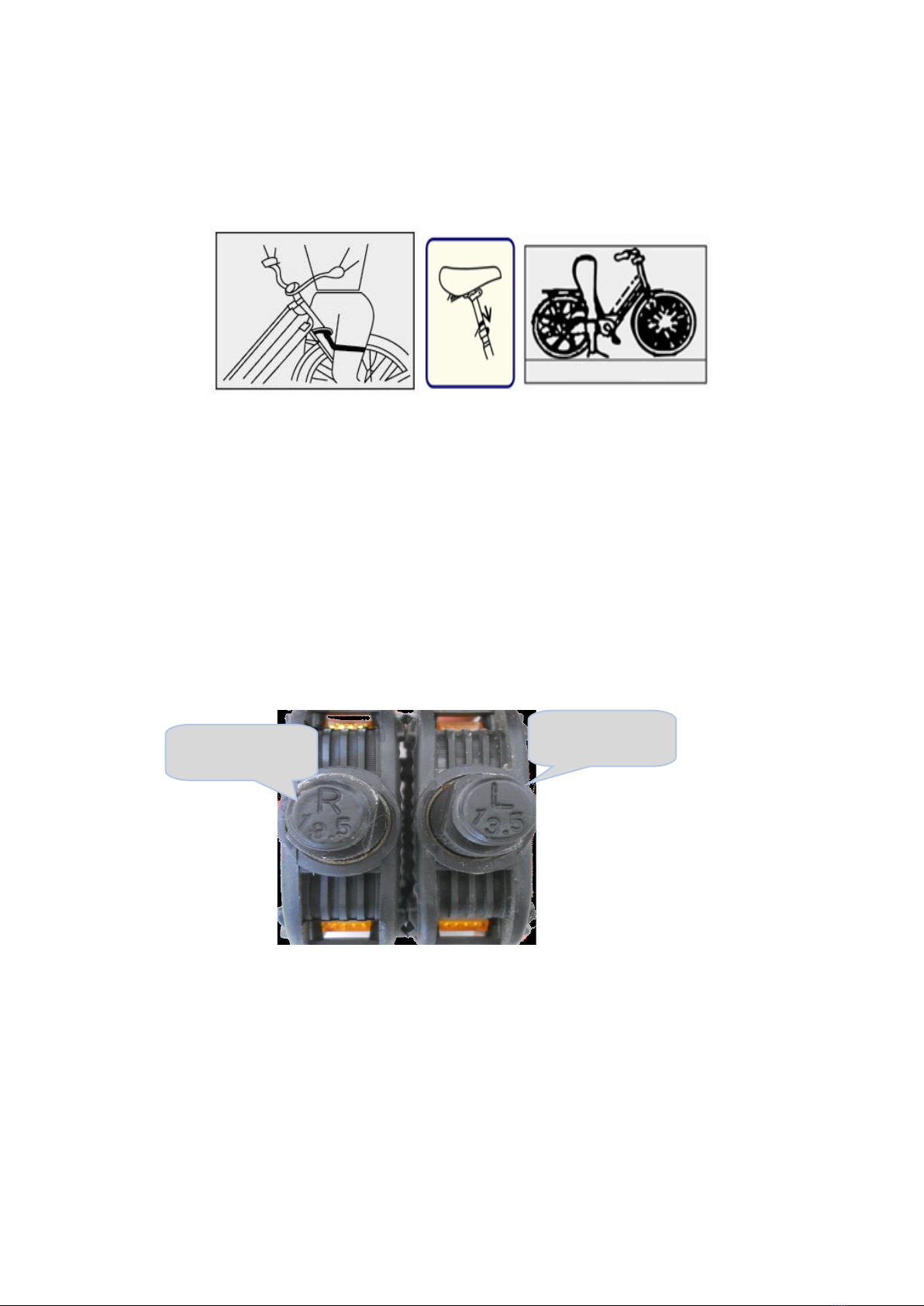

Check the Left and Right sign on the pedal.
About Charging
Before riding the ebike for the first time, you must charge the batteries for 4-6 hours using the supplied
charger. To charge, remove the protective cover from the charging socket. Plug in the charger into
the charging socket in the battery pack, then plug the charger into a wall outlet.
The left picture is the charging port .
he right picture are lights showing the capacity of the battery
The batteries dont have memory. You can charge your electric bike after each ride. Recharging time
is between 4-6 hours.
L: pedal for the
left pedal-arm
R: pedal for the
right pedal-arm
第7 页共13 页
WARNING:
Do not place the battery near heat objects or fire. Do not expose the charger wet place .

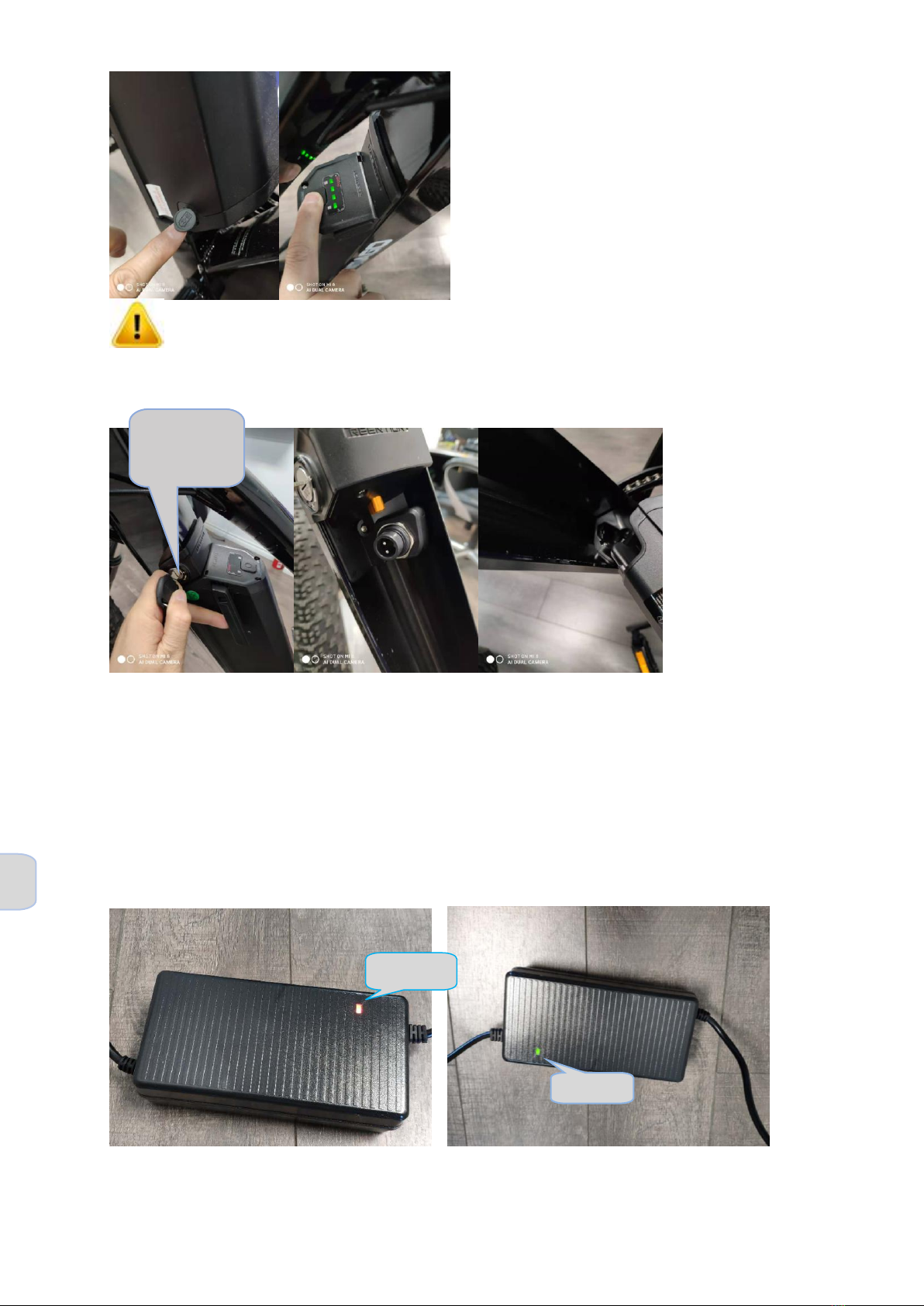

Removing the battery
Turn the key counter clockwise and pull the battery handle bar ( Left picture ) to take out the battery .
Turn the key counter clockwise and push the battery pack into the frame ( both of the top and bottom should
match ( see the right 2 pictures )
When the battery is being removed for charging
After the battery case is removed, please notice that the electrode “+” “-” can never be touched by
hands especially wet hands and the electrodes are also prohibited to be touched by other metal
conductor!
LED indicator of the charger:
Red：Charging Green：Charged
Turn the key
counter
clockwise
Open the
dust cap
Charging
socket
charging
charged
第8 页共13 页
Notice for charging
This charger has automatic protection device for over-charging. Long-time charging should not
be more than 24 hour.
The battery can be charged on the ebike or separtely.
The charge doesn’t need to be grounded.
Please place the charger in safety location which is beyond the reach of children.
Do not charge Slane ebike with charger from other brands
The charger has 110V circuit; please do not dismantle.
Avoid falling and bumpiness.
The charger should not be covered by other stuff during charging time.
During charging, if there is bad smell or the charger is overheated , please stop charging
immediately and send it back to the dealers .
WARNING!
The charger provided can be only used for the designed SLANE ebike .
Power On /Off :

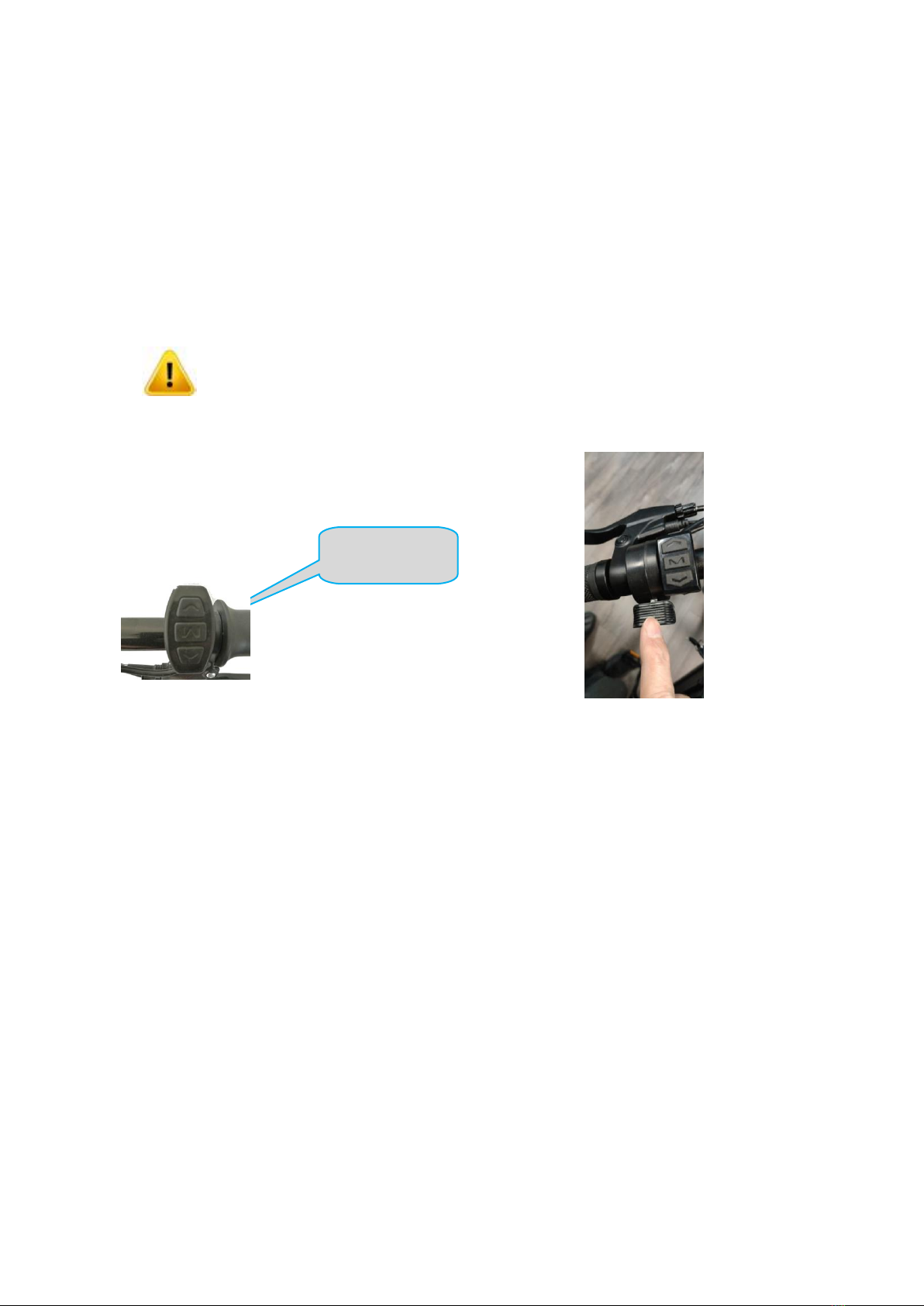

Press the button M for 3s to get the power .

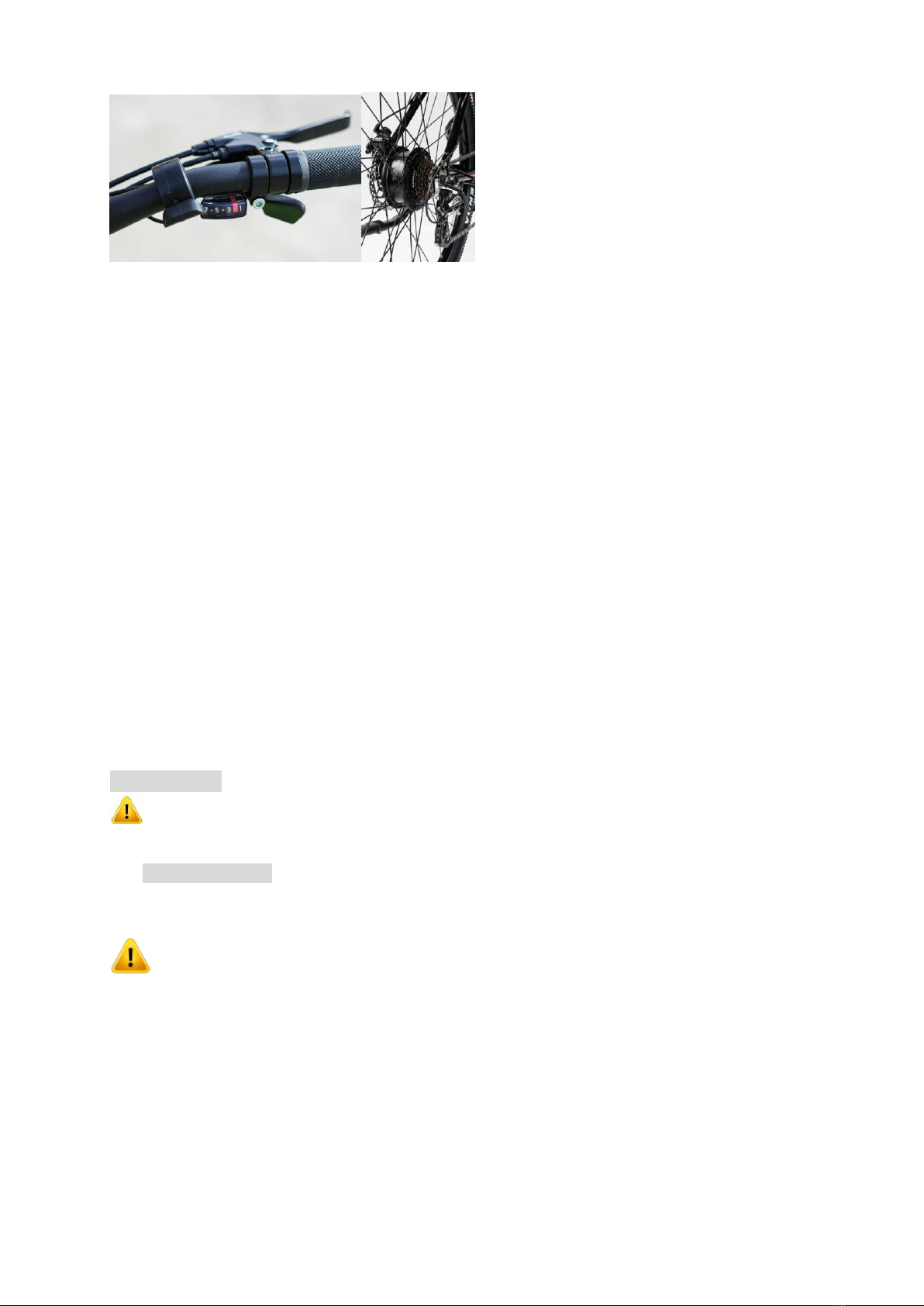

Your left hand will control the accelerator( Picture above). Twist the accelerator slowly to avoid a
sudden rush of speed forward. The speed of the bike will increase as you twist the accelerator more.
Release the accelerator and apply the brakes to stop your bike. You will control the speed of the bike
by using both the accelerator and the brakes. When the brake handle is activated it cuts the power of
the motor.
Press + and –for different speed optional (PAS 0-5 ) in the monitor .
Keep pressing + for 2 second to turn on the front light, then pressing it for aonther 2 sencond to turn
off the front light.
Notice: Do not use pedal assistant and throttle at the same time .
Press the Power
button for 3 sec.
第9 页共13 页
HOLDER
EXPLANATION:

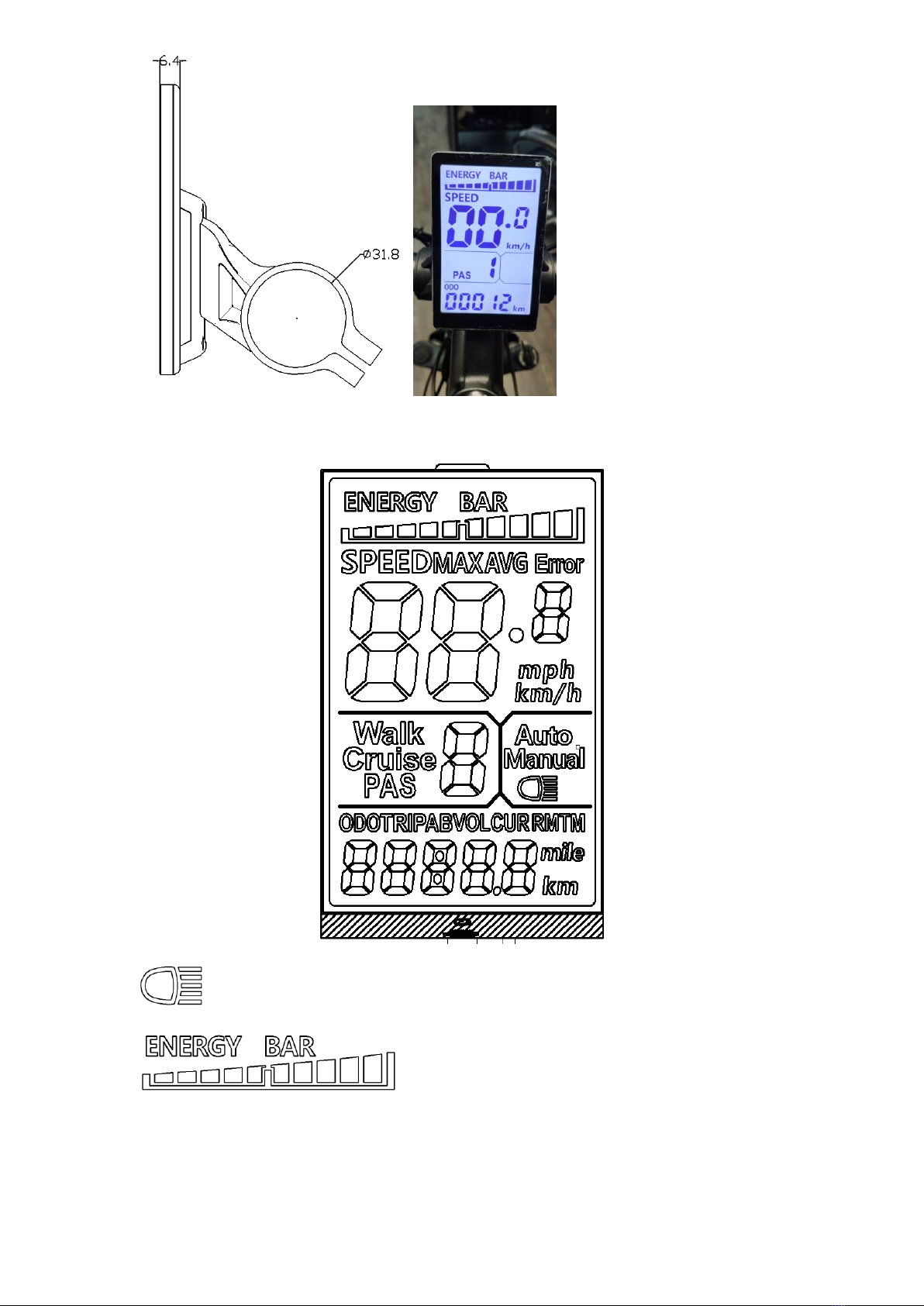

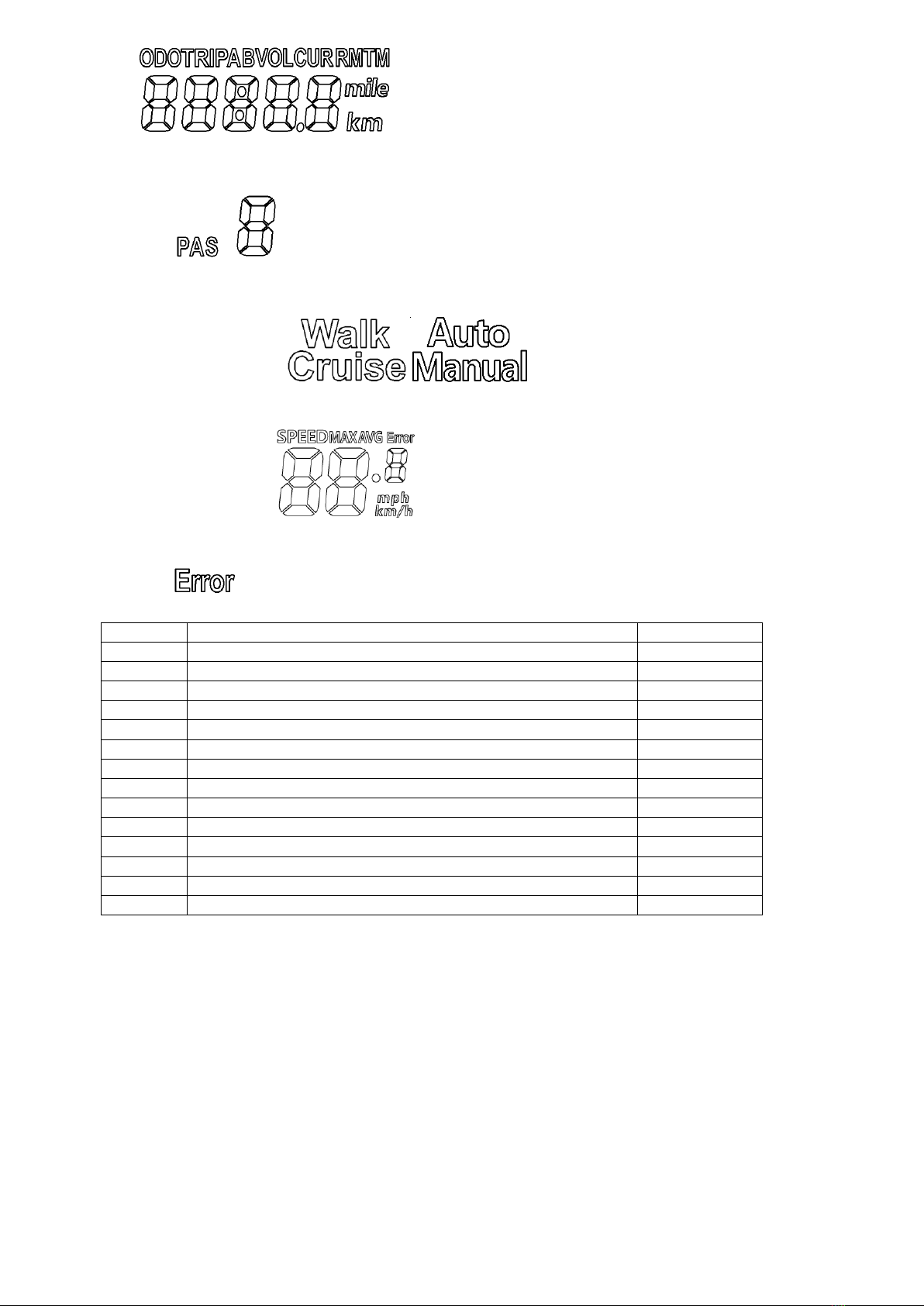

3.1 HEAD LIGHT
3.2
Battery Capacity left
第10 页共13 页
3.3
ODO, single mileage TRIPA , TRIPB , current Voltage, current , mileage can go , trip time TM
3.4 PAS
PAS model ( 3 options , 5 options, 9 options )
3.5 WORKING MODE :
Walk Cruise：、Auto：、Manual
3.6 SPEED DISPLAY
CURRENT SPEED、MAX、AVG、
mph or km/h
3.7
Error CODE
CODE
DETAILS OF PROBLEM
REMARK
0
NORMAL
1
NA
2
BRAKING problem
3
N A
4
6KM/H cruise problem
5
Cruise problem
6
Low Voltage
7
Motor problem
8
Throttle problem
9
Controller problem
10
Communication problem
11
Communication problem (delivering )
12
BMS problem
13
Head light problem
3.8.Setting
P00: Return to factory default
P01：Background brightness ，1:less bright ，3: the brightest；
P02：0：KM；1：MILE；
P03：Voltage：24V，36V，48V，Default :36V；
P04：Sleep ：0，no sleep；Range：1-60；min；
P05：PAS : 3 Options 、5 Options 、9 Options ；
P06: Diameter of wheel: inch；
P07: Number of speed checking manage ：1-255；
P08：Speed Limit : 0-100 ，100 means in Max speed ，
P09：0：Zero start ；1：No Zero Start ；
P10：Driving Mode 0 : PAS only , no throttle function
1 : Throttle driving only ,no PAS
第11 页共13 页
2 : Both PAS & Throttle
P11：PAS Sensitivity : 1-24；
P12：PAS starting Sensitivity ：0-5；
P13：SENSOR points : 5，8，12
P14：Current Limit of Controller , Default :12A Range：1-20A
P15：Low Voltage setting
P16: ODO clearing, Hold up button for 5s
P17: P18 & P19:NA

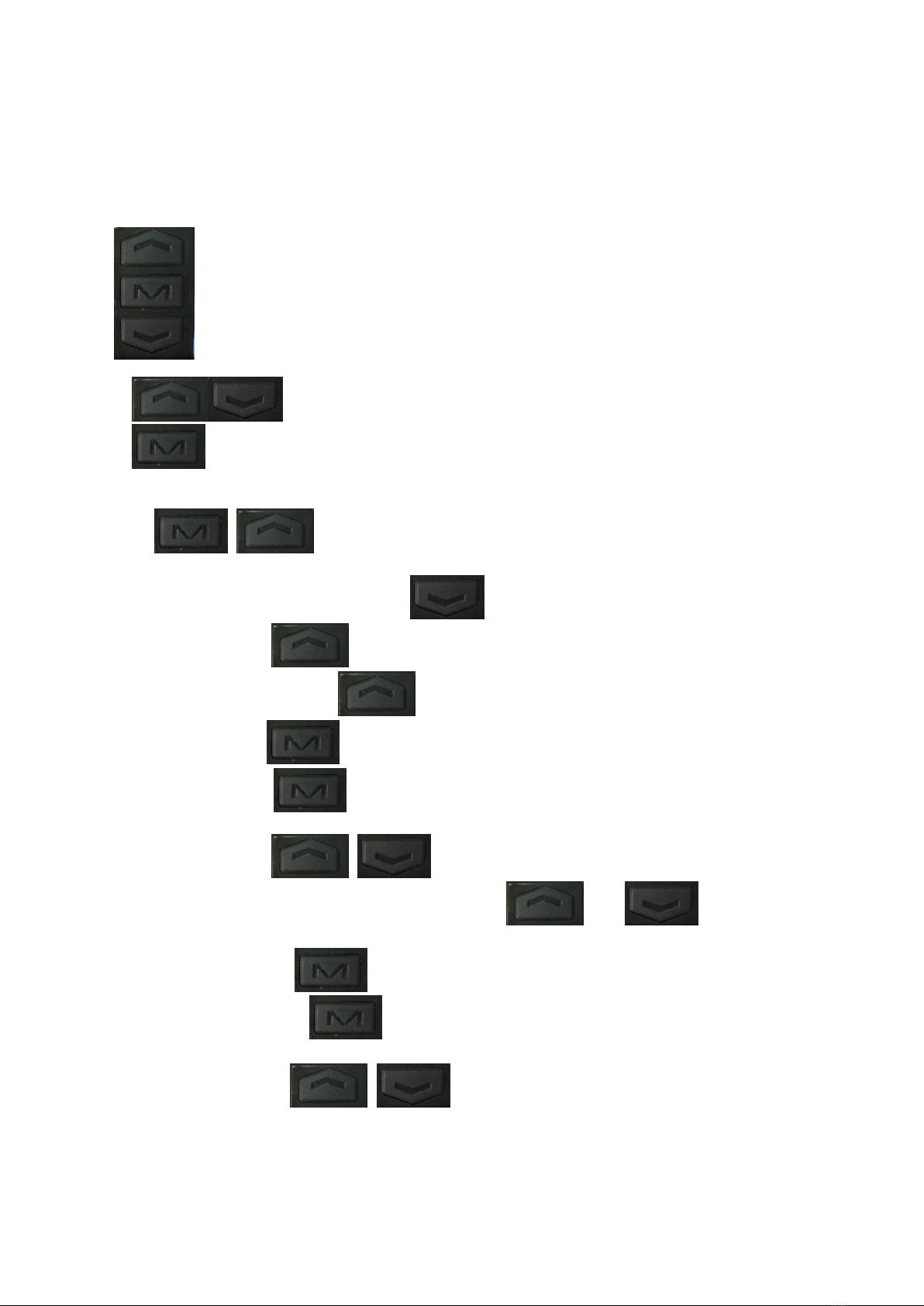

4、Button combination：
Single button press & Combination Button Press :
1. Speed or PAS option change
2. Short time Press , display all data
Long time Press : MODE / ON (OFF) change
3.
+ Long time press to change speed display mode
4.
The ebike is in still ，long time press ，enter 6KM/h cruise mode
5.Long time press to open(off) the front light ；
6. In P16 ，long time press 5s ，ODO clearing .
7.Long time press ，Turn on (off) the monitor
8.Short time press change multi function setting display
9.Long time press + Entering multi function setting : P01-P16
In the multi function setting , short time press ，or to change the
settings.
a.Long time press to save the change
b.Short time press to change to next setting , and save the current setting
change；
c. Press short time +，withdraw from setting ,save the change .
第12 页共13 页
Gear shift & Derailleur：
This e-bikes go with gears, which consists of:
* A rear sprocket cluster, called a freewheel or cog set
* A rear derailleur
* One swifter
* One control cable
* One front sprocket called a chaining
* A drive chain
Adown shift is a shift to a lower or slower gear, which is easier to pedal.
An up shift is a shift to a higher or faster gear, which is harder to pedal.
Aderailleur will shift only if you are pedaling forward.
CAUTION:
Never move the swifter while pedaling backward. Also do not pedal backwards after moving the swifter.
Either of these actions could jam chain and cause serious damage to the E-Bikes.
The derailleur system includes the front and rear derailleur, the shift levers, and the derailleur control
cables, all of which must function properly for smooth gear shifting .
Attention for parking
When you get off the bike and push it forward, the power switch should be shut off to avoid
unintentional turning on the handle and the accident can be avoided by sudden start-up of the
bike.
It is suggested that the bike should be parked indoor or within carport. Don’t forget to shut off
power and take off the key.
Maintenance and service
Do not wash with high pressure water to avoid short circuit .
The dirt on paint surface or the surface of plastic parts should be cleaned with cloth and neutral
detergent .Please use lubrication oil to maintain mechanical parts of the ebike.
FLAT TIRE
Warning:
Riding your E-Bike with a flat or under-inflated tire can damage the tire, tube , and the wheel , and it also
can result in out of control or falling .
BROKEN SPOKE
A wheel with a loose or broken spoke is much weaker than a fully tensioned wheel.
If you break a spoke on a ride, you need ride home much more slowly and carefully because the weakened
wheel could break other spokes .
Warning:
A broken spoke seriously weakens the wheel and may cause it to wobble, striking the brakes or the frame.
Riding with a broken spoke can cause you to lose control and fall.
第13 页共13 页
Troubles and solutions
No
Description of
malfunction
Analysis of malfunction
Way of eliminating
1
Can not be
started
(1) low voltage of battery
(2) poor connection between
battery terminal and socket
(3) power lock switch not in correct
position
(1) charge the battery
(2) reconnect the battery
(3) turn to correct position
2
Fail to adjust
the speed or
max speed is
relatively slow
(1) low voltage of battery
(2) magnetic steel in the speed-
adjusting handle is loose
(3) spring in the speed-adjusting
handle fails to work or damage
(1) charge the battery
(2) tighten
(3) turn to maintenance
station.
3
Motor doesn’t
work after
switching on
(1) wire connection is loose
(2) magnetic steel in the speed-
adjusting handle is loose
(3) connectors of motor wire
connection loose or damage
(1)re connect
(2) tighten
(3) turn to maintenance
station.
4
Driving miles
is not enough
after full
charge
(1) air pressure low in the tyre
(2) not enough charging or charger
fault
(3) too much uphill, heavy wind,
brake quite often, big load
(4) discharge battery completely for
long time, and not charge in time,
the battery is aging or damaged
(5) low temperature in winter
affects driving miles obviously
(1) pump the tyre
(2) fully charge or check
the touching of connectors
(3) suggest use more
pedal assistant.
(4) change the battery
(5) suggest charging
indoor
5
Charger
doesn’t work
(1) socket of charger falls off or
loose between plug and socket
(2) broken fuse in battery box
(1) tighten socket and
connector
(2) change the fuse
Kindly Notice : Pedal assist save power and will have a longer range
Regular bike maintenance is necessary
WARRANTY POLICY :
NO.
Parts Description
Warranty
Problem description
1
Motor
1 Year
Not working
2
Controller
1 Year
Functional failure
3
Charger
1 year
Functional failure
4
Lithium-ion battery
1 Year
Not working
5
Handlebar, frame, front fork,
steering column, rear flat fork
1 Year
Broken
Special Note: The warranty time above is based on the date of e-bike sold ; The warranty
above is based on the quality problem and functional failure which are not caused by misuse or
accident. The tire, tube, chain & spoke are without warranty .
Table of contents
