SMA SUNNY ISLAND 8.0H User manual

SI80H-BE-BEN120810 | TBEN-SI80H | Version 1.0
EN
Off-grid Inverter
SUNNY ISLAND 8.0H/6.0H
SUNNY REMOTE CONTROL
Operating Manual

SMA Solar Technology AG Table of Contents
Operating Manual SI80H-BE-BEN120810 3
Table of Contents
1 Information on this Document. . . . . . . . . . . . . . . . . . . . . . . 7
2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.1 Intended Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.2 Target Group Qualifications. . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.3 Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3 Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.1 Sunny Island 8.0H / 6.0H . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.2 Type Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.3 Off-Grid Inverter Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . 16
3.4 Sunny Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.5 Service Interface SD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.6 Time-Controlled Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4 Operating the Off-Grid Inverter with
Sunny Remote Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.1 Display Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.2 Standard Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.2.1 Display of Operating States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.2.2 Display Page during Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.3 User Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.3.1 Display Pages for Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.3.2 Display Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.3.3 Setting Pages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.3.4 Selecting Display Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.3.5 Operating and Configuring the Off-Grid Inverter . . . . . . . . . . . . . . . . . . . . . 30
4.4 Installer and Expert Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
4.4.1 Switching to Installer Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
4.4.2 Switching to Expert Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table of Contents SMA Solar Technology AG
4 SI80H-BE-BEN120810 Operating Manual
4.4.3 Menus in Installer and Expert Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4.4.4 Parameter Page in Installer and Expert Mode . . . . . . . . . . . . . . . . . . . . . . . 33
4.4.5 Selecting Menus and Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
4.4.6 Setting the Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4.4.7 Directly Accessing Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
5 Starting and Stopping the Off-Grid System . . . . . . . . . . . 37
5.1 Switching On the Off-Grid Inverter . . . . . . . . . . . . . . . . . . . . . . 37
5.2 Starting the Off-Grid System . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
5.3 Stopping the Off-Grid System. . . . . . . . . . . . . . . . . . . . . . . . . . 38
5.4 Switching Off the Off-Grid Inverters . . . . . . . . . . . . . . . . . . . . . 39
5.5 Tripping the Emergency Disconnection of the Off-Grid System . . . 39
5.6 Setting Time-Controlled Inverter Operation. . . . . . . . . . . . . . . . 40
6 Saving Data and Updating Firmware . . . . . . . . . . . . . . . 41
6.1 Inserting the SD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
6.2 Saving and Loading Parameters. . . . . . . . . . . . . . . . . . . . . . . . 41
6.3 Saving the Event History and Error History . . . . . . . . . . . . . . . . 42
6.4 Updating the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
6.5 Displaying the Status of the SD Card . . . . . . . . . . . . . . . . . . . . 43
6.6 Removing the SD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
6.7 Displaying the Content of the Files . . . . . . . . . . . . . . . . . . . . . . 43
7 Manually Controlling the Generator . . . . . . . . . . . . . . . . 45
7.1 Starting the Generator with Sunny Remote Control . . . . . . . . . 45
7.2 Stopping the Generator with Sunny Remote Control . . . . . . . . 45
7.3 Starting the Generator without Autostart Function . . . . . . . . . . 46
7.4 Stopping the Generator without Autostart Function . . . . . . . . . 46
8 Disconnecting the Off-Grid Inverter from
Voltage Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

SMA Solar Technology AG Table of Contents
Operating Manual SI80H-BE-BEN120810 5
9 Cleaning and Maintenance. . . . . . . . . . . . . . . . . . . . . . . . 48
9.1 Cleaning the Enclosure of the Off-Grid Inverter . . . . . . . . . . . . 48
9.2 Cleaning the Sunny Remote Control. . . . . . . . . . . . . . . . . . . . . 48
9.3 Performing a Manual Equalisation Charge . . . . . . . . . . . . . . . 48
9.4 Checking the Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
9.5 Checking the Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
9.6 Checking and Maintaining the Battery . . . . . . . . . . . . . . . . . . . 50
9.7 Cleaning the Fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
9.8 Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.1 What to Do if an Error Occurs . . . . . . . . . . . . . . . . . . . . . . . . . 54
10.2 Acknowledging a Generator Error . . . . . . . . . . . . . . . . . . . . . . 56
10.3 Acknowledging Level 3 and 4 Errors . . . . . . . . . . . . . . . . . . . . 56
10.4 Changing Slave Addresses in a Cluster . . . . . . . . . . . . . . . . . . 56
10.5 Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
10.5.1 Questions on the Off-Grid Inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
10.5.2 Questions on the Sunny Remote Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
10.5.3 Questions on the External Energy Source. . . . . . . . . . . . . . . . . . . . . . . . . . . 60
10.5.4 Questions on the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
10.5.5 Questions on Cluster Systems and Multicluster Systems . . . . . . . . . . . . . . . . 62
10.6 Charging the Battery after Automatic Shutdown . . . . . . . . . . . 63
11 Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
12 Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Table of Contents SMA Solar Technology AG
6 SI80H-BE-BEN120810 Operating Manual

SMA Solar Technology AG 1 Information on this Document
Operating Manual SI80H-BE-BEN120810 7
1 Information on this Document
Validity
This document is valid for the following Sunny Island device types:
•SI8.0H-10
•SI8.0H-11
•SI6.0H-10
•SI6.0H-11
This document is valid for the following Sunny Remote Control device type:
•SRC-20
Target Group
This document is intended for operators and skilled persons. Only skilled persons are allowed to
perform the tasks set forth in this document (see Section 2.2"Target Group Qualifications",page10).
Symbols
Symbol Explanation
Indicates a hazardous situation which, if not avoided, will result in death
or serious injury
Indicates a hazardous situation which, if not avoided, could result in death
or serious injury
Indicates a hazardous situation which, if not avoided, could result in minor
or moderate injury
Indicates a situation which, if not avoided, could result in property damage
Information that is important for a specific topic or goal, but is not safety-
relevant
☐ Indicates an essential requirement for achieving a specific goal
☑ Desired result
✖ A problem that might occur

1 Information on this Document SMA Solar Technology AG
8 SI80H-BE-BEN120810 Operating Manual
Typographies
Nomenclature
This document refers to the Sunny Island as an off-grid inverter.
Menus are presented as follows: menu number, hash, menu name (e.g. 150# Compact Meters).
Parameters are presented as follows: menu number, dot, parameter number, and parameter name
(e.g. 150.01 GdRmgTm). Parameters include both configurable parameters and parameters for
displaying values.
Abbreviations
Typography Usage Example
bold • Display messages
• Parameters
•Connections
•Slots
• Elements to be selected
• Elements to be entered
• Connect PE to AC2Gen/Grid.
• Select parameter
235.01 GnAutoEna and set to
Off.
>•Several elements that are
to be selected
• Select 600# Direct Access >
Select Number.
[Button/Key] • Button on the inverter to
be selected or pressed
•Press [ENTER]
Abbreviation Designation Explanation
AC Alternating Current -
DC Direct Current -
LED Light-Emitting Diode -
QCG Quick Configuration Guide -

SMA Solar Technology AG 2 Safety
Operating Manual SI80H-BE-BEN120810 9
2Safety
2.1 Intended Use
Sunny Island
The Sunny Island is a bidirectional off-grid inverter and forms a stand-alone grid.

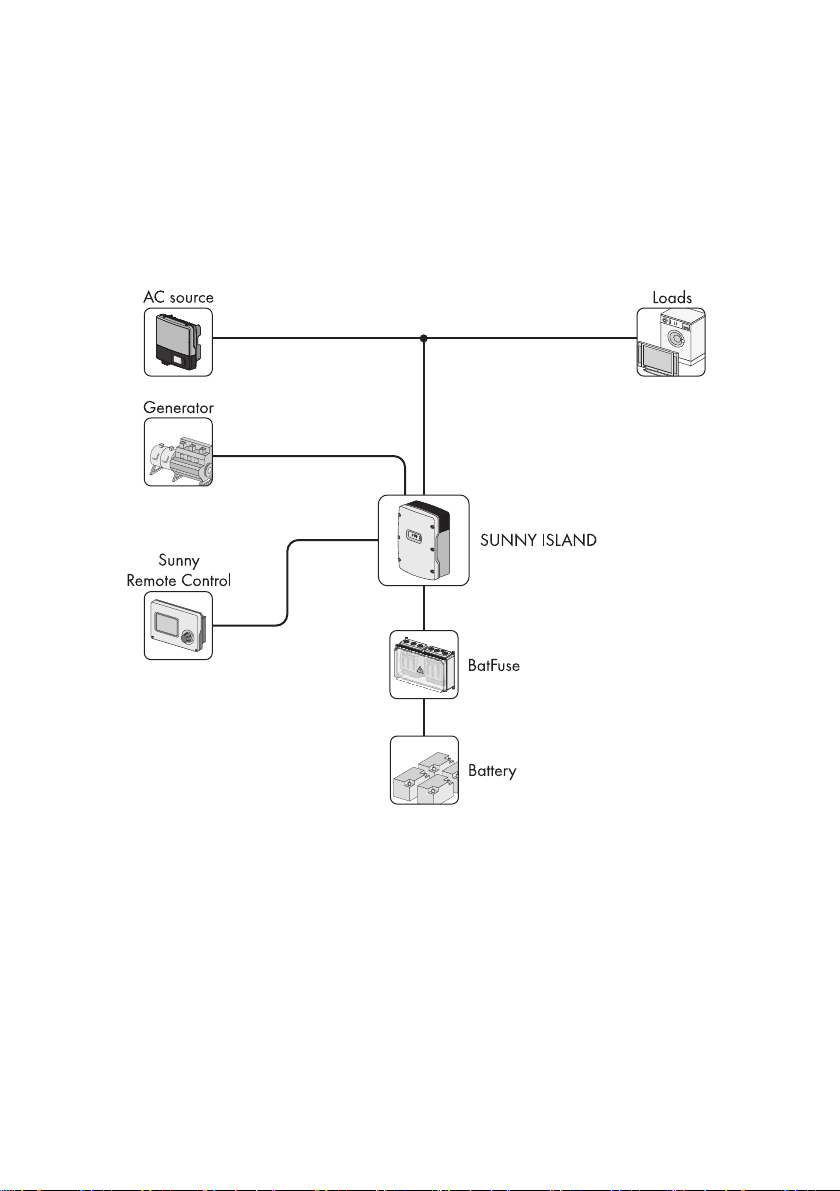

Figure1: Principle of an off-grid system with a Sunny Island and a Sunny Remote Control
Only use the Sunny Island in accordance with the information provided in the enclosed
documentation. Any other use may result in personal injury or property damage.
Life-threatening voltages occur in the Sunny Island.
• Never operate the Sunny Island without the enclosure lid in place.
• Only skilled persons may open the Sunny Island.
The Sunny Island uses batteries for energy storage. The rated voltage of the battery must correspond
to the DC input voltage. A fuse-switch-disconnector, e.g. a BatFuse must be installed between the
battery and the Sunny Island.

2 Safety SMA Solar Technology AG
10 SI80H-BE-BEN120810 Operating Manual
DC loads and DC sources can be integrated in the off-grid system. The Sunny Island is not suitable
for establishing a DC distribution network.
The Sunny Island is not suitable for supplying life-sustaining medical devices.
• Never use the Sunny Island in systems in which a power outage might result in personal injury.
The Sunny Island can control various components in an off-grid system via two multi-function relays,
e.g. a load-shedding contactor. The multi-function relays are not suitable for controlling components
which may place people at risk if the multi-function relays malfunction, e.g. if the battery chamber
ventilation is not sufficiently redundant.
The enclosed documentation is an integral part of this product.
• Read and adhere to the documentation.
• Keep the documentation in a convenient place at all times for future reference.
Sunny Remote Control
You can configure and control the off-grid system centrally with the Sunny Remote Control display.
The Sunny Remote Control is only suitable for indoor use.
2.2 Target Group Qualifications
Operators
Operators must be instructed in the following areas by skilled persons:
• Dangers involved in handling electrical equipment
• Operating an off-grid system
• Safe handling of batteries
• Safely switching off and disconnecting the off-grid system in case of an error
• How to prevent unintentional restarting of an off-grid system
• Maintaining and cleaning the off-grid inverter
• Knowledge of and adherence to this manual and all the specified safety precautions
Skilled Persons
Skilled persons must have the following qualifications:
• Training in off-grid systems from SMA Solar Technology AG
• Training in how to deal with the dangers and risks associated with installing and using electrical
devices and batteries
• Training in the installation and commissioning of electrical devices
• Knowledge and observance of the local standards and directives
• Knowledge of and adherence to this document and all safety precautions

SMA Solar Technology AG 2 Safety
Operating Manual SI80H-BE-BEN120810 11
2.3 Safety Precautions
Electric Shock
High voltages are present in the off-grid system and in the off-grid inverter. The off-grid inverter can
start automatically from standby mode. Work on electrical connections of the off-grid inverter must be
performed by a skilled person. Observe the following safety instructions before working on the
electrical connections:
• Turn off or disconnect the following components in the specified order:
– Off-grid inverter
– All loads, AC sources, external energy sources and DC sources
– Miniature circuit-breakers and switch-disconnectors for AC sources and the external energy
source in the sub-distributions
– BatFuse switch-disconnector
• Ensure that the device cannot be reconnected.
• Open the enclosure lid and ensure that no voltage is present.
• Earth and short-circuit the AC conductors.
• Cover or safeguard any adjacent live components.
Explosion
Explosive gases may escape from the battery.
• Do not allow open flames, embers, or sparks near the battery.
• Maintain and operate the battery according to the manufacturer's specifications.
• Do not throw batteries into fire.
Acid Burns and Poisoning
If handled inappropriately, electrolyte from the battery can burn the skin or eyes and/or be toxic.
• Protect the battery enclosure against destruction.
• Do not open or deform the battery.
• Whenever working on the battery, wear rubber gloves, rubber boots and goggles.
• Rinse acid splashes with clear water and consult a doctor.
• Maintain and operate the battery according to the manufacturer's specifications.
Crushing
Moving parts in the generator can crush or sever body parts. The generator can be started
automatically by the off-grid inverter.
• Only operate the generator with the safety equipment.
• Maintain and operate the generator according to the manufacturer's specifications.

2 Safety SMA Solar Technology AG
12 SI80H-BE-BEN120810 Operating Manual
Burn Hazards
Some parts of the off-grid inverter enclosure can become hot during operation.
• During operation, touch the off-grid inverter on the enclosure lid only.
Short-circuit currents in the battery can cause heat build-up and electric arcs. Observe the following
safety instructions before working on the battery.
• Remove watches, rings and other metal objects.
•Use insulated tools.
• Do not place tools or metal parts on the battery.

SMA Solar Technology AG 3 Product Description
Operating Manual SI80H-BE-BEN120810 13
3 Product Description
3.1 Sunny Island 8.0H / 6.0H
The Sunny Island is a bidirectional off-grid inverter and forms a stand-alone grid.
Figure2: Design of the Sunny Island 8.0H / 6.0H
The Sunny Island supplies AC loads in the stand-alone grid from a battery or charges the battery with
the energy provided by sources on the AC side. AC sources in the stand-alone grid (e.g. PV inverters)
supply loads and are used by the off-grid inverter to recharge the battery. In order to increase the
availability of the stand-alone grid and reduce the battery capacity, the Sunny Island can use and
control external energy sources (e.g. a generator) as an energy reserve.
The Sunny Island supplies the loads with active power and reactive power. The loads may temporarily
overload the Sunny Island. If there is a short circuit in the the stand-alone grid, the Sunny Island also
briefly feeds in short-circuit currents to the stand-alone grid. As a result, the Sunny Island may trip
miniature circuit-breakers. Miniature circuit-breakers only disconnect electric circuits that are affected
by the fault.
The off-grid system must be a TN or TT system. The Sunny Island does not support IT systems.
Position Designation
A Ventilation grid
BType label
CControl panel
DEnclosure lid

3 Product Description SMA Solar Technology AG
14 SI80H-BE-BEN120810 Operating Manual
3.2 Type Label
The type label identifies the off-grid inverter. The type label is located on the right-hand side of the
enclosure.
Figure3: Layout of the type label
The information on the type label is intended to help you use the inverter safely and receive better
customer support from the SMA Service Line. The type label must remain permanently attached to the
off-grid inverter.
Symbols on the Type Label
Position Designation Explanation
A Type Device type
B Serial No. Serial number of the off-grid inverter
C Device-specific characteristics ‒
Symbol Designation Explanation
Danger to life due to high
voltages
The off-grid inverter operates at high
voltages. All work on the off-grid inverter
must be carried out by skilled persons
(see Section 2.2).

SMA Solar Technology AG 3 Product Description
Operating Manual SI80H-BE-BEN120810 15
Risk of burns from hot surfaces The off-grid inverter can become hot during
operation. Avoid contact during operation.
Allow the off-grid inverter to cool down
sufficiently before carrying out any work.
Wear personal protective equipment such as
safety gloves.
Observe the documentation. Observe all documentation that is delivered
with the off-grid inverter.
DC Direct current
Transformer The off-grid inverter has a transformer.
AC Alternating current
IP54 The off-grid inverter is protected against dust
deposits in the interior and against splashes
of water from all angles.
Protection class I All enclosure parts are earthed.
Certified safety The off-grid inverter is VDE-tested
(Association for Electrical, Electronic and
Information Technologies) and complies with
the requirements of the German Equipment
and Product Safety Act.
CE marking The off-grid inverter complies with the
requirements of the applicable EC directives.
Australian mark of conformity The off-grid inverter complies with the
requirements of the applicable Australian
directives.
Proper disposal Do not dispose of the off-grid inverter
together with the household waste.
Symbol Designation Explanation
V
DE

3 Product Description SMA Solar Technology AG
16 SI80H-BE-BEN120810 Operating Manual
3.3 Off-Grid Inverter Control Panel
Figure4: Structure of the control panel
Position Symbol Designation Status Explanation
A Start-stop button
TSS
‒ Press the start-stop button to start or
stop the off-grid system. In display
messages on the Sunny Remote
Control, the start-stop button is
referred to as TSS.
B Activation button ‒ Pressing the activation button will
switch the off-grid inverter on. After
switching the off-grid inverter on, it will
enter the standby mode.
CDeactivation
button
‒ Pressing the deactivation button will
switch off the off-grid inverter.
D Inverter LED Off The off-grid inverter is switched off.
Glowing
green
The off-grid inverter is in operation.
Glowing
orange
The off-grid inverter is in standby
mode.
Glowing red The off-grid inverter has switched off
due to an error.
Flashing
quickly*
The off-grid inverter is not configured.
Flashing
slowly**
The off-grid inverter is in sleep mode.

SMA Solar Technology AG 3 Product Description
Operating Manual SI80H-BE-BEN120810 17
E Grid LED Off No voltage is present at the
connection of the external energy
source.
Glowing
green
External energy source is connected.
Glowing
orange
The off-grid inverter synchronises the
stand-alone grid to the external
energy source.
Glowing red Error at the external energy source
connection.
F Battery LED Glowing
green
The battery charge level is over 50%.
Glowing
orange
The battery charge level is between
50% and 20%.
Glowing red The battery charge level is below
20%.
G Standby ‒ Switching on and off
H AC operation ‒ Start and stop the inverter operation
* flashing at intervals of 0.5 s to 1 s
** flashing at intervals of 1.5 s to 2 s
Position Symbol Designation Status Explanation

3 Product Description SMA Solar Technology AG
18 SI80H-BE-BEN120810 Operating Manual
3.4 Sunny Remote Control
You can configure and control the off-grid system centrally with the Sunny Remote Control display.
Figure5: Design of the Sunny Remote Control
Position Designation Explanation
A Display Four-line display shows operating data (e.g. operating state
or display values) and events, warnings or errors of the
off-grid inverter.
The display's backlight is automatically deactivated after a
short time of inactivity.
B Button Pressing the button will turn on the backlight, confirm
parameters or switch the level within a menu. The return icon
" " in the display tells you when you can perform an action
by pressing the button.
Turning the button will switch on the backlight, change
parameters or navigate within a menu level.
CSlot for SD card‒

SMA Solar Technology AG 3 Product Description
Operating Manual SI80H-BE-BEN120810 19
3.5 Service Interface SD Card
The SD card in the Sunny Remote Control stores data for the plant control and facilitates service work.
The SD card is also used to update the firmware of the off-grid inverter. The following data is stored
on the SD card:
• Parameter settings
• At one-minute intervals, measurement data of the last 100 days from the areas:
–Battery
– Off-grid inverter
– External energy source
–Stand-alone grid
• Events and faults of the last 100 days
• Statistical values of the battery
SD cards can have storage capacities from 32 MB to 2 GB. The SD card must be formatted as
FAT-16.
3.6 Time-Controlled Operation
The off-grid inverter can be operated with timer control. The following setting options are available:
• Time-controlled inverter operation
In time-controlled inverter operation, the off-grid inverter starts and stops automatically at the
times set (see Section 5.6"Setting Time-Controlled Inverter Operation",page40).
• Time-controlled generator request
In time-controlled generator requests, the off-grid inverter requests the generator at the set
intervals (see the installation manual of the off-grid inverter).

4 Operating the Off-Grid Inverter with Sunny Remote Control SMA Solar Technology AG
20 SI80H-BE-BEN120810 Operating Manual
4 Operating the Off-Grid Inverter with
Sunny Remote Control
4.1 Display Modes
The Sunny Remote Control has four display modes. During operation, the Sunny Remote Control will
switch to standard mode if the button has not been used for over five minutes.
Mode Page contents
Standard mode
<home>
• Indicates operating states
• Displays energy flows
• Displays key parameters
User mode • Display of and access to key operating parameters
Installer mode • Display of and access to parameters for configuration and operation
The installer mode is password-protected.
Expert mode • Display of and access to all parameters for the system configuration set
in QCG
The parameters for unconfigured components are hidden, e.g. the parameters
for generators are hidden for off-grid systems without generators.
The parameters for Multicluster systems are only available in expert mode.
The expert mode can only be accessed via the installer mode.
