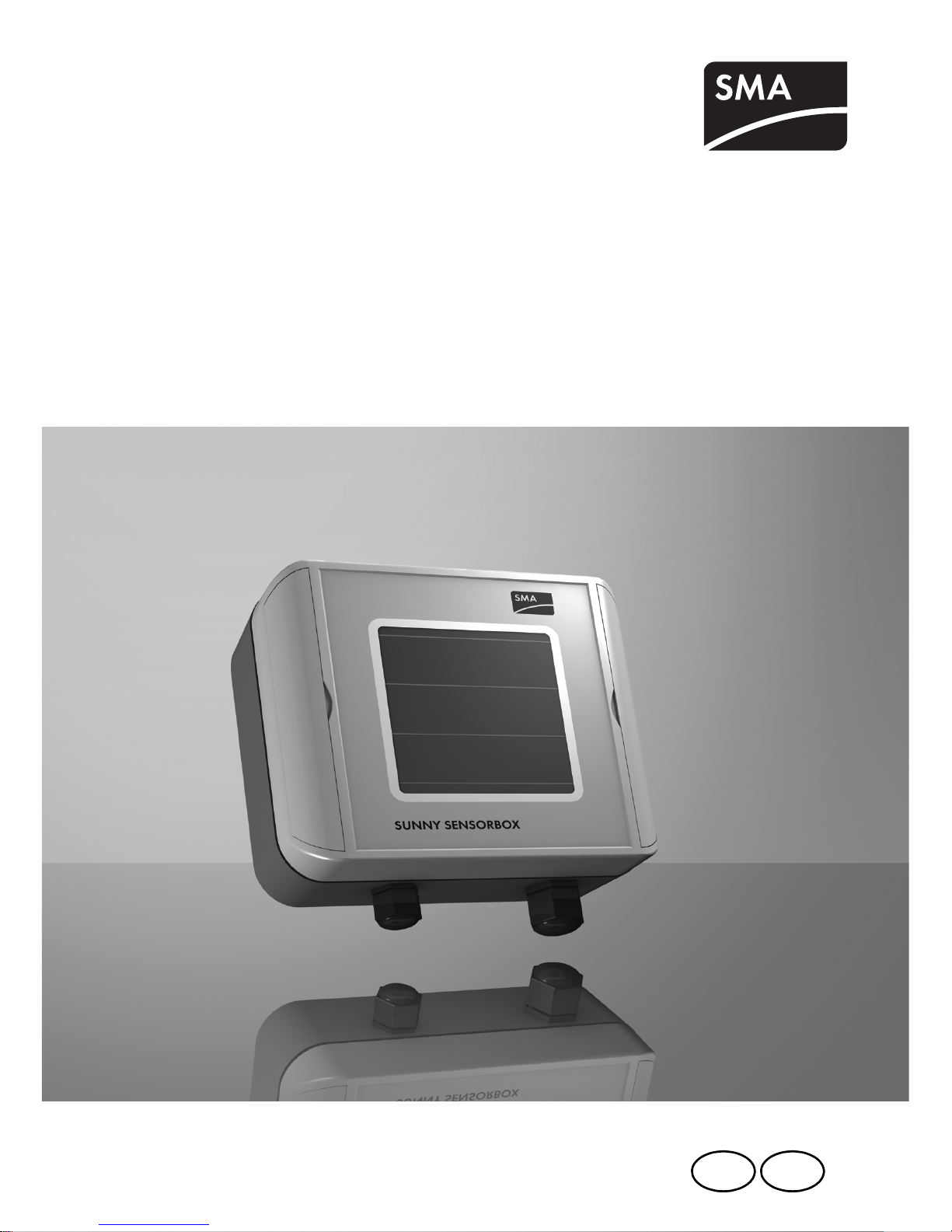

SMA SUNNY SENSORBOX User manual

Sensorbox-eng-IA-IUS-112515 | 98-0003915 | Version 1.5
CA
US
System Monitoring
SUNNY SENSORBOX
Installation Manual

SMA America, LLC Legal Restrictions
Installation Manual Sensorbox-eng-IA-IUS-112515 3
Copyright © 2011 SMA America,LLC. All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form
or by any means, electronic, mechanical, photographic, magnetic or otherwise, without the prior
written permission of SMA America,LLC.
Neither SMA America,LLC nor SMA Solar Technology Canada Inc. makes representations, express
or implied, with respect to this documentation or any of the equipment and/or software it may
describe, including (with no limitation) any implied warranties of utility, merchantability, or fitness for
any particular purpose. All such warranties are expressly disclaimed. Neither SMA America,LLC nor
its distributors or dealers nor SMA Solar Technology Canada Inc. nor its distributors or dealers shall
be liable for any indirect, incidental, or consequential damages under any circumstances.
The exclusion of implied warranties may not apply in all cases under some statutes, and thus the
above exclusion may not apply.)
Specifications are subject to change without notice. Every attempt has been made to make this
document complete, accurate and up-to-date. Readers are cautioned, however, that
SMAAmerica,LLC and SMA Solar Technology Canada Inc. reserve the right to make changes
without notice and shall not be responsible for any damages, including indirect, incidental or
consequential damages, caused by reliance on the material presented, including, but not limited to,
omissions, typographical errors, arithmetical errors or listing errors in the content material.
All trademarks are recognized even if these are not marked separately. Missing designations do not
mean that a product or brand is not a registered trademark.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and
any use of such marks by SMA America,LLC and SMA Solar Technology Canada Inc. is under
license.
SMA America, LLC
3801 N. Havana Street
Denver, CO 80239 U.S.A.
SMA Solar Technology Canada Inc.
2425 Matheson Blvd. E, 8th Floor
Mississauga, ON L4W 5K5, Canada

Important Safety Instructions SMA America, LLC
4 Sensorbox-eng-IA-IUS-112515 Installation Manual
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important instructions for Sunny SensorBox system monitoring unit, that must be
followed during installation and maintenance of the system monitoring unit.
The Sunny SensorBox is designed and tested according to international safety requirements, but as
with all electrical and electronic equipment, certain precautions must be observed when installing
and/or operating the Sunny SensorBox. To reduce the risk of personal injury and to ensure the safe
installation and operation of the Sunny SensorBox, you must carefully read and follow all instructions,
cautions and warnings in this installation guide.
Warnings in this document
A warning describes a hazard to equipment or personnel. It calls attention to a procedure or practice,
which, if not correctly performed or adhered to, could result in damage to or destruction of part or all
of the SMA equipment and/or other equipment connected to the SMA equipment or personal injury.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death or
serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in death or
serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
NOTICE
NOTICE is used to address practices not related to personal injury.

SMA America, LLC Important Safety Instructions
Installation Manual Sensorbox-eng-IA-IUS-112515 5
Other symbols in this document
In addition to the safety and hazard symbols described on the previous pages, the following symbol
is also used in this installation guide:
Information
This symbol accompanies notes that call attention to supplementary information that you
must know and use to ensure optimal operation of the system.

General Warnings SMA America, LLC
6 Sensorbox-eng-IA-IUS-112515 Installation Manual
General warnings
General warnings
All electrical installations must be done in accordance with the local and
NationalElectrical Code® ANSI/NFPA 70 or the Canadian Electrical Code®
CSAC22.1. This document does not and is not intended to replace any local, state,
provincial, federal or national laws, regulation or codes applicable to the installation and
use of the system monitoring unit, including without limitation applicable electrical safety
codes. All installations must conform with the laws, regulations, codes and standards
applicable in the jurisdiction of installation. SMA assumes no responsibility for the
compliance or noncompliance with such laws or codes in connection with the installation
of the system monitoring unit.
Before installing or using the Sunny SensorBox, read all of the instructions, cautions, and
warnings on the Sunny SensorBox in this installation guide.
Wiring of the Sunny SensorBox must be made by qualified personnel only.

SMA America, LLC Table of Contents
Installation Manual Sensorbox-eng-IA-IUS-112515 7
Table of Contents
1 Notes on this manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.1 Validity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.2 Target group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.3 Storage of the manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.4 Additional information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.5 Nomenclature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.1 Appropriate usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.2 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3 The Sunny SensorBox . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4 Unpacking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.2 Identifying the product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.2.1 Type label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.2.2 Firmware version. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5 Device overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.1 Device overview of the Sunny SensorBox. . . . . . . . . . . . . . . . . 19
5.2 Device overview of the RS485 Power Injector . . . . . . . . . . . . . 20
5.3 Device overview of the SMA Power Injector with Bluetooth . . 21
5.3.1 LED for the power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.3.2 LEDs indicating connection quality (Bluetooth LEDs). . . . . . . . . . . . . . . . . . . 22
5.3.3 LED for data communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6 Mounting the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.1 Sunny SensorBox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.1.1 Requirements for the mounting location . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.1.2 Mounting the Sunny SensorBox on a mounting rail . . . . . . . . . . . . . . . . . . . 26

Table of Contents SMA America, LLC
8 Sensorbox-eng-IA-IUS-112515 Installation Manual
6.1.3 Mounting the Sunny SensorBox on rafters . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6.2 Mounting the temperature sensor on the PV module . . . . . . . . 30
6.3 RS485 Power Injector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.3.1 Requirements for the mounting location . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.3.2 Mounting the RS485 Power Injector on a wall. . . . . . . . . . . . . . . . . . . . . . . 32
6.4 SMA Power Injector with Bluetooth. . . . . . . . . . . . . . . . . . . . . 34
6.4.1 Requirements for the mounting location . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
6.4.2 Information on SMA Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
6.4.3 Determining the mounting/installation location. . . . . . . . . . . . . . . . . . . . . . . 36
6.4.4 Mounting the SMA Power Injector with Bluetooth on a wall . . . . . . . . . . . . 38
6.4.5 Mounting the SMA Power Injector with Bluetooth on a top hat rail . . . . . . . 39
7 Startup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
7.1 Information on starting up the device . . . . . . . . . . . . . . . . . . . . 41
7.2 Connecting the module temperature sensor . . . . . . . . . . . . . . . 41
7.3 Connecting the anemometer. . . . . . . . . . . . . . . . . . . . . . . . . . . 43
7.4 Connecting the ambient temperature sensor . . . . . . . . . . . . . . 44
7.5 Startup via the RS485-Power Injector . . . . . . . . . . . . . . . . . . . . 45
7.5.1 Information on starting up the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
7.5.2 Connecting the RS485-Power Injector to a RS485 bus node. . . . . . . . . . . . 46
7.5.3 Connecting the RS485 Power Injector to the Sunny SensorBox . . . . . . . . . . 48
7.5.4 Connecting the Sunny SensorBox to another Sunny SensorBox. . . . . . . . . . 51
7.5.5 Connecting the Sunny SensorBox to an additional RS485 bus node. . . . . . 55
7.5.6 Connecting the RS485 Power Injector to the power supply . . . . . . . . . . . . . 57
7.6 Startup via the SMA Power Injector with Bluetooth. . . . . . . . . 58
7.6.1 Information on starting up the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
7.6.2 Grounding the Sunny SensorBox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
7.6.3 Connecting the Sunny SensorBox to the SMA Power Injector with
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
7.6.4 Connecting the SMA Power Injector with Bluetooth to the power supply. . . 63

SMA America, LLC Table of Contents
Installation Manual Sensorbox-eng-IA-IUS-112515 9
8 Opening and closing the Sunny SensorBox . . . . . . . . . . 66
8.1 Opening the Sunny SensorBox. . . . . . . . . . . . . . . . . . . . . . . . . 66
8.2 Closing the Sunny SensorBox . . . . . . . . . . . . . . . . . . . . . . . . . . 66
9 Maintenance and care. . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
9.1 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
9.2 Terminating the RS485 bus on the Sunny SensorBox. . . . . . . . 67
9.3 Connecting the integrated solar radiation sensor . . . . . . . . . . . 68
9.4 Replacing the gaskets of the Sunny SensorBox . . . . . . . . . . . . 68
9.5 Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
10 Decommissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
10.1 Dismantling the Sunny SensorBox. . . . . . . . . . . . . . . . . . . . . . . 71
10.2 Dismantling the RS485 Power Injector . . . . . . . . . . . . . . . . . . . 71
10.3 Dismantling the SMA Power Injector with Bluetooth . . . . . . . . 72
10.4 Dismantling the sensors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
10.5 Packaging the Sunny SensorBox and sensors . . . . . . . . . . . . . 73
10.6 Disposing of the Sunny SensorBox and sensors . . . . . . . . . . . . 73
11 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
11.1 Sunny SensorBox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
11.2 RS485 Power Injector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
11.3 SMA Power Injector with Bluetooth. . . . . . . . . . . . . . . . . . . . . 76
12 Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
12.1 RS485 Power Injector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
12.1.1 Display values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
12.1.2 Configurable parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
12.2 SMA Power Injector with Bluetooth. . . . . . . . . . . . . . . . . . . . . 79
12.2.1 Display values* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
12.2.2 Configurable parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Table of Contents SMA America, LLC
10 Sensorbox-eng-IA-IUS-112515 Installation Manual
13 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
13.1 Sunny SensorBox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
13.2 RS485 Power Injector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
13.3 SMA Power Injector with Bluetooth. . . . . . . . . . . . . . . . . . . . . 82
13.4 Plug-in Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
14 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
14.1 Mounting plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
14.2 Roof bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
14.3 Gasket set for Sunny SensorBox. . . . . . . . . . . . . . . . . . . . . . . . 85
14.4 RS485 Power Injector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
14.5 SMA Power Injector with Bluetooth. . . . . . . . . . . . . . . . . . . . . 86
14.6 Anemometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
15 Compliance information . . . . . . . . . . . . . . . . . . . . . . . . . . 87
16 Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

SMA America, LLC Notes on this manual
Installation Manual Sensorbox-eng-IA-IUS-112515 11
1 Notes on this manual
1.1 Validity
This manual describes the assembly, installation, commissioning and maintenance of the
SunnySensorBox with firmware version 1.51 or higher and hardware version C1 or higher.
This manual does not cover any details concerning equipment connected to the inverter. Information
concerning the connected equipment is available from the manufacturer of the equipment.
1.2 Target group
This manual is for qualified personnel. Qualified personnel have received training and have
demonstrated skills and knowledge in the construction and operation of this device. Qualified
personnel are trained to deal with the dangers and hazards involved in installing electric devices.
1.3 Storage of the manual
Keep this manual in a convenient place for future reference.
1.4 Additional information
Further information about SMA Bluetooth Wireless Technology can be found in the download section
at www.SMA-America.com.
1.5 Nomenclature
In this document SMA America Production, LLC and SMA Solar Technology Canada Inc. is referred
to in the following as SMA.
In this document SMA Bluetooth® Wireless Technology is referred to in the following as SMA
Bluetooth Wireless Technology.

Safety SMA America, LLC
12 Sensorbox-eng-IA-IUS-112515 Installation Manual
2 Safety
2.1 Appropriate usage
Sunny SensorBox
The Sunny SensorBox is a device designed to provide sensor data for SMA communication products
via the RS485 Power Injector or the SMA Power Injector with Bluetooth.
The Sunny SensorBox must only be used for the purposes described in this manual. This also applies
to individual components such as the RS485 Power Injector or SMA Power Injector with Bluetooth.
The device is suitable for both private and industrial use. The Sunny SensorBox must only be used in
areas defined in the technical specifications.
Only use the original accessories of SMA or accessories recommended by SMA.
Be sure to carefully read the entire manual before starting up the Sunny SensorBox. Store this manual
where it can be accessed at all times.
RS485 Power Injector
The RS485 Power Injector is used to integrate the Sunny SensorBox into the RS485 communication
bus. The RS485 Power Injector also supplies the Sunny SensorBox with power. A single RS485 Power
Injector can power up to five Sunny SensorBoxes.
Up to 50 bus nodes, including the Sunny SensorBox, can be added to an RS485 communication bus.
The RS485 Power Injector supports the following communication products:
•Sunny WebBox
• Sunny Boy Control/Plus with Sunny SensorBox hardware version B2 or higher
•Sunny Data Control
The RS485 Power Injector is intended for indoor installation. All electrical connections are to be
carried out by qualified personnel exclusively.
SMA Power Injector with Bluetooth
The SMA Power Injector with Bluetooth is used to integrate the Sunny SensorBox into an SMA
Bluetooth network. The Sunny SensorBox supplies measurement data and various parameters to the
SMA Power Injector with Bluetooth. The device then sends the data to the SMA communication
products over the SMA Bluetooth network. The SMA Power Injector with Bluetooth can be used to
bridge gaps in the SMA Bluetooth network, which can also be done using the SMA Bluetooth
Repeater. The SMA Power Injector with Bluetooth also supplies the Sunny SensorBox with power. You
can only operate one Sunny SensorBox with the SMA Power Injector with Bluetooth.
However, you can add multiple SMA Power Injectors with Bluetooth to an SMA Bluetooth network
and have each one connected to a separate Sunny SensorBox. An SMA Bluetooth network can
accommodate the following number of nodes:

SMA America, LLC Safety
Installation Manual Sensorbox-eng-IA-IUS-112515 13
• If one master* device is used, then you can connect up to 50 devices, including one or more
Sunny SensorBoxes.
• If two master devices are used, you can connect up to 25 devices, including one or more Sunny
Sensor Boxes.
The SMA Power Injector with Bluetooth supports the following communication products:
•Sunny WebBox with Bluetooth Wireless Technology.
•A Bluetooth-enabled computer and the Sunny Explorer software program, version 1.1.11 or
higher.
•All the SMA Bluetooth products described in manuals for communication products are
supported to ensure SMA Bluetooth wireless connectivity.
• The Sunny Beam with Bluetooth is not supported.
The SMA Power Injector with Bluetooth is intended for indoor installation. All electrical connections
must be carried out by qualified personnel.
*Master is a term used in network technology. In a network, a master is a device that prompts other devices (slaves) to perform a
specific task such as receiving or sending data. In an SMA Bluetooth network, all SMA communication products (e.g., Sunny Ex-
plorer, Sunny Beam with Bluetooth, etc.) are master devices.

Safety SMA America, LLC
14 Sensorbox-eng-IA-IUS-112515 Installation Manual
2.2 Safety precautions
DANGER
High voltages are present in the Sunny Boy during operation.
Death or serious injury due to electric shock.
• All work on the Sunny Boy must only be carried out by qualified personnel.
DANGER
Falling from high altitude when mounting and installing the Sunny SensorBox.
Death or serious injury will result.
• All work on rooftops must only be carried out by qualified personnel.
CAUTION
Overvoltage in case of lightning strike.
Fire and damage to connected devices will result.
• Integrate the Sunny SensorBox into the lightning protection system, if existing.
NOTICE
Electrostatic discharges.
Internal components of the device can be damaged irreparably by electrostatic discharge.
• Ground yourself before working on the device.
• Avoid touching any connectors or plug contacts.
NOTICE
Ingress of water into the open Sunny SensorBox.
Damage to the Sunny SensorBox will result.
• Before working on the device unplug the plug-in power supply unit.
• When working outdoors, avoid water, rain or snow to enter the Sunny SensorBox.

SMA America, LLC The Sunny SensorBox
Installation Manual Sensorbox-eng-IA-IUS-112515 15
3 The Sunny SensorBox
With the Sunny SensorBox and the external sensors, you can collect environmental data from your
PV system which is then used for performance monitoring.
To this end, the Sunny SensorBox comes with an integrated solar radiation sensor and an external
module temperature sensor. You also have the option of connecting an ambient temperature sensor
and an anemometer to the Sunny SensorBox.
You can compare radiation levels and PV power based on the radiation intensity (W/m2) measured
by the integrated solar radiation sensor and the total amount of recorded power the PV system
generates in a single day. If this data is observed over a longer period, then this solution offers a
practical method of identifying any errors in your PV system. Sunny Portal (www.sunnyportal.com) or
Flashview can be used to visualize the data collected by the Sunny SensorBox.

Unpacking SMA America, LLC
16 Sensorbox-eng-IA-IUS-112515 Installation Manual
4 Unpacking
4.1 Scope of delivery
Check the delivery for completeness and signs of damage. Please contact your dealer if the delivery
is not complete or you find any damage.
RS485 Power Injector
Only with Sunny SensorBox order option: SUNNYSENSOR-1xxx
Position Quantity Designation
A 1 Sunny SensorBox with integrated solar radiation sensor
B2 Insulating tubes
C1 Terminal
D 1 PT100 module temperature sensor with 8ft. (2.5m) connection cable
E 1 Thermally conductive adhesive (protective gloves, hardener and binder)
F2Adhesive strips
G 1 Installation guide
H 1 RS485 cabling plan poster
Position Quantity Designation
A 1 RS485 Power Injector
B 1 Shield clamp
C2 Screws
D2 Wall anchors
E1 Wall mounting bracket
F 2 4-pole plugs
G 1 Plug-in power supply with plug adapter
H 2 Conductive adhesive films

SMA America, LLC Unpacking
Installation Manual Sensorbox-eng-IA-IUS-112515 17
SMA Power Injector with Bluetooth
Only with Sunny SensorBox order option: SUNNYSENSOR-2xxx, SUNNYSENSOR-3xxx
Module frame mounting plate
Only with Sunny SensorBox order option: SUNNYSENSOR-x1xx
Position Quantity Designation
A 1 SMA Power Injector with Bluetooth
B 1 Bracket for wall or top hat rail*
*Can be found on the back of the SMA Power Injector with Bluetooth on delivery.
C1 Screw
D1 Wall anchor
E 1 Plug (1 x 2 poles, 1 x 4 poles)
F 1 Power module for supplying power (scope of delivery listed in power module
installation guide) - only with order option SUNNYSENSOR-3xxx
G 1 Plug-in power supply with plug adapter - only with order option
SUNNYSENSOR-2xxx
H1 Grounding cable
Position Quantity Designation
A 1 Mounting plate
B5 Hexagonal screws
*
*Pre-mounted on delivery.
C1 Contact washer
*
D2 Washers
*
E1Locking washer
*

Unpacking SMA America, LLC
18 Sensorbox-eng-IA-IUS-112515 Installation Manual
4.2 Identifying the product
4.2.1 Type label
Sunny SensorBox
You can identify the Sunny SensorBox by the type label.
The type label can be found on the bottom of the device.
RS485 Power Injector
You can identify the RS485 Power Injector by the type
label. The type label can be found on the bottom of the
device.
SMA Power Injector with Bluetooth
You can identify the SMA Power Injector with Bluetooth by
the type label. The type label can be found on the right side
of the device.
4.2.2 Firmware version
The firmware version of the Sunny SensorBox is displayed by the communication product (e.g., the
Sunny WebBox or Sunny Explorer) as follows:
• Via the ”FwVer” display option for the RS485 Power Injector. To enable this option, select the
”Parameters” tab from the ”Devices” navigation bar.
• Via the ”Settings” device menu for the SMA Power Injector with Bluetooth. To enable this option,
select the ”Type label > Central components” subgroup in the ”Device components” parameter
group.

SMA America, LLC Device overview
Installation Manual Sensorbox-eng-IA-IUS-112515 19
5 Device overview
5.1 Device overview of the Sunny SensorBox
Position Designation
A cable opening for the sensors
B cable opening for connecting the RS485 Power Injector or SMA Power Injector with
Bluetooth
C integrated solar radiation sensor
D cable opening for grounding the Sunny SensorBox
Position Designation Meaning
A ”F5: IntSol” connection terminal for the integrated solar radiation sensor
BLED of the Sunny
SensorBox
LED for the status display of the Sunny SensorBox
C”F3: Wind” connection terminal for the anemometer
D”RS485
F2: OUT”
connection terminal for additional RS485 bus nodes
E”RS485 F1: IN” connection terminal for the RS485 Power Injector or SMA Power
Injector with Bluetooth

Device overview SMA America, LLC
20 Sensorbox-eng-IA-IUS-112515 Installation Manual
LED of the Sunny SensorBox
5.2 Device overview of the RS485 Power Injector
F”F7: TmpMdul” connection terminal for the module temperature sensor
G”F6: TmpAmb” connection terminal for the ambient temperature sensor
Status Meaning
Off • The Sunny SensorBox does not have power.
• during startup, the LED is switched off for 10 seconds
• during a reset, the LED is switched off for 60 seconds
Glows continuously Sunny SensorBox is connected to the power supply and ready
for operation.
Flashes 2 times quickly Sunny SensorBox is connected to the power supply and
receiving data over the RS485 communication channel.
Flashes every second firmware malfunction (see section11”Troubleshooting”
(page74)).
Position Designation Meaning
A”Power” connection for the plug-in power supply
B”Power” LED LED for the Power Supply
C”Activity” LED LED for data traffic
D”RS485 IN” connection for the RS485 communication bus
E”RS485 + Power OUT” connection for the Sunny SensorBox
Position Designation Meaning
