1 Information on this Document
1.1 Validity
This document is valid for:
• SB3.0-1AV-40 (Sunny Boy 3.0)
• SB3.6-1AV-40 (Sunny Boy 3.6)
• SB4.0-1AV-40 (Sunny Boy 4.0)
• SB5.0-1AV-40 (Sunny Boy 5.0)
1.2 Target Group
The tasks described in this document must only be performed by qualified persons. Qualified
persons must have the following skills:
• Knowledge of how an inverter works and is operated
• Training in how to deal with the dangers and risks associated with installing, repairing and
using electrical devices and installations
ENGLISH

1 Information on this Document SMA Solar Technology AG
Quick Reference GuideSBxx-1AV-40-IS-xx-154
• Training in the installation and commissioning of electrical devices and installations
• Knowledge of all applicable laws, standards and directives
• Knowledge of and compliance with this document and all safety information
1.3 Content and Structure of this Document
This document contains safety information as well as graphical instructions on installing and
commissioning (see page 155). Observe all information and carry out the actions illustrated
graphically in this document in the specified order.
The latest version of this document and the comprehensive manual for installation, commissioning,
configuration and decommissioning are to be found in PDF format at www.SMA-Solar.com.
Illustrations in this document are reduced to the essential information and may deviate from the real
product.
1.4 Levels of warning messages
The following levels of warning messages may occur when handling the product.
DANGER
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE
Indicates a situation which, if not avoided, can result in property damage.
1.5 Symbols in the Document
Symbol Explanation
Information that is important for a specific topic or goal, but is not safety-rele-
vant
Example
☐
Indicates a requirement for meeting a specific goal
☑
Desired result
ENGLISH

2 Safety
SMA Solar Technology AG
Quick Reference Guide SBxx-1AV-40-IS-xx-15 5
Symbol Explanation
✖
A problem that might occur
Section in which the installation and commissioning process is illustrated
graphically.
2 Safety
2.1 Intended Use
The SunnyBoy is a transformerless PV inverter with two MPP trackers which converts the direct
current of the PV array to grid-compliant alternating current and feeds it into the utility grid.
The product is suitable for indoor and outdoor use.
The product must only be operated with PV arrays of protection class II in accordance with
IEC61730, application class A. The PV modules must be compatible with this product.
The product is not equipped with a transformer and therefore has no galvanic isolation. The
product must not be operated with PV modules whose outputs are grounded. This can cause the
product to be destroyed. The product may be operated with PV modules whose frame is grounded.
PV modules with a high capacity to ground must only be used if their coupling capacity does not
exceed 1.4μF (for information on how to calculate the coupling capacity, see the Technical
Information "Leading Leakage Currents" at www.SMA-Solar.com).
All components must remain within their permitted operating ranges and their installation
requirements at all times.
The product must only be used in countries for which it is approved or released by SMA Solar
Technology AG and the grid operator.
Use this product only in accordance with the information provided in the enclosed documentation
and with the locally applicable standards and directives. Any other application may cause
personal injury or property damage.
Alterations to the product, e.g. changes or modifications, are only permitted with the express written
permission of SMA Solar Technology AG. Unauthorized alterations will void guarantee and
warranty claims and in most cases terminate the operating license. SMA Solar Technology AG
shall not be held liable for any damage caused by such changes.
Any use of the product other than that described in the Intended Use section does not qualify as the
intended use.
The enclosed documentation is an integral part of this product. Keep the documentation in a
convenient place for future reference and observe all instructions contained therein.
The type label must remain permanently attached to the product.
2.2 Safety Information
This section contains safety information that must be observed at all times when working on or with
the product.
ENGLISH

2 Safety SMA Solar Technology AG
Quick Reference GuideSBxx-1AV-40-IS-xx-156
To prevent personal injury and property damage and to ensure long-term operation of the product,
read this section carefully and observe all safety information at all times.
DANGER
Danger to life due to high voltages of the PV array
When exposed to light, the PV array generates dangerous DC voltage, which is present in the
DC conductors and the live components of the inverter. Touching the DC conductors or the live
components can lead to lethal electric shocks. If you disconnect the DC connectors from the
inverter under load, an electric arc may occur leading to electric shock and burns.
• Do not touch non-insulated cable ends.
• Do not touch the DC conductors.
• Do not touch any live components of the inverter.
• Have the inverter mounted, installed and commissioned only by qualified persons with the
appropriate skills.
• If an error occurs, have it rectified by qualified persons only.
• Prior to performing any work on the inverter, disconnect it from all voltage sources as
described in this document.
DANGER
Danger to life due to high voltages in the inverter
Touching live components within the inverter can lead to lethal electric shocks. Some components
also require at least five minutes to discharge after the inverter has been disconnected from
voltage sources.
• Do not open the inverter.
DANGER
Danger to life due to electric shock from touching an ungrounded PV module
or array frame
Touching ungrounded PV modules or array frames results in death or lethal injuries due to electric
shock.
• Connect and ground the frame of the PV modules, the array frame and the electrically
conductive surfaces so that there is continuous conduction. Observe the applicable local
regulations.
ENGLISH

3 Symbols on the Product
SMA Solar Technology AG
Quick Reference Guide SBxx-1AV-40-IS-xx-15 7
DANGER
Danger to life due to electric shock in case of a ground fault
If a ground fault occurs, parts of the system may still be live. Touching live parts and cables
results in death or lethal injuries due to electric shock.
• Disconnect the product from voltage sources and make sure it cannot be reconnected
before working on the device.
• Touch the cables of the PV array on the insulation only.
• Do not touch any parts of the substructure or frame of the PV array.
• Do not connect PV strings with ground faults to the inverter.
CAUTION
Risk of burns due to hot enclosure parts
Some parts of the enclosure can get hot during operation.
• During operation, do not touch any parts other than the enclosure lid of the inverter.
NOTICE
Damage due to cleaning agents
The use of cleaning agents may cause damage to the product and its components.
• Clean the product and all its components only with a cloth moistened with clear water.

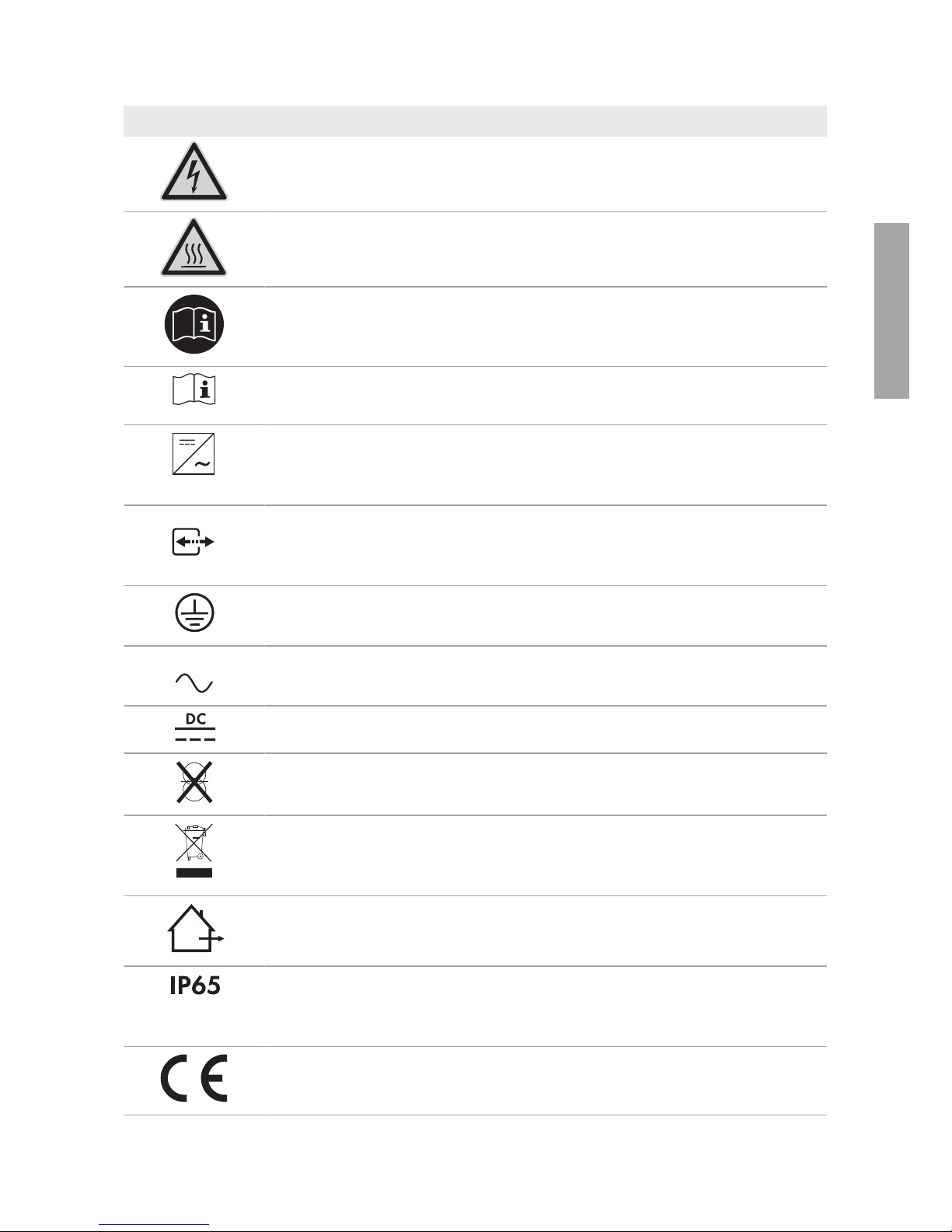

3 Symbols on the Product
Symbol Explanation
Danger
This symbol indicates that the product must be additionally grounded if addi-
tional grounding or equipotential bonding is required at the installation site.
Beware of electrical voltage
The product operates at high voltages.
Beware of hot surface
The product can get hot during operation.
Observe the documentation
Observe all documentation supplied with the product.
Observe the documentation
Together with the red LED, this symbol indicates an error.
ENGLISH

3 Symbols on the Product SMA Solar Technology AG
Quick Reference GuideSBxx-1AV-40-IS-xx-158
Symbol Explanation
Inverter
Together with the green LED, this symbol indicates the operating state of the in-
verter.
Data transmission
Together with the blue LED, this symbol indicates the status of the network con-
nection.
Grounding conductor
This symbol indicates the position for connecting a grounding conductor.
AC
Alternating current
Direct current
The product is has no galvanic isolation.
WEEE designation
Do not dispose of the product together with the household waste but in accor-
dance with the disposal regulations for electronic waste applicable at the in-
stallation site.
The product is suitable for outdoor installation.
Degree of protectionIP65
The product is protected against the penetration of dust and water that is di-
rected as a jet against the enclosure from all directions.
CE marking
The product complies with the requirements of the applicable EU directives.
RCM (Regulatory Compliance Mark)
The product complies with the requirements of the applicable Australian stan-
dards.
ENGLISH

4 EU Declaration of Conformity
SMA Solar Technology AG
Quick Reference Guide SBxx-1AV-40-IS-xx-15 9
Symbol Explanation
TA-2017/2458
APPROVED
ICASA
The product complies with the requirements of the South African standards for
telecommunication.
03931-16-03337
ANATEL
The product complies with the requirements of the Brazilian standards for
telecommunication.
Este equipamento opera em caráter secundário, isto é, não tem direito a pro-
teção contra interferência prejudicial, mesmo de estações do mesmo tipo, e
não pode causar interferência a sistemas operando em caráter primário.
4 EU Declaration of Conformity
within the scope of the EU directives
• Electromagnetic compatibility 2014/30/EU (29.3.2014 L 96/79-106)
(EMC)
• Low Voltage Directive 2014/35/EU (29.3.2014 L 96/357-374) (LVD)
• Radio Equipment Directive 2014/53/EU (22.5.2014 L 153/62) (RED)
SMA Solar Technology AG confirms herewith that the products described in this document are in
compliance with the fundamental requirements and other relevant provisions of the above-
mentioned directives. The entire EU Declaration of Conformity can be found at www.SMA-
Solar.com.
ENGLISH

Rechtliche Bestimmungen SMA Solar Technology AG
SchnelleinstiegSBxx-1AV-40-IS-xx-1510
Rechtliche Bestimmungen
Die in diesen Unterlagen enthaltenen Informationen sind Eigentum der SMA Solar Technology AG.
Die Veröffentlichung, ganz oder in Teilen, bedarf der schriftlichen Zustimmung der SMA Solar
Technology AG. Eine innerbetriebliche Vervielfältigung, die zur Evaluierung des Produktes oder
zum sachgemäßen Einsatz bestimmt ist, ist erlaubt und nicht genehmigungspflichtig.
SMA Garantie
Die aktuellen Garantiebedingungen können Sie im Internet unter www.SMA-Solar.com
herunterladen.
Software-Lizenzen
Die Lizenzen für die eingesetzten Software-Module können Sie auf der Benutzeroberfläche des
Produkts aufrufen.
Warenzeichen
Alle Warenzeichen werden anerkannt, auch wenn diese nicht gesondert gekennzeichnet sind.
Fehlende Kennzeichnung bedeutet nicht, eine Ware oder ein Zeichen seien frei.
SMA Solar Technology AG
Sonnenallee 1
34266 Niestetal
Deutschland
Tel. [phone]
Fax [phone]
www.SMA.de
E-Mail: [email protected]
Stand: 25.05.2018
Copyright © 2018 SMA Solar Technology AG. Alle Rechte vorbehalten.
1 Hinweise zu diesem Dokument
1.1 Gültigkeitsbereich
Dieses Dokument gilt für:
• SB3.0-1AV-40 (Sunny Boy 3.0)
• SB3.6-1AV-40 (Sunny Boy 3.6)
• SB4.0-1AV-40 (Sunny Boy 4.0)
• SB5.0-1AV-40 (Sunny Boy 5.0)
1.2 Zielgruppe
Die in diesem Dokument beschriebenen Tätigkeiten dürfen nur Fachkräfte durchführen. Fachkräfte
müssen über folgende Qualifikation verfügen:
• Kenntnis über Funktionsweise und Betrieb eines Wechselrichters
DEUTSCH
