SMA SUNNY TRIPOWER 12000TL-US User manual

STPTL-US-10-IA-xx-20 | 98-109400.04 | Version 2.0
SUNNY TRIPOWER 12000TL-US /
15000TL-US / 20000TL-US / 24000TL-US /
30000TL-US

STPTL-US-10-IA-xx-202
ENGLISH Installation Manual...................................................................3
ESPAÑOL Instrucciones de instalación ...................................................81
FRANÇAIS Instructions d’installation..................................................... 160

Legal Provisions
SMA Solar Technology America LLC
Installation Manual STPTL-US-10-IA-xx-20 3
Legal Provisions
No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any
form or by any means, be it electronic, mechanical, photographic, magnetic or otherwise, without
the prior written permission of SMA Solar Technology America LLC.
Neither SMA Solar Technology America LLC nor SMA Solar Technology Canada Inc. makes
representations, express or implied, with respect to this documentation or any of the equipment
and/or software it may describe, including (with no limitation) any implied warranties of utility,
merchantability, or fitness for any particular purpose. All such representations or warranties are
expressly disclaimed. Neither SMA Solar Technology AmericaLLC nor its distributors or dealers nor
SMA Solar Technology Canada Inc. nor its distributors or dealers shall be liable for any indirect,
incidental, or consequential damages under any circumstances.
The exclusion of implied warranties may not apply in all cases under some statutes, and thus the
above exclusion may not apply.
Specifications are subject to change without notice. Every attempt has been made to make this
document complete, accurate and up-to-date. Readers are cautioned, however, that product
improvements and field usage experience may cause SMA Solar Technology America LLC and/or
SMA Solar Technology Canada Inc. to make changes to these specifications without advance
notice, or per contract provisions in those cases where a supply agreement requires advance
notice. SMA shall not be responsible for any damages, including indirect, incidental or
consequential damages, caused by reliance on the material presented, including, but not limited to,
omissions, typographical errors, arithmetical errors or listing errors in the content material.
Trademarks
All trademarks are recognized, even if not explicitly identified as such. Missing designations do not
mean that a product or brand is not a registered trademark.
Modbus® is a registered trademark of Schneider Electric and is licensed by the
ModbusOrganization,Inc.
QRCode is a registered trademark of DENSOWAVEINCORPORATED.
Phillips® and Pozidriv® are registered trademarks of PhillipsScrewCompany.
Torx® is a registered trademark of AcumentGlobalTechnologies,Inc.
SMASolar TechnologyAmerica LLC
6020 West Oaks Blvd.
Suite 300 Rocklin, CA 95765 U.S.A.
SMA Solar Technology Canada Inc.
2425 Matheson Blvd. E
7th Floor
Mississauga, ON L4W 5K4
Canada
Status: 7/20/2017
Copyright©2017SMA Solar Technology America LLC. All rights reserved.
ENGLISH

Important Safety Instructions SMA Solar Technology America LLC
Installation ManualSTPTL-US-10-IA-xx-204
Important Safety Instructions
SAVE THESE INSTRUCTIONS
This manual contains important instructions for the following products:
• STP 12000TL-US-10 (Sunny Tripower 12000TL-US)
• STP 15000TL-US-10 (Sunny Tripower 15000TL-US)
• STP 20000TL-US-10 (Sunny Tripower 20000TL-US)
• STP 24000TL-US-10 (Sunny Tripower 24000TL-US)
• STP 30000TL-US-10 (Sunny Tripower 30000TL-US)
This manual must be followed when using this product.
The product is designed and tested in accordance with international safety requirements, but as
with all electrical and electronic equipment, certain precautions must be observed when installing
and/or operating the product. To reduce the risk of personal injury and to ensure the safe
installation and operation of the product, you must carefully read and follow all instructions,
cautions and warnings in this manual.
Warnings in this Document
A warning describes a hazard to equipment or personnel. It calls attention to a procedure or
practice, which, if not correctly performed or adhered to, could result in damage to or destruction
of part or all of the SMA equipment and/or other equipment connected to the SMA equipment or
personal injury.
Symbol Description
DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE is used to address practices not related to personal injury.
Warnings on this Product
The following symbols are used as product markings with the following meanings.
Warning regarding dangerous voltage
The product works with high voltages. All work on the product must only be per-
formed as described in the documentation of the product.
Beware of hot surface
The product can become hot during operation. Do not touch the product during
operation.
ENGLISH

Important Safety Instructions
SMA Solar Technology America LLC
Installation Manual STPTL-US-10-IA-xx-20 5
Observe the operating instructions
Read the documentation of the product before working on it. Follow all safety
precautions and instructions as described in the documentation.
ENGLISH

General Warnings SMA Solar Technology America LLC
Installation ManualSTPTL-US-10-IA-xx-206
General Warnings
WARNING
All electrical installations must be carried out in accordance with the local electrical standards
and the National Electrical Code® ANSI/NFPA 70 or the Canadian Electrical Code® CSA
C22.1. This document does not replace and is not intended to replace any local, state,
provincial, federal or national laws, regulations or codes applicable to the installation and use of
the product, including without limitation applicable electrical safety codes. All installations must
conform with the laws, regulations, codes and standards applicable in the jurisdiction of
installation. SMA assumes no responsibility for the compliance or non-compliance with such laws
or codes in connection with the installation of the product.
The product contains no user-serviceable parts.
Before installing or using the product, read all of the instructions, cautions, and warnings in this
manual.
Before connecting the product to the electrical utility grid, contact the local utility company. This
connection must be made only by qualified personnel.
Wiring of the product must be made by qualified personnel only.
ENGLISH

Table of Contents
SMA Solar Technology America LLC
Installation Manual STPTL-US-10-IA-xx-20 7
Table of Contents
1 Information on this Document................................................. 9
1.1 Validity........................................................................................................................ 9
1.2 Target Group.............................................................................................................. 9
1.3 Additional Information ............................................................................................... 9
1.4 Symbols ...................................................................................................................... 10
1.5 Nomenclature............................................................................................................. 10
2 Safety ........................................................................................ 11
2.1 Intended Use .............................................................................................................. 11
2.2 Safety Information...................................................................................................... 12

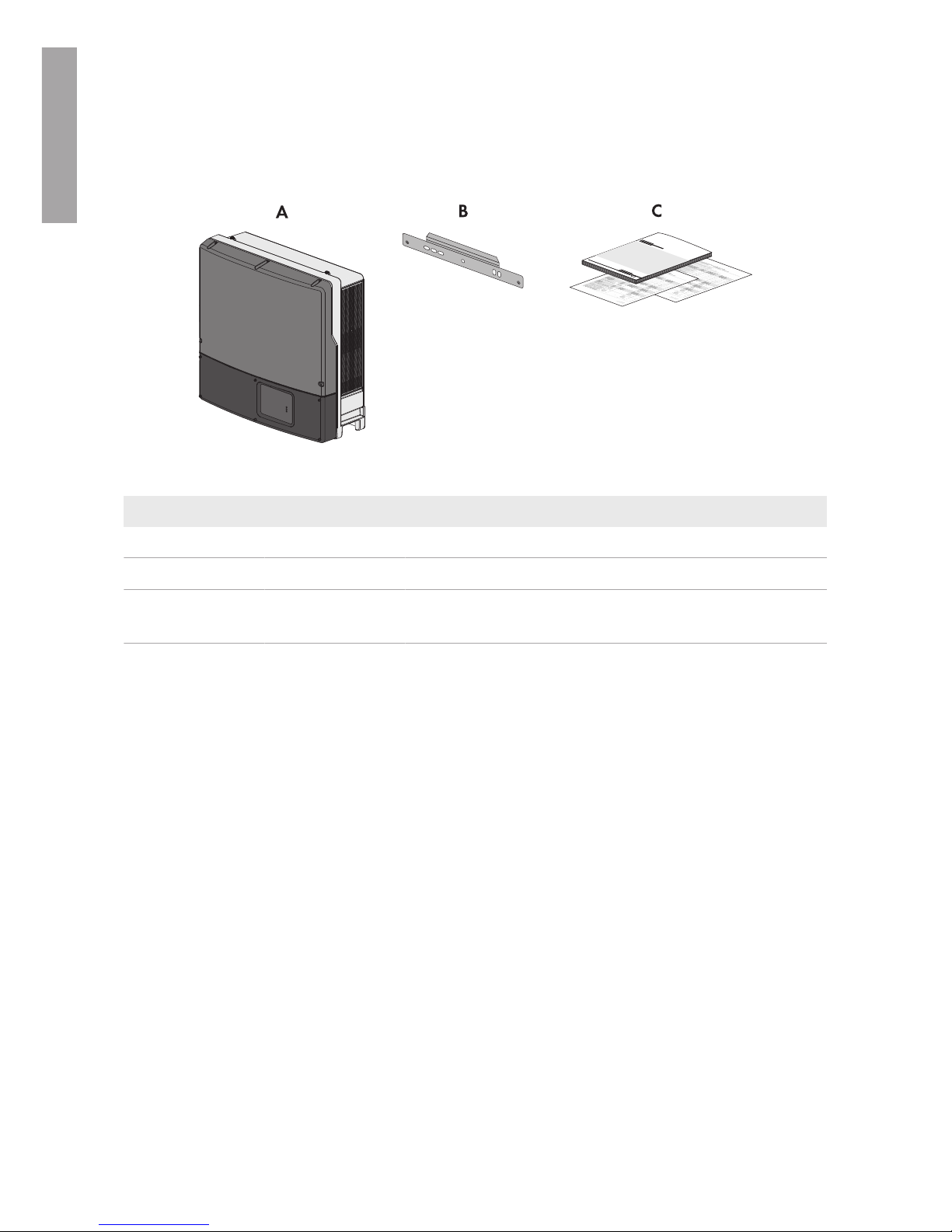

3 Scope of Delivery..................................................................... 14

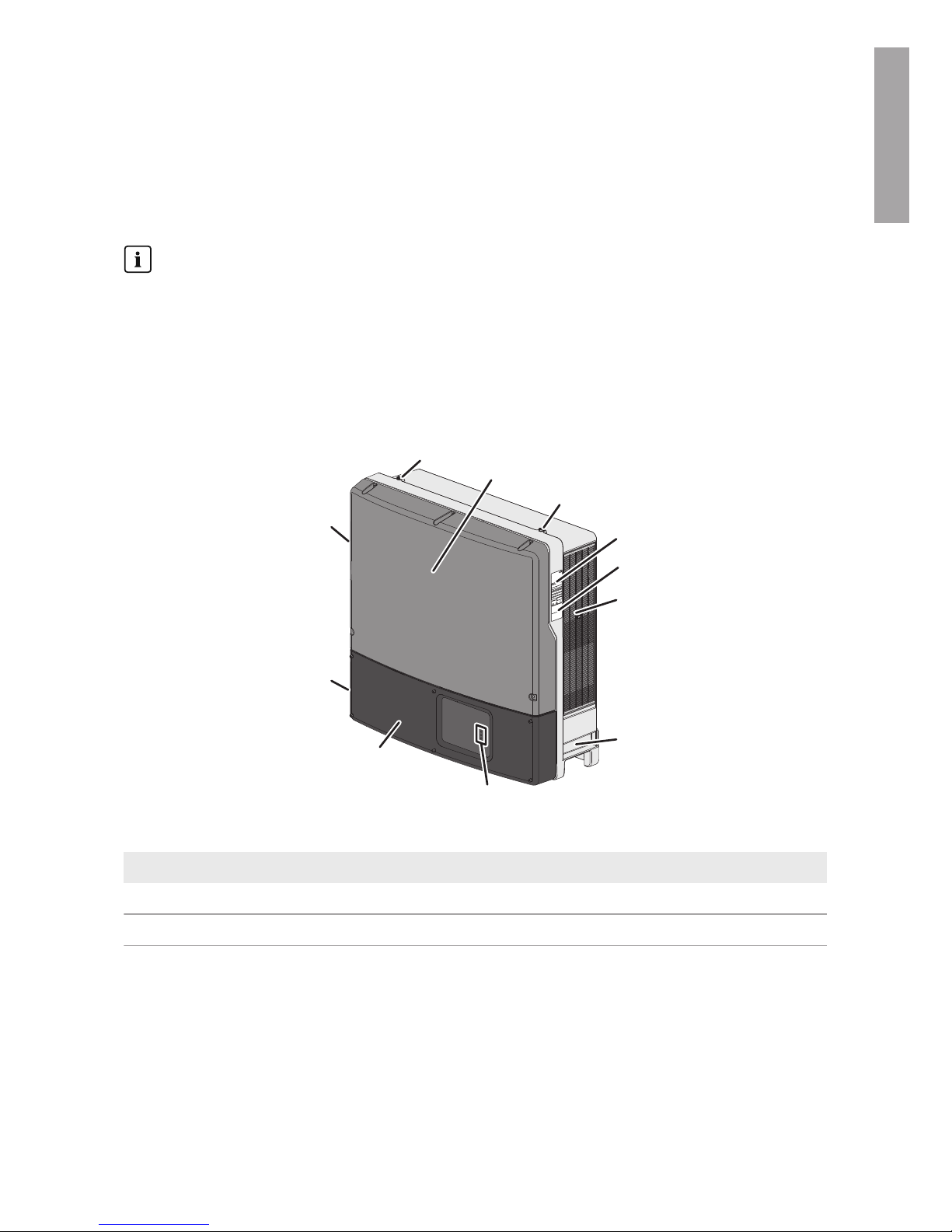

4 Product Description.................................................................. 15
4.1 Sunny Tripower .......................................................................................................... 15
4.2 Interfaces and Functions ............................................................................................ 17
5 Mounting................................................................................... 19
5.1 Requirements for Mounting ....................................................................................... 19
5.2 Mounting the Inverter................................................................................................. 22
6 Electrical Connection................................................................ 25
6.1 Safety during Electrical Connection.......................................................................... 25
6.2 Overview of the Connection Area ............................................................................ 27
6.2.1 View from Below......................................................................... 27
6.2.2 Interior View ................................................................................ 28
6.3 AC Connection........................................................................................................... 28
6.3.1 Requirements for the AC Connection......................................... 28
6.3.2 Connecting the Inverter to the Utility Grid................................. 29
6.3.3 Connecting Additional Grounding............................................. 31
6.4 DC Connection........................................................................................................... 32
6.4.1 Requirements for the DC Connection......................................... 32
6.4.2 Connecting the PV Array ............................................................ 33
6.5 Connecting the Inverter to the Network ................................................................... 35
7 Commissioning the Inverter..................................................... 37
8 Configuration............................................................................ 39
8.1 Integrating the Inverter into the Network.................................................................. 39
8.2 Changing Operating Parameters.............................................................................. 39
ENGLISH

Table of Contents SMA Solar Technology America LLC
Installation ManualSTPTL-US-10-IA-xx-208
8.3 Setting the Active Power Limitation in case of PV System Control Failure .............. 40
8.4 Deactivating the Arc-Fault Circuit Interrupter (AFCI)................................................ 40
8.5 Setting SMA OptiTrac Global Peak ......................................................................... 40
8.6 Adjustable Parameters............................................................................................... 41
9 Disconnecting the Inverter from Voltage Sources................. 43
10 Troubleshooting........................................................................ 45
10.1 Cleaning the Inverter.................................................................................................. 45
10.2 Event Messages ......................................................................................................... 45
10.3 Cleaning the Fans ...................................................................................................... 56
10.3.1 Cleaning the Fan at the Bottom.................................................. 56
10.3.2 Cleaning the Fan on the Left-Hand Side of the Enclosure ........ 57
10.4 Checking the Function of the Fans ............................................................................ 59
10.5 Checking the PV System for Ground Faults.............................................................. 59
10.6 Resetting the Operation Inhibition after Detection of an Arc Fault ......................... 62
11 Recommissioning the Inverter................................................. 63
12 Decommissioning the Inverter................................................. 65
13 Procedure for Receiving a Replacement Device.................... 67
14 Technical Data .......................................................................... 71
14.1 DC/AC ....................................................................................................................... 71
14.1.1 Sunny Tripower 12000TL-US / 15000TL-US / 20000TL-US.. 71
14.1.2 Sunny Tripower 24000TL-US / 30000TL-US ........................... 73
14.2 General Data ............................................................................................................. 75
14.3 Protective Devices ...................................................................................................... 76
14.4 Climatic Conditions.................................................................................................... 76
14.5 Equipment................................................................................................................... 76
14.6 Torques ....................................................................................................................... 76
14.7 Data Storage Capacity.............................................................................................. 77
15 Spare Parts and Accessories................................................... 78
16 Compliance Information.......................................................... 79
17 Contact ...................................................................................... 80
ENGLISH

1 Information on this Document
SMA Solar Technology America LLC
Installation Manual STPTL-US-10-IA-xx-20 9
1 Information on this Document
1.1 Validity
This document is valid for the following device types:
• STP 12000TL-US-10 (Sunny Tripower 12000TL-US)
• STP 15000TL-US-10 (Sunny Tripower 15000TL-US)
• STP 20000TL-US-10 (Sunny Tripower 20000TL-US)
• STP 24000TL-US-10 (Sunny Tripower 24000TL-US)
• STP 30000TL-US-10 (Sunny Tripower 30000TL-US)
1.2 Target Group
The tasks described in this document must only be performed by qualified persons. Qualified
persons must have the following skills:
• Knowledge of how an inverter works and is operated
• Training in how to deal with the dangers and risks associated with installing and using
electrical devices and installations
• Training in the installation and commissioning of electrical devices and installations
• Knowledge of the applicable standards and directives
• Knowledge of and compliance with this document and all safety information
1.3 Additional Information
Links to additional information can be found at www.SMA-Solar.com:
Document title Document type
"SunnyExplorer"
Software for Visualizing and Administrating a SpeedwireSystem
User Manual
"Webconnect Systems in SunnyPortal"
Registration in SunnyPortal and setting or changing operating pa-
rameters of the inverter
User Manual
"Grid Support Utility Interactive Inverters"
Information about how to activate and to set the grid supporting fea-
tures according to UL1741SA
Technical information
"Parameter list"
Overview of all inverter operating parameters and their configura-
tion options
Technical information
"Efficiency and Derating"
Efficiency and Derating Behavior of the SunnyBoy, SunnyTripower
and SunnyMiniCentral Inverters
Technical information
ENGLISH

1 Information on this Document SMA Solar Technology America LLC
Installation ManualSTPTL-US-10-IA-xx-2010
Document title Document type
"Leading Leakage Currents"
Information on the Design of Transformerless Inverters
Technical information
"Shade Management"
Efficient operation of partly shaded PV systems with Opti-
TracGlobalPeak
Technical information
"Module Technology"
Use of Thin-Film and Back-Contact Modules
Technical information
1.4 Symbols
Symbol Explanation
Information that is important for a specific topic or goal, but is not
safety-relevant
Indicates a requirement for meeting a specific goal
Desired result
A problem that might occur
1.5 Nomenclature
Complete designation Designation in this document
SMA Solar Technology America LLC SMA
SMA Solar Technology Canada Inc. SMA
SMA Speedwire Speedwire
PV system PV system
Sunny Tripower 12000TL-US / 15000TL-US / 20000TL-
US / 24000TL-US / 30000TL-US
SunnyTripower, inverter
SMA Connection Unit 1000-US Connection Unit
ENGLISH

2 Safety
SMA Solar Technology America LLC
Installation Manual STPTL-US-10-IA-xx-20 11
2 Safety
2.1 Intended Use
The SunnyTripower is a transformerless PV inverter, with 2 MPPtrackers, that converts the direct
current of the PV array to grid-compliant, three-phase current and feeds it into the utility grid.
The product is suitable for indoor and outdoor use.
The product must only be operated with PV arrays (PV modules and cabling) that are approved by
the electrical standards applicable on-site and the National Electrical Code® ANSI/NFPA 70 or
the CanadianElectricalCode® CSA C22.1.
SMA offers the SMAConnectionUnit which is equipped with fuse holders for string fuses for up to
eight strings and with a DC load-break switch. The SMA Connection Unit combines up to four
strings to each of two output circuits. These two DC electric circuits can be connected to the two
MPP tracker inputs of the SunnyTripower (for further information see the installation manual of the
SMAConnectionUnit-US at www.SMA-Solar.com).
No galvanic isolation
The product is not equipped with a transformer and therefore has no galvanic isolation.
• Do not operate grounded PV modules together with the product. If grounded PV modules
are connected to the product, an event will occur. The event will be displayed, along with
the associated message, in the event list on the communication product.
• Only ground the mounting frames of the PV modules.
• The neutral conductor of the AC output is not bonded to ground within the product.
PV modules with a high capacity to ground may only be used if their coupling capacity does not
exceed 3.5μF.
To protect the PV system against excessive reverse currents under fault conditions, a DC-side
overcurrent protective device must be connected in accordance with the National Electrical Code®
to prevent any short-circuit currents that exceed the ampacity of the DC electric circuit or the
maximum series fuse rating of the PV modules. Typically, this requires string fusing where more than
two strings are combined in parallel. Where an overcurrent protection device is required, the
National Electrical Code® requires that both positive and negative conductors have overcurrent
protection for ungrounded PV modules.
All components must remain within their permitted operating ranges and their installation
requirements at all times.
The product is approved for the US and Canadian market.
Use this product only in accordance with the information provided in the enclosed documentation
and with the locally applicable standards and directives. Any other application may cause
personal injury or property damage.
Alterations to the product, e.g. changes or modifications, are only permitted with the express written
permission of SMA. Unauthorized alterations will void guarantee and warranty claims and in most
cases terminate the operating license. SMA shall not be held liable for any damage caused by
such changes.
Any use of the product other than that described in the Intended Use section does not qualify as the
intended use.
ENGLISH

2 Safety SMA Solar Technology America LLC
Installation ManualSTPTL-US-10-IA-xx-2012
The enclosed documentation is an integral part of this product. Keep the documentation in a
convenient place for future reference and observe all instructions contained therein.
The type label must remain permanently attached to the product.
2.2 Safety Information
This section contains safety information that must be observed at all times when working on or with
the product.
To prevent personal injury and property damage and to ensure long-term operation of the product,
read this section carefully and observe all safety information at all times.
DANGER
Danger to life due to high voltages of the PV array
When exposed to sunlight, the PV array generates dangerous DC voltage, which is present in the
DC conductors and the live components of the inverter. Touching the DC conductors or the live
components can lead to lethal electric shocks. If you disconnect the DC connectors from the
inverter under load, an electric arc may occur leading to electric shock and burns.
• Do not touch non-insulated cable ends.
• Do not touch the DC conductors.
• Do not touch any live components of the inverter.
• Have the inverter mounted, installed and commissioned only by qualified persons with the
appropriate skills.
• If an error occurs, have it rectified by qualified persons only.
• Prior to performing any work on the inverter, disconnect it from all voltage sources as
described in this document.
DANGER
Danger to life due to electric shock in case of a ground fault
If a ground fault occurs, parts of the system may still be live. Touching live components can lead
to lethal electric shocks.
• Ensure that no voltage is present and wait five minutes before touching any parts of the PV
system or the inverter.
CAUTION
Risk of burns from hot surfaces
The surface of the inverter can get very hot. Touching the surface can result in burns.
• Mount the inverter in such a way that it cannot be touched inadvertently.
• Do not touch hot surfaces.
• Wait 30 minutes for the surface to cool sufficiently.
• Observe the safety messages on the inverter.
ENGLISH

2 Safety
SMA Solar Technology America LLC
Installation Manual STPTL-US-10-IA-xx-20 13
NOTICE
Damage to seals on the enclosure lids in subfreezing conditions
If you open the enclosure lids when temperatures are below freezing, the enclosure seals can be
damaged. This can lead to moisture entering the inverter.
• Only open the enclosure lids if the ambient temperature is not below -5°C (23°F)
• If a layer of ice has formed on the seal of the lid when temperatures are below freezing,
remove it prior to opening the enclosure lids (e.g. by melting the ice with warm air).
Observe the applicable safety regulations.
NOTICE
Damage to the inverter due to moisture and dust intrusion
Dust or moisture intrusion can damage the inverter and impair its functionality.
• Close all enclosure openings of the inverter tightly.
• Never open the inverter when it is raining or snowing, or the humidity is over 95%.
ENGLISH

3 Scope of Delivery SMA Solar Technology America LLC
Installation ManualSTPTL-US-10-IA-xx-2014
3 Scope of Delivery
Check the scope of delivery for completeness and any externally visible damage. Contact your
distributor if the scope of delivery is incomplete or damaged.
Figure 1 : Components included in the scope of delivery
Position Quantity Designation
A 1 Inverter
B 1 Wall mounting bracket
C 1 Installation manual, production test report, supplementary
sheet with the default settings
ENGLISH

4 Product Description
SMA Solar Technology America LLC
Installation Manual STPTL-US-10-IA-xx-20 15
4 Product Description
4.1 SunnyTripower
The SunnyTripower is a transformerless PV inverter, with 2 MPPtrackers, that converts the direct
current of the PV array to grid-compliant, three-phase current and feeds it into the utility grid.
No galvanic isolation
The product is not equipped with a transformer and therefore has no galvanic isolation.
• Do not operate grounded PV modules together with the product. If grounded PV modules
are connected to the product, an event will occur. The event will be displayed, along with
the associated message, in the event list on the communication product.
• Only ground the mounting frames of the PV modules.
• The neutral conductor of the AC output is not bonded to ground within the product.
Model
SBX XX
XXXTLUS-
SUNNYBOY
S/N
XXXXXXXXXX
Untilityinteractive1-phaseinverter
MadeinGermany
SMASolarTechnologyAG
www.sma-solar.com
DateofmanufactureMM/YYYY
Max.continuousoutputPower*XXXXWac
Reducedoutputpowerrating
Operatingvoltagerange(Vac)*
MIN NOMINALM
AX
XXX
XXX XXX
XXX XXX
XXX
Operatingfrequencyrange(Hz)*
MINNOMINALM
AX
XX.X XX.X XX.X
Max.vontinuousoutputcurrent*
[e-mail]@XXXV
Outputpowerfactor X
Max.opencircuitinput voltage*XXXVdc
RangeofinputoperatingDCvoltage(MPPT)*
XXX-XXXCdc@XXXV
XXX-XXXCdc@XXXV
Oper.temp.range*-XXX°F to + XXX°F (-XX°C to +XX°C)
Thisunitcontainsa Residual Current Monitor, Isolation
MonitorandInterrupter.This unit contains a listed
PhotovoltaicArc-FaultCircuit-Protectionof Type 1
ENCLOSURETYPEXR(IP54)
*Formoredetailsand für tightening torque,
allowablewiresizeand type see the
InstallationGuide.
Section1of2
Utilityinteractiveinverter
ListetUL174136AN
Utilityinteractive1-Phaseinverter
TestedToComply
WithFCCStandards
FORHOMEOROFFICEUSE
CCAN/CSAC22.2No.107.1-1 UL1699B
DE34
A
G
H
E
D
F
A
B
C
F
www.sunnyportal.com/register
PIC001800304600117
RID:37XXA3
D
Figure 2 : Design of the SunnyTripower
Position Designation
A Thread for screwing in the eye bolts for transport with a crane
B Upper enclosure lid
ENGLISH

4 Product Description SMA Solar Technology America LLC
Installation ManualSTPTL-US-10-IA-xx-2016
Position Designation
C Type label
The type label uniquely identifies the inverter. You will require the information on
the type label to use the product safely and when seeking customer support from
the SMAServiceLine. You will find the following information on the type label:
• Device type (Model)
• Serial number (SerialNo.)
• Date of manufacture
• Device-specific characteristics
D Additional label with details for registration in SunnyPortal:
• Internet address of the PV System Setup Assistant
• Identification key (PIC)
• Registration ID (RID)
E Ventilation grid
F Recessed grips
G LEDs
The LEDs indicate the operating state of the inverter:
• Green LED is glowing: operation
• Green LED is flashing: the requirements for the connection to the utility grid
have not been met or the inverter has reduced its output power due to
excessive temperature.
• Red LED is glowing: an error has occurred that must be rectified by a qualified
person (see Section10 "Troubleshooting", page45). You will find the
detailed error message in SunnyPortal or SunnyExplorer.
• Blue LED: no function
H Lower enclosure lid
Symbols on the Inverter and on the Type Label
Inverter
Together with the green LED, this symbol indicates the operating state of
the inverter.
Observe the documentation
Together with the red LED, this symbol indicates an error.
Communication
This symbol is located next to the blue LED.
ENGLISH

4 Product Description
SMA Solar Technology America LLC
Installation Manual STPTL-US-10-IA-xx-20 17
The product does not have a transformer.
Equipment Grounding Terminal
This symbol indicates the position for the connection of an equipment
grounding conductor.
Risk of burns due to hot surfaces
The product can get hot during operation. Avoid contact during opera-
tion. Prior to performing any work on the product, allow the product to
cool down sufficiently.
Danger to life due to electric shock
The product operates at high voltages. Prior to performing any work on
the product, disconnect the product from voltage sources. All work on the
product must be carried out by qualified persons only.
Observe the documentation
Observe all documentation supplied with the product.
FCC designation
The product complies with the requirements of the applicable FCC stan-
dards.
UL1741 is the standard applied by Underwriters Laboratories to the
product to certify that it meets the requirements of the National Electrical
Code®, the Canadian Electrical Code® CSA C22.1; the IEEE929‑2000
and IEEE1547.
4.2 Interfaces and Functions
The inverter can be equipped or retrofitted with the following interfaces and functions:
SMASpeedwire/Webconnect
The inverter is equipped with SMA Speedwire/Webconnect as standard. SMA Speedwire/
Webconnect is a type of communication based on the Ethernet standard. This enables inverter-
optimized 10/100 Mbit data transmission between Speedwire devices in PV systems and the
software Sunny Explorer. The Webconnect function enables direct data transmission between the
inverters of a small-scale system and the Internet portal Sunny Portal without any additional
communication device and for a maximum of 4 inverters per SunnyPortal system. In large-scale PV
power plants, data transmission to the Internet portal Sunny Portal is carried out via the
SMA Cluster Controller. You can access your Sunny Portal system from any computer with an
Internet connection.
Class 1 wiring methods are to be used for field wiring connection to the terminals of the
communication interface.
ENGLISH

4 Product Description SMA Solar Technology America LLC
Installation ManualSTPTL-US-10-IA-xx-2018
RS485 Interface
The inverter can communicate via cables with special SMA communication products via the RS485
interface (information on supported SMAproducts at www.SMA-Solar.com). The RS485 interface
can be retrofitted and can be used in place of the SMASpeedwire/Webconnect interface in the
inverter.
Class 1 wiring methods are to be used for field wiring connection to the terminals of the
communication interface.
Grid Management Services
The inverter is a grid support utility interactive inverter. The inverter has been tested and certified to
be compliant with UL1741SA (2016/09/07). For connecting the inverter to the utility grid, no
additional grid monitoring equipment is necessary. A description of the tested functions and
instructions on the activation and setting of functions can be found in the technical information "Grid
support utility interactive inverters" at www.SMA-Solar.com.
SMAOptiTracGlobalPeak
SMAOptiTracGlobalPeak is an advancement of SMAOptiTrac and allows the operating point of
the inverter to follow the optimal operating point of the PV array (MPP) precisely at all times. In
addition, with the aid of SMAOptiTracGlobalPeak, the inverter detects several maximum power
points in the available operating range, such as may occur particularly with partially shaded
strings. You can activate SMAOptiTracGlobalPeak via the operating parameters (see Section8.5
"Setting SMA OptiTrac Global Peak", page40).
Arc-Fault Circuit Interrupter (AFCI)
In accordance with the National Electrical Code®, the inverter has a system for arc fault detection
and interruption.
An electric arc with a power of 300W or greater must be interrupted by the AFCI in the time
specified by UL 1699B. A detected electric arc causes the inverter to interrupt feed-in operation. In
order to restart feed-in operation, the feed-in operation must be activated manually. If the
installation conditions allow it, you can deactivate the arc-fault circuit interrupter.
QonDemand 24/7
The inverter can supply reactive power by means of QonDemand24/7 covering the entire unit
circle around the clock (for details on the configuration refer to the Technical Information
"IntegratedPlantControl and QonDemand24/7" at www.SMA-Solar.com).
IntegratedPlantControl
The inverter can display the Q(V) characteristic curve specified by the grid operator by means of
Integrated Plant Control without measuring on the grid-connection point. The inverter can
automatically compensate equipment installed between the inverter and the grid-connection point
after having activated the function (for information on the system configuration refer to the Technical
Information "IntegratedPlantControl and QonDemand24/7" at www.SMA-Solar.com).
ENGLISH

5 Mounting
SMA Solar Technology America LLC
Installation Manual STPTL-US-10-IA-xx-20 19
5 Mounting
5.1 Requirements for Mounting
Requirements for the Mounting Location:
WARNING
Danger to life due to fire or explosion
Despite careful construction, electrical devices can cause fires.
• Do not mount the product in areas containing highly flammable materials or gases.
• Do not mount the product in potentially explosive atmospheres.
☐ Do not mount the inverter on a pillar.
☐ Do not install the inverter in a living area.
☐ The inverter must be mounted on a solid surface (e.g. concrete, brickwork, free-standing
constructions).
☐ The inverter can be mounted in a position that is directly exposed to solar irradiation. There is,
however, the possibility that the inverter reduces its power output to avoid overheating due to
high temperatures.
☐ The mounting location must be suitable for the weight and dimensions of the inverter (see
Section14 "Technical Data", page71).
☐ To ensure optimum operation, the ambient temperature should be between -25°C (-13°F) and
60°C (140°F).
☐ Climatic conditions must be met (see Section14 "Technical Data", page71).
☐ The mounting location should be freely and safely accessible at all times without the need for
any auxiliary equipment (such as scaffolding or lifting platforms). Non-fulfillment of these
criteria may restrict servicing.
ENGLISH

5 Mounting SMA Solar Technology America LLC
Installation ManualSTPTL-US-10-IA-xx-2020
Dimensions for mounting:
40
(1.57)
647
(25.5)
79.2
(3.11)
Ø 11
(Ø 0.43)
87
(3.43)
20
(0.79)
11 mm
(0.43 in)
104.6
(4.11)
110
(4.33)
619
(24.36)
130
(5.12)
86
(3.39)
86
(3.39)
467
(18.39)
130
(5.12)
507
(19.96)
638
(25.1)
432
(17)
216
(8.5)
216
(8.5)
Figure 3 : Position of the anchoring points (dimensions in mm (in))
