SMART-AVI HDX-4000 User manual

Technical Specications
Ordering Information
Video
Video Interface HDMI
Single Link Range 480P,720i/p, 1080i/p
Video Data Rate 4.95 Gbps
Resolution 1920 x 1200 @ 60 Hz, Resolution
up to 1280 x 1024 min. 75H
Power Supply Universal Switch mode PSU (90-
240V Input) 5VDC 2A
Input Interface 19 pin HDMI female type-A
IR
Signal Type 30-100 kHz modulated IR
Connector 3.5 mm mini jack, Female
© Copyright 2010 Smart-AVI, All Rights Reserved
Notice
The information contained in this document is
subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or
for incidental or consequential damages in connection
with the furnishing, performance or use of this material.
No part of this document may be photocopied,
reproduced or translated into another language without
prior written consent from Smart-AVI.
For the complete manual, visit www.smartavi.com.
SmartAVI, Inc. / Twitter: smartavi
2840 N. Naomi Ave. Burbank, CA 91504
Tel: [phone] Fax: [phone]
http://www.SmartAVI.com
Extend HDMI display with IR control up
to 150 feet away to up to 4 displays
HDX-4000
HDMI over Twisted Pair
www.smartavi.com
Installation
Manual
Part No. Description
HDX-4000S HDMI CAT6 STP 4 port Extender. In-
cludes: [HDX-4000, and (PS5VD2A)]
HDX-RX1000S HDMI over CAT6 STP Receiver. In-
cludes: [HDX-RX1000 & PS5VD1A]
IR EYE Infrared Receiver Eye

Introduction
The HDX4000 extends your HDMI input
to up to 4 output displays up to 150 feet
away using CAT-6 cables. It is equipped
with HDMI™ (high denition multimedia
interface) connectors and is capable of
supporting DVI (digital visual interface)
equipment when used with a HDMI to DVI
Adapter, providing greater exibility and
options when integrating several home
theater components.
Features
• Extend HDMI display with IR control up
to 150 feet away to up to 4 Displays.
• Top quality image at all resolutions.
• Maintains multiple high denition
resolutions up to 1080p or 1920x1200
for computers.
• Distances: 150 ft with a CAT6 STP cable.
• Compatible with all operating systems.
• Supports digital video/audio.
• Supports DDWG standards for HDMI
compliant monitors.
• HDCP compliant.
• HDMI™ compliant.
• Uses easy to install, inexpensive
twisted pair cable.
• Sends Infrared Remote over twisted pair.
• Fully compliant with standard
modulated IR and the latest IRDA.
• Fully transparent path for all protocols
and data transfers.

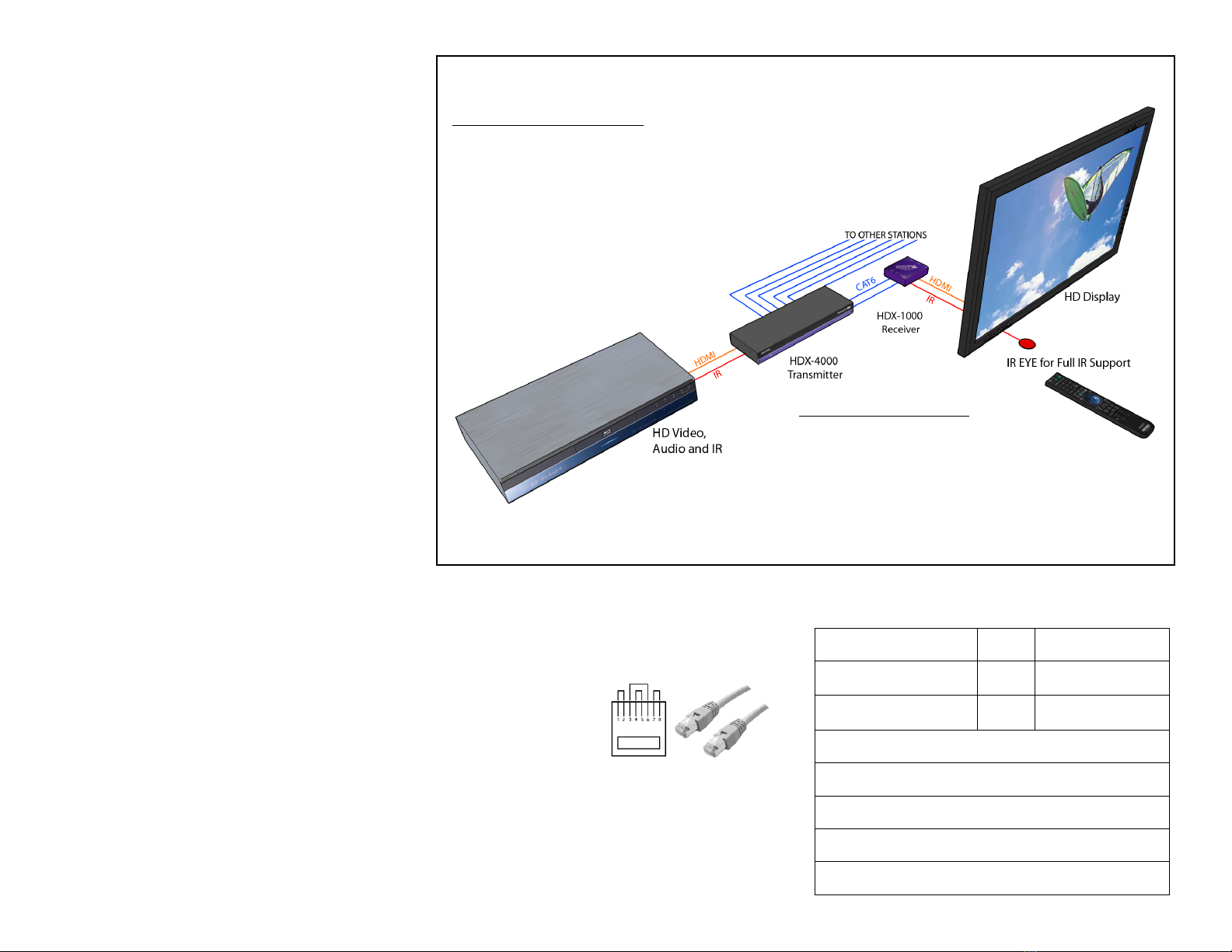

HDX-4000 Transmitter - Installation Diagram
Preparing & Connecting System CAT6 Cable
Following is the wiring standard for terminating CAT 6
cable using RJ-45 connector:
Pair 1 Pins 1 & 2
Pair 2 Pins 3 & 6
Pair 3 Pins 4 & 5
Pair 4 Pins 7 & 8
Connectors: RJ-45
Capacitance: 14 pf/ft (46.2 pf/m)
Conductor Gauge: 24 AWG
Impedance: 100 +/- 15 ohms
4 - Pair
Connecting The Transmitter
1. Connect the output of the HDMI device to
the video input of the HDX-4000 transmitter
using the included HDMI cable.
2. Connect IR cables from the display unit to the
transmitter. (Optional)
3. In the back of the unit connect the CAT6
cables that will connect to the receiver units.
4. Connect the power supply.
Description Qty Part Number
HDMI Transmitter 1 HDX-4000
HDMI Cable 1 CCHDMIMM06
5VDC 2A Power Supply 1 PS-5V2A-US
Optional
HDMI Receiver HDX-RX1000
IR Emmiter SM-LED
IR Eye Receiver SM-EYE
Connecting The Receiver
1. Connect the CAT6 cables (coming from the
transmitter) to the back of the receiver.
2. Connect the display to the HDMI out
connector on the front of the receiver.
3. Connect the IR cables from the receiver to the
display unit. (Optional)
4. Connect the power supply.
What’s in the box?
