SMART-AVI HDX-ULTIMATE User manual

© Copyright 2016 Smart-AVI, All Rights Reserved
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
SmartAVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from SmartAVI.
For more information, visit www.smartavi.com.

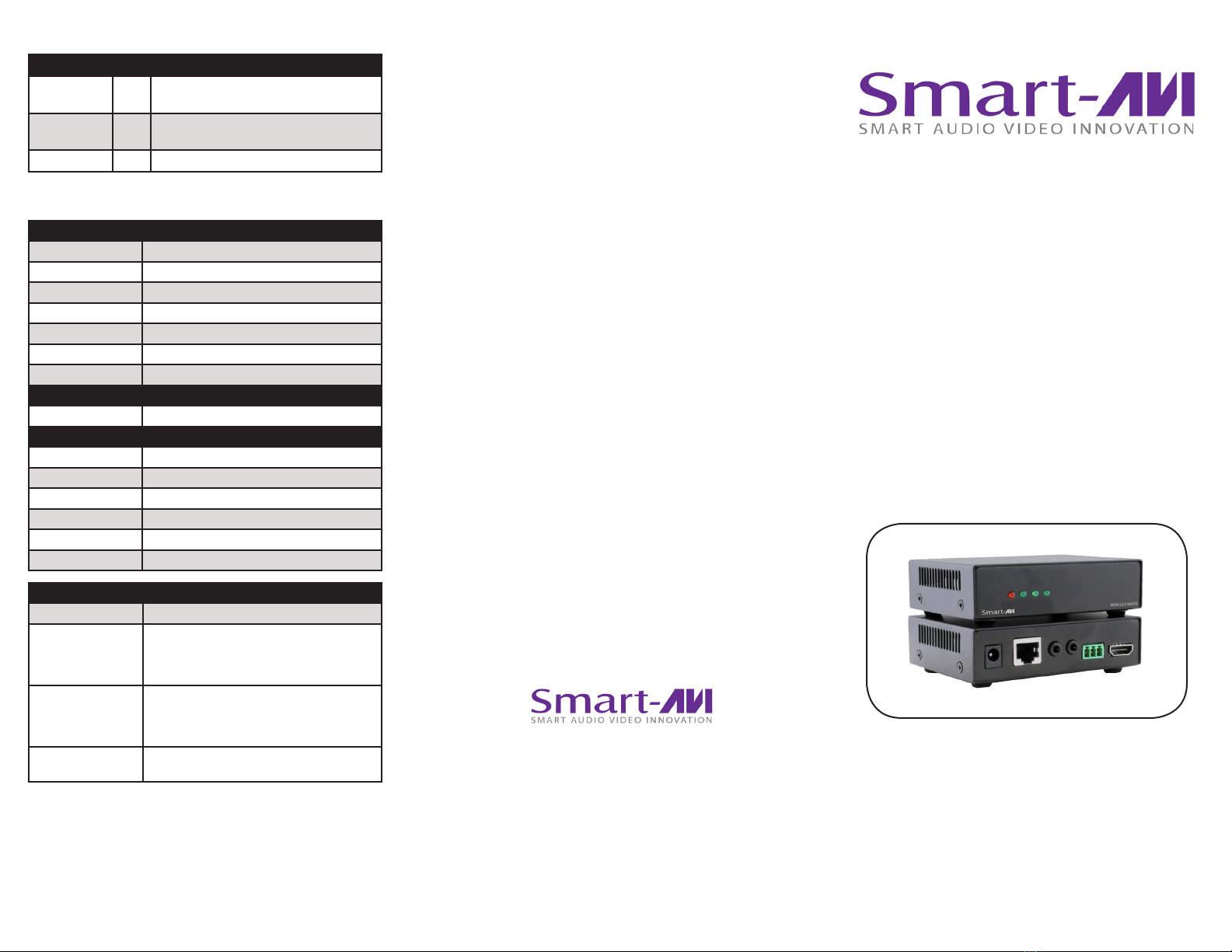

The HDX-Ultimate includes a transmitter
(TX) and reciever (RX) that extends 4K
HDMI signals up to 450 feet away.
*RS-232 Optional
HDX-ULTIMATE
4K-ready PoE Cat5e/6 HDBaseT HD
Extender
www.smartavi.com
Installation
Manual
PART NO. QTY DESCRIPTION
HDX-ULT-TX 1 HDX-Ultimate Transmitter Unit - HDMI
Point to Point Cat5e/6 Extender
HDX-ULT-RX 1 HDX-Ultimate Receiver Unit - HDMI Point
to Point Cat5e/6 Extender
Power Supply 2 PS12VDC2A
VIDEO
Format HDMI 1.3 and HDCP Compliant
HDTV Resolutions Up to 4K (3840x2160 @ 30Hz)
Audio HDMI Digital Audio
Input Interference RJ-45 for Cat5e/6
Output Interference HDMI, HDBT, IR, RS-232
Input Cable Length Up to 450 ft over Cat5e/6
Output Cable Length Up to 20 ft over HDMI
IR
Signal Type 38 KHz
OTHER
Power External 100-240 VAC/5V-12V@20W
Dimensions 5”W x 1.125”H x 4.125”D
Weight 0.6 lb.
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-131°F (-5-70 °C)
Operating Humidity 5-95%
WWW.SMARTAVI.COM
Tel: 800.AVI.2131 • 818.503.6200
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
What’s in the Box?
Technical Specications
ORDER INFO
Part No. Description
HDX-ULT-S HDMI, IR, and RS-232 PoE Extender
over a Single CAT5e/6 Cable.
Includes: [HDX-ULT-TX, HDX-ULT-RX, and
PS12VD2A-WLLMNT]
HDX-ULT-TXS HDX-Ultimate Transmitter: HDMI and IR
over CAT5e/6 Transmitter with PoE support,
up to 450ft.
Includes: [HDX-ULT-TX and PS12VD2A-WLLMNT]
HDX-ULT-RXS HDMI, IR, and RS-232 PoE Receiver.
Includes: [HDX-ULT-RX and PS12VD2A-WLLMNT]

Introduction
The HDX-Ultimate consists of a transmitter (TX) and
receiver (RX) unit that extend 4K HDMI signals 300 feet
on each side via Cat5e cables and up to 450 feet with
Cat6 cables. Optional controls include bi-directional IR
and RS-232 support.
Features
• Supports PoE: can be powered by TX or RX units
• Cat6 cables extend signals over 450ft
• Powered over Ethernet (PoE)
• (1) HDMI output for HDTV support
• Supports resolutions up to 4K (3840x2160 @ 30Hz)
• Up to 10.2 Gbps ultra-HD bandwidth
• HDCP compliant; Automatic EDID Learning
• Bi-directional IR and optional RS-232 control
• LED status indicators
• Rack Optional
Applications
• Digital Signage
• Corporate Communication
• Classrooms
• Business Slideshows
• Entertainment Venues
• Airports and Transportation Hubs
• Government Presentations
• Law Enforcement Facilities
• ... and many more!
Installation
1. Turn o the computer, display, and speakers.
2. Connect the HDMI cable to your computer and to the HDX-Ultimate-TX.
3. Connect the display to the HDMI connector on the HDX-Ultimate-RX.
4. Connect the HDX-Ultimate TX and RX units via Cat5e/6 cable.
** Connect optional RS-232 devices to HDX-Ultimate-TX and HDX-Ultimate-RX. **
5. Connect the power cord and power on either the HDX-Ultimate-TX or the HDX-Ultimate-RX.
6. The connection and power indicator lights should illuminate.
7. Power on the computer, display, speakers and optional RS-232 devices.
Product - Installation Diagram
HDX-Ultimate-TX
HDX-Ultimate-RX
Power Supply
450 ft. of connectivity
HDX-Ultimate
(TX)
RS-232 RS-232
IR Emitter IR Emitter
HDMI Source HDTV and Speakers
HDX-Ultimate
(RX)
