Smart solar 10392m01 User manual

8 1

Smart Solar is a Smart Living Home & Garden brand

Telephone: + 1 813 343 5775

Email: [email protected]

Web: www.smartlivinghg.com

Smart Living Home & Garden warranties your solar panel, pump and battery (for Solar-on-Demand units) for

one (1) year from the original date of purchase from authorized distributors and retailers. The warranty covers

parts that are properly installed and regularly maintained. If the product fails due to a defect in material or

workmanship, Smart Living will replace the defective parts free of charge. Your fountain is designed for outdoor

use and with proper care will last for many years. If over time your fountain develops scratches or minor wear

from normal use, you can contact our customer service department for easy to apply one step touch up paint.

Please unpack and inspect the entire product upon receipt. Report any broken or missing pieces within five (5)

business days of receipt to our customer service department and we will provide replacement parts free of

charge. Please do not discard any damaged parts until instructed to do so by our customer service department.

PROBLEM RESOLUTION (and page for reference)

The fountain is in sun but the pump

is not working.

1. Ensure the connections are secure and that pump tube is

connected to underside of solar panel – see pg 7 for Assembly

2. Pump needs manual start - see pg 6 Pump Troubleshooting

1. Try manual start on pump – see pg 6

2. Ensure the tubes from pump are connected to the underside

of the sculpture - see pg 2-3 for Assembly

No water flow from the top of

the fountain.

Thank you for purchasing this Smart Solar fountain.

https://smartlivinghg.com/wp/customer-service/product-registration/

FAQs are available online along with step by step video tutorials to help you with pump

cleaning and solar kit assembly.

Visit: https://smartlivinghg.com/wp/customer-service/faq/

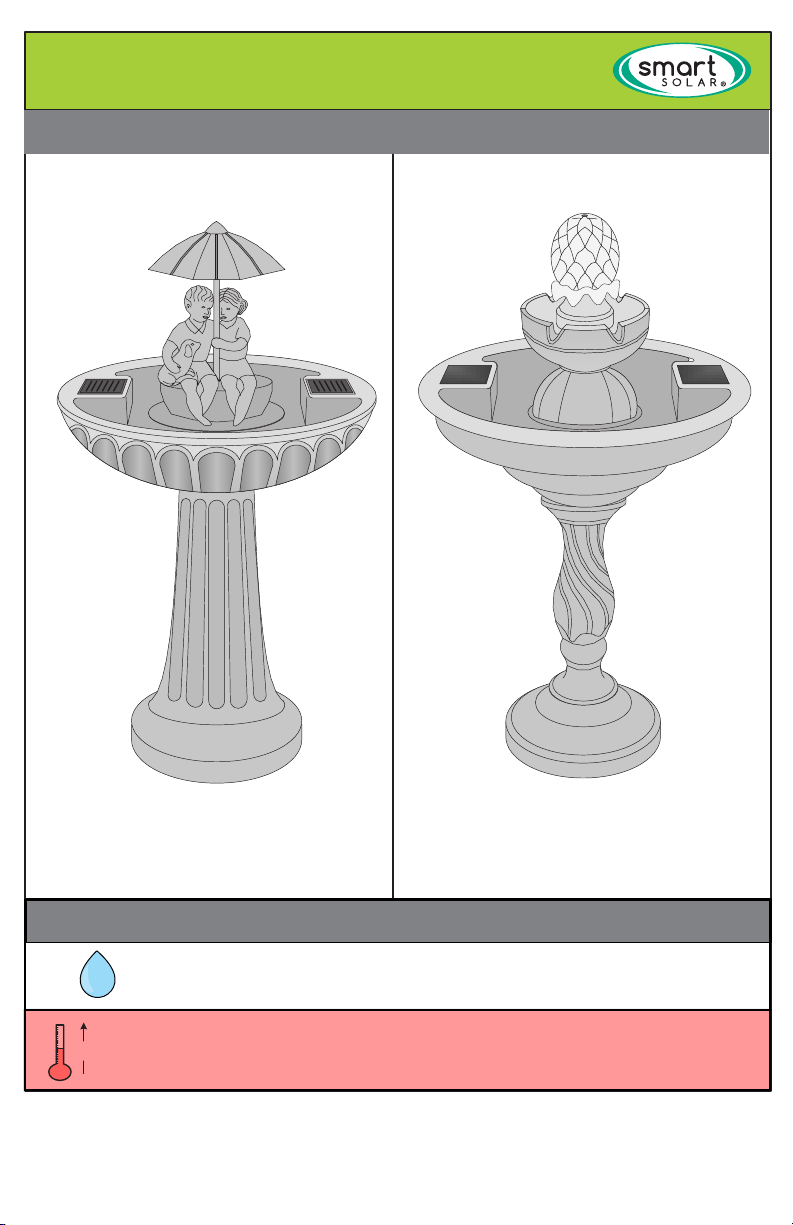

Dual Panel Solar Fountain

Sculpture StyleUmbrella Style

Warnings

Frost causes damage, store whole product inside during cold weather.

0°C/32°F





Important!

Water must be regularly topped off. We recommend regularly changing the

water to ensure it remains clean and free from debris.

* Styles may vary but assembly will be consistent with this manual

2 7

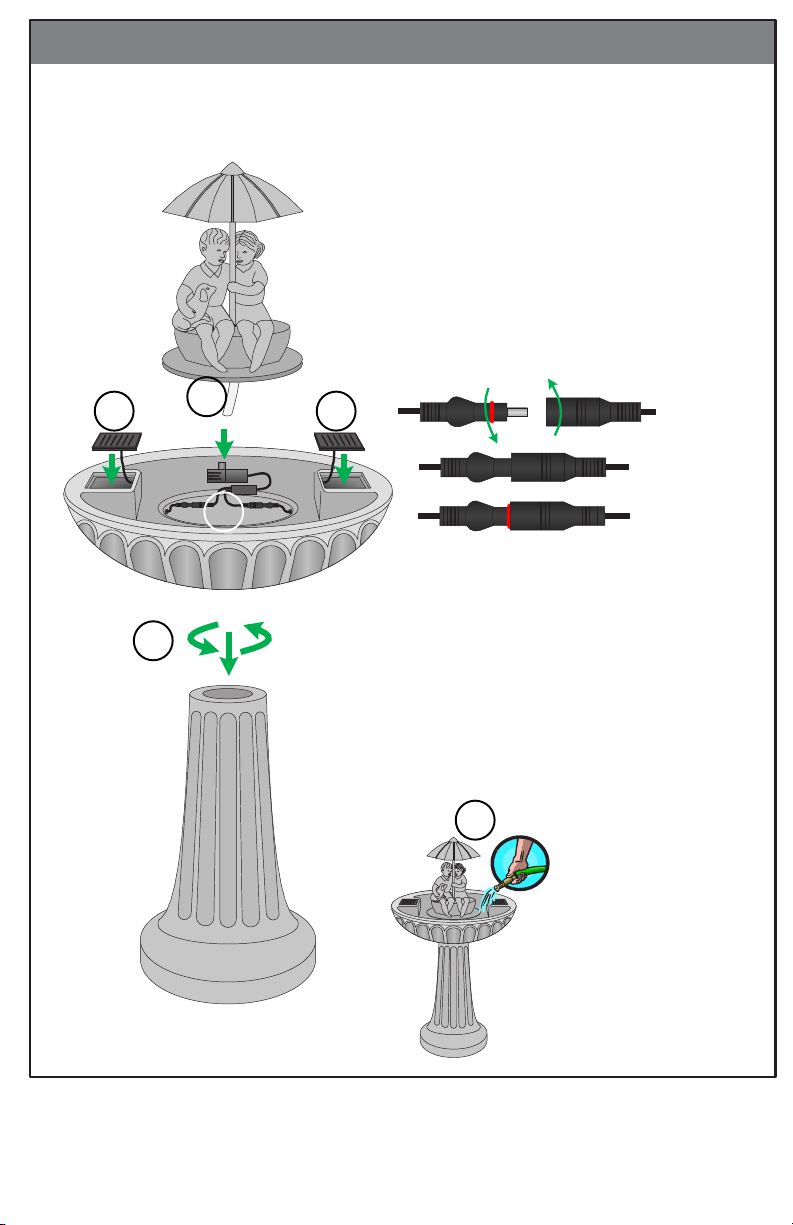

Umbrella Style Fountain Assembly



3

1. Attach the main bowl to the pedestal. Align the marks

and turn to lock in place.

2. Place the solar panels in the recesses provided

running the cables through the holes in the side.

3. Connect the solar panels to the pump taking care to

ensure the connectors are water tight. Slightly twist

when pushing together, ensure the red o-ring remains

in it’s groove and is not displaced (see images below)

4. Connect the hose from the umbrella statue to the

pump and lower it into place. Ensure the pump and

cables are nearly stored in the recess provided.

5. Fill the main bowl with water.

Note: Water must be regularly topped o. We recom-

mend regularly changing the water to ensure it remains

clean and free from debris.

If the tubing become blocked, rinse

through with water.

Remove umbrella to access tube. If the tubing

become blocked, rinse through with water.

To maintain optimum performance,

regularly clean the solar panel using water

or glass cleaner in conjunction with a

non-abrasive sponge or cloth.

Umbrella Sculpture

Maintenance

Important 



Connections

Pump Cleaning / Troubleshooting

Filter cover can simply be pulled apart as shown.

Turn o impeller cover to release as shown, impeller

can be easily removed

Remove lter material and rinse in water.

Rinse all parts thoroughly in water.

Ensure connections from both solar panels to pump

are water tight.

If the pump is not working immediately, try the

following for a manual start. Remove the

pump cover. Remove the impeller cover, face

the panel to the sun, and start manually

spinning the impeller clockwise, this can

take 1-3 minutes.

Sculpture Style Fountain Assembly

1. Attach the main bowl to the pedestal. Align the

marks and turn to lock in place.

2. Place the solar panels in the recesses provided

running the cables through the holes in the side.

3. Connect the solar panels to the pump taking care

to ensure the connectors are water tight. Slightly

twist when pushing together, ensure the red o-ring

remains in it’s groove and is not displaced. (see

images below)

4. Connect the hose from the pineapple to the pump

and lower it into place. Ensure the pump and cables

are nearly stored in the recess provided.

5. Fill the main bowl with water.

Note: Water must be regularly topped o. We

recommend regularly changing the water to ensure

it remains clean and free from debris.





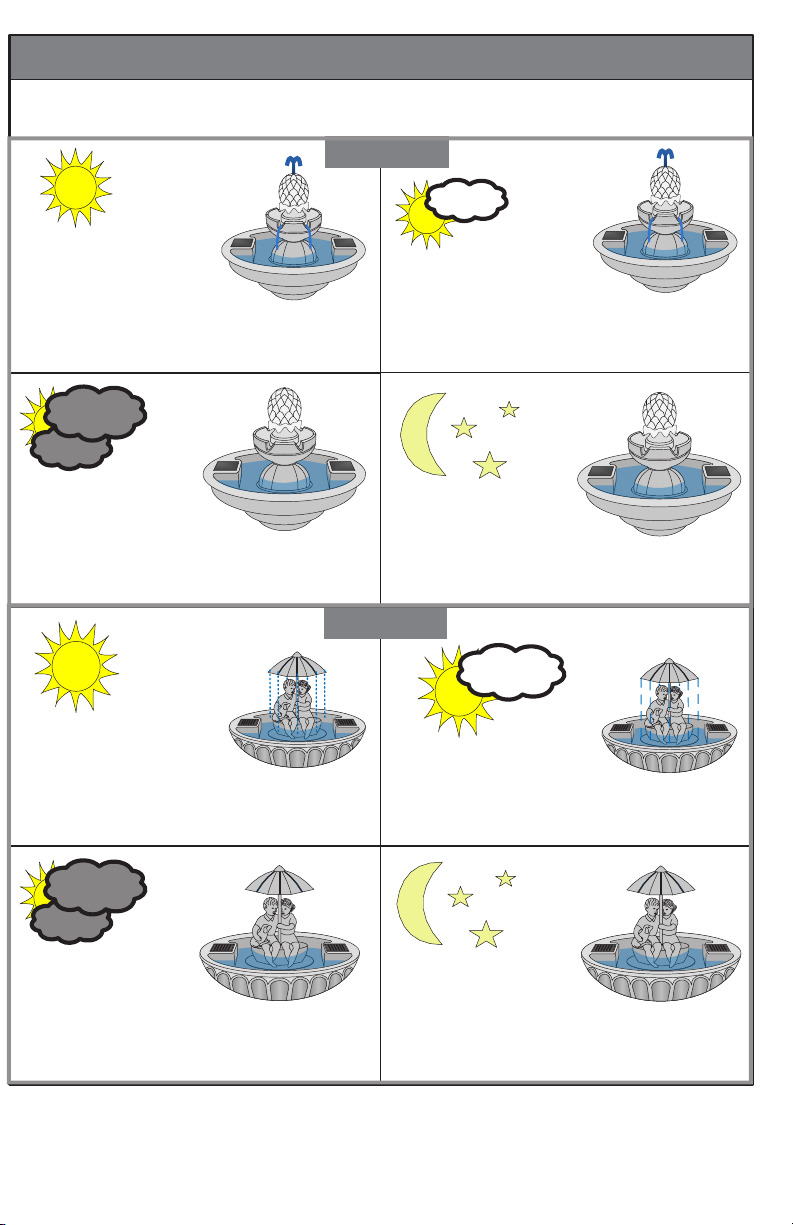

Performance

This product is designed primarily to operate in summer months but will also work in spring and autumn

provided there is good sunshine. Performance is directly related to the amount and strength of sunlight received.

In bright direct sunlight your pump will work well

with a consistent fountain height and flow rate.

In slightly cloudy conditions your pump will work

however fountain height and flow will vary as

clouds pass in front of the sun.

At night the solar panel does not generate

power and your pump will NOT work.

In overcast conditions the solar panel does not

generate enough power to run the pump and it

will NOT work.

In bright direct sunlight your pump will work well

with a consistent fountain height and flow rate.

In slightly cloudy conditions your pump will work

however fountain height and flow will vary as

clouds pass in front of the sun.

At night the solar panel does not generate

power and your pump will NOT work.

In overcast conditions the solar panel does not

generate enough power to run the pump and it

will NOT work.



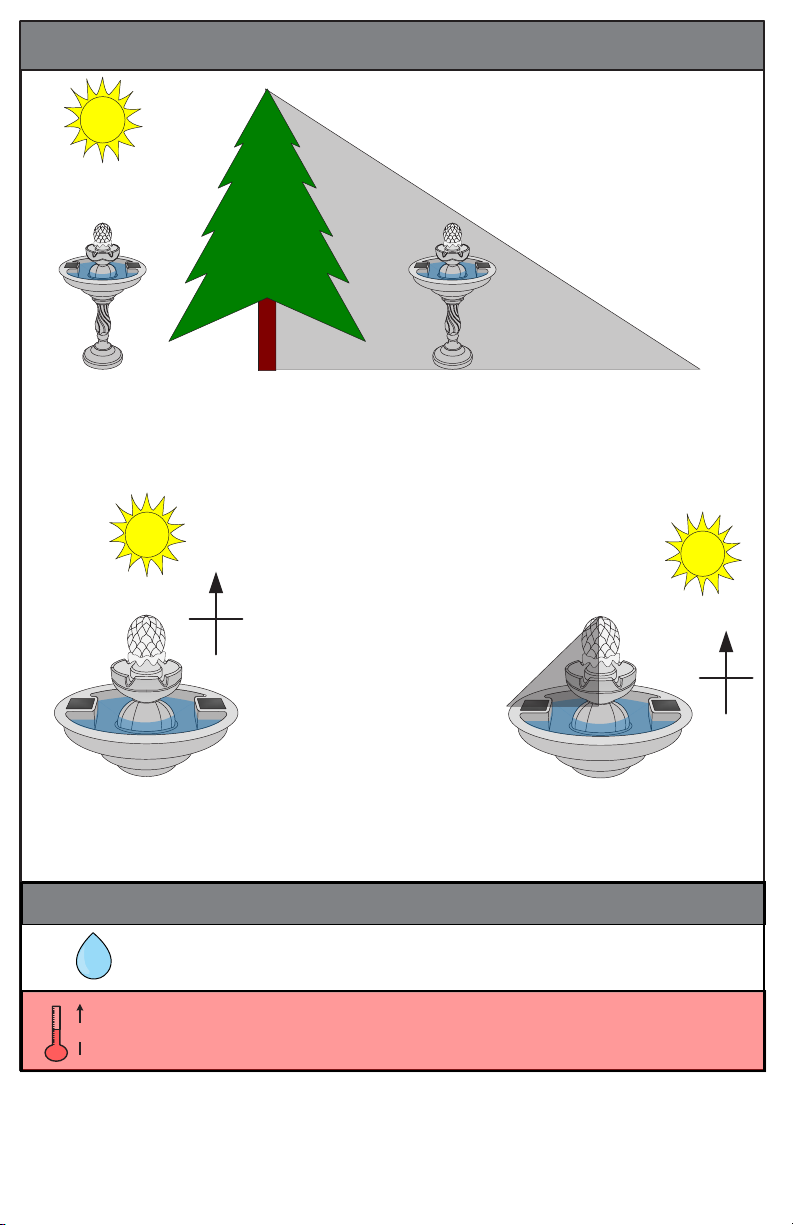

In order to minimize the

chances of the finial shading

one of the solar panels ensure

that the fountain is south facing.

If shading does occur simply

rotate the fountain until the

panels are in sunlight.



E or W



Position

Position your fountain so that receives direct sunlight. The fountain will NOT work

if the solar panels are in a shaded area.





Sculpture

Umbrella



Warnings

0°C/32°F



Important!

Water must be regularly topped off. We recommend regularly changing the

water to ensure it remains clean and free from debris.

Frost causes damage, store whole product inside during cold weather.

Performance

This product is designed primarily to operate in summer months but will also work in spring and autumn

provided there is good sunshine. Performance is directly related to the amount and strength of sunlight received.

In bright direct sunlight your pump will work well

with a consistent fountain height and flow rate.

In slightly cloudy conditions your pump will work

however fountain height and flow will vary as

clouds pass in front of the sun.

At night the solar panel does not generate

power and your pump will NOT work.

In overcast conditions the solar panel does not

generate enough power to run the pump and it

will NOT work.

In bright direct sunlight your pump will work well

with a consistent fountain height and flow rate.

In slightly cloudy conditions your pump will work

however fountain height and flow will vary as

clouds pass in front of the sun.

At night the solar panel does not generate

power and your pump will NOT work.

In overcast conditions the solar panel does not

generate enough power to run the pump and it

will NOT work.



In order to minimize the

chances of the finial shading

one of the solar panels ensure

that the fountain is south facing.

If shading does occur simply

rotate the fountain until the

panels are in sunlight.



E or W



Position

Position your fountain so that receives direct sunlight. The fountain will NOT work

if the solar panels are in a shaded area.





Sculpture

Umbrella



Warnings

0°C/32°F





Important!

Water must be regularly topped off. We recommend regularly changing the

water to ensure it remains clean and free from debris.

Frost causes damage, store whole product inside during cold weather.

Maintenance

Important 



Connections

Pump Cleaning / Troubleshooting

Filter cover can simply be pulled apart as shown.

Turn o impeller cover to release as shown, impeller

can be easily removed

Remove lter material and rinse in water.

Rinse all parts thoroughly in water.

Ensure connections from both solar panels to pump

are water tight.

If the pump is not working immediately, try the

following for a manual start. Remove the

pump cover. Remove the impeller cover, face

the panel to the sun, and start manually

spinning the impeller clockwise, this can

take 1-3 minutes.

Sculpture Style Fountain Assembly

1. Attach the main bowl to the pedestal. Align the

marks and turn to lock in place.

2. Place the solar panels in the recesses provided

running the cables through the holes in the side.

3. Connect the solar panels to the pump taking care

to ensure the connectors are water tight. Slightly

twist when pushing together, ensure the red o-ring

remains in it’s groove and is not displaced. (see

images below)

4. Connect the hose from the pineapple to the pump

and lower it into place. Ensure the pump and cables

are nearly stored in the recess provided.

5. Fill the main bowl with water.

Note: Water must be regularly topped o. We

recommend regularly changing the water to ensure

it remains clean and free from debris.





2 7

Umbrella Style Fountain Assembly



3

1. Attach the main bowl to the pedestal. Align the marks

and turn to lock in place.

2. Place the solar panels in the recesses provided

running the cables through the holes in the side.

3. Connect the solar panels to the pump taking care to

ensure the connectors are water tight. Slightly twist

when pushing together, ensure the red o-ring remains

in it’s groove and is not displaced (see images below)

4. Connect the hose from the umbrella statue to the

pump and lower it into place. Ensure the pump and

cables are nearly stored in the recess provided.

5. Fill the main bowl with water.

Note: Water must be regularly topped o. We recom-

mend regularly changing the water to ensure it remains

clean and free from debris.

If the tubing become blocked, rinse

through with water.

Remove umbrella to access tube. If the tubing

become blocked, rinse through with water.

To maintain optimum performance,

regularly clean the solar panel using water

or glass cleaner in conjunction with a

non-abrasive sponge or cloth.

Umbrella Sculpture

Maintenance
