SMART Board 7000 User manual

SMART Board
USER’S MANUAL

Important information
NOTE
Referto the installationand maintenance guide for important information about installing and
maintaining the display (see More information on page 8).
WARNING
⚫Do not open or disassemble the display. Yourisk electrical shock from the high voltage
inside the casing. Opening the casing also voids the warranty.
⚫ Do not stand (or allow children to stand) on a chair to touch the surface of the display.
⚫To reduce the risk of fire orelectric shock, do not expose the display to rain or moisture.
⚫Do not insert objects inside the cabinet ventilation holes, because they could touch
dangerous voltage points and cause electric shock, fire or product damage which may not
be covered by the warranty.
⚫ Do not place heavy objects on the power cable. Damage to the cable could cause shock,
fire orproduct damage whichmay not be covered by the warranty.
⚫ If the glass is broken, do not touch the liquid crystal. To prevent injury, handle glass
fragments with care when disposing of them.
⚫ Disconnect all of the display’s power cables from the wall outlet and seek assistance from
qualified service personnel if any of the following occur:
oThe power cable or plug is damaged
oLiquid is spilled into the display
oObjects fall into the display
oThe display is dropped
o
Structural damage, such as cracking, occurs
oThe display behaves unexpectedly when you follow operating instruction

Feature
iQ experience
Description
The display’s iQ appliance provides one-touch access to
collaborative tools, including a whiteboard, wireless
screen sharing and a web browser.
The SBID-7375, SBID-7386, SBID-7375P and SBID-7386P
models have an Intel Compute Card in the appliance to
provide a fully functional Windows 10 solution at your
fingertips, without the need for an external PC or cabling.
You can do everything on the display that you can do at
your computer—open and close applications, meet with
others, create new documents or edit existing ones, visit
websites, play and manipulate videos, and so on—by
touching the display’s surface.
You can write over applications in digital ink using one of
the supplied pens, and then erase the digital ink using
your palm, the eraser or the erasers on the pens.
The display includes integrated speakers for presenting
audio from connected input sources.
More information
Page 18
Touch support
Page 14
Writing and
drawing support
Page 15
Audio support
[N/A]
Features

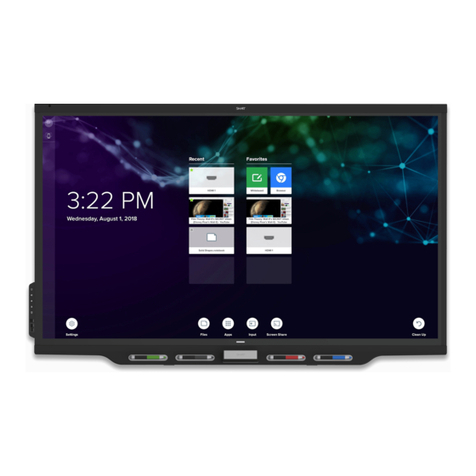

The SMART Board 7000 or 7000 Pro series interactive display is the hub of your classroom or
meeting room. PC-free embedded computing provides one-touch access to collaborative tools,
including a whiteboard, wireless screen sharing and a web browser. There’s no need for wires,
cablesormanual software and firmware updates.
The display includes the following features:

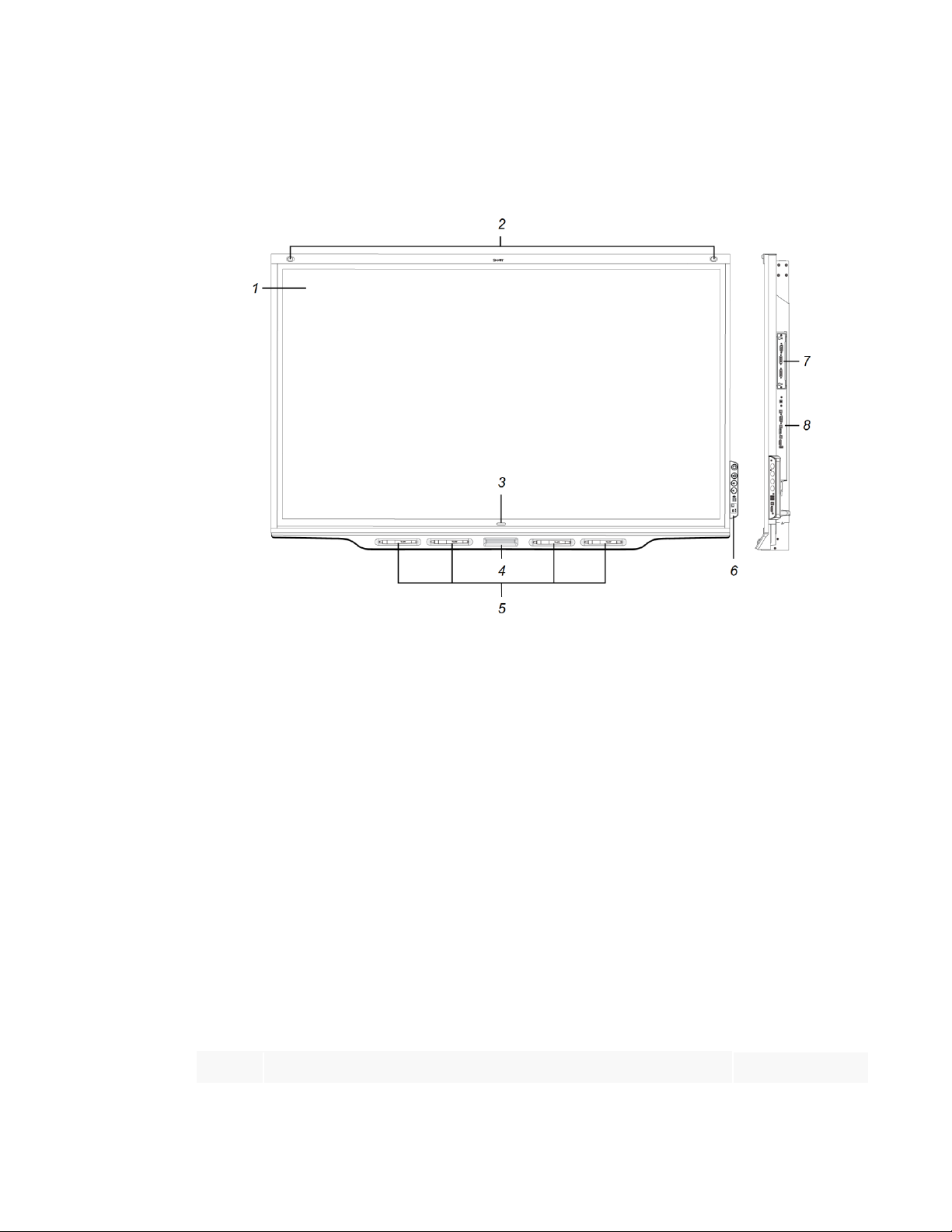

Components
The display consists of the following components:
No. Name
Pictured
1 Screen
2 Presence detection sensor (×2)
3 Home button
4 Eraser
5 Pen (×4)
6 Convenience panel
7 iQ appliance (and Intel Compute Card)
8 Connector panel
Not pictured
9 AC power inlet, outlet and switch
10 RS-232 connectors
11
Speakers

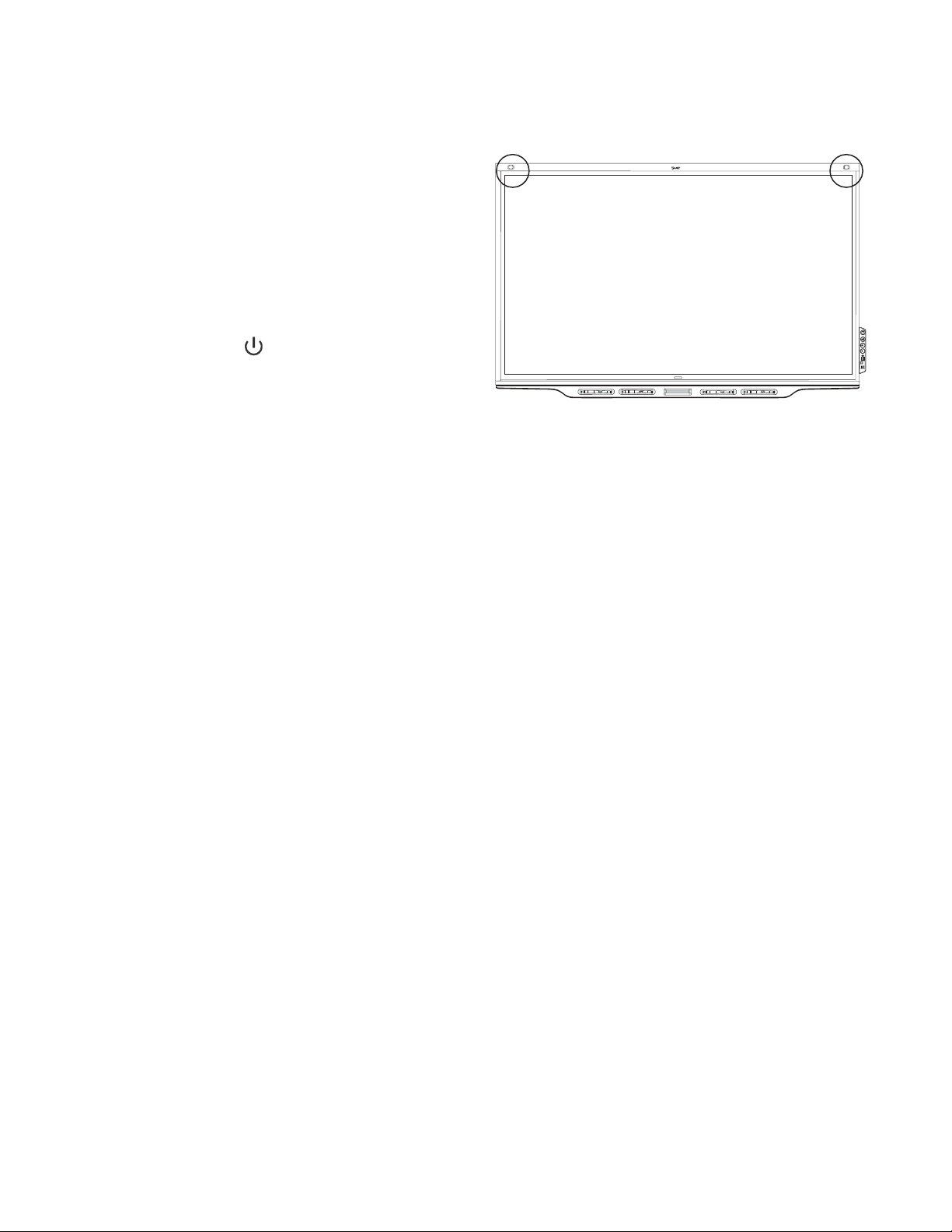

Presence detection sensors
The display has two presence detection
sensors on its top frame that can detect
people up to 16' (5 m) away when the
display is in Standby mode.
When the sensors detect people in the
room, the display is ready to turn on. To
turn on the display, press the Power
button orpick up a pen or eraser.
If the room is empty for a specified
period, the display returns to Standby
mode.

Home button
Tap the Home button to open the Home screen. From the Home screen, you can open the iQ
appliance’s apps as well as the settings.
Formore informationabout the Home screenand the iQ experience, see Using the iQ experience
on page 18.

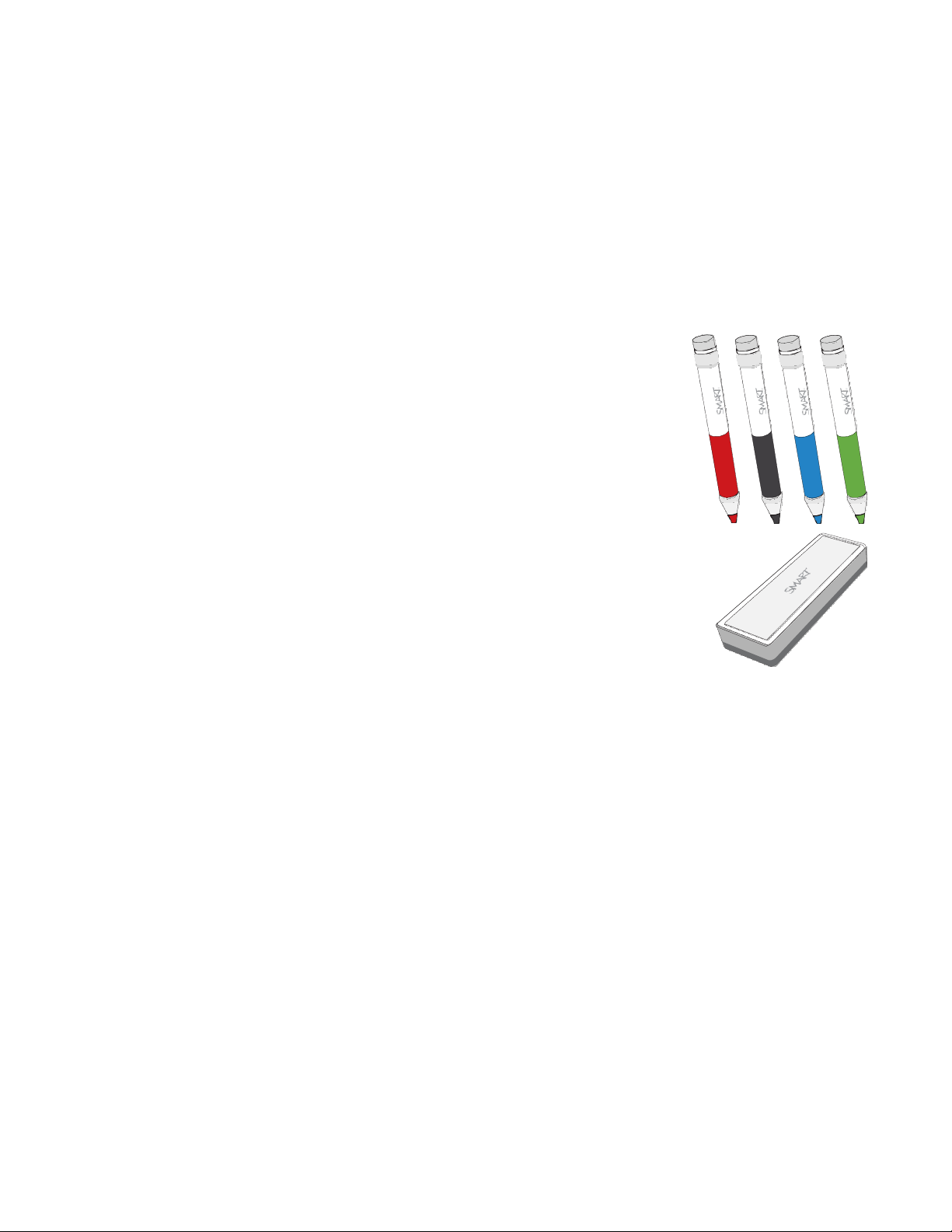

Pens and eraser
The display comes with black, red, blue and green pens. Each pen has
an attached eraser and an indicator light.
In addition to the pens, the display includes an eraser, which you can use
when you want to erase a large area on the screen.
For more information about the pens and eraser, see Using the pens and eraser on page 15.
Convenience panel
The convenience panel contains buttons forturning the display onand off and controlling the
volume. It also includes connectors for USB peripherals and a computer or other input source.
For more information about the convenience panel, see Using the convenience panel on page 12.
Internal speakers
The display includes two 10 W integrated speakers. You can also connect external speakers.

SMART Audio 400 classroom amplification system
Available for education models, the SMART Audio 400 classroom amplification
system provides high-quality audio amplification. The system comes with a
teacher microphone and optional student microphone. Multiple speaker
options are available, including wall- and ceiling-mounted speakers. The
amplifier receives audio signals from the microphones and translates them into
crystal-clear sound through the speakers.

Waking up the display and putting it back to sleep
The display’s presence detection sensors can detect people up to 16' (5 m) away when the display
is in Standby mode (in other words, sleeping). When the sensors detect people, the display enters
Ready mode and is ready to wake. To wake the display, do one of the following:
⚫ Press the Power button on the convenience panel.
⚫ Pick up a pen or the eraser.
The display returns to a partial sleeping state when one of the following occurs:
⚫The sensors don’t detect people in the room for 60 minutes.
⚫ You press the Power button on the convenience panel.
The display remains in this partial sleeping state until all pens are fully charged. The display enters
a full sleeping state after all pens are fully charged.

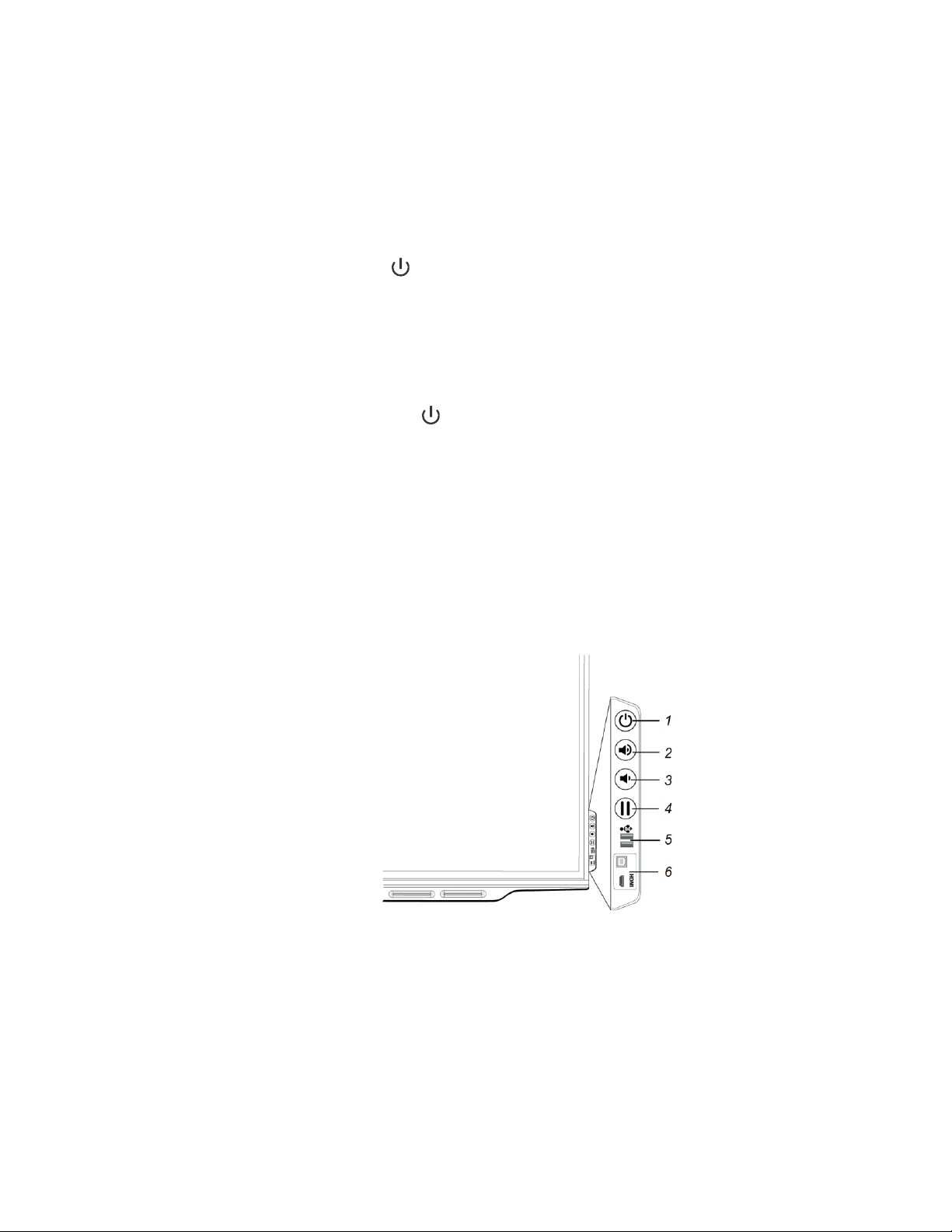

Using the convenience panel
The convenience panel contains buttons forturning the display onand off and controlling the
volume. It also includes connectors for USB peripherals and a computer or other input source.

No.
Name
Procedure
1
Power
⚫
Press to enter or exit Standby mode.
⚫
Press and hold for four seconds to turn off the display.
⚫
Press and hold for 10 seconds to reset the display.
2
Volume increase
Press to increase the volume.
3
Volume
Press to decrease the volume.
decrease
4
Freeze
Press to freeze and unfreeze the screen (see page 13).
5
USB Type A
Connect USB drives and other devices that you want to use
connector (×2)
with the iQ appliance or a connected computer.
6
HDMI 2 input
connectors

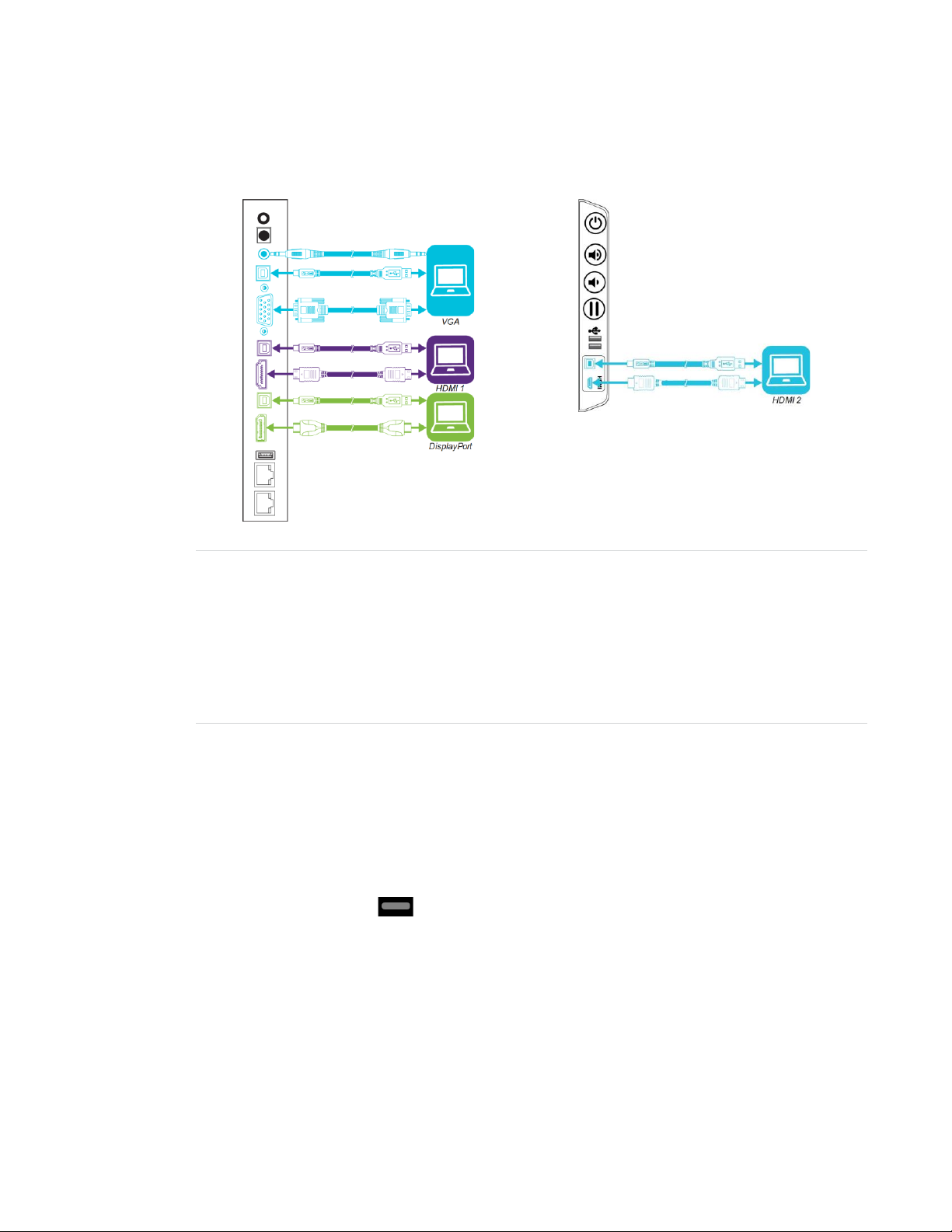

Connect a computeror other input source to use with the
display (see page 23).
Using the Power button to identify the display’s status
The Power button indicates the display’s status:
Power button
Display status
Off
Amber
White
Not receiving power
Standby mode
Normal operating mode
Adjusting audio
If you’re presenting content with sound, you can use the buttons onthe convenience panel to
increase and decrease the volume.
Freezing the screen
Youcan temporarily freeze the screenby pressing the Freeze button onthe convenience panel.
This is particularly useful when you want to pause a video, an animation or other moving content.
NOTE
Freezing the screen does not pause any applications running on the connected computer. It
simply freezes the display of those applications.
To unfreeze the screen, press the Freeze button again.

Using touch
You can do everything on the display that you can do at your computer—open and close
applications, meet with others, create new documents or edit existing ones, visit websites, play
and manipulate videos, and so on—by touching the display’s surface.
You can use an array of gestures within applications, including panning, scaling, rotating and
zooming in and out.
The display’s support for up to 16 simultaneous interaction points (combination of 10 finger touch
points, four pen touch points and two eraser touch points) enables you and other users to interact
with objects onthe screen at the same time.
NOTE
T h e d is p la y ’ s Hy P r T o uch ™ ( Hy b r id P r e c is io n T o uch ) p r op r ie t a ry hy b r id s y s t e m g r e a t ly im p r o v e s
u po n it s I n G la ss ™ c o r e b y op t imiz in g b o t h t o uch a n d pe n pe r fo r m a nc e , r e s u lt in g in vir t u a lly n o la g
and zero contact detect height.
Exclusive to SMART, HyPr Touch allows for SMART’s unique Simultaneous Tool Differentiation—
the use of 10 touch points, four pens and two erasers (tool and palm) by multiple users for a truly
natural, fully collaborative experience.
You can also use gestures within applications.
NOTE
Not all gestures work in all applications. Refer to an application’s documentation to learn which
gestures it supports.

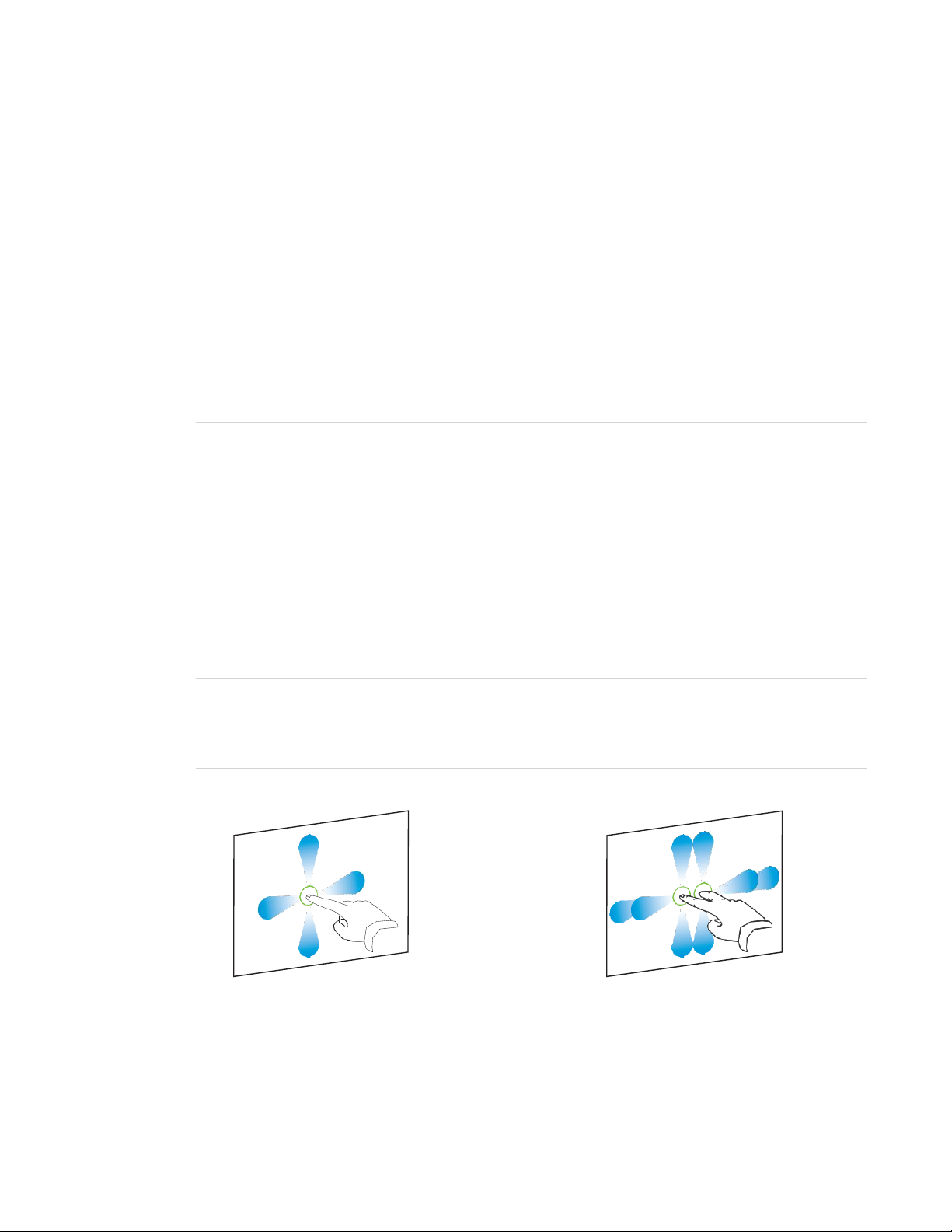

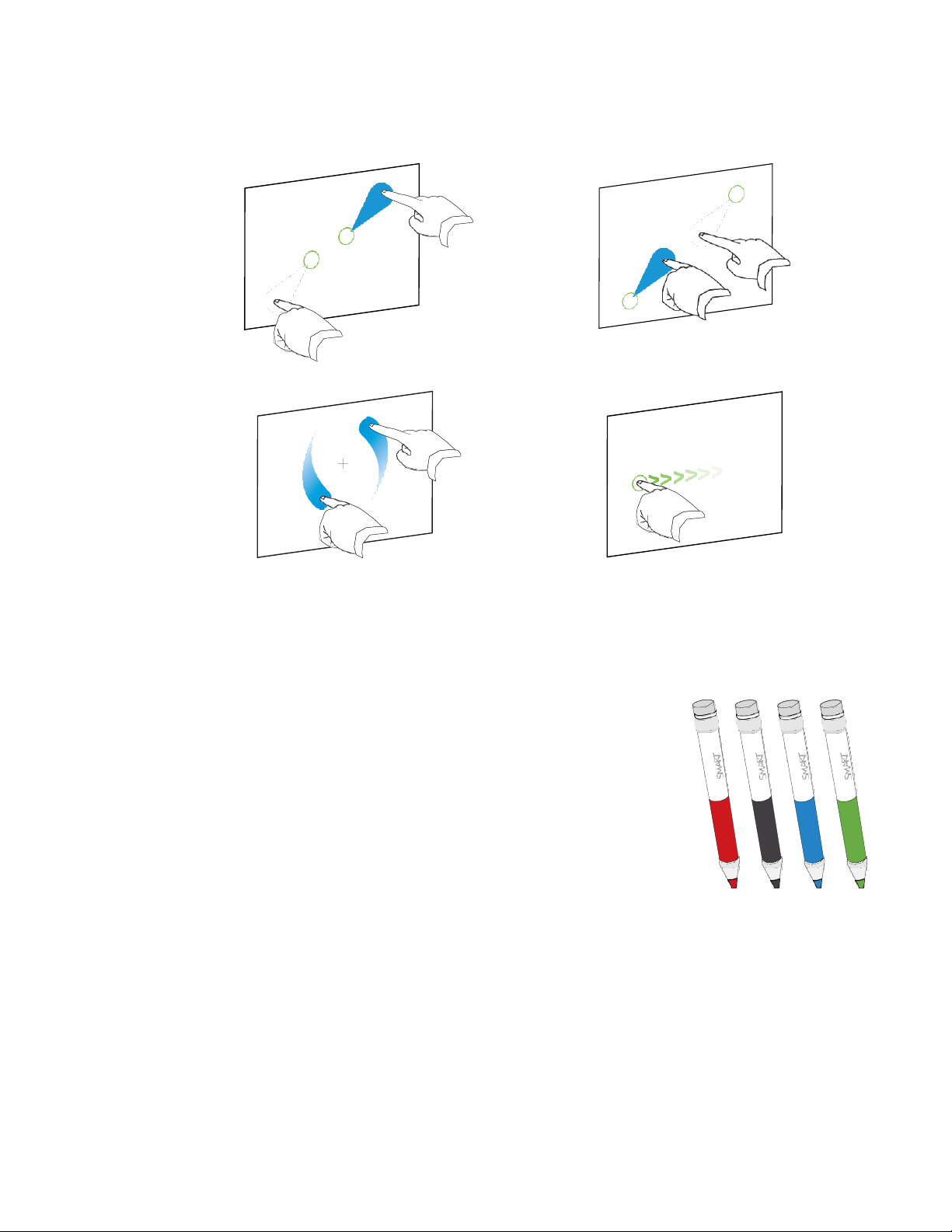

Pan (one finger) Pan (two fingers) / scroll

Pinch to zoom in / scale (enlarge) Pinch to zoom out / scale (reduce)
Rotate Flick
Using the pens and eraser
Using the pens
The display comes with black, red, blue and green pens. Each pen has
an attached eraser and an indicator light.
The display’s bottom frame includes magnetic holders for the pens.
Removing a pen from its holder activates it, and you can use the pen to
draw orerase digital ink. Replace the pen when you’re done using it to
charge it.

When youfirst turn onthe display orpick up a penfrom the magnetic holder, the pen’s light turns
onto indicate the pen’s status:
Light
Pen status
Action
Solid green
The pen is charging slowly
and can be used for at least
two hours.
Pick up the pen and use it to write on the
display. Return the pen to the magnetic holder
whenyou’re done.
Solid amber
The pen is charging quickly
and can be used for less
than two hours.
Use the pen for up to two hours. Return the pen
to the magnetic holder when done.
NOTE
It is normal for pens to be warm to the touch
when charging quickly.
Solid red
The pen needs to be
charged within30 minutes.
Finishusing the penand returnit to the
magnetic holder when done.
Flashing red
The pen needs to be
charged within 10 minutes.
Return the pen to the magnetic holder as soon
as possible.
Flashing green or
amber (while the
pen is in the
magnetic holder)
The pen’s firmware is
updating.
Wait for the light to stop flashing. This indicates
the pen’s firmware has completed updating.
CAUTION
When you return a pen to the magnetic holder, make sure it’s centered in its holder to keep it
from falling and being damaged. The pen’s light turns onto indicate that it’s properly positioned
inthe holder.
IMPORTANT
⚫ Use only pens designed for SMART Board 7000 or 7000 Pro series interactive displays
⚫Afteryou install the display and turn it onfor the first time, place the pens in the holders for
at least five minutes. This pairs the pens with the display and charges them for testing
purposes.
⚫ If you previously paired a pen with a SMART Board 7000 series interactive display, you must
pair it with another display to use it with that display. When you do this, the pen’s firmware
may be updated to align withthe otherdisplay’s software.

⚫To fully charge the pens, keep them inthe holders for at least four hours before users start
using the display.

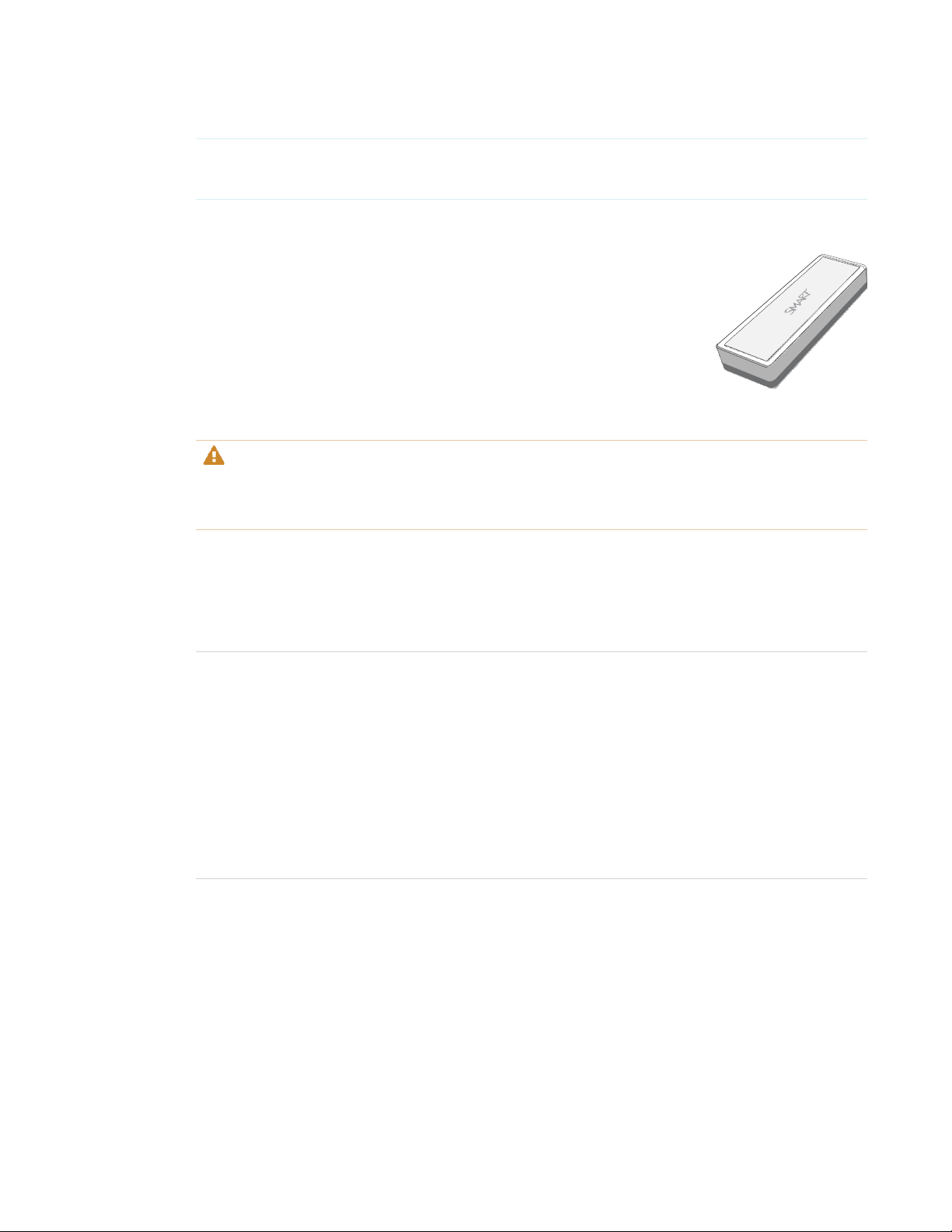

Using the eraser
In addition to the pens, the display includes an eraser, which you can use
when you want to erase a large area on the screen.
The display’s bottom frame includes a magnetic holder for the eraser.
Replace the eraser when you’re done with it.
CAUTION
When you return the eraser to the magnetic holder, make sure it’s centered in its holderto keep
it from falling and being damaged.

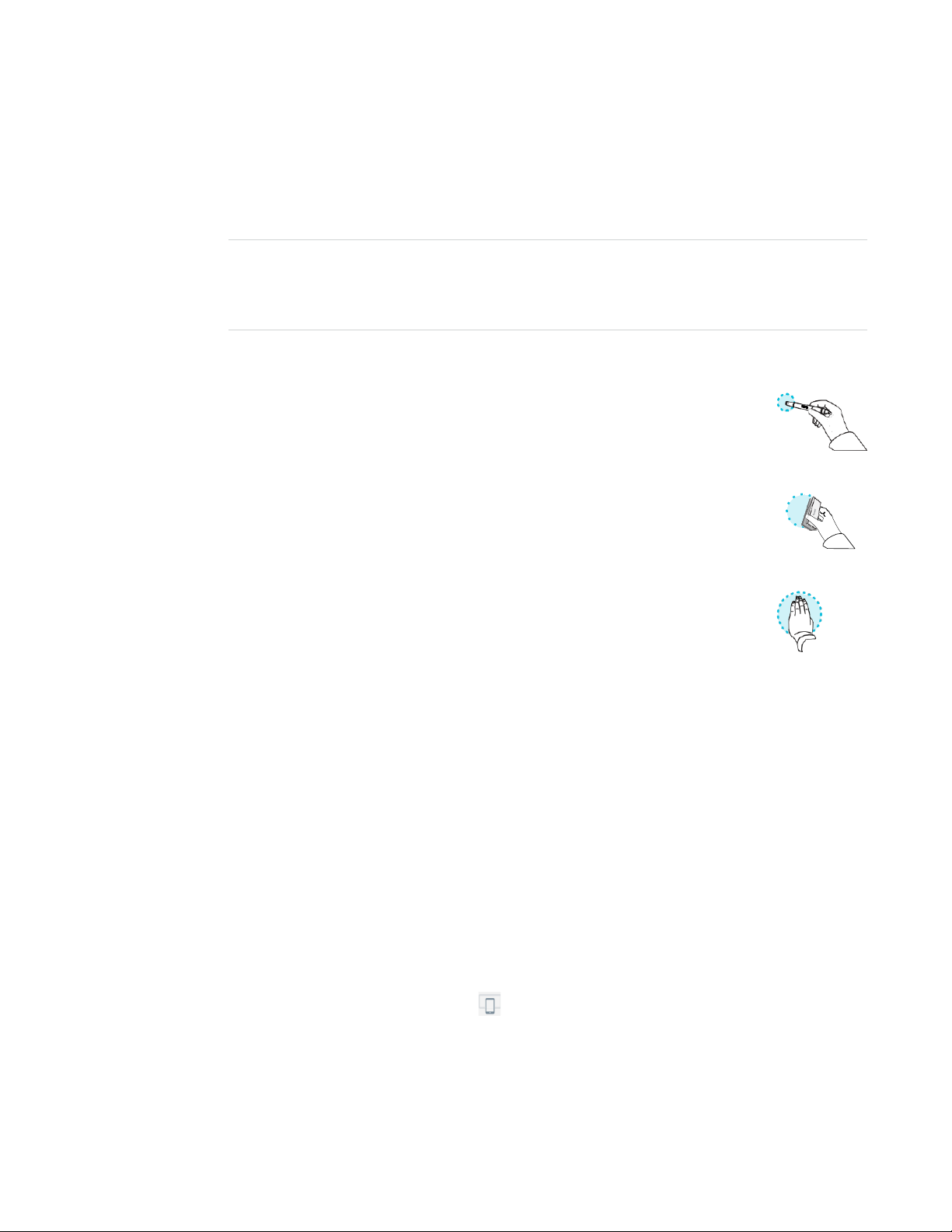

Writing, drawing and erasing
The display includes black, red, blue and green pens, which youcan use to write or draw in digital
ink. You can erase digital ink using the eraser ends of the pens, the eraser or gestures.
NOTES
⚫ Up to four users can write or draw digital ink on the screen at the same time. Each pen writes
a n d d r a w s in it s ow n c olo r . T h e P e n I D ™ fe a t ur e e n a b le s y o u t o ass ig n d iffe r e n t in k
appearances to each pen.
⚫ Each pen has a light that turns on to indicate the pen’s status.
⚫ If you’re viewing the Intel Compute Card’s or a connected computer’s input, SMART Ink
enables you to write or draw in digital ink over applications, files, folders, websites and any
otheropenwindow.

To write or draw in digital ink
1. Pick up one of the display’s pens.
2. Use the pen to write or draw indigital ink.
NOTE
The Pen ID feature enables you to use the pens at the same time and customize their colors
and other settings independently.
To erase digital ink
Move a pen’s eraser over the digital ink you want to erase.
OR
Move the eraser over the digital ink you want to erase.
OR
Move your fist or palm over the digital ink you want to erase.
Changing pencolor,thickness and other properties
You can change a pen’s default color, thickness and other properties:
⚫To change a pen’s properties while using the Whiteboard app or any of the other apps in the
iQ experience.
⚫To change a pen’s properties while using the Intel Compute Card or a connected computer.
Using the iQexperience
Using the Home screen
The Home screen in the iQ experience shows recent files and favorite apps and files. You can also
start sharing with the display by tapping in the upper right corner. You can change the display's
background to personalize the display.

To show the Home screen
Tap the Home button at the bottom of the screen.
Using the Apps Library
The Apps Library contains the Browser, SMART Notebook Player and Whiteboard apps. You can
also add apps from the web and SMART’s app store.
NOTE
SMART Notebook Player is available on education models only.
To open the Apps Library
From the Home screen, tap Apps Library .
Using the Files Library
The Files Library contains Whiteboard sessions, SMART Notebook files that have been shared with
the display, PDFs, and acetates. If a USB drive is connected to the display, the files on the USB
drive are also available in the Files Library. Although these files can be viewed on the display, they
are not saved on the display.
NOTE
SMART Notebook Player is available on education models only.
To open Files Library
From the Home screen, tap Files Library .
Using Whiteboard
Using Whiteboard, you can write and erase notes on the display just as you do on a traditional dry
erase board. You can also save your notes for later reference and share them using the
SMART kapp® app.
To learn how to use the display’s pens and eraser to write, draw and erase in Whiteboard, see
Using the pens and eraser on page 15.

Using SMART Notebook Player
Use SMART Notebook Player to open, view, and interact with SMART Notebook software files.
N o t e b ook P la y e r m a ke s it e as y t o p r e s e n t S M A R T N o t e b ook file s a n d p la y S M A R T la b ™ a c t iv it ie s
onthe display.
You can also install the Notebook Player app on your iOS device to view and control SMART
Notebook files from the device.
Using Browser
You can use Browser to view web sites on the display.
Using Input
Youcanuse the display’s connectors to connect a room computer, guest laptops, and other input
sources.
Using Screen Share
You can share the screens from computers and mobile devices on the display wirelessly using
ScreenShare.
Screen Share supports the following devices:
⚫ C hr o m e b ook ™ la p t op s , u s in g G oo g le ™ Cas t C hr o m e ™ b r ow s e r e x t e n s io n
⚫ Windows computers, using Miracast
1
, Google Cast Chrome browser extension, or AirParrot
⚫ Mac computers and iOS devices, using AirPlay
⚫ An d r oid ™ d e vic e s , u s in g Cas t S cr ee n
Using screenshots
When using the Browser or Screen Share apps, you can write or draw on an annotation layer and
save the screenshot to the Files Library.

Cleaning up the display
After you’ve finished using the display, open the launcher and tap Clean Up to clean up the
display forthe next user.
Connecting and using the Intel Compute Card
The SBID-7375, SBID-7386, SBID-7375P and SBID-7386P models have an Intel Compute Card.
Insert the IntelCompute Card inthe slot onthe iQ appliance and thenuse the Input app to view the
Intel Compute Card’s Windows 10 operating system on the display.
TIP
You can install the SMART software that is included with the display on the Intel Compute Card.
For more information on installing software, see Installing SMART software on computers you
want to connect to the display below.
To view the Intel Compute Card’s input
1. Tap the Home button at the bottom of the screen.
The Home screen appears.
2. Tap Input .
The display shows thumbnails of the devices that are connected to the display, including the
Intel Compute Card.
3. Tap the Intel Compute Card’s thumbnail.

Connecting and using computers
NOTE
SMART Learning Suite and SMART Meeting Pro software are bundled with the following
software:
Software Description
SMART Product Drivers Enables the Intel Compute Card or connected computers to
detect input from the display
SMART Ink®
Enables you to write and draw in digital ink over applications, files,
folders, websites and any other open window
Setting the resolutions and refresh rates of computers you want to
connectto the display
The following table presents the recommend resolutions and refresh rates forthe display’s input
sources:
Input source
Resolution
Refresh rate
HDMI 1
3840 × 2160
60 Hz
HDMI 2
1920 × 1080
60 Hz
DisplayPort
1920 × 1080
60 Hz
VGA
1920 × 1080
2
60 Hz
If possible, set any connected computers to these resolutions and refresh rates. See the
connected computers’ operating system documentation for instructions.

Connectingcomputersto the display
You can connect computers with SMART software to the display as shown below.
NOTES
⚫ To interact with content, connect a USB cable to the appropriate USB Type-B receptacle on
the connector panel or convenience panel (as shown in the above diagrams).
⚫Your organization’s installers might have connected cables to the connector panel orthe
convenience panel and run the cables behind a wall or under the floor to a desk or table
where youcan place your computer.
Viewing a connected computer’s input
Use the Input app to view a connected computer’s input onthe display.
To view a connected computer’s input
1. Connect the computerto the display.
2. Tap the Home button at the bottom of the screen.
The Home screen appears.

3. Tap Input .
The display shows thumbnails of the devices that are connected to the display’s inputs:
oA gray thumbnail indicates no device is connected to aninput.
oA blue thumbnail indicates a device is connected to an input but is in sleep mode.
oA thumbnail showing a preview screen indicates a device is connected to aninput and is
currently active.
4. Tap the computer’s thumbnail.
Using SMART software on connected computers
Afteryou’ve connected a computer to the display and used the Input app to view its input onthe
display, you can use the SMART software to present content and enable collaboration.
