SMART SMART1500 User manual

Türkçe
Model
SMART1500

2.
1.
Model
SMART1500
2

3. Paketin açılması için kontrol listesi
4. Kutu İçeriği
3

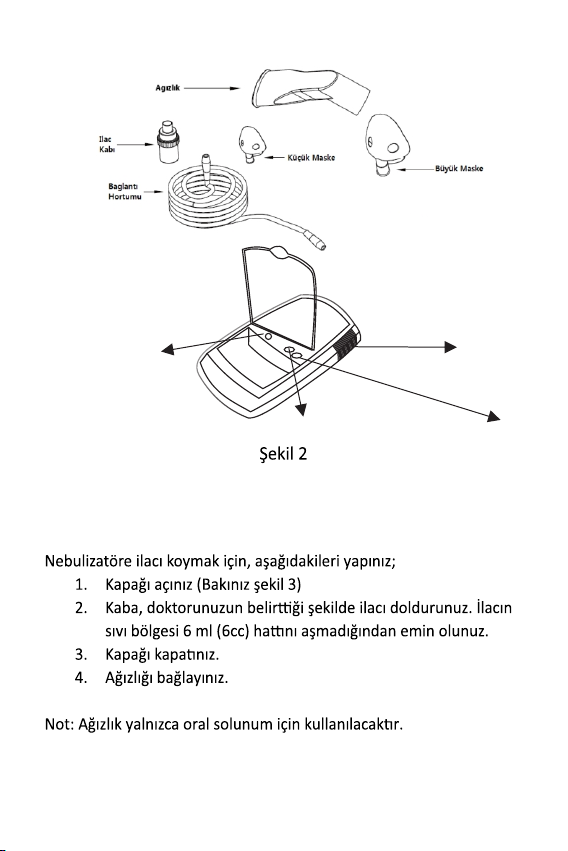

5. İlacı Nebulizatöre Nasıl Koyacağım ?
4
Soğutma Çıkışı
Fltre ve Kabı
Açma Kapama
Tuşu
Hava Bağlantı Yer

6. Nebulizatörü Nasıl Çalıştıracağım?
5

7.
8.
9.
6

10.
6 ml. İlaç Haznesi
2 Metre Hava Tüpü
2 Adet Maske
Filtre ( 5 Adet)
Ağızlık
Gerilim / Frekans
Güç / Akım
İlaç Kapasitesi
Partikül Boyutu
MMAD
GSD
Ortalama Nebulizasyon hızı
Ses Düzeyi
Kompresör Basınç Aralığı
Çalışma Sıcaklığı
Kompresör Akış Hızı
Kompresör Çıkış Basıncı
Aerosol Miktarı
AC ^^ 230 V / 50-60 Hz
170 VA / 0,7 A
6 ml
0,4 to 9 µm
2,79 µm
2,57
0,07 ml / min
Below 70 dBA
2,8 -3,5 bar
32,2 C
8,12 l / dak (min)
8 psi
0,08 ml /dak (min)
Özellikler ve Standart Aksesuarlar
AksesuarlarÖzellikler
7

11.
Üretici Firma:
Medisec Tıbbi Cihaz ve Ürünleri
İthalat İhracat San. ve Tic. Ltd. Şti.
Başpınar (Organize) OSB Mahallesi O.S.B. 2. Bölge
Celal Doğan Blv. No:40 Şehitkâmil/Gaziantep/Türkiye
Tel: [phone] Fax: [phone]
www.medisec.com.tr
8
Fazla ilaç ile dolmuş

9

Smart1500
Başpınar (Organize) OSB Mahallesi O.S.B. 2. Bölge
Celal Doğan Blv. No:40 Şehitkâmil/Gaziantep/Türkiye
Medisec Tıbbi Cihaz Ürünleri İth. İhr. San. ve Tic. Ltd. Şti.
10

Englsh
Model
SMART1500
11

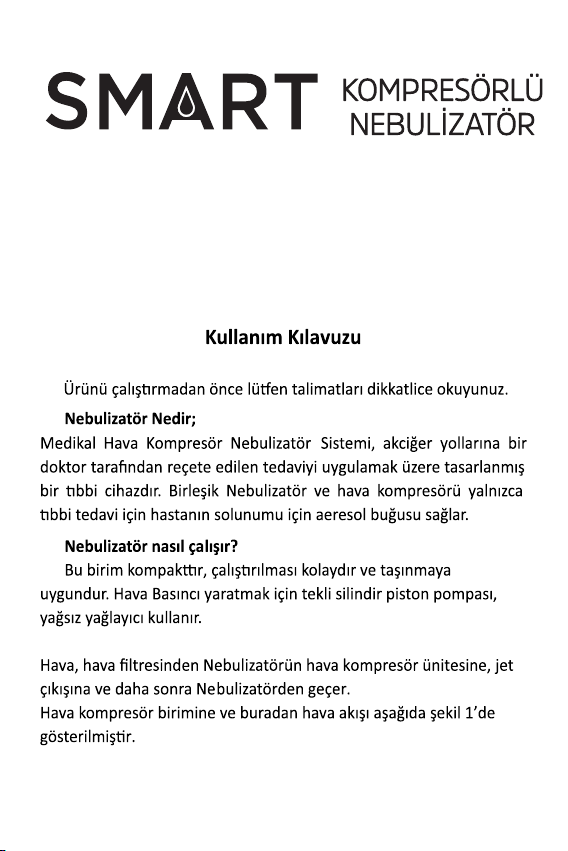

SMART
COMPRESSOR NEBULIZER
User's Manual
Please, read the instructions carefully before operating this product
1. What is Nebulizer?
Medical Air Compressor Nebulizer System is a medical device
designed to administer the treatment to the lung pathways and
prescribed by a physician. Combined Nebulizer and air compressor
provides aerosol mist for inhalation of the patient and only for
medical treatment.
2. How does nebulizer operate?
This unit is compact, easy to start and appropriate to move. Single
cylinder piston pump, oil-free lubricant is used to create Air Pressure.
Air passes to the air compressor unit of Nebulizer through air filter, to
the jet outlet and then through Nebulizer.
Air compressor unit and air flow from here are shown in Figure 1.
Model
SMART1500
Compressor
Nebulizer
12

Figure 1: Operating Principle
3. Control list for opening the package
Make sure that following materials are available before using the
product:
1x Main device (Compressor)
1x Aerosol Nebulizer
1xAeresol Tube system
1x Mask (Child & adult )
1x Mouthpiece
4. Box Content
Parts of Standard Nebulization have been provided in a diagram in
Figure 2.
Air
Filter Inlet Outlet
Jet outlet
Compressor
13

Figure 2
5. How will I put the medicine into the Nebulizer?
To put the medicine into the Nebulizer, follow the steps below:
1. Open the cover (See Figure 3)
2. Put the medicine as prescribed by your physician into the
container. Make sure that medicine does not exceed the liquid area
6. ml(6cc).
3. Close the cover.
4. Fasten the mouthpiece.
Note: Mouthpiece will be used only for oral inhalation.
14
Mouthpiece
Air Pipe
Nebulizer Container
(Medicine Container)
Big Mask
Small Mask
Mouthpiece
Ar Well
Flter and Cover
Power Button
Ar Ppe Inlet

Figure 3
6. How will I start the Nebulizer?
To start the Nebulizer, follow the steps below:
1. Plug in the air filter but do not connect the main Nebulizer.
2. Make sure that the Air Filter is connected to the air compressor.
3. Turn on the power button.
4. After the air compressor is started properly, connect the jet outlet
of the air compressor to the inlet of the nebulizer by the air pipe.
5. Start the treatment according to the instructions of your physician.
6. Respire naturally. Following completion of the treatment, make
sure that the device is stopped.
7. Following use of the device, close the air compressor unit before
separating the air pipe.
WARNING: Do not use the product near combustible materials
or explosive materials.
Mouthpiece
Cover
Hopper for
Putting
Medicine
Air Pipe
15

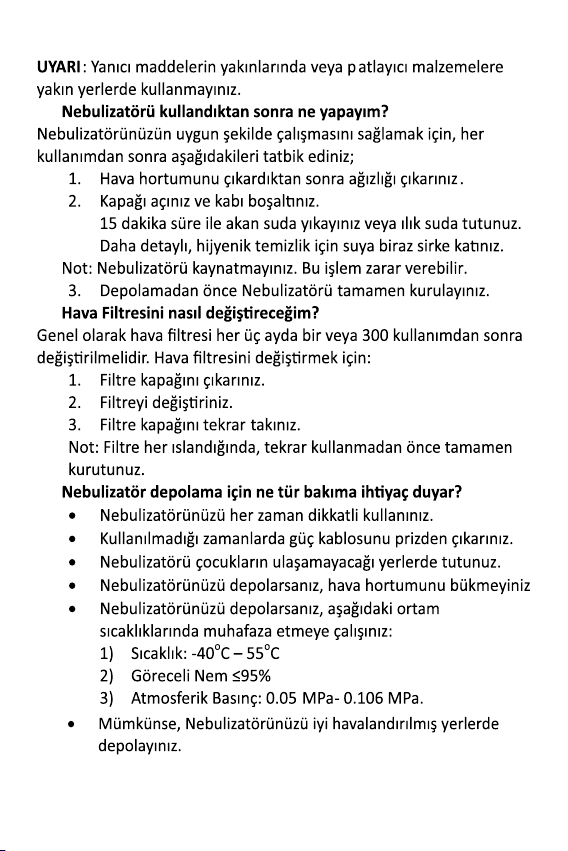

7. What will I do after using the Nebulizer?
To ensure that the Nebulizer is started properly, follow the steps
below after each use:
1. Remove the mouthpiece after removing the air pipe.
2.Open the cover and empty the container.
Wash it in running water for 15 minutes or keep it in warm
water. Put some vinegar into the water for more detailed
hygienic cleaning.
Note: Don not boil the Nebulizer. This may damage the device.
3. Dry the Nebulizer completely before storing it.
8. How will I change the Air Filter?
Generally, air filter must be replaced in every three months or after
use for 300 times. To replace the air filter:
1. Remove the filter cover.
2. Replace the filter.
3. Insert the filter cover.
Note: In each case where the filter gets wet, dry it well before using.
9.What kind of maintenance is necessary to store the
Nebulizer?
Always use the Nebulizer carefully.
When the Nebulizer is not used, unplug the device.
Keep the Nebulizer out of reach of children.
In case you store the Nebulizer, do not bend the air pipe.
In case you store the Nebulizer, keep it in the following ambient
temperatures:
1) Temperature:-40°C-55°C
2) Relative Humidity: 595%
3) Atmospheric Pressure: 0.05 MPa- 0.106 MPa.
If possible, keep the Nebulizer in well-ventilated place.
16

10. Properties
6 ml Medicine Cup
2 Meter Air Tube
2 Pieces Masks
Filter (5 Pcs.)
Mouth Piece
Power / Frequency
Current
Medication Capacity
Particle Size
MMAD
GSD
Average Nebulization Rate
Noise Level
Compressor Pressure Range
Operation Temp.
Compressor
Compressor Out of Pressure
Aerosol Supply
AC ^^ 230 V / 50-60 Hz
170 VA / 0,7 A
6 ml
0,4 to 9 µm
2,79 µm
2,57
0,07 ml / min
Below 70 dBA
2,8 -3,5 bar
32,2 C
8,12 l / dak (min)
8 psi
0,08 ml /dak (min)
ACCESSORIES SET
SPECIFICATION
17

11. Troubleshooting Manual
Sign
Excessive Sound
Water drops
in the air pipe
Probable Cause
No filter in the unit
Main Compressor button
is turned off
Nebulizer has not been
cleaned after previous use
Air pipe bent.
Filter blocked
No medicine available
Cover not properly closed.
Excessively filled
Nebulizer has been
washed but not dried.
Solution
Put a filter into the unit
Turn on the unit
Clean the unit
Remove bending and
entanglement in air pipe
Remove the filter.
Add sufficient amount of
medicine specified by the
physician to the container.
Adjust the cover again.
Add appropriate amount of
medicine to the container,
connect the air pipe to the
air compressor and open
the unit.
Turn on and off the
Nebulizer with your finger
over and over again until
the drops disappear.
Note: Please, contact with your supplier for all problems.
Producing Company:
Medisec Tıbbi Cihaz ve Ürünleri
İthalat İhracat San. ve Tic. Ltd. Şti.
Başpınar (Organize) OSB Mahallesi O.S.B. 2. Bölge
Celal Doğan Blv. No:40 Şehitkâmil/Gaziantep/Türkiye
Tel: [phone] Fax: [phone]
www.medisec.com.tr
18

Smart
Compressor Nebulizer
MODEL NO: SMART1500
Lower Respiratory Tract
Particle Size
Adult and Child Mask
6cc Medicine Hopper
MINISTRY OF INDUSTRY AND TRADE
DIRECTORATE GENERAL OF CONSUMER PROTECTION AND MARKET
SURVEILLANCE
CERTIFICATE OF WARRANTY
Issue Date and Number of This Certificate:
Validity Date of the Certificate:
Use of This Certificate of Warranty has been allowed by the Directorate
General Of Consumer Protection And Market Surveillance of T.R. Ministry of
Industry and Trade in accordance with the Law No.4077 Regarding Consumer
Protection and the Regulation Regarding Implementation Procedures of
Warranty Certificate come into force based such Law.
Manufacturer's / Importing Company's:
Title:Medisec Tıbbi Cihaz ve Ürünleri ithalat ihracat San.ve Tic.Ltd.Şti
Address of the Head Office
Medisec Tıbbi Cihaz Ürünleri İth. İhr. San. ve Tic. Ltd. Şti.
Başpınar (Organize) OSB Mahallesi O.S.B. 2. Bölge
Celal Doğan Blv. No:40 Şehitkâmil/Gaziantep/Türkiye
Telephone : [phone]
Telefax : [phone]
Signature-Seal of the Authorized Person of the Company:
Product Description : Nebulizer
Brand : Smart
Model : SMART1500
Banderole and Serial No. :
Delivery Date and Place :
Warranty Period : 2 Years
Maximum Repair period : 30 Days
19

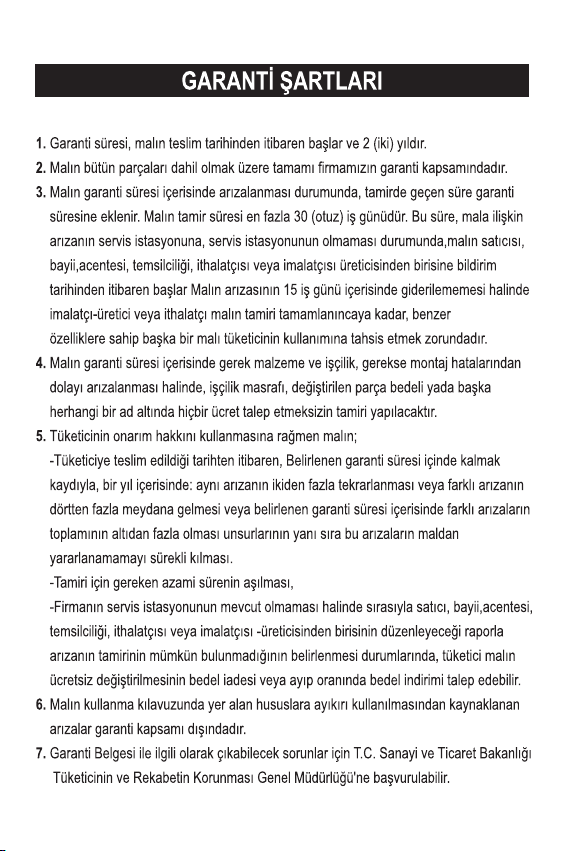

WARRANTY CONDITIONS
1. Warranty period will start from delivery date of the goods and is for 2 (two)
years.
2. All goods including relevant parts of the goods are within the scope of our
company's warranty.
3. In the event that the goods fails within the warranty period of the goods,
repair period will be added to the warranty period. Repair period of the goods
will be maximum 30 (thirty) working days. This period will start from the
communication date for the failure of the goods to the service station, if such a
service station is not available, to the seller, vendor, agent, representative
office, importer or manufacturer, producer of the good. In the event that said
failure cannot be removed within 15 working days, manufacturer-Producer or
importer must make another goods with the same properties available for use
of the consumer until repair work of the goods is completed.
4. In the event that the goods fails due to material and workmanship or
assembly faults within the warranty period, such goods will be repaired without
charging any fee under the name of workmanship fee, fee for replaced part or
any other cost.
5. Although the consumer uses the right to have the goods repaired; if :
-the same failure occurs more than twice or different failures occur more than
four times within one year or total number of different failures is more than six
within the warranty period specified and such failures make the use of the
goods impossible continuously as from the date on which the goods is
delivered to the consumer provided that such failures occur within the warranty
period specified;
-maximum period for repair is exceeded;
-the service station of the concerned company is not available and in the event
that such failure cannot be removed with repair work according to a report to
be issued by respectively, seller or vendor, or agent, representative office,
importer or manufacturer-producer, consumer may demand free replacement
of the goods, refund or discount in proportion to the defect of the goods.
6. Failures arisen from improper use and against the conditions set forth in the
user's manual will be outside the scope of the warranty.
7. Application may be made to the Directorate General of Consumer Protection
and Market Surveillance of T.R. Ministry of Industry and Trade in respect of the
problems related to the Certificate of Warranty.
